CENTREGO 5K40 User manual

Centrego
5K40
User
Manual
This manual covers the daily operation of the device using photographs and step-by-step guides.
There is also technical information on the Centrego 5K40 device and other information to support
device use.
If any further information is needed, please contact the manufacturer.
On-site ECA solution generator
Once the Centrego 5K40 device has been
installed on location, there is only the
need to check salt and water
levels for optimum operation.
The machine will produce disinfectant
solution on-site at a very low cost.
This significantly reduces the need
for purchasing synthetic chemical
disinfection products.

Centrego 5K40
P 2 P 3CENTREGO 5K40CENTREGO 5K40
Table of Contents
1.0 General .................................................... 4
1.1 Installation of 5K40 system...........................4
1.2 Introduction and intended use ...................4
1.3 Design and compliance .................................4
1.4 Symbols and meanings..................................4
2.0 Safety ...................................................... 5
2.1 Caution Use Only As Directed......................5
2.2 Directions for Safe Use....................................5
2.3 Water quality......................................................5
2.4 General safety ...................................................6
3.0 Machine overview .................................. 6
3.1 Machine description........................................6
3.2 Intended use of device...................................6
3.3 Intended use of ECA soluton........................6
5.0 Device layout .......................................... 10
5.1 Front and right side .........................................10
5.2 Right side detail ................................................12
5.3 Front and left side ............................................14
5.4 Key for door .......................................................16
5.5 Using the door key ..........................................17
6.0 Handling.................................................. 18
6.1 Handling the product ....................................18
6.2 Transportation...................................................19
7.0 Casing and door...................................... 20
7.1 Back of the control screen.............................21
8.0 Screen layout .......................................... 22
8.1 Normal Running screen .................................22
8.2 Home screen ......................................................24
8.3 Process screen ...................................................24
8.4 Alarms screen.....................................................25
8.5 Trends screen .....................................................25
8.6 Manual PPM control ........................................25
9.0 Stop/reset button ................................... 26
9.1 Where is the button.........................................26
9.2 Operating the stop button............................26
10.0 Internal layout ...................................... 28
10.1 Top half of internal layout...........................28
10.2 Bottom half of internal layout ..................30
11.0 ECA cell information............................. 32
12.0 Brine Pump VE3-MF.............................. 34

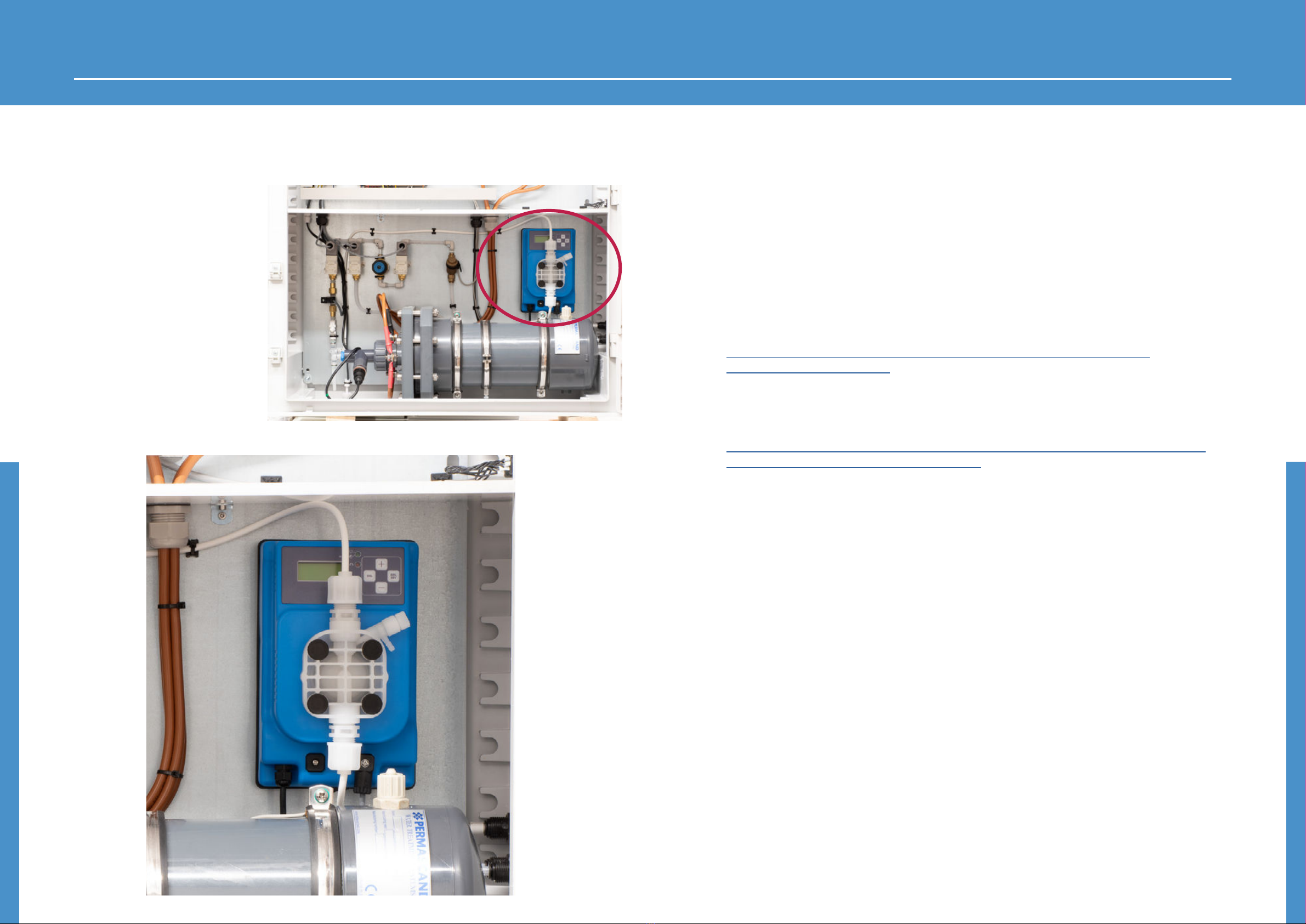

12. 1 Location of pump in device ......................34
12. 2 Pump manual links.......................................35
13.0 Troubleshooting ................................... 36

2.0 Safety
2.1 Caution Use Only As Directed
• Use solution only for disinfection.
• DO NOT use in an enclosed space. Use only in a well-ventilated area.
• For industrial use only.
• DO NOT spray into your eyes. In case of contact with eyes, rinse immediately with
plenty of water and seek medical advice.
• DO NOT swallow the activated solution. If swallowed, seek medical advice.
• DO NOT use this unit and activated solution near fire.
• Wash hands after use. People with sensitive or damaged skin should avoid
prolonged contact with the product.
• Keep out of the reach of children and pets.
2.2 Directions for Safe Use
• DO NOT move the unit during operation.
• STORE SOLUTION SAFELY – Do not keep the activated ECA solution in the refrigerator or kitchen, catering areas
xxxxxxgxxxxxxgwhere it can be confused with drinking water.
• Produce only as much fluid as necessary and use as instructed. Use activated solutions
within 1 week – sterilising and deodorising power is reduced gradually over time.
• Unused solutions can be disposed of with care.
• Avoid direct exposure of the unit to the sun or central heating. This might cause fire or damage.
• DO NOT use ground water, polluted water or excessively hard water with the machine.
• DO NOT use any other input apart from normal mains/tap water.
2.3 Water quality
• The water supply MUST be from potable tap water with limited hardness.
• If in a hard water area, a water softener is recommended.
• Low calcium water is recommended.
• DO NOT use ground water, polluted water or excessively hard water.
CAUTION - Potentially Hazardous Situation
DANGER - Electric shock risk
1.0 General
1.1 Installation of 5K40 system
The installation and commissioning of the 5K40 system should only be carried out by qualified
Centrego technicians or fully trained partners.
Any questions relating to the installation and commissioning of these systems should be directed
to Centrego Ltd.
1.2 Introduction and intended use
Congratulations on the purchase of the Centrego 5K40. Before using this unit for the first time, please read
the instruction manual carefully and keep all information for future referance. These instructions will show
you how to use the device safely and protect you from danger or damaging the unit.
This device produces mixed oxidant disinfection solution on site from salt and water. The solution from the
device can replace most disinfection products that may already be used at your buisness.
1.3 Design and compliance
The ECA solution produced by the machine has the following compliance listings.
The compliance listings for the machine are on the last page of this manual.
1.4 Symbols and meanings
Below are explanations of symbols and meanings used in this manual.
DANGER - is reserved for conditions and actions that are likely to cause serious or fatal injury
WARNING - Is reserved for conditions and actions that can cause serious or fatal injury
CAUTION - is reserved for conditions and actions that can cause injury or instrument damage
On-site ECA solution generator
SYSTEM CERTIFICATION
European Chemicals Agency (ECHA) listed IE CEE Certified
UK Health & Safety Executive (HSE) listed FCC certified
US Environmental Protection Agency Approved UKCA Certified
CE Certified
P 4 P 5CENTREGO 5K40CENTREGO 5K40

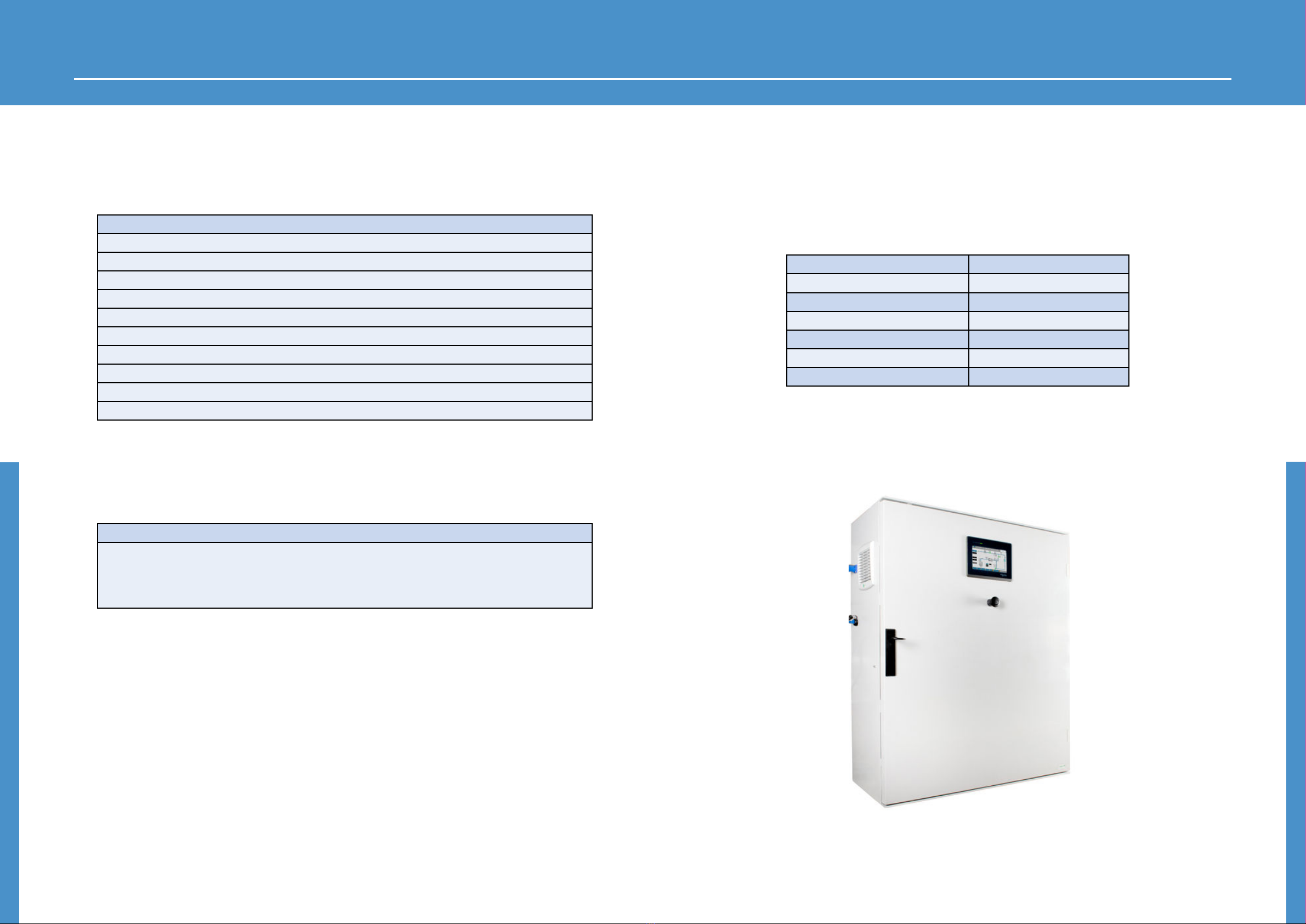

Mixed oxidant solution production 40ls/hr
Free Chlorine (HOCL + OCL) 4500 - 5000mg/L (4500-5000ppm)
Oxidation Reduction Potential (ORP) ≥00 mv
EC - depending on free Available Chlo-
rine (FAC)
mS <5
pH range ph8.5-9.5
Water Supply 40L per hour
Water Pressure Supply 2-5 bar
Water Hardness <17CaCo3/ppm
Salt Consumption 25 gram per litre
Electrical Current Supply 100-253v 13A
Space Ventilation >0M3/H
Ambient Temperature min/max 5°C to 30 °C
4.0 5K30 Machine data
SYSTEM TECHNOLOGY
Electrochemical Activation (ECA) cell system generating mixed oxidant solution at
pH8.5-9.5.
• After 5 to 7 days pour the solution away and simply make some more.
• After use, carefully wipe surfaces and leave to dry
• Always use the power cable and plug supplied.
The Centrego 5K40 generates a disinfection solution by the electrolysis of
water and salt.
It is manufactured by Centrego Limited, of Unit N4 Marshall Way, Frome, Somerset,
BA112FB, United Kingdom.
KEEP OUT OF REACH OF CHILDREN AND UNAUTHORISED PERSONNEL
2.4 General safety
3.0 Machine overview
3.1 Machine description
The Centrego 5K40 produces ECA (Electro chemically activated) disinfection solution on-site using salt and
water. Sea water can also be used. ECA disinfectant solution is an eco-alternative to most disinfection
products.
The Centrego 5K40 is capable of producing 40 litres of solution every hour. The device will acept table and
granulated salt mixed with water (brine), or sea water which is activated in the cell through electrolysis.
3.2 Intended use of device
The Centrego 5K40 is intended to be used in large industrial facilities where disinfection is require part of
cleaning-in place practices.
3.3 Intended use of ECA soluton
The intention of using ECA solution for disinfection is an evironmentaly responsable system in that it can
reduce a company's way that it reduces a companies carbon footprint due to negating the need for
disposable disinfection products and the plastic that comes with it. It also means that staff are safer due to
the solution being hypoallergenic and not harmfull to the skin.
P 6 P 7CENTREGO 5K40CENTREGO 5K40

INPUTS
Water (HO): potable water, minimum requirement for ltered softened water, or reverse
osmosis water. Maximum 70ppm TDS, conductivity 140uS/cm
Salt (NaCl): Crystalline form, listed with European Chemicals Agency (ECHA) for the
production of active chlorine by electrolysis.
On-site ECA solution generator
SOLUTION CERTIFICATION EN13727
EN14476 EN13624
EN16777 EN1656
EN13697 EN1500
EN1650 EN17126
EN14348 EN1276
EN14675
SYSTEM SPECIFICATIONS & FUNCTIONALITY
HMI touch screen controls
User adjustable PPM output
Automated brine control to maintain selected PPM output
Inputs - Potable water input and salt brine, or sea water
Onscreen notication from sensors to track progress
Lockable Door
Remote monitoring systems controls via laptop or mobile phone
Volume output real-time and cumulative
Flow rate & salinity monitoring and recording
Voltage/current & Alarms monitoring and recording
P 8 P 9CENTREGO 5K40CENTREGO 5K40

P 10 P 11CENTREGO 5K40CENTREGO 5K40
5.0 Device layout

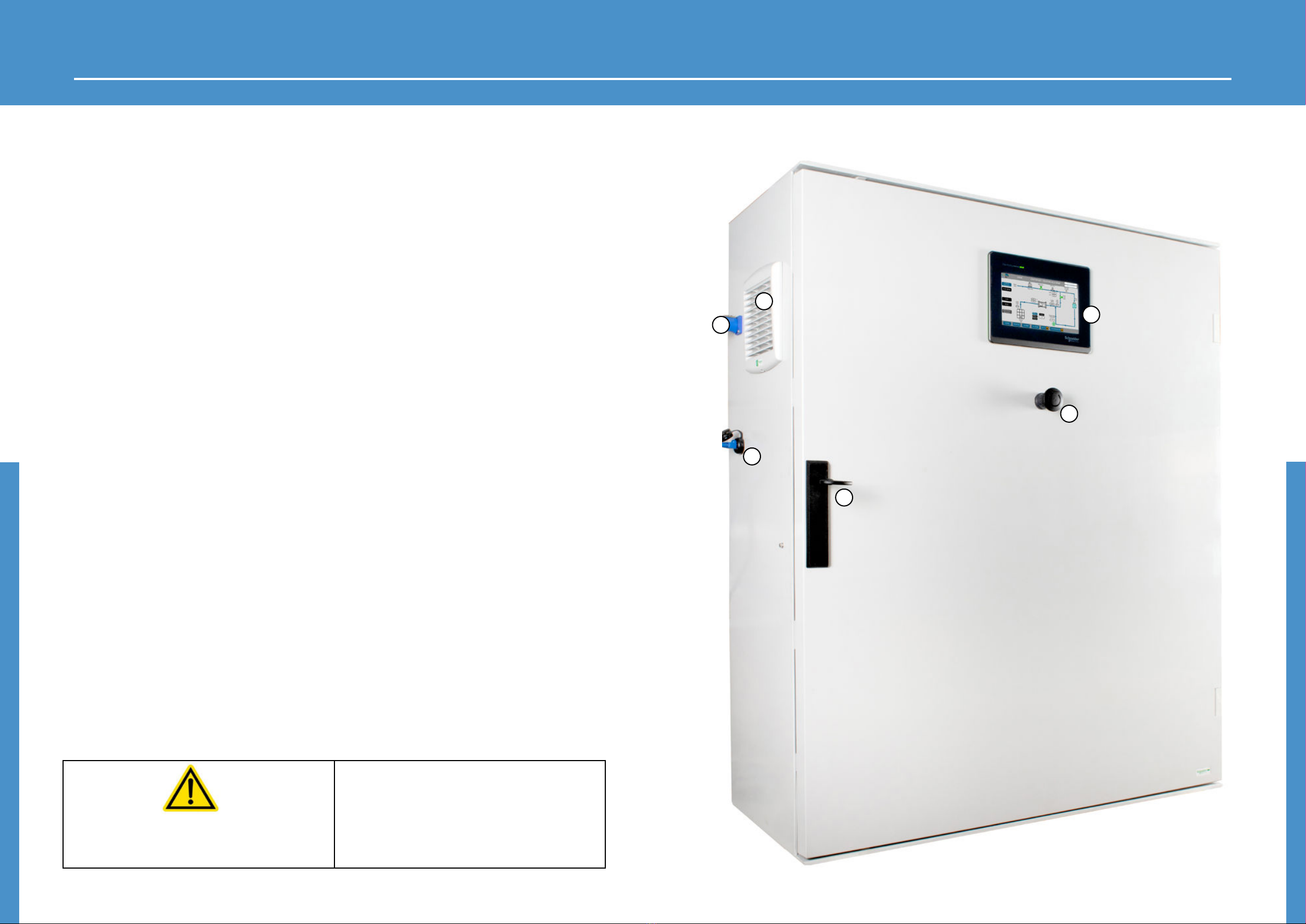

5.1 Front and right side
1 - Touch Screen
2 - Stop/Reset button
3 - Air vent
4 - Sensor connections
5 - Fluid connections
1
CAUTION: The 5K40 device is very heavy. Do not
handle this machine without the
appropriate health and safety training from your
organisation.
DANGER - Electric shock risk. Do not hande the
power cable or internal components without full
training from the manufacturer. Failiure to do may
cause electricution or death.
CAUTION: Do not use salt tablets with this
device. Only use salt granules or table salt in brine
water.
23
4
5

P 12 P 13CENTREGO 5K40CENTREGO 5K40

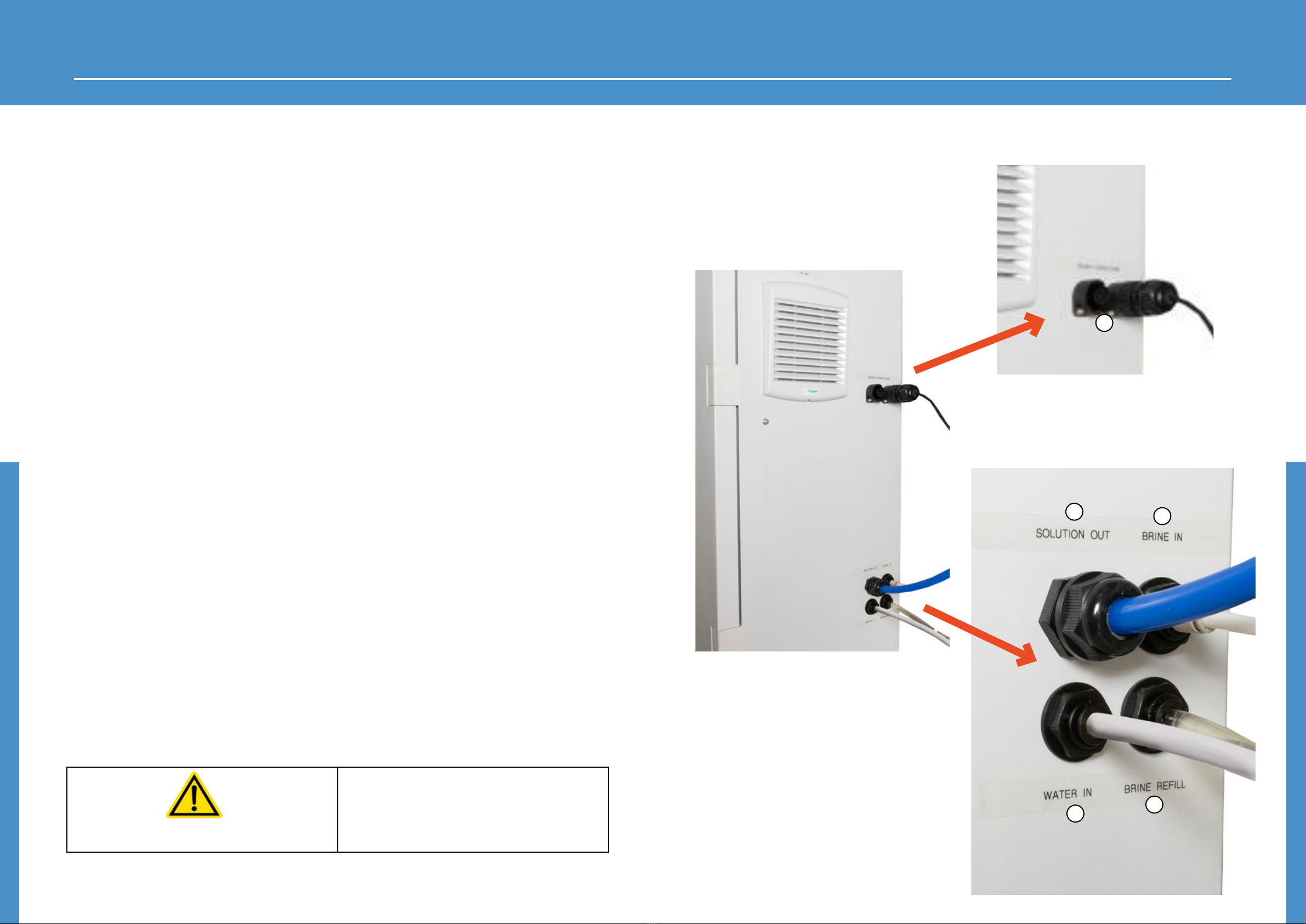

5.2 Right side detail
1 - Sensor control inputs
2 -Solution output
3 - Brine Input
4 - Water input
5 - Brine refil
CAUTION: The 5K40 device is very heavy.
Do not handle this machine without the
appropriate health and safety measures.
1
23
45

P 14 P 15CENTREGO 5K40CENTREGO 5K40
1
CAUTION: before handling the water softener on
the back of the 5K40 ensure that you read the full
manufacturers manual for the device.
Ensure the water softener goes through its cleaning
process three times before using the device.
5.3 Front and left side
1 - Mains power input
2 - Air vent
3 - Touch screen
4 - Ethernet port for internet
connection for remote use
via Schneider software.
5 - Door lock
6 - Stop/reset button
2
3
6
5
4

P 16 P 17CENTREGO 5K40CENTREGO 5K40
5.4 Key for door
The key to lock and unlock the door of the device is shown below.
This may vary slightly in colour and shape to the example below.
Note:
Do not attempt to lock and unlock the door in
anyway without this key.
5.5 Using the door key
To unlock the door push the key into
the hole as shown.
Note: Do not use any other keys for
this device or try to unlock the door
forcefully.
Turn the key to unlock the door.
It will only go one way to unlock.
The door will open when it has
unlocked.

CAUTION - When operating this device, follow all
appropriate health and safety training.
6.0 Handling
6.1 Handling the product
ALWAYS make sure that the device is clean at all times to reduce possible salt build up on all surfaces on
and near the device.
DANGER - Do not get the power cable wet in any way before during or after use.
DANGER - Do not handle any electrical contact or power adapter with wet hands.
DANGER - Do not use abrasive chemical to clean the machine.
When handling the device:
Follow all health and safety training that you have had from your employer and or the manufacturer.
Do not touch or use the device without full training from Centrego trained personel.
When installing or relocating the device:
Do not install or relocate this device unless fully trained by the manufacturer. If this is done without full training the
machine may be damaged and injury may occur, and it may invalidate the warranty.
When using the device:
Ensure that your hands are free from moisture before touching the power cable, and mains plug. Handling
electrical components with wet or moist hands can cause electrical shock.
6.2 Transportation
After testing and quality control the Centrego 5K40 is packaged for disptach.
This device is designed to be installed by a professional onto a wall for frame and left in-situ. In the
unlikely event that the device will need to be moved it is reccommended that a member of staff who has
been trained by the manufacturer does this. In most cases the manufacturer will carry this out as part of a
contract.
If the device is relocated, make sure that all parts of the device are dry before packaging into an appropraite
box.
CAUTION - Ensure a technician that has
qualifications in electonics and plumbing installs
and or uninstalls this device.
Do not attempt to install or uninstall if you are not
qualified in these areas.
Do not attemp anything unless trained by the
manufacturer fully.
DANGER - Electric shock risk.
P 18 P 19CENTREGO 5K40CENTREGO 5K40

P 20 P 21CENTREGO 5K40CENTREGO 5K40
7.0 Casing and door
The device casing is manufactured by Schneider electonics. We do not recommend moving the device
unless a trained staff member has removed all pipes and power connections. If the device is moved, it is
recommended that the door is locked shut with the correct key. If the device is moved with the door
unlocked, it could swing open, causing injury.
7.1 Back of the control screen
The back of the touch control screen has cables that supply power and online access to the screen and device.
It is not recommended to do any of the following: removing, adapting or relocating any of these cables, plugging
in any third-party device to this screen.
DANGER - Electric shock risk. If the device has been
opened do not touch any electrical components
unless having has full training from the
manufacturer.

P 22 P 23CENTREGO 5K40CENTREGO 5K40
1 - 'Water Input' indicator
2 - 'Water Filter' indicator
3 - 'Water Input Valve' indicator
4 - Litres Run
5 - Brine top up valve
6 - Water Feed Valve
7 - Brine Tank
8 - Inlet Temp
9 - Salinity (PPM) indicator
10 -Solution Cell statistics
11 - Outlet Temp indicator
12 - Manual change for PPM output
13 - Brine Pump
14 - Normal Running Menu
15 - Start Rinse button
16 - Stop button
17 - Reset button
18 - Show General Information menu
19 - Home button
20 - Process button
21 - Trends stats
22 - Alarms stats
23 - Setup (Locked)
24 - Commissioning (Locked)
25 - Date and time
8.0 Screen layout
8.1 Normal Running screen
WARNING:
This information is designed to
increase the understanding of the
device for users. We recommend
that you do not touch, change, or
modify anything on this device
without consulting this manual
and without training by Centrego
technicians. There are no
user-serviceable parts inside.
DANGER:
We do not advise opening the
device without consultation with
the manual and full training from
the manufacturer. This device is
built to international quality
standards, but electric shock may
occur with improper use.
1
2
345
NOTE: This screen can be used when standing in
front of the device when pressing with fingers or
touch screen pen.
It can also be used remotely from a computer or
smart device if the Centrego 5K40 is connected
to the internet using Schneider Software.
6
7
8
9
10
11
12 13
14
15
16
17
18
19 20 21 22
25
23 24

P 24 P 25CENTREGO 5K40CENTREGO 5K40
8.2 Home screen
After turning the machine on
The option circled will say 'START'.
Press 'START' and then this will show
as 'NORMAL RUNNING' as the machine
starts producing solution.
8.3 Process screen
This will show a wider wier of the
operation details.
8.4 Alarms screen
This device records any alarms triggered
at any point during operation.
If an alarm is activated, it will be logged
on to this screen. It will be logged by
Date, time and item.
NOTE: If the machine is turned off
or reset, then this data could be lost.
8.5 Trends screen
This screen is helpful to see any trends
that happen in the statistic on the use of
the machine.
You can view the following
using the button circles in red to
change the graph view.
- Temperature
- Cell Voltage and Current
- Water Flow
- Salinity
8.6 Manual PPM control
Circled in red is the manual PPM
control. You are able to control the
PPM output from this set of buttons.

P 26 P 27CENTREGO 5K40CENTREGO 5K40

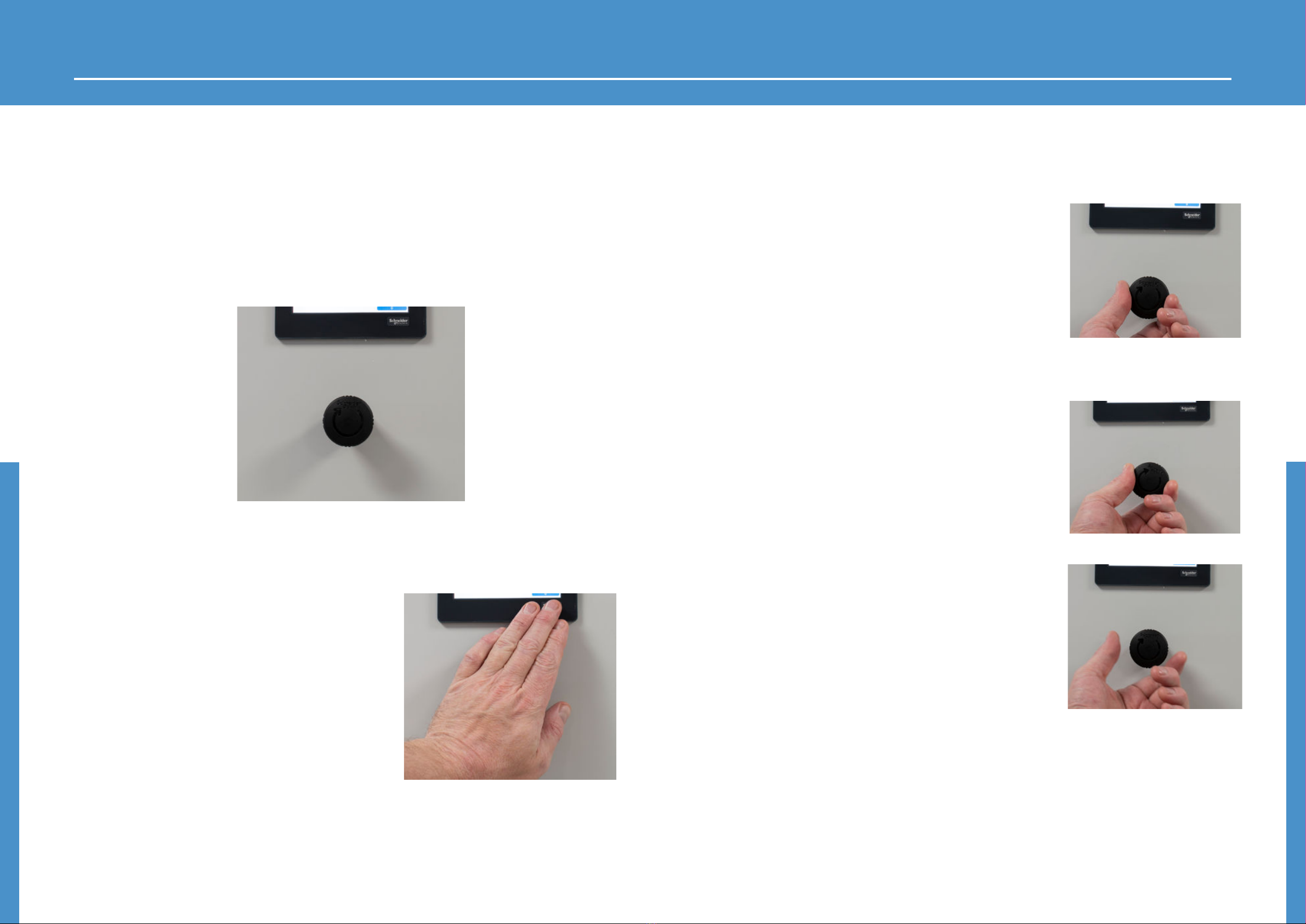

9.0 Stop/reset button
9.1 Where is the button
Pressing the 'STOP' button will stop the device completely. When released
the machine will in standby mode waiting to be restarted.
To start machine see page 24.
The STOP button is located on
the front of the device. It is
a large black button.
9.2 Operating the stop button
Press the button with your fingers or hand.
Press the button directly into the device and
then release after the click.
Once activated, the machine
will completely stop and 'E-STOP Active'
will show on the touch screen.
NOTE:
Check that 'E-STOP Active' is on the screen.
If it is not showing, the E-STOP has already been reset,
and the machine is ready for operation.
Release the STOP button
Once the button has been gripped, push it into the device or
away from you and rotate clockwise.
The button will feel as if it clicks towards you. Release the button.
The 'E-STOP Active' message on the touch screen will disappear.
The E-STOP function has been turned off, and the machine has
been reset ready to be started (see page 24).
NOTE:
Check that 'E-STOP Active' is no longer on the touch screen to
confirm that this has worked. If the screen still reads 'E-STOP
Active' the button has not been released.

P 28 P 29CENTREGO 5K40CENTREGO 5K40
1 - Earth block
2 - Thermostat for fans
3 - Main isolator
4 - Mains neutral block
5 - MCB's
6 - 24v Fuse set
7 - Neutral block
8 - Main power supply for cell
9 - Main power supply for cell
10 - Main PLC Programable Logic Main Computer
11 - Secondary PLC
12 - 0v connector block
13 - Cell supply control relay
14 - Voltage Converter
15 - Main control power supply (PSU)
16 - Stop/reset Relay
17 - Main connector interface
18 - CT to monitor current

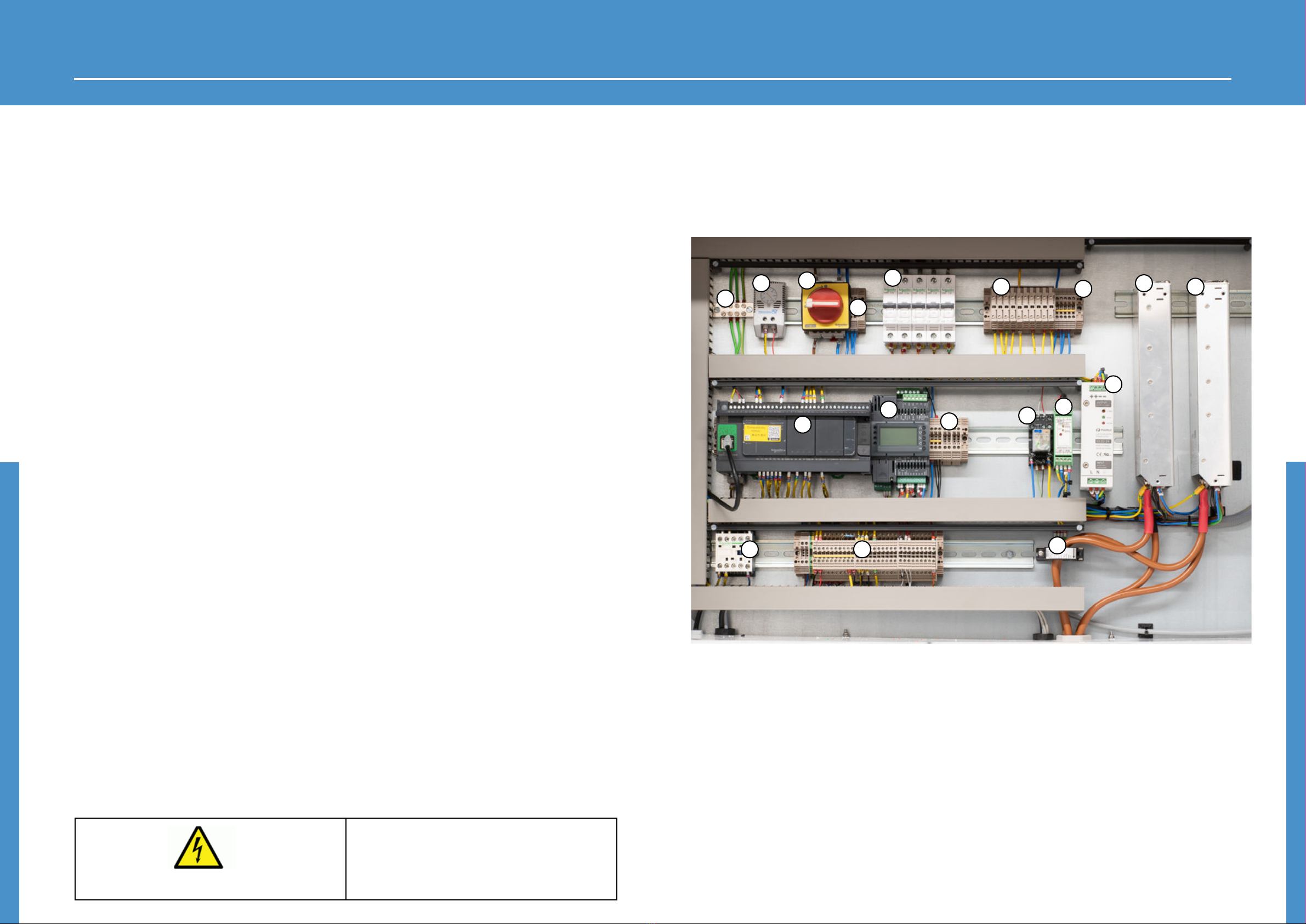

10.0 Internal layout
10.1 Top half of internal layout
WARNING:
This information is designed to increase
the understanding of the device for users.
We recommend that you do not touch,
change, or modify anything on this
device without consulting this manual
and without training by Centrego
technicians. There are no
user-serviceable parts inside.
DANGER:
We do not advise opening the
device without consultation with the
manual and full training from the
manufacturer. This device is built to
international quality
standards, but electric shock may occur
with improper use.
1
DANGER - Electric shock risk. If the device has
been opened do not touch any electrical com-
ponents unless having has full trainig from the
manufacturer.
235689
10
11
12 13 14
15
16 18 17
This shows the top half of the view of the device when
the door is open. Do not touch or alter anything inside
of the device unless fully trained by Centrego Ltd.
4
7

P 30 P 31CENTREGO 5K40CENTREGO 5K40
Section 02
Corporate Typography
1 - Cell solenoid valve
2 - Brine refil solenoid valve
3 - Pressure Regulator
4 - Main water solenoid
5 - Inlet filter
6 - Brine pump
7 - ECA cell
8 - Cell power connectors
9 - Salinity sensor
10 - Flow valve adjuster
11 - Flow counter
12 - Moisture detector
13 - Solution outlet
10.2 Bottom half of internal layout
WARNING:
This information is designed to increase
the understanding of the device for users.
We recommend that you do not touch,
change, or modify anything on this
device without consulting this manual
and without training by Centrego
technicians. There are no
user-serviceable parts inside.
DANGER:
We do not advise opening the
device without consultation with the
manual and full training from the
manufacturer. This device is built to
international quality
standards, but electric shock may occur
with improper use.
21 3456
7
8
9
10
11
This shows the bottom half of the view of the device
when the door is open. Do not touch or alter anything
inside of the device unless fully trained by Centrego
Ltd.
12
13

P 32 P 33CENTREGO 5K40CENTREGO 5K40
11.0 ECA cell information
General Safety
For your own safety and to be able to use this generator in a correct way it is important that
you carefully read through this manual, including tips and warnings before using it for the
rst time. In order to avoid unnecessary mistakes and accidents; it is important that
everyone who manages the generator to have good knowledge of its area of use and its
safety features. Save this manual and ensure that it accompanies the chlorinator if it is
moved so that all users have accurate safety information and information on how to
ualmanage it.
• It is dangerous to alter the specications or attempt to modify this product in any way.
• The electrolysis equipment is not intended for use by persons with reduced physical or
sensory ability, or lack of sensory ability, or lack of experience and knowledge if they are not
instructed and supervised by a person responsible for their safety.
• Repairs carried out by inexperienced sta can result in injury or serious malfunctioning.
Always contact your dealer or our service department. Always insist on genuine spare parts.
About the solution produced by this cell
The electrolysis equipment from Centrego Water Treatment Systems produces active
chlorine in the form of sodium hypochlorite which is used for disinfection of water in
municipalities, hotels, oil and gas, food processing and industrial processes.
Electrolysis equipment produces hypochlorite from salted water and DC current.
Electrolysis is the most energy, cost and work environment eective way to supply a ECA
hypochlorite solution. When solution is produced on site there is no need for transporting,
handling or unnecessary storing of
active chemicals.
Below are links so that further information can be found for this cell
Permascand website:
https://permascand.com/
These links are hyperlinked to Verders website. you can click on these links if you are
viewing an interactive PDF version of this manual.

P 34 P 35CENTREGO 5K40CENTREGO 5K40
12.0 Brine Pump VE3-MF
12. 1 Location of pump in device
This pump is at the bottom of the device
inside (shown with a red circle) and is for
pumping liquid to the brine tank.
This does not need adjusting.
It may need servicing but only
infrequently.
12. 2 Pump manual links
Below are links so that further information can be found for this pump.
The model of this pump that is manufactured by Verder is as follows:
VE3-MF
Click the below links to access the documents on your computer or smart phone:
Data Sheet:
https://www.verderliquids.com/leadmin/user_upload/Test/Verderdos_Data-
sheet/124-VD-17_VE3_MF.pdf
Manual:
https://www.verderliquids.com/leadmin/user_upload/Test/Verderdos_manual/Verder-
dos_VE_VE%203_INT_EN-FR-IT-ES_Manual.pdf
These links are hyperlinked to Verders website. you can click on these links if you are
viewing an interactive PDF version of this manual.

P 36 P 37CENTREGO 5K40CENTREGO 5K40
13.0 Troubleshooting
REPORTED ISSUE TRIAGE POINTS
 No power.
 The device is not turning on.
 The screen is not coming on as
well as no sound from the inside of
the device.
 The device is not working.
 Check that the power plug is
working by checking other devices
in the wall socket.
 Check the property power and
fuse box.
 Try a different plug if possible.
 Check that the power cable is fully
pushed into the wall power socket
and clipped in.
 A strong smell of chlorine
 Solution smells more potent than
usual.
 If there is a strong smell of chlo-
rine, your device has been adapted
to produce a high PPM solution,
and therefore, this is normal.
 Check the water input to the
device is working correctly. If the
mains water stops, the machine
will start producing very high PPM
solutions, giving a strong smell of
chlorine following the machine
shutting down.
 E-Stop active shows on the touch
screen, and the machine is not
working.
 The E-Stop has been activated,
and therefore the machine will
not proceed with ECA production
until the E-Stop is released. The
E-Stop button is the red button on
the front of the device. To release,
twist the button clockwise until the
button clicks. The E-stop has been
released when 'E-Stop active' no
longer shows on the touch screen.
 Front door of main device will not
close.
 There are metal keys that can be
used to lock the front door of the
device. If the door is locked, then
the door will stay closed.
 Check for any obstructions in the
door, such as pipes.
 'Moisture Alarm' is showing on the
touch screen.
 Check inside of device for
moisture. Resolve any leak if found
 'Loss of Water', or water flow error
shows on the touch screen.
 This means that the water input
into the device from the mains has
reduced pressure and flow. This
could mean that the water input
has been turned off via an isolation
tap, or the mains water has been
turned off.
 Check that the water input pipe
has not been bent or kinked, stop-
ping the water flow from the water
mains into the device.
 Toucan screen shows progress bar
and or whirring circle.
 This means that the device has
just been turned on, and the sys-
tem is starting up. Please wait until
the menu appears, and the device
will be ready to go.
 There are bubbles in the solution
that is being produced by the
machine.
 Due to the process that makes
ECA Solution, there will be a small
amount of gas produced as a
by-product. These bubbles in the
gas confirm that this process is
working correctly. If you see
bubbles in the output solution,
then this is normal.
 The 5K40 device makes an audible,
rhythmic humming noise when it
produces the solution.
 This device uses a pump, amongst
other components. These parts
will make an audible sound when
in use. This is normal and confirms
that the device is working correctly.
If you are unsure about the sound
or it changes significantly, Get in
touch with a qualified technician.

SCAN FOR WEBSITE
Centrego Ltd
Address: Centrego Ltd, Unit N4, Marshall Way,
Commerce Park, Frome, Somerset
BA11 2FB, United Kingdom
© Centrego Limited 2023
