Cepex CSP-050 User manual

Arc Adjustment:
(All CSP-050 adjustable heads are PRESET to
approximately 40°)
1. Rotate the nozzle turret counterclockwise to the
left stop.
2. Now, rotate the nozzle turret clockwise to the
right stop. This is the xed side of the arc. The
nozzle turret must be held in this position for all
arc adjustments.
To increase arc:
1. Insert the key end of the wrench into the
adjustment socket on top of the sprinkler.
2. While holding the nozzle turret at the right stop,
turn the wrench clockwise.
3. Wrench will stop turning when adjusted to the
maximum arc (360°). Do not go past this stop.
4. Adjust to any arc between 40°–360°.
To decrease arc:
1. Insert the key end of the wrench into the
adjustment socket.
2. While holding the nozzle turret at the right stop,
turn the wrench counterclockwise.
CSP-050
Gear Driven Sprinklers
SCALE 2:1
3. Wrench will stop turning when adjusted to the
minimum arc (40°). Do not go past this stop.
4. Adjust to any arc between 40°–360°.
Radius Adjustment:
To decrease radius:
1. Turn nozzle-retainer/range-adjustment screw
clockwise using hex end of tool or slot
screwdriver. This can reduce radius up to 25%.
2. If an even smaller radius is desired, install a
smaller nozzle. This will affect precipitation rate.
To increase radius:
1. Turn nozzle-retainer/range-adjustment screw
counterclockwise using hex end of tool or slot
screwdriver.
2. If larger radius is desired, install larger nozzle.
This will affect precipitation rate.
Precipitation Rate Adjustment:
To increase precipitation:
1. Remove existing nozzle.
2. Replace with larger size.
3. Adjust radius.
To decrease precipitation:
1. Remove existing nozzle.
2. Replace with smaller size.
3. Adjust radius.
Note: Undamaged nozzles are reusable.
FLUIDRA ESPANA, S.A.U.
www.uidra.es P/N 700974 INT-986 12/12
Pull-up
Socket
Plus+ Minus-
Arc Adjustment
Radius
Reduction
Screw

Data represented test results in zero wind. Adjust for local conditions. Radius may
be reduced up to 25% with adjustment screw (this may alter the uniformity of
spray pattern).
Optimum performance is shown in bold type.
CSP-050 Nozzle Performance Data
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
.75
30
40
50
15'
16'
17'
0.64
0.75
0.85
0.55
0.56
0.57
0.63
0.65
0.65
1.0
30
40
50
18'
19'
19'
0.85
1.0
1.1
0.51
0.53
0.59
0.58
0.62
0.68
1.5
30
40
50
21'
22'
22'
1.3
1.5
1.7
0.57
0.60
0.68
0.66
0.69
0.78
2.0
30
40
50
24'
25'
25'
1.7
2.0
2.3
0.57
0.62
0.71
0.66
0.71
0.82
2.5
30
40
50
27'
28'
28'
2.2
2.5
2.8
0.58
0.61
0.69
0.67
0.71
0.79
3.0
30
40
50
30'
31'
31'
2.5
3.0
3.4
0.53
0.60
0.68
0.62
0.69
0.79
4.0
30
40
50
33'
34'
34'
3.7
4.0
4.3
0.65
0.67
0.72
0.76
0.77
0.83
5.0
30
40
50
36'
37'
37'
4.7
5.0
5.3
0.70
0.70
0.75
0.81
0.81
0.86
Note: All precipitation rates calculated for 180 degree operation.
For the precipitation rate for a 360 degree sprinkler, divide by 2.
CSP-050 Nozzle Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa mm
3
/hr l/min
.75
1.7
2.0
2.5
3.0
3.5
3.8
172
200
248
303
352
379
4.3
4.6
4.9
5.2
5.2
5.5
0.13
0.14
0.16
0.18
0.19
0.20
2.2
2.4
2.7
3.0
3.2
3.4
14
14
13
13
14
13
17
16
15
15
17
15
1.0
1.7
2.0
2.5
3.0
3.5
3.8
172
200
248
303
352
379
5.2
5.5
5.5
5.8
5.8
6.1
0.18
0.19
0.21
0.23
0.24
0.25
3.0
3.2
3.5
3.8
4.1
4.2
13
13
14
14
15
14
15
15
16
16
17
16
1.5
1.7
2.0
2.5
3.0
3.5
3.8
172
200
248
303
352
379
6.1
6.4
6.4
6.7
6.7
7.0
0.27
0.29
0.32
0.36
0.39
0.40
4.5
4.8
5.4
6.0
6.4
6.7
15
14
16
16
17
16
17
16
18
18
20
19
2.0
1.7
2.0
2.5
3.0
3.5
3.8
172
200
248
303
352
379
7.0
7.3
7.3
7.6
7.6
7.9
0.34
0.37
0.42
0.48
0.53
0.56
5.6
6.2
7.1
8.0
8.8
9.3
14
14
16
17
18
18
16
16
18
19
21
20
2.5
1.7
2.0
2.5
3.0
3.5
3.8
172
200
248
303
352
379
7.9
8.2
8.2
8.5
8.5
8.8
0.46
0.49
0.54
0.59
0.63
0.65
7.6
8.1
9.0
9.8
10.5
10.9
15
14
16
16
17
17
17
17
18
19
20
19
3.0
1.7
2.0
2.5
3.0
3.5
3.8
172
200
248
303
352
379
8.8
9.1
9.1
9.4
9.4
9.8
0.51
0.56
0.64
0.72
0.78
0.82
8.5
9.3
10.6
12.0
13.1
13.7
13
13
15
16
18
17
15
15
18
19
20
20
4.0
1.7
2.0
2.5
3.0
3.5
3.8
172
200
248
303
352
379
9.8
10.1
10.1
10.4
10.4
10.7
0.80
0.83
0.89
0.94
0.98
1.00
13.3
13.8
14.8
15.7
16.3
16.7
17
16
18
17
18
18
19
19
20
20
21
20
5.0
1.7
2.0
2.5
3.0
3.5
3.8
172
200
248
303
352
379
10.7
11.0
11.0
11.3
11.3
11.6
1.02
1.06
1.11
1.17
1.21
1.23
17.0
17.6
18.5
19.4
20.1
20.5
18
18
18
18
19
18
21
20
21
21
22
21
Note: All precipitation rates calculated for 180 degree operation.
For the precipitation rate of a 360 degree sprinkler, divide by 2.

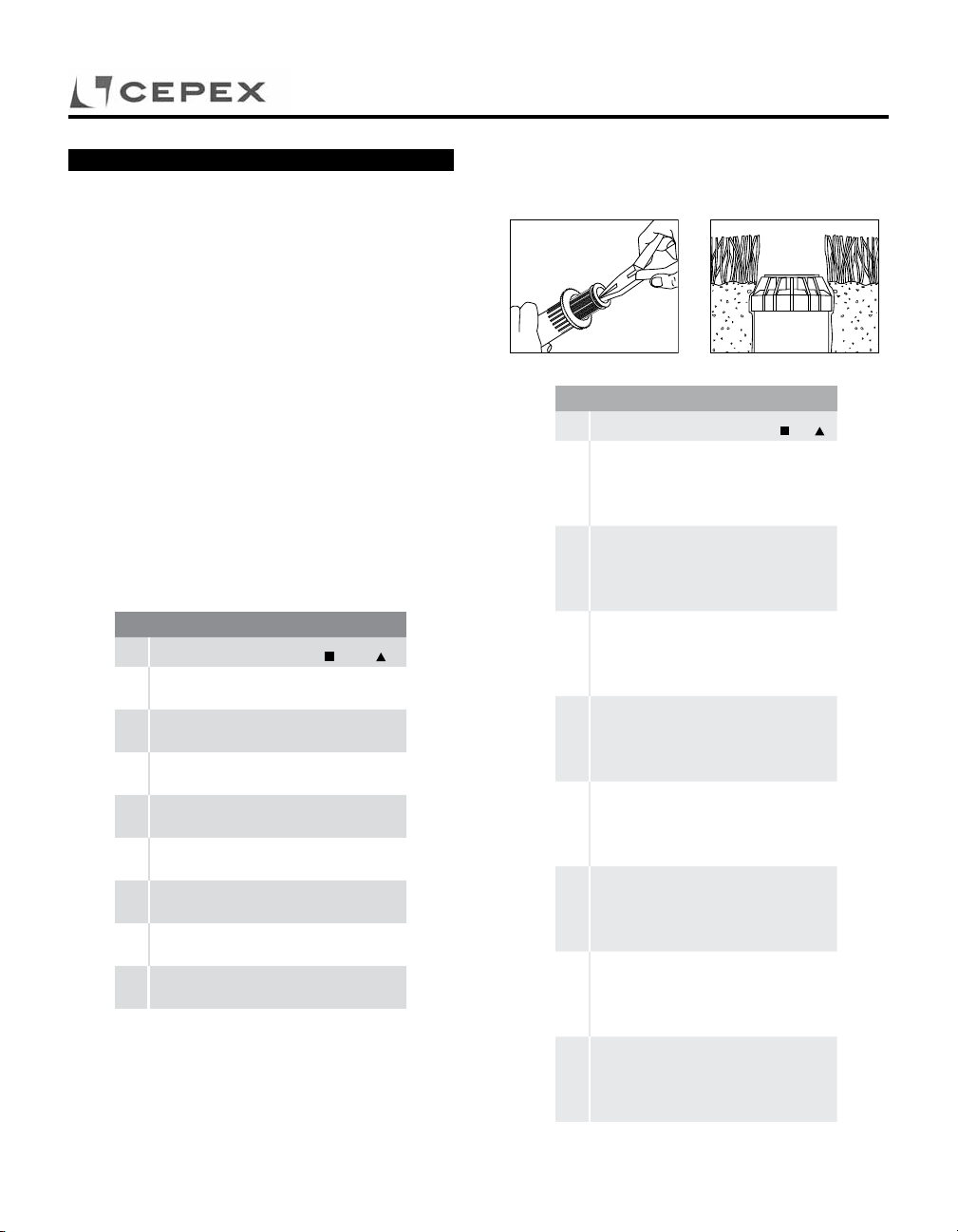

Nozzle Installation:
1. Insert the plastic key end of the wrench into the
lifting socket of the sprinkler and turn 90°. Pull
the riser up to gain access to the nozzle socket.
2. Using the hex key of the wrench, turn the radius
adjustment screw counterclockwise to be sure
it is not blocking the nozzle socket opening. If
a nozzle is already installed, it can be removed
by backing out the adjustment screw and
turning on the water, or by prying outward
under the nozzle.
3. Slip the desired nozzle into the nozzle socket.
Note that the socket is angled up 25° so that
the nozzle range screw threads directly down.
Then tighten the nozzle range screw. The arrow
on the rubber cover will always indicate the
location of the nozzle and direction of the water
ow when the sprinkler is retracted.
Removing Filter Screen
for Cleaning
Proper Installation
Height
CSP-050
Gear Driven Sprinklers

ALIGNING THE RIGHT (FIXED) SIDE OF ARC
If the right side of the arc is not properly aligned, the results
may be a wet walkway or a dry turf area. The right side
arc can easily be realigned. One way to realign the right
stop is to turn the whole sprinkler body assembly and the
tting below it, left or right to the desired position. This may
require temporary removal of the soil around the sprinkler
to allow you to grip the sprinkler housing.
Another way to reset the right arc is
to unscrew the body cap counter-
clockwise and remove the internal
assembly from the body. Once
removed, rotate the nozzle turret
to the right stop, screw the internal
assembly back into the body with the
nozzle aligned to the right side of
the area you want irrigated (Fig. 9).
At this point you have realigned the
right arc stop, and you can adjust
the left arc to an appropriate setting.
Note: It is not necessary to dig up and remove the whole
sprinkler to realign the right arc.
NON-REVERSING 360
This CSP-075 sprinkler is designed as a part- and full-circle
in one model. When the sprinkler is adjusted to the
full-circle position, the sprinkler will rotate in a continuous
counterclockwise direction. This saves everyone from
stocking additional full-circle only models while efficiently
irrigating the landscapes.
NON-STRIPPABLE BACKDRIVE
This CSP-075 sprinkler is designed with an internal device
that prevents damage to the internal gear drive if it should
be turned by vandals. This important feature works when
the nozzle turret is turning in either direction. This makes
the sprinkler very durable in all applications.
AUTO ARC RETURN
This CSP-075 sprinkler is designed with an internal
device that re-aligns the arc if it is turned by vandals. This
important feature works when the nozzle turret is turning
in either direction.
When forced outside of
the originally set arc,
the sprinkler takes the
shortest path back to
the pattern without going
completely around. This
saves the non-irrigated
areas from getting wet!
Always a good thing!
CSP-075 Sprinklers
Note: It is not necessary to disassemble the sprinkler to make adjustments.
Fig. 4
Decrease Arc
Increase Arc
Fig. 4

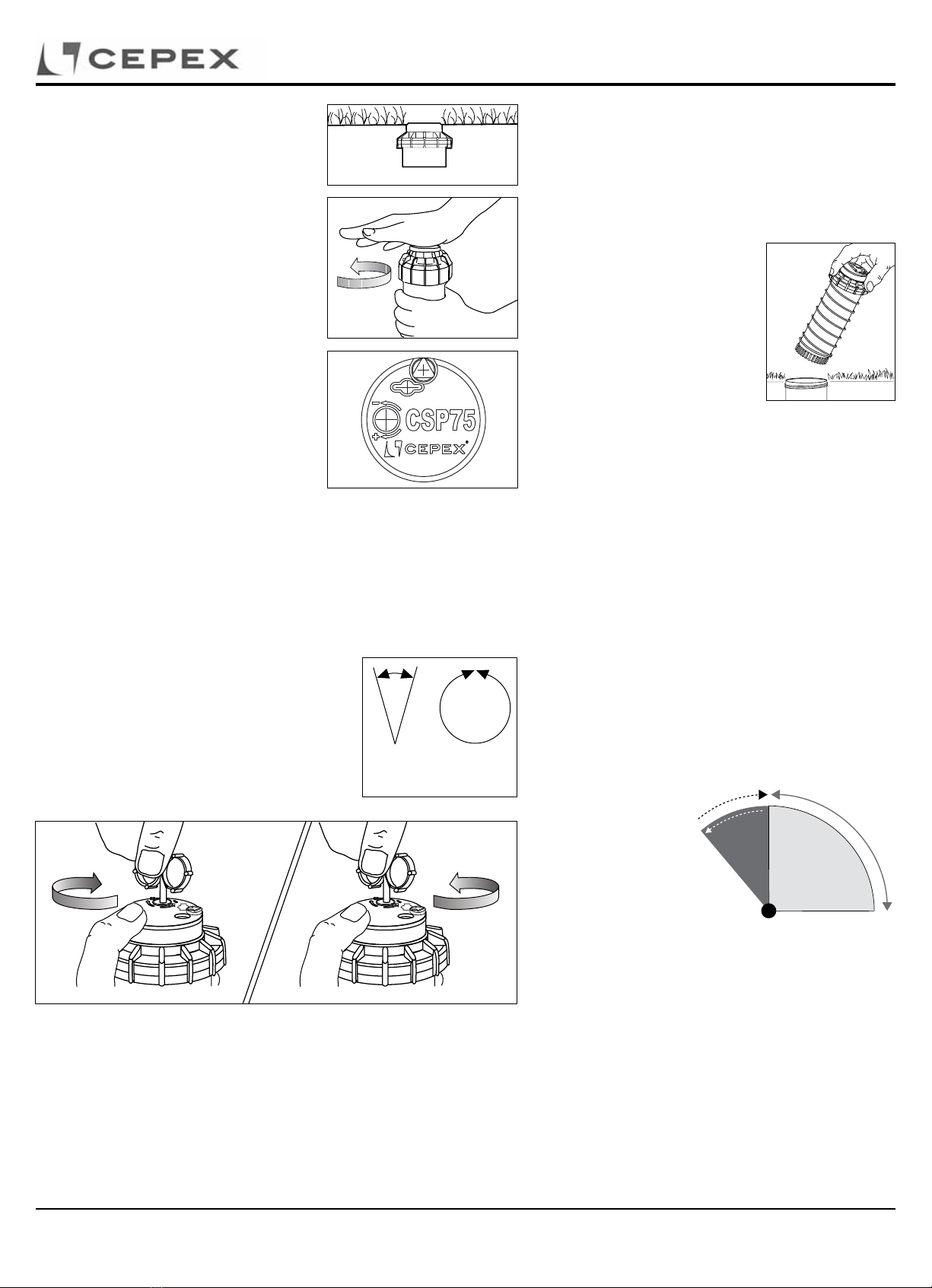

CSP-075 INSTALLATION:
The CSP-075 pop-up sprinkler should be
installed at nished grade as shown in the
illustration (Fig. 1).
Arc Adjustments:
Adjustable heads are preset to
approximately 180˚. Sprinklers may
be adjusted with water on or off. It is
recommended that initial adjustments be
made before installation.
1. Using the palm of your hand, rotate the
nozzle turret counterclockwise to the left
stop to complete any interrupted rotation
cycle (Fig. 2).
2. Rotate the nozzle turret clockwise to the
right stop. This is the xed side of the arc.
The nozzle turret must be held in this
position for arc adjustments. The right
stop does not change.
To Increase the Arc:
1. Insert the plastic key end of the wrench
into the adjustment socket (Fig. 3 & 4).
2. While holding the nozzle turret at the right
stop, turn the wrench clockwise. Each full 360˚ turn of the wrench will
increase the arc 90˚.
3. Adjust to any arc between 50˚ and 360˚ (Fig. 5).
4. The wrench will stop turning, or there will be a ratcheting noise, when the
maximum arc of 360˚ (full circle) has been reached.
5. When set to 360, the sprinkler will rotate continually counterclockwise.
To Decrease the Arc:
1. Insert the plastic key end of the wrench into the
adjustment socket (Fig. 3 & 4).
2. While holding the nozzle turret at the right stop,
turn the wrench counterclockwise. Each full 360˚
turn of the wrench will decrease the arc 90˚.
3. Adjust to any arc between 50˚ and 360˚ (Fig. 5).
4. The wrench will stop turning, or there will be a
ratcheting noise, when the minimum arc of 50˚
has been reached.
SCALE 2:1
Fig. 9
Minimum
Arc
Maximum
Arc
50°360°
Fig. 5
Fig. 5
FLUIDRA ESPANA, S.A.U.
www.uidra.es P/N 700054 INT-987 12/12
Fig. 1
Fig. 1
Fig. 2
Fig. 2
a
u
t
o
-
r
e
t
u
r
n
i
f
f
o
r
c
e
d
d
e
s
i
r
e
d
s
e
t
a
r
c
Fig. 3

CSP-075 BLUE NOZZLES
P/N 782900
CSP-075 5.5 m Short Radius Nozzle
Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa m m3/hr l/min
.50
SR
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
4.9
5.2
5.2
5.2
5.5
5.5
5.5
0.07
0.08
0.09
0.10
0.12
0.13
0.14
1.2
1.3
1.5
1.7
1.9
2.1
2.3
6
6
7
8
8
8
9
7
7
8
9
9
10
10
1.0
SR
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
4.9
5.2
5.2
5.2
5.5
5.5
5.5
0.16
0.17
0.19
0.21
0.23
0.25
0.26
2.7
2.9
3.2
3.6
3.8
4.1
4.3
14
13
14
16
15
16
17
16
15
17
18
18
19
20
2.0
SR
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
4.9
5.2
5.2
5.2
5.5
5.5
5.5
0.28
0.31
0.36
0.41
0.45
0.49
0.53
4.7
5.2
6.0
6.9
7.6
8.2
8.9
24
23
27
31
30
33
35
27
27
31
35
35
38
41
CSP-075 High Flow Standard Nozzle
Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa m m3/hr l/min
10
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
10.7
11.9
12.5
12.8
13.1
13.7
14.0
1.48
1.60
1.80
2.01
2.18
2.34
2.49
24.6
26.7
30.0
33.5
36.3
39.0
41.5
26
23
23
25
25
25
25
30
26
27
28
29
29
29
13
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
11.0
12.2
12.8
13.1
13.4
13.7
14.0
1.91
2.08
2.34
2.61
2.83
3.03
3.23
31.9
34.6
38.9
43.4
47.1
50.5
53.8
32
28
29
30
31
32
33
37
32
33
35
36
37
38
CSP-075 High Flow Low Angle Nozzle
Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa m m3/hr l/min
6.0
LA
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
9.1
9.4
10.1
10.7
11.3
11.6
11.9
0.86
0.94
1.07
1.20
1.31
1.42
1.52
14.3
15.6
17.8
20.0
21.9
23.6
25.3
21
21
21
21
21
21
21
24
24
24
24
24
24
25
8.0
LA
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
10.1
10.7
11.3
11.6
11.9
12.5
12.5
1.17
1.28
1.44
1.61
1.76
1.89
2.01
19.5
21.3
24.0
26.9
29.3
31.5
33.6
23
22
23
24
25
24
26
27
26
26
28
29
28
30
CSP-075 7.6 m Short Radius Nozzle
Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa m m3/hr l/min
.75
SR
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
6.7
7.0
7.0
7.3
7.6
7.6
7.6
0.12
0.13
0.15
0.16
0.17
0.19
0.20
2.0
2.2
2.4
2.7
2.9
3.1
3.3
5
5
6
6
6
6
7
6
6
7
7
7
7
8
1.5
SR
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
6.7
7.0
7.0
7.3
7.6
7.6
7.6
0.23
0.25
0.28
0.31
0.34
0.36
0.39
3.8
4.1
4.6
5.2
5.6
6.0
6.4
10
10
11
12
12
12
13
12
12
13
13
13
14
15
3.0
SR
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
6.7
7.0
7.0
7.3
7.6
7.6
7.6
0.53
0.56
0.60
0.64
0.67
0.70
0.73
8.9
9.3
10.0
10.7
11.2
11.7
12.1
24
23
24
24
23
24
25
27
26
28
28
27
28
29
Note: All precipitation rates calculated for 180 degree operation.
For the precipitation rate for a 360 degree sprinkler, divide by 2.
CSP-075 Low Angle Nozzle
Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa m m3/hr l/min
2.0
LA
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
7.3
7.6
7.9
8.2
8.5
8.8
9.1
0.33
0.36
0.40
0.45
0.48
0.52
0.55
5.6
6.0
6.7
7.4
8.0
8.6
9.1
12
12
13
13
13
13
13
14
14
15
15
15
15
15
2.5
LA
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
7.9
8.2
8.8
9.4
10.1
10.4
10.7
0.44
0.47
0.53
0.59
0.64
0.68
0.72
7.3
7.9
8.8
9.8
10.6
11.3
12.0
14
14
14
13
13
13
13
16
16
16
15
15
15
15
3.5
LA
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
8.5
8.8
9.1
10.1
10.7
11.0
11.3
0.58
0.62
0.68
0.75
0.80
0.85
0.89
9.7
10.3
11.4
12.5
13.3
14.1
14.8
16
16
16
15
14
14
14
18
18
19
17
16
16
16
4.5
LA
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
8.2
8.8
9.1
10.1
10.7
11.0
11.3
0.71
0.76
0.84
0.93
1.00
1.06
1.12
11.8
12.7
14.1
15.5
16.6
17.6
18.6
21
19
20
18
18
18
18
24
23
23
21
20
20
20
CSP-075 Blue Standard Nozzle
Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa m m3/hr l/min
1.5
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
9.1
9.4
9.8
9.8
9.8
9.4
0.29
0.32
0.35
0.38
0.41
0.43
4.8
5.4
5.9
6.4
6.8
7.2
7
7
7
8
9
10
8
8
9
9
10
11
2.0
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
10.1
10.1
10.4
10.4
10.4
10.4
0.35
0.39
0.43
0.47
0.50
0.53
5.8
6.5
7.2
7.8
8.3
8.8
7
8
8
9
9
10
8
9
9
10
11
11
2.5
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
10.4
10.7
10.7
10.7
10.7
10.7
0.43
0.48
0.54
0.58
0.62
0.66
7.1
8.0
8.9
9.7
10.4
11.1
8
8
9
10
11
12
9
10
11
12
13
13
3.0
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
10.7
11.0
11.6
11.9
11.9
11.9
0.54
0.61
0.68
0.74
0.79
0.84
9.1
10.2
11.4
12.3
13.2
14.0
10
10
10
10
11
12
11
12
12
12
13
14
4.0
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
11.6
11.9
12.2
12.2
12.5
12.5
0.73
0.81
0.90
0.97
1.04
1.10
12.2
13.6
15.0
16.2
17.3
18.3
11
12
12
13
13
14
13
13
14
15
15
16
5.0
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
11.6
11.9
12.8
12.8
12.8
12.8
0.91
1.02
1.14
1.24
1.32
1.41
15.2
17.1
19.0
20.6
22.1
23.4
14
15
14
15
16
17
16
17
16
17
19
20
6.0
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
11.9
12.2
13.1
13.1
13.4
13.4
1.09
1.22
1.36
1.47
1.57
1.67
18.2
20.4
22.7
24.5
26.2
27.9
15
16
16
17
18
19
18
19
18
20
20
21
8.0
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
11.9
12.5
13.4
13.7
14.0
14.0
1.46
1.63
1.81
1.95
2.09
2.22
24.3
27.2
30.2
32.6
34.8
36.9
21
21
20
21
21
23
24
24
23
24
25
26
Note: All precipitation rates calculated for 180 degree operation.
For the precipitation rate for a 360 degree sprinkler, divide by 2.
CSP-075 18' Short Radius Nozzle
Performance Data P/N 466100
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
.50
SR
30
40
50
60
17
17
18
19
0.36
0.43
0.50
0.57
0.24
0.29
0.30
0.30
0.28
0.33
0.34
0.35
1.0
SR
30
40
50
60
17
17
18
19
0.78
0.90
1.0
1.1
0.52
0.60
0.59
0.59
0.60
0.69
0.69
0.68
2.0
SR
30
40
50
60
17
17
18
19
1.4
1.7
2.0
2.2
0.93
1.13
1.19
1.17
1.08
1.31
1.37
1.35
CSP-075 High Flow Standard Nozzle
Performance Data P/N 444800
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
10
40
50
60
70
42
43
45
47
8.4
9.5
10.5
11.4
0.92
0.99
1.00
0.99
1.06
1.14
1.15
1.15
13
40
50
60
70
43
44
45
47
10.9
12.3
13.6
14.8
1.13
1.22
1.29
1.29
1.31
1.41
1.49
1.49
CSP-075 High Flow Low Angle Nozzle
Performance Data
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
6.0
LA
30
40
50
60
31
35
37
39
4.2
5.0
5.8
6.3
0.84
0.79
0.82
0.80
0.97
0.91
0.94
0.92
8.0
LA
40
50
60
70
37
39
41
41
6.7
7.7
8.5
9.2
0.94
0.97
0.97
1.05
1.09
1.13
1.12
1.22
CSP-075 25' Short Radius Nozzle
Performance Data
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
.75
SR
30
40
50
60
23
24
25
26
0.58
0.68
0.75
0.83
0.21
0.23
0.23
0.24
0.24
0.26
0.27
0.27
1.5
SR
30
40
50
60
23
24
25
26
1.1
1.3
1.5
1.6
0.40
0.43
0.46
0.46
0.46
0.50
0.53
0.53
3.0
SR
30
40
50
60
23
24
25
26
2.5
2.7
3.0
3.1
0.91
0.90
0.92
0.88
1.05
1.04
1.07
1.02
Note: All precipitation rates calculated for 180 degree operation.
For the precipitation rate for a 360 degree sprinkler, divide by 2.
CSP-075 Low Angle Nozzle
Performance Data
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
2.0
LA
30
40
50
60
25
27
28
30
1.6
1.9
2.1
2.3
0.49
0.50
0.52
0.49
0.57
0.58
0.60
0.57
2.5
LA
30
40
50
60
27
30
33
35
2.1
2.5
2.8
3.0
0.55
0.53
0.49
0.47
0.64
0.62
0.57
0.54
3.5
LA
30
40
50
60
29
32
35
37
2.8
3.1
3.5
3.8
0.64
0.58
0.55
0.53
0.74
0.67
0.64
0.62
4.5
LA
30
40
50
60
29
32
35
37
3.4
3.9
4.4
4.7
0.78
0.73
0.69
0.66
0.90
0.85
0.80
0.76
CSP-075 Blue Standard Nozzle
Performance Data P/N 782900
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
1.5
25
35
45
55
65
29
31
31
32
32
1.2
1.4
1.5
1.8
1.9
0.27
0.28
0.30
0.34
0.36
0.32
0.32
0.35
0.39
0.41
2.0
25
35
45
55
65
33
33
34
34
32
1.4
1.7
2.0
2.1
2.3
0.25
0.30
0.33
0.35
0.43
0.29
0.35
0.38
0.40
0.50
2.5
25
35
45
55
65
33
35
35
35
35
1.7
2.1
2.5
2.6
2.9
0.30
0.33
0.39
0.41
0.46
0.35
0.38
0.45
0.47
0.53
3.0
25
35
45
55
65
35
36
38
39
39
2.2
2.7
3.0
3.4
3.7
0.35
0.40
0.40
0.43
0.47
0.40
0.46
0.46
0.50
0.54
4.0
25
35
45
55
65
37
39
40
41
41
3.0
3.5
4.0
4.5
4.8
0.42
0.44
0.48
0.52
0.55
0.49
0.51
0.56
0.60
0.63
5.0
25
35
45
55
65
37
39
42
42
42
3.7
4.5
5.0
5.7
6.2
0.52
0.57
0.55
0.62
0.68
0.60
0.66
0.63
0.72
0.78
6.0
25
35
45
55
65
38
40
43
44
44
4.3
5.6
6.0
6.7
7.3
0.57
0.67
0.62
0.67
0.73
0.66
0.78
0.72
0.77
0.84
8.0
25
35
45
55
65
37
41
44
46
46
6.0
7.0
8.0
9.0
9.8
0.84
0.80
0.80
0.82
0.89
0.97
0.93
0.92
0.95
1.03
Note: All precipitation rates calculated for 180 degree operation.
For the precipitation rate for a 360 degree sprinkler, divide by 2.
CSP-075 5.5 m Short Radius Nozzle
Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa m m3/hr l/min
.50
SR
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
4.9
5.2
5.2
5.2
5.5
5.5
5.5
0.07
0.08
0.09
0.10
0.12
0.13
0.14
1.2
1.3
1.5
1.7
1.9
2.1
2.3
6
6
7
8
8
8
9
7
7
8
9
9
10
10
1.0
SR
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
4.9
5.2
5.2
5.2
5.5
5.5
5.5
0.16
0.17
0.19
0.21
0.23
0.25
0.26
2.7
2.9
3.2
3.6
3.8
4.1
4.3
14
13
14
16
15
16
17
16
15
17
18
18
19
20
2.0
SR
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
4.9
5.2
5.2
5.2
5.5
5.5
5.5
0.28
0.31
0.36
0.41
0.45
0.49
0.53
4.7
5.2
6.0
6.9
7.6
8.2
8.9
24
23
27
31
30
33
35
27
27
31
35
35
38
41
CSP-075 High Flow Standard Nozzle
Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa m m3/hr l/min
10
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
10.7
11.9
12.5
12.8
13.1
13.7
14.0
1.48
1.60
1.80
2.01
2.18
2.34
2.49
24.6
26.7
30.0
33.5
36.3
39.0
41.5
26
23
23
25
25
25
25
30
26
27
28
29
29
29
13
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
11.0
12.2
12.8
13.1
13.4
13.7
14.0
1.91
2.08
2.34
2.61
2.83
3.03
3.23
31.9
34.6
38.9
43.4
47.1
50.5
53.8
32
28
29
30
31
32
33
37
32
33
35
36
37
38
CSP-075 High Flow Low Angle Nozzle
Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa m m3/hr l/min
6.0
LA
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
9.1
9.4
10.1
10.7
11.3
11.6
11.9
0.86
0.94
1.07
1.20
1.31
1.42
1.52
14.3
15.6
17.8
20.0
21.9
23.6
25.3
21
21
21
21
21
21
21
24
24
24
24
24
24
25
8.0
LA
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
10.1
10.7
11.3
11.6
11.9
12.5
12.5
1.17
1.28
1.44
1.61
1.76
1.89
2.01
19.5
21.3
24.0
26.9
29.3
31.5
33.6
23
22
23
24
25
24
26
27
26
26
28
29
28
30
CSP-075 7.6 m Short Radius Nozzle
Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa m m3/hr l/min
.75
SR
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
6.7
7.0
7.0
7.3
7.6
7.6
7.6
0.12
0.13
0.15
0.16
0.17
0.19
0.20
2.0
2.2
2.4
2.7
2.9
3.1
3.3
5
5
6
6
6
6
7
6
6
7
7
7
7
8
1.5
SR
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
6.7
7.0
7.0
7.3
7.6
7.6
7.6
0.23
0.25
0.28
0.31
0.34
0.36
0.39
3.8
4.1
4.6
5.2
5.6
6.0
6.4
10
10
11
12
12
12
13
12
12
13
13
13
14
15
3.0
SR
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
6.7
7.0
7.0
7.3
7.6
7.6
7.6
0.53
0.56
0.60
0.64
0.67
0.70
0.73
8.9
9.3
10.0
10.7
11.2
11.7
12.1
24
23
24
24
23
24
25
27
26
28
28
27
28
29
Note: All precipitation rates calculated for 180 degree operation.
For the precipitation rate for a 360 degree sprinkler, divide by 2.
CSP-075 Low Angle Nozzle
Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa m m3/hr l/min
2.0
LA
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
7.3
7.6
7.9
8.2
8.5
8.8
9.1
0.33
0.36
0.40
0.45
0.48
0.52
0.55
5.6
6.0
6.7
7.4
8.0
8.6
9.1
12
12
13
13
13
13
13
14
14
15
15
15
15
15
2.5
LA
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
7.9
8.2
8.8
9.4
10.1
10.4
10.7
0.44
0.47
0.53
0.59
0.64
0.68
0.72
7.3
7.9
8.8
9.8
10.6
11.3
12.0
14
14
14
13
13
13
13
16
16
16
15
15
15
15
3.5
LA
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
8.5
8.8
9.1
10.1
10.7
11.0
11.3
0.58
0.62
0.68
0.75
0.80
0.85
0.89
9.7
10.3
11.4
12.5
13.3
14.1
14.8
16
16
16
15
14
14
14
18
18
19
17
16
16
16
4.5
LA
1.7
2.0
2.5
3.0
3.5
4.0
4.5
172
200
248
303
352
400
448
8.2
8.8
9.1
10.1
10.7
11.0
11.3
0.71
0.76
0.84
0.93
1.00
1.06
1.12
11.8
12.7
14.1
15.5
16.6
17.6
18.6
21
19
20
18
18
18
18
24
23
23
21
20
20
20
CSP-075 Blue Standard Nozzle
Performance Data – Metric
Pressure Radius Flow Precip mm/hr
Nozzle Bars kPa m m3/hr l/min
1.5
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
9.1
9.4
9.8
9.8
9.8
9.4
0.29
0.32
0.35
0.38
0.41
0.43
4.8
5.4
5.9
6.4
6.8
7.2
7
7
7
8
9
10
8
8
9
9
10
11
2.0
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
10.1
10.1
10.4
10.4
10.4
10.4
0.35
0.39
0.43
0.47
0.50
0.53
5.8
6.5
7.2
7.8
8.3
8.8
7
8
8
9
9
10
8
9
9
10
11
11
2.5
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
10.4
10.7
10.7
10.7
10.7
10.7
0.43
0.48
0.54
0.58
0.62
0.66
7.1
8.0
8.9
9.7
10.4
11.1
8
8
9
10
11
12
9
10
11
12
13
13
3.0
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
10.7
11.0
11.6
11.9
11.9
11.9
0.54
0.61
0.68
0.74
0.79
0.84
9.1
10.2
11.4
12.3
13.2
14.0
10
10
10
10
11
12
11
12
12
12
13
14
4.0
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
11.6
11.9
12.2
12.2
12.5
12.5
0.73
0.81
0.90
0.97
1.04
1.10
12.2
13.6
15.0
16.2
17.3
18.3
11
12
12
13
13
14
13
13
14
15
15
16
5.0
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
11.6
11.9
12.8
12.8
12.8
12.8
0.91
1.02
1.14
1.24
1.32
1.41
15.2
17.1
19.0
20.6
22.1
23.4
14
15
14
15
16
17
16
17
16
17
19
20
6.0
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
11.9
12.2
13.1
13.1
13.4
13.4
1.09
1.22
1.36
1.47
1.57
1.67
18.2
20.4
22.7
24.5
26.2
27.9
15
16
16
17
18
19
18
19
18
20
20
21
8.0
2.0
2.5
3.0
3.5
4.0
4.5
200
250
300
350
400
450
11.9
12.5
13.4
13.7
14.0
14.0
1.46
1.63
1.81
1.95
2.09
2.22
24.3
27.2
30.2
32.6
34.8
36.9
21
21
20
21
21
23
24
24
23
24
25
26
Note: All precipitation rates calculated for 180 degree operation.
For the precipitation rate for a 360 degree sprinkler, divide by 2.
CSP-075 18' Short Radius Nozzle
Performance Data P/N 466100
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
.50
SR
30
40
50
60
17
17
18
19
0.36
0.43
0.50
0.57
0.24
0.29
0.30
0.30
0.28
0.33
0.34
0.35
1.0
SR
30
40
50
60
17
17
18
19
0.78
0.90
1.0
1.1
0.52
0.60
0.59
0.59
0.60
0.69
0.69
0.68
2.0
SR
30
40
50
60
17
17
18
19
1.4
1.7
2.0
2.2
0.93
1.13
1.19
1.17
1.08
1.31
1.37
1.35
CSP-075 High Flow Standard Nozzle
Performance Data P/N 444800
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
10
40
50
60
70
42
43
45
47
8.4
9.5
10.5
11.4
0.92
0.99
1.00
0.99
1.06
1.14
1.15
1.15
13
40
50
60
70
43
44
45
47
10.9
12.3
13.6
14.8
1.13
1.22
1.29
1.29
1.31
1.41
1.49
1.49
CSP-075 High Flow Low Angle Nozzle
Performance Data
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
6.0
LA
30
40
50
60
31
35
37
39
4.2
5.0
5.8
6.3
0.84
0.79
0.82
0.80
0.97
0.91
0.94
0.92
8.0
LA
40
50
60
70
37
39
41
41
6.7
7.7
8.5
9.2
0.94
0.97
0.97
1.05
1.09
1.13
1.12
1.22
CSP-075 25' Short Radius Nozzle
Performance Data
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
.75
SR
30
40
50
60
23
24
25
26
0.58
0.68
0.75
0.83
0.21
0.23
0.23
0.24
0.24
0.26
0.27
0.27
1.5
SR
30
40
50
60
23
24
25
26
1.1
1.3
1.5
1.6
0.40
0.43
0.46
0.46
0.46
0.50
0.53
0.53
3.0
SR
30
40
50
60
23
24
25
26
2.5
2.7
3.0
3.1
0.91
0.90
0.92
0.88
1.05
1.04
1.07
1.02
Note: All precipitation rates calculated for 180 degree operation.
For the precipitation rate for a 360 degree sprinkler, divide by 2.
CSP-075 Low Angle Nozzle
Performance Data
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
2.0
LA
30
40
50
60
25
27
28
30
1.6
1.9
2.1
2.3
0.49
0.50
0.52
0.49
0.57
0.58
0.60
0.57
2.5
LA
30
40
50
60
27
30
33
35
2.1
2.5
2.8
3.0
0.55
0.53
0.49
0.47
0.64
0.62
0.57
0.54
3.5
LA
30
40
50
60
29
32
35
37
2.8
3.1
3.5
3.8
0.64
0.58
0.55
0.53
0.74
0.67
0.64
0.62
4.5
LA
30
40
50
60
29
32
35
37
3.4
3.9
4.4
4.7
0.78
0.73
0.69
0.66
0.90
0.85
0.80
0.76
CSP-075 Blue Standard Nozzle
Performance Data P/N 732900
Pressure Radius Flow Precip in/hr
Nozzle PSI ft. GPM
1.5
25
35
45
55
65
29
31
31
32
32
1.2
1.4
1.5
1.8
1.9
0.27
0.28
0.30
0.34
0.36
0.32
0.32
0.35
0.39
0.41
2.0
25
35
45
55
65
33
33
34
34
32
1.4
1.7
2.0
2.1
2.3
0.25
0.30
0.33
0.35
0.43
0.29
0.35
0.38
0.40
0.50
2.5
25
35
45
55
65
33
35
35
35
35
1.7
2.1
2.5
2.6
2.9
0.30
0.33
0.39
0.41
0.46
0.35
0.38
0.45
0.47
0.53
3.0
25
35
45
55
65
35
36
38
39
39
2.2
2.7
3.0
3.4
3.7
0.35
0.40
0.40
0.43
0.47
0.40
0.46
0.46
0.50
0.54
4.0
25
35
45
55
65
37
39
40
41
41
3.0
3.5
4.0
4.5
4.8
0.42
0.44
0.48
0.52
0.55
0.49
0.51
0.56
0.60
0.63
5.0
25
35
45
55
65
37
39
42
42
42
3.7
4.5
5.0
5.7
6.2
0.52
0.57
0.55
0.62
0.68
0.60
0.66
0.63
0.72
0.78
6.0
25
35
45
55
65
38
40
43
44
44
4.3
5.6
6.0
6.7
7.3
0.57
0.67
0.62
0.67
0.73
0.66
0.78
0.72
0.77
0.84
8.0
25
35
45
55
65
37
41
44
46
46
6.0
7.0
8.0
9.0
9.8
0.84
0.80
0.80
0.82
0.89
0.97
0.93
0.92
0.95
1.03
Note: All precipitation rates calculated for 180 degree operation.
For the precipitation rate for a 360 degree sprinkler, divide by 2.
METRIC
CSP-075 Sprinklers
Model
Nozzle
No.
Pressure
Degrees of
Trajectory
Max Height
of Spray
Distance
from head to
Max Height
PSI Bar kPa Feet Meters Feet Meters
CSP-075
Blue
1.5 45 3.0 300 25 8' 2.4 23' 7.0
2.0 45 3.0 300 25 8' 2.4 23' 7.0
2.5 45 3.0 300 25 9' 2.7 26' 7.9
3.0 45 3.0 300 25 10' 3.0 28' 8.5
4.0 45 3.0 300 25 11' 3.4 30' 9.1
5.0 45 3.0 300 25 11' 3.4 30' 9.1
6.0 45 3.0 300 25 12' 3.7 32' 9.8
8.0 45 3.0 300 25 13' 4.0 32' 9.8
CSP-075
Low
Angle
2.0LA 45 3.0 300 13 5' 1.5 22' 6.7
2.5LA 45 3.0 300 13 4' 1.2 22' 6.7
3.5LA 45 3.0 300 13 4' 1.2 22' 6.7
4.5LA 45 3.0 300 13 4' 1.2 22' 6.7
RADIUS / DISTANCE
OF THROW
Insert the steel hex end of
the wrench into the radius
adjustment screw (Fig. 6).
Turn the screw clockwise
(into the stream of water)
to decrease the radius,
or counterclockwise
to increase the radius.
Radius can be reduced
up to 25%.
PRECIPITATION RATE
ADJUSTMENT
If you have excessively
wet or dry areas, you
can change the nozzle
in the sprinkler to
increase or decrease
the precipitation rate.
For dry areas, install a
larger nozzle. For wet
areas, install a smaller
nozzle.
NOZZLE INSTALLATION
1. Insert the plastic key end of the wrench into the
lifting socket of the sprinkler and turn 90˚. Pull
the riser up to gain access to the nozzle socket
(Fig. 8).
2. Using the hex key of the wrench, turn the
radius adjustment screw (Fig. 6) counter-
clockwise to be sure it is not blocking the
nozzle socket opening. If a nozzle is already
installed, it can be removed by backing out
the adjustment screw and turning on the
water, or by pulling outward on the nozzle
"ears" with a pair of needle-nosed pliers.
3. Slip the desired nozzle into the nozzle socket
(Fig. 7). Note that the socket is angled up 25˚.
The "ears" should be adjusted so that the
nozzle range screw threads directly down
between them. Then tighten the nozzle range
screw. The raised bump with an arrow on the
rubber cover will always indicate the location
of the nozzle and direction of water ow when
the sprinkler is retracted.
Fig. 6
Fig. 6
Plastic Key End
Steel Hex End
Fig. 7
Nozzle Removal
Post
Fig. 7
Fig. 8
