USER MANUAL
VEGA SERIES
POWERED 12“
SPARE TIRE SUBWOOFER
VPAS12ST

Specifications
All specifications subject to change without notice.
Power
THD
Signal-to-noise ratio
Frequency response
Input sensitivity, high level
Input sensitivity, low level
Low Pass Filter
Bass Boost
Subsonic Filter
Subwoofer 12 inch (actual 11.3”), 2 ohm
Fuse rating
Dimensions(L x W x H) inches/mm
MODEL:
150 WRMS/600 WMAX
<1.0%
>90dB
20Hz - 150Hz
0.9V -12V
0.3V - 5V
50Hz - 150Hz
0 to + 12dB
20Hz
25A
16.5”(419.1) x 16.5”(419.1)x 6.5”(165.1)
VPAS12ST
Cerwin Vega Mobile Amplified Subwoofer
Thank you for purchasing a Cerwin Vega Mobile Amplified Subwoofer for
your car audio system. You have chosen Cerwin Vega Mobile because
you deserve the best!
Cerwin Vega Mobile products are designed and engineered to the highest
quality standards in the industry to create the ultimate listening experience
in your vehicle. For optimal performance of this product, it is highly
recommended that you have your new amplified subwoofer installed by
an authorized Cerwin Vega Mobile dealer. Our authorized dealers have
the necessary experience and installation equipment to ensure that your
amplifier will deliver maximum performance and explain all the details
pertaining to your warranty coverage as well.
If you decide to install the amplified subwoofer by yourself, please
thoroughly read through this manual before getting started. This
manual will help familiarize yourself with this amplified subwoofer
and guide you through the installation process and procedures.
Please contact your local authorized Cerwin Vega Mobile dealer if you
have any questions regarding the instructions in this manual or the
amplifier’s operation capabilities. If you require additional assistance,
please contact the Cerwin Vega Mobile Technical Support Department
during business hours at
213-261-4161 .

LOW LEVEL HI LEVEL
GNDGNDL- R- L- R-
L+ R+ L+ R+ GNDGND
+12V +12V
+12V +12VREM
164.0 mm

6.5” /
Check to make sure you have a good ground connection.
Check that there is at least 12v on the battery (+) terminal
Check that the Remote Input (Turn-On) has at least 10VDC.
Check that the green power LED is lit
Check all fuse, replace if necessary.
Make sure that the Protection LED is not illuminated. If it is lit, shut off
the amplifier briefly, and then Power Cycle (reset).
A.POWER STATUS LED
AUTO POWER CIRCUIT
The AUTO POWER circuit is for high level
(speaker-level) connections. When the speaker
level connections are used AND the remote
turn on wire is NOT used the subwoofer will
AUTO POWER ON when signal is detected.
If the amplifier detected no signal input, the
amplifier will auto turn off.
You MUST use the Remote Control as this is
used to set up level and See G on its functions
B.REMOTE LEVEL CONTROL PORT
.
C.HIGH LEVEL (speaker level) INPUTS
If your head unit does not have RCA outputs
you can use the speaker outputs for the audio
source for the subwoofer. Use the supplied
cable and wire harness and connect the
outputs properly as shown in the connection
diagram in this manual (FIG2, PG5)
There is a GREEN “power” LED that glows
green when power is on and no problems are
present. If the protection circuit (PRO) comes
on, it will illuminate the other LED RED
F.FUSE
Do not use a fuse with a different value
and NEVER replace the fuse with a wire
or coin. The fuse is there to protect the vehicle
NOT the amplifer/subwoofer.
Note: Please connect the remote terminal
to the remote output of head unit as in
Fig.4. When you hear the unit turn ON/OFF
there should be a very slight POP noise
from the subwoofer.

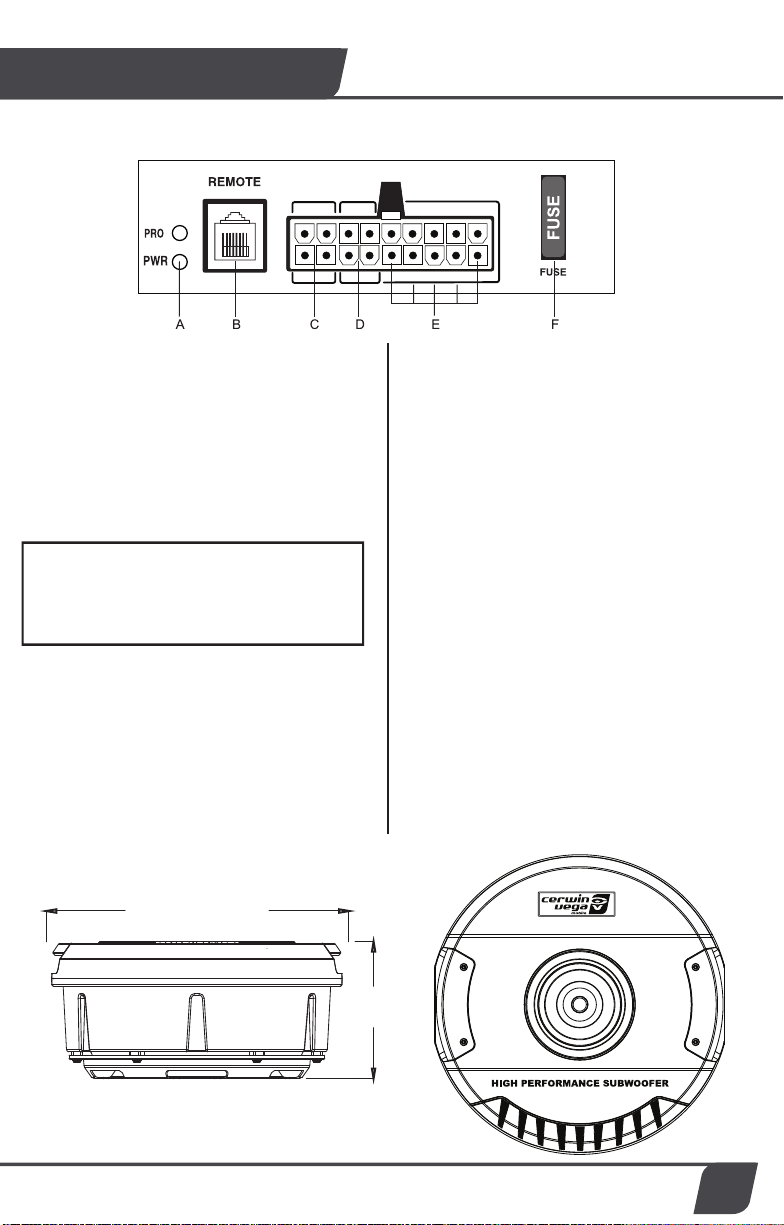

PANEL CONNECTIONS AND FEATURES
3
Features/Functions
E.POWER INPUT TERMINAL
Use 8 guage COPPER wire!! NOT CCA type
cheap-o deluxe wire kits!!!!
This is usually caused by poor quality RCA cables, which can pick up
radiated noise. Use only the best quality cables, and route them away
from power cables.
Check that the RCA grounds are not shorted to the vehicle chassis
Check that the head unit is properly grounded.
D.LOW LEVEL RCA INPUTS
Low level inputs are the recommended way
to introduce the audio signal to the subwoofer.
IF RCA outputs are present on your head unit
or other signal source (such as a sound
processor - see FIG 1, PG4).
NOTE: NEVER CONNECT BOTH RCA AND
SPEAKER INPUTS SIMUALTANEOUSLY!!

4
LOW LEVEL HI LEVEL
GNDGNDL- R- L- R-
L+ R+ L+ R+ GNDGND
+12V +12V
+12V +12VREM
GAIN
MIN MAX
BASS BOOST
LPF
PHASE
AMPLIFIED SUBWOOFER
0dB +12dB
50Hz 150Hz
180
0
B+
B-
RCA/LOW LEVEL INPUT
(RED - RIGHT)
RCA/LOW LEVEL INPUT
(WHITE - LEFT)
SPEAKER/HI LEVEL INPUT
(LEFT WHITE+/WHITE/BLACK -)
SPEAKER/HI LEVEL INPUT
(RIGHT GREY+/GREY/BLACK -)
SWITCHED 12V
(From Head Unit)
Figure 1
PANEL CONNECTIONS AND FEATURES
12V From Battery
18 PIN POWER/INPUT PLUG
Ground connection
to chassis
Installation
REMOTE
CONTROL

Installation
5
Low Level Input Wiring
Low-level (RCA) input wiring is preferred for best audio performance. Most trunk
or hatchback installations will require a 15-20 foot RCA cable, Always use a high
quality cable.
NOTE: Do not connect BOTH the high level and low level inputs from your
receiver to your amplifier at the same time!
SPECIAL NOTE: Always route power and signal seperately
POWER AND INPUT SIGNAL WIRING
NOTE: DO NOT USE CCA wiring kits
EVER!!!!! Using this type of wire VOIDS
your warranty!
1. Connect your 8 guage power wire
DIRECTLY to the battery B+ terminal
with a high quality ring terminal. Make
sure that a fuse holder is approx. 18
inches from the battery and the fuse
should be NO larger than 20 amperes.
2. Make sure to run the power wire thru a
gromment in the firewall to eliminate any
possiblitity of shorts.
3. Route the Remote Control cable (phone
wire) thru your vehicle to the sparetire
area of you trunk.
4. Connect a remote turn on wire to your
head units remote output using 16
gauge blue wire (not included)
SPECIAL NOTE:
The VPAS12ST is equipped with an
automatic turn on circuit if NO
switched 12 volts is available for
turn-on.
LOW LEVEL HI LEVEL
GNDGNDL- R- L- R-
L+ R+ L+ R+ GNDGND
+12V +12V
+12V +12VREM
Power wiring is very straight forward. Use a high
quality power kit (not supplied or included)

The trunk: Shown is a
hatchback,. But Coupes or
Sedans should be almost
identical
Installation
6
Figure 1
CAUTION!! Make sure to not drill or screw into vital vehicles components!!
SPARE TIRE
SPARE TIRE
This is a VERY simple install and can fit into virtually any car made in the last 10 years.
WITHOUT removing your spare tire. Follow the instructions to a SUPER easy install!
1. Remove the trunk liner. Typically it is NOT screwed or bolted down. It should
simple pull out as shown below in Figure 1
TRUNK LINER
2. Once the trunk liner is removed and you can get access to your spare tire
Make a mental note if the spare tire is deep side down or deep side up???
Deep Side Down Deep Side Up

Installation
7
Figure 2
Figure 3
Figure 4
FLIP OVER THE SPARE TIRE - IF NEEDED
1. IF your spare tire is Deep
Side UP then you need to
unbolt it and flip it over so
the VPAS12ST can sit
inside of it.
(See Figure 2)
2. IF your spare tire is Deep
Side DOWN then you simply
need to unbolt the sparetire
and drop the VPAS12ST in so
it can sit inside of it.
(See Figure 3)
NO NEED TO FLIP OVER THE SPARE TIRE
2. Make sure to check
what size the mounting
bolt is as the VPAS12ST
comes with a 8mm and
a 10mm mounting bolt.
Which should fit 90% of
all vehicles out today.
8mm or 10mm Mounting Bolt
(included)

Installation
8
Using fix bolt and ABS Nut(supplied)
SPARE TIRE WITH ABS NUT (AUDI/VW TYPICALLY)
Some vehicles have a different type of spare tire mounting system as shown below.
Where there is a large “NUT” and a bolt coming thru the center of the spare tire.
IF so....
1. Thorughly clean the spare tire
2. Replace the original spare ABS fixing nut with the supplied one that came with
the VPAS12ST
ORIGINAL OEM ABS NUT
CERWIN VEGA
REPLACEMENT ABS NUT
(included)
CONNECTING WIRING HARNESS
1. The VPAS12ST should be mounted into
the spare tire area at this point.
2. Remove the M6 hex screws from the
below the handle/port area as shown
to the left (Figure 5) Insert Power/Input
plug assembly. Make sure to push until
it “clicks” into the locked position .
3. Once the Power/Input plug is securly
plugged in, replace the handle/port cover
With the same hex screws. Tie-Wrap all
wiring so it is clean and easy to remove
the VPAS12ST subwoofer when the time
arises.
M6 Allen Wrench (Included)
Figure 5

9
SetUp
J.PHASE SWITCH
Use this switch to help compensate for time
alignment problems in the system. Such
problems usually result from having the
subwoofer at a different distance from the
listener than the other speakers in the system.
G.INPUT GAIN CONTROL
After you have installed your system, turn this
GAIN control to minimum (counter-clockwise).
Turn the head unit on and adjust the head unit
volume to a comfortable listening level.
Slowly turn up the subwoofer input gain control
until you hear a small amount of distortion. Then
reduce the level until the distortion is completely
gone. Leave the control at this setting.
H.BASS BOOST
The BASS BOOST feature will increase the
sound level in the bass frequencies.
I.LOW PASS FILTER (LPF)
This control permits you to define the frequency
range you want the subwoofer amplifier to
receive. The subwoofer will reproduce all sound
BELOW the frequency you set.
Note: The low pass filter frequency can be higher or lower
than the marked Frequency by as much as +/- 20% tolerance
GAIN
MIN MAX
BASS BOOST
LPF
PHASE
AMPLIFIED SUBWOOFER
0dB +12dB
50Hz 150Hz
180
0
REMOTE CONTROL
REMOTE CONTROL
REMOTE CONTROL
VELCRO
(NOT INCLUDED)
REMOTE CONTROL SETTINGS AND FUNCTIONS

If you experience operation or performance problems with this product, compare your
installation with the electrical wiring diagram on the previous pages. If problems persist,
read the following troubleshooting tips which may help eliminate the problems.
Amplifier will not
power up.
Protection LED
comes on when
amplifier is
powered up
No output.
Low output.
High hiss in the
sound.
Squealing noise
is present.
Distorted sound.
Amplifier gets
very hot.
Engine noise
(static type)
Engine noise
(alternator whine)
SYMPTOM POSSIBLE REMEDY
Check to make sure you have a good ground connection.
Check that there is at least 12v on the battery (+) terminal
Check that the Remote Input (Turn-On) has at least 10VDC.
Check that the green power LED is lit
Check all fuse, replace if necessary.
Make sure that the Protection LED is not illuminated. If it is lit, shut off
the amplifier briefly, and then Power Cycle (reset).
Turn down the volume control on the head unit to prevent overdriving
the input speaker leads,
Try Power cycling (reset) the amplifier. If the Protection LED still comes
on, then the amplifier is faulty and needs servicing
10
Troubleshooting
Check that all fuses are OK.
Check that the power light in on
Check that unit is properly grounded.
Check that the Remote Input (Turn-On) has at least 10VDC.
Check that the input signal connections are plugged in properly.
Readjust the Input Gain Control.
Check the Crossover Control settings, possibly try a higher frequency.
Disconnect all RCA inputs to the power sub's control panel. If the hiss
disappears, then plug in the component driving the amplifier and
unplug its inputs. If the hiss disappears at this point, go on until the
faulty/noisy component is found.
Reset Input Gain. It is best to set the subwoofers input level control as
low as possible. The best subjective signal-to-noise ratio is achieved in
this manner. Try to set the head unit as high as possible (without
distortion) and the subwoofer input level as low as possible.
Check for improperly grounded RCA interconnects. Or possible “blown”
signal ground from headunit. (Some headunits are notorious for this!)
Check that the Input Gain control is set to match the signal level of the
head unit. Always try to set the Input Gain on the subwoofer as low
possible. Input gain is NOT power output!! Check that all crossover
frequencies are properly set.
Readjust the Input Gain Control.
Make sure to NOT use CCA power wire as it will cause these issues
This is usually caused by poor quality RCA cables, which can pick up
radiated noise. Use only the best quality cables, and route them away
from power cables.
Check that the RCA grounds are not shorted to the vehicle chassis
Check that the head unit is properly grounded.
TROUBLE SHOOTING

Thank you for purchasing a Cerwin Vega Mobile product and we hope to provide you with countless hours of listening enjoyment.
Please take a brief moment to register your new product. By registering your new product, you will receive benefits such as:
- Important product notifications that may pertain to your purchase.
- Confirmation and record of ownership in case of loss or theft.
- Knowledgeable customer service and technical assistance pertaining to your product.
Register your new product by completely filling out this Product and Warranty Registration card or register online at
www.cerwinvegamobile.com.
Registration is voluntary and failure to register will not diminish your limited warranty rights.
Limited Warranty (U.S.A.)
Cerwin Vega Mobile warrants all of our amplifiers and speakers to be free of defects in materials and workmanship for a period of
one (1) year.
This warranty is non-transferable and applies only to the original purchaser from an authorized Cerwin Vega Mobile dealer. If service
is required and necessary under this warranty due to manufacturing defect or malfunction, then Cerwin Vega Mobile will repair
and/or replace defective product with either new or remanufactured like product at no charge at our discretion.
Damage to product caused by the following will not be covered under this warranty: abuse, accident, misuse, neglect, modifications,
repairing attempts, seller/installer misrepresentation.
This warranty does not cover any incidental, consequential, or cosmetic damage due to accidents or normal wear and tear, nor does
it cover the cost of removing or reinstallation of the product.
Warranty is void if the product’s serial number has been removed, defaced, and/or tampered with.
Warranty Procedure:
We recommend that you contact your Cerwin Vega Mobile authorized dealer where your original purchase was made to initiate all
warranty claims. Our authorized dealers can guide you through the warranty procedure to ensure that your claim will be processed in
a timely manner. All warranty returns must be accompanied with a proof of purchase (a copy of the original sales receipt) and be
shipped freight prepaid to our facility with an RA (Return Authorization) number clearly marked on the outside of the package. Direct
returns from consumers or non-authorized dealers will be refused if shipped without a valid RA number authorized by Cerwin Vega
Mobile beforehand.
INTERNATIONAL
Products purchased outside of the U.S.A. are covered only by that country’s distributor and not by Cerwin Vega Mobile U.S.A.
Please Ship All Warranty Claims With Pre-Authorized RA Number To:
CV&DA Holdings, Inc.
ATTN: Customer Service Department
3761 S. Hiill Street
Los Angeles, CA 90007 USA
Please Contact Customer Service for Further Warranty Information:
U.S.A.
Tel: [phone] / Direct Tech line 213-212-3176 / Fax: [phone]
11

©2018 CVDA Inc. All Rights Reserved. Cerwin Vega Mobile and associated logos are registered
trademarks of CVDA Inc. in the United States and/or other countries. The Bluetooth word and mark
and logos are registered trademarks owned by Bluetooth SIG, Inc. andany use of such marks by
CVDA Inc. is under license. All other trademarks are the property of their respective owners.
Specifications subject to change without notice.
