Ceyear 1433D User manual

1433D/E/F/H
Signal Generator
(1MHz to 20GHz/26.5GHz/40GHz/50GHz)
Ceyear Technologies Co., Ltd.

1
Product Overview
1433 Series signal generator is a hand-held instrument specially designed for field testing by
Ceyear Technology Co., Ltd. It has the functions of CW signal output, FM/AM/Pulse modulation,
large dynamic range amplitude adjustment, step/list sweep etc. The integrated design of 8.4-inch
large capacitive touch screen is convenient for users’ operation.
1433 series signal generator has the characteristics of small size, flexible power supply and good
working environment adaptability, which is very suitable for on-site use. It can be applied to the
field installation, debugging and daily maintenance of fault diagnosis of electronic integrated
system, receiver performance test, radar, communication, navigation and other equipment test.
Product Features
Wider frequency coverage: from 1MHz to 50GHz
Higher frequency resolution: 0.1Hz
Excellent phase noise performance: -110dBc/Hz@10kHz frequency offset @10GHz
carrier(typical）
Various auxiliary test interfaces: reference input/output, pulse input, monitoring output,
synchronization output etc.
Convenient and fast user operation experience: 8.4-inch large screen with bright LCD,
convenient capacitive touch screen operation, integrated design of LCD and touch screen
Strong environmental adaptability: the working temperature range is -10℃～50℃
Flexible power supply mode: can be powered by battery or power adapter
Wider frequency coverage
The frequency range of 1433 series signal generator is 1MHz to 20GHz/26.5GHz/40GHz/50GHz,
the serialization minimum frequency is as low as 1MHz, and the highest frequency is as high as
50GHz, which can meet the needs of wide-band testing.

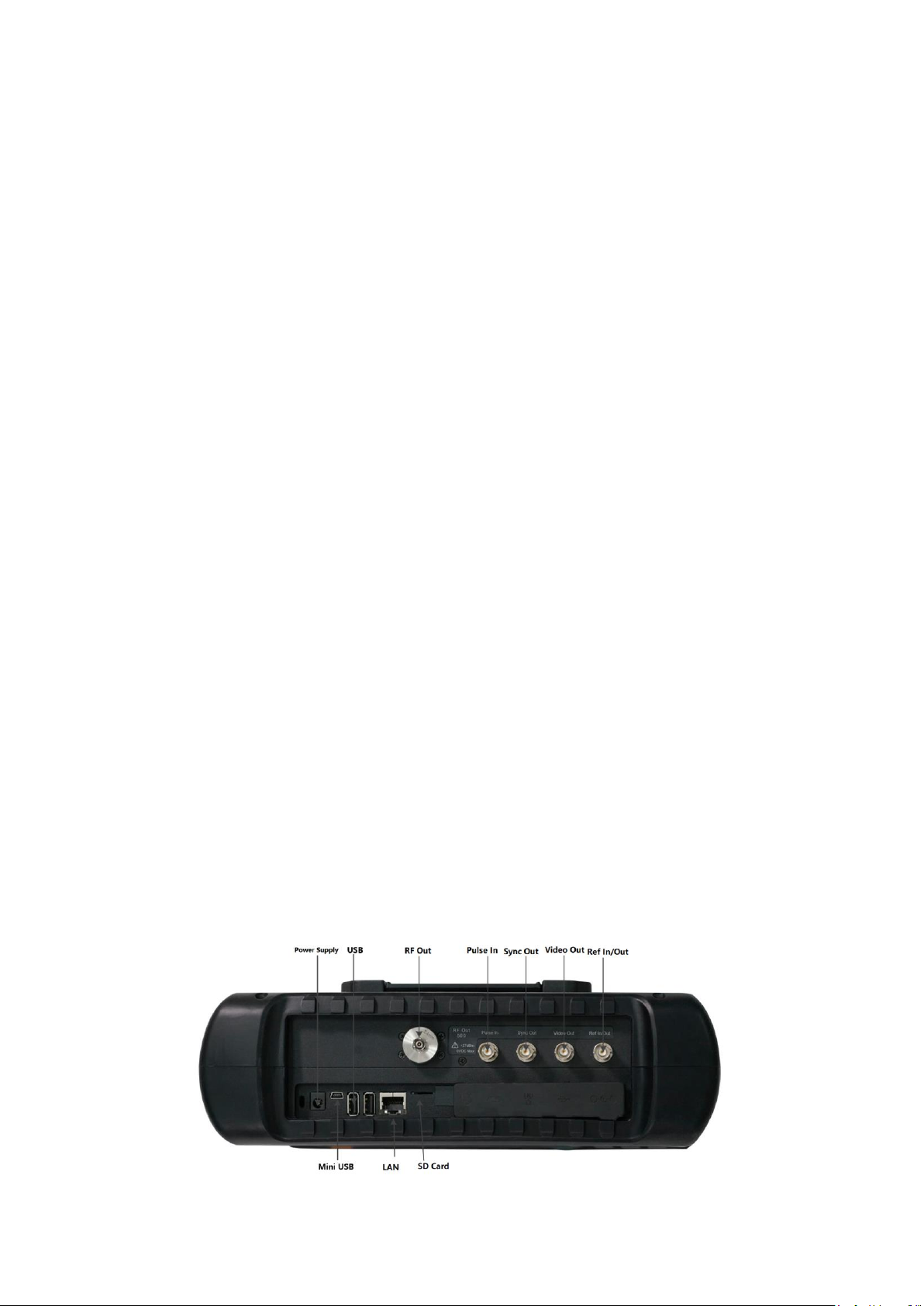

Various auxiliary test interfaces

2
Excellent phase noise performance
1433 Series signal generator SSB phase noise is better than -110dBc/Hz@10kHz frequency
offset @10GHz carrier, which can meet the test requirements of most application scenarios.
Note 1: The supplementary features given in the form of typical values are for users' reference.
Convenient and fast user operation experience
8.4-inch large screen with high-brightness LCD, 800× 600 pixel resolution, convenient capacitive
touch screen operation, multi-window display, clear display of instrument setting parameters and
status information, providing convenient and fast user operation experience.

3
Typical Application
Electronic system anti-jamming performance test
The 1433 series signal generator has a wide output frequency and power range, and has a variety
of analog modulation functions. It can simulate and generate jamming signals in the actual combat
environment during the test of the anti-jamming performance of the electronic system, which can
be used for the test of the anti-jamming performance of the electronic system.

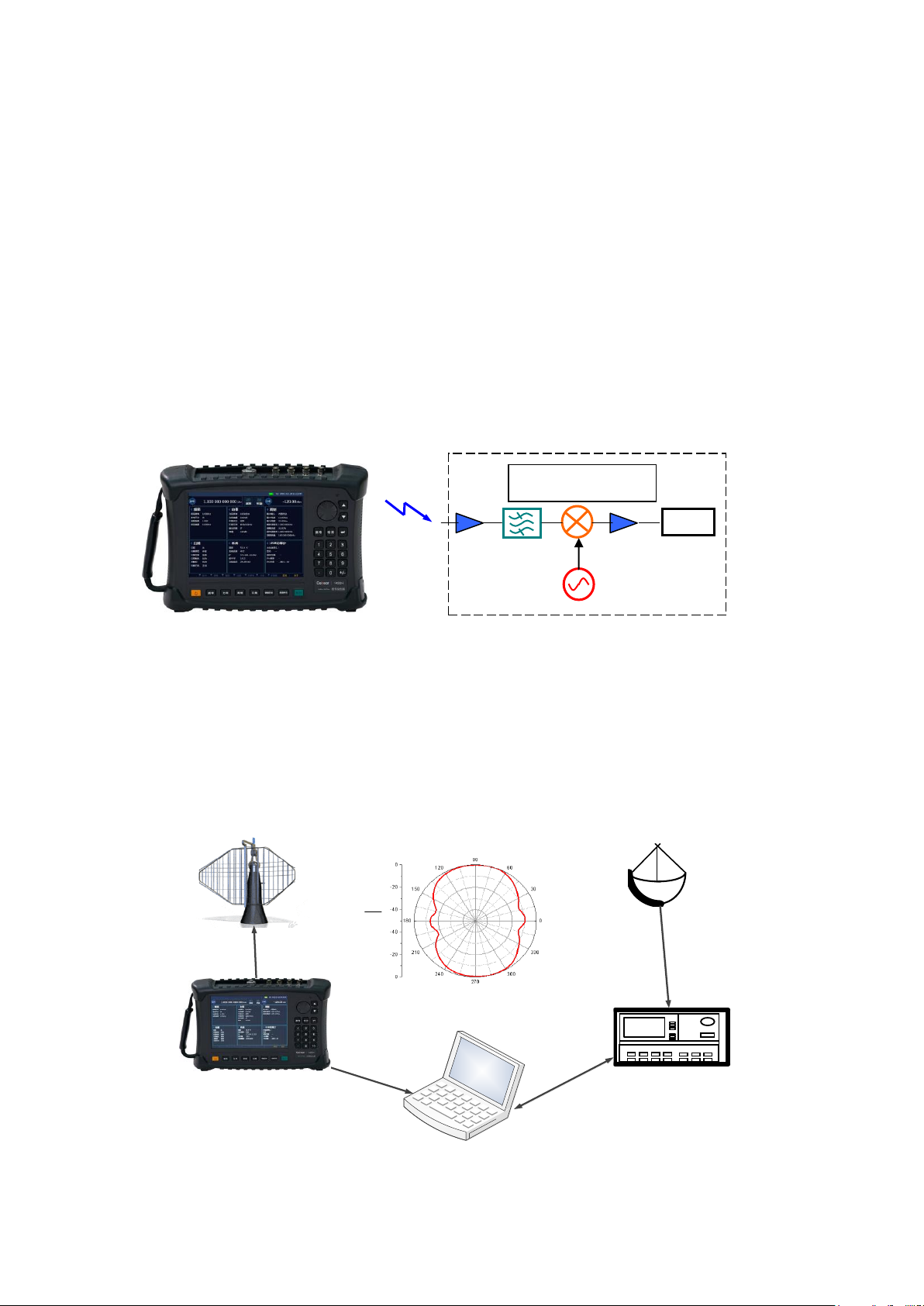

Radar reception performance test and troubleshooting
For radar and other electronic equipment receiving performance testing and troubleshooting
applications, 1433 series signal generators provide CW, analog modulated signal output, and can
provide excitation signal simulation.
Field test of antenna pattern test
For the field test application of the antenna pattern, the 1433 series signal generator outputs a
signal with known fixed amplitude, which is used to test the indicator of the transmitting antenna
pattern.
Transmitter
Antenna
Signal
generator
Control PC
Receiver
Receiver
Antenna
Demod.
Receiver under test

4
Technical Specification
1. Main Functions
CW signal output function
FM/AM/Pulse modulation function
Step and List sweep function
Unstable amplitude and Unlock alarm function
Support LAN and USB interface program control function
2. Specifications
Frequency Characteristics
Frequency Range
1433D:1MHz～20GHz
1433E:1MHz～26.5GHz
1433F:1MHz～40GHz
1433H:1MHz～50GHz
Frequency
N（internal YO
harmonic number）
1MHz≤f＜2.35GHz
1/2
2.35GHz≤f＜2.5GHz
1/8
2.5GHz≤f＜5GHz
1/4
5GHz≤f≤10GHz
1/2
10GHz＜f≤20GHz
1
20GHz＜f≤40GHz
2
40GHz＜f≤50GHz
4
Frequency Resolution
0.1Hz
Internal timebase
Aging rate
± 0.5× 10-6/year
Temperature effects
± 0.3× 10-6（-10℃～50℃，versus 25℃±5℃）
Initial calibration accuracy
± 0.5× 10-6
Reference input
frequency
1MHz～10MHz，step 1MHz
Power
-5dBm～+10dBm，impedance: 50Ω
Reference output
Frequency
10MHz
Power
＞0dBm，50Ωimpedance
Sweep characteristics
Sweep features
Sweep mode
Step/List
Sweep points
2 to 1601
Dwell time
10ms to 100s
Trigger mode
Auto/manual
Level characteristics
Stable output power
range(25℃±10℃，CW
mode)
1MHz≤f＜2.5GHz
-120dBm～+5dBm
2.5GHz≤f≤10GHz
-120dBm～+10dBm
10GHz＜f≤20GHz
-120dBm～+5dBm
20GHz＜f≤40GHz
-120dBm～+5dBm

5
40GHz＜f≤50GHz
-120dBm～0dBm
Level accuracy
（25℃±10℃）
-10dBm＜P≤Maximum
stable output power
± 1.0dB
-60dBm＜P≤-10dBm
± 1.5dB
-90dBm＜P≤-60dBm
± 1.8dB
Output impedance
50Ω（Rating）
SWR
1MHz≤f≤20GHz
＜1.8:1
20GHz＜f≤40GHz
＜2.0:1
40GHz＜f≤50GHz
＜2.5:1
Maximum reverse power
+27dBm（0V DC）（ Rating）
Spectral purity（specification is point frequency without modulated mode）
Harmonics
（Measured at +5dBm or
maximum specified power,
whichever is lower）
1MHz≤f≤1.5GHz
≤-40dBc
1.5GHz＜f≤2.5GHz
≤-30dBc
2.5GHz＜f≤19GHz
≤-40dBc
19GHz＜f≤25GHz
≤-30dBc
25GHz＜f≤50GHz
≤-35dBc（typical）
Non-harmonics
（0dBm，>10kHz offset）
1MHz≤f＜2.5GHz
≤-54dBc
2.5GHz≤f＜5GHz
≤-60dBc
5GHz≤f≤10GHz
≤-56dBc
10GHz＜f≤20GHz
≤-50dBc
20GHz＜f≤38GHz
≤-44dBc
38GHz＜f≤50GHz
≤-40dBc
SSB Phase noise（at
maximum stable output
power）
1MHz≤f＜2.35GHz
≤-82dBc/Hz@100Hz
≤-98dBc/Hz@1kHz
≤-108dBc/Hz@10kHz
≤-106dBc/Hz@100kHz
2.35GHz≤f＜2.5GHz
≤-94dBc/Hz@100Hz
≤-110dBc/Hz@1kHz
≤-120dBc/Hz@10kHz
≤-118dBc/Hz@100kHz
2.5GHz≤f＜5GHz
≤-88dBc/Hz@100Hz
≤-104dBc/Hz@1kHz
≤-114dBc/Hz@10kHz
≤-112dBc/Hz@100kHz
5GHz≤f≤10GHz
≤-82dBc/Hz@100Hz
≤-98dBc/Hz@1kHz
≤-108dBc/Hz@10kHz
≤-106dBc/Hz@100kHz

6
10GHz＜f≤20GHz
≤-76dBc/Hz@100Hz
≤-92dBc/Hz@1kHz
≤-102dBc/Hz@10kHz
≤-100dBc/Hz@100kHz
20GHz＜f≤40GHz
≤-70dBc/Hz@100Hz
≤-86dBc/Hz@1kHz
≤-96dBc/Hz@10kHz
≤-94dBc/Hz@100kHz
40GHz＜f≤50GHz
≤-68dBc/Hz@100Hz
≤-84dBc/Hz@1kHz
≤-94dBc/Hz@10kHz
≤-92dBc/Hz@100kHz
Modulation Characteristics
Pulse modulation
（Frequency >10MHz）
On/off ratio
≥80dB
Rise/fall times
≤30ns
minimum pulse width ALC
ON
1us（Deviation± 50ns）
minimum pulse width ALC
OFF
100ns（Deviation± 20ns）
Amplitude modulation
（Frequency >10MHz）
Modulation type
Linear modulation、exponent modulation
Modulation rate（3dB
bandwidth）
DC～20kHz
Maximum depth
Linear closed loop：≥90%
Exponent closed loop：≥20dB
Linear AM accuracy
±（5％× setting depth＋1%）（ at 1kHz modulation rate）
Exponent AM accuracy
±（5％× setting depth＋1dB）（ at 1kHz modulation
rate）
Frequency modulation
（Frequency >10MHz）
Modulation rate（3dB
bandwidth）
DC～20kHz
Maximum peak deviation
N× 800kHz（N: YO harmonic number）， accuracy:
± 10%（at 1kHz）
Distortion
± 3%（at 1kHz，100kHz offset，300Hz～3kHz
demodulation bandwidth）
General characteristics
RF output port
1433D
N（female）， impedance: 50Ω
1433E
2.4mm（male）， impedance: 50Ω
1433F
2.4mm（male）， impedance: 50Ω
1433H
2.4mm（male）， impedance: 50Ω
Dimensions
（W×H×D）
314mm× 218mm× 91mm
（excluding handle, foot mat and footing）

7
Weight
≤5.5kg（including battery）
Power supply
Power adapter
input：100～240V、50/60Hz AC
output：15VDC，4A
Lithium electronic battery
10.8V，9900mAh
Power consumption
≤45W（Battery charging is not included）
Temperature range
Operating temperature
-10℃～+50℃（battery charging temperature: 0℃～
+45℃）
Storage temperature
-40℃～+70℃（battery storage temperature: -20℃～
+60℃）
Other interface
Pulse input
BNC（male）
Synchronization output
BNC（male）
Monitoring output
BNC（male）
Reference input/output
BNC（male）
Note: Ratings refer to expected performance, or describe product performance that is useful in the product but not
covered by the product warranty.
Ordering Information
Main Models
1433D signal generator 1MHz～20GHz
1433E signal generator 1MHz～26.5GHz
1433F signal generator 1MHz～40GHz
1433H signal generator 1MHz～50GHz
Standard Configuration:
S/N
Description
Remarks
1
Power cable assembly
Standard three-core power cable
Power adapter：input 100～240V
50/60Hz, output 15V/4A.
Lithium-ion rechargeable battery
2
Product quick use guide
3
USB cable
USB remote control cable
4
Certificate conformity
Options：
S/N
Option ID
Description
Function
1
1433-001
User Manual (Chinese)
2
1433-002
User Manual (English)

8
3
1433-003
Programming Manual (Chinese)
4
1433-004
Programming Manual (English)
5
1433-S01
USB Power Meter Option(software)
Provide USB Power Measurement
Function (Requires USB Power
sensor:H06~H13)
6
1433-H01
Optional Accessories of English
Version
English Signs、Keys、Menu
7
1433-H02
Power Adapter
Power Adapter
8
1433-H03
Rechargeable Lithium Ion Battery
Standby Battery
9
1433-H04
Purple Cat5e Cable
Point to Point, 2 Meters
10
1433-H05
Micro SD Card
Class4, Capacity: 8G
11
1433-H06
87230 USB CW Power Sensor
9kHz ～6GHz ，for CW power
measurement（S01 is optional）
12
1433-H07
87231 USB CW Power Sensor
10MHz ～18GHz ，for CW power
measurement（S01 is optional）
13
1433-H08
87232 USB CW Power Sensor
50MHz ～26.5GHz ，for CW power
measurement（S01 is optional）
14
1433-H09
87233 USB CW Power Sensor
50MHz ～40GHz ，for CW power
measurement（S01 is optional）
15
1433-H10
87234D USB Peak Power Sensor
50MHz ～18GHz ，for Peak power
measurement（S01 is optional）
16
1433-H11
87234E USB Peak Power Sensor
50MHz ～26.5GHz ，for Peak power
measurement（S01 is optional）
17
1433-H12
87234F USB Peak Power Sensor
50MHz ～40GHz ，for Peak power
measurement（S01 is optional）
18
1433-H13
87234L USB Peak Power Sensor
500MHz ～67GHz ，for Peak power
measurement（S01 is optional）
19
1433-H14
Functional Bag
Protect the Instrument
20
1433-H15
Backpack
Easy to Carry
21
1433-H16
Safety Instrument Carrying Case
High strength light weight packing case
with handle for transportation
