OPERATOR'S MANUAL
MODEL #500559-EU
2800W RATED PORTABLE GENERATOR
REV 20220510
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure
to do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
or visit www.championpowerequipment.co.uk
[phone]
NO OIL
SUPPLIED
IN UNIT
Add 10w30
Oil Before Use
ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
ESPAÑOL
SVENSKA
NEDERLANDS

500559-EU - 2800W RATED PORTABLE GENERATOR INTRODUCTION
2
INTRODUCTION
Congratulations on your purchase of a Champion Power
Equipment (CPE) product. CPE designs, builds, and supports
all of our products to strict specifications and guidelines. With
proper product knowledge, safe use, and regular maintenance,
this product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time
of publication, and we reserve the right to change, alter and/
or improve the product and this document at any time without
prior notice.
CPE highly values how our products are designed,
manufactured, operated, and serviced as well as providing
safety to the operator and those around the generator.
Therefore, it is IMPORTANT to review this product manual
and other product materials thoroughly and be fully aware
and knowledgeable of the assembly, operation, dangers
and maintenance of the product before use. Fully familiarize
yourself, and make sure others who plan on operating the
product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always
exercise common sense and always err on the side of caution
when operating the product to ensure no accident, property
damage, or injury occurs. We want you to continue to use and
be satisfied with your CPE product for years to come.
When contacting CPE about parts and/or service, you will
need to supply the complete model and serial numbers of your
product. Transcribe the information found on your product’s
nameplate label to the table below
CPE TECHNICAL SUPPORT TEAM
MODEL NUMBER
500559-EU
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which,if not
avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but
not hazard-related (e.g., messages relating to property
damage).

500559-EU - 2800W RATED PORTABLE GENERATOR IMPORTANT SAFETY INSTRUCTIONS
3
EN

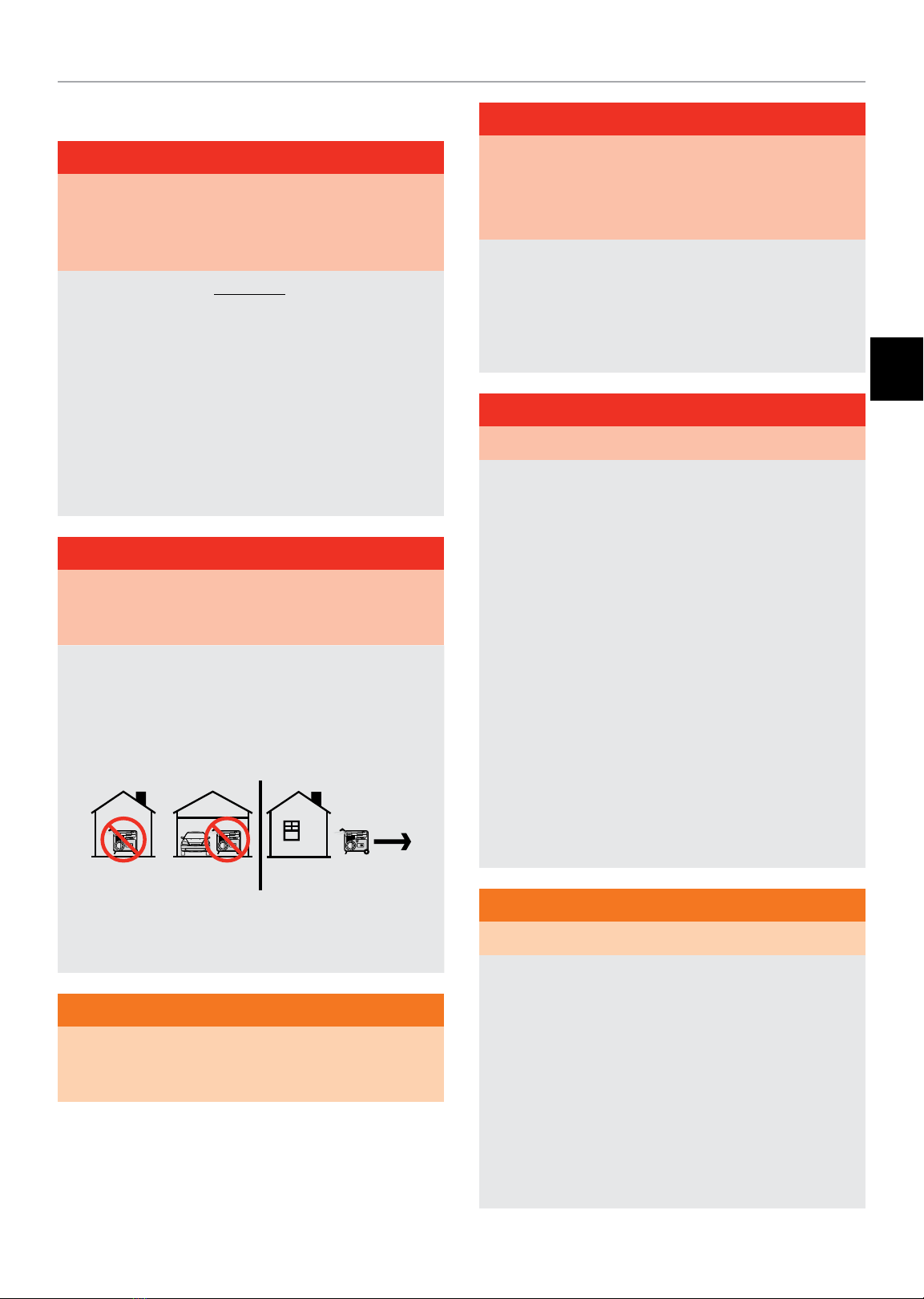

IMPORTANT SAFETY INSTRUCTIONS
DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poisonous gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to
feel dizzy or weak, get to fresh air immediately.
OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY FROM
ANY WINDOWS OR DOORS.
DO NOT operate the generator inside any building,
outbuilding including garages, basements, crawlspaces,
sheds, confined spaces and or enclosure of vehicle(s).
DO NOT allow exhaust fumes to enter a confined area
through windows, doors, vents or other openings.
DO NOT attempt to extend or modify the muffler/exhaust, by
doing so will void any warranty offered.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a
poison you cannot see or smell.
NEVER use inside a home or garage,or any small or
confined spaces including sheds & vehicles EVEN IF doors
and windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to
the manufacturer’s instructions.
WARNING
Although the generator contains a spark arrester, maintain
a minimum distance of 5 ft. (1.5 m) from dry vegetation and
any window or doorsto prevent fires.
DANGER
Operate equipment with guards in place.
Rotating parts can entangle hands, feet, hair, clothing and/
or accessories. Traumatic amputation or severe laceration
can result.
Keep hands and feet away from rotating parts and always
wear PPE.
Tie up long hair and remove jewelry.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or
frayed.Recommend use only Champion electrical cords for
proper application.
DO NOT operate generator in wet weather including rain or
snow.
DO NOT allow children or unqualified persons under the age
of 18 to operate or service the generator.
Use a ground fault circuit interrupter (GFCI) in damp areas
and areas containing conductive material such as metal
decking.
Connection to your home’s electrical system requires a
listed 100A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical
codes in the country of origin.
WARNING
NEVER use generator for medical and life support uses.
In case of emergency, call 999 immediately.
NEVER use this product to power life support devices or life
support appliances.
NEVER use this product to power medical devices or
medical appliances.
Inform your electricity provider immediately if you or anyone
in your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience
a medical emergency.

500559-EU - 2800W RATED PORTABLE GENERATOR IMPORTANT SAFETY INSTRUCTIONS
4
WARNING
Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the generator:
Remove spark plug lead and place it where it cannot contact
the plug or any other metal object.
DO NOT check for spark with the plug removed otherwise
electric shock could occur.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
NEVER touch any hot surfaces and always let the engine
cool down for minimum of 30mins.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials and windows and doors.
WARNING
Rapid retraction of the starter cord will pull hand and arm
towards the engine faster than you can let go. Unintentional
startup can result in entanglement, traumatic amputation or
laceration. Broken bones, fractures, bruises or sprains could
result.
When starting the engine using the recoil cord first use 1
soft slow pull until resistance is felt and then 1 strong log
pull to start.
DO NOT start or stop the engine with electrical devices
plugged in and turned on always ENSURE circuit breaker is
in the ‘OFF’ position..
CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
NEVER make any modifications or alterations, by doing so
you will void any warranties offered.
CAUTION
Start the generator and allow the engine to stabilize before
connecting electrical loads for at least 20-30mins.
With the circuit breaker in the ‘OFF’ position, and then turn
the circuit breaker to the ‘ON’ position.
Always turn electrical equipment off and unplug any
electrical cord before stopping the generator.
CAUTION
Improper treatment or use of the generator can damage it,
shorten its life or void the warranty.
Use the generator only for intended uses.
Operate only on solid level surfaces and do not operate on
uneven ground.
DO NOT expose generator to excessive moisture, dust, or
dirt/soil/mud.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
–Electrical output is lost.
–Equipment sparks, smokes or emits flames.
–Equipment vibrates excessively.

500559-EU - 2800W RATED PORTABLE GENERATOR IMPORTANT SAFETY INSTRUCTIONS
5
EN
Fuel Safety
DANGER
PETROL VAPORS ARE HIGHLY FLAMMABLE AND
EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Petrol and petrol vapors:
–Petrol is highly flammable and explosive.
–Petrol can cause a fire or explosion if ignited.
–Petrol is a liquid fuel but it’s vapors can ignite.
–Petrol is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Petrol has a distinctive odor, this will help detect potential
leaks quickly.
–In any petroleum gas fire, flames should not be extinguished
unless by doing so the fuel supply valve can be turned OFF.
This is because if a fire is extinguished and a supply of
fuel is not turned OFF, then an explosion hazard could be
created.
–Petrol expands or contracts with ambient temperatures.
Never fill the petrol tank to full capacity, as petrol needs
room to expand if temperatures rise.
When adding or removing petrol:
DO NOT light or smoke cigarettes.
Turn the generator off and let it cool for at least 30 mins before
removing the petrol cap. Loosen the cap slowly to relieve
pressure in the tank.
Only fill or drain petrol outdoors in a well-ventilated area away
from building, garages or sheds including window and doors.
NEVER pump petrol directly into the generator at the filling
station. Use an approved container to transfer the fuel to the
generator.
DO NOT overfill the petrol tank.
E10 or E5 petrol only recommended.
Always keep petrol away from sparks, open flames, pilot lights,
heat and other sources of ignition.
When starting the generator:
DO NOT attempt to start a damaged generator.
Make certain that the petrol cap, air filter, spark plug, fuel lines
and exhaust system are properly in place.
Allow spilled petrol to evaporate fully before attempting to start
the engine.
Make certain that the generator is resting firmly on level
ground.
When operating the generator:
DO NOT move or tip the generator during operation.
DO NOT tip the generator or allow fuel or oil to spill.
When transporting or servicing the generator:
Make certain that the fuel valve is in the OFF position and the
petrol tank is empty.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat and
other sources of ignition.
Do not store generator or petrol near furnaces, water heaters,
or any other appliances that produce heat or have automatic
ignitions.
WARNING
Never use a petrol container, petrol tank, or any other fuel
item that is broken, cut, torn or damaged.

500559-EU - 2800W RATED PORTABLE GENERATOR IMPORTANT SAFETY INSTRUCTIONS
6
Safety Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
LABEL DESCRIPTION
A
PELIGRO
El uso de un generador en
interiores PUEDE MATARLO EN
MINUTOS. El escape del
generador contiene monóxido de
carbono. Éste es un veneno que
no se puede ver ni oler. NUNCA
lo use dentro del hogar ni el
garaje, INCLUSO SI las puertas
y ventanas están abiertas. Úselo
SÓLO a la INTEMPERIE lejos de
ventanas, puertas, y orificios de
ventilación.
DANGER
Utiliser un générateur à l’intérieur
PEUT VOUS TUER EN QUELQUES
MINUTES. L’échappement du
générateur contient du monoxyde
de carbone. Il s’agit d’un poison
que vous ne pouvez ni voir ni
sentir. Ne l’utilisez JAMAIS dans
la maison ou le garage MÊME SI
les portes et les fenêtres sont
ouvertes. Utilisez-le UNIQUEMENT
À L’EXTÉRIEUR, loin des fenêtres,
portes et trappes de ventilation.
NEVER use inside
a home or garage,
EVEN IF doors and
windows are open.
ONLY use OUTSIDE
and far away from
windows, doors,
and vents.
DANGER
Using a generator indoors CAN KILL
YOU IN MINUTES. Generator exhaust
contains carbon monoxide. This is a
poison you cannot see or smell.
1006-BY-L-A
K123 185 ---
ColorsLPN 1006-BY-L
Rev A
Size 158 x 113 mm
Artwork Notes
2mm safe margin
Revision Changes
This artw ork belongs to Champio n Power Equipment. The c ontents are confi dential and privileg ed and shall not be disclo sed to or used by or for
outside par ties without the e xplicit consent of C hampion Power Equip ment.
Safety Symbols/
CO Danger
B
1000-BY-L-A
UNLEADED FUEL ONLY. Minimum octane
rating of 85. Maximum 10% ethanol.
NUR BLEIFREIES BENZIN. Mindest-
Oktanzahl 85. Maximal 10% Ethanol.
ENDAST BLYFRI BENSIN.
Använ d 95-elle r
98-oktanig bensin alternativt alkylatbensin.
Max 10% e tanol.
K123 --- --- ---
ColorsLPN 1000-BY-L
Rev A
Size 46 x 46 mm
Artwork Notes
3mm corner radius; 2mm safe margin; whit e to be
prin ted shown i n 50% proces s magent a
Revision Changes
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties with out the explicit consent of Champion P ower Equipment.
Fuel
C
WARNING
DO NOT TOUCH!
DO NOT use exhaust or
muffler extensions, in
doing so your warranty
will be voided.
Operation of this equipment may create sparks that can start fires
around dry vegetation. A spark arrestor may be required. The
operator should contact local fire agencies for laws and regulations
relating to fire prevention requirements. If installed, clean every 100
hours or every season.
ADVERTENCIA
NICHT ANFASSEN!
Schalldämpfer und
Motorkomponenten sind
extrem heiß und verursachen
Verbrennungen.
Der Betrieb dieser Geräte kann Funken erzeugen, die in der Umgebung von trockener
Vegetation Brände auslösen können. Ein Funkenfänger kann erforderlich sein. Der
Betreiber sollte sich an die örtlichen Brandschutzbehörden wenden, um sich über die
Gesetze und Vorschriften in Bezug auf Brandschutzanforderungen zu informieren. Wenn
installiert, alle 100 Stunden oder zu jedes Jahr reinigen.
1002-BY-L-A
ColorsLPN
Rev
Size 252 x 26 mm
Artwork Notes
3mm co rner radius; 2mm safe margin; to be pr inted
on white substrate
Revision Changes
---
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
K185 165 123 ---
1002-BY-L
A
Hot Surface
D
IP Garden
SERIAL NO.
MODEL
1042-BY-L-A
500559-UK
XXXXXXXXXXXX
2021
IP23M
Year of Manufacture
CHAMPION POWER EQUIPMENT, INC.
12039 SMITH AVENUE
SANTA FE SPRINGS, CA 90670
USA / É.-U.
MADE IN CHINA
Low Power Generating Set
K--- --- --- ---
ColorsAPN 1042-BY-L
Rev A
Size 123 x 40 mm
Artwork Notes
3mm corner radius; 2mm safe margin; to be printed
on
WHITE substrate.
Revision Changes
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
AC AMPS
Performance Class
FREQUENCY (Hz)
RPM
PHASE
POWER FACTOR
23.3A/11.7
G2
50
3000
1
1.0
120V/240V
QUALITY CLASS
NET WEIGHT
INSULATION CLASS
MAX AMBIENT TEMP
RATED OUTPUTRATED VOLTAGE
MAX POWER
A
xxxkg
F
COP:2.8kW
3.2kW S2 5min
104°F/40°C
Dataplate
Top
A
B
Back Side
C
D

500559-EU - 2800W RATED PORTABLE GENERATOR IMPORTANT SAFETY INSTRUCTIONS
7
EN
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
Caution.
Read The Operator’s Instruction Manual Before Use. To reduce the risk of injury, user must read
and understand operator’s manual before using this product.
Not For General Waste Disposal.
The generating set must not be connected to other power sources, such as the power company
supply mains.
Electric Hazard. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to any building.
Fire Hazard. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can
cause severe burns or death. Keep generator at least 5 feet (1.5m) from all objects to prevent
combustion.
Risk Of Being Burnt. To reduce the risk of injury or damage, avoid contact with any hot surface.
Carbon Monoxide(co) Danger.
Wet Conditions Alert. Do not expose to rain or snow use in damp locations except as follows:
If you must operate in rain or damp locations, DO NOT operate without proper protection of the
electrical components without using a suitable covering.
Use of a safety canopy that is fire retardant and will provide proper air ventilation for the engines
exhaust stream can be used. Keep all objects a minimum of 5 feet (1.5m) away from the generator
at all times. Heat from the muffler surface and exhaust stream can ignite combustible materials.

500559-EU - 2800W RATED PORTABLE GENERATOR IMPORTANT SAFETY INSTRUCTIONS
8

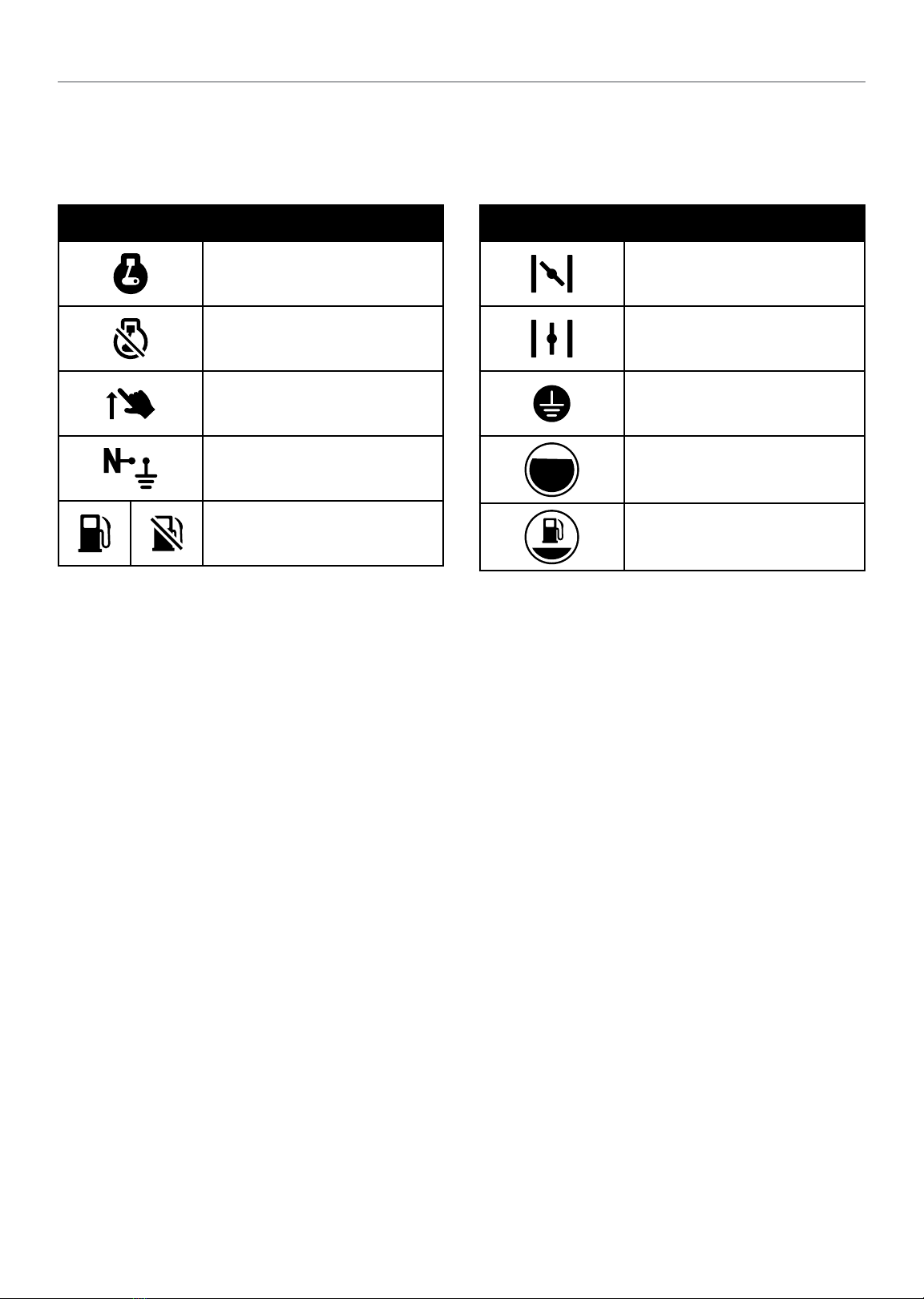

Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
SYMBOL MEANING
ON
STOP or OFF
Circuit Breaker Reset: Flip
Neutral Floating. Neutral circuit IS
NOT electrically connected to the frame/
ground of the generator.
Fuel/Petrol Valve ON/OFF
SYMBOL MEANING
Choke
Run
Ground Terminal
Petrol Tank: Full
Petrol Tank: Empty

500559-EU - 2800W RATED PORTABLE GENERATOR IMPORTANT SAFETY INSTRUCTIONS
9
EN
Quickstart Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
Starting the Engine
DANGER
Move generator outside and far away from windows,
doors and intake ventilation covers.
1. Check oil level.
Recommended oil is 10W-30. (not included)
2. Check petrol level.
When adding petrol, use a minimum octane rating of 85
and an ethanol content of 10% or less by volume （E5 or
E10）
3. Turn the fuel valve to “ON” position.
4. Press engine switch to the “ON” position.
5. Move choke lever to “CHOKE” position.
6. Pull the recoil starter.
7. Move the choke lever to “RUN” position.
8. Plug in desired device.
Stopping the Engine
1. Turn off and unplug all connected electrical loads.
2. Press the engine switch to the “OFF” position.
3. Turn the fuel valve to the “OFF” position.
3073-L-OP-B
311 22 3 4 5
10W-30
76 8

K376 186 152 CG1
ColorsLPN 3073-L-OP
Rev B
Size 220 x 23 mm
Artwork Notes
2mm safe margin; to be printed on white substrate
Revision Changes
B - The hands symbol has been changed to off symbol
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.

500559-EU - 2800W RATED PORTABLE GENERATOR CONTROLS AND FEATURES
10
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Generator
1. Petrol Tank – 4.7 gal. (17.8 L)
2. Choke – Used to start the engine.
3. Fuel Valve – Used to turn fuel supply on and off to engine.
4. Air Filter – Protects the engine by filtering dust and debris
from the intake air
5. Recoil Starter – Used to manually start the engine
6. Oil Fill Cap/Dipstick –Used to check and fill oil level.
7. Control Panel –See “Control Panel” section.
8. Fuel Gauge – Indicates the amount of petrol in the fuel
tank.
9. Ground Terminal – Consult an electrician for local
grounding regulations.
10. Never Flat Wheels
1
3
4
5
10
6
7
9
2
8

500559-EU - 2800W RATED PORTABLE GENERATOR CONTROLS AND FEATURES
11
EN
Control Panel
1. Engine Switch – Used to put in START mode or STOP the
generator.
2. Intelligauge – Four mode digital meter for displaying
voltage, frequency (hertz), run time, and total run time.
3. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads on 220 V.
4. Circuit Breakers (Flip Reset) – Protects the generator
against electrical overloads on 220 V.
1
2
A
B
RECEPTACLES
A
12V DC, 10A
May be used to supply electrical power for
operation of 12 Volt DC, 10 Amp electrical
loads.
B
2 x 220V AC, 16A
May be used to supply electrical power for
operation of 220 Volt AC, 16 Amp, single
phase, 50 Hz electrical loads.
34

500559-EU - 2800W RATED PORTABLE GENERATOR CONTROLS AND FEATURES
12
MODE DESCRIPTION
Voltage (V)
Output voltage of the generator.
Example: 120 volts
Frequency (H)
Output frequency in hertz.
Example: 60.0 hertz
Run Time (R)
Run time of the generator for the current session
Example: 6 hours
Total Run Time
Total run time of the generator since first operation
Example: 16 hours
Intelligauge
Four mode digital meter for displaying voltage, frequency
(hertz), run time, and total run time.
The LCD displays each mode by pressing the button below the
display.
MODE BUTTON

500559-EU - 2800W RATED PORTABLE GENERATOR CONTROLS AND FEATURES
13
EN

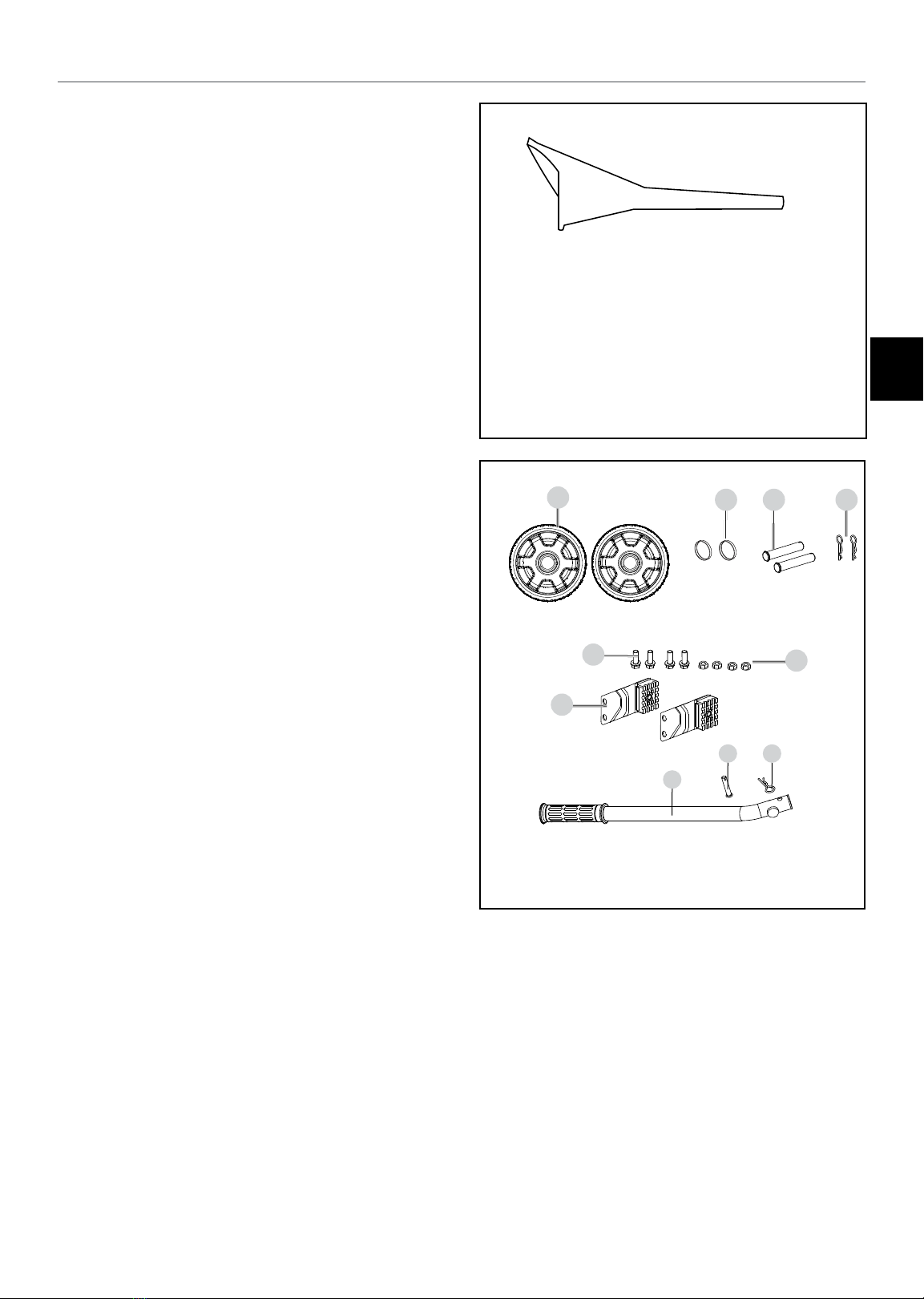

Parts Included
Accessories
Oil Funnel..............................................................................1
Assembly Parts
Wheels
8 in. (20.3 cm) Never Flat Wheel (A)........................ 2
Wheel hub cap (B) ........................................... 2
Roll Pin (C) ................................................... 2
Large R-clip (D).............................................. 2
Support Legs
Support Leg with Vibration Mounts (E)......................... 2
Flange Bolt (M8×40) (F)..................................... 4
Flange Lock Nut (M8) (G).................................... 4
Folding Handle
Handle (H).................................................... 1
Short Pin (I) .................................................. 1
Small R-clip (J) .............................................. 1
A
E
FG
C DB
H
I J

500559-EU - 2800W RATED PORTABLE GENERATOR ASSEMBLY
14
ASSEMBLY
NO OIL
SUPPLIED
IN UNIT
Add 10w30
Oil Before Use
Your generator requires some assembly. This unit ships from
our factory without oil. It must be properly serviced with fuel
and oil before operation.
If you have any questions regarding the assembly of your
generator, call our Technical Support Team at . Please have your
serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. Carefully cut each corner of the box from top to bottom.
Fold each side flat on the ground to provide a surface area
to work with the generator.

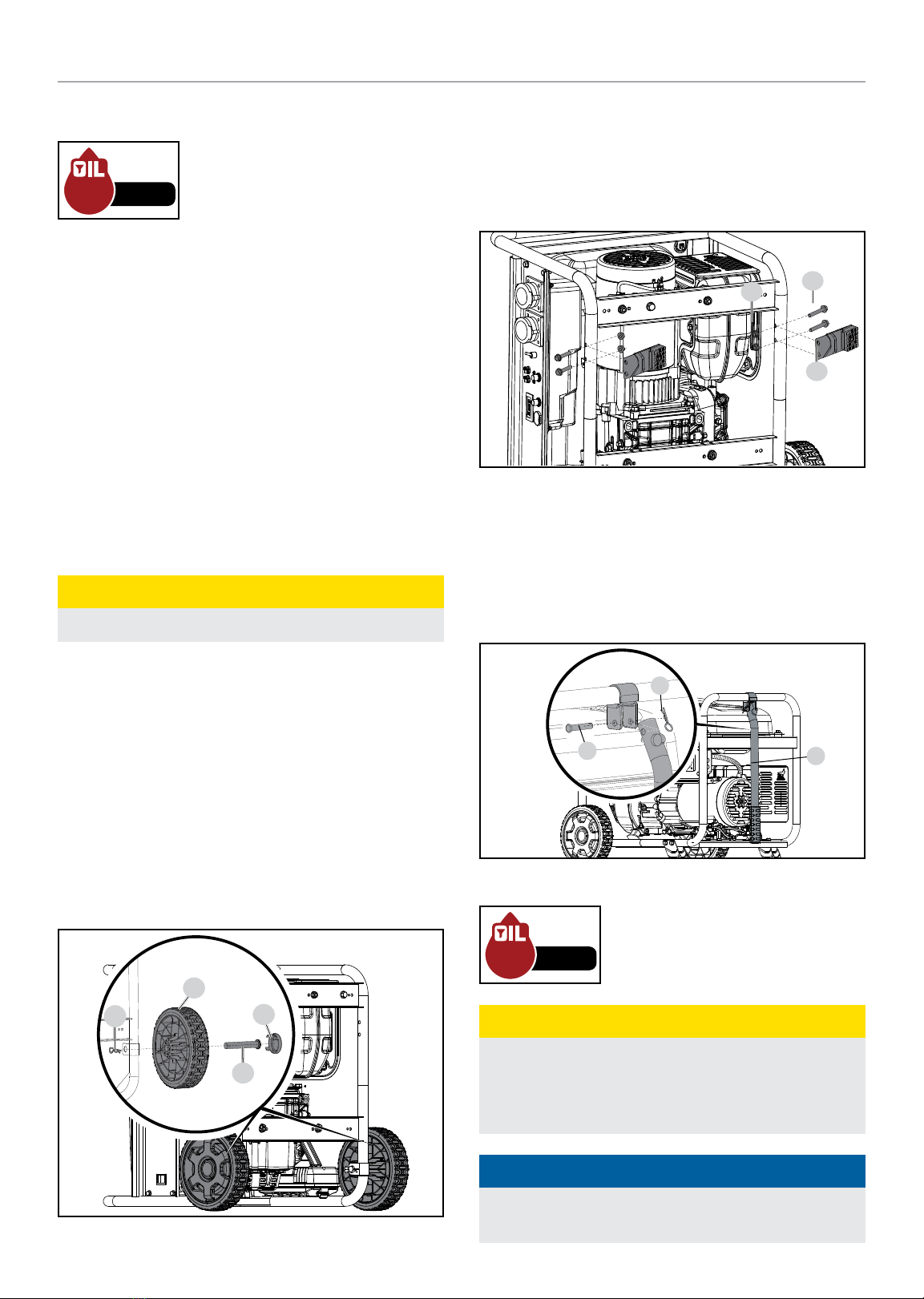

Install the Wheel Kit
CAUTION
The wheel kit is not intended for over-the-road use.
Install the Wheels
1. Before adding fuel and oil, tip the generator onto it’s recoil
end.
2. Remove wheel hub cap (B) from wheel by inserting a small
screwdriver into the slot provided and pry upward.
3. Slide the roll pin (C) through the wheel (A) from the outside.
4. Slide the roll pin through the mount point on the frame.
5. Insert r-clip (D) into hole at end of roll pin.
6. Re-install hub cap on wheel.
7. Repeat to attach the second wheel.
DB
C
A
Install the Support Leg
1. Attach the support leg (E) to the generator frame with
flange bolts (F) and flange lock nuts (G).
2. Slowly tip the generator back down so that it rests on the
wheels and support Leg.
F
G
E
Install the Handle
1. Place the handle (G) inside the mounting channel on the
frame.
2. Secure the handle to the frame using an short pin (H).
3. Place an R-clip (I) on the end of the short pin and fasten
securely.
I
G
H
Add Engine Oil
NO OIL
SUPPLIED
IN UNIT
Add 10w30
Oil Before Use
CAUTION
DO NOT attempt to crank or start the engine before it has
been properly filled with the recommended type and amount
of oil. Damage to the generator as a result of failing to follow
these instructions will void your warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.

500559-EU - 2800W RATED PORTABLE GENERATOR ASSEMBLY
15
EN
NOTICE
The recommended oil type for typical use is 10W-30
automotive oil. (not included)
If running generator in extreme temperatures, refer to the
following chart for recommended oil type.
-20 020 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
1. Place the generator on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Using a funnel, add up to 20.3 fl. oz. / 0.6 qt. (0.6 L) of
oil (no included) and replace oil fill cap/dipstick. DO NOT
OVERFILL.
4. Check engine oil level at every use and add as needed.
NOTICE
Once oil has been added, a visual check should show oil
about 1-2 threads from running out of the fill hole.
When using the dipstick to check oil level, DO NOT screw in
the dipstick while checking.
As general good rule of thumb oil is full when you can see it
clearly on the bottom couple of threads of the port.
MAX
OIL DIP STICK
NOTICE
Check oil level often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary slightly and help seat piston
rings. After the 5 hour break-in period, change the oil.
NOTICE
Synthetic oil may be used after the 5 hour initial break-in
period. Using synthetic oil does not increase the
recommended oil change interval. Full synthetic 5W-30
oil will aid in starting in cold ambient < 41º F (5º C)
temperatures.
Add Fuel
Use clean, fresh, regular unleaded petrol with a minimum
octane rating of 85 and an ethanol content of 10% or less by
volume. . bc
DO NOT mix oil with petrol.
1. Remove the petrol cap.
2. Slowly add petrol to the tank. Tank is full when petrol
reaches red circle on screen. DO NOT OVERFILL. Petrol
can expand after filling. A minimum of ¼ in. (6.4 mm) of
space left in the tank is required for petrol expansion,
although more than ¼ in. (6.4 mm) is recommended. Petrol
can be forced out of the tank as a result of expansion if
overfilled, and can affect the stable running condition of
the generator.

500559-EU - 2800W RATED PORTABLE GENERATOR ASSEMBLY
16

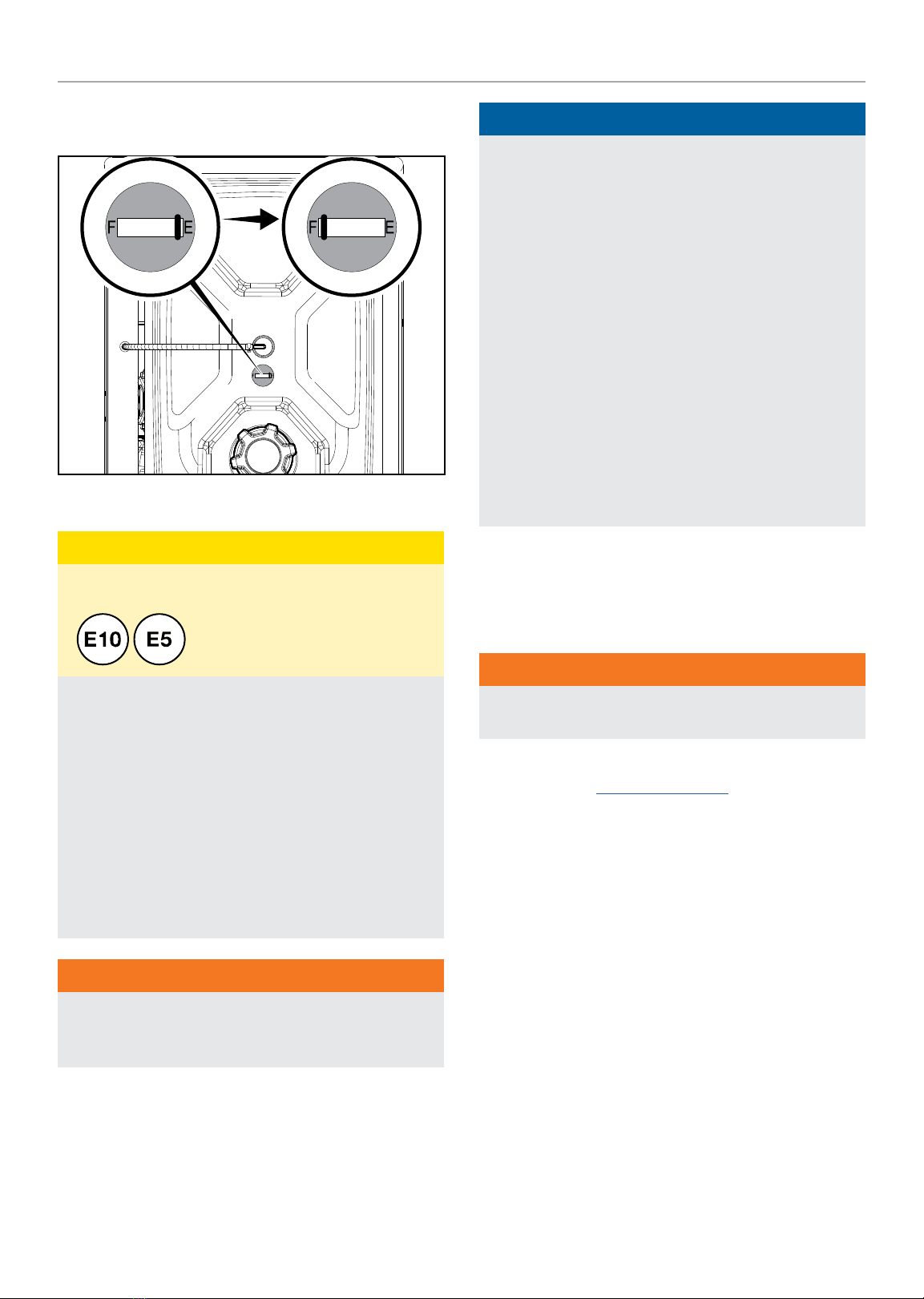

3. The approximate fuel level is shown on the fuel gauge on
top of the fuel tank.
4. Screw on the petrol cap and wipe away any spilled fuel.
CAUTION
Only use unleaded petrol with a minimum octane rating of
85 and an ethanol content of 10% or less by volume.
NEVER light cigarettes or smoke when filling the tank.
NEVER mix oil and petrol.
NEVER overfill the tank. Fill tank to approximately ¼ in. (6.4
mm) below the top of the tank to allow for petrol expansion.
NEVER pump petrol directly into the generator at the pump.
Use an approved container to transfer the petrol to the
generator.
NEVER fill tank indoors.
NEVER fill tank when the engine is running or hot Engines
needs at least 30mins to cool down before refilling any fuel..
WARNING
Pouring petrol too fast through the fuel screen may result
in petrol splashing over the generator and operator while
filling.
NOTICE
The generator engine works well with 10% or less ethanol
blend petrol. When using ethanol-petrol blends there are
some issues worth noting:
–Ethanol-petrol blends can absorb more water than petrol
alone.
–These blends can eventually separate, leaving water or
a watery goo in the tank, fuel valve and carburetor. The
compromised petrol can be drawn into the carburetor
and cause damage to the engine and/or potential
hazards.
–If a fuel stabilizer is used, confirm that it is formulated to
work with ethanol-petrol blends.
–Any damages or hazards caused by using improper
petrol, improperly stored petrol, and/or improperly
formulated stabilizers, are not covered by
manufacturer’s warranty.
It is advisable to always shut off the petrol supply and
run the engine to starvation after each use. See Storage
instructions for extended non-use.
Grounding
Your generator must be properly connected to an appropriate
ground to help prevent electric shock.
WARNING
Failure to properly ground the generator can result in
electric shock.
A ground terminal connected to the frame of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect of a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to
ensure compliance with local electrical codes.
Neutral Floating*
–Neutral circuit IS NOT electrically connected to the frame/
ground of the generator.
–The generator (stator winding) is isolated from the frame
and from the AC receptacle ground pin.
–Electrical devices that require a grounded receptacle pin
connection will not function if the receptacle ground pin is
not functional.
Neutral Bonded to Frame*
–Neutral circuit IS electrically connected to the frame/ground
of the generator.
–The generator system ground connects lower frame
cross-member below the alternator. The system ground is
connected to the AC neutral wire.
* See your model’s control panel for specified type of grounding.

500559-EU - 2800W RATED PORTABLE GENERATOR OPERATION
17
EN
OPERATION
Generator Location
NEVER operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle. Please consult your local authority. In
some areas, generators must be registered with the local
utility. Generators used at construction sites may be subject
to additional rules and regulations. Generators should be on
a flat, level surface at all times. (Even while not in operation)
Generators must have at least 5 ft. (1.5 m) of clearance from
all combustible material. In addition to clearance from all
combustible material, generators must also have at least 3 ft.
(91.4 cm) of clearance on all sides to allow for adequate cooling,
maintenance and servicing. Generators should never be started
or operated in the back of a SUV, camper, trailer, in the bed
of a truck (regular, flat or otherwise vehicle including), under
staircases/stairwells, next to walls or vans or buildings, or in
any other location that will not allow for adequate cooling of the
generator and/or the muffler. DO NOT contain generators during
operation. Allow generators to properly cool before transport or
storage.
Place the generator in a well-ventilated area. DO NOT place the
generator near vents or intakes where exhaust fumes could
be drawn into occupied or confined spaces. Carefully consider
wind and air currents when positioning generator.
Failure to follow proper safety precautions will void
manufacturer’s warranty.
WARNING
Do not operate or store the generator in rain, snow, or wet
weather.
Using a generator or electrical appliance in wet conditions,
such as rain or snow, or near a pool or sprinkler system,
or when your hands are wet, could result in electrocution.
WARNING
During operation the muffler and exhaust fumes will
become hot. If adequate cooling and breathing space are
not supplied, or if the generator is blocked or enclosed,
temperatures can become extremely heated and may lead
to fire.
NEVER try to extend or modify the muffler/exhaust, by doing
so will void and warranties offered.
Surge Protection
Electronic devices, including computers and many
programmable appliances use components that are designed
to operate within a narrow voltage range and may be affected
by momentary voltage fluctuations. While there is no way to
prevent voltage fluctuations, you can take steps to protect
sensitive electronic equipment.
–Install plug-in surge suppressors on the outlets feeding your
sensitive equipment.
Surge suppressors come in single- or multi-outlet styles.
They’re designed to protect against virtually all short-
duration voltage fluctuations.
Starting the Engine
1. Make certain the generator is on a flat, level surface.
2. Disconnect all connected electrical loads from the
generator. Never start or stop the generator with electrical
devices plugged in or turned on.
3. Turn the petrol fuel valve to the “ON” position.
4. Push the engine switch to the “ON” position.
5. Move the choke to the CHOKE position. Note: for restarting
a warm engine, move the choke to 75% of the CHOKE
position.

500559-EU - 2800W RATED PORTABLE GENERATOR OPERATION
18
6. Gently the starter cord slowly until resistance is felt.
NOTICE
By rigorously pulling the recoil cord and not following the
correct practice you will damage the cord or mechanism
and void any part warranty.
7. As soon as engine starts, move the choke to the “RUN”
position over a 2-5 second duration.
8. Connect electrical loads.
NOTICE
Keep choke in “CHOKE” position for only 1 pull of the recoil
starter. After first pull, move choke to “RUN” position for
up to 3 pulls of the recoil starter. Too much choke leads to
spark plug fouling/engine flooding due to lack of incoming
air. This will cause the engine not to start.
NOTICE
For petrol restarts with hot engine in hot ambient
temperature > 86°F (30°C), keep choke in 75% of the
“CHOKE” position for only 1 pull of the recoil starter. After
first pull, move choke to “RUN” position for up to 3 pulls
of the recoil starter. Too much choke leads to spark plug
fouling/engine flooding due to lack of incoming air. This will
cause the engine not to start.
NOTICE
For gas starting in cold ambient temperature < 59°F
(15°C), the choke must be in 100% of the “CHOKE” position
for recoil start procedures. Do not over-choke. As soon as
engine starts, gradually move the choke lever to the “RUN”
position over a 2-5 second duration.
NOTICE
If the engine starts but does not run make certain that the
generator is on a flat, level surface. The engine is equipped
with a low oil sensor that will prevent the engine from
running when the oil level falls below a critical threshold.
Connecting Electrical Loads
Let the engine stabilize and warm up for a few minutes after
starting.
Plug in and turn on the desired 220 Volt AC single phase, 50 Hz
electrical loads.
–DO NOT connect 3-phase loads to the generator.
–DO NOT overload the generator.
–NEVER use both 220V or DC12V together they MUST be
used separately.
WARNING
Connecting a generator to your electric utility company’s power
lines or to another power source may be against the law. In
addition this action, if done incorrectly, could damage your
generator and appliances and could cause serious injury or even
death to you or a utility worker who may be working on nearby
power lines. If you plan to run a portable electric generator
during an outage, please notify your electric utility company
immediately and remember to plug your appliances directly into
the generator. Do not plug the generator into any electric outlet
in your home. Doing so could create a connection to the utility
company power lines. You are responsible for ensuring that your
generator’s electricity does not feed back into the electric utility
power lines.
If the generator will be connected to a building electrical system,
consult your local utility company or a qualified electrician.
Connections must isolate generator power from utility power
and must comply with all applicable laws and codes.

500559-EU - 2800W RATED PORTABLE GENERATOR OPERATION
19
EN
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the running and starting
watts necessary for your purposes:
1. Select the electrical devices you plan on running at the
same time.
2. Total the running watts of these items. This is the amount
of power you need to keep your items running.
3. Identify the highest starting wattage of all devices
identified in step 1. Add this number to the number
calculated in step 2. Starting wattage is the surge of power
needed to start some electric driven equipment. Following
the steps listed under “Power Management” will guarantee
that only one device will be starting at a time.
Power Management
Use the following formula to convert voltage and amperage to
watts:
Volts ×Amps = Watts
To prolong the life of your generator and attached devices,
follow these steps to add electrical load:
1. Start the generator with no electrical load attached.
2. Allow the engine to run for several minutes to get up to
temperature.
3. Plug in and turn on the first item. It is best to attach the
item with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
NOTICE
Never exceed the specified capacity when adding loads to
the generator.
Stopping the Engine
1. Turn off and unplug all connected electrical loads. Never
start or stop the generator with electrical devices plugged
in or turned on.
2. Let the generator run at no-load for several minutes to
stabilize internal temperatures of the engine and generator.
3. Press the engine switch to the “OFF” position.
4. Turn the fuel valve to the “OFF” position.
Important: Always ensure that the fuel valve and the engine
switch are in the “OFF” position when the generator is not in
use.
NOTICE
If the engine will not be used for a period of two (2) weeks or
longer, please see the Storage section for proper engine and
fuel storage.
Operation at High Altitude
The density of air at high altitudes is lower than at sea level.
Engine power is reduced as the air mass and air-fuel ratio
decrease. Engine power and generator output will be reduced
approximately 3½% for every 1000 ft. of elevation above sea
level. At high altitudes increased exhaust emissions can also
result due to the increased enrichment of the air fuel ratio.
Other high altitude issues can include hard starting, increased
fuel consumption and spark plug fouling.
To alleviate high altitude issues other than the natural power
loss, CPE can provide a high altitude carburetor main jet.
The alternative main jet and installation instructions can be
obtained by contacting our Technical Support Team. Installation
instructions are also available in the Technical Bulletin area of
the CPE website.

500559-EU - 2800W RATED PORTABLE GENERATOR MAINTENANCE
20
The part number and recommended minimum altitude for the
application of the high altitude carburetor main jet is listed in
the following table.
In order to select the correct high altitude main jet it is
necessary to identify the carburetor model. For this purpose,
a code is stamped on the side of the carburetor. Select the
correct high altitude jet part number corresponding to the
carburetor code found on your particular carburetor.
Carb. Code High Alt. Jet Part Number Min. Altitude
Z922
100082378 3281 ft.
(1000 m)
100123767 6562 ft.
(2000 m)
WARNING
Operation using the alternative main jet at elevations lower
than the recommended minimum altitude can damage the
engine. For operation at lower elevations, the originally
supplied standard main jet must be used. Operating the
engine with the wrong engine configuration at a given
altitude may increase its emissions and decrease fuel
efficiency and performance.
MAINTENANCE
Make certain that the generator is kept clean and stored
properly. Only operate the unit on a flat, level surface in a clean,
dry operating environment. DO NOT expose the unit to extreme
conditions, excessive dust, dirt, moisture or corrosive vapors.
WARNING
Never operate a damaged or defective generator.
WARNING
Improper maintenance will void your warranty.
NOTICE
For Emission control devices and systems, read and
understand your responsibilities for service as stated in the
Emission Control Warranty Statement of this manual.
The owner/operator is responsible for all periodic maintenance.
This includes oil changes, spark plug checks/changes, valve
clearance checks/adjustments and spark arrestor checks.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the generator.
For service or parts assistance, contact our
Technical Support Team
Cleaning the Generator
CAUTION
DO NOT jet wash spray generator directly with water, by
doing so will void any warranty offered.
Water can enter the generator through the cooling slots and
damage the generator windings. It can also contaminate the
fuel system.
1. Use a damp cloth to clean exterior surfaces of the
generator.
2. Use a soft bristle brush to remove dirt and oil.
3. Use an air compressor (25 PSI) to clear dirt and debris
from the generator.
4. Inspect all air vents and cooling slots to ensure that they
are clean and unobstructed.
To prevent accidental starting, remove and ground the spark
plug wire before performing any service.
Changing the Engine Oil
Change oil when the engine is warm. Refer to the oil
specification to select the proper grade for your operating
environment.
1. Remove the oil drain bolt and washer with a 10 mm socket
(not included) and extension.
2. Allow the oil to drain completely into an appropriate
container.

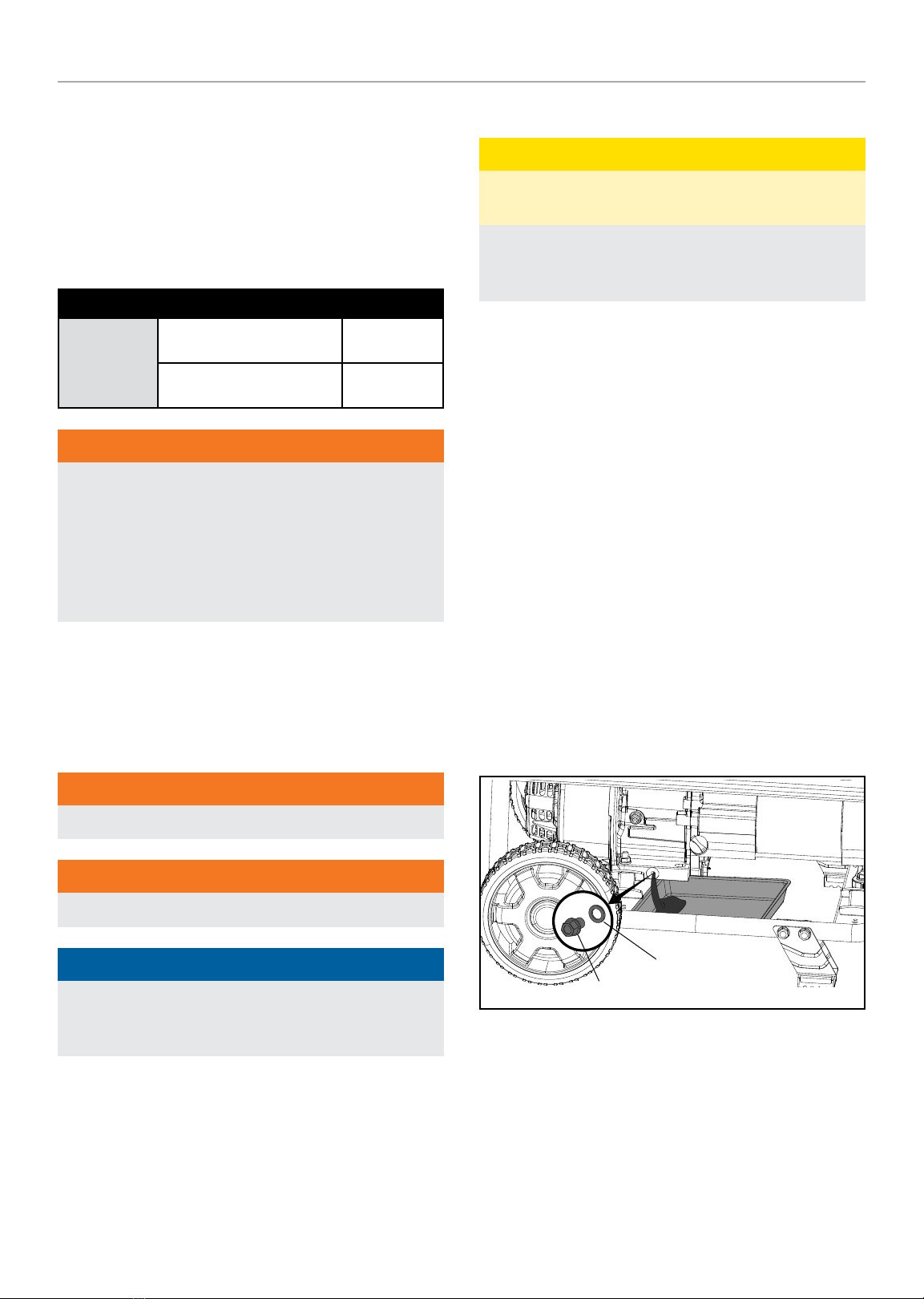

DRAIN BOLT
WASHER
3. Replace the oil drain bolt and washer.
4. Remove the oil fill cap/dipstick to add oil.
5. Add oil according to “Add Engine Oil” on Assembly
section. DO NOT OVERFILL. Oil not included for routine
maintenance.
6. Dispose of used oil at an approved waste management
facility.
