Champion Global Power Equipment 100592 User manual

OPERATOR'S MANUAL
MODEL #100592
6250W DUAL FUEL GENERATOR
V
REV 20210316 Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure
to do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
Covered by one or more of the following U.S. Patent Numbers: 10,862,414 and other U.S. and foreign patents pending.
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
CARBON MONOXIDE AUTO-SHUTOFF

100592 - 6250W DUAL FUEL GENERATOR
VTABLE OF CONTENTS
2
TABLE OF CONTENTS
Introduction................................................ 3
Safety Definitions ....................................... 3
Important Safety Instructions.................... 4
Fuel Safety ...................................................... 6
Safety Labels.................................................... 7
Safety Symbols.................................................. 8
Operation Symbols .............................................. 9
Quickstart Label Symbols......................................10
Controls and Features ...............................11
Generator .......................................................11
Control Panel ...................................................12
Fuel Select Dial.................................................12
Intelligauge with CO Shield®............................................................13
Parts Included ..................................................14
Tools Needed ...................................................14
Assembly...................................................15
Unpacking ......................................................15
Install the Wheel Kit............................................15
Add Engine Oil..................................................15
Add Fuel: Gasoline .............................................16
Add Fuel: Propane (LPG) .......................................17
Grounding ......................................................18
Operation...................................................18
CO Shield®- Carbon Monoxide (CO) Detection and Auto-
shutoff System ...................................................18
Generator Location.............................................19
Surge Protection ...............................................20
Starting the Engine: Gasoline..................................20
Starting the Engine: Propane (LPG) ...........................21
Connecting Electrical Loads ...................................22
Do Not Overload Generator ....................................22
GFCI.............................................................23
Stopping the Engine............................................23
Moving the Generator ..........................................24
Operation at High Altitude .....................................24
Maintenance............................................. 25
Cleaning the Generator ........................................25
Changing the Engine Oil .......................................25
Cleaning and Adjusting the Spark Plug........................25
Cleaning the Air Filter ..........................................26
Cleaning the Spark Arrestor ...................................26
Adjusting the Governor.........................................26
Maintenance Schedule.........................................27
Storage ..................................................... 27
Short Term Storage (30 days – 1 year)........................27
Long Term Storage (over 1 year) ..............................28
Removing from Storage........................................28
Specifications........................................... 29
Generator Specifications.......................................29
Engine Specifications ..........................................29
Oil Specifications...............................................29
Fuel Specifications .............................................29
Temperature Specifications....................................29
Troubleshooting........................................ 30
WARRANTY*.............................................. 32
Warranty Qualifications ........................................32
Repair/Replacement Warranty.................................32
Do Not Return The Unit To The Place Of Purchase ...........32
Warranty Exclusions ...........................................32
Other Exclusions ...............................................32
Limits of Implied Warranty and Consequential Damage......32
Contact Information ............................................32

100592 - 6250W DUAL FUEL GENERATOR
VINTRODUCTION
3
INTRODUCTION
Congratulations on your purchase of a Champion Power
Equipment (CPE) product. CPE designs, builds, and supports
all of our products to strict specifications and guidelines. With
proper product knowledge, safe use, and regular maintenance,
this product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time
of publication, and we reserve the right to change, alter and/
or improve the product and this document at any time without
prior notice.
CPE highly values how our products are designed,
manufactured, operated, and serviced as well as providing
safety to the operator and those around the generator.
Therefore, it is IMPORTANT to review this product manual
and other product materials thoroughly and be fully aware
and knowledgeable of the assembly, operation, dangers
and maintenance of the product before use. Fully familiarize
yourself, and make sure others who plan on operating the
product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always
exercise common sense and always err on the side of caution
when operating the product to ensure no accident, property
damage, or injury occurs. We want you to continue to use and
be satisfied with your CPE product for years to come.
When contacting CPE about parts and/or service, you will
need to supply the complete model and serial numbers of your
product. Transcribe the information found on your product’s
nameplate label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
100592
V
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which,if not
avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but
not hazard-related (e.g., messages relating to property
damage).

100592 - 6250W DUAL FUEL GENERATOR
VIMPORTANT SAFETY INSTRUCTIONS
4
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poisonous gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to
feel dizzy or weak, get to fresh air immediately.
OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY.
DO NOT operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area
through windows, doors, vents or other openings.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a
poison you cannot see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to
the manufacturer’s instructions.
WARNING
Although the generator contains a spark arrester, maintain
a minimum distance of 5 ft. (1.5 m) from dry vegetation to
prevent fires.
DANGER
Operate equipment with guards in place.
Rotating parts can entangle hands, feet, hair, clothing and/
or accessories. Traumatic amputation or severe laceration
can result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or
frayed. Use only Champion electrical cords for proper
application.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to operate or
service the generator.
Use a ground fault circuit interrupter (GFCI) in damp areas
and areas containing conductive material such as metal
decking.
Connection to your home’s electrical system requires a
listed 30A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical
codes.
WARNING
Do not use generator for medical and life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
NEVER use this product to power medical devices or
medical appliances.
Inform your electricity provider immediately if you or anyone
in your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience
a medical emergency.

100592 - 6250W DUAL FUEL GENERATOR
VIMPORTANT SAFETY INSTRUCTIONS
5
WARNING
Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Rapid retraction of the starter cord will pull hand and arm
towards the engine faster than you can let go. Unintentional
startup can result in entanglement, traumatic amputation or
laceration. Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Start the generator and allow the engine to stabilize before
connecting electrical loads.
Connect electrical equipment in the off position, and then
turn them on for operation.
Turn electrical equipment off and disconnect before
stopping the generator.
CAUTION
Improper treatment or use of the generator can damage it,
shorten its life or void the warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
–Electrical output is lost
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively
WARNING
Tampering with CO Shield®could result in a hazardous
condition. Removing the CO Shield module will not allow the
generator to start.

100592 - 6250W DUAL FUEL GENERATOR
VIMPORTANT SAFETY INSTRUCTIONS
6
Fuel Safety
DANGER
GASOLINE, GASOLINE VAPORS AND PROPANE (LPG) ARE
HIGHLY FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
–Gasoline is highly flammable and explosive.
–Gasoline can cause a fire or explosion if ignited.
–Gasoline is a liquid fuel but it’s vapors can ignite.
–Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
–In any petroleum gas fire, flames should not be extinguished
unless by doing so the fuel supply valve can be turned OFF.
This is because if a fire is extinguished and a supply of
fuel is not turned OFF, then an explosion hazard could be
created.
–Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline
needs room to expand if temperatures rise.
LPG:
–LPG is highly flammable and explosive.
–LPG is under pressure and can cause a fire or explosion if
ignited.
–LPG is heavier than air and can settle in low places while
dissipating.
–LPG has a distinctive odor added to help detect potential
leaks quickly.
–In any petroleum gas fire, flames should not be extinguished
unless the fuel supply valve is turned OFF. This is because if
a fire is extinguished and a supply of fuel is not turned OFF,
then an explosion hazard could be created.
–When exchanging LPG cylinders, be sure the cylinder valve
is of the same type.
–Always keep the LPG cylinder in an upright position.
–LPG will burn skin if it comes in contact with it. Keep any
and all LPG away from skin at all times.
When adding or removing gasoline:
DO NOT light or smoke cigarettes.
Turn the generator off and let it cool for at least two minutes
before removing the gasoline cap. Loosen the cap slowly to
relieve pressure in the tank.
Only fill or drain gasoline outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator at the gas
station. Use an approved container to transfer the fuel to the
generator.
DO NOT overfill the gasoline tank.
Always keep gasoline away from sparks, open flames, pilot
lights, heat and other sources of ignition.
When starting the generator:
DO NOT attempt to start a damaged generator.
Make certain that the gasoline cap, air filter, spark plug, fuel
lines and exhaust system are properly in place.
Allow spilled gasoline to evaporate fully before attempting to
start the engine.
Make certain that the generator is resting firmly on level
ground.
When operating the generator:
DO NOT move or tip the generator during operation.
DO NOT tip the generator or allow fuel or oil to spill.
When transporting or servicing the generator:
Make certain that the fuel valve is in the OFF position and the
gasoline tank is empty.
For LPG compatible models, be sure that the LPG cylinder is
disconnected and stored securely away from the generator.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat and
other sources of ignition.
Do not store generator, gasoline or LPG cylinders near furnaces,
water heaters, or any other appliances that produce heat or
have automatic ignitions.
WARNING
Never use a gasoline container, gasoline tank, LPG
connector hose, LPG cylinder or any other fuel item that is
broken, cut, torn or damaged.

100592 - 6250W DUAL FUEL GENERATOR
VIMPORTANT SAFETY INSTRUCTIONS
7
Top
A
C
B
Safety Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
Back Side
D
E
LABEL DESCRIPTION
A
PELIGRO
El uso de un generador en
interiores PUEDE MATARLO EN
MINUTOS. El escape del
generador contiene monóxido de
carbono. Éste es un veneno que no
se puede ver ni oler.
•NUNCA lo use dentro del hogar ni
el garaje, INCLUSO SI las puertas
y ventanas están abiertas.
•Úselo SÓLO a la INTEMPERIE
lejos de ventanas, puertas, y
orificios de ventilación.
DANGER
Utiliser un générateur à l’intérieur
PEUT VOUS TUER EN QUELQUES
MINUTES. L’échappement du
générateur contient du monoxyde de
carbone. Il s’agit d’un poison que vous
ne pouvez ni voir ni sentir.
•Ne l’utilisez JAMAIS dans la
maison ou le garage MÊME SI les
portes et les fenêtres sont ouvertes.
•Utilisez-le UNIQUEMENT À
L’EX T ÉRIE UR, loin des fenêtres,
portes et trappes de ventilation.
NEVER use inside a
home or garage,
EVEN IF doors and
windows are open.
ONLY use OUTSIDE
and far away from
windows, doors,
and vents.
DANGER
Using a generator indoors CAN KILL
YOU IN MINUTES. Generator exhaust
contains carbon monoxide. This is a
poison you cannot see or smell.
1028-L-SF-C
K2945 109 485 ---
ColorsLPN 1028-L-SF
Rev C
Size 163 x 113 mm
Artwork Notes
3mm corner radius; 2mm safe margin
Revision Changes
B: Fix bo ld for “ONLY OUTSI DE” in French
C: Need a dd the text hei ght
This art work belongs to Cham pion Power Equipment. T he contents are con fidential and privi leged and shall not be disc losed to or used by or for
outside p arties withou t the explicit consen t of Champion Power E quipment.
Safety Symbols/
CO Danger
B
1607-L-SF-C
AUTOMATIC SHUTOFF – YOU MUST:
APAGADO AUTOMÁTICO– USTED DEBE:
ARRÊT AUTOMATIQUE– VOUS DEVEZ :
Move generator to an open, outdoor area. Point exhaust away. Don’t run generators
in enclosed areas (e.g. not in house or garage).
Mover el generador a un área abierta a la intemperie. Apunte el escape alejado. No corra los
generadores en áreas cerradas (ej. no en una casa o garaje).
Déplacer le générateur vers un espace extérieur
en plein air. Garder l’échappement loin. Ne pas
faire fonctionner les générateurs dans un espace
clos (ex., pas dans une maison ou un garage).
ACTION LABEL
ETIQUETA DE ACCIÓN
ÉTIQUETTE D'ACTION
EXHAUST EL ESCAPE L’ECHAPPEMENT
POINT AWAY
DIRIJA ALEJADO
DIRIGER LOIN
Move to fresh air and get medical
help if sick, dizzy or weak.
Mueva al aire fresco y obtenga
asistencia medica si está
enfermo, mareado, o débil.
Aller à l'air frais et obtenir de
l'aide médicale si malade,
étourdi ou faible.
PROCESS
ColorsLPN 160 7-L-S F
Rev C
Size ~276.4 x 8 2.3 mm
Artwork Notes
2mm safe margin; to be prin ted on white su bstrate
Revision Changes
B: Updated dieline
C: Delet ed “25 ft./ 7 m”
This art work belongs to Champi on Power Equipment. T he contents are con fidential and privile ged and shall not be discl osed to or used by or for
outside par ties without t he explicit consent o f Champion Power Equ ipment.
K485 152 109
CO Shield®Action
– automatic
shutoff
*See CO Shield
section
C
1110-L-OP-B
UNLEADED FUEL ONLY. Minimum octane
rating of 87. Maximum 10% ethanol.
GASOLINA REGULAR SOLAMENTE. 87 octanos
como mínimo. Máximo de etanol de 10%.
ESSENCE SANS PLOMB SEULEMENT.
Indice d’octane minimal de 87.
Maximum 10 % d'éthanol.
K109 --- --- ---
ColorsLPN 1110 -L-OP
Rev B
Size 46 x 46 mm
Artwork Notes
3mm corner radius; 2mm safe margin; white to be
printed shown in 50% process magenta
Revision Changes
-Changed Octane rating from 85 to 87 (2020 0407)
This ar twork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Fuel
D
WARNING
DO NOT TOUCH!
Exhaust gases, muffler
and engine components
are extremely HOT and
cause burns.
Operation of this equipment may create sparks that can start
fires around dry vegetation. A spark arrestor may be
required. The operator should contact local fire agencies for
laws and regulations relating to fire prevention requirements.
If installed, clean every 100 hours or every season.
ADVERTENCIA
¡NO TOCAR! Los gases de
escape, el silenciador y los
compnonentes del motor están
extremadamente CALIENTES y
causan quemaduras.
La operación de este equipo puede producir chispas que pueden provocar
incendios alrededor de la vegetación seca. Un supresor de chispas puede que
sea necesario. El operador debe comunicarse con las agencias locales de
bomberos para las leyes y reglamentos relativos a los requisitos de prevención
de incendios. Si está instalado, limpie cada 100 horas o cada temporada.
AVERTISSEMENT
NE PAS TOUCHER! Les gaz
d’échappement, le silencieux
et les pièces du moteur sont
extrêmement CHAUDS et
peuvent causer des brûlures.
Cet équipement peut créer des étincelles et provoquer un incendie dans la
végétation sèche. Un pare-étincelles peut être requis. L’utilisateur doit
communiquer avec le service d’incendie local pour connaître les lois et
les règlements en matière de prévention des incendies. Si elle est
installée, nettoyez la génératrice toutes les 100 heures ou chaque saison.
1035-L-SF-C
ColorsLPN 1035-L-SF
Rev C
Size 369 x 2 6 mm
Artwork Notes
3mm corner radius; 2mm safe margin
Revision Changes
C: updated some FR translation words.
This art work belongs to Cha mpion Power Equipmen t. The contents a re confidential a nd privileged and sha ll not be disclosed to or u sed by or for
outside p arties withou t the explicit conse nt of Champion Power E quipment.
K485 152 --- ---
Hot Surface
E
K--- --- --- ---
ColorsLPN 2689-L-PR
Rev A
Size 123 x 40 mm
Artwork Notes
3mm corner radius; 2mm safe margin; remove
“PROPANE WATTS” if not applicable
Revision Changes
B: Sep arated "AC WATTS" into "GAS OLINE" and
"PR OPANE "
C: Upd ate “Mod el, Frequency and Phase” in Fr ench.
This ar twork belongs to Champion P ower Equipment . The contents are confidential and priv ileged and shall n ot be disclosed to or used by or for
outside parties wi thout the explicit consent of Champion Power Equipment.
CHAMPION POWER EQUIPMENT, INC.
12039 SMITH AVENUE
SANTA FE SPRINGS, CA 90670
USA / É.-U.
1-877-338-0999
WWW.CHAMPIONPOWEREQUIPMENT.COM
MADE IN VIETNAM / FABRIQUÉ EN VIETNAM
AC AMPS
AMPÈRES C.A.
FREQUENCY (Hz)
FRÉQUENCE (Hz)
RPM
TR / MIN
PHASE
PHASE
POWER FACTOR
FACTEUR DE
PUISSANCE
AC VOLTS
VOLTS C.A.
MANUFACTURE DATE
DATE DE FABRICATION
SERIAL NO.
N° DE SÉRIE
MODEL
MODÈLE
INSULATION CLASS
CLASSE D’ISOLATION
MAX AMBIENT TEMP.
TEMP. AMBIANTE MAX.
2689-L-PR
GASOLINE WATTS
WATTS D'ESSENCE
100592
V
52.1/26.0
60
3600
1
1.0
120/240
H
6250
104°F
40°C
5600
PROPANE WATTS
WATTS AU PROPANE
XXXXXXXXXXXX
XXXX
Dataplate

100592 - 6250W DUAL FUEL GENERATOR
VIMPORTANT SAFETY INSTRUCTIONS
8
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s
manual before using this product.
Clearance. Keep all objects at least 5 feet (1.5m) from generator. Heat from the muffler and exhaust
gas can ignite combustible objects.
Ground. Consult with local electrician to determine grounding requirements before operation.
Electric Shock. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire/Explosion. Fuel and its vapors are extremely flammable and explosive. Fire or explosion
can cause severe burns or death. Keep generator at least 5 feet (1.5m) from all objects to prevent
combustion.
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface.
Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from
smoking, open flames, sparks, pilot lights, heat, and other ignition sources.
Wet Conditions Alert. Do not expose to rain or use in damp locations.

100592 - 6250W DUAL FUEL GENERATOR
VIMPORTANT SAFETY INSTRUCTIONS
9
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
SYMBOL MEANING
ON
STOP or OFF
High CO Warning. Move generator to
an open, outdoor area. Move to fresh
air and get medical help if sick, dizzy
or weak.
System Fault. Electrical issue,
tampering, end of life.
Locking Receptacle
Neutral Bonded to Frame. Neutral
circuit IS electrically connected to the
frame/ground of the generator.
Choke
SYMBOL MEANING
Run
Ground Terminal
Propane Operation
Gasoline Operation
Propane Inlet
Gasoline Tank: Full
Gasoline Tank: Empty

100592 - 6250W DUAL FUEL GENERATOR
VIMPORTANT SAFETY INSTRUCTIONS
10

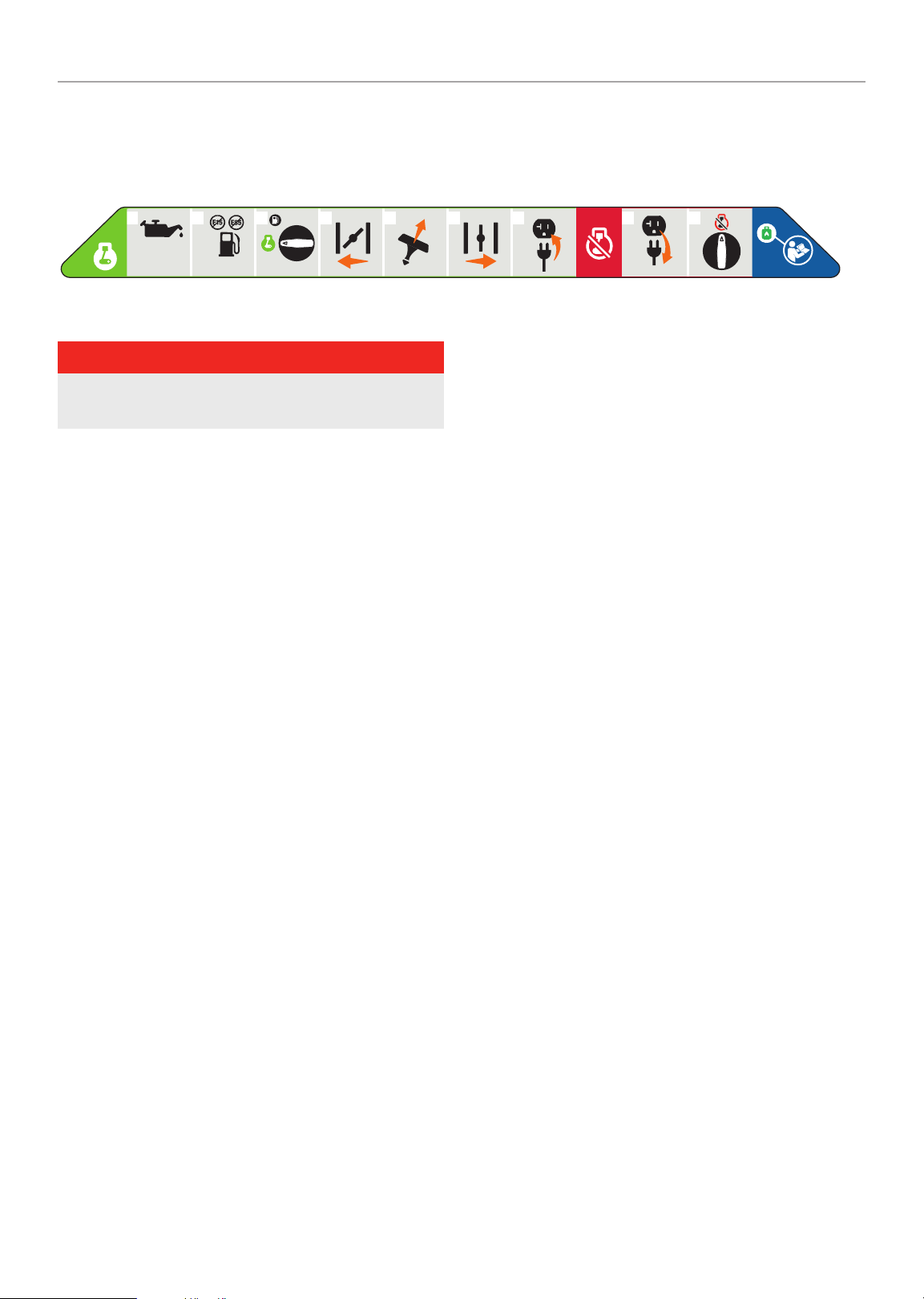

Quickstart Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
Starting the Engine
DANGER
Move generator outside and far away from windows,
doors and intake ventilation covers.
1. Check oil level.
Recommended oil is 10W-30.
2. Add fuel. Check gasoline level. When adding gasoline, use
a minimum octane rating of 87 and an ethanol content of
10% or less by volume.
3. Turn fuel select dial to the “GASOLINE RUN” position.
4. Move the choke lever the “CHOKE” position.
5. Pull the recoil cord.
6. Move the choke lever to the “RUN” position.
7. Plug in desired device.
Stopping the Engine
1. Turn off and unplug all connected electrical loads.
2. Turn the fuel select dial to the “ENGINE STOP” position.
For adding fuel and starting the engine with LPG see Add Fuel:
Propane (LPG) in Assembly section and Starting the Engine:
Propane (LPG) in the Operation section.
10W-30


217654321
2688-L-PR

100592 - 6250W DUAL FUEL GENERATOR
VCONTROLS AND FEATURES
11
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Generator
1. Gasoline Level
2. Fuel Cap – Remove to add fuel.
3. Gasoline Tank – 7.7 gal. (29.1 L)
4. Choke – Used to start the engine.
5. Air Filter – Protects the engine by filtering dust and debris
from the intake air.
6. Never Flat Wheels – 8 in. (20.3 cm)
7. Recoil Starter – Used to manually start the engine.
8. Oil Fill Cap/Dipstick –Used to check and fill oil level.
9. Control Panel –See “Control Panel” section.
10. Folding Handle –Used to move unit by lifting and rolling
on wheels. Do not use to lift or carry the unit.
11. Ground Terminal – Consult an electrician for local
grounding regulations.
3
4
5
6
7
89
10
21
11

100592 - 6250W DUAL FUEL GENERATOR
VCONTROLS AND FEATURES
12

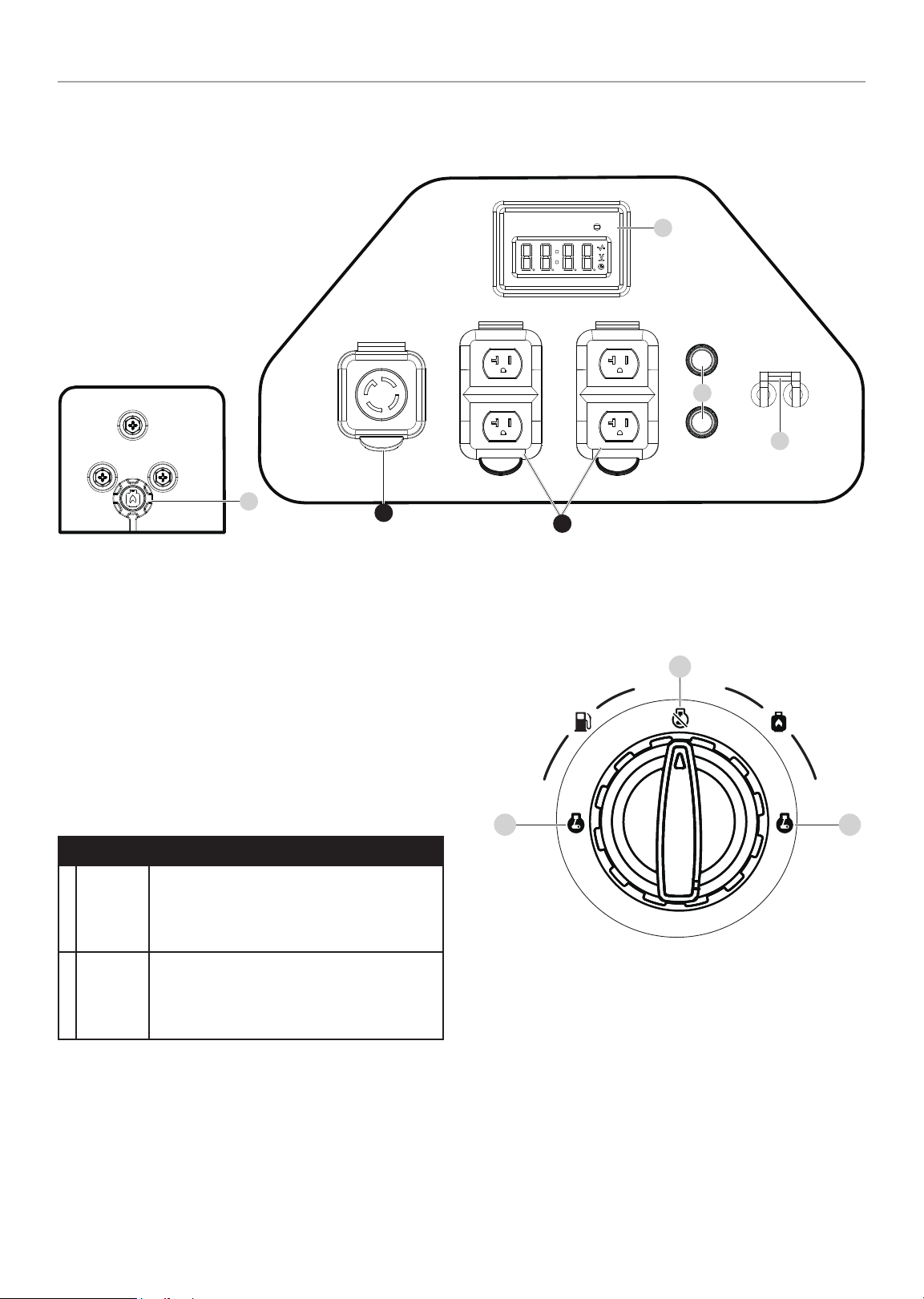

Control Panel
Fuel Select Dial
1. LPG Inlet – Used to connect LPG fuel source to generator.
2. Intelligauge with CO Shield®– Four mode digital meter
for displaying voltage, frequency, session run time, total
run time. Mutli-colored LED indicates CO shutoff or fault.
3. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
4. Circuit Breakers (Flip Reset) – Protects the generator
against electrical overloads.
1. Gasoline Run Position
2. Engine Stop Position
3. Propane Run Position
RECEPTACLES
AY
120/240V AC, 30A Locking (NEMA L14-30R)
May be used to supply electrical power for
operation of 120/240 Volt AC, 30 Amp, single
phase, 60 Hz electrical loads.
BC
(4×) 120V AC, 20A GFCI (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single
phase, 60 Hz electrical loads.
1 3
2
1AB
3
4
2

100592 - 6250W DUAL FUEL GENERATOR
VCONTROLS AND FEATURES
13
Intelligauge with CO Shield®
Four mode digital meter for displaying voltage, frequency,
session run time, total run time. Mutli-colored LED indicates CO
shutoff or fault.
MODE DESCRIPTION
Voltage (V)
Output voltage of the generator.
Example: 120 volts
Frequency (H)
Output frequency in hertz.
Example: 60.0 hertz
Run Time (R)
Run time of the generator for the current session
Example: 6 hours
Total Run Time
Total run time of the generator since first operation
Example: 16 hours

100592 - 6250W DUAL FUEL GENERATOR
VCONTROLS AND FEATURES
14
Parts Included
Accessories
Oil Funnel..............................................................................1
6.5 ft. (2 m) LPG Hose with Regulator.................................... 1
Engine Oil................................... 37.2 fl. oz. (1100 ml)
Assembly Parts
Wheels
8 in. (20.3 cm) Never Flat Wheel (A).................................. 2
Wheel Hub Cap (B)............................................................2
Roll Pin (C)........................................................................ 2
Large R-clip (D) ................................................................2
Support Legs
Support Leg with Vibration Mounts (E).............................. 2
Flange Bolt (M8×40) (F)....................................................4
Flange Lock Nut (M8) (G) ..................................................4
Tools Needed
–Pliers
–Metric wrench or socket set
A
E
G
F
BC
D

100592 - 6250W DUAL FUEL GENERATOR
VASSEMBLY
15
ASSEMBLY
Your generator requires some assembly. This unit ships from
our factory without oil. It must be properly serviced with fuel
and oil before operation.
If you have any questions regarding the assembly of your
generator, call our Technical Support Team at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. Carefully cut each corner of the box from top to bottom.
Fold each side flat on the ground to provide a surface area
to work with the generator.

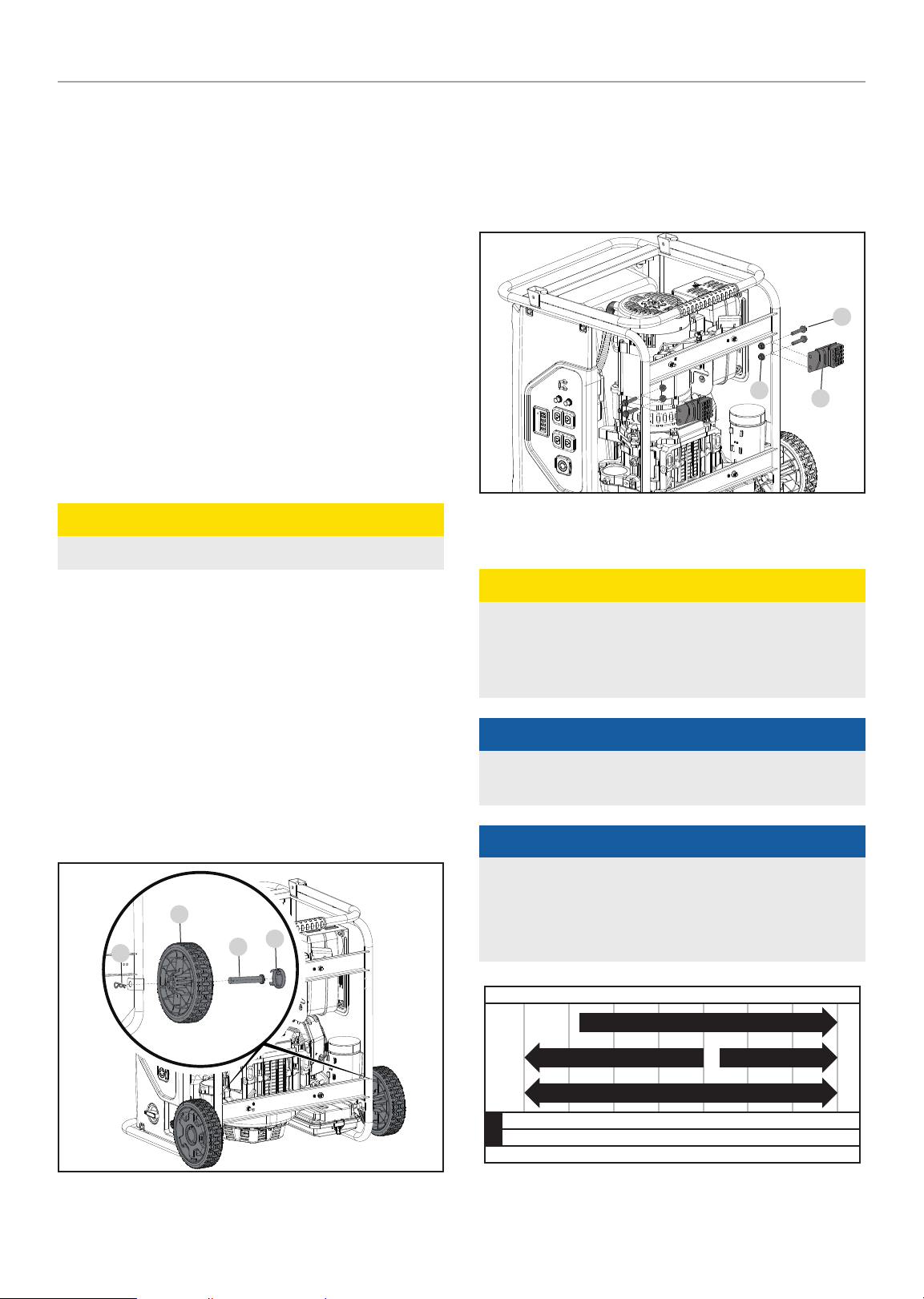

Install the Wheel Kit
CAUTION
The wheel kit is not intended for over-the-road use.
Install the Wheels
1. Before adding fuel and oil, tip the generator onto it’s recoil
end.
2. Remove wheel hub cap (B) from wheel by inserting a small
screwdriver into the slot provided and pry upward.
3. Slide the roll pin (C) through the wheel (A) from the outside.
4. Slide the roll pin through the mount point on the frame.
5. Insert r-clip (D) into hole at end of roll pin.
6. Re-install hub cap on wheel.
7. Repeat to attach the second wheel.
Install the Support Leg
1. Attach the support leg (E) to the generator frame with
flange bolts (F) and flange lock nuts (G).
2. Slowly tip the generator back down so that it rests on the
wheels and support Leg.
Add Engine Oil
CAUTION
DO NOT attempt to crank or start the engine before it has
been properly filled with the recommended type and amount
of oil. Damage to the generator as a result of failing to follow
these instructions will void your warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 10W-30
automotive oil.
If running generator in extreme temperatures, refer to the
following chart for recommended oil type.
-20 020 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
1. Place the generator on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
D
A
CB
GE
F

100592 - 6250W DUAL FUEL GENERATOR
VASSEMBLY
16

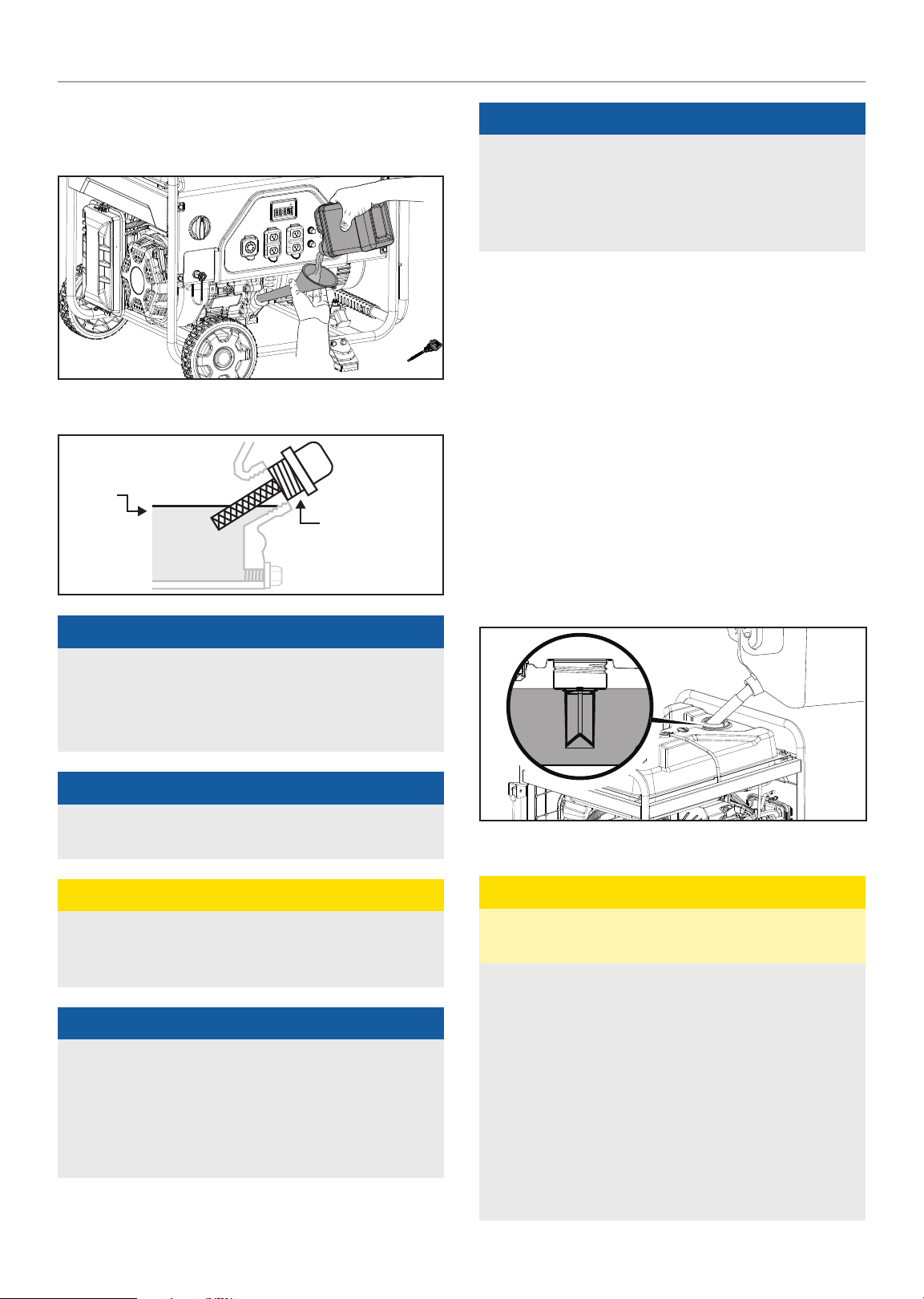

3. Using a funnel, add up to 37.2 fl. oz. (1100 ml) of oil
(included) and replace oil fill cap/dipstick.
DO NOT OVERFILL.
4. Check engine oil level at every use and add as needed.
MAX
OIL DIP STICK
NOTICE
Once oil has been added, a visual check should show oil
about 1-2 threads from running out of the fill hole.
When using the dipstick to check oil level, DO NOT screw in
the dipstick while checking.
NOTICE
Check oil level often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary slightly and help seat piston
rings. After the 5 hour break-in period, change the oil.
NOTICE
Synthetic oil may be used after the 5 hour initial break-in
period. Using synthetic oil does not increase the
recommended oil change interval. Full synthetic 5W-30
oil will aid in starting in cold ambient < 41º F (5º C)
temperatures.
Add Fuel: Gasoline
Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 87 and an ethanol content of 10% or less by
volume. ybc
DO NOT mix oil with gasoline.
1. Remove the gasoline cap.
2. Slowly add gasoline to the tank. Tank is full when gasoline
reaches red circle on screen. DO NOT OVERFILL. Gasoline
can expand after filling. A minimum of ¼ in. (6.4 mm) of
space left in the tank is required for gasoline expansion,
although more than ¼ in. (6.4 mm) is recommended.
Gasoline can be forced out of the tank as a result of
expansion if overfilled, and can affect the stable running
condition of the generator.
3. Screw on the gasoline cap and wipe away any spilled fuel.
CAUTION
Use unleaded gasoline with a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and gasoline.
DO NOT overfill the tank. Fill tank to approximately ¼ in.
(6.4 mm) below the top of the tank to allow for gasoline
expansion.
DO NOT pump gasoline directly into the generator at the
pump. Use an approved container to transfer the gasoline to
the generator.
DO NOT fill tank indoors.
DO NOT fill tank when the engine is running or hot.

100592 - 6250W DUAL FUEL GENERATOR
VASSEMBLY
17
WARNING
Pouring gasoline too fast through the fuel screen may result
in gasoline splashing over the generator and operator while
filling.
NOTICE
The generator engine works well with 10% or less ethanol
blend gasoline. When using ethanol-gasoline blends there
are some issues worth noting:
–Ethanol-gasoline blends can absorb more water than
gasoline alone.
–These blends can eventually separate, leaving water or
a watery goo in the tank, fuel valve and carburetor. The
compromised gasoline can be drawn into the carburetor
and cause damage to the engine and/or potential
hazards.
–If a fuel stabilizer is used, confirm that it is formulated to
work with ethanol-gasoline blends.
–Any damages or hazards caused by using improper
gasoline, improperly stored gasoline, and/or
improperly formulated stabilizers, are not covered by
manufacturer’s warranty.
It is advisable to always shut off the gasoline supply and
run the engine to starvation after each use. See Storage
instructions for extended non-use.

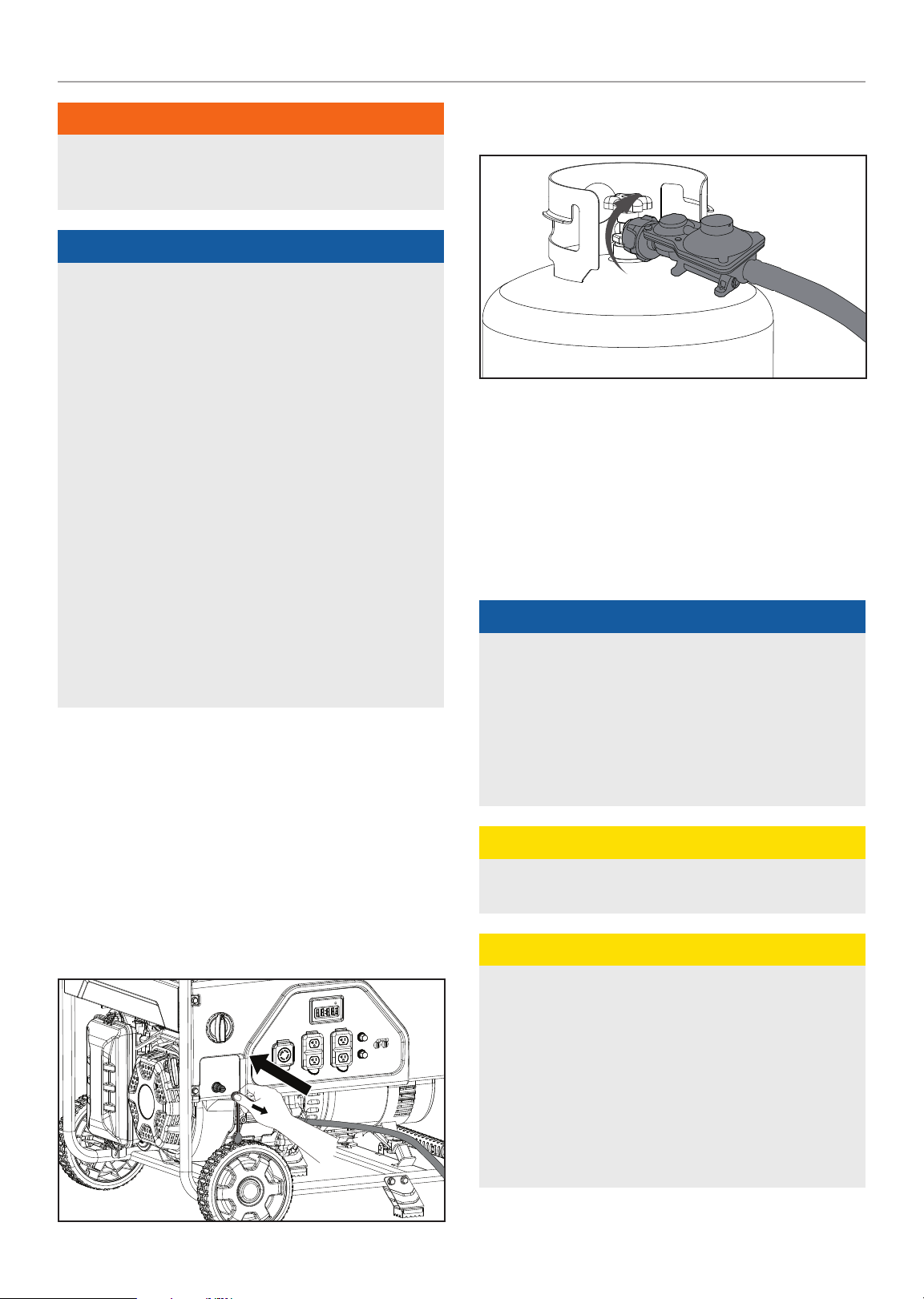

Add Fuel: Propane (LPG)
Connecting an LPG cylinder
1. Make sure the fuel select dial is in the “ENGINE STOP”
position.
2. Remove the rubber protective plug from the female
connector of the LPG hose.
3. Pull and hold the outer collar of the female connector and
insert it over the male connector. Release outer collar. Pull
on the hose to make sure it’s connected to the generator.
4. Connect the other end of the LPG hose to the LPG cylinder
valve and hand tighten.
5. Open valve on LPG cylinder and check all connections
for leaks by wetting the fittings with a solution of soap
and water. Bubbles which appear or bubbles which grow
indicate that a leak exists. If a leak exists at a fitting then
turn off the valve on the cylinder and tighten the fitting.
Turn the valve back on and recheck the fitting with the
soap and water solution. If the leak continues or if the leak
is not at a fitting then do not use the generator and contact
customer service.
NOTICE
–The LPG hose included with this unit connects to 20, 30,
and 40 pound LPG cylinders.
–Verify the requalification date on the cylinder has not
expired.
–Always position the cylinder so the connection between
the cylinder valve and generator inlet won’t cause sharp
bends or kinks in the LPG hose.
CAUTION
Do not allow children to tamper or play with the LPG cylinder
or hose connections.
CAUTION
Use approved LPG cylinders equipped with an OPD
(overfilling prevention device) valve. Always keep the
cylinder in a vertical position with the valve on top and
installed at ground level on a flat surface. Cylinders must
not be installed near any heat source and should not be
exposed to sun, rain, and dust. When transporting and
storing, turn off the cylinder valve and disconnect cylinder
from the generator. Plug the outlet, usually by a plastic
protective cap, if one is available. Keep cylinders away from
heat and ventilated when in a vehicle.

100592 - 6250W DUAL FUEL GENERATOR
VOPERATION
18
WARNING
If there is a strong smell of LPG: Close valve on the cylinder.
Check all connections for leaks by wetting the fittings
with a solution of soap and water. Bubbles which appear
or bubbles which grow indicate that a leak exists. Do not
smoke or light a cigarette, or check for leaks using a match,
open flame source or lighter. Contact a qualified technician
to inspect and repair an LPG system if a leak is found,
before using the generator.
Grounding
Your generator must be properly connected to an appropriate
ground to help prevent electric shock.
WARNING
Failure to properly ground the generator can result in
electric shock.
A ground terminal connected to the frame of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect of a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to
ensure compliance with local electrical codes.
Neutral Floating*
–Neutral circuit IS NOT electrically connected to the frame/
ground of the generator.
–The generator (stator winding) is isolated from the frame
and from the AC receptacle ground pin.
–Electrical devices that require a grounded receptacle pin
connection will not function if the receptacle ground pin is
not functional.
Neutral Bonded to Frame*
–Neutral circuit IS electrically connected to the frame/ground
of the generator.
–The generator system ground connects lower frame
cross-member below the alternator. The system ground is
connected to the AC neutral wire.
* See your Specifications section for specified type of grounding.
OPERATION
CO Shield®- Carbon Monoxide (CO)
Detection and Auto-shutoff System
The CO Shield®technology monitors the accumulation of
poisonous CO gas produced by engine exhaust when the
generator is running. If CO Shield detects elevated levels of
CO gas, it automatically shuts off the engine. Generators are
intended to be used outdoors, far away from occupied buildings
and exhaust pointed away from people and buildings.
25 ft. / 7 m
If misused and operated in a location that results in the
accumulation of CO inside an enclosed or partially enclosed
space, for example a house, garage or a garage with the
door partially open, CO Shield will automatically shut off the
generator and then illuminate a red LED. Read the action label
for what steps to take. CO Shield is not a substitute for an
indoor carbon monoxide alarm.
1607-L-SF-C
AUTOMATIC SHUTOFF – YOU MUST:
APAGADO AUTOMÁTICO– USTED DEBE:
ARRÊT AUTOMATIQUE– VOUS DEVEZ :
Move generator to an open, outdoor area. Point exhaust away. Don’t run generators
in enclosed areas (e.g. not in house or garage).
Mover el generador a un área abierta a la intemperie. Apunte el escape alejado. No corra los
generadores en áreas cerradas (ej. no en una casa o garaje).
Déplacer le générateur vers un espace extérieur
en plein air. Garder l’échappement loin. Ne pas
faire fonctionner les générateurs dans un espace
clos (ex., pas dans une maison ou un garage).
ACTION LABEL
ETIQUETA DE ACCIÓN
ÉTIQUETTE D'ACTION
EXHAUST EL ESCAPE L’ECHAPPEMENT
POINT AWAY
DIRIJA ALEJADO
DIRIGER LOIN
Move to fresh air and get medical
help if sick, dizzy or weak.
Mueva al aire fresco y obtenga
asistencia medica si está
enfermo, mareado, o débil.
Aller à l'air frais et obtenir de
l'aide médicale si malade,
étourdi ou faible.
PROCESS
ColorsLPN 160 7-L-S F
Rev C
Size ~276.4 x 8 2.3 mm
Artwork Notes
2mm safe margin; to be prin ted on white su bstrate
Revision Changes
B: Updated dieline
C: Delet ed “25 ft./ 7 m”
This art work belongs to Champi on Power Equipment. Th e contents are confi dential and privile ged and shall not be disclo sed to or used by or for
outside par ties without th e explicit consent o f Champion Power Equi pment.
K485 152 109
When you approach the generator to investigate a shut off, a
blinking red LED light in the CO Shield area provides notification
that the generator shut off due to an accumulating CO hazard.
The red LED light will blink for at least five (5) minutes after a
shutoff event.
AUTOMATIC SHUTOFF
SEE ACTION LABEL
APAGADO AUTOMÁTICO
VEA ETIQUETA DE ACCIÓN
AUTOMATIC SHUTOFF
SEE ACTION LABEL
APAGADO AUTOMÁTICO
VEA ETIQUETA DE ACCIÓN
SERVICE
REALICE UN SERVICIO
SERVICE
REALICE UN SERVICIO

100592 - 6250W DUAL FUEL GENERATOR
VOPERATION
19
Move the generator to an open, outdoor area and point the
exhaust away from people and buildings. Once relocated to
a safe area, the generator can be restarted, and the proper
electrical connections made. Introduce fresh air and ventilate
the location where the generator shut off.
When starting, the red and yellow LED will blink eight (8) times
simultaneously to indicate the LED is working.
NOTICE
This blinking does not indicate CO Shield is working, as
CO Shield is working at all times the generator is running.
Also, the LED will not blink (8) times if the generator was
restarted within 1 minute after it was manually shut off.
This does not occur if generator shut off from a high CO
event.
If CO Shield system experiences a fault and no longer provides
protection, the generator is shutoff automatically and the
yellow LED light will blink for at least five (5) minutes to notify
you of the fault.
AUTOMATIC SHUTOFF
SEE ACTION LABEL
APAGADO AUTOMÁTICO
VEA ETIQUETA DE ACCIÓN
AUTOMATIC SHUTOFF
SEE ACTION LABEL
APAGADO AUTOMÁTICO
VEA ETIQUETA DE ACCIÓN
SERVICE
REALICE UN SERVICIO
SERVICE
REALICE UN SERVICIO
Call our Technical Support Team at 1-877-338-0999 for repair.
The generator can be restarted, but will continue to shutoff.
CO Shield will detect the accumulation of carbon monoxide
from other fuel burning sources such as engine powered tools,
or propane heaters used in the area of operation. If another
generator is used and the exhaust is pointed at a CO Shield
equipped generator, the CO Shield may initiate a shutoff due
to rising carbon monoxide levels. This is not a fault. Hazardous
carbon monoxide has been detected. You must take action
to move and direct the equipment to better dissipate carbon
monoxide far away from people or buildings.
WARNING
Tampering with CO Shield®could result in a hazardous
condition. Removing the CO Shield module will not allow the
generator to start.
Generator Location
NEVER operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle. Please consult your local authority. In
some areas, generators must be registered with the local
utility. Generators used at construction sites may be subject
to additional rules and regulations. Generators should be on
a flat, level surface at all times. (Even while not in operation)
Generators must have at least 5 ft. (1.5 m) of clearance from
all combustible material. In addition to clearance from all
combustible material, generators must also have at least 3 ft.
(91.4 cm) of clearance on all sides to allow for adequate cooling,
maintenance and servicing. Generators should never be started
or operated in the back of a SUV, camper, trailer, in the bed of
a truck (regular, flat or otherwise), under staircases/stairwells,
next to walls or buildings, or in any other location that will not
allow for adequate cooling of the generator and/or the muffler.
DO NOT contain generators during operation. Allow generators
to properly cool before transport or storage.
Place the generator in a well-ventilated area. DO NOT place the
generator near vents or intakes where exhaust fumes could
be drawn into occupied or confined spaces. Carefully consider
wind and air currents when positioning generator.
Failure to follow proper safety precautions may void
manufacturer’s warranty.
WARNING
Do not operate or store the generator in rain, snow, or wet
weather.
Using a generator or electrical appliance in wet conditions,
such as rain or snow, or near a pool or sprinkler system,
or when your hands are wet, could result in electrocution.
WARNING
During operation the muffler and exhaust fumes will
become hot. If adequate cooling and breathing space are
not supplied, or if the generator is blocked or enclosed,
temperatures can become extremely heated and may lead
to fire.

100592 - 6250W DUAL FUEL GENERATOR
VOPERATION
20
Surge Protection
Electronic devices, including computers and many
programmable appliances use components that are designed
to operate within a narrow voltage range and may be affected
by momentary voltage fluctuations. While there is no way to
prevent voltage fluctuations, you can take steps to protect
sensitive electronic equipment.
–Install UL1449, CSA-listed, plug-in surge suppressors on the
outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet styles.
They’re designed to protect against virtually all short-
duration voltage fluctuations.
Starting the Engine: Gasoline
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator. Never
start or stop the generator with electrical devices plugged
in or turned on.
3. Turn the fuel select dial to the “GASOLINE RUN” position.
4. Move the choke to the “CHOKE” position.
5. For restarting a warm engine, move the choke to 75% of
the “CHOKE” position.
6. Pull the starter cord slowly until resistance is felt and then
pull rapidly.
7. When engine starts running, move choke lever slowly to
the “RUN” position over a 2-5 second period.
NOTICE
Keep choke in “CHOKE” position for only 1 pull of the recoil
starter. After first pull, move choke to “RUN” position for
up to 3 pulls of the recoil starter. Too much choke leads to
spark plug fouling/engine flooding due to lack of incoming
air. This will cause the engine not to start.
NOTICE
For gasoline restarts with hot engine in hot ambient
temperature > 86°F (30°C), keep choke in 75% of the
“CHOKE” position for only 1 pull of the recoil starter. After
first pull, move choke to “RUN” position for up to 3 pulls
of the recoil starter. Too much choke leads to spark plug
fouling/engine flooding due to lack of incoming air. This will
cause the engine not to start.
NOTICE
For gas starting in cold ambient temperature < 59°F
(15°C), the choke must be in 100% of the “CHOKE” position
for recoil start procedures. Do not over-choke. As soon as
engine starts, gradually move the choke lever to the “RUN”
position over a 2-5 second duration.
