Champion Global Power Equipment 500987-UK User manual

OPERATOR'S MANUAL
MODEL #500987-UK
3500W RATED WIRELESS REMOTE
START INVERTER GENERATOR
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
REV 20220914
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.co.uk
or visit www.championpowerequipment.co.uk
[phone]
Original Instructions

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR INTRODUCTION
4
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
CPE highly values how our products are designed, manufactured,
operated, and serviced as well as providing safety to the operator
and those around the generator. Therefore, it is IMPORTANT to
review this product manual and other product materials thoroughly
and be fully aware and knowledgeable of the assembly, operation,
dangers and maintenance of the product before use. Fully
familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always exercise
common sense and always err on the side of caution when
operating the product to ensure no accident, property damage,
or injury occurs. We want you to continue to use and be satisfied
with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
[phone]
MODEL NUMBER
500987-UK
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
5
IMPORTANT SAFETY INSTRUCTIONS
DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poisonous gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to feel
dizzy or weak, get to fresh air immediately.
OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY WINDOWS,
DOORS AND VENTS.
DO NOT operate the generator inside any sheds, vehicles
, including garages, basements, crawlspaces and sheds
vehicles, enclosure or compartment, including the generator
compartment of a recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a poison
you cannot see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
WARNING
Although the generator contains a spark arrester, maintain
a minimum distance of 5 ft. (1.5 m) from dry vegetation to
prevent fires.
WARNING
Always maintain a minimum distance of 3ft (0.91m) around
generator to allow for adequate cooling. Do Not cover, box in or
enclose this generator otherwise it will overheat and risk fire.
DANGER
Operate equipment with guards in place.
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories. Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or sockets.
DO NOT use electrical cords that are worn, damaged or frayed.
Use only Champion electrical cords for proper application.
DO NOT operate generator in wet weather incl rain or snow.
DO NOT allow children or unqualified persons to operate or
service the generator.
Use a ground fault circuit interrupter (GFCI) in damp areas
and areas containing conductive material such as metal
decking(MUST be installed separately).
Connection to your home’s electrical system requires a listed
100A transfer switch installed by a licensed electrician and
approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical codes.
WARNING
Do not use generator for medical and life support uses.
In case of emergency, call emergency services immediately.
NEVER use this product to power life support devices or life
support appliances.
NEVER use this product to power medical devices or medical
appliances.
Inform your electricity provider immediately if you or anyone in
your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience a
medical emergency.

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
6
WARNING
Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces like engine or exhaust muffler.
Avoid contact with hot exhaust gases.
Allow equipment to cool 30mins before handling.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Rapid retraction of the recoil cord will pull hand and arm
towards the engine faster than you can let go. Broken bones,
fractures, bruises or sprains could result. Unintentional
startup can result in entanglement, traumatic amputation or
laceration.
When starting engine, pull the recoil cord slowly until
resistance is felt (compression point), release cord slowly back
use one strong rapid pull to start to avoid any kickback, if the
engine does not start repeat the process. Do Not rigorously
or aggressively pull the recoil otherwise damage will occur to
cord or mechanism resulting in voiding the part warranty.
CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
Do NOT modify or install any exhaust muffler extension or
extraction
CAUTION
Improper treatment or use of the generator can damage it,
shorten its life or void the warranty.
Use the generator only for intended uses.
Operate only on flat level surfaces.
DO NOT expose generator to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
–Electrical output is lost
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively
WARNING
This product contains a button battery within the remote key
fob. If swallowed, it could cause severe injury or death in just 2
hours. Seek medical attention immediately.

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
7
Fuel Safety
DANGER
PETROL AND PETROL VAPORS ARE HIGHLY FLAMMABLE
AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Petrol and petrol vapors:
–Petrol is highly flammable and explosive.
–Petrol can cause a fire or explosion if ignited.
–Petrol is a liquid fuel but it’s vapors can ignite.
–Petrol is a skin irritant and needs to be cleaned up immediately
if spilled on skin or clothes.
–Petrol has a distinctive odor, this will help detect potential
leaks quickly.
–Petrol expands or contracts with ambient temperatures. Never
fill the petrol tank to full capacity, as petrol needs room to
expand when temperatures rise.
–In the case of any petroleum petrol fire, flames should never
be extinguished unless the fuel supply valve can be turned
OFF. By not doing so, if a fire is extinguished and the supply
of fuel is not turned OFF, an explosion hazard could be created.
When adding or removing petrol:
DO NOT light or smoke cigarettes.
Turn the generator off and let cool for at least 30 minutes before
removing the petrol cap. Always loosen the cap slowly to relieve
pressure in the tank.
NEVER try to refuel indoors or inside any building.Only fill or drain
petrol outdoors in a well-ventilated area.
DO NOT pump petrol directly into the generator at the gas station.
Always use an approved container to transfer the fuel to the
generator.
DO NOT overfill the fuel tank.
Always keep petrol away from sparks, open flames, pilot lights,
heat and other sources of ignition.
When starting the generator:
DO NOT attempt to start a damaged generator.
Always check that the fuel cap, air filter, spark plug, fuel lines and
exhaust system are properly in place.
Always allow spilled petrol to evaporate fully before attempting to
start the engine.
Always be certain that the generator is resting firmly on level
ground.
When operating the generator:
DO NOT move or tip the generator during operation.
When transporting or servicing the generator:
Always check that the fuel valve is in the OFF position and the
petrol tank is empty.
For Propane compatible models, check that the Propane cylinder is
disconnected and stored securely away from the generator.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat and other
sources of ignition.
Do not store generator, petrol or Propane cylinders near furnaces,
water heaters, or any other appliances that produce heat or have
automatic ignitions.
DANGER
NEVER place a petrol container, petrol tank, Propane cylinder
or any combustible material in the path of the exhaust stream
during operation of the engine.
WARNING
Never use a petrol container, fuel tank, or any other fuel item
that is broken, cut, torn or damaged.

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
8
Lithium-ion Battery Safety
Electrolyte inside the battery is harmful to skin and eyes. If the
battery leaks and electrolyte gets in your eyes, do not rub them.
Instead, rinse them with clean running water and immediately
seek medical attention. If left untreated, electrolyte can cause
permanent eye injury.
When using the generator:
–Do not use the battery near sources of high heat or fire.
–Do not reverse or short-circuit the positive (+) or negative (-)
terminals.
–Do not use the battery in parallel or in series.
–Do not discharge battery in temperatures below 14°F (-10°C)
or above 104°F (40°C).
When charging the battery:
–Do not charge the battery with voltage over 15.0V and current
over 1.6A.
–Do not charge the battery below 32°F (0°C) or above 113°F
(45°C).
–Always remove from the battery cradle before charging
separately.
–After charging, leave the battery sitting for 0.5 to 1 hour
before checking the voltage. If the voltage is less than 12.8V,
additional charging is necessary.
–If the battery becomes hot to the touch, stop charging. Allow
battery to cool before resuming.
When storing the generator/battery:
–Always check that the battery connectors between the inverter
and the battery are unplugged and placed away from the
battery terminals.
–Always inspect the battery case for obvious signs of physical
damage or warpage.
–Do not store the battery near sources of high heat or fire.
–Store the battery in a dry, well ventilated area between
-4°F (-20°C) and 104°F (40°C).
–Do not store the battery when discharged to 20% or less state
of charge (SOC).
–The battery should be charged for 10~30 mins every 180 days
when in storage, to keep the battery in good condition.
In case of battery damage:
–If damaged, battery may emit hazardous fumes. If fumes are
present, move battery to a well-ventilated area.
–Do not try to repair the battery.
–Dispose of battery in a clear plastic bag and take to your local
municipal household hazardous waste (HHW) recycling center.
Do not place it the trash for any reason.

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
9
Safety and Dataplate Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
LABEL DESCRIPTION
A
GEFAHR DANGER
NEVER use inside house, out
building, sheds, garages,
vehicles or confined spaces,
EVEN IF if doors and windows
are open and well ventilated.
ONLY use OUTSIDE
and far away from
windows, doors, and
vents.
DANGER
Using a generator indoors CAN KILL YOU IN
MINUTES. Generator exhaust contains carbon
monoxide. This is a poison you cannot see or smell.
1075-BY-L-A
Utiliser un générateur à l’intérieur
PEUT VOUS TUER EN QUELQUES
MINUTES. L’échappement du
générateur contient du monox yde de
carbone. Il s’agit d’un poison que vous
ne pouvez ni voir ni sentir. Ne l’utilisez
JAMAIS dans la maison ou le garage
MÊME SI les portes et les fenêtres
sont ouvertes. Utilisez-le
UNIQUEMENT À L’EXTÉRIEUR, loin
des fenêtres, portes et trappes de
ventilation.
Die Verwendung eines
Stromerzeugers in geschlossenen
Räumen kann Sie innerhalb weniger
Minuten töten. Die Stromerzeuger-
Abgase enthalten Kohlenmonoxid.
Dieses Gift kann man weder sehen
noch riechen. NIEMALS im Haus
oder in der Garage verwenden -
AUCH NICHT bei geöffneten Türen
und Fenstern. AUSSCHLIESSLICH
im AUSSENBEREICH in gut
belüfteten Zonen verwenden.
--- 123C 185C ---
ColorsLPN
Rev
Size 155 x 75 mm
Artwork Notes
2mm safe margin; white to b e printed sh own in 50%
process magenta
Revision Changes
-
This art work belongs to Champ ion Power Equipment. T he contents are con fidential and privile ged and shall not be discl osed to or used by or for
outside pa rties without t he explicit consen t of Champion Power Equ ipment.
1075-BY-L
A
Safety Symbols/
CO Danger
B
109 7-BY- L-A
UNLEADED FUEL ONLY. Minimum octane
rating of 85. Maximum 10% ethanol.
NUR BLEIFREIES BENZIN. Mindest-
Oktanzahl 85. Maximal 10% Ethanol.
ESSENCE SANS PLOMB SEULEMENT.
Indice d’octane minimal de 85.
Maximum 10 % d'éthanol.
K123 --- --- ---
ColorsLPN 1097-BY-L
Rev A
Size 36 x 36 mm
Artwork Notes
3mm corner radius; 2mm safe margin; white to be
printed shown in 50% process magenta
Revision Changes
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Fuel
C
MANUFACTURE DATE
IP Grade
SERIAL NO.
MODEL 500987-UK
XXXXXXXXXXXX
XXXX
IP23M
CHAMPIONPOWEREQUIPMENT, INC.
12039 SMITH AVENUE
SANTA FE SPRINGS, CA 90670
USA / É.-U.
MADE IN CHINA
Low Power Generating Set
K--- --- --- ---
ColorsAPN
Rev
Size 123 x 40 mm
Artwork Notes
3mm corner radius; 2mm safe margin; to be printed
on
WHITE substrate.
Revision Changes
This ar twork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
AC AMPS
Performance Class
FREQUENCY (Hz)
RPM
PHASE
POWER FACTOR
AC VOLTS
14.6A
G1
50
3600
1
1.0
240V
QUALITY CLASS
NET WEIGHT
INSULATION CLASS
MAX AMBIENT TEMP
RATED OUTPUT
MAX POWER
A
45.2kg
F
COP:3.5kW
3.6kW S2 5min
104°F/40°C
Dataplate
D
WARNING
DO NOT TOUCH!
Exhaust gases, muf fler
and engine components
are extremely HOT and
cause burns.
Operation of this equipment may create
sparks that can start fires around dry
vegetation. A spark arrestor may be required.
The operator should contact local fire
agencies for laws and regulations relating to
fire prevention requirements. If installed,
clean every 100 hours or every season.
1010- BY-L-A
ADVERTENCIA
NICHT ANFASSEN!
Abgase, Schalldämpfer und
Motorkomponenten sind
extrem heiß und verursachen
Verbrennungen.
Der Betrieb dieser Geräte kann Funken erzeugen, die in
der Umgebung von trockener Vegetation Brände
auslösen können. Ein Funkenfänger kann erforderlich
sein. Der Betreiber sollte sich an die örtlichen
Brandschutzbehörden wenden, um sich über die
Gesetze und Vorschriften in Bezug auf
Brandschutzanforderungen zu informieren. Wenn
installiert, alle 100 Stunden oder zu jedes Jahr reinigen.
K185 165 123 ---
ColorsLPN 1010-BY-L
Rev A
Size 218 x 36 mm
Artwork Notes
3mm corner radius; 2mm safe margin; to be printed
on
white substrate.
Revision Changes
---
This art work belongs to Cha mpion Power Equipmen t. The content s are confidentia l and privileged and s hall not be disclos ed to or used by or for
outside p arties withou t the explicit conse nt of Champion Power E quipment.
Hot Surface
Top
A
B
C
D

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
10
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Caution.
Read The Operator’s Instruction Manual Before Use. To reduce the risk of injury, user must read and
understand operator’s manual before using this product.
Not For General Waste Disposal.
The generating set must not be connected to other power sources, such as the power company supply
mains.
Electric Hazard. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire Hazard. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause
severe burns or death. Keep generator at least 5 feet (1.5m) from all objects to prevent combustion.
Risk Of Being Burnt. To reduce the risk of injury or damage, avoid contact with any hot surface.
Carbon Monoxide(co) Danger.
Wet Conditions Alert. Do not expose to rain or use in damp locations except as follows:
If you must operate in rain or damp locations, DO NOT operate without proper protection of the electrical
components.
Use of a safety canopy that is fire retardant and will provide proper air ventilation for the engines exhaust
stream can be used. Keep all objects a minimum of 5 feet (1.5m) away from the generator at all times.
Heat from the muffler surface and exhaust stream can ignite combustible materials.

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
11

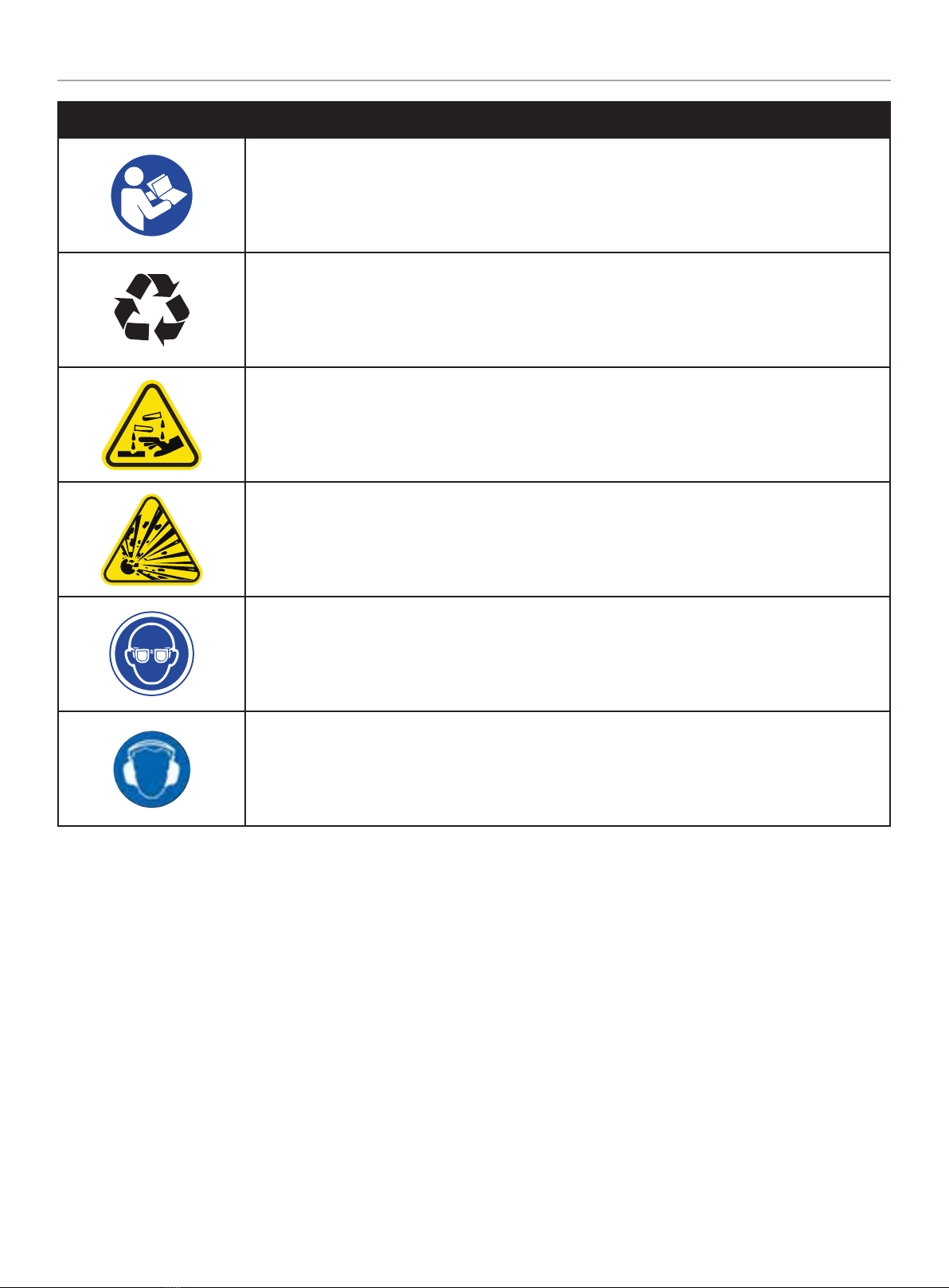

SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
This product uses lithium-ion (Li-ion) batteries. Local, state, or federal laws may prohibit disposal of
batteries in ordinary trash. Consult your local waste authority for information regarding available recycling
and/or disposal options.
Blindness or severe burns. Electrolyte solution can cause blindness or severe burns.
Shield eyes. Explosive gases can cause blindness or injury.
If damaged, battery may emit hazardous fumes. If fumes present, move battery to a well-ventilated area.
Eye protection. Always wear eye protection with side shields marked to comply with ANSI Z87.1.
It is recommended ear protection is worn working at close quarters to the generator.

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
12
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Start
On
Stop or Off
Choke
Run
12V Direct Current
Battery On
Battery Off
Neutral Floating. Neutral circuit IS
NOT electrically connected to the frame/
ground of the generator.
Circuit Breaker Reset: Push
SYMBOL MEANING
Ground Terminal
Parallel Connection(s)
ECO
Economy Mode Button
Overload Reset Button
Low Oil
Wireless Pair
Fuel Tank: Full
Fuel Tank: Empty
Power Output. Percentage of available
power from generator being used.

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
13
Quick Start Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.

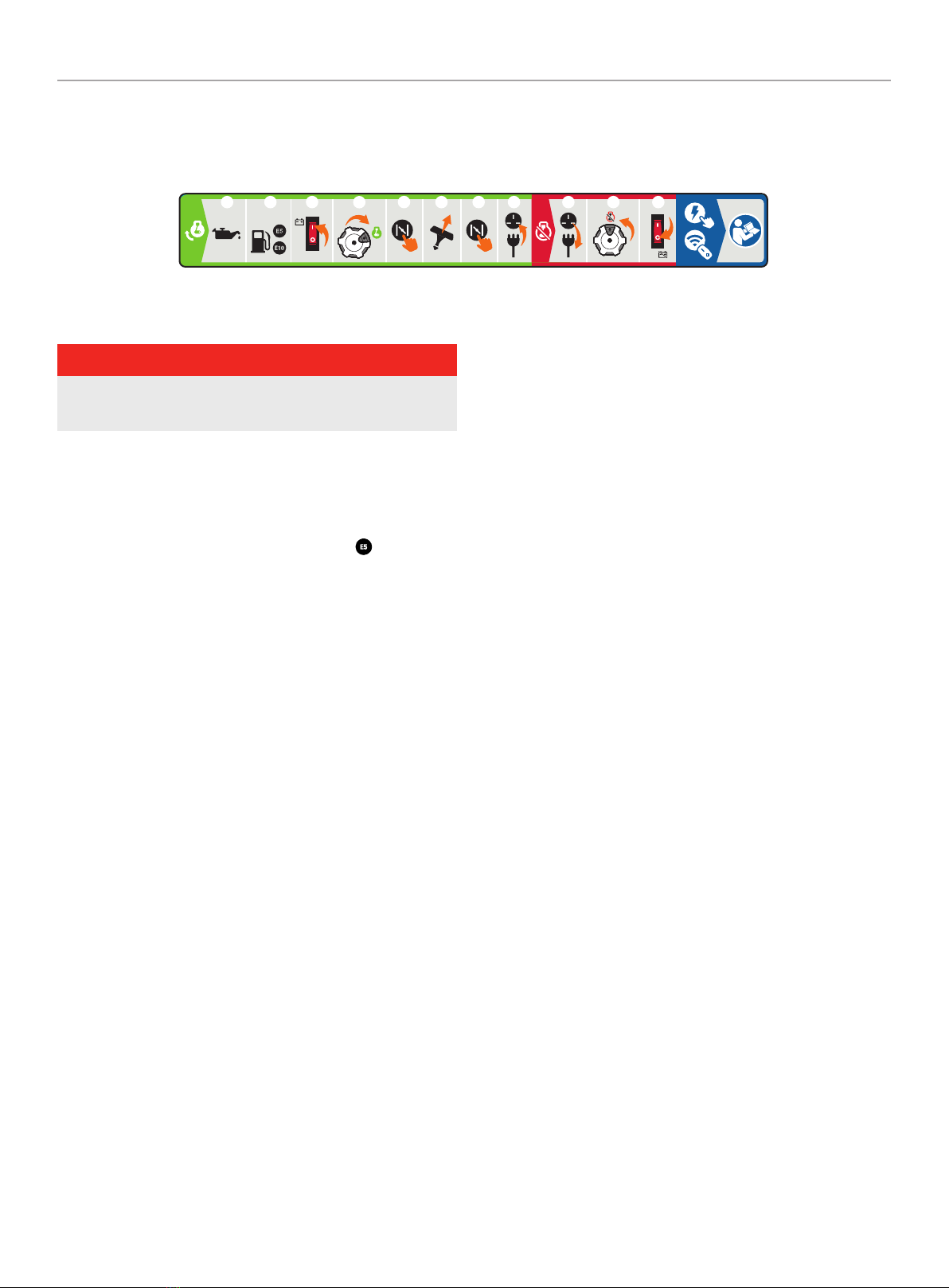

1086-BY-L-A
10W-30

1

2 6 18
5 73 3
42
ColorsLPN 1086-BY-L
Rev A
Size 200 x 25 mm
Artwork Notes
2mm safe margin; to be printed on white substrate
Revision Changes
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
K376 186 152 CG1 300
Starting the Engine
DANGER
Move generator outside and far away from windows,
doors and intake ventilation covers.
1. Check oil level.
Recommended oil is 10W-30.(Not Included)
2. Check petrol level.
When adding petrol, use a minimum octane rating of 85 and
an ethanol content of 10% or less by volume. y
3. Turn battery switch to the “ON” position.
4. Turn the EZ Start dial to the “ON” position.
5. Press the choke button. Note: If battery is dead, charge
battery or remove the non recoil side maintenance cover and
move choke lever to choke position to start.
6. Pull the recoil cord.
7. Press the choke button.
8. Plug in desired device.
Stopping the Engine
1. Turn off and unplug all connected electrical loads.
2. Turn the EZ Start dial to the “STOP” position.
3. Turn battery switch to the “OFF” position.
Wireless and Electric Start
See page 22 in “Operation” section.

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR CONTROLS AND FEATURES
14
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Generator

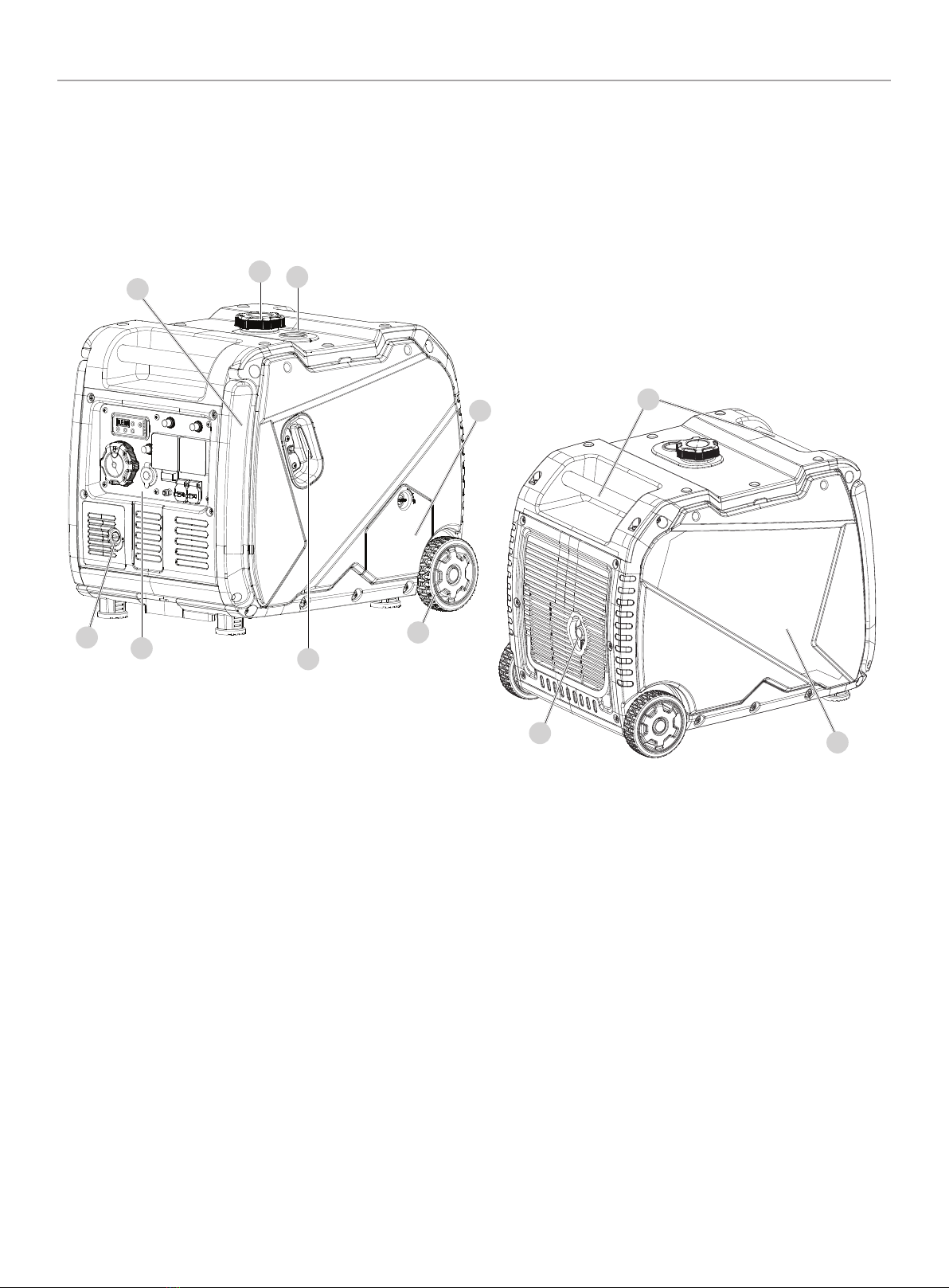

1. Folding Handle –Used to move unit by lifting and rolling on
wheels. Do not use to lift or carry the unit.
2. Fuel Cap – Remove to add fuel.
3. Fuel Gauge
4. Battery Access Cover
5. Control Panel –See Control Panel section.
6. Recoil Starter – Used to manually start the engine.
7. Never Flat Wheels – 5 in. (12.7 cm)
8. Oil Fill Access Cover
9. Carrying Handle(s) –Used to lift or carry the unit.
10. Muffler
11. Maintenance Cover
8
23
7
6
5
4
10 11
1
9

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR CONTROLS AND FEATURES
15
Control Panel
1. Intelligauge with Power Meter – See Intelligauge with
Power Meter section.
2. Ignition Switch – Used to START the generator.
3. EZ Start Dial – Used to start and stop.
4. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
5. Battery Switch – Enables/disables power supply from
battery for remote and electric start.
6. Ground Terminal – Consult an electrician for local grounding
regulations.
7. Parallel Outlets – Used to parallel two inverters together for
increased power output. (parallel kit sold separately).
RECEPTACLES
A
(2×) 240V AC, 13A
May be used to supply electrical power for
operation of 240 Volt AC, 13 Amp, single phase,
50 Hz electrical loads.
Bz12V DC, 8A (Automotive)
May be used to supply electrical power for
operation of 12 Volt DC, 8 Amp electrical loads.
WARNING
Do not operate a device while it is plugged into the 12V DC
outlet. When charging a device, do not place on the exhaust
side of the generator. Extreme heat caused by exhaust
can damage the device and cause a potential fire hazard.
Prolonged exposure to engine exhaust can cause serious injury
or death.
WARNING
Do Not use both 240V AC and 12V DC together ONLY use one
at a time separately otherwise you could damage equipment or
generator.
1
2 4
5
6
3
4
A
7
B

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR CONTROLS AND FEATURES
16
MODE DESCRIPTION
Voltage (V)
Output voltage of the generator.
Example: 240 volts
Frequency (H)
Output frequency in hertz.
Example: 50.0 hertz
Run Time (R)
Run time of the generator for the current session.
Example: 6 hours
Total Run Time
Total run time of the generator since first operation.
Example: 16 hours
Power Meter
Power Output percentage.
Example: 100% Output
Intelligauge with Power Meter

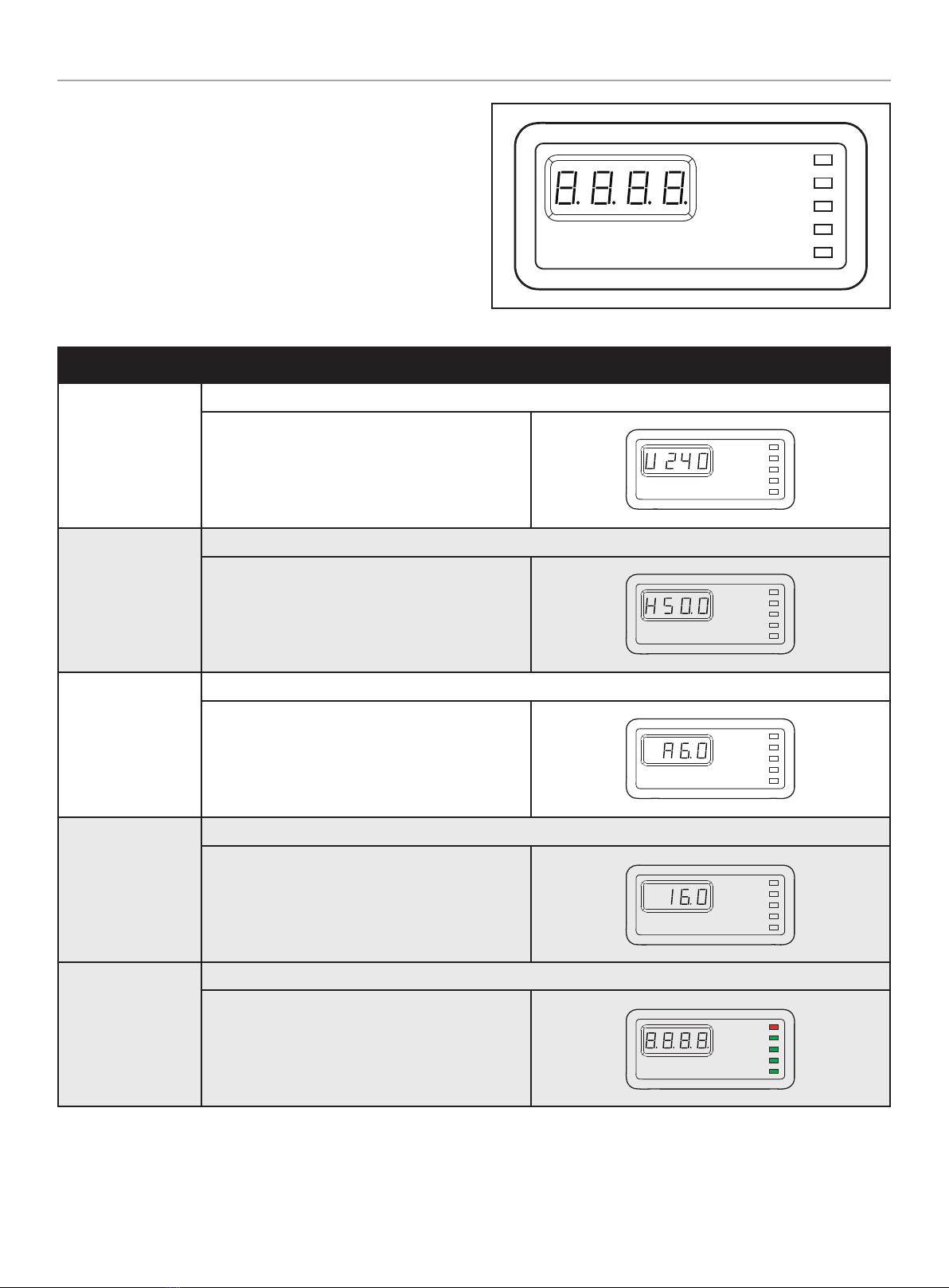

The meter is divided into two seperate displays.
The LCD displays each mode for several seconds and then
automatically cycles through.
The Power Meter LED displays output in percent (%) with 100% at
the top.

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR CONTROLS AND FEATURES
17
Wireless Remote Control
This generator is equipped with a wireless remote control system
for starting and stopping. The system consists of (5) main
components:
1. Receiver Control Module (RCM)
2. Remote Control
3. Battery Switch
4. EZ Start Dial
5. Auto-Choke
The Remote Control functions are enabled when:
1. The EZ Start Dial is in the “ON” position, AND
2. The Battery Switch is in the “ON” position.
The Remote Control functions are disabled if either of the above
conditions is not met.
To start the generator wirelessly, press the “START” button on
the Remote Control one time. The engine will attempt to start (6)
times. The RCM controls the Auto-Choke during each attempt
to start. If the generator does not start, call Champion Customer
Care team for assistance at [phone].
To stop the generator wirelessly, press the “STOP” button on the
Remote Control one time.
Remote Control Power Consumption
While the EZ Start Dial is in the “ON” position, the RCM is active
and waiting for a remote signal. This function requires electrical
current from the battery. If the EZ Start Dial is left in the “ON”
position for extended periods (several weeks), the battery can be
completely drained.
Moving the EZ Start Dial to the “OFF” position disables the
Remote functions, but the RCM still consumes approximately
2 mA from the battery.
To prevent battery drain, press the Battery Switch to the “OFF”
position. This disconnects power to the RCM so there is no current
draw on the battery.

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR CONTROLS AND FEATURES
18
Parts Included
Accessories
Oil Funnel...........................................................1
Remote Key Fob ....................................................1
12VDC USB Adapter................................................1
12VDC Battery Charging Cable ....................................1
Tools Included
8/10 mm Wrench...................................................1
Spark Plug Socket..................................................1
Reversible Phillips/Flathead Screwdriver..........................1

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR ASSEMBLY
19
ASSEMBLY
Your generator requires some assembly. It must be properly
serviced with fuel and oil before operation.
If you have any questions regarding the assembly of
your generator, call our Technical Support Team at
[phone]. Please have your serial number and model
number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. By lifting up on the carrying handles, carefully remove the
generator from the box (two people lifting is recommended).
Remove Shipping Support Hardware
To protect the generator during shipping, support hardware has
been installed between the engine and frame. This hardware
MUST BE REMOVED BEFORE adding oil or petrol to the generator.
NOTICE
DO NOT attempt to run generator without first removing the
shipping support hardware. Damage to the generator as a result
of not removing the hardware will void the warranty.
1. BEFORE filling the engine with oil or petrol, tip the generator
onto the muffler side. Tip onto the flattened cardboard box
the generator came in or other protective surface so as to not
scratch the enclosure.

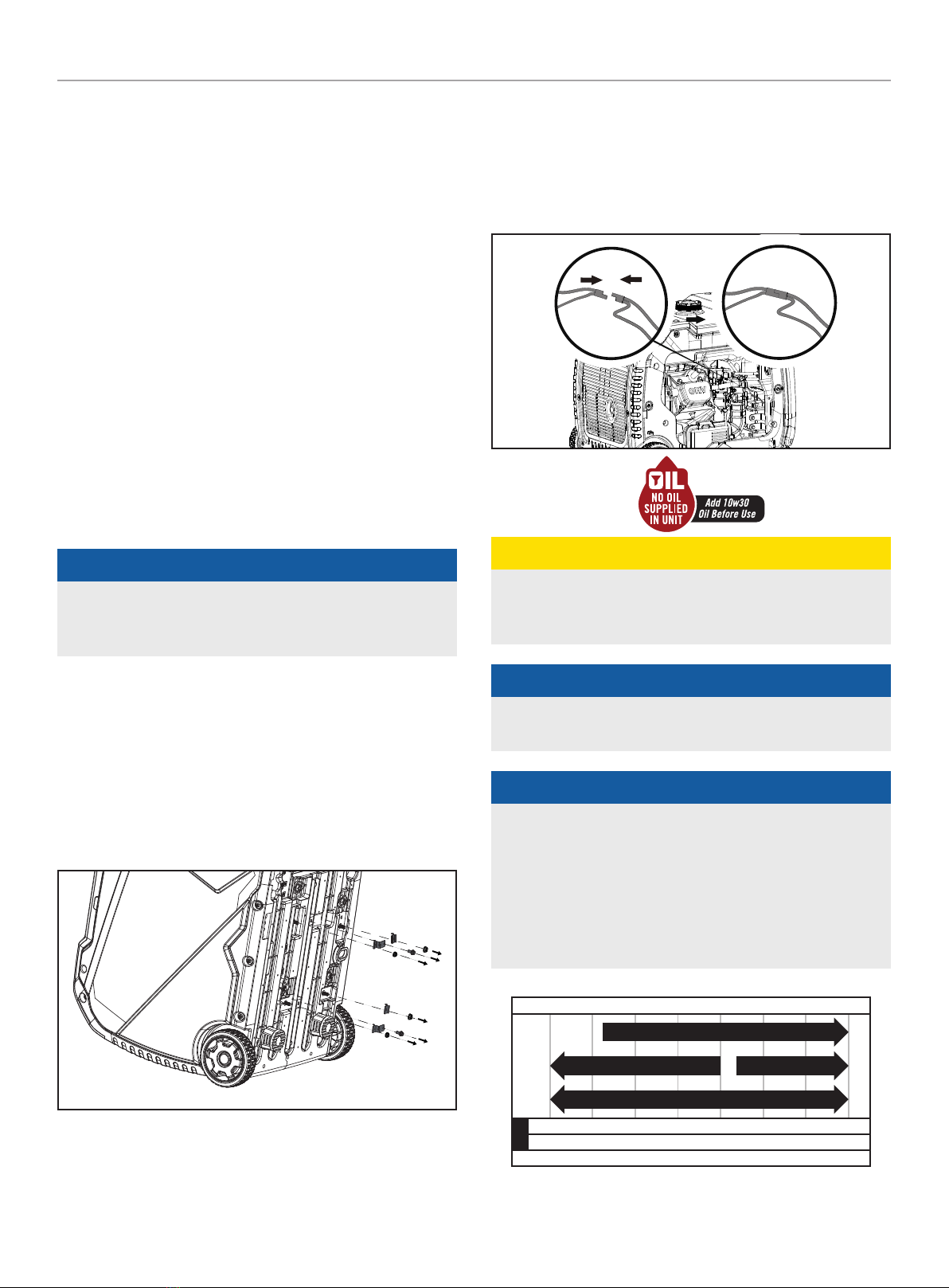

2. Remove the four nuts and mounting plates from the bottom
side of the generator using the included 8/10 mm wrench.
Nuts and spacers can be discarded.
3. Tip the generator upright.
Connect the Battery
1. Remove the non recoil side maintenance cover by removing
the two screws with a phillips head screw driver
(not included).
2. Push two halves of battery connector together tightly.
Add Engine Oil
CAUTION
DO NOT tip or overfill the generator otherwise it will cause
degraded engine performance and(or) damage the engine
resulting in voiding any warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is Motul PowerX
10w30 Generator oil. However, using the listed conventional
oils shown in the “Recommended Engine Oil Type” chart may
be used for typical use including the first 5 hours of the break-
in run time period of the engine.
If running generator in extreme temperatures, refer to the
“Recommended Engine Oil Type” chart.
-20 020 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
1. Place the generator on a flat, level surface.
IMPORTANT

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR ASSEMBLY
20
2. Turn the oil access cover fastener to the unlocked position
and remove the cover.
3. Remove oil fill cap/dipstick to add oil.
4. Using a funnel, add up to 16.9 fl. oz. (500 ml) of oil . DO
NOT OVERFILL OR TIP GENERATOR WHEN FILLING OIL.
Replace oil fill cap/dipstick and secure maintenance cover.
5. Check engine oil level before each use and add as needed.
MAX
OIL DIP STICK
MAX
OIL DIP STICK
NOTICE
Once oil has been added, a visual check should show oil about
1-2 threads from running out of the fill hole.
When using the dipstick to check oil level, DO NOT screw in
the dipstick while checking.As a general rule on a flat level
surface oil is full when it can be visually seen on the middle-
upper threads of the port, Do Not overfill otherwise it will result
it poor engine performance and(or) damage to the engine.
NOTICE
Check oil level often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary slightly and help seat piston rings.
After the 5 hour break-in period, change the oil.
NOTICE
Synthetic oil may be used after the 5 hour initial break-in
period. Using synthetic oil does not decrease the recommended
oil change interval. Full synthetic 5W-30 oil will aid in starting
in cold ambient < 41º F (5º C) temperatures.

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR ASSEMBLY
21
Add Fuel y
DANGER
Petrol vapors are highly flammable and extremely explosive.
DO NOT light or smoke cigarettes. Fire or explosion can cause
severe burns or death.
Only fill or drain fuel outdoors in a well-ventilated area. DO
NOT pump petrol directly into the generator. Use an approved
container to transfer the fuel to the generator.
Never use a petrol container, fuel tank, or any other fuel
item that is broken, cut, torn or damaged.
DO NOT overfill the fuel tank. Always keep fuel away from
sparks, open flames, pilot lights, heat and other sources of
ignition.
Use clean, fresh, regular unleaded petrol with a minimum octane
rating of 85 and an ethanol content of 10% or less by volume.
ybc
DO NOT mix oil with petrol.
1. Remove the fuel cap.
2. Slowly add petrol to the tank. Tank is full when petrol reaches
red circle on screen. DO NOT OVERFILL. Petrol can expand
after filling. A minimum of ¼ in. (6.4 mm) of space left in the
tank is required for petrol expansion, although more than ¼
in. (6.4 mm) is recommended. Petrol can be forced out of the
tank as a result of expansion if overfilled, and can affect the
stable running condition of the generator.

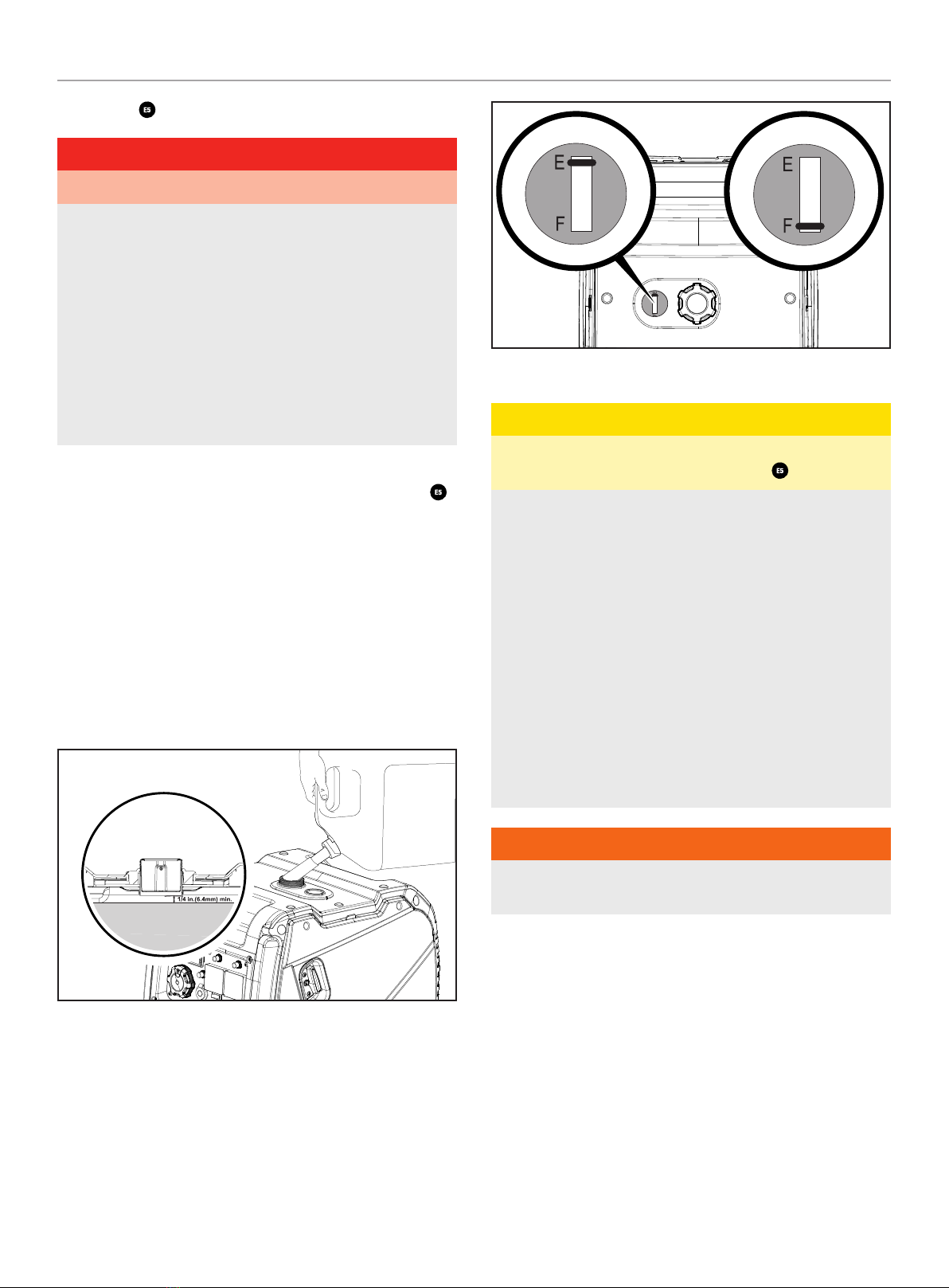

3. The approximate fuel level is shown on the fuel gauge on top
of the fuel tank.
Empty Full
4. Screw on the fuel cap and wipe away any spilled fuel.
CAUTION
Use unleaded petrol with a minimum octane rating of 85 and
an ethanol content of 10% or less by volume. y
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and petrol.Never mix oil and petrol, this is four
stroke engine and requires separate oil and fuel.
DO NOT overfill the tank. Fill tank to approximately ¼ in.
(6.4 mm) below the top of the tank to allow for petrol
expansion.
DO NOT pump petrol directly into the generator at the pump.
Use an approved fuel container to transfer the petrol to the
generator.
DO NOT fill tank indoors, in building and(or) any out building or
vehicles
DO NOT fill tank when the engine is running or hot always
allow to cool for minimum 30mins.
WARNING
Pouring petrol too fast through the fuel screen may result in
petrol splashing over the generator and operator while filling.

500987-UK - 3500W RATED WIRELESS REMOTE START INVERTER GENERATOR OPERATION
22
NOTICE
The generator engine works well with 10% or less ethanol
blend petrol. When using ethanol-petrol blends there are some
issues worth noting:
–Ethanol-petrol blends can absorb more water than petrol
alone.
–These blends can eventually separate, leaving water or
a watery goo in the tank, fuel valve and carburetor. The
compromised petrol can be drawn into the carburetor and
cause damage to the engine and/or potential hazards.
–If a fuel stabilizer is used, confirm that it is formulated to
work with ethanol-petrol blends.
–Any damages or hazards caused by using improper petrol,
improperly stored petrol, and/or improperly formulated
stabilizers, are not covered by manufacturer’s warranty.
It is advisable to always shut off the fuel supply and run the
engine to starvation after each use. See Storage instructions
for extended non-use.
Grounding
Your generator must be properly connected to an appropriate
ground to help prevent electric shock.
WARNING
Failure to properly ground the generator can result in electric
shock.
A ground terminal connected to the panel of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to ensure
compliance with local electrical codes.
Neutral Floating*
–Neutral circuit IS NOT electrically connected to the frame/
ground of the generator.
–The generator (stator winding) is isolated from the frame and
from the AC receptacle ground pin.
–Electrical devices that require a grounded receptacle pin
connection will not function if the receptacle ground pin is not
functional.
Neutral Bonded to Frame*
–Neutral circuit IS electrically connected to the frame/ground of
the generator.
–The generator system ground connects lower frame cross-
member below the alternator. The system ground is connected
to the AC neutral wire.
* See your Specifications section for specified type of grounding.
OPERATION
Generator Location
WARNING
NEVER operate the generator inside any building, garage,
basement, crawlspace, shed, enclosure or compartment,
including a generator compartment of a recreational vehicle.
NEVER operate or start the generator in the back of an SUV,
camper, trailer, truck bedor any vehicles (regular sides, flat
or other configuration), under staircases, stairwells, next to
walls or buildings or in any other location that will not allow for
adequate cooling of the generator or for the proper exit of the
exhaust flow from the muffler system.
DO NOT operate or store the generator in wet weather
conditions such as rain or snow. Using a generator in wet
conditions could result in serious injury or death due to
electrocution.
In some state’s generators may be required to be registered
with the local utility company when used at construction sites
and may be subject to additional rules and regulations, consult
your local municipal authority.
Generators should always be operated on a flat, level surface
at all times (even when not in operation).
Generators must have a minimum of 5 feet (1.5 m) of
clearance from all combustible material.
Generators must also have a minimum of 3 feet (91.4 cm)
of air flow clearance on all sides to allow for adequate
performance cooling, maintenance and servicing.
Always place the generator in a well-ventilated area. NEVER
place the generator near air intake vents or where exhaust
fumes could be drawn into occupied or confined spaces.
Always carefully consider wind and air currents when
positioning generator.
Always allow generators to properly cool before transport or
for storage purposes.
Failure to follow proper safety precautions may result in
personal injury, damage to the generator and void the
manufacturer’s warranty.
