Champion Global Power Equipment 201047 User manual

OPERATOR'S MANUAL
MODEL #201047
2400W DUAL FUEL INVERTER GENERATOR
REV 20201130 Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
This product meets the requirements of the PGMA (Portable Generator Manufacturers’ Association) standard ANSI/PGMA G300-2015 (Safety and Performance of
Portable Generators).
Covered by one or more of the following U.S. Patent Numbers: 10,598,101, 10,221,780 and other U.S. and foreign patents pending.
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com

www.TakeYourGeneratorOutside.com
As the only safe way to use a portable generator, taking your generator
outside is absolutely mandatory to keep your family safe from carbon
monoxide. But there’s even more you can do. By educating yourself
about all carbon monoxide risks, you’ll be better prepared to protect
your family from this colorless, oderless threat.
CARBON MONOXIDE SAFETY: THE BIG PICTURE
KNOW THE SYMPTOMS
• Headache
• Nausea
• Shortness of breath
• Dizziness
• Fatigue
STAY ALERT WITH CARBON
MONOXIDE DETECTORS
POINT FUMES AWAY FROM
NEARBY PEOPLE
KEEP IT OUTSIDE AND AWAY FROM
DOORS, WINDOWS, AND GARAGES
ALWAYS READ
THE OPERATOR’S
MANUAL FIRST
MANUAL
IF YOU FEEL SYMPTOMS,
LEAVE RIGHT AWAY

201047 - 2400W DUAL FUEL INVERTER GENERATOR TABLE OF CONTENTS
3
TABLE OF CONTENTS
Introduction...................................................4
Safety Definitions ..........................................4
Important Safety Instructions.......................5
Fuel Safety ........................................................ 7
Safety and Dataplate Labels...................................... 8
Safety Symbols.................................................... 9
Operation Symbols ............................................... 10
Quickstart Label Symbols........................................ 11
Controls and Features ................................. 12

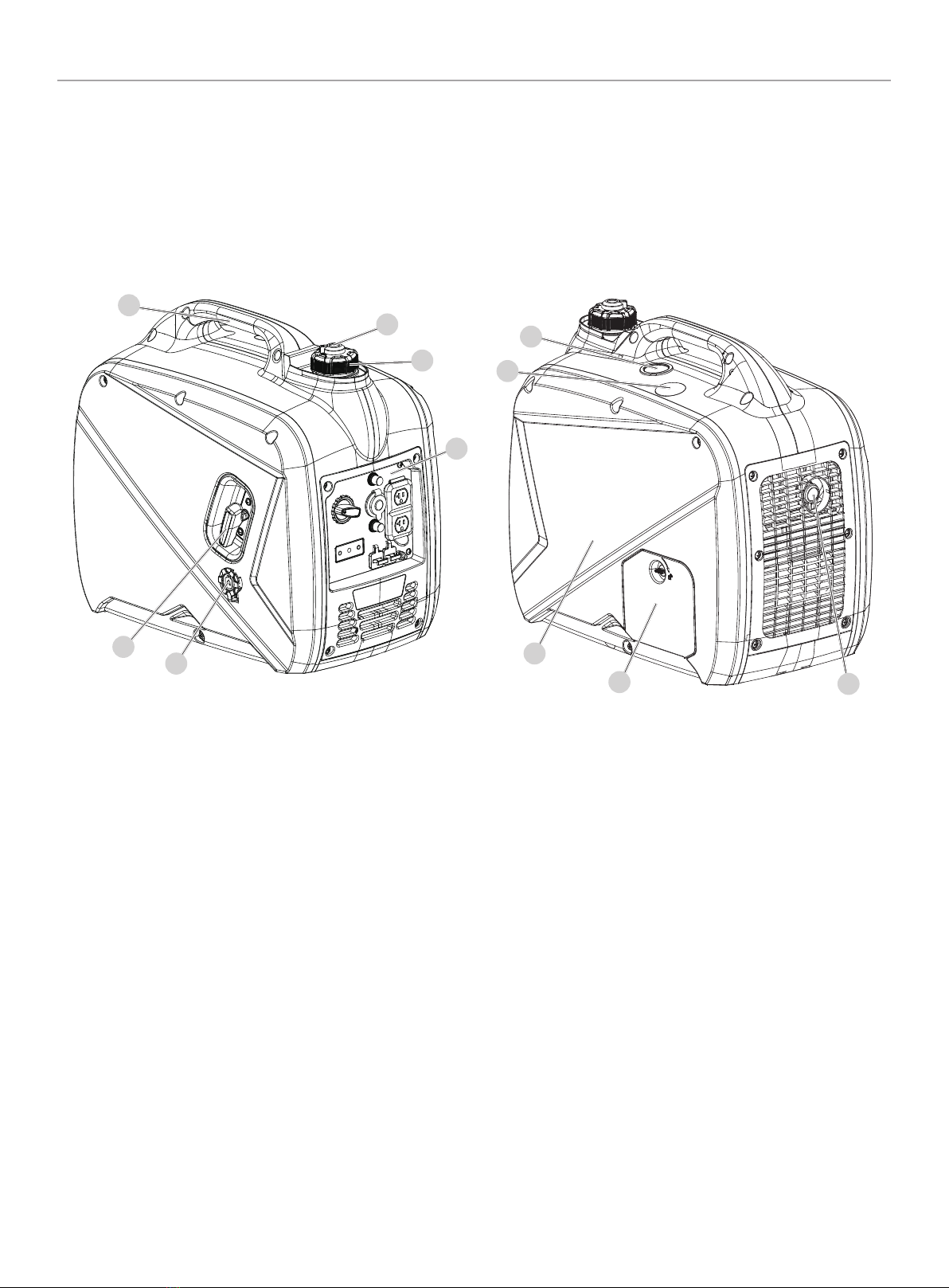

Generator ......................................................... 12

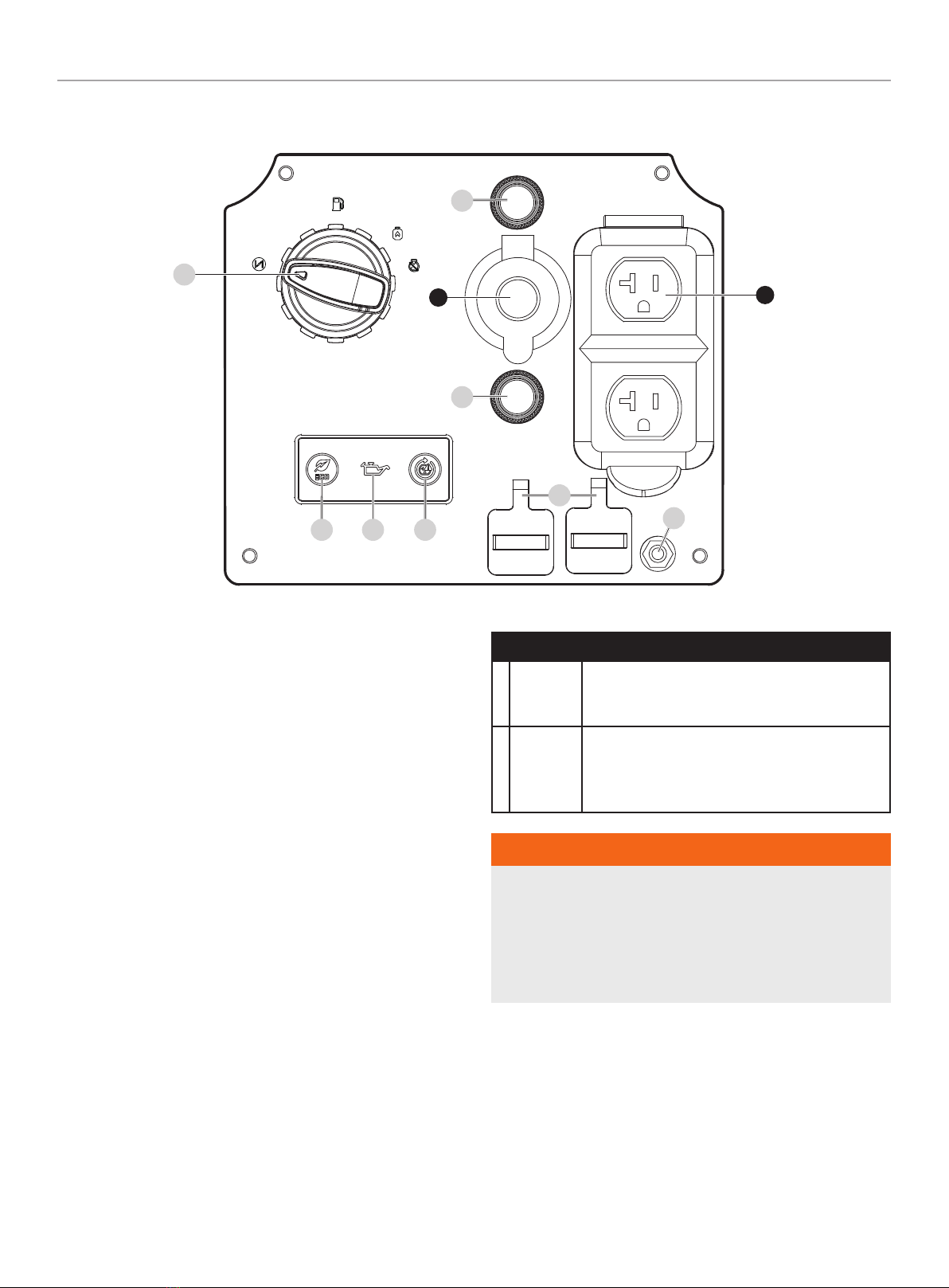

Control Panel ..................................................... 13
FCC Statement ................................................... 14

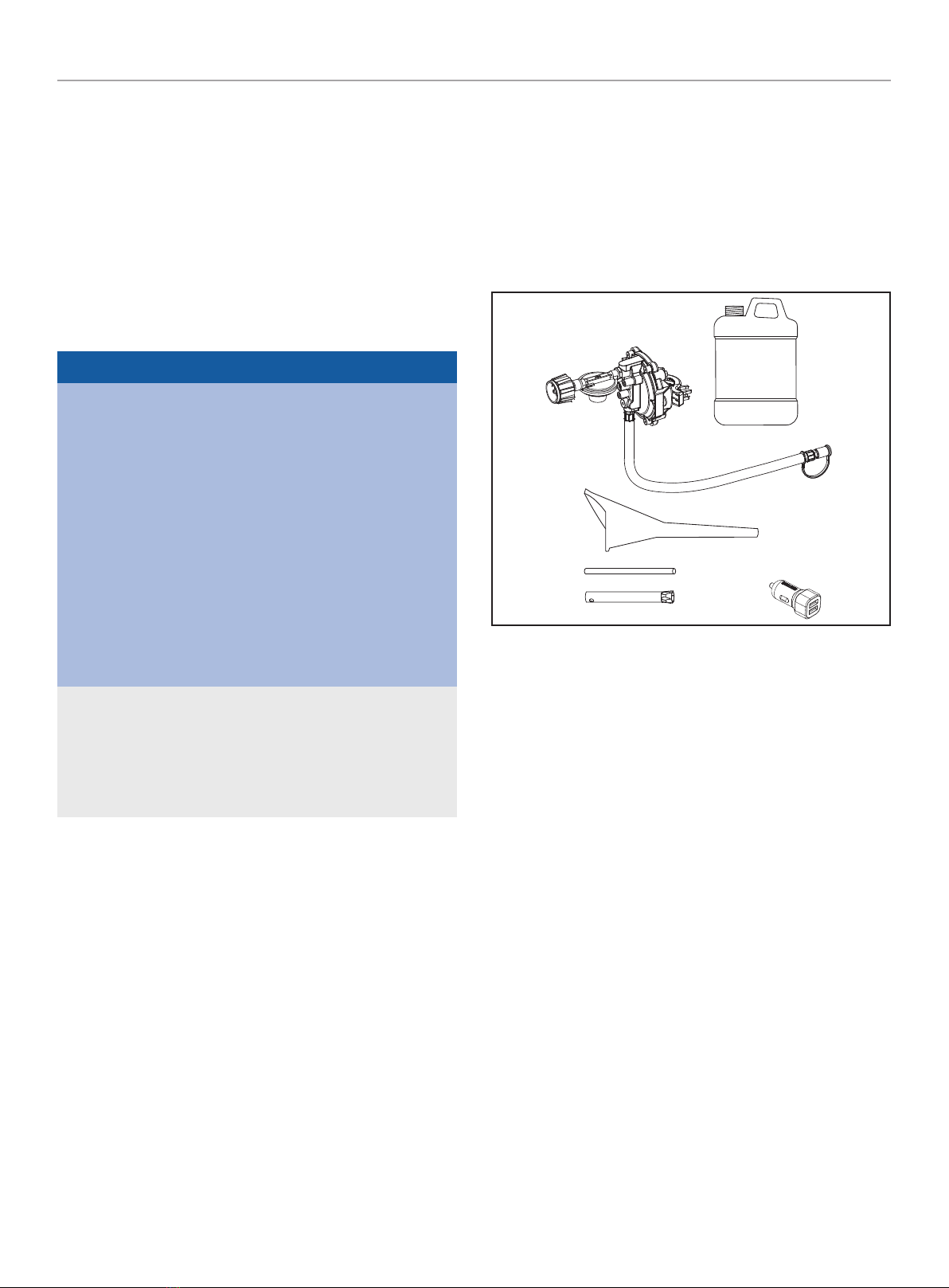

Parts Included .................................................... 14
Assembly..................................................... 15
Unpacking ........................................................ 15
Add Engine Oil.................................................... 15
Add Fuel: Gasoline ............................................... 16
Add Fuel: Propane (LPG) ......................................... 17
Grounding ........................................................ 18
Operation..................................................... 18
Generator Location............................................... 18
Surge Protection ................................................. 19
Starting the Engine: Gasoline.................................... 19
Starting the Engine: Propane (LPG) ............................. 20
Connecting Electrical Loads ..................................... 21
Do Not Overload Generator ...................................... 22
Eco (Economy) Mode............................................. 23
Parallel Operation ................................................ 23
Stopping the Engine.............................................. 23
Moving the Generator ............................................ 24
Operation at High Altitude ....................................... 24
Maintenance................................................25
Cleaning the Generator .......................................... 25
Changing the Engine Oil ......................................... 25
Cleaning and Adjusting the Spark Plug.......................... 26
Cleaning the Air Filter ............................................ 26
Cleaning the Spark Arrestor ..................................... 26
Adjusting the Governor........................................... 27
Maintenance Schedule........................................... 27
Storage ........................................................27
Short Term Storage (up to 30 days) ............................. 27
Mid Term Storage (30 days – 1 year) ........................... 28
Long Term Storage (more than 1 year).......................... 28
Removing from Storage.......................................... 28
Specifications..............................................29
Generator Specifications......................................... 29
Engine Specifications ............................................ 29
Oil Specifications................................................. 29
Fuel Specifications ............................................... 29
Temperature Specifications...................................... 29
Troubleshooting...........................................30
Warranty* ....................................................31
Warranty Qualifications .......................................... 31
Repair/Replacement Warranty................................... 31
Do Not Return The Unit To The Place Of Purchase ............. 31
Warranty Exclusions ............................................. 31
Other Exclusions ................................................. 31
Limits of Implied Warranty and Consequential Damage........ 31
Contact Information .............................................. 31

201047 - 2400W DUAL FUEL INVERTER GENERATOR INTRODUCTION
4
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
CPE highly values how our products are designed, manufactured,
operated, and serviced as well as providing safety to the operator
and those around the generator. Therefore, it is IMPORTANT to
review this product manual and other product materials thoroughly
and be fully aware and knowledgeable of the assembly, operation,
dangers and maintenance of the product before use. Fully
familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always exercise
common sense and always err on the side of caution when
operating the product to ensure no accident, property damage,
or injury occurs. We want you to continue to use and be satisfied
with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
201047
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION

201047 - 2400W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poisonous gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to feel
dizzy or weak, get to fresh air immediately.
OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY.
DO NOT operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a poison
you cannot see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
WARNING
Although the generator contains a spark arrester, maintain
a minimum distance of 5 ft. (1.5 m) from dry vegetation to
prevent fires.
DANGER
Operate equipment with guards in place.
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories. Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or frayed.
Use only Champion electrical cords for proper application.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to operate or
service the generator.
Use a ground fault circuit interrupter (GFCI) in damp areas and
areas containing conductive material such as metal decking.
Connection to your home’s electrical system requires a
listed 30A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical codes.
WARNING
Do not use generator for medical and life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
NEVER use this product to power medical devices or medical
appliances.
Inform your electricity provider immediately if you or anyone in
your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience a
medical emergency.

201047 - 2400W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
6
WARNING

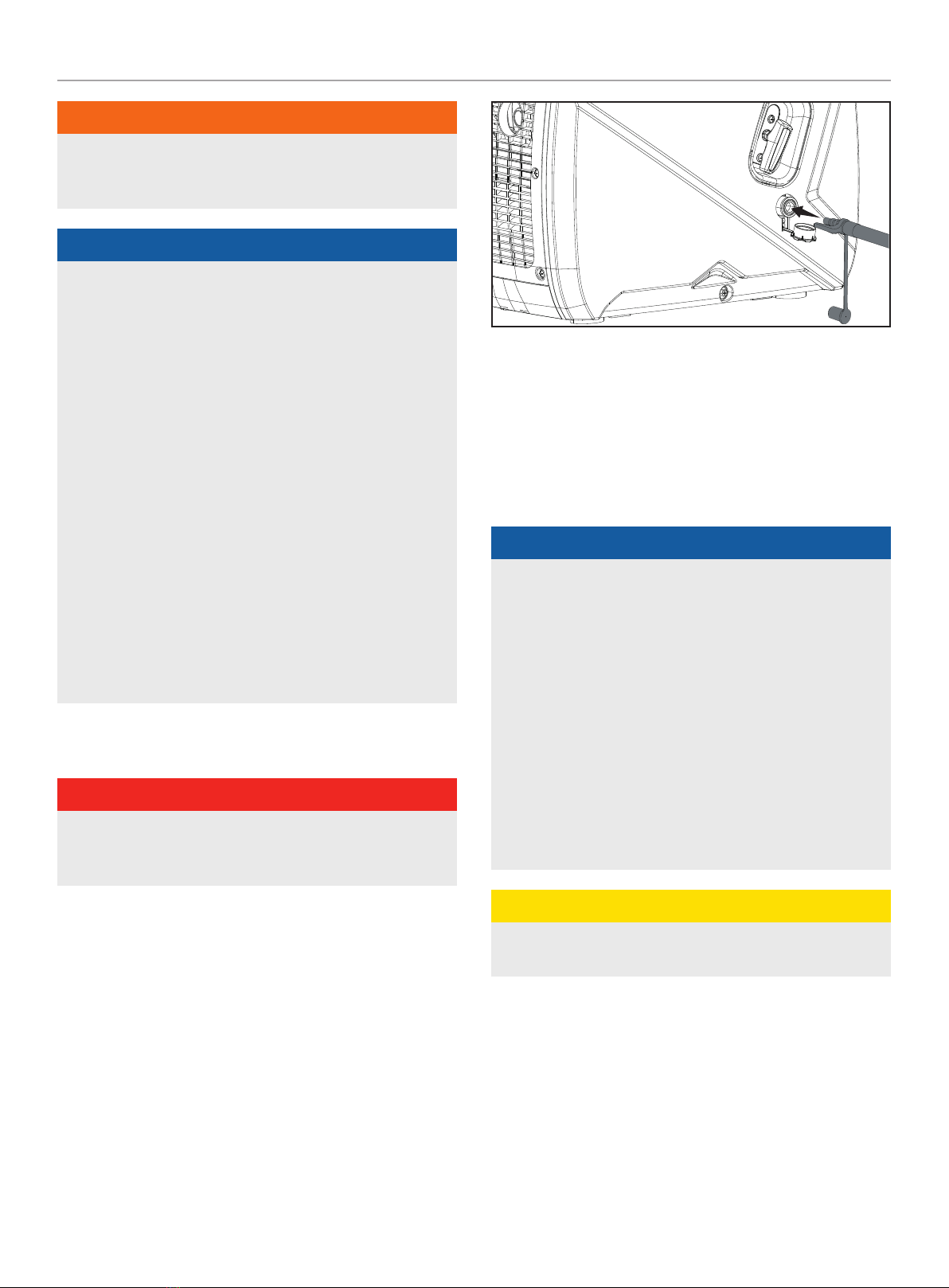

Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Rapid retraction of the recoil cord will pull hand and arm
towards the engine faster than you can let go. Broken bones,
fractures, bruises or sprains could result. Unintentional
startup can result in entanglement, traumatic amputation or
laceration.
When starting engine, pull the recoil cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Start the generator and allow the engine to stabilize before
connecting electrical loads.
Connect electrical equipment in the off position, and then turn
them on for operation.
Turn electrical equipment off and disconnect before stopping
the generator.
CAUTION
Improper treatment or use of the generator can damage it,
shorten its life or void the warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
–Electrical output is lost
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively

201047 - 2400W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
7
Fuel Safety
DANGER
GASOLINE, GASOLINE VAPORS AND PROPANE (LPG) ARE
HIGHLY FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
–Gasoline is highly flammable and explosive.
–Gasoline can cause a fire or explosion if ignited.
–Gasoline is a liquid fuel but it’s vapors can ignite.
–Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
–In any petroleum gas fire, flames should not be extinguished
unless by doing so the fuel supply valve can be turned OFF.
This is because if a fire is extinguished and a supply of fuel is
not turned OFF, then an explosion hazard could be created.
–Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline needs
room to expand if temperatures rise.
LPG:
–LPG is highly flammable and explosive.
–LPG is under pressure and can cause a fire or explosion if
ignited.
–LPG is heavier than air and can settle in low places while
dissipating.
–LPG has a distinctive odor added to help detect potential leaks
quickly.
–In any petroleum gas fire, flames should not be extinguished
unless by doing so the fuel supply valve is turned OFF. This
is because if a fire is extinguished and a supply of fuel is not
turned OFF, then an explosion hazard could be created.
–When exchanging LPG cylinders, check that the cylinder valve
is of the same type.
–Always keep the LPG cylinder in an upright position.
–LPG will burn skin if it comes in contact with it. Keep any and
all LPG away from skin at all times.
When adding or removing gasoline:
DO NOT light or smoke cigarettes.
Turn the generator off and let cool for at least two minutes before
removing the gasoline cap. Always loosen the cap slowly to relieve
pressure in the tank.
Only fill or drain gasoline outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator at the gas
station. Always use an approved container to transfer the fuel to
the generator.
DO NOT overfill the gasoline tank.
Always keep gasoline away from sparks, open flames, pilot lights,
heat and other sources of ignition.
When starting the generator:
DO NOT attempt to start a damaged generator.
Always check that the gasoline cap, air filter, spark plug, fuel lines
and exhaust system are properly in place.
Always allow spilled gasoline to evaporate fully before attempting
to start the engine.
Always be certain that the generator is resting firmly on level
ground.
When operating the generator:
DO NOT move or tip the generator during operation.
When transporting or servicing the generator:
Always check that the fuel valve is in the OFF position and the
gasoline tank is empty.
For LPG compatible models, check that the LPG cylinder is
disconnected and stored securely away from the generator.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat and other
sources of ignition.
Do not store generator, gasoline or LPG cylinders near furnaces,
water heaters, or any other appliances that produce heat or have
automatic ignitions.
DANGER
NEVER place a gasoline container, gasoline tank, LPG cylinder
or any combustible material in the path of the exhaust stream
during operation of the engine.
WARNING
Never use a gasoline container, gasoline tank, LPG connector
hose, LPG cylinder or any other fuel item that is broken, cut,
torn or damaged.

201047 - 2400W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
8
Safety and Dataplate Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
LABEL DESCRIPTION
A
PELIGRO
El uso de un generador en
interiores PUEDE MATARLO
EN MINUTOS. El escape del
generador contiene monóxido
de carbono. Éste es un veneno
que no se puede ver ni oler.
NUNCA lo use dentro del hogar
ni el garaje, INCLUSO SI las
puertas y ventanas están
abiertas. Úselo SÓLO a la
INTEMPERIE lejos de
ventanas, puertas, y orificios
de ventilación.
DANGER
Utiliser une génératrice à
l’intérieur PEUT VOUS TUER EN
QUELQUES MINUTES.
L’échappement de la génératrice
contient du monoxyde de
carbone. Il s’agit d’un poison que
vous ne pouvez ni voir ni sentir.
Ne l’utilisez JAMAIS dans la
maison ou le garage MÊME SI les
portes et les fenêtres sont
ouvertes. Utilisez-la UNIQUEMENT
À L’EXTÉRIEUR, loin des fenêtres,
portes et trappes de ventilation.
ONLY use OUTSIDE
and far away from
windows, doors,
and vents.
NEVER use inside a
home or garage,
EVEN IF doors and
windows are open.
DANGER
Using a generator indoors CAN KILL YOU
IN MINUTES. Generator exhaust contains
carbon monoxide. This is a poison you
cannot see or smell.
2670-L-SF-A
--- --- --- --- ---
ColorsLPN 2670 -L-SF
Rev A
Size 141 x 68 mm
Artwork Notes
2mm safe margin; white t o be printe d shown in 50%
process magenta
Revision Changes
---
This ar twork belongs to C hampion Power Equi pment. The conte nts are confide ntial and privileg ed and shall not be dis closed to or used by or f or
outside p arties withou t the explicit conse nt of Champion Power E quipment.
Safety Symbols/
CO Danger
B
UNLEADED FUEL ONLY. Minimum octane rating
of 87. Maximum 10% ethanol.
GASOLINA REGULAR SOLAMENTE. 87 octanos
como mínimo. Máximo de etanol de 10%.
ESSENCE SANS PLOMB SEULEMENT. Indice
d’octane minimal de 87. Maximum 10 % d'éthanol.
1032-L-OP-B
K109 --- --- ---
ColorsLPN 1032-L-OP
Rev B
Size 78 x 20 mm
Artwork Notes
3mm corner radius; 2mm safe margin
Revision Changes
B: -Changed Octane rating from 85 to 87 (20200421)
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Fuel
C
CHAMPION POWER EQUIPMENT, INC.
12039 SMITH AVENUE
SANTA FE SPRINGS, CA 90670
USA / É.-U.
1-877-338-0999
WWW.CHAMPIONPOWEREQUIPMENT.COM
MADE IN VIETNAM / FABRIQUÉ EN VIETNAM
AC AMPS
AMPÈRES C.A.
FREQUENCY (Hz)
FRÉQUENCE (Hz)
RPM
TR / MIN
PHASE
PHASE
POWER FACTOR
FACTEUR DE
PUISSANCE
AC VOLTS
VOLTS C.A.
MANUFACTURE DATE
DATE DE FABRICATION
SERIAL NO.
N° DE SÉRIE
MODEL
MODÈLE
INSULATION CLASS
CLASSE D’ISOLATION
MAX AMBIENT TEMP.
TEMP. AMBIANTE MAX.
2666-L-PR-A
GASOLINE WATTS
WATTS D'ESSENCE
201047
15
60
5000
1
1.0
120
F
1800
104°F
40°C
XXXXXXXXXXXX
XXXX
K--- --- --- ---
ColorsLPN 2666-L-PR
Rev A
Size 123 x 40 mm
Artwork Notes
3mm corner radius; 2mm safe margin; remove
“PROPANE WATTS” if not applicable
Revision Changes
---
This ar twork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
1620
PROPANE WATTS
WATTS AU PROPANE
Dataplate
D
2665-L-SF-RIGHT
ADVERTENCIA
¡NO TOCAR! Los gases
de escape, el silenciador
y los componentes del
motor están
extremadamente
CALIENTES y causan
quemaduras.
La operación de este equipo puede producir chispas que
pueden provocar incendios alrededor de la vegetación
seca. Un supresor de chispas puede que sea necesario.
El operadaor debe comunicarse con las agencias locales
de bomberos para las leyes y reglamentos relativos a los
requisitos de prevención de incendios. Si está instalado,
limpie cada 100 horas o cada temporada.
WARNING
DO NOT TOUCH!
Exhaust gases,
muffler and
engine
components are
extremely HOT
and cause burns.
Operation of this equipment may create
sparks that can start fires around dry
vegetation. A spark arrestor may be
required. The operator should contact local
fire agencies for laws and regulations
relating to fire prevention requirements. If
installed, clean every 100 hours or every
season. 2665-L-SF-LEFT
K485 152 --- ---
ColorsLPN 2665-L-SF
Rev A
Size 92x 29 mm (each)
Artwork Notes
3mm corner radius; 2mm safe margin; to be printed
on
white substrate.
Revision Changes
---
This ar twork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
2665-L-SF-RIGHT
ADVERTENCIA
¡NO TOCAR! Los gases
de escape, el silenciador
y los componentes del
motor están
extremadamente
CALIENTES y causan
quemaduras.
La operación de este equipo puede producir chispas que
pueden provocar incendios alrededor de la vegetación
seca. Un supresor de chispas puede que sea necesario.
El operadaor debe comunicarse con las agencias locales
de bomberos para las leyes y reglamentos relativos a los
requisitos de prevención de incendios. Si está instalado,
limpie cada 100 horas o cada temporada.
WARNING
DO NOT TOUCH!
Exhaust gases,
muffler and
engine
components are
extremely HOT
and cause burns.
Operation of this equipment may create
sparks that can start fires around dry
vegetation. A spark arrestor may be
required. The operator should contact local
fire agencies for laws and regulations
relating to fire prevention requirements. If
installed, clean every 100 hours or every
season. 2665-L-SF-LEFT
K485 152 --- ---
ColorsLPN 2665-L-SF
Rev A
Size 92x 29 mm (each)
Artwork Notes
3mm corner radius; 2mm safe margin; to be printed
on
white substrate.
Revision Changes
---
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Hot Surface
Top
A
B
C
D

201047 - 2400W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
9
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Clearance. Keep all objects at least 5 feet (1.5m) from generator. Heat from the muffler and exhaust gas
can ignite combustible objects.
Ground. Consult with local electrician to determine grounding requirements before operation.
Electric Shock. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire/Explosion. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause
severe burns or death. Keep generator at least 5 feet (1.5m) from all objects to prevent combustion.
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface.
Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from
smoking, open flames, sparks, pilot lights, heat, and other ignition sources.
Wet Conditions Alert. Do not expose to rain or use in damp location.

201047 - 2400W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
10
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Propane Hose Inlet
Engine Run: Propane
Engine Run: Gasoline
Choke
Stop or Off
ECO
Economy Mode Button
Low Oil
Overload Reset Button
SYMBOL MEANING
Circuit Breaker Reset: Push
Ground Terminal
Neutral Floating. Neutral circuit IS
NOT electrically connected to the frame/
ground of the generator.
Parallel Connection(s)
12V Direct Current
Gasoline Tank: Full
Gasoline Tank: Empty

201047 - 2400W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
11
Quickstart Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
Starting the Engine
DANGER
Move generator outside and far away from windows,
doors and intake ventilation covers.
1. Check oil level.
Recommended oil is 10W-30.
2. Add fuel. Check gasoline level. When adding gasoline, use a
minimum octane rating of 87 and an ethanol content of 10%
or less by volume.
3. Turn the fuel vent lever to the “ON” position.
4. Move the EZ Start dial to the “CHOKE” position.
5. Pull the recoil cord.
6. Turn EZ Start dial to gasoline icon for gasoline “RUN”.
7. Plug in desired device.
Stopping the Engine
1. Turn off and unplug all connected electrical loads.
2. Turn the fuel vent lever to the “OFF” position.
3. Turn the EZ Start dial to the “STOP” position.
For adding fuel and starting the engine with LPG see Add Fuel:
Propane (LPG) in Assembly section and Starting the Engine:
Propane (LPG) in the Operation section.
10W-30

12345673
2
1
2671-L-PR-A
K2945 354 7621 376 186 152 CG1
ColorsLPN 2671-L-PR
Rev A
Size ~170 x 21 mm
Artwork Notes
3mm corner radius; 2mm safe margin; to be printed
on
White substrate.
Revision Changes
---
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.

201047 - 2400W DUAL FUEL INVERTER GENERATOR CONTROLS AND FEATURES
12
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Generator
1. Carrying Handle –Used to lift or carry the unit.
2. Recoil Starter – Used to manually start the engine.
3. LPG Inlet – Used to connect LPG fuel source to generator.
4. Control Panel –See Control Panel section.
5. Fuel Cap – Remove to add fuel.
6. Fuel Lever Vent – Turn this valve to the “ON” position to
supply air to the tank.
7. Fuel Gauge
8. Spark Plug Access Cover
9. Maintenance Cover
10. Oil Fill Access Cover
11. Muffler
1
2
3
4
9
10 11
8
7
5
6

201047 - 2400W DUAL FUEL INVERTER GENERATOR CONTROLS AND FEATURES
13
Control Panel
1. EZ Start Dial – Used to turn on gasoline or propane (LPG)
fuel source, operate the choke, and stop the engine.
2. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
3. Economy Mode Button – Enables/disables automatic idle
control.
4. Low Oil Warning Indicator Light – When ON, engine will
shut down and not run. Check oil level.
5. AC Overload Reset Button – Used to re-energize
receptacles after overload fault.
6. Parallel Outlets – Used to parallel two inverters together for
increased power output. (parallel kit sold separately).
7. Ground Terminal – Consult an electrician for local grounding
regulations.
RECEPTACLES
Az12V DC, 8A (Automotive)
May be used to supply electrical power for
operation of 12 Volt DC, 8 Amp electrical loads.
BA
(2×) 120V AC, 20A (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single phase,
60 Hz electrical loads.
WARNING
Do not operate a device while it is plugged into the 12V DC
outlet. When charging a device, do not place on the exhaust
side of the generator. Extreme heat caused by exhaust
can damage the device and cause a potential fire hazard.
Prolonged exposure to engine exhaust can cause serious injury
or death.
1
2
2
7
3 4 5
6
AB

201047 - 2400W DUAL FUEL INVERTER GENERATOR CONTROLS AND FEATURES
14
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1a. This device may not cause harmful interference.
1b. This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
NOTICE
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and
receiver.
–Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult dealer or an experienced radio/TV technician for help.
Parts Included
Accessories
2.3 ft. (0.7 m) LPG Hose with Regulator ..........................1
Engine Oil...................................... 13.5 fl. oz. (400 ml)
Oil Funnel ...........................................................1
Dual Port USB Adapter (5v/2.4A) ..................................1
Spark Plug Wrench.................................................1

201047 - 2400W DUAL FUEL INVERTER GENERATOR ASSEMBLY
15
ASSEMBLY
Your generator requires some assembly. It must be properly
serviced with fuel and oil before operation.
If you have any questions regarding the assembly of your
generator, call our Technical Support Team at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. Using the carrying handles of the unit, carefully remove the
generator from the box (two people lifting is recommended).
Add Engine Oil
WARNING
DO NOT attempt to crank or start the engine before it has been
properly filled with the recommended type and amount of oil.
Damage to the generator as a result of failing to follow these
instructions will void your warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 10W-30
automotive oil. However, using the listed conventional oils
shown in the “Recommended Engine Oil Type” chart may be
used for typical use including the first 5 hours of the break-in
run time period of the engine.
If running generator in extreme temperatures, refer to the
“Recommended Engine Oil Type” chart.
-20 020 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
1. Place the generator on a flat, level surface.
2. Turn the oil access cover fastener to the unlocked position
and remove the cover.
3. Remove oil fill cap/dipstick to add oil.
4. Using a funnel, add up to 13.5 fl. oz. (400 ml) of oil (included)
and replace oil fill cap/dipstick and secure cover.
DO NOT OVERFILL.
5. Check engine oil level before each use and add as needed.
MAX
OIL DIP STICK
NOTICE
Once oil has been added, a visual check should show oil about
1-2 threads from running out of the fill hole.
When using the dipstick to check oil level, DO NOT screw in
the dipstick while checking.

201047 - 2400W DUAL FUEL INVERTER GENERATOR ASSEMBLY
16
NOTICE
Check oil level often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary slightly and help seat piston rings.
After the 5 hour break-in period, change the oil.
NOTICE
Synthetic oil may be used after the 5 hour initial break-in
period. Using synthetic oil does not decrease the recommended
oil change interval. Full synthetic 5W-30 oil will aid in starting
in cold ambient < 41º F (5º C) temperatures.
Add Fuel: Gasoline
DANGER
Gasoline vapors are highly flammable and extremely explosive.
DO NOT light or smoke cigarettes. Fire or explosion can cause
severe burns or death.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator. Use an
approved container to transfer the fuel to the generator.
Never use a gasoline container, gasoline tank, or any
other fuel item that is broken, cut, torn or damaged.
DO NOT overfill the gasoline tank. Always keep fuel away from
sparks, open flames, pilot lights, heat and other sources of
ignition.
Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 87 and an ethanol content of 10% or less by
volume. ybc
DO NOT mix oil with gasoline.
1. Remove the gasoline cap.
2. Slowly add gasoline to the tank. DO NOT OVERFILL. Gasoline
can expand after filling. A minimum of ¼ in. (6.4 mm) of
space left in the tank is required for gasoline expansion,
although more than ¼ in. (6.4 mm) is recommended. Gasoline
can be forced out of the tank as a result of expansion if
overfilled, and can affect the stable running condition of the
generator.
3. The approximate fuel level is shown on the fuel gauge on top
of the fuel tank.
Empty Full
4. Screw on the gasoline cap and wipe away any spilled fuel.
CAUTION
Use unleaded gasoline with a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and gasoline.
DO NOT overfill the tank. Fill tank to approximately ¼ in.
(6.4 mm) below the top of the tank to allow for gasoline
expansion.
DO NOT pump gasoline directly into the generator at the pump.
Use an approved fuel container to transfer the gasoline to the
generator.
DO NOT fill tank indoors.
DO NOT fill tank when the engine is running or hot.

201047 - 2400W DUAL FUEL INVERTER GENERATOR ASSEMBLY
17
WARNING
Pouring gasoline too fast through the fuel screen may result
in gasoline splashing over the generator and operator while
filling.
NOTICE
The generator engine works well with 10% or less ethanol
blended gasoline. When using ethanol-gasoline blends there
are some issues worth noting:
–Ethanol-gasoline blends can absorb more water than
gasoline alone.
–These ethanol blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor. The compromised gasoline can be drawn into
the carburetor and cause damage to the engine and/or
create potential hazards.
–If a fuel stabilizer is used, confirm that it is formulated to
work with ethanol-gasoline blends.
–Any damages or hazards caused by using ethanol blended
gasoline higher than 10% by volume, improperly stored
gasoline, and/or improperly formulated stabilizers, are not
covered by manufacturer’s warranty.
It is advisable to always shut off the gasoline supply and
run the engine to starvation after each use. See Storage
instructions for extended non-use.
Add Fuel: Propane (LPG)
DANGER
NEVER place the LPG (liquefied petroleum gas) connector hose
OR LPG cylinder tank in the path of the muffler exhaust gas
stream of the generator during engine operation.
1. Confirm the dial is in the OFF position.
2. If using a new propane cylinder, remove the plastic cap from
the cylinder valve.
3. Attach the LPG hose assembly (included) to the propane
cylinder valve and hand tighten until snug. DO NOT OVER
TIGHTEN.
4. Remove the rubber boot covering the propane connection port
on the inverter.
5. Align the plastic finger on the male hose fitting on the LPG
hose assembly with the slot next to the female quick connect
coupling on the inverter.
6. Insert the hose fitting into the quick connect coupling and
push in until you hear a “click” and the outside collar of the
quick connect coupling moves forward.
7. Check all connections for leaks by wetting the fittings with a
solution of soap and water. Bubbles which appear or bubbles
which grow indicate that a leak exists. If a leak exists at a
fitting then turn off the valve on the cylinder and tighten the
fitting. Turn the valve back on and recheck the fitting with the
soap and water solution. If the leak continues or if the leak
is not at a fitting then do not use the generator and contact
customer service.
NOTICE
–The LPG hose included with this unit works with standard
20 and 30 pound LPG tanks.
–Verify the requalification date on the cylinder has not
expired.
–All new cylinders must be purged of air and moisture prior
to filling. Used cylinders that have not been plugged or kept
closed must also be purged.
–The purging process should be done by an LPG supplier.
(cylinders from an exchange supplier should have been
purged and filled properly already).
–Always position the cylinder so the connection between the
cylinder valve and generator inlet won’t cause sharp bends
or kinks in the LPG hose.
CAUTION
Do not allow children to tamper or play with the LPG cylinder
or hose connections.

201047 - 2400W DUAL FUEL INVERTER GENERATOR OPERATION
18
CAUTION
Use approved LPG cylinders equipped with an OPD (overfilling
prevention device) valve. Always keep the cylinder in a vertical
position with the valve on top and installed at ground level
on a flat surface. Cylinders must not be installed near any
heat source and should not be exposed to sun, rain, and dust.
When transporting and storing, turn off the cylinder valve and
generator LPG valve, and disconnect the cylinder. Plug the
outlet, usually by a plastic protective cap, if one is available.
Keep cylinders away from heat and ventilated when in a
vehicle.
WARNING
If there is a strong smell of LPG: Close valve on the cylinder.
Check all connections for leaks by wetting the fittings with a
solution of soap and water. Bubbles which appear or bubbles
which grow indicate that a leak exists. Do not smoke or light a
cigarette, or check for leaks using a match, open flame source
or lighter. Contact a qualified technician to inspect and repair
an LPG system if a leak is found, before using the generator.
Grounding
Your generator must be properly connected to an appropriate
ground to help prevent electric shock.
WARNING
Failure to properly ground the generator can result in electric
shock.
A ground terminal connected to the panel of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to ensure
compliance with local electrical codes.
Neutral Floating*
–Neutral circuit IS NOT electrically connected to the frame/
ground of the generator.
–The generator (stator winding) is isolated from the frame and
from the AC receptacle ground pin.
–Electrical devices that require a grounded receptacle pin
connection will not function if the receptacle ground pin is not
functional.
Neutral Bonded to Frame*
–Neutral circuit IS electrically connected to the frame/ground of
the generator.
–The generator system ground connects lower frame cross-
member below the alternator. The system ground is connected
to the AC neutral wire.
* See your Specifications section for specified type of grounding.
OPERATION
Generator Location
WARNING
NEVER operate the generator inside any building, garage,
basement, crawlspace, shed, enclosure or compartment,
including a generator compartment of a recreational vehicle.
NEVER operate or start the generator in the back of an
SUV, camper, trailer, truck bed (regular sides, flat or other
configuration), under staircases, stairwells, next to walls
or buildings or in any other location that will not allow for
adequate cooling of the generator or for the proper exit of the
exhaust flow from the muffler system.
DO NOT operate or store the generator in wet weather
conditions such as rain or snow. Using a generator in wet
conditions could result in serious injury or death due to
electrocution.
In some state’s generators may be required to be registered
with the local utility company when used at construction sites
and may be subject to additional rules and regulations, consult
your local municipal authority.
Generators should always be operated on a flat, level surface
at all times (even when not in operation).
Generators must have a minimum of 5 feet (1.5 m) of
clearance from all combustible material.
Generators must also have a minimum of 3 feet (91.4 cm)
of air flow clearance on all sides to allow for adequate
performance cooling, maintenance and servicing.
Always place the generator in a well-ventilated area. NEVER
place the generator near air intake vents or where exhaust
fumes could be drawn into occupied or confined spaces.
Always carefully consider wind and air currents when
positioning generator.
Always allow generators to properly cool before transport or
for storage purposes.
Failure to follow proper safety precautions may result in
personal injury, damage to the generator and void the
manufacturer’s warranty.

201047 - 2400W DUAL FUEL INVERTER GENERATOR OPERATION
19
WARNING
During operation the muffler and exhaust fumes will become
hot. If adequate cooling and breathing space are not supplied,
or if the generator is blocked or enclosed, temperatures can
become extremely heated and may lead to fire.
WARNING
Do not expose to rain or use in damp locations.
Keep all objects a minimum of 5 feet (1.5m) away from the
generator at all times. Heat from the muffler surface and
exhaust gas stream can ignite combustible materials.
WARNING
If you must operate in rain or damp locations, DO NOT operate
without proper protection of the electrical components.
Use of a safety canopy that is fire retardant and will provide proper
air ventilation for the engine exhaust gas stream may be used.
Visit championpowerequipment.com or call to find your Storm
Shield cover.
Surge Protection
Electronic devices, including computers and many programmable
appliances use components that are designed to operate within a
narrow voltage range and may be affected by momentary voltage
fluctuations. While there is no way to prevent voltage fluctuations,
you can take steps to protect sensitive electronic equipment.
–Install UL1449, CSA-listed, plug-in surge suppressors on the
outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet styles.
They’re designed to protect against virtually all short-duration
voltage fluctuations.
Starting the Engine: Gasoline
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator. Never start
or stop the generator with electrical devices plugged in or
turned on.
3. Turn the fuel vent lever to the “ON” position.
4. Move the EZ Start dial to the “CHOKE” position.
5. Pull the recoil cord slowly until resistance is felt and then pull
rapidly.
6. As the engine warms up, turn the EZ Start dial to the gasoline
“RUN” position.

201047 - 2400W DUAL FUEL INVERTER GENERATOR OPERATION
20
NOTICE
Keep EZ Start dial in “CHOKE” position for only 1 pull of the
recoil cord. If generator does not start after first pull, rotate the
EZ Start dial to the “RUN” position for the next three pulls. Too
much choke leads do spark plug fouling and engine flooding.
This will cause the engine not to start.
NOTICE
For gasoline restarts with hot engine in hot ambient >
86°F (30°C): Rotate the EZ Start dial to 75% of the full choke
position for only one pull of the recoil cord. If generator does
not start after first pull, rotate the dial to the RUN position
for the next three pulls. Too much choke leads do spark plug
fouling and engine flooding. This will cause the engine not to
start.
NOTICE
For gas starting in cold ambient < 59°F (15°C): The choke
must be in 100% of the “CHOKE” position for manual start
procedures. Do not over-choke. As soon as the engine starts,
turn the EZ Start dial to the “RUN” position.
NOTICE
If the engine starts but does not continue to run, make certain
that the generator is on a flat, level surface. The engine is
equipped with a low oil sensor that will prevent the engine
from running when the oil level falls below a critical threshold.
Starting the Engine: Propane (LPG)
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator. Never start
or stop the generator with electrical devices plugged in or
turned on.
3. Open the fuel valve on the propane cylinder.
Cold Engine Start
4. Move the EZ Start dial to the “CHOKE” position.
5. Slowly pull the starter cord 3-5 times to prime the engine.
6. Turn the EZ Start dial to the propane “RUN” position.
7. Pull the recoil cord slowly until resistance is felt and then pull
rapidly.
