Champion Eseries HRU Manual

HRU
Eseries High Temperature
Heat Recovery Unit
Installation/Operation Guide with Service Replacement Parts
2674 N. Service Road,
Jordan Station Ontario, Canada L0R 1S0
905/562-4195 Fax: [phone]
3765 Champion Blvd.,
Winston-Salem, NC 27105
336/661-1556 Fax: [phone]
www.championindustries.com
Issue Date: 2.18.11
Manual P/N 114819 rev.A
Model:
Printed in the USA
For machines built from 8.21.09 and above

COPYRIGHT © 2010 All rights reserved Printed in the USA
For future reference, record your dishwasher information in the box below.
Model Number__________________________ Serial Number_______________________
Voltage________________Hertz_____________ Phase__________________
Champion Service Agent __________________________________ Tel:______________________
Champion Parts Distributor _________________________________ Tel:______________________
ATTENTION:
The dishwasher model no., serial no., volt-
age, Hz and phase are needed to identify
your machine and to answer questions.
Please have this information on-hand
if you call for service assistance.
National Service Department
In Canada: In the USA:
Toll-free: 800/ 263-5798 Toll-free: 800/ 858-4477
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
email: [email protected] email: [email protected]
For all models:
The data plate mounts to one
side of the top-mounted
control cabinet.
The USGBC and the CaGBC Member Logos are trademarks owned by the U.S. Green Building Council
and The Canadian Green Building Council, respectively, and are used by permission.
The logos signify only that Champion Industries is a
USGBC member and a CaGBC member; USGBC and CaGBC do not review,
certify nor endorse the products or services offered by its members.

Revision History
Revision Revised Serial Number Revision
Date Pages Effectivity Description
Revision History
i
8.6.10 All Engineered System Release of First Edition
The revision history contains part number changes and instructions not available at the time
of printing. We reserve the right to make any changes without notice and without incurring
any liability by making these changes.
Equipment owners may request a revised manual at no charge, by calling:
1 [phone] in the U.S.A. or by calling 1 [phone] in Canada.
2.18.11 12-13 J11022850 Added blower junction box
14-21 J11022850 Added 2 amp circuit breaker
31 J10022850 Revised schematic for circuit breaker

Limited Warranty
LIMITED WARRANTY
Champion Industries Inc. (herein referred to as Champion), 3765 Champion Blvd., Winston-Salem, North Carolina 27105,
and P.O. Box 301, 2674 N. Service Road, Jordan Station, Canada, L0R 1S0, warrants machines, and parts,
as set out below.
Warranty of Machines: Champion warrants all new machines of its manufacture bearing the name
"Champion" and installed within the United States and Canada to be free from defects in material and workman
ship for a period of one (1) year after the date of installation or fteen (15) months after the date of shipment by
Champion, whichever occurs rst. [See below for special provisions relating to glasswashers.] The warranty
registration card must be returned to Champion within ten (10) days after installation. If warranty card is not
returned to Champion within such period, the warranty will expire after one year from the date of shipment.
Champion will not assume any responsibility for extra costs for installation in any area where there are
jurisdictional problems with local trades or unions.
If a defect in workmanship or material is found to exist within the warranty period, Champion, at its election,
will either repair or replace the defective machine or accept return of the machine for full credit; provided;
however, as to glasswashers, Champion's obligation with respect to labor associated with any repairs shall end
(a) 120 days after shipment, or (b) 90 days after installation, whichever occurs rst. In the event that Champion
elects to repair, the labor and work to be performed in connection with the warranty shall be done during regular
working hours by a Champion authorized service technician. Defective parts become the property of Champion.
Use of replacement parts not authorized by Champion will relieve Champion of all further liability in connection
with its warranty. In no event will Champion's warranty obligation exceed Champion's charge for the machine.
The following are not covered by Champion's warranty:
a. Lighting of gas pilots or burners.
b. Cleaning of gas lines.
c. Replacement of fuses or resetting of overload breakers.
d. Adjustment of thermostats.
e. Adjustment of clutches.
f. Opening or closing of utility supply valves or switching of electrical supply current.
g. Cleaning of valves, strainers, screens, nozzles, or spray pipes.
h. Performance of regular maintenance and cleaning as outlined in operator’s guide.
i. Damages resulting from water conditions, accidents, alterations, improper use, abuse,
tampering, improper installation, or failure to follow maintenance and operation procedures.
j. Wear on Pulper cutter blocks, pulse vanes, and auger brush.
Examples of the defects not covered by warranty include, but are not limited to: (1) Damage to the exterior or
interior nish as a result of the above, (2) Use with utility service other than that designated on the rating plate,
(3) Improper connection to utility service, (4) Inadequate or excessive water pressure, (5) Corrosion from
chemicals dispensed in excess of recommended concentrations, (6) Failure of electrical components due to
connection of chemical dispensing equipment installed by others, (7) Leaks or damage resulting from such
leaks caused by the installer, including those at machine table connections or by connection of chemical
dispensing equipment installed by others, (8) Failure to comply with local building codes, (9) Damage
caused by labor dispute.
Warranty of Parts: Champion warrants all new machine parts produced or authorized by Champion to be free
from defects in material and workmanship for a period of 90 days from date of invoice. If any defect in
material and workmanship is found to exist within the warranty period Champion will replace the defective
part without charge.
DISCLAIMER OF WARRANTIES AND LIMITATIONS OF LIABILITY. CHAMPION'S WARRANTY IS ONLY TO THE EX-
TENT REFLECTED ABOVE. CHAMPION MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED, TO ANY WARRANTY OF MERCHANTABILITY, OR FITNESS OF PURPOSE. CHAMPION SHALL
NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. THE REMEDIES SET OUT ABOVE ARE
THE EXCLUSIVE REMEDIES FOR ANY DEFECTS FOUND TO EXIST IN CHAMPION DISHWASHING MACHINES AND
CHAMPION PARTS, AND ALL OTHER REMEDIES ARE EXCLUDED, INCLUDING ANY LIABILITY FOR INCIDENTALS
OR CONSEQUENTIAL DAMAGES.
Champion does not authorize any other person, including persons who deal in Champion Dishwashing machines
to change this warranty or create any other obligation in connection with Champion Dishwashing Machines.
ii

Table of Contents
Table of Contents
Model HRU: Heat Recovery Unit
Revision History.................................................................................................................... i
Limited Warranty .................................................................................................................. ii
Model Description ................................................................................................................. iv
Installation .............................................................................................................. 1
Receiving ........................................................................ 1
Mounting ......................................................................... 3
Plumbing Connections ................................................... 5
Setting the PRV's ........................................................... 6
Operation Lights and Exhaust Blowers .......................... 8
Operation .............................................................................................................. 9
Cleaning .............................................................................................................. 10
Service Replacement Parts ................................................................................... 11
One Line Piping Diagram ....................................................................................... 29
Operation Logic Diagram ...................................................................................... 33
Electrical Schematic............................................................................................... 34

Model Description
Model: HRU Heat Recovery Unit
HRU
Cold
Water In
Pre-heated
Water Out
Exhaust
Air
Exhaust
Air
Booster
The installation, and initial start-up of your dishwasher must be performed by qualied
electricians, plumbers, and authorized service technicians trained in commercial dishwashers.
Defects and repairs caused by unauthorized installers will not be covered by the dishwasher
warranty.
The HRU heats cold water supplied to the dishwasher's built-in heat exchanger which
raises the incoming temperature to approximately 110°F/43°C. The preheated water is
plumbed to the nal rinse water booster which ensures a minimum nal rinse water
temperature of 180°F/82°C to sanitize the clean wares. The HRU signicantly reduces
the energy required to heat water for the nal rinse operations.
iv

1
Installation
Installation
Receiving
NOTE:
The installation of your Heat Recovery Unit (HRU) must be performed by qualified service
personnel. Problems due to improper installation are not covered by the Warranty.
The HRU may have be installed at the factory. Proceed to the operation section of this manual
if your HRU is already attached to the machine.
1. Inspect the HRU for damage due to shipping.
2. Check for any accessories that may have shipped with your dishwasher.
3. Move the HRU near its permanent location.
CAUTION:
Be careful when lifting and moving the HRU to prevent damage to the machine.
NOTE:
The installation of the HRU must comply with local safety and health codes.
4. Compare the installation site utility connections with the dishwasher utility connections and
make sure that they are the same.
5. For new dishwasher installations, install the Dishwasher according to the instructions in the
dishwasher service manual Installation, Operation, and Service Replacement Parts, which
is shipped inside the dishwasher.
WARNING:
Electrocution or serious injury may result when working on an
energized circuit.
Disconnect power at the main breaker or service disconnect
switch before working on the circuit.
Lock-out and tag the breaker to indicate that work is being
performed on the circuit.
WARNING:
Moving Parts may cause INJURY OR DEATH.
USE EXTREME CAUTION WHEN THE CONVEYOR
IS MOVING.

2
Installation
Installation
HRU
Cold
Water In
Pre-heated
Water Out
Exhaust
Air
Exhaust
Air
Booster
Heat Recovery Unit (HRU) shown installed on a right-to-left dishwasher
without a Blower Dryer Option
NOTE:
The installation of the HRU must comply with local safety and health codes.
1. The HRU weighs approximately 175 lbs./79.4 Kg and mounts on the top of the unload end
of the dishwasher.
2. The unload exhaust vent of the dishwasher connects to the inlet of the HRU vent and is sealed
with gasket material which has already been installed on the dishwasher.
3. The HRU is attached to the dishwasher by inserting fasteners from inside the dishwasher
into weldnuts mounted in the HRU. Mounting hardware is included in the installation kit.
!CAUTION:
Metal edges in the HRU may be sharp. Use appropriate caution when
working on and in the vicinity of metal components
Receiving

3
Installation
Installation
Top View of the dishwasher unload section.
(HRU shown in gray)
C
LHRU
Dishwasher Direction of Travel
A
B
B
B
B
B
B
B
Mounting
1. Install the HRU after the dishwasher is completely assembled.
2. Lift the unit with a forklift or a minimum of four persons capable
of positioning and lowering the HRU into its nal position.
3. Make sure the HRU vent inlet (A) is centered on the dishwasher.
4. Install the mounting hardware installed in the installation kit from the
inside of the dishwasher hood to secure the HRU to the machine
5. The mounting hardware (B) includes: (7) Hex hd. bolts 1/4-20 x 5/8",
(7) 1/4" split lock washers, and (7) 1/4" at washers.
6. Electrical power is prewired from the heat recovery control box to
the dishwasher main control cabinet to operate the HRU.
NOTE:
The HRU may have been mounted at the factory so the procedures
described below may not be required.

4
Blank Page
This Page
Intentionally
Left Blank

5
Installation
Plumbing Connections
Installation

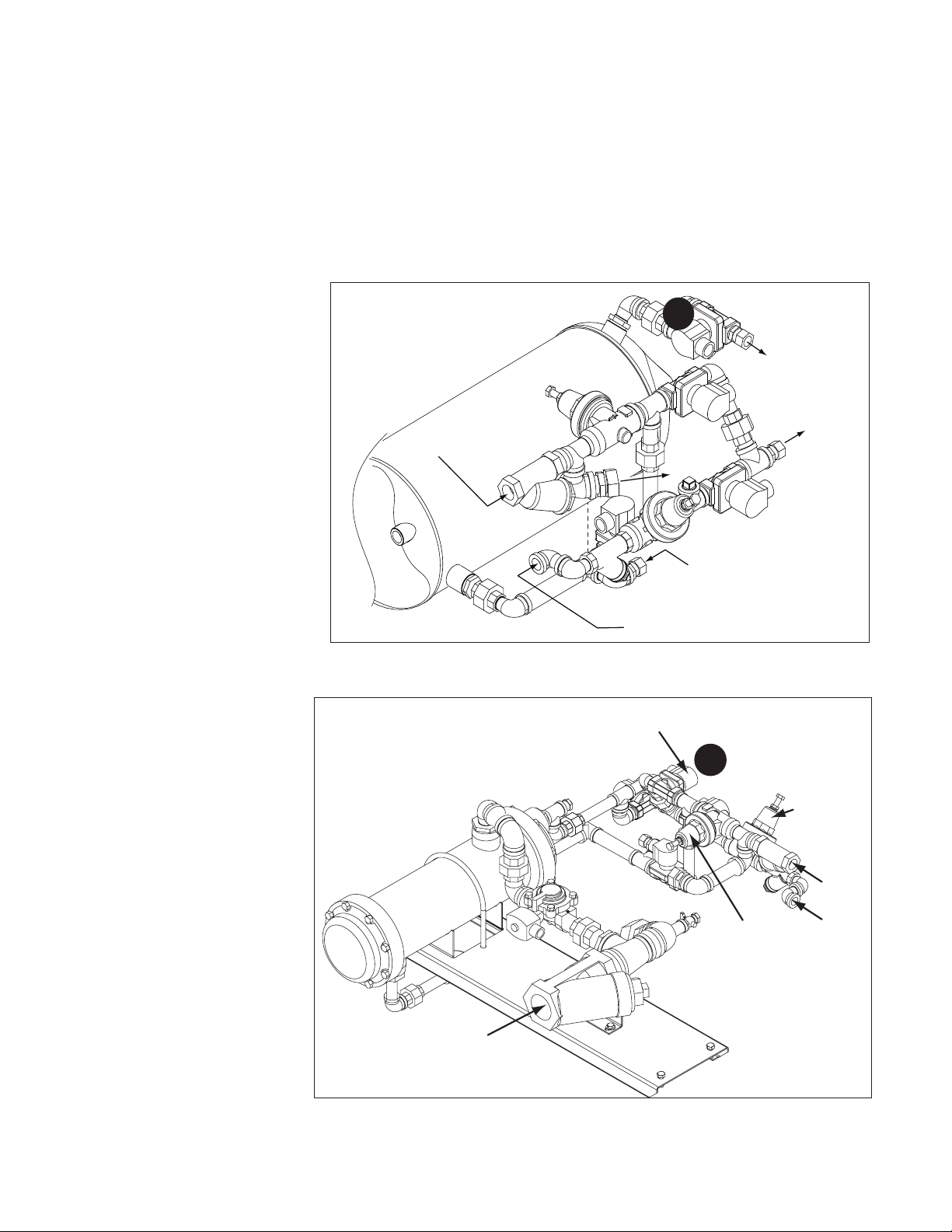

1. Connect compression ttings from the cold water supply line located
at the base of the dishwasher booster heater to the HRU.
2. Connect compression ttings from the HRU return line at the rear
of the HRU to the booster inlet located at the base of the machine.
3. Connect the red drain hose from the base of the HRU to the
tting on the rear drain line of the dishwasher. The tting is located
directly below the HRU drain line.
Refer to the photograph below and follow the instructions to connect the
water lines to the HRU.
COLD WATER
IN
HRU WATER
OUT
HRU DRAIN
OUT
Heat Recovery Unit (HRU) water and drain lines are connected at the rear of the dishwasher.

6
Setting the Booster Pressure Reducing Valves (PRV's)
Installation
Installation
1. Ensure that all utility connections are complete.
2. Remove the lower front panel of the unload section.
3. Remove the coil assembly (A) from the multi-rinse valve.
CAUTION:
to prevent damage to the valve coil, energize the multi-rinse valve for as short a
period as needed to make necessary PRV adjustments.
Immediately reinstall the coil assembly when PRV adjustments have been completed.
4. Turn on main water supplies to the dishwasher. Make sure steam supply is OFF.
5. Close all of the drain valves.
6. Remove the main control cabinet cover and set the Auto/Manual switch to the Manual position.
7. Turn ON main breaker power to dishwasher.
8. Turn OFF main breaker power to the booster and optional blower dryer (if equipped).
9. Turn dishwasher main power switch ON.
10. Allow dishwasher tanks to completely ll with water.
11. When dishwasher tanks are full, turn dishwasher main power switch OFF.
12. Turn the Auxiliary wash tank drain handle open and drain the tank (leave the drain open).
(This places the dishwasher in a FILL mode because the tank is empty.)
13. Turn the dishwasher main power switch ON.
14. The Green FILL light in the control cabinet will be ON when the machine is lling.
15. While the machine is lling, adjust the HOT PRV #1 until the nal rinse pressure gauge indicates
20 PSI. Tighten the PRV adjustment lock-nut to hold the setting.
16. Close the drain and allow the dishwasher to ll with water.
17. Turn the dishwasher main power switch OFF.
18. Make sure the main breaker or steam supply to the booster is OFF.
Turn the hot water off.
19. Turn the dishwasher control panel Power Switch on.
20. Press the ENERGY SAVER mode selector switch on the main control cabinet.
The green LED will illuminate and the conveyor will run.
21. While the machine is running, adjust the COLD PRV #2 until the nal rinse pressure gauge indicates 20
PSI. Tighten the PRV adjustment lock-nut to hold the setting.
22. Now set the cold water PRV #2 by adjusting the PRV until the nal rinse pressure gauge indicates 20 PSI
ow pressure. Note that the pressure gauge will cycle on for 15 seconds and then off for 30; therefore, the
pressure gauge will read a owing pressure for 15 secs., then read the no pressure for 30 seconds.
23. The Green FINAL light will be ON when the Cold water valve is ON. The Green REHEAT light will be ON
when the Hot water valve is ON.
24. To complete the settings: Turn the dishwasher main power switch OFF.
25. Turn the main breaker or steam supply to the booster on.
26. Turn the Automatic/Manual switch inside the control cabinet to the Automatic position.
Refer to the illustrations on the next two pages for the location of the water valves and the Green
indicator lights.

7
Installation
Installation
Setting the Booster Pressure Regulating Valves (PRV's)
1. Reinstall the main control cabinet cover.
2. Reinstall the coil assembly on the multi-rinse valve (A).
3. Open all drain valves and drain the dishwasher.
4. Turn the hot water supply ON.
5. Makes sure the main power supply is ON.
To HRU
From HRU
Cold PRV
Hot PRV
To Tank
Fill
Cold Water In
Hot Water In
Multi-rinse Valve
To Final Rinse
A
#1
#2
Electric HRU Booster PRV Locations
(Right-to-left dishwasher installation).
Hot In
Cold In
Steam In
Hot
PRV #1
Cold
PRV #2
Multi-Rinse Valve
A
Steam HRU Booster PRV Locations
(Right-to-left dishwasher installation).

8
Installation

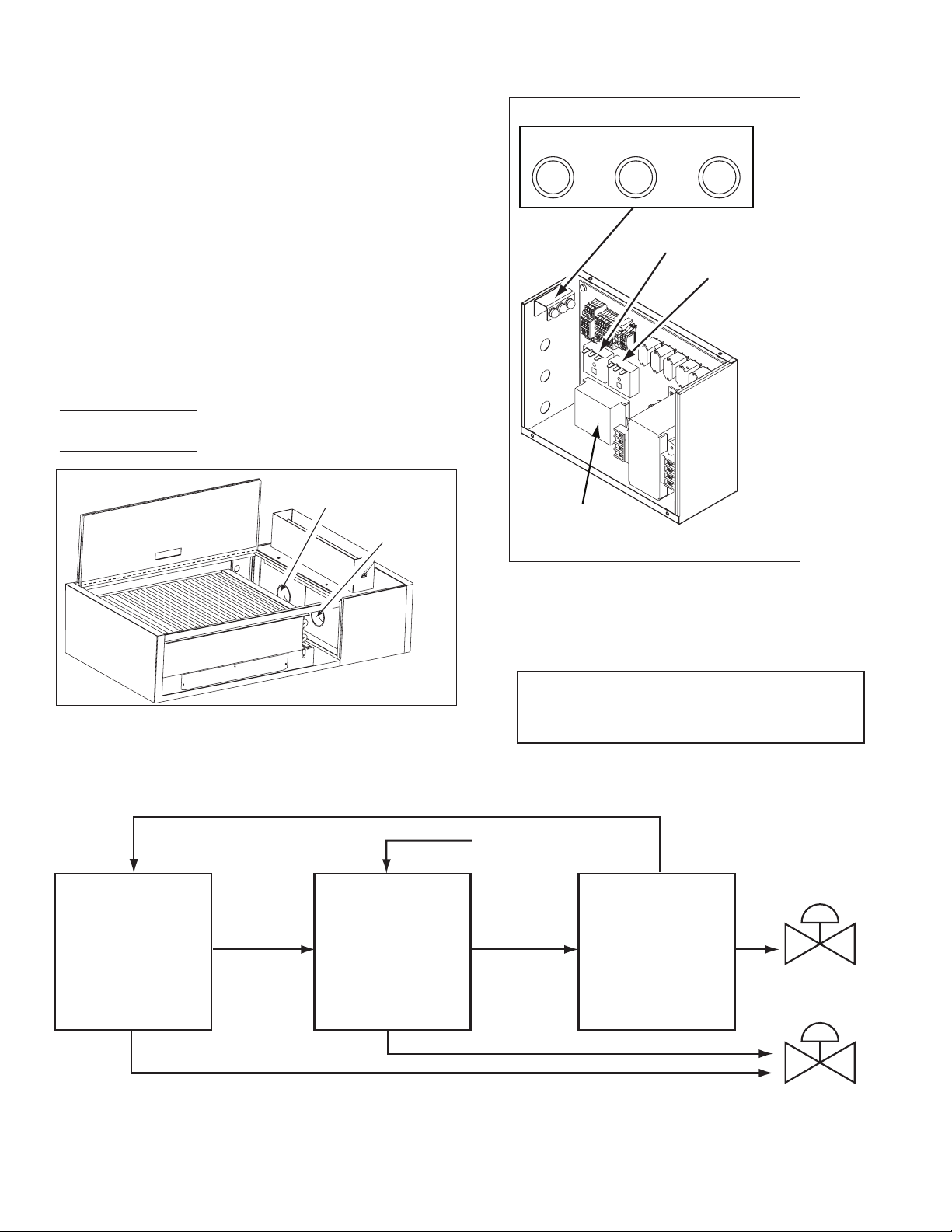

Operation Indicator Lights
Green indicator lights inside the HRU control cabinet
indicate the operation state of the valves during the
set-up procedures. Refer to the set-up procedures on the
previous two pages to set the pressure reducing valves.
In addition, the green lights will indicate the operation of the
booster valves during normal operation. Refer to
the simplied logic diagram below which shows the
interaction of the timers, thermistor reader (temperature
control module) and the booster solenoid valves.
Exhaust Blowers
The HRU Exhaust Blowers operate when the dishwasher
is running.
Exhaust Blower 1: runs whenever the dishwasher pumps
and the final rinse are running.
Exhaust Blower 2: runs when only the final rinse is running.
FINAL REHEAT FILL
30 Sec.Timer
15 Sec.Timer
Green Indicator Lights
Thermistor
Reader
Indicator lights inside the control cabinet
indicate the operation of the valves.
Exhaust Blower
Fan 1 (Wire 11B)
Exhaust Blower
Fan 2 (Wire 17B)
Exhaust Blowers as viewed from the front of the dishwasher.
(Left-to-Right Dishwasher Operation Shown)
15 Second Timer (T1)
15 Seconds
Elapsed
Temperature
Less than
110˚F
Temperature
Greater than
110˚F
30 Second Timer (T2)
Cold Water/Final Rinse Valve
Thermistor Reader (TS)
The 15 second timer runs, then the 30 second timer runs in a alternating time cycle
Booster Temperature Thermistor Input
Controls the operation of the T1R
relay. The T1R relay powers the
COLD water valve depending
on the temperature input to
the Thermistor Reader.
The thermistor reader constantly
monitors the temperature of the
booster tank. It controls the
power to the timers through the
contacts of the T1R and T2R
relays. The operation of the
valves is dependent on the
temperature inputs to TS.
Controls the operation of the T2R
relay. The T2R relay powers the
HOT water valve depending
on the temperature input to
the Thermistor Reader.
Hot Water/Reheat Valve
Simplied HRU Cold and Hot Water Switching Logic Diagram
NOTE:
A detailed Logic Diagram is included at the
end of this manual

9
Operation
Operation
Vent Adjustment Handle
Top Cover
Access Cover
1. Open the top cover of the HRU and remove any foreign objects.
(Refer to the cleaning section on the next page for detailed cleaning instructions.
2. Make sure the access cover is in place and secured by its retaining studs.
3. Make sure the vent adjustment handle is secure and set to its normal operating
position.
Refer to the illustration below to prepare the HRU for operation.
NOTE:
The operation of the HRU is automatically controlled by the dishwasher
control circuit. The HRU has a control that is accessed only by a trained
service technician.
Automatic Operation:
1. The HRU operates whenever the dishwasher pumps run.
2. Hot air from the dishwasher interior is recycled through the HRU and exhausted
from the HRU vent which has been permanently connected to the building vent system.
3. A small amount of exhaust air may exit the unload end of the dishwasher. This is a
normal condition.
4. The HRU is off whenever the dishwasher pumps are not running.

10
Cleaning
Cleaning
Front Cover
Top Cover
Access Cover
Condenser Coil
1. Open the top cover over of the HRU.
2. Remove the front cover of the unit by sliding it up.
3. Remove the front access cover which is retained by three knurled thumbscrews.
4. Flush the top of the condenser coil with fresh water.
5. Do not wipe nor brush the coil ns.
6. Flush the underside below the condenser coil with fresh water.
7. Leave the HRU covers off overnight to allow the inside of the unit to air dry.
8. Reassemble in reverse order at the beginning of the day.
Refer to the illustration below.
CAUTION:
Do not place objects on top of the condenser coil nor with the cleaning
devices. Avoid the use of cleansers or other detergents to prevent
damage to the top of the coil
Monthly Cleaning Schedule:
1. Inspect the interior unit for
accumulated debris.
2. Wipe the exterior of the unit
with a soft cloth and mild
detergent.
3. DO NOT HOSE THE
EXTERIOR OF THE UNIT
WITH WATER.
Daily Cleaning Schedule:
1. Contact an authorized
service agent to perform
general maintenance and
major cleaning.
Annual Cleaning Schedule:

11
Service Replacement Parts
Illustrations Page
Heat Recovery Unit ............................................................................................................. 12
Control Cabinet - Prior to S/N J11022850........................................................................... 14
Control Cabinet Terminal Block - Prior to S/N J11022850................................................... 16
Control Cabinet - Beginning with S/N J11022850 and above.............................................. 18
Control Cabinet Terminal Block - Beginning with S/N J11022850 and above..................... 20
HRU Electric Booster Assembly.......................................................................................... 22
HRU Electric Booster Piping................................................................................................ 24
HRU Steam Booster Assembly............................................................................................ 26
HRU Steam Booster Piping ................................................................................................ 28
Service Replacement Parts

12
Heat Recovery Unit
1
2
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
31
32
33
34
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58 59
60
36
4
64
26
27
27
28 29
16
21
22
61
62 66
63
65
26
37
35
1
26
6
35
64

13
Heat Recovery Unit
1 100097 SCREW, TRUSS HD., 10-32 X 1/2" SST
2
0
2 0512027 COUPLER, BARB 3/4" MPT X 3/4" HOSE 4
3 100156 LOCKNUT, 3/4" NPT BRASS 2
4 333557 ACCESS PLATE WELDMENT, HRU PLENUM G3
2
5 100209 NIPPLE, 1/2" NPT X CLOSE BRASS 1
6 100735 BOLT, HEX HD., 1/4-20 X 5/8" SST
1
2
7 100736 BOLT, HEX HD., 1/4-20 X 3/4" SST
7
8 100738 BOLT, HEX HD., 1/4-20 X 1" SST
8
9 101187-1 HANDLE, THREADED DAMPER ASSY. 1
10 101187-2 HANDLE, DAMPER ASSY. 1
11 101187-3 WING NUT, DAMPER REGULATOR ASSY. 1
12 101187-4 WASHER, DAMPER REGULATOR ASSY. 1
13 101187-5 BRACKET ASSY., LOCK PIN DAMPER REGULATOR 1
14 101187-6 BEVELLED WASHER, DAMPER ASSY.
1
15 101259 PLUG, 1/8" NPT SQ. HD., BRASS 1
16 101502 NIPPLE, RTOE 3/4" NPT X 4-1/2" LG. BRASS
2
17 102415 COUPLING, 3/4" NPT BRASS 2
18 102504 PLUG, 1/2" NPT SQ. HD., BRASS 1
19 102505 PLUG, 3/4" NPT SQ. HD., BRASS 2
20 102514 TEE, 1/2" NPT BRASS 1
21 102519 TEE RED., 1/2" X 1/2" X 3/4" BRASS 2
22 103418 BUSHING, REDUCING, 1/2" NPT X 1/8" NPT BRASS 2
23 104883 SCREW, ROUND HD., 6-32 X 3/8" SST
4
24 104971 HEX GRIP NUT, 6-32" SST
4
25 106026 WASHER, FLAT SST
1
5
26 106482 WASHER, LOCK 1/4" SPLIT SST
2
7
27 107033 WASHER, FLAT SST
1
2
28 107136 SCREW, HEX HD., 10-32 X 3/8" SST 9
29 107966 HEX GRIP NUT, 10-32 W/NYLON INSERT 3
30 107967 HEX GRIP NUT, 1/4-20 W/NYLON INSERT 14
31 109910 FITTING, COMP 5/8" OD X 90° BRASS
2
32 109924 FITTING, COMP 5/8" OD UNION BRASS 2
33 109925 FITTING, COMP 5/8" OD X 1/2"MPT BRASS 2
34 111561 HANDLE, ACCESS DOOR, FLUSH MOUNT
1
35 113269 CLAMP, HOSE M12 11/16"-1-1/4" W/CS SCREW 6
36 333556 CLIP, ACCESS PLATE PIVOT, HRU PLENUM
4
37 114121 HOSE, 3/4" SYNTHETIC RUBBER A/R
38 114335 THERMISTOR, 10KΩ, 36" LEAD 1
39 114633 BLOWER, HEAT RECOVERY UNIT
2
40 114646 RECEPTACLE, 1/4 TURN
2
41 114647 SPRING, 1/4 TURN SST 2
42 114648 WASHER, WEAR, CLIPPED
2
43 114649 RING, RETAINER SST
2
44 114650 STUD, 1/4 TURN, KNURLED SST 2
45 114710 COIL, BATTERY, HEAT RECOVERY UNIT GEN.3 1
46 305141 BLADE, DAMPER, VENT STACK
1
47 333143, (333216) PANEL, FRONT FAN END, RL (LR NOT SHOWN) 1
48 333144, (333217) PANEL, FRONT COIL END, RL (LR NOT SHOWN) 1
49 333145 ANGLE, FRONT PANEL STOP 1
50 333151, (333220) PANEL, REAR, FAN END, RL (LR NOT SHOWN) 1
51 333152, (333221) PANEL DEVP., REAR COIL END, RL (LR NOT SHOWN) 1
52 333153, (333222) PANEL DEVP., REAR, CENTER, RL (LR NOT SHOWN) 1
53 333341, (333342) BODY WELDMENT, HRU, RL (LR NOT SHOWN) 1
54 333345, (333346) DUCT WELDMENT, OUTLET, RL (LR NOT SHOWN) 1
55 333350, (333351) COIL COVER WELDMENT,RL (LR NOT SHOWN) 1
56 333353 PANEL WELDMENT, TOP VENT 1
57 333355, (333357) PLATE WELDMENT, BLOWER MTG, RL (LR NOT SHOWN) 1
58 333358 PLATE DIVIDER, RH COIL CHAMBER
1
59 333359 PLATE WELDMENT, DIVIDER LH
1
60 333360 ANGLE DIVIDER MOUNTING 4
61 100141 HEX, GRIP NUT, 1/4-20 SST CTRL LOCK
2
62 100734 BOLT, HEX HD. 1/4-20 X 1/2" SST 4
63 114365 CONNECTOR, STRAIN RELIEF, CORD 2
64 114879 BOX, WEATHERPROOF, 4-HOLE 1
65 114880 COVER ASSY., WEATHERPROOF W/GASKET
1
66 334221 BRACKET, FAN JUNCTION BOX HRU 1

14
Control Cabinet - Prior to S/N J11022850
5
3
6
(Left to Right Direction Shown)
2
12
14
13
17 18
20
20
20
19
21
22
21
11
7
7
9
See next page
4
1
7
8
10
15 16
Prior to S/N J11022850
