OPERATOR'S MANUAL
MODEL #100430
6500W ELECTRIC START GENERATOR
Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
This product meets the requirements of the PGMA (Portable Generator Manufacturers’ Association) standard ANSI/PGMA G300-2018 (Safety and Performance of
Portable Generators).
Covered by one or more of the following U.S. Patent Numbers: 10,862,414, and other U.S. and foreign patents pending.
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
3705-M-OP REV 20220718 EN

www.TakeYourGeneratorOutside.com
As the only safe way to use a portable generator, taking your generator
outside is absolutely mandatory to keep your family safe from carbon
monoxide. But there’s even more you can do. By educating yourself
about all carbon monoxide risks, you’ll be better prepared to protect
your family from this colorless, oderless threat.
CARBON MONOXIDE SAFETY: THE BIG PICTURE
KNOW THE SYMPTOMS
• Headache
• Nausea
• Shortness of breath
• Dizziness
• Fatigue
STAY ALERT WITH CARBON
MONOXIDE DETECTORS
POINT FUMES AWAY FROM
NEARBY PEOPLE
KEEP IT OUTSIDE AND AWAY FROM
DOORS, WINDOWS, AND GARAGES
ALWAYS READ
THE OPERATOR’S
MANUAL FIRST
MANUAL
IF YOU FEEL SYMPTOMS,
LEAVE RIGHT AWAY
CARBON MONOXIDE KILLS

100430 - 6500W ELECTRIC START GENERATOR TABLE OF CONTENTS
3
TABLE OF CONTENTS
Introduction................................................ 4
Safety Definitions ....................................... 4
Important Safety Instructions.................... 5
Safety Lifting Instructions ...................................... 7
Fuel Safety ...................................................... 7
Safety and Dataplate Labels.................................... 9

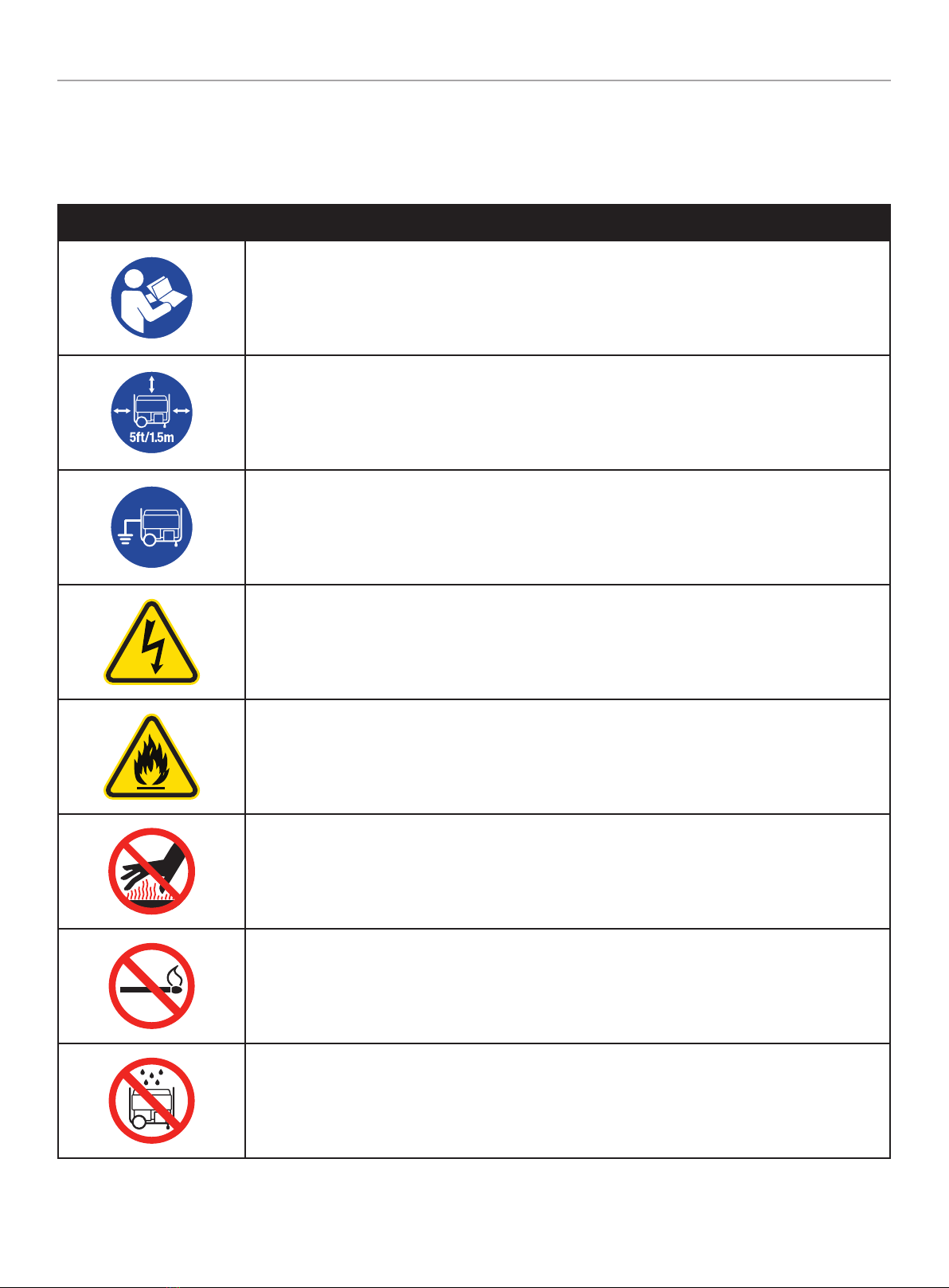

Safety Symbols.................................................10

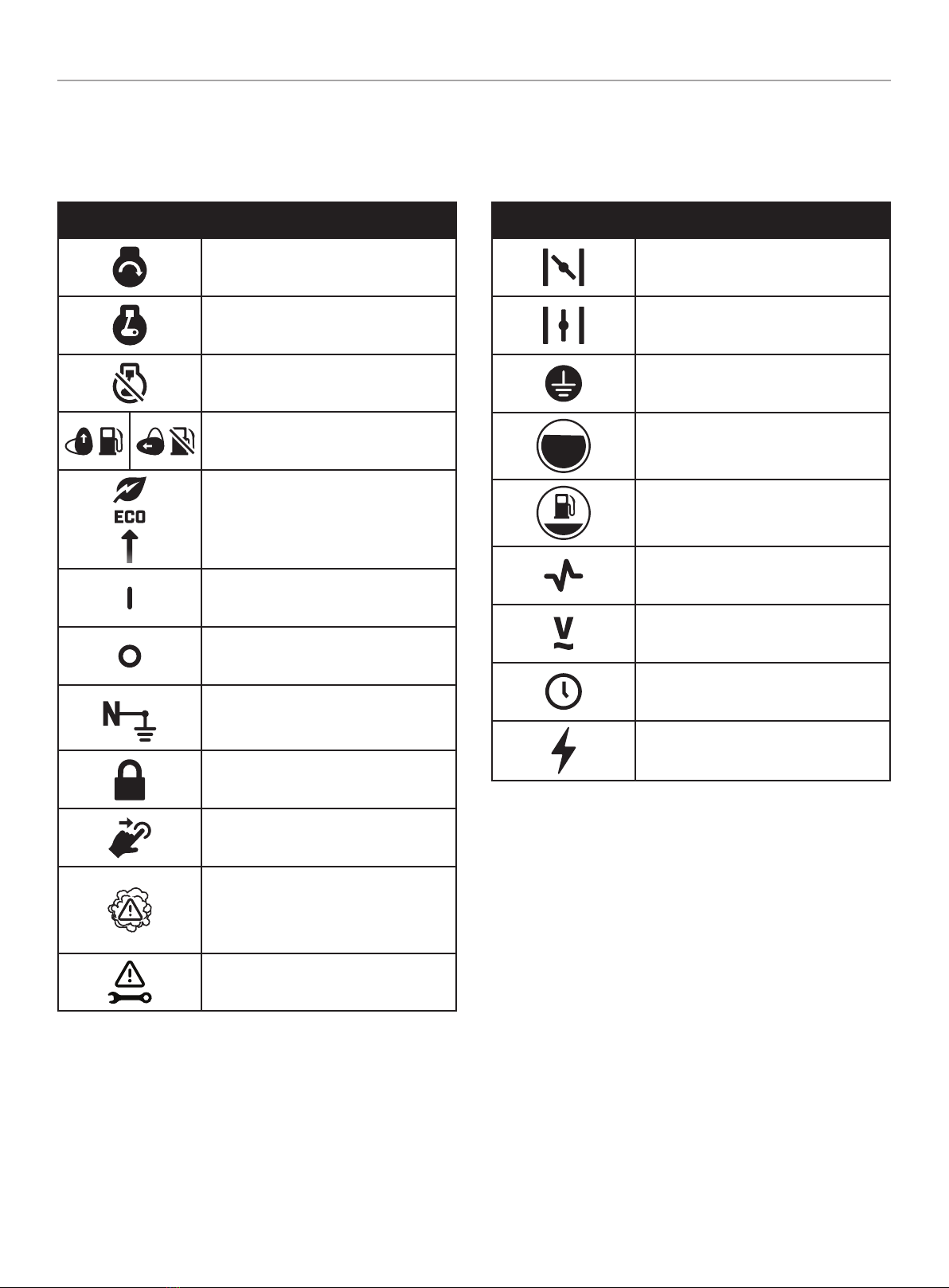

Operation Symbols .............................................11
Quickstart Label Symbols......................................12
Controls and Features ...............................13
Generator .......................................................13
Control Panel ...................................................14
Side Panel ......................................................14
Intelligauge with Power Meter and CO Shield®...............15
Parts Included ..................................................16
Tools Needed ...................................................16
Assembly...................................................17
Unpacking ......................................................17

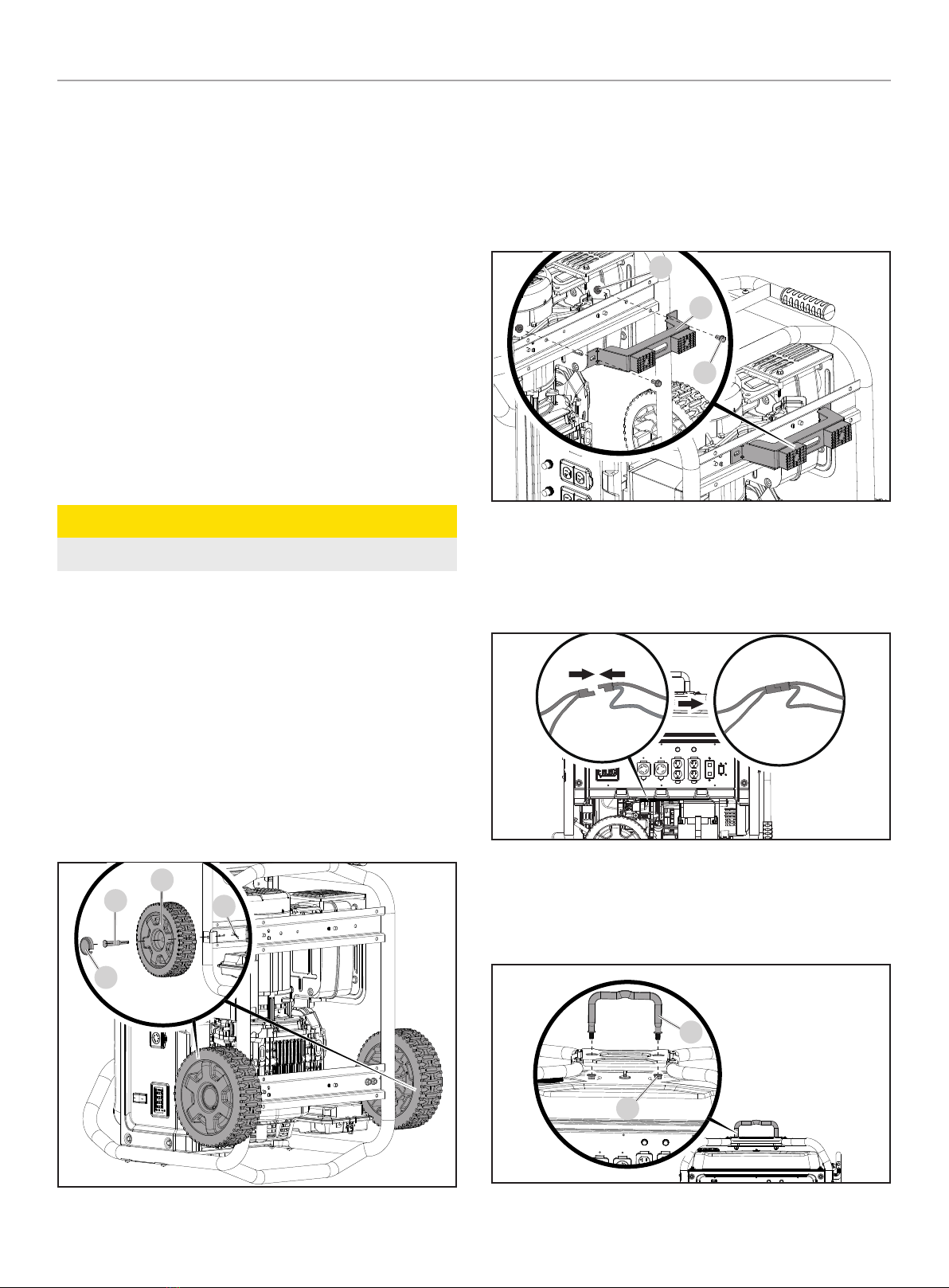

Install the Wheel Kit............................................17
Connect the Battery............................................17
Install the Lifting Hook .........................................17
Add Engine Oil..................................................18
Add Fuel ........................................................19
Grounding ......................................................20
Operation.................................................. 20
CO Shield®- Carbon Monoxide (CO) Detection and
Auto-shutoff System ...........................................20
Generator Location.............................................21
Surge Protection ...............................................22
Starting the Engine.............................................22
Battery..........................................................23
Connecting Electrical Loads ...................................24
Do Not Overload Generator ....................................24
GFCI Module and Master Circuit Breaker .....................24
Eco (Economy) Mode...........................................25
Stopping the Engine............................................25
Moving the Generator ..........................................26
Operation at High Altitude .....................................26
Maintenance............................................. 26
Cleaning the Generator ........................................27
Changing the Engine Oil .......................................27
Cleaning and Adjusting the Spark Plug........................27
Cleaning the Air Filter ..........................................28
Cleaning the Spark Arrestor ...................................28
Adjusting the Governor.........................................28
Generator Battery ..............................................28
Maintenance Schedule.........................................29
Storage ..................................................... 29
Short Term Storage (up to 30 days) ...........................29
Mid Term Storage (30 days – 1 year) .........................30
Long Term Storage (over 1 year) ..............................30
Removing from Storage........................................30
Specifications........................................... 31
Generator Specifications.......................................31
Engine Specifications ..........................................31
Oil Specifications...............................................31
Fuel Specifications .............................................31
Battery Specifications..........................................31
Temperature Specifications....................................31
Troubleshooting........................................ 32

100430 - 6500W ELECTRIC START GENERATOR INTRODUCTION
4
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
CPE highly values how our products are designed, manufactured,
operated, and serviced as well as providing safety to the operator
and those around the generator. Therefore, it is IMPORTANT to
review this product manual and other product materials thoroughly
and be fully aware and knowledgeable of the assembly, operation,
dangers and maintenance of the product before use. Fully
familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always exercise
common sense and always err on the side of caution when
operating the product to ensure no accident, property damage,
or injury occurs. We want you to continue to use and be satisfied
with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below.
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
100430
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION

100430 - 6500W ELECTRIC START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poisonous gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to feel
dizzy or weak, get to fresh air immediately.
OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY.
DO NOT operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a poison
you cannot see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
DANGER
Tampering with the CO Shield®system will result in a
hazardous condition and will void your warranty.
Removing the CO Shield®module will not allow the generator
to start.
DANGER
Operate equipment with guards in place.
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories. Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or frayed.
Use only Champion electrical cords for proper application.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to operate or
service the generator.
Use a ground fault circuit interrupter (GFCI) in damp areas and
areas containing conductive material such as metal decking.
Connection to your home’s electrical system requires a
listed 30A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical codes.
WARNING
Do not use generator for medical and life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
NEVER use this product to power medical devices or medical
appliances.
Inform your electricity provider immediately if you or anyone in
your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience a
medical emergency.

100430 - 6500W ELECTRIC START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
6
WARNING
Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Rapid retraction of the recoil cord will pull hand and arm
towards the engine faster than you can let go. Broken bones,
fractures, bruises or sprains could result. Unintentional
startup can result in entanglement, traumatic amputation or
laceration.
When starting engine, pull the recoil cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
WARNING
Although the generator contains a spark arrester, maintain
a minimum distance of 5 ft. (1.5 m) from dry vegetation to
prevent fires.
CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Start the generator and allow the engine to stabilize before
connecting electrical loads.
Connect electrical equipment in the off position, and then turn
them on for operation.
Turn electrical equipment off and disconnect before stopping
the generator.
CAUTION
Improper treatment or use of the generator can damage it,
shorten its life or void the warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
–Electrical output is lost
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively

100430 - 6500W ELECTRIC START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
7
Safety Lifting Instructions
WARNING
Damage to the generator as a result of failing to follow these
instructions will void your warranty and could result in damage
to property; and/or cause serious injury or death.
–Lifting equipment should always be positioned to reduce
the risk of load drifting, striking a person, falling freely or
being unintentionally released.
–Always use lifting equipment on a flat level surface when
lifting the generator.
–Failure to properly connect lifting cables, chains, or straps
could result in damage to property, the generator and/or
cause serious injury or death.
–Always use cables, chains or straps rated at 2000 lbs.
(907 kg) working load or greater to raise or suspend the
generator.
–Always remove twists in cables, chains or straps before
connecting.
–Never use cables, chains or straps with cracks, breaks,
nicks, tears, cuts, holes, stretched links or fittings or show
excessive wear.
–Always inspect that the lifting hook fasteners are secured
and tightened before use.
–Always inspect lifting hook for cracks, corrosion or other
damage before use.
–Never use a damaged or cracked lifting hook. If damaged,
call our Technical Support Team for assistance at
1-877-338-0999 for an authorized replacement lifting
hook.
–Never operate the generator while suspended or use the
lifting hook other than as directed.
DANGER
Never position yourself underneath the generator when lifting
or moving the load. Failure to do so could result in serious
injury or death.
Always keep bystanders, children and pets at least 25 ft.
(7.6m) away when lifting equipment.
Fuel Safety
DANGER
GASOLINE AND GASOLINE VAPORS ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
–Gasoline is highly flammable and explosive.
–Gasoline can cause a fire or explosion if ignited.
–Gasoline is a liquid fuel but it’s vapors can ignite.
–Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
–Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline needs
room to expand when temperatures rise.
–In the case of any petroleum gasoline fire, flames should never
be extinguished unless the fuel supply valve can be turned
OFF. By not doing so, if a fire is extinguished and the supply
of fuel is not turned OFF, an explosion hazard could be created.
When adding or removing gasoline:
DO NOT light or smoke cigarettes.
Turn the generator off and let cool for at least two minutes before
removing the gasoline cap. Always loosen the cap slowly to relieve
pressure in the tank.
Only fill or drain gasoline outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator at the gas
station. Always use an approved container to transfer the fuel to
the generator.
DO NOT overfill the gasoline tank.
Always keep gasoline away from sparks, open flames, pilot lights,
heat and other sources of ignition.
When starting the generator:
DO NOT attempt to start a damaged generator.
Always check that the gasoline cap, air filter, spark plug, fuel lines
and exhaust system are properly in place.
Always allow spilled gasoline to evaporate fully before attempting
to start the engine.
Always be certain that the generator is resting firmly on level
ground.
When operating the generator:
DO NOT move or tip the generator during operation.

100430 - 6500W ELECTRIC START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
8
When transporting or servicing the generator:
Always check that the fuel valve is in the OFF position and the
gasoline tank is empty.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat and other
sources of ignition.
Do not store generator or gasoline near furnaces, water heaters,
or any other appliances that produce heat or have automatic
ignitions.
DANGER
NEVER place a gasoline container, gasoline tank, LPG cylinder
or any combustible material in the path of the exhaust stream
during operation of the engine.
WARNING
Never use a gasoline container, gasoline tank, or any other fuel
item that is broken, cut, torn or damaged.

100430 - 6500W ELECTRIC START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
9
Top
A
F F B
Safety and Dataplate Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
SideBack
C
E
D
LABEL DESCRIPTION
A
PELIGRO
El uso de un generador en
interiores PUEDE MATARLO
EN MINUTOS. El escape del
generador contiene monóxido
de carbono. Éste es un
veneno que no se puede ver
ni oler. NUNCA lo use dentro
del hogar ni el garaje,
INCLUSO SI las puertas y
ventanas están abiertas.
Úselo SÓLO a la INTEMPERIE
lejos de ventanas, puertas, y
orificios de ventilación.
DANGER
Utiliser une génératrice à
l’intérieur PEUT VOUS TUER EN
QUELQUES MINUTES.
L’échappement de la génératrice
contient du monoxyde de carbone.
Il s’agit d’un poison que vous ne
pouvez ni voir ni sentir.
Ne l’utilisez JAMAIS dans la
maison ou le garage MÊME SI les
portes et les fenêtres sont
ouvertes. Utilisez la UNIQUEMENT
À L’EXTÉRIEUR, loin des fenêtres,
portes et trappes de ventilation.
NEVER use inside
a home or garage,
EVEN IF doors and
windows are open.
ONLY use OUTSIDE
and far away from
windows, doors,
and vents.
DANGER
Using a generator indoors CAN KILL YOU
IN MINUTES. Generator exhaust contains
carbon monoxide. This is a poison you
cannot see or smell.
1385-L-SF-D
Safety Symbols/
CO Danger
B
1825-L-SF-C
AUTOMATIC SHUTOFF – YOU MUST:
APAGADO AUTOMÁTICO– USTED DEBE:
ARRÊT AUTOMATIQUE– VOUS DEVEZ :
Move generat or to an open, outdoor a rea. Point exhaust awa y.D on’t run generators i n
enclosed ar eas (e.g. not in house or gar age).
Mover el gener ador a un área abiert a a la intemperie. Apun te el escape alejado. No co rra
los generad ores en áreas cerrad as (ej. no en una casa o gara je).
Déplacer le générateur vers un espace extérieur en plein air. Garder l’échappement loin.
Ne pas faire f onctionner les géné rateurs dans un espa ce clos (ex., pas dans une ma ison ou
un garage).
ACTION LABEL
ETIQUETA DE ACCIÓN
ÉTIQUETTE D'ACTION
EXHAUST EL ESCAPE L’ECHAPPEMENT
POINT AWAY
DIRIJA ALEJADO
DIRIGER LOIN
Move to fresh a ir and get medical help if si ck,
dizzy or weak .
Mueva al aire fr esco y obtenga asist encia medica
si está enfermo, mareado, o débil.
Aller à l'air fr ais et obtenir de l'aide médi cale si
malade, étourdi ou faible.
CO Shield®Action –
automatic shutoff
*See CO Shield®
section
C
1110-L-OP-B
UNLEADED FUEL ONLY. Minimum octane
rating of 87. Maximum 10% ethanol.
GASOLINA REGULAR SOLAMENTE. 87 octanos
como mínimo. Máximo de etanol de 10%.
ESSENCE SANS PLOMB SEULEMENT.
Indice d’octane minimal de 87.
Maximum 10 % d'éthanol.
Fuel
D
WARNING
DO NOT TOUCH!
Exhaust gases, muffler
and engine components
are extremely HOT and
cause burns.
Operation of this equipment may create sparks that can start
fires around dry vegetation. A spark arrestor may be
required. The operator should contact local fire agencies for
laws and regulations relating to fire prevention requirements.
If installed, clean every 100 hours or every season.
ADVERTENCIA
¡NO TOCAR! Los gases de
escape, el silenciador y los
compnonentes del motor están
extremadamente CALIENTES y
causan quemaduras.
La operación de este equipo puede producir chispas que pueden provocar
incendios alrededor de la vegetación seca. Un supresor de chispas puede que
sea necesario. El operador debe comunicarse con las agencias locales de
bomberos para las leyes y reglamentos relativos a los requisitos de prevención
de incendios. Si está instalado, limpie cada 100 horas o cada temporada.
AVERTISSEMENT
NE PAS TOUCHER! Les gaz
d’échappement, le silencieux
et les pièces du moteur sont
extrêmement CHAUDS et
peuvent causer des brûlures.
Cet équipement peut créer des étincelles et provoquer un incendie dans la
végétation sèche. Un pare-étincelles peut être requis. L’utilisateur doit
communiquer avec le service d’incendie local pour connaître les lois et
les règlements en matière de prévention des incendies. Si elle est
installée, nettoyez la génératrice toutes les 100 heures ou chaque saison.
1035-L-SF-C
Hot Surface
E
CHAMPION POWER EQUIPMENT, INC.
12039 SMITH AVENUE
SANTA FE SPRINGS, CA 90670
USA / É.-U.
1-877-338-0999
WWW.CHAMPIONPOWEREQUIPMENT.COM
MADE IN CHINA / FABRIQUÉ EN CHINE
AC AMPS
AMPÈRES C.A.
FREQUENCY (Hz)
FRÉQUENCE (Hz)
RPM
TR / MIN
PHASE
PHASE
POWER FACTOR
FACTEUR DE
PUISSANCE
AC VOLTS
VOLTS C.A.
MANUFACTURE DATE
DATE DE FABRICATION
SERIAL NO.
N° DE SÉRIE
MODEL
MODÈLE
2090-L-PR-A
4010077
Certified to
CSA C22.2 No. 100
Certifié selon
CSA C22.2 N° 100
INSULATION CLASS
CLASSE D’ISOLATION
MAX AMBIENT TEMP.
TEMP. AMBIANTE MAX.
GASOLINE WATTS
WATTS D'ESSENCE
54.2/27.1
100430
60
3600
1
1.0
120/240
F
6500
104°F
40°C
XXXXXXXXXXXX
XXXX
Dataplate
F
3678-L-SF-A
DANGER PELIGRO DANGER
Never position yourself underneath the generator when lifting or moving. Failure to do so could result in serious
injury or death. Always keep bystanders, children and pets at least 25 ft. (7.6 m) away when lifting the generator.
Nunca se coloque debajo del generador al levantar o mover. De lo contrario, podría resultar en lesiones graves o la
muerte. Siempre mantenga a los transeúntes, niños y mascotas al menos a 25 ft. (7.6 m) de distancia cuando
levante el generador.
Ne vous placez jamais sous la génératrice lorsque vous le soulevez ou le déplacez. Le non-respect de cette
consigne peut entraîner des blessures graves ou la mort. Tenez toujours les spectateurs, les enfants et les
animaux domestiques à au moins 7,6 m (25 pi) lorsque vous soulevez la génératrice.
Lifting Hazard

100430 - 6500W ELECTRIC START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
10
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Clearance. Keep all objects at least 5 feet (1.5m) from generator. Heat from the muffler and exhaust gas
can ignite combustible objects.
Ground. Consult with local electrician to determine grounding requirements before operation.
Electric Shock. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire/Explosion. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause
severe burns or death. Keep generator at least 5 feet (1.5m) from all objects to prevent combustion.
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface.
Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from
smoking, open flames, sparks, pilot lights, heat, and other ignition sources.
Wet Conditions Alert. Do not expose to rain or use in damp locations.

100430 - 6500W ELECTRIC START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
11
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Start
On
Stop or Off
Fuel Valve On/Off
Economy Mode Switch
Economy Mode Switch: On
Economy Mode Switch: Off
Neutral Bonded to Frame. Neutral
circuit IS electrically connected to the
frame/ground of the generator.
Locking Receptacle
Circuit Breaker Reset: Push
High CO Warning. Move generator to
an open, outdoor area. Move to fresh
air and get medical help if sick, dizzy or
weak.
CO Shield System Fault. Electrical
issue, end of life.
SYMBOL MEANING
Choke
Run
Ground Terminal
Gasoline Tank: Full
Gasoline Tank: Empty
Hertz
Volts
Run time
Power Output. Percentage of available
power from generator being used.

100430 - 6500W ELECTRIC START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
12
Quickstart Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
Starting the Engine
DANGER
Move generator outside and far away from windows,
doors and intake ventilation covers.
1. Check oil level.
Recommended oil is 10W-30.
2. Check gasoline level.
When adding gasoline, use a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
3. Turn the fuel valve to “ON” position.
4. Press ignition switch to the “ON” position.
5. Move choke lever to “CHOKE” position.
6. Pull the recoil cord.
7. Move the choke lever to “RUN” position.
8. Plug in desired device.
Stopping the Engine
1. Turn off and unplug all connected electrical loads.
2. Press the ignition switch to the “OFF” position.
3. Turn the fuel valve to the “OFF” position.
Electric Start
See page 22 in “Operation” section.
3
1
10W-30

1
5678
2

42 3
1832-L-OP-B

100430 - 6500W ELECTRIC START GENERATOR CONTROLS AND FEATURES
13
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Generator
1. Lifting Hook – Used to lift generator.
2. Fuel Gauge – Used to determine fuel level.
3. Fuel Cap – Remove to add fuel.
4. Gasoline Tank – 8.5 gal. (32.00 L)
5. Choke – Used to start the engine.
6. Side Panel –See “Side Panel” section.
7. Air Filter – Protects the engine by filtering dust and debris
from the intake air.
8. Recoil Starter – Used to manually start the engine.
9. Never Flat Wheels – 9.5 in. (24.1 cm)
10. Oil Fill Cap/Dipstick –Used to check and fill oil level.
11. Support Leg
12. Battery – Provides 12V DC power the starting system.
13. Ground Terminal – Consult an electrician for local grounding
regulations.
14. Folding Handle –Used to move unit by lifting and rolling on
wheels. Do not use to lift or carry the unit.
15. Control Panel –See “Control Panel” section.
1
23
4
5
6
7
9
13
14
15
10 11
12
8

100430 - 6500W ELECTRIC START GENERATOR CONTROLS AND FEATURES
14
Control Panel
Side Panel
1. Economy Mode Switch – Enables/disables automatic idle
control.
2. Intelligauge – See “Intelligauge” section.
3. CO Shield®LED – The CO Shield®technology monitors
for accumulation of poisonous carbon monoxide (CO) gas
produced by engine exhaust when the generator is running. If
CO Shield®detects elevated levels of CO gas, it automatically
shuts off the engine.
* *See CO Shield section for more information
4. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
5. GFCI Module – Monitors current balance and interrupts
power to the receptacles when a ground fault is detected.
6. Master Circuit Breaker – Protects the generator against
electrical overloads.
7. Fuel Valve – Used to turn fuel supply on and off to engine.
8. Ignition Switch – Flip the switch to the “START” position
to start the generator, or to the “ON” position to start the
generator manually. Flip to the “OFF” position to turn off the
generator.
RECEPTACLES
AY
120/240V AC, 27.1A Locking (NEMA L14-30R)
May be used to supply electrical power for
operation of 120/240 Volt AC, 27.1 Amp, single
phase, 60 Hz electrical loads.
BW
120V AC, 27.1A Locking (NEMA L5-30R)
May be used to supply electrical power for
operation of 120 Volt AC, 27.1 Amp, single phase,
60 Hz electrical loads.
CA
(4×) 120V AC, 20A (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single phase,
60 Hz electrical loads.
1
4
26
7 8
5
3
A B
C

100430 - 6500W ELECTRIC START GENERATOR CONTROLS AND FEATURES
15
MODE DESCRIPTION
Voltage (V)
Output voltage of the generator.
Example: 120 volts
Frequency (H)
Output frequency in hertz.
Example: 60.0 hertz
Run Time (R)
Run time of the generator for the current session.
Example: 6 hours
Total Run Time
Total run time of the generator since first operation.
Example: 16 hours
Output Power
Continually displays generator output.
Example: 100% Power
Intelligauge with Power Meter and
CO Shield®
Five mode digital meter for displaying voltage, frequency, session
run time, total run time and power output.
1. The LCD displays each mode for several seconds and then
automatically cycles through.
2. The Power Meter LED displays output in percent (%) with
100% at the top.
3. The multi-colored CO Shield®LED indicates CO shutoff
or fault.
2
1
3

100430 - 6500W ELECTRIC START GENERATOR CONTROLS AND FEATURES
16
Parts Included
Accessories
Engine Oil..................................... 37.2 fl. oz. (1100 ml)
Oil Funnel ...........................................................1
Assembly Parts
Wheels
9.5 in. (24.1 cm) Never Flat Wheel (A) .........................2
Wheel Hub Cap (B)..............................................2
Roll Pin (C) ......................................................2
Large R-clip (D) .................................................2
Support Leg
Support Leg with Vibration Mounts (E) ........................1
Flange Bolt (M8×16) (F) ........................................2
Flange Lock Nut (M8) (G).......................................2
Lift Hook
Hook (H).........................................................1
Flange Lock Nut (M12) (I) ......................................2
Tools Needed
–Metric Wrench or Socket Set
–Pliers
–Phillips Screwdriver
A
B C D
E F G
H
I

100430 - 6500W ELECTRIC START GENERATOR ASSEMBLY
17
ASSEMBLY
Your generator requires some assembly. This unit ships from our
factory without oil. It must be properly serviced with fuel and oil
before operation.
If you have any questions regarding the assembly of your
generator, call our Technical Support Team at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. Carefully cut each corner of the box from top to bottom. Fold
each side flat on the ground to provide a surface area to work
with the generator.
Install the Wheel Kit
CAUTION
The wheel kit is not intended for over-the-road use.
Install the Wheels
1. Before adding fuel and oil, tip the generator onto it’s recoil
end.
2. Remove wheel hub cap (B) from wheel by inserting a small
screwdriver into the slot provided and pry upward.
3. Slide the roll pin (C) through the wheel (A) from the outside.
4. Slide the roll pin through the mount point on the frame.
5. Secure with the r-clip (D).
6. Re-install hub cap on wheel.
7. Repeat to attach the second wheel.
B
C
A
D
Install the Support Leg
1. Attach the support leg (E) to the generator frame with flange
bolts (F) and flange lock nuts (G). DO NOT OVERTIGHTEN.
Frame tube will deform if flange nut is overtightened.
2. Slowly tip the generator back down so that it rests on the
wheels and support Leg.
F
E
G
Connect the Battery
1. Cut cable tie on each side of battery connector.
2. Push two halves of battery connector together tightly.
Install the Lifting Hook
1. Attached the lifting hook (H) to generator frame with two
flange bolts (I).
H
I
2. Tighten bolts securely to a torque of 17-22 ft-lbs.

100430 - 6500W ELECTRIC START GENERATOR ASSEMBLY
18
Add Engine Oil
WARNING
DO NOT attempt to crank or start the engine before it has been
properly filled with the recommended type and amount of oil.
Damage to the generator as a result of failing to follow these
instructions will void your warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 10W-30
automotive oil. However, using the listed conventional oils
shown in the “Recommended Engine Oil Type” chart may be
used for typical use including the first 5 hours of the break-in
run time period of the engine.
If running generator in extreme temperatures, refer to the
“Recommended Engine Oil Type” chart.
-20 020 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
1. Place the generator on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Using a funnel, add up to 37.2 fl. oz. (1100 ml) of oil (included)
and replace oil fill cap/dipstick. DO NOT OVERFILL.
4. Check engine oil level at every use and add as needed.
MAXMAX
OIL DIP STICK
NOTICE
Once oil has been added, a visual check should show oil about
1-2 threads from running out of the fill hole.
When using the dipstick to check oil level, DO NOT screw in
the dipstick while checking.
NOTICE
Check oil level often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary slightly and help seat piston rings.
After the 5 hour break-in period, change the oil.
NOTICE
Synthetic oil may be used after the 5 hour initial break-in
period. Using synthetic oil does not decrease the recommended
oil change interval. Full synthetic 5W-30 oil will aid in starting
in cold ambient < 41º F (5º C) temperatures.

100430 - 6500W ELECTRIC START GENERATOR ASSEMBLY
19
Add Fuel
DANGER
Gasoline vapors are highly flammable and extremely explosive.
DO NOT light or smoke cigarettes. Fire or explosion can cause
severe burns or death.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator. Use an
approved container to transfer the fuel to the generator.
Never use a gasoline container, gasoline tank, or any other fuel
item that is broken, cut, torn or damaged.
DO NOT overfill the gasoline tank. Always keep fuel away from
sparks, open flames, pilot lights, heat and other sources of
ignition.
Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 87 and an ethanol content of 10% or less by
volume. ybc
DO NOT mix oil with gasoline.
1. Remove the gasoline cap.
2. Slowly add gasoline to the tank. Tank is full when gasoline
reaches red circle on screen. DO NOT OVERFILL. Gasoline can
expand after filling. A minimum of ¼ in. (6.4 mm) of space left
in the tank is required for gasoline expansion, although more
than ¼ in. (6.4 mm) is recommended. Gasoline can be forced
out of the tank as a result of expansion if overfilled, and can
affect the stable running condition of the generator.
3. The approximate fuel level is shown on the fuel gauge on top
of the fuel tank.
Empty Full
4. Screw on the gasoline cap and wipe away any spilled fuel.
CAUTION
Use unleaded gasoline with a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and gasoline.
DO NOT overfill the tank. Fill tank to approximately ¼ in.
(6.4 mm) below the top of the tank to allow for gasoline
expansion.
DO NOT pump gasoline directly into the generator at the pump.
Use an approved fuel container to transfer the gasoline to the
generator.
DO NOT fill tank indoors.
DO NOT fill tank when the engine is running or hot.
WARNING
Pouring gasoline too fast through the fuel screen may result
in gasoline splashing over the generator and operator while
filling.
NOTICE
The generator engine works well with 10% or less ethanol
blended gasoline. When using ethanol-gasoline blends there
are some issues worth noting:
–Ethanol-gasoline blends can absorb more water than
gasoline alone.
–These ethanol blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor. The compromised gasoline can be drawn into
the carburetor and cause damage to the engine and/or
create potential hazards.
–If a fuel stabilizer is used, confirm that it is formulated to
work with ethanol-gasoline blends.
–Any damages or hazards caused by using ethanol blended
gasoline higher than 10% by volume, improperly stored
gasoline, and/or improperly formulated stabilizers, are not
covered by manufacturer’s warranty.
It is advisable to always shut off the gasoline supply and
run the engine to starvation after each use. See Storage
instructions for extended non-use.

100430 - 6500W ELECTRIC START GENERATOR OPERATION
20
Grounding
Your generator must be properly connected to an appropriate
ground to help prevent electric shock.
WARNING
Failure to properly ground the generator can result in electric
shock.
A ground terminal connected to the frame of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to ensure
compliance with local electrical codes.
Neutral Floating*
–Neutral circuit IS NOT electrically connected to the frame/
ground of the generator.
–The generator (stator winding) is isolated from the frame and
from the AC receptacle ground pin.
–Electrical devices that require a grounded receptacle pin
connection will not function if the receptacle ground pin is not
functional.
Neutral Bonded to Frame*
–Neutral circuit IS electrically connected to the frame/ground of
the generator.
–The generator system ground connects lower frame cross-
member below the alternator. The system ground is connected
to the AC neutral wire.
* See your Specifications section for specified type of grounding.
OPERATION
CO Shield®- Carbon Monoxide (CO) Detection
and Auto-shutoff System
CO Shield®technology monitors the accumulation of carbon
monoxide (CO), a poisonous gas produced by engine exhaust when
the generator is running. If CO Shield®detects unsafe elevated
levels of CO gas, it automatically shuts off the engine.
CO SHIELD®IS NOT A SUBSTITUTE FOR AN INDOOR CARBON
MONOXIDE ALARM OR FOR INDOOR OPERATION.
DO NOT allow engine exhaust fumes to enter a confined area
through windows, doors, vents or other openings.
Generators must ALWAYS be used outdoors, far away from
occupied buildings with engine exhaust pointed away from people
and buildings.
If misused and operated in an unapproved and unsafe location
that results in the accumulation of poisonous CO gas inside
an enclosed or partially enclosed space, for example a house,
garage or a garage with the door partially open, CO Shield®will
automatically shut off the generator and then will illuminate a
blinking red LED light. Read the action label for next steps.
1825-L-SF-C
AUTOMATIC SHUTOFF – YOU MUST:
APAGADO AUTOMÁTICO–USTED DEBE:
ARRÊT AUTOMATIQUE– VOUS DEVEZ :
Move generator t o an open, outdoor area . Point exhaust away. Don’t r un generators in
enclosed area s (e.g. not in house or garage).
Mover el generado r a un área abierta a la in temperie. Apunte el e scape alejado. No corr a
los generador es en áreas cerradas (ej . no en una casa o garaje).
Déplacer le générateur vers un espace extérieur en plein air. Garder l’échappement loin.
Ne pas faire fon ctionner les généra teurs dans un espace cl os (ex., pas dans une maiso n ou
un garage).
ACTION LABEL
ETIQUETA DE ACCIÓN
ÉTIQUETTE D'ACTION
EXHAUST EL ESCAPE L’ECHAPPEMENT
POINT AWAY
DIRIJA ALEJADO
DIRIGER LOIN
Move to fresh air an d get medical help if sick ,
dizzy or weak.
Mueva al aire fres co y obtenga asisten cia medica
si está enfermo, mareado, o débil.
Aller à l'air frais e t obtenir de l'aide médica le si
malade, étourdi ou faible.
In the event of an engine shut off, when you approach the
generator to investigate, a blinking red LED light in the CO Shield®
area provides notification that the generator shut off due to an
accumulating CO hazard. The red LED light will blink for at least
five (5) minutes after an engine shut off event.
AUTOMATIC SHUTOFF
SEE ACTION LABEL
Apagado automático
Vea etiqueta de acción
ARRÊT AUTOMATIQUE
VOIR L'ÉTIQUETTE D'ACTION
SERVICE
Realice un servicio
EFFECTUER L’ENTRETIEN
Move the generator far away to an open, outdoor area and point
the exhaust away from people and buildings. Once relocated
to a safe area, the generator can be restarted, and the proper
electrical connections made. Introduce fresh air and ventilate the
location where the generator shut off.
When restarting, the red and yellow LED will blink ten (10) times
simultaneously to indicate the LED is working.
