CHANCEE U190 User manual

U190 Floor Sweeper
Instruction Manual

We explore safer, higher-end and more user-friendly cleaning equipment
through technical advantage and idea innovation.

Preface
This instruction manual contains all the information that you need to use and
maintain the machine. Please read it carefully before getting started. Only with
correct operation and regular maintenance can the machine be kept in its best
working condition.
This instruction manual is an important part of the product and should be kept
together with the machine.
If this manual is lost, please contact us immediately and we will be glad to provide
you with a new one. All technical details included in this manual are property of
Anhui Chancee Technology Co., Ltd and are protected by law.
In this manual we use illustrations to show the components and functions of the
machine. It is possible that some of them contain details that are slightly different
from those of yours. However, all the instructions presented here still apply to your
product and should be followed strictly during the operation.
Some components of the product may be harmful or dangerous and we have tried
our best to include them in this manual. It is the user’s obligation to pay special
attention to them during the work. However, since it is impossible for us to point out
all potential dangers, we expect you to be extremely cautious during the work so as
to protect the machine, yourself and other people in the working area.
Only accessories from the original manufacturer can be used on the machine. Using
accessories from other sources may lead to low working efficiency or even accidents
in extreme cases.
We usually modify or improve our products to meet the latest market demand.
However, this is NOT suitable for machines that have been sold. We will NOT be
responsible for any injury or loss caused due to the user’s improper operation either.
If you have any question, complaint or suggestion, please feel free to contact us and
we will be at your service with all our knowledge and enthusiasm.
We wish you a pleasant experience with our product!

Components and technical parameters
Chapter 1 General description
1/2
1.1 Contents and purposes
1.2 General instructions
1.3 Safety requirements for the batteries
1.4 General safety requirements
Chapter 2 Operating the machine
3/5
2.1 Buttons and pedals of the machine
2.2 Operation process of the machine
2.3 Cautions during the operation
Chapter 3 Regular inspection and replacement of damaged parts
6/10
3.1 Regular inspection
3.2 Adjustment of the main groom
3.3 Replacement of the main groom
3.4 Adjustment and replacement of the side grooms
3.5 Replacement of the filter element
3.6 Adjustment of the height of the baffles
3.7 Replacement of the fuses
3.8 Removal and installation of the garbage can
3.9 Maintenance of the batteries
3.10 Cleaning of the filter screen
3.11 Cleaning of the filter element of the vibrator
Chapter 4 Common problems and solutions
11
Chapter 5 Maintenance
12
5.1 Operating conditions
5.2 Maintenance timetable
Chapter 6 After-sale services
13
Warranty card
Contents

Components
Technical parameters
Category Parameter Category Parameter
Cleaning width (mm) 1,900 Suction motor (W) 216
Water tank capacity (L) 50 * 2 Driving motor (W) 1,200
Charging time (h) 6 Vibrator motor (W) 60
Working time (h) 4 Walkingspeed (km/h) 0-10
Battery capacity (V/Ah) 48/100 Grade ability (%) 15
Rolling brush motor (W) 1,000 Total weight (kg) 650
Side brush motor (W) 90 * 4 Product size (mm) 2,000*1,900*1,170

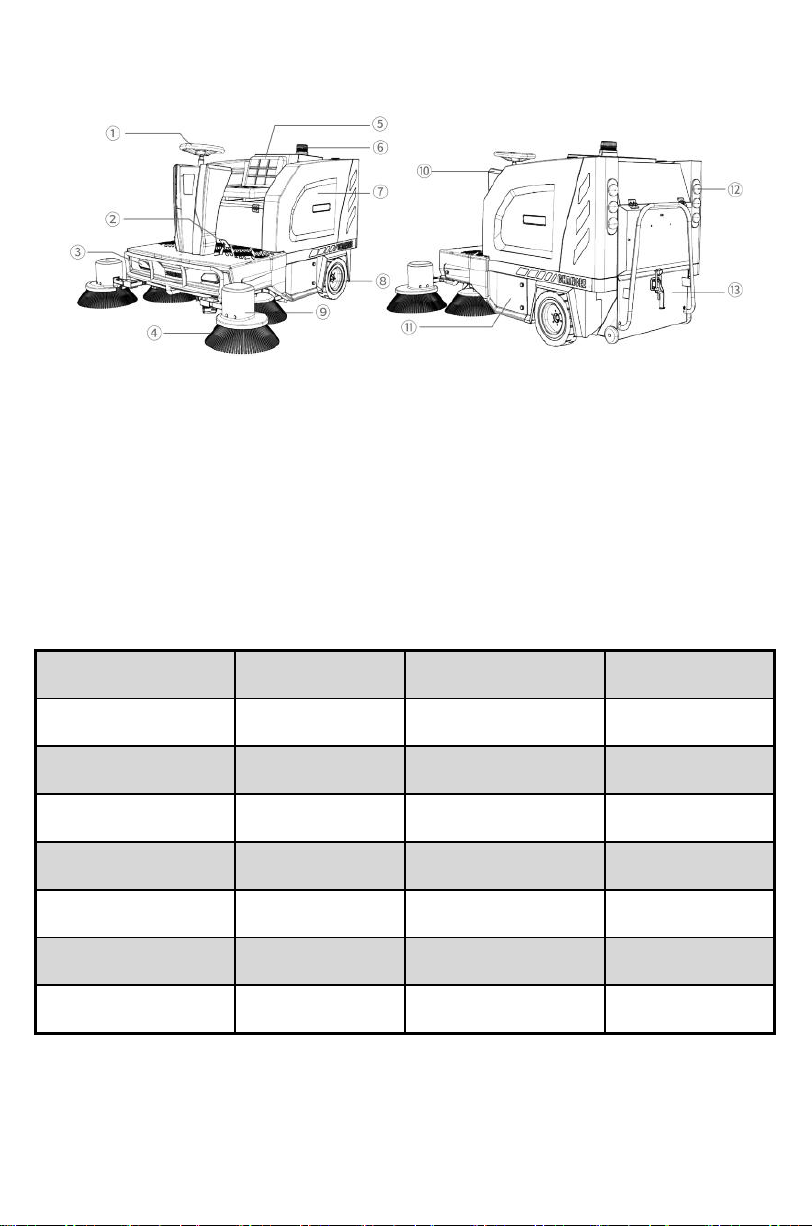

① Steering wheel ⑥ Alerting light ⑪ Inspection port
② Baffle lifting pedal ⑦ Water tank ⑫ Taillight
③ Headlight ⑧ Anti-slippery tire ⑬ Debris hopper
④ Side groom ⑨ Groom cover
⑤ Leather Seat ⑩ Controlling panel

1
Chapter 1 General description
1.1 Contents and purposes
Potential risks concerning the use of the machine are listed in the following
sections. Since most accidents take place when safety rules are ignored, it is
necessary that you read them carefully and take precautions before getting
started. The best guarantee against any accident is a careful and cautious user,
which might be better than other precautions available. When using the
machine, pay special attention to the people in the working area, especially
children.
1.2 General instructions
Before any maintenance and repair, turn off the power and remove the key
from the general switch.
The machine can only be operated by qualified personnel. Children and
disabled people are strictly forbidden to use it.
Keep the battery away from sparks, flames and smoke.
Do NOT use the machine in places with dangerous, flammable or explosive
gases, liquids or water vapor.
The machine can be used to clean regular garbage. It must NOT be used to
clean silk ropes, belts, high-temperature sundries, accumulated water, or
flammable, toxic and harmful materials, so as to avoid entanglement and
burning of the brushes.
Keep loose clothing, hair, fingers and other parts of your body away from the
air vent and any moving part of the machine.
Turn off the power if you do not use the machine.
Do NOT use the machine in slopes with an inclination larger than the fixedvalue.
Do NOT smoke when charging the battery.
Do NOT use the machine in very dirty places. Repeat the sweeping if there is
too much garbage.
The machine should be stored at a temperature between -10 °C and 40 °C.
The temperature of the working area should be between -10 °C and 40 °C, and
the humidity should be between 30% and 95%.
Do NOT use the machine as a means of transportation.
When the machine is not moving, stop the brushes to avoid damage to the ground.
In the event of a fire, use a POWDER extinguisher rather than water.
When a failure is produced, make sure that it is NOT due to the lack of regular
maintenance.

2
If some spare parts need to be replaced, you can purchase them from the
original manufacturer or an authorized distributor.
To make sure that the machine is in the proper operating and safety condition, the
user or service center must abide by what is stated in Chapter III and Chapter V.
Attention must be paid even when the machine is about to be dismantled and
scrapped. Since some harmful substances (such as batteries, waste oil, etc.) have met
the required standards, they should be sent to a specific center for treatment.
1.3 Safety requirements for batteries
The battery must NOT be in a low voltage state; charge the battery as soon as
possible when the voltage is below 42 V;
To avoid electric leakage, keep the battery dry and clean;
Do NOT put metallic objects (such as tools) on the battery to prevent it from
being short-circuited and burned;
The charging room should be well ventilated;
When the key switch is in the position “ON”, do NOT install or remove the
battery;
Before installing or removing the battery, disconnect first the negative wire (-)
and then the positive wire (+). When rewiring, pay special attention to the
polarity of the battery, as wrong connection would probably damage electrical
components;
Avoid direct contact between the positive and the negative electrodes, because
it would cause a large current short circuit, high heat or even a fire.
1.4 General safety requirements
In addition to what is mentioned in this manual, the general safety
requirements must also be observed. Even if you have used a similar product
before, we recommend that you read this manual carefully so that you can
save much time as well as take precautions to protect the machine and
yourself. It is vital that you become familiar with all the accessories and
components before turning on the machine. Read our instructions carefully so
that you will not be confused when you get started.

3
Chapter 2 Operating the machine
2.1 Buttons and pedals of the machine
2.1.1 Key controlling buttons of the machine
2.1.2 Charging the batteries
A socket with a minimum diameter of 6 mm is required.
If you need to stop charging the batteries, disconnect directly.
① Loudspeaker button
② Sprinkler button
③ Headlight button
④ Main light button
⑤ Forward/backward button
⑥ Sweeping button
⑦ Power display
⑧ General switch
Attention:
1. The sweeping button has three gears:
The front gear: the main groom, the side grooms and the suction motor are
started; the main groom and the side grooms are lowered and the machine is
ready for work.
The middle gear: the main groom, the side grooms and the suction motor are
stopped; the main groom and the side grooms do not rise, and the operator
can adjust the height of the brushes.
The restart gear: the main groom and the side grooms rise.
Sprinkler valve: before turning on the sprinkler button, make sure that the
sprinkler valve is open; when the sprinkler button is turned off, close the valve to
prevent splashes.
① Accelerating pedal
② Brake pedal
③ Front baffle lifting pedal (step on
this pedal when you need to
remove large garbage)

4
2.1.3 Adding water to the water tank
Before using the machine, add clean water to
the clean water tank. Pay attention to the
water quality so that the waterway will not
be blocked.
2.2 Operating the machine
2.2.1 Before the operation
Before getting started, make sure that no doors or covers are open and the
garbage can is correctly closed. If the machine does not work after
transportation, check every part first.
2.2.2 Power display
Insert the start key in the steering wheel console and turn the start switch
clockwise to the "ON" position. The current voltage of the battery will be
displayed in three seconds. If the voltage is lower than 42 V, charge the battery
first.
2.2.3 Starting the machine
Be seated on the driver’s seat.
Step on the brake pedal and turn the start key to the "ON" position.
Move the machine to the work area using the steering wheel and the
forward/backward button.
The moving speed can be adjusted from 0 to the maximum value by pressing
the accelerator pedal.
Press the sweeping button to start work, and use the steering wheel,
accelerator pedal and forward/backward button to move the machine.
The garbage can must be closed during the sweeping work.
The sweeper applies automatic and one-button operation. When the sweeping
button is turned on, all motors (including the main groom motor, side brush
motor, and ventilator motor) will automatically start, and the main groom and
side grooms will automatically descend.
2.2.4 Stopping the machine
Release the accelerator pedal to stop the machine.
Press the stop button and all sweeping functions are stopped, and the main
groom and side grooms are raised.
Turn the start switch to the "OFF" position.

5
2.3 Cautions
2.3.1 General instructions
When the brushes are rolling, do NOT leave the machine in the same place for
a long time, because this would leave unnecessary marks on the ground.
If you need to remove large light garbage, you can lift the front baffle so that
the garbage can be recycled into the garbage can. Note that when the front
baffle is lifted, the suction efficiency of the machine will be reduced.
In order for the machine to achieve its best cleaning effects, the filter screen
should be vibrated regularly: stop the machine, press the dust-vibrator button
to start the dust-vibrator motor and keep it operating for one minute.
During the work, the filter screen should be vibrated every 30 minute on
average (depending on the working area)
The machine cannot collect garbage when the filter screen is blocked or the
garbage can is filled. Do NOT use the machine on the damp ground to prevent
the filter screen from being damaged.
The garbage can must be discharged every time when the work is finished.
2.3.2 Discharging the garbage can
Release the pedal to stop the machine.
Open the buckle of the garbage can.
Pull the garbage can downward, drag it out and take out the garbage.
Put the garbage can back in the machine and fasten the buckle.
2.3.3 Push/drag of the machine
Push/drag the machine when it is turned off or when there is a fault.
Make sure that the speed is not greater than 5km/h.
Press the button to the forward gear when moving the machine forward, and
to the backward gear when moving it backward.
2.3.4 Storage of the machine
If the machine is not about to be used within 30 days, please disconnect the
battery and store it in a clean and dry place.

6
Chapter 3 Regular inspection and replacement of
damaged parts
3.1 Regular inspection
Regular inspection items
Time interval (h)
4
50
100
200
500
1
Battery power
2
Carbon brushes of the motors
3
Is the main groom entangled?
4
Are there particles and/or
crystals in the water tank?
5
Buttons on the control panel
and electronic components
6
Are the brushes worn?
7
Is the filter blocked?
8
Does the sprinkler joint leak?
3.2 Adjustment of the main groom
The main brush is capable of sending garbage to the garbage can through its own
rotation.
Any adjustment must be realized on
the flat ground.
Make sure that the main brush is
stopped and the machine is
powered-off.
Check the width of the contact
surface with the ground. The
appropriate width range is 2-4 cm.
If the width of the contact surface is
not within this range, adjust the
position of the main brush.

7
3.3 Replacement of the main groom
Before replacing the main brush, place the machine on the flat ground and
make sure that it is powered-off.
Open the right board of the machine, use an open-end wrench to remove the
rocker arm of the main brush, the sealing plate and the fixing nuts of the baffle
bracket.
Take out the old brush and replace it with a new one (first install the sealing
plate nuts, then the baffle bracket nuts and finally the rocker arm nuts).
Turn on the sweeping button and check whether the main brush works
normally; if not, use the rocker arm to adjust it.
3.4 Adjustment and replacement of the side grooms
The side brushes can sweep out garbage in dead corners so that the cleaning
efficiency of the machine can be boosted.
3.4.1 Adjustment of the side brushes
Use the adjusting nuts on both sides to adjust the position of the side brushes.

8
3.4.2 Replacement of the side brushes
Step 1: loosen the Allen screws of the side brushes;
Step 2: remove the screws shown in the picture and take out the old brush(es);
Install the new brush(es) in the reverse direction.
Note: use gloves to protect your hands from being hurt.

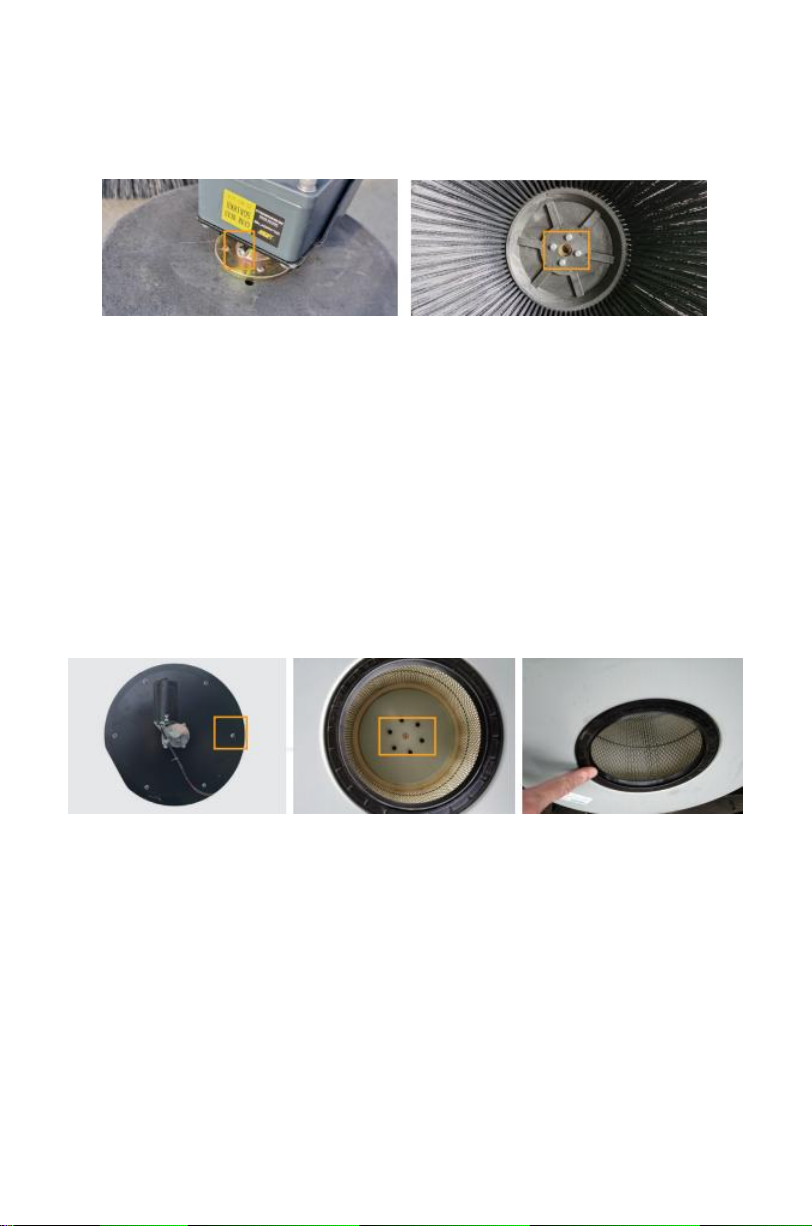

3.5 Replacement of the filter element
The filter is used to remove dust and small particles. When dust and high-density
garbage such as leaves cannot be cleaned, the filter element needs to be replaced.
Remove the nuts on the panel of the dust-vibrator motor and pull out the
filter element.
Remove the screws inside the filter element and replace the filter element.
Apply lubricating oil to the seal of the new filter element.
Install the filter element in the reverse order.
3.6 Adjustment of the height of the baffles
The main function of the baffles is to concentrate the suction force of the sweeper.
If the side and the rear baffles are off the ground, garbage may be missed during
the cleaning.
Take out the garbage can.
Check if the baffles are complete. When the gap is larger than 20mm or the
crack is larger than 10 mm, replace the corresponding baffle.
Check whether the height of the baffles are between 0~3 mm. If it is not within
this range, adjust the height of the corresponding baffle.

9
3.7 Replacement of the fuses
When an electrical unit is overloaded or the current is too large, the
corresponding fuse is blown automatically to protect the unit and the machine.

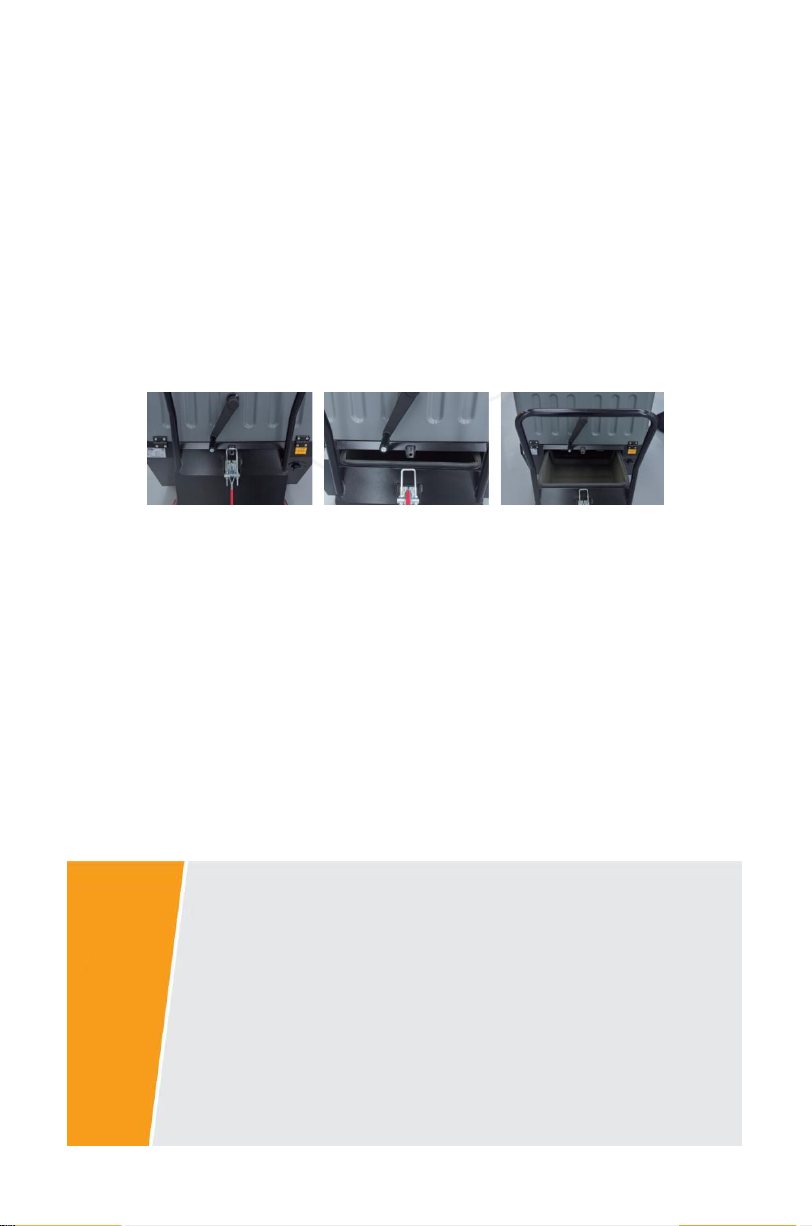

3.8 Removal and installation of the garbage can
Make sure that the machine is powered-off.
Open the buckle of the garbage can, pull the garbage can downward, drag it
out and take out the garbage.
Align the mouth of the empty garbage can with the sweeper, and slowly push it
forward.
Fasten the buckle.

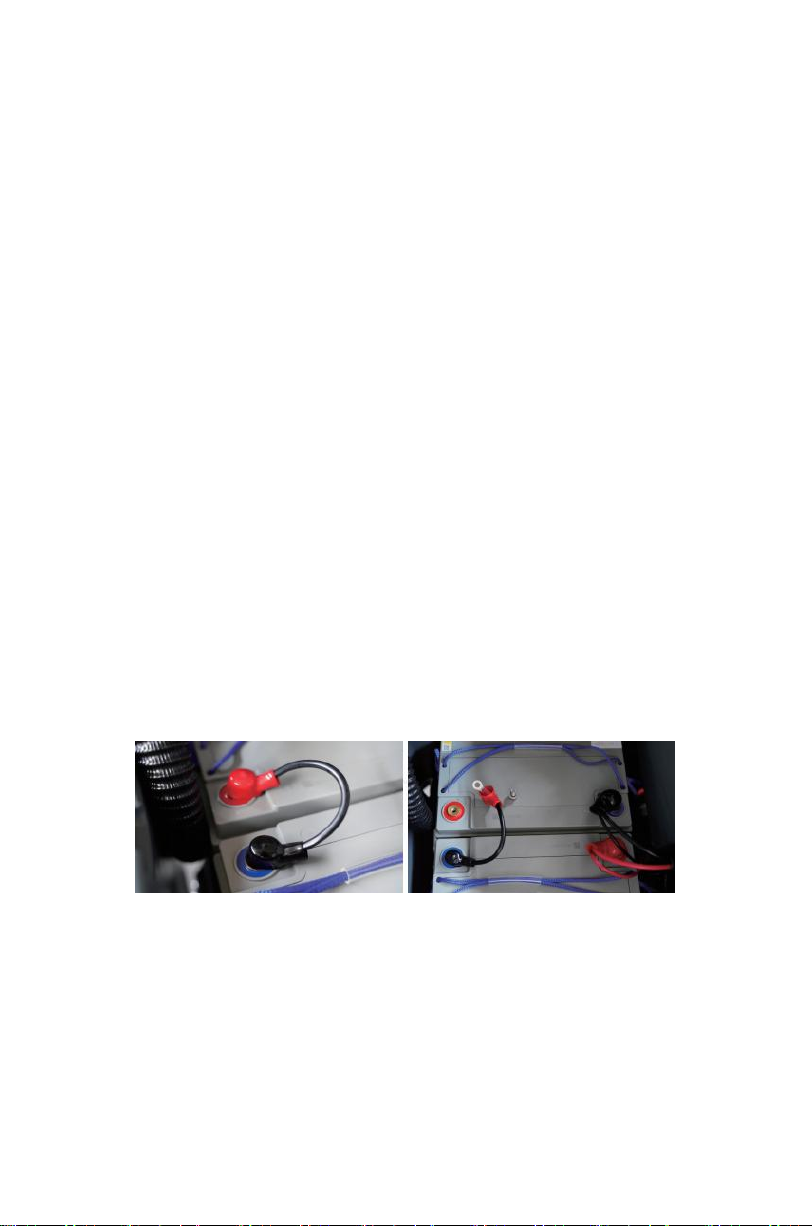

3.9 Maintenance of the batteries
The sweeper is powered by four batteries of 12 V and the total system voltage is
48 V. The instructions below should be followed when maintaining the batteries.
During the work, the battery voltage will gradually decrease; when the last bar
of the voltmeter is flashing, please charge the batteries immediately.
Before maintaining the batteries, please wear gloves to avoid contact with acid
substances.
Check regularly whether the battery cables are worn or loose, and replace
them when necessary.
The ends of the batteries should be kept clean, and there should be no dust on
the battery surfaces, or the batteries may be burnt.
In order for the batteries to have a long service life, charge them
immediately after using the machine; deep discharge is strictly
prohibited, as it would reduce the capacity of the batteries and
shorten their servicelife.
When charging the batteries, first insert the them into the battery
box, then connect them with the mains; when the batteries are fully
charged, first cut offthe mains, and then pull them out.
If you do not need to use the machine for a long period of time,
please charge the batteries fully and disconnect the positive pole.
Alerts

10
3.10 Cleaning of the filter screen
Remove the filter cover, take out the filter screen and wash it with clean water.
3.11 Cleaning of the filter element of the vibrator
Open the board of the machine and remove the fixing nuts of the baffle, and
take out the filter element.

11
Chapter 4 Common problems and solutions
Problems
Causes
Solutions
The machine is out of
power
Themainfuseisblown
Replacethe main fuse
The batteries havenopower output
Charge the batteries (Charge the
batteries once a month if the machine
isnotgoingtobeused fora long time)
Replacethe brokenbatteries
The machine moves
abnormally
The driving motor
runswell
The chains have fallen
out
Reinstallthechains
The gearbox is broken
Replacethe gearbox
The driving motor
runsabnormally
The driving motor is
broken
Replacethe driving motor
The driving motor
controllerisbroken
Replacethe driving motorcontroller
The accelerator panel
isbroken
Replacethe acceleratorpanel
The main groom does
not work
The fuseis blown
Replacethe fuse
The belt of the maingroom is broken
Replace the belt ofthe main groom
Themaingroommotorisbroken
Replacethe main groom motor
The side grooms do not
work.
The fuseis broken
Replacethe fuse
The sidebrush motor is broken
Replacethe sidebrush motor
The brushes do not rise
or fall
The fuseof the pushing rod isblown
Replacethe fuse
The relay is broken
Replacethe relay
The pushing rod motor is broken
Replacethe pushing rod motor
The cleaning effects are
not good
Thebrushesareworn
Replacethe worn brushes
Thebrushesareentangled
Remove the entanglements
Thebaffleareworn
Replacethe worn baffles
The machines moves too fast
Reducethespeed
The ventilator has a
fault
The ventilator works
Startthedust-vibratingbutton
The ventilator does not
work
Replacethe ventilator
Leaves or large garbage
cannot be cleaned
completely
Thebrushesaretoohigh
Adjusttheheight of the brushes
Thebrushesareentangled
Remove the entanglements
The machines moves too fast
Reducethespeed
Dust or fine ashes
cannot be cleaned
completely
The filter element is blocked
Clean or replace the filter element
The baffles are broken
Replacethe brokenbaffles
The garbage moves
forward
The front baffle is broken
Replace the front baffle
The brushes become
wornveryquickly
Thebrushesarepressed tootightly
Adjusttheheight of the brushes
The groundis too rough
Nosolutionavailable
Thegarbagecanleaks
The sealing strip of the garbage can is broken
Replace the sealing strip of the
garbagecan
The batteries cannot be
charged
The batteries are broken
Replacethe brokenbatteries
The charger is broken
Replacethe charger
Thebattery connectingcablesareloose
Tighten the loose battery connecting
cables
The batteries discharge
tooquickly
The batteries are not well charged
Charge the batteries
The batteries are broken
Replacethe brokenbatteries

12
Chapter 5 Maintenance
Regular maintenance is necessary in order for the machine to be in its best
condition, as well as to extend its service life and ensure the operator’s safety. The
time interval of maintenance can be changed under certain circumstances, but this
must be determined by a professional technician.
When performing maintenance, make sure that the machine is turned off and the
key is removed from the switch.
5.1 Operating conditions
Temperature: -10 °C ~ 40 °C
Relative humidity: 5%~70%
No electricity-conductive and explosive gases or dust are presented
No corrosive gases or vapor are presented
Well ventilated indoor environment
5.2 Maintenance timetable
Items
Upon
receiving
Every
10h
Every
50h
Every
100h
Every
200 h
Every
500h
Height ofthe brush plates
Are the brush plates
entangled?
Belt of the main groom
Dust suction motor and
filterelement
Baffles
Dust-vibratormotor
Are all nuts and screws
tightened?
Degree of wear of the brake
Degree of wear of the
brushes
Are all the driving chains
tightened?

13
Chapter 6 After-sale services
6.1 General description
Seven-day guaranteed return, fifteen-day guaranteed replacement, one-year
warranty for the whole machine, 6-month warranty for damaged parts, and no
warranty for consumables (calculated from the next day after receiving the
machine).
The delivery receipt and purchase invoice are certificates for warranty and
must be kept properly.
6.2 Contents of warranty
Category
Contents
Warranty period
The entire
machine
Sheet metal parts, batteries, motors,
controllers, accelerator pedal, relay, charger,
spray gun, high-pressure pump, brake
assembly
1 year
Damaged
parts
Shock attenuator, inner springs, wheels,
nozzles, lights, bearings, universal wheels,
fuses
6 months
Consumables
Side brush, main groom, filter element, baffle,
conveyor belt, sealing strip, high pressure
water pipe
No warranty
6.3 Cases not covered in the warranty
The operator fails to perform maintenance according to the instruction manual,
resulting in damage or failure.
The surface and/or the structure of the machine are obviously damaged due to
improper operation.
Disassembly or modification not approved by the original manufacturer.
Damage due to weather or force majeure.
The warranty is expired or the machine has been used for more than 1,500
hours.

Warranty Card
用户名
User’s name
联系电话
Tel
通讯地址
Address
票据号
Bill No.
购买时间
Date of purchase
机身编号
Serial number
产品型号
Type of product
日期
Date
更换配件：
Accessories to be replaced:
故障描述：
Fault description:

Anhui Chancee Technology Co., Ltd.
Direction: 11 Qiaowan Road, Heifei, Anhui, China
Website: www.chanceeglobal.com
