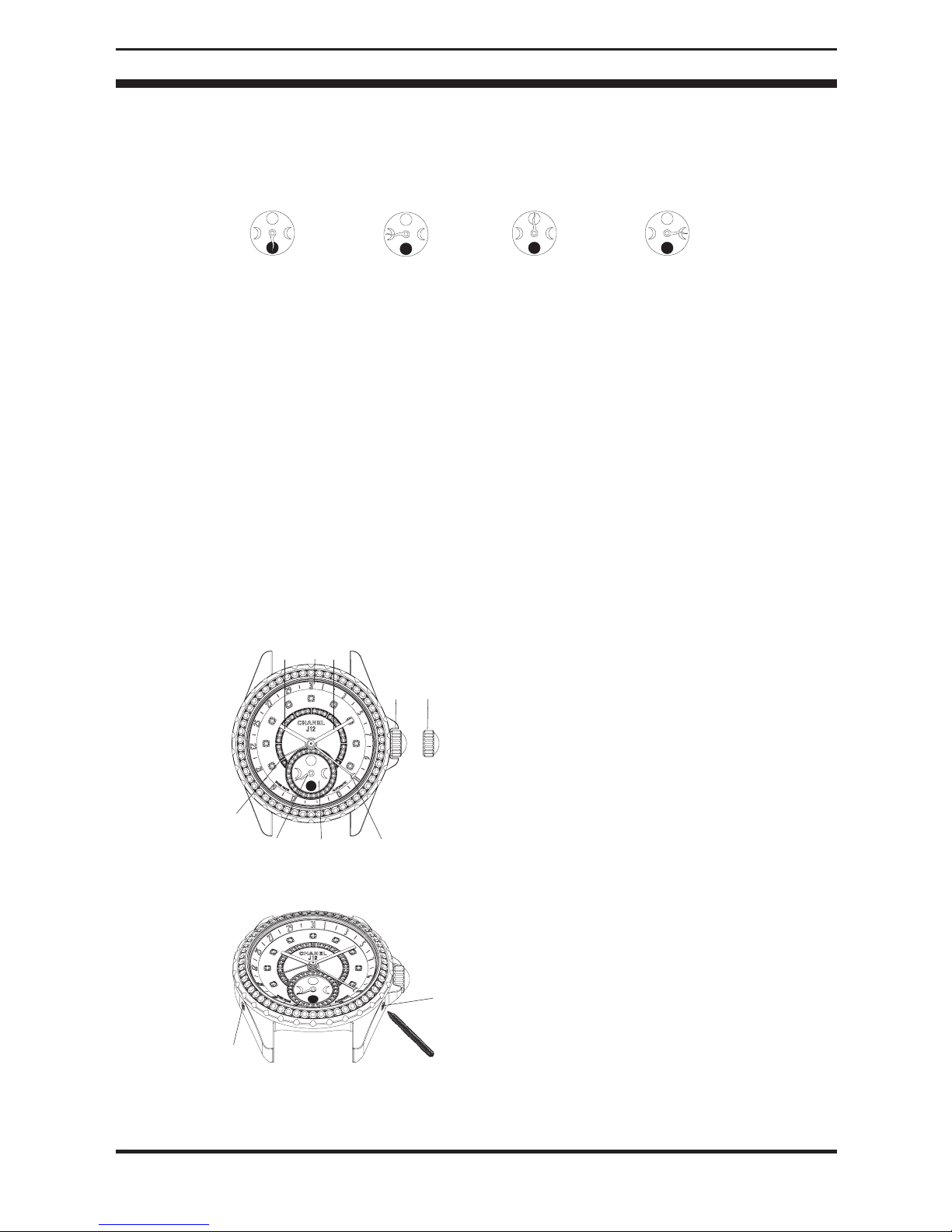

WINDING THE WATCH AND MAKING ADJUSTMENTS
1
A- Hour hand
B- Minute hand
C- Second hand
D- Crown
Watches equipped with a non screw down crown
The crown D is ordinarily placed in position 1.
1/ Winding the watch
Activate the automatic winding mechanism by turning the crown 5 times in a clockwise direction.
2/ Adjusting the time
Carefully pull the crown D out to position 2 (one notch) or until position 3 (two notches) according
to the model. Then turn the crown to move the hands to the desired time.
On every model, stopping the second hand makes it possible to set the time to the nearest second.
3/ Adjusting the date
Carefully pull the crown out to position 2 (one notch) and turn it in an anti clockwise direction
until the desired date is shown.
Watches equipped with a screw down crown
The crown E is ordinarily placed in position 1.
To unscrew the crown, turn it in an anti clockwise direction (position 2).
1/ Winding the watch
Unscrew the crown and activate the automatic winding mechanism by turning the crown 5
times in a clockwise direction.
2/ Adjusting the time
Unscrew the crown E (position 2) and carefully pull it out to position 3 (1 notch) or position 4
(2 notches) depending on the model. Then turn it to move the hands to the desired time. On
every model, stopping the second hand makes it possible to set the time to the nearest second.
3/ Adjusting the date
Unscrew the crown E (position 2) and carefully pull it out to position 3 (one notch).
- J12 quartz models: turn the crown clockwise until you obtain the desired date.
- J12 automatic models: turn the crown anti clockwise until you obtain the desired date.
A- Hour hand
B- Minute hand
C- Second hand
D- Date
E- Crown

J12 COLLECTION
2

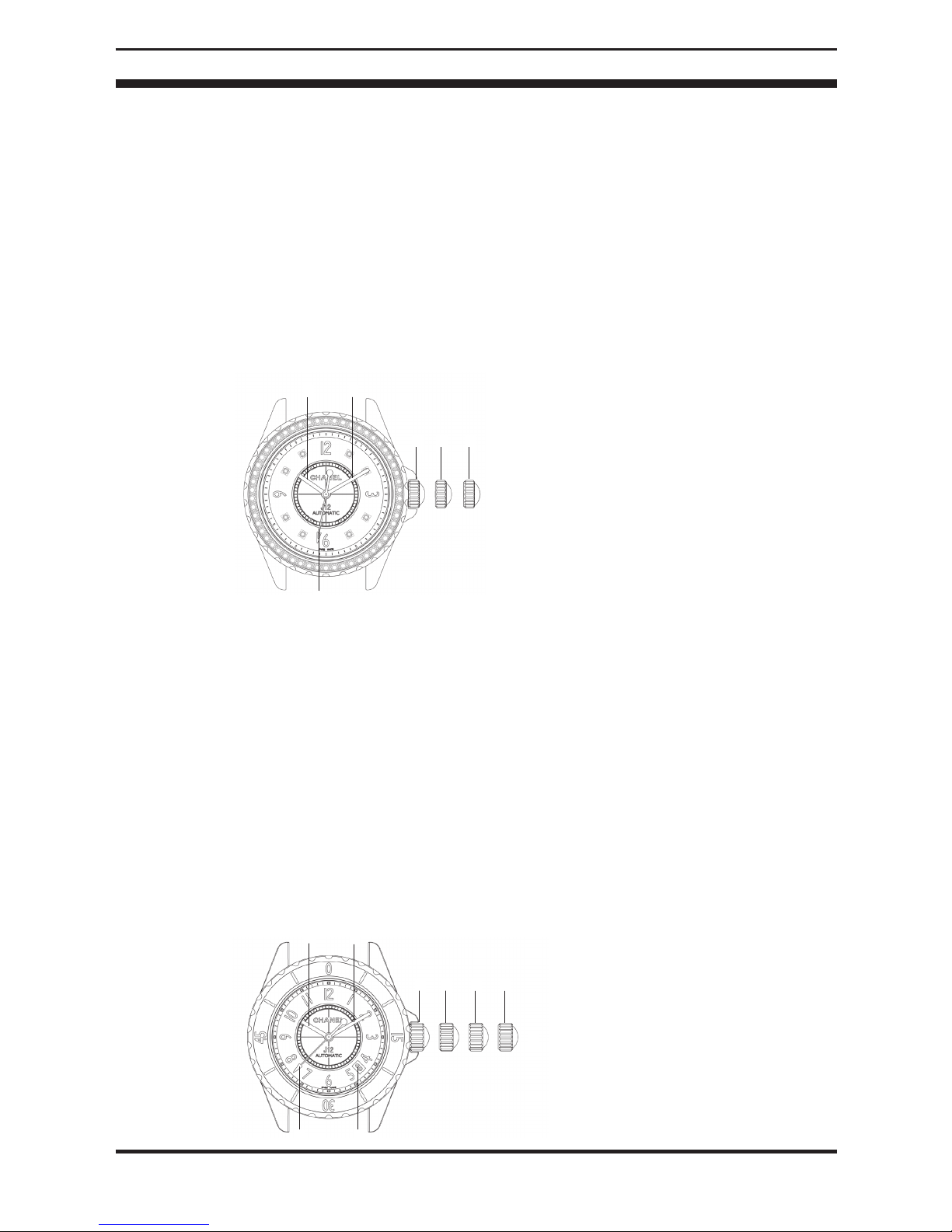

FUNCTIONS
H
F
G
12 3
E
C
B
A
D
H
F
G
12 3 4
C
B
A
E
D

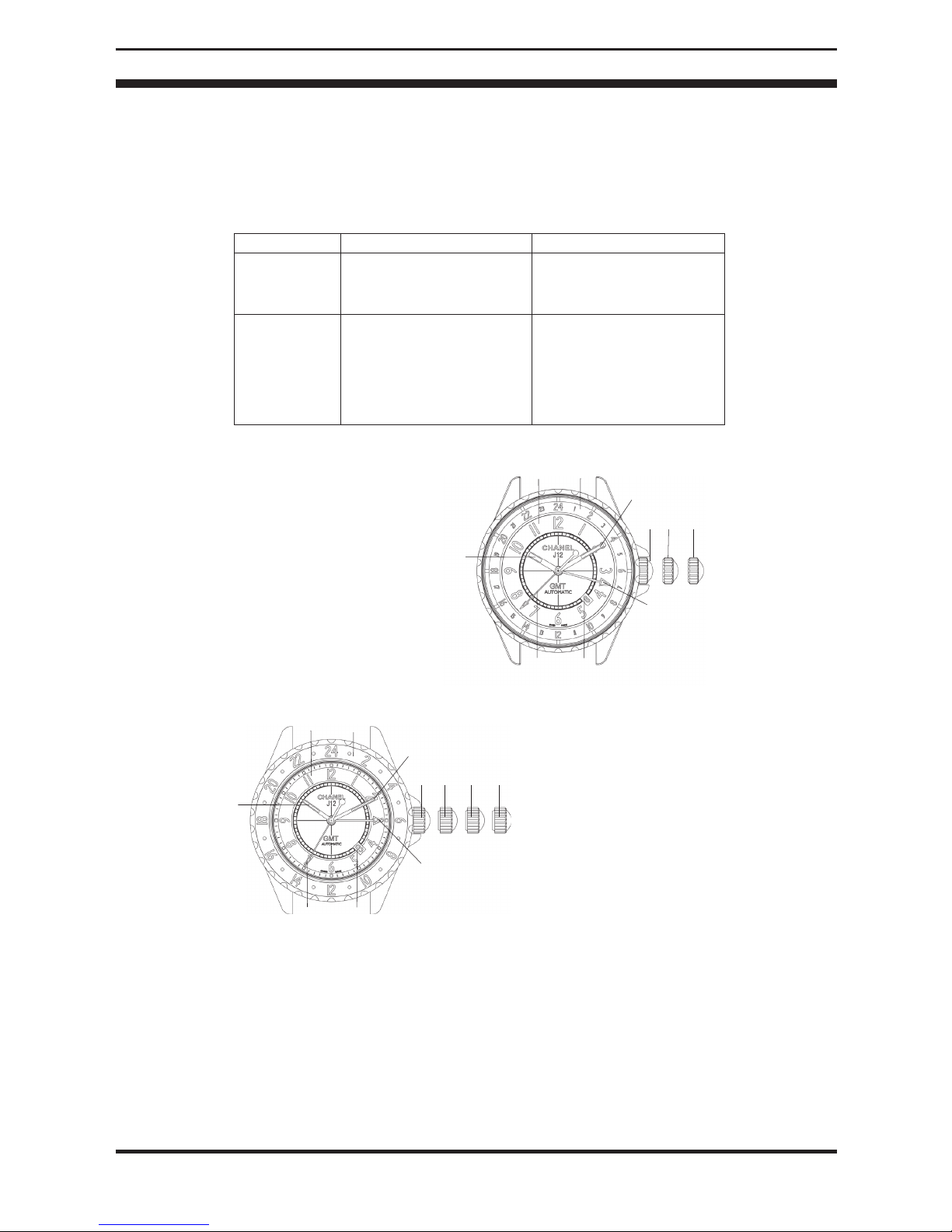

J12 GMT
The GMT function allows you to simultaneously know the time in two different locations across the globe:
- Local Time,
- Home Time.
A - 12 hour dial (Local Time)
B- 24 hour flange (Home Time)
C - Hour hand (Local Time)
D- Minute hand (Local Time)
E- Second hand
F- GMT hand (Home Time)
G- Date
H- Crown
Pull the crown H out to position 3
(2 notches) and turn it until the desired time is
indicated on the 12 hour dial.
Pull the crown H out to position 2 (1 notch),
then:
- turn the crown anti clockwise until the
desired date is indicated.
- turn the crown clockwise until the desired time
is indicated on the 24 hour graduated flange.
Setting the Local Time
Setting the date /
Home Time
J12 model reference H3099/H3101/H3102/H3103 (figure1)
Unscrew the crown H (position 2) and pull
it out to position 4 (2 notches). Then turn the
crown until the desired time is indicated on the
12 hour dial.
Unscrew the crown H (position 2) and pull it out
to position 3 (1 notch), then:
- turn the crown anti clockwise until the desired
date is indicated.
- turn the crown clockwise until the desired time
is indicated on the 24 hour bezel.
H2012/H2126/H2620 (figure2)
Figure 1
A - 12 hour dial (Local Time)
B- 24 hour bezel (Home Time)
C - Hour hand (Local Time)
D - Minute hand (Local Time)
E - Second hand
F- GMT hand (Home Time)
G- Date
H- Crown
Figure 2

A B
D
J
I
HC
E
J12 COLLECTION
FUNCTIONS
3
F
G
A- Hour hand
B- Minute hand
C- Second hand
D- Date
E- Crown
F- Luminescent chip

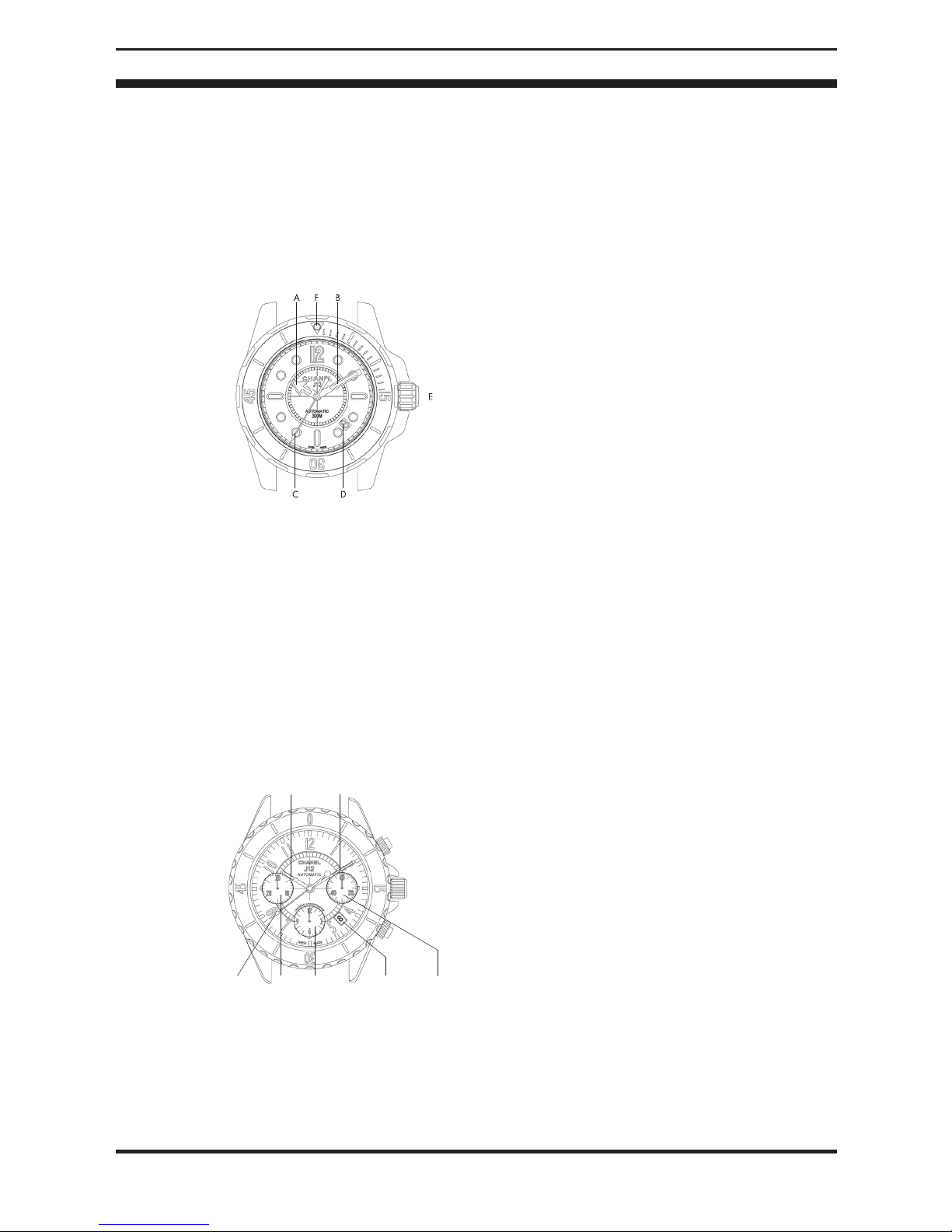

J12 Marine
J12 Marine watches have a steel unidirectional rotating bezel, notched and with a high-tech ceramic
or sapphire disc with 60 minute graduations for easy and accurate reading of dive times.
To measure the length of dive time, align the luminescent chip with the minute hand at the start of a
dive, then later read the time passed on the bezel where indicated by the same hand.
A- Hour hand
B- Minute hand
C- 60 second counter
D- Date
E - Crown
F- Start push button
G- Return to zero push button
H- Chronograph second hand
I- 30 minute counter
J- 12 hour counter
J12 Chronograph
The Chronograph can be used to measure time or record several periods of time, thanks to
the central arrow shaped second hand H and the counters I and J, which display the elapsed
minutes and hours respectively. The CHANEL Chronograph movement has a COSC certificate
(Swiss Official Chronometer Control). The COSC certificate is specific to each watch and is
attached to the guarantee card.
a) To start the Chronograph, press the button F: The 1st press triggers the time measurement. A 2nd
stops it and a 3rd restarts it. This makes it possible to record several time intervals at different times.
b) To reset the Chronograph, press the button G. The central arrow shaped second hand H
returns to its initial position (numeral 12) as do the small hands on counters I and J.

J12 COLLECTION
FUNCTIONS
4
1:1
26.02.2013
Rqs
N° de dessin :
11407.479 mm³ Vol.:
Ech.:
26/02/2013 Ph.Martin Dessiné :
Rév :
A4
Format :
Date d'édition :
Controlé :
Tol. générale : ±50µm / ±0.1°Tol. en µm
Cotes en mm
Modications:
Désignation :
G & F CHATELAIN SA
LA CHAUX-DE-FONDS
TDM-00122 Aig-10H10
A
Ce plan reste notre propriété. Il est coné personnellement au destinataire. Il ne peut, sans notre autorisation écrite, être copié, reproduit, communiqué à des tiers, ou mis à leur disposition.
Page : 1/1
CONFIDENTIEL
A B
D
JK
F
H
G
E
C
I
A-Hour hand
B-Minute hand
C-60 second counter
D-Date
E-Crown
F-Start push button
G-Reset to zero push button
H-Chronograph second hand
I-30 minute counter
J-Tachymetric Scale
K-1,000 m base
J12 Superleggera Chronograph
Chronograph Function
a) To start the Chronograph, unscrew then press button F: this first press starts the measurement
of time. Pressing again stops it and pressing a third time, restarts the measurement. This allows several
measurements to be accumulated at different intervals.
b) To reset the Chronograph to zero, unscrew then press button G. The central second hand H
will return to its starting position (numeral 12), as will do the hand on counter I.
Tachymetric Function
The Tachymetric function enables to measure the speed of an object moving over a known
distance. The base length is indicated on the scale J. The speed per hour readings, indicated by
the scale, are based on an observational distance of 1,000 metres.
The user starts the chronograph (button F) when the vehicle crosses the starting marker and stops
it when it passes the end marker (buttton F). The position of the chronograph second hand on the
tachymetric scale corresponds to the average speed in km/h.
E.g. If it takes 40 seconds to cover 1,000 m, the average speed is 90 km/h.

J12 COLLECTION
FUNCTIONS
5
4:1
26.02.2013
Rqs
N° de dessin :
10743.981 mm³ Vol.:
Ech.:
XX.XX.XX R.Gross Dessiné :
Rév :
A4
Format :
Date d'édition :
Controlé :
Tol. générale : ±50µm / ±0.1°Tol. en µm
Cotes en mm
Tete montre
Modications:
Désignation :
G & F CHATELAIN SA
LA CHAUX-DE-FONDS
TDM-00106 (10H10)
A
Ce plan reste notre propriété. Il est coné personnellement au destinataire. Il ne peut, sans notre autorisation écrite, être copié, reproduit, communiqué à des tiers, ou mis à leur disposition.
Page : 1/1
CONFIDENTIEL
4:1
26.02.2013
Rqs
N° de dessin :
10743.981 mm³ Vol.:
Ech.:
XX.XX.XX R.Gross Dessiné :
Rév :
A4
Format :
Date d'édition :
Controlé :
Tol. générale : ±50µm / ±0.1°Tol. en µm
Cotes en mm
Tete montre
Modications:
Désignation :
G & F CHATELAIN SA
LA CHAUX-DE-FONDS
TDM-00106 (10H10)
A
Ce plan reste notre propriété. Il est coné personnellement au destinataire. Il ne peut, sans notre autorisation écrite, être copié, reproduit, communiqué à des tiers, ou mis à leur disposition.
Page : 1/1
CONFIDENTIEL
4:1
04.03.2013
Rqs
N° de dessin :
10738.247 mm³ Vol.:
Ech.:
XX.XX.XX - Dessiné :
Rév :
A4
Format :
Date d'édition :
Controlé :
Tol. générale : ±50µm / ±0.1°Tol. en µm
Cotes en mm
Tete montre
Modications:
Désignation :
G & F CHATELAIN SA
LA CHAUX-DE-FONDS
TDM-00106 (10H10)
A
Ce plan reste notre propriété. Il est coné personnellement au destinataire. Il ne peut, sans notre autorisation écrite, être copié, reproduit, communiqué à des tiers, ou mis à leur disposition.
Page : 1/1
CONFIDENTIEL
4:1
26.02.2013
Rqs
N° de dessin :
10743.981 mm³ Vol.:
Ech.:
XX.XX.XX - Dessiné :
Rév :
A4
Format :
Date d'édition :
Controlé :
Tol. générale : ±50µm / ±0.1°Tol. en µm
Cotes en mm
Tete montre
Modications:
Désignation :
G & F CHATELAIN SA
LA CHAUX-DE-FONDS
TDM-00106 (10H10)
A
Ce plan reste notre propriété. Il est coné personnellement au destinataire. Il ne peut, sans notre autorisation écrite, être copié, reproduit, communiqué à des tiers, ou mis à leur disposition.
Page : 1/1
CONFIDENTIEL
D
C
GFE
I
J
K
2
1
A B
H
4:1
04.03.2013
Rqs
N° de dessin :
10738.247 mm³ Vol.:
Ech.:
XX.XX.XX R.Gross Dessiné :
Rév :
A4
Format :
Date d'édition :
Controlé :
Tol. générale : ±50µm / ±0.1° Tol. en µm
Cotes en mm
Tete montre
Modications:
Désignation :
G & F CHATELAIN SA
LA CHAUX-DE-FONDS
TDM-00106 (10H10)
A
Ce plan reste notre propriété. Il est coné personnellement au destinataire. Il ne peut, sans notre autorisation écrite, être copié, reproduit, communiqué à des tiers, ou mis à leur disposition.
Page : 1/1
CONFIDENTIEL
3:1
04.03.2013
Rqs
N° de dessin :
10828.883 mm³ Vol.:
Ech.:
XX.XX.XX - Dessiné :
Rév :
A4
Format :
Date d'édition :
Controlé :
Tol. générale : ±50µm / ±0.1°Tol. en µm
Cotes en mm
Tete montre
Modications:
Désignation :
G & F CHATELAIN SA
LA CHAUX-DE-FONDS
TDM-00106 (10H10)
A
Ce plan reste notre propriété. Il est coné personnellement au destinataire. Il ne peut, sans notre autorisation écrite, être copié, reproduit, communiqué à des tiers, ou mis à leur disposition.
Page : 1/1
CONFIDENTIEL
J12 Moon Phase
This complication identifies the various lunar phases.
A lunar cycle lasts 29 days, 12 hours, 44 minutes and 2.8 seconds.
Adjusting the time
Pull out the crown H to position 2 (1 notch) and turn it until the desired time is indicated.
Adjusting the date
Using the tool K supplied in the gift box, press the corrector button I until the desired date
is indicated.
Adjusting the moon phase function
a) Press the corrector button J until the serpentine hand G points to the full moon on the moon
phase counter F.
b) Ascertain the date of the last full moon using the lunar calendar. (Refer to the following page).
c) Press the corrector button twice for every day that has elapsed since the date of the last full
moon.
E.g. if today’s date is 10th January 2015, then five days have passed since the last full moon on
5th January. In this case, the corrector button would need to be pressed ten times.
Warning: we recommend avoiding adjusting the date or the moon phase function between
4.30 p.m and 1 a.m.

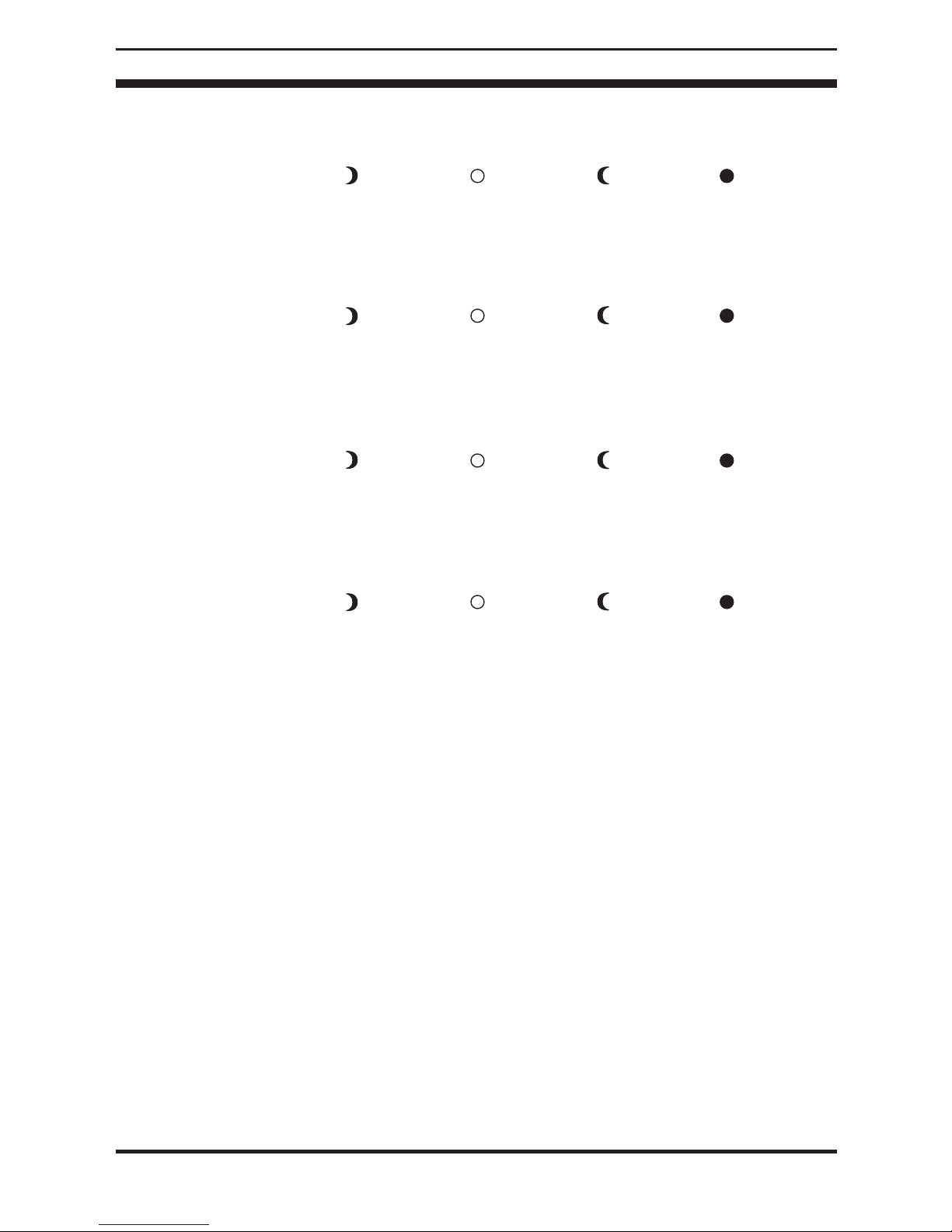

NEW MOON FIRST QUARTER FULL MOON LAST QUARTER
A-Hour hand
B-Minute hand
C-Second hand
D-Date
E-Crescent shaped date hand
F-Moon phase counter
G-Serpentine moon phase hand
H-Crown
I-Date corrector
J-Moon phase corrector
K-Tool for adjusting the date and moon phase function

J12 COLLECTION
6
FIRST QUARTER
18th January
17th February
19th March
18th April
18th May
16th June
16th July
14th August
12th September
11th October
10th November
9th December
FULL MOON
27th January
25th February
27th March
25th April
25th May
23rd June
22nd July
21st August
19th September
18th October
17th November
17th December
LAST QUARTER
5th January
3rd February
4th March
3rd April
2nd May
31st May
30th June
29th July
28th August
27th September
26th October
25th November
25th December
NEW MOON
11th January
10th February
11th March
10th April
10th May
8th June
8th July
6th August
5th September
5th October
3rd November
3rd December
2013
FIRST QUARTER
8th January
6th February
8th Mars
7th April
7th May
5th June
5th July
4th August
2nd September
1st October
31st October
29th November
28th December
FULL MOON
16th January
14th February
16th March
15th April
14th May
13th June
12th July
10th August
9th September
8th October
6th November
6th December
LAST QUARTER
24th January
22nd February
24th March
22nd April
21st May
19th June
19th July
17th August
16th September
15th October
14th November
14th December
NEW MOON
1st January
30th January
1st March
30th March
29th April
28th May
27th June
26th July
25th August
24th September
23rd October
22nd November
22nd December
2014
FIRST QUARTER
27th January
25th February
27th March
25th April
25th May
24th June
24th July
22nd August
21st September
20th October
19th November
18th December
FULL MOON
5th January
3rd February
5th March
4th April
4th May
2nd June
2nd July
31st July
29th August
28th September
27th October
25th November
25th December
LAST QUARTER
13th January
12th February
13th March
12th April
11th May
9th June
8th July
7th August
5th September
4th October
3rd November
3rd December
NEW MOON
20th January
18th February
20th March
18th April
18th May
16th June
16th July
14th August
13th September
13th October
11th November
11th December
2015
FIRST QUARTER
16th January
15th February
15th March
14th April
13th May
12th June
12th July
10th August
9th September
9th October
7th November
7th December
FULL MOON
24th January
22nd February
23rd March
22nd April
21st May
20th June
19th July
18th August
16th September
16th October
14th November
14th December
LAST QUARTER
2nd January
1st February
1st March
31st March
30th April
29th May
27th June
26th July
25th August
23rd September
22nd October
21st November
21st December
NEW MOON
10th January
8th February
9th March
7th April
6th May
5th June
4th July
2nd August
1st September
1st October
30th October
29th November
29th December
*UTC: Universal Time Coordinated
2016
Lunar Calendar (UTC*)
