Char-Broil 463263110 User manual

PRODUCT GUIDE

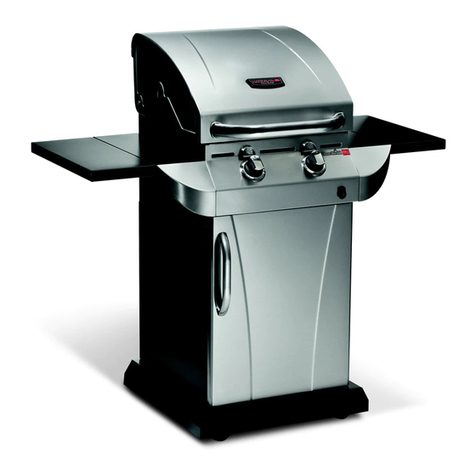

MODEL 463263110
Serial Number
Date Purchased
IMPORTANT: Fill out the product record information below.
See rating label on grill for serial number.
For support and to register your
grill, please visit us at
www.charbroil.com
Estimated assembly time: 30 minutes
If you have questions or need
assistance during assembly,
please call 1-888-430-7870.
Assembly instructions © 2009
© 2009 Char-Broil, LLC Columbus, GA 31902 Printed in China 10/21/09 • G520-001-070801
The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Caldera®; Charcoal2Go®; Char-Broil®; America's Legendary
Barbeque Company®; American Gourmet®; Bandera®; Brush Hawg®; CB 940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; Everybody Grills®; Everybody
Outside®; FastStart®; Grill 2 Go®; Grill 2 Go® Express®; Grill Lovers®; Infrared Grilling That’s All About U®; Keepers of the Flame®; New Braunfels Smoker
Company®; Patio Bistro®; Patio Caddie®; Patio Kitchen®; Pro-Sear®; RED®; Quantum®; Santa Fe®; Sear and Grill®; Sierra®; Signature Series®; Sure2Burn®;
The Big Easy®; Trentino®; U®; Wild West Tradition®; and the following marks:
® ®
Protected under one or more of the following U.S. Patents: 5,421,319; 5,458,309; 5,579,755; 5,996,573; 6,135,104; 6,279,566; 6,331,108; 6,484,900; 6,526,876; 6,595,197; 6,640,799; 6,640,803; 6,729,873; 6,739,473; 6,749,424; 6,792,935; 6,951,213; 7,047,590;
7,516,693; D364,535; D372,637; D373,701; D377,735; D383,035; D397,910; D405,643; D406,005; D406,009 ; D413,043; D413,229; D414,982; D415,388; D416,164; D416,441; D417,587; D417,588; D422,516; D423,274; D423,876; D428,303; D430,772; D435,396;
D436,004; D438,059; D438,060; D438,427; D439,110; D442,505; D443,179; D443,354; D443,464; D447,384; D447,385; D447,909; D448,610; D448,614; D448,615; D448,616; D448,975; D449,492; D450,544; D451,759; D454,028; D454,031; D455,205; D455,206;
D456,202; D456,222; D456,223; D457,789; D458,520; D458,760; D458,802; D459,088; D459,148 D459,149; D459,161; D459,163; D459,586; D459,943; D460,312; D460,313; D460,318; D461,359; D465,123; D465,693; D466,307; D466,439; D466,752; D473,414;
D474,371; D477,498; D477,501; D477,504; D477,506; D477,746; D478,471; D478,472; D480,914; D491,410; D494,009; D494,413; D498,523; D500,359; D504,048; D530,098; D535,000; Canada:D97,504;D99,355; D102,037; D104,200;D108,377; 2,315,567;
France:D010,231;D010,422;D010,590;D010,849; 1,089,646; South Korea: 384,565; United Kingdom: 2,099,402. Other Patents Pending. © 2009 W.C. Bradley Company
The following are trademarks of W.C. Bradley Co.: Advantage Series™; Auto-Clean™;Chef Tested™; Commercial Series™; Designer Series™;; Diamond Flame™;
Double Chef™; Fireball™; Firenzy™; FlavorMaster™;Front Avenue™; Grill 2 Go® Advantage™; Hog and Yard Bird™; H20 Smoker™; Infrared. Grilling’s Juicy Little
Secret™; Incredible Taste. Infallible Results™; Infrared Inside™; Insure™; Let’s Grill Something Together™; Lev-Alert™; Longhorn™; Magneto™; Precision
Flame™; Quick2Burn™; QuickSet™; Ready When You Are™; Season, Set, And Savor™; Sizzle On The Grill™; Signature Series™; SureFire™; The Minute
Grill™;Torchfork™; Universal Grill Parts™; You Bring the Party™ TEC™ is a trademark of Tec Infrared Grills.
®

1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
WARNING
CAUTION
For residential use only. Do not use for commercial
cooking.
DANGER
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING
WARNING: Indicates an potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION: Indicates a potentially hazardous situation or
unsafe practice which, if not avoided, may result in minor
or moderate injury.
TABLE OF CONTENTS
Safety Symbols
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout
the manual.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
THIS GRILL IS FOR OUTDOOR USE ONLY.
CAUTION:
Read and follow all safety statements, assembly
instructions, and use and care directions before attempting
to assemble and cook.
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
WARNING:
Failure to follow all manufacturer’s instructions could result
in serious personal injury and/or property damage.
CAUTION:
Some parts may contain sharp edges – especially as noted
in the manual! Wear protective gloves if necessary.
For Your Safety....................................2-3
Use and Care ....................................4-10
Limited Warranty....................................11
Parts List..........................................12
Parts Diagram......................................13
Assembly.......................................14-26
Troubleshooting..................................27-29
Registration Card...................................31
2

WARNING
CALIFORNIA PROPOSITION 65
1. Combustion by-products produced when using
this product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.
2. This product contains chemicals, including lead
and lead compounds, known to the State of
California to cause cancer, birth defects or other
reproductive harm.
Wash your hands after handling this product.
Installation Safety Precautions
•Use grill, as purchased, only with LP (propane) gas and the
regulator/valve assembly supplied. If your grill is Dual Fuel ready,
a conversion kit must be purchased for use with natural gas.
•Grill installation must conform with local codes, or in their
absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1/ NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2, or the Standard for Recreational
Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series,
Recreational Vehicle Code, as applicable.
• All electrical accessories (such as rotisserie) must be
electrically grounded in accordance with local codes, or
National Electrical Code, ANSI / NFPA 70 or Canadian
Electrical Code, CSA C22.1. Keep any electrical cords and/or
fuel supply hoses away from any hot surfaces.
• This grill is safety certified for use in the United States and/or
Canada only. Do not modify for use in any other location.
Modification will result in a safety hazard.
WARNING
Do not attempt to repair or alter the
hose/valve/regulator for any “assumed” defect. Any
modification to this assembly will void your warranty
and create the risk of a gas leak and fire. Use only
authorized replacement parts supplied by
manufacturer.
CAUTION
Using pots larger than 6 quarts in capacity could
exceed weight limit of the
side burner shelf
resulting in failure
of grill cart
components.
or side shelf,
3

• NEVER store a spare LP cylinder under or near
the appliance or in an enclosed area.
• Never fill a cylinder beyond 80% full.
• An over filled or improperly stored cylinder is a
hazard due to possible gas release from the
safety relief valve. This could cause an intense
fire with risk of property damage, serious injury or
death.
• If you see, smell or hear gas escaping,
immediately get away from the LP
cylinder/appliance and call your fire department.
DANGER
USE AND CARE
LP Cylinder Removal, Transport and Storage
•Turn OFF all control knobs and LP cylinder valve. Turn coupling
nut counterclockwise by hand only - do not use tools to
disconnect. Loosen cylinder screw beneath bottom shelf, then
lift LP cylinder up and out of cart. Install safety cap onto LP
cylinder valve. Always use cap and strap supplied with valve.
Failure to use safety cap as directed may result in serious
personal injury and/or property damage.
•A disconnected LP cylinder in
storage or being transported
must have a safety cap installed (as shown).
Do not store an LP cylinder in enclosed spaces
such as a carport, garage, porch, covered
patio or other building. Never leave an LP cylinder
inside a vehicle which may become overheated
by the sun.
•Do not store an LP cylinder in an area where children play.
OPD Hand Wheel
LP (Liquefied Petroleum Gas)
•LP gas is nontoxic, odorless and colorless when produced. For
Your Safety, LP gas has been given an odor (similar to rotten
cabbage) so that it can be smelled.
•LP gas is highly flammable and may ignite unexpectedly when
mixed with air.
LP Cylinder Filling
•Use only licensed and experienced dealers.
•LP dealer must purge new cylinder before filling.
•Dealer should NEVER fill LP cylinder more than 80% of LP
cylinder volume. Volume of propane in cylinder will vary by
temperature.
•A frosty regulator indicates gas overfill. Immediately close LP
cylinder valve and call local LP gas dealer for assistance.
•Do not release liquid propane (LP) gas into the atmosphere.
This is a hazardous practice.
•To remove gas from LP cylinder, contact an LP dealer or call a
local fire department for assistance. Check the telephone
directory under “Gas Companies” for nearest certified LP
dealers.
LP Cylinder Valve
Retainer Strap
Safety
Cap
LP Cylinder
•The LP cylinder used with your grill must meet the
following requirements:
•Use LP cylinders only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
capacity maximum.
•LP cylinders must be constructed and marked in accordance
with specifications for LP cylinders of the U.S. Department of
Transportation (DOT) or for Canada, CAN/CSA-B339,
cylinders, spheres and tubes for transportation of dangerous
goods. Transport Canada (TC). See LP cylinder collar for
marking.
•LP cylinder valve must have:
•Type 1 outlet compatible with
regulator or grill.
•Safety relief valve.
•UL listed Overfill Protection
Device (OPD). This OPD safety
feature is identified by a unique triangular hand wheel. Use
only LP cylinders equipped with this type of valve.
•LP cylinder must be arranged for vapor withdrawal and include
collar to protect LP cylinder valve. Always keep LP cylinders in
upright position during use, transit or storage.
LP cylinder in upright position for vapor withdrawal
4

WARNING
If “growing” bubbles appear do not use or move the LP
cylinder. Contact an LP gas supplier or your fire
department!
Connecting Regulator to the LP Cylinder
1.LP cylinder must be properly secured onto grill. (Refer to
assembly section.)
2.Turn all control knobs to the OFF position.
3.Turn LP cylinder OFF by turning hand-wheel clockwise to a
full stop.
4.Remove the protective cap from LP cylinder valve. Always use
cap and strap supplied with valve.
Safety Relief Valve
Nipple has to be centered
into the LP cylinder valve.
OPD Hand Wheel
Type 1 outlet with
thread on outside
c k w
o
l
i
s
C
e
f
f
O
Do not use a POL transport plug
(plastic part with external threads)!
It will defeat the safety feature of
the valve.
Strap and Cap
LP Cylinder Exchange
•Many retailers that sell grills offer you the option of replacing
your empty LP cylinder through an exchange service. Use only
those reputable exchange companies that inspect, precision fill,
test and certify their cylinders. Exchange your cylinder only
for an OPD safety feature-equipped cylinder as described
in the "LP Cylinder" section of this manual.
•Always keep new and exchanged LP cylinders in upright
position during use, transit or storage.
•Leak test new and exchanged LP cylinders BEFORE
connecting to grill.
LP Cylinder Leak Test
For your safety
•Leak test must be repeated each time LP cylinder is exchanged
or refilled.
•Do not smoke during leak test.
•Do not use an open flame to check for gas leaks.
•Grill must be leak tested outdoors in a well-ventilated area,
away from ignition sources such as gas fired or electrical
appliances. During leak test, keep grill away from open flames
or sparks.
•Use a clean paintbrush and a 50/50 mild soap and water
solution.
s Do not use household cleaning agents. Damage to gas
train components can result.
Brush soapy solution onto areas indicated by arrows
in figure below.
5.Hold regulator and insert nipple into LP
cylinder valve. Hand-tighten the
coupling nut, holding regulator in a
straight line with LP cylinder valve so
as not to cross-thread the connection.
•Place dust cap on cylinder valve outlet whenever the cylinder is
not in use. Only install the type of dust cap on the cylinder valve
outlet that is provided with the cylinder valve. Other types of caps
or plugs may result in leakage of propane.
5

6.Turn the coupling nut clockwise and tighten to a full stop. The
regulator will seal on the back-check feature in the LP cylinder
valve, resulting in some resistance. An additional one-half to
three-quarters turn is required to complete the
connection. Tighten by hand only – do not use tools.
NOTE:
If you cannot complete the connection, disconnect regulator and
repeat steps 5 and 6. If you are still unable to complete the
connection, do not use this regulator!
Straight
Hold coupling nut and regulator
as shown for proper connection
to LP cylinder valve.
DANGER
• Do not insert any tool or foreign object into the valve
outlet or safety relief valve. You may damage the valve
and cause a leak. Leaking propane may result in
explosion, fire, severe personal injury, or death.
Leak Testing Valves, Hose and Regulator
1.Turn all grill control knobs to OFF.
2.Be sure regulator is tightly connected to LP cylinder.
3.Completely open LP cylinder valve by turning hand wheel
counterclockwise. If you hear a rushing sound, turn gas off
immediately. There is a major leak at the connection. Correct
before proceeding.
4.Brush soapy solution onto areas circled below, or other similar
5.If “growing” bubbles appear, there is a leak. Close LP
cylinder valve immediately and retighten connections. If leaks
cannot be stopped do not try to repair. Call for replacement
parts.
6.Always close LP cylinder valve after performing leak test by
turning hand wheel clockwise.
NOTE: Sideburner
shelf fascia not
shown for clarity.
• Outdoor gas appliance is not intended to be installed
in or on a boat.
• Outdoor gas appliance is not intended to be installed
in or on an RV.
• Never attempt to attach this grill to the self-contained
LP gas system of a camper trailer or motor home.
• Do not use grill until leak-tested.
• If a leak is detected at any time, STOP and call the fire
department.
• If you cannot stop a gas leak, immediately close
LPcylinder valve and call LP gas supplier or your fire
department!
WARNING
fittings on your grill.
NOTE: Your grill
may NOT be
equipped with a
sideburner.
6

7
WARNING
For Safe Use of Your Grill and to Avoid Serious
Injury:
•Do not let children operate or play near grill.
•Keep grill area clear and free from materials that burn.
•Do not block holes in sides or back of grill.
•Check burner flames regularly.
•Use grill only in well-ventilated space. NEVER use in
enclosed space such as carport, garage, porch,
covered patio, or under an overhead structure of any
kind.
•Do not use charcoal or ceramic briquets in a gas grill.
(Unless briquets are supplied with your grill.)
• Use grill at least 3 ft. from any wall or surface.
Maintain 10 ft. clearance to objects that can catch fire
or sources of ignition such as pilot lights on water
heaters, live electrical appliances, etc.
• Apartment Dwellers:
Check with management to learn the requirements
and fire codes for using an LP gas grill in your
apartment complex. If allowed, use outside on the
ground floor with a three (3) foot clearance from walls
or rails. Do not use on or under balconies.
• NEVER attempt to light burner with lid closed. A
buildup of non-ignited gas inside a closed grill is
hazardous.
• Never operate grill with LP cylinder out of correct
position specified in assembly instructions.
• Always close LP cylinder valve and remove
coupling nut before moving LP cylinder from
specified operation position.
Safety Tips
Before opening LP cylinder valve, check the coupling nut for
tightness.
When grill is not in use, turn off all control knobs and LP
cylinder valve.
Never move grill while in operation or still hot.
Use long-handled barbecue utensils and oven mitts to avoid
burns and splatters.
Maximum load for sideburner and side shelf is 10 lbs.
The grease tray must be inserted into grill and emptied after
each use. Do not remove grease tray until grill has
completely cooled.
Clean grill often, preferably after each cookout. If a bristle
brush is used to clean any of the grill cooking surfaces,
ensure no loose bristles remain on cooking surfaces prior to
grilling. It is not recommended to clean cooking surfaces
while grill is hot.
If you notice grease or other hot material dripping from grill
onto valve, hose or regulator, turn off gas supply at once.
Determine the cause, correct it, then clean and inspect valve,
hose and regulator before continuing. Perform a leak test.
Keep ventilation openings in cylinder enclosure (grill cart) free
and clear of debris.
Do not store objects or materials inside the grill cart
enclosure that would block the flow of combustion air to the
underside of either the control panel or the firebox bowl.
The regulator may make a humming or whistling noise during
operation. This will not affect safety or use of grill.
If you have a grill problem see the "Troubleshooting Section".
If the regulator frosts, turn off grill and LP cylinder valve
immediately. This indicates a problem with the cylinder and it
should not be used on any product. Return to supplier!
CAUTION
• Putting out grease fires by closing the lid is not possible.
Grills are well ventilated for safety reasons.
• Do not use water on a grease fire. Personal injury may
result. If a grease fire develops, turn knobs and LP
cylinder off.
• Do not leave grill unattended while preheating or burning
off food residue on HI. If grill has not been regularly
cleaned, a grease fire can occur that may damage the
product.
Ignitor Lighting
 Do not lean over grill while lighting.
1.
2.
3.
5.
6.
Turn OFF all gas burner control valves.
Turn ON gas at LP cylinder.
Open lid during lighting.
To ignite any main burner, turn the main burner control
Push and hold ELECTRONIC IGNITION button until the
7. If ignition does NOT occur in 5 seconds, turn the burner
controls OFF, wait 5 minutes and repeat the lighting
procedure.
8. Repeat steps 4 through 7 for the remaining main burners.
If ignitor does not work, follow match lighting instructions.
4. Push in and turn AUTO-CLEAN™ valve to GRILL position.
knob to the HI position
burner lights.
9. Once each burner has ignited, turn knob to desired setting.


8
Match-Lighting
CAUTION
If ignition does NOT occur in 5 seconds, turn the
burner controls OFF, wait 5 minutes and repeat the
lighting procedure. If the burner does not ignite with
the valve open, gas will continue to flow out of the
burner and could accidently ignite with risk of injury.
Turn controls and gas source or tank OFF when not
in use.
WARNING
Sideburner Ignitor Lighting
 Do not lean over grill while lighting.
1.Open sideburner lid. Turn ON gas at LP cylinder.
3.Turn sideburner knob to HI, push and hold ELECTRONIC
IGNITOR button.
4.If sideburner does NOT light, turn knob to OFF, wait 5 minutes,
then repeat lighting procedure.
Sideburner Match Lighting
1.Open sideburner lid. Turn ON gas at LP cylinder.
3.Place lit match near burner.
4.Turn sideburner knob to HI.
Be sure burner lights and
stays lit.
4. Push in and turn the AUTO-CLEAN™ valve to the GRILL position.
2.Push in and turn the AUTO-CLEAN™ valve to the GRILL position.
2.Push in and turn the AUTO-CLEAN™
valve to the GRILL position.
 Do not lean over grill while lighting.
3. Open lid during lighting.
 Do not lean over grill while lighting.
1. Turn OFF all gas burner control valves.
2. Turn ON gas at LP cylinder.
6. Push in and turn far right or far left burner knob to the HI
burner lights and stays lit.
7. Light adjacent burners in sequence by pushing knobs in and
turning to the HI position.
5. Place match into match holder (hanging from side panel of
grill). Light match; then light burner by placing match through
the match light hole on right or left side of grill.
position, depending on match light hole selected. Be sure
•
•
•
•
•
•
•
Burner Flame Check
• Remove cooking grates and flame tamers. Light burners, rotate
knobs from HI to LOW. You should see a smaller flame in
LOW position than seen on HI. Perform burner flame check
on sideburner, also. Always check flame prior to each use. If
only low flame is seen refer to "Sudden drop or low flame" in
the Troubleshooting Section.
HI
LOW
Turning the Grill OFF with AUTO-CLEAN™
With the Autoclean feature you have two choices for turning off your
grill; Manual and AUTO-CLEAN™
Manual Method
Turn all knobs, including the AUTO-CLEAN™ valve, to the OFF
position.
Turn OFF the LP cylinder by turning the handwheel clockwise to a
full stop.
AUTO-CLEAN™ Method
•
After cooking is complete, set all main burner grill knobs to the
high setting and close the grill lid. (AUTO-CLEAN™ shutdown
should not be used on the sideburner.)
Push in and turn the AUTO-CLEAN™ knob to the clean position.
Once at the clean position, release the knob and the green light
should begin blinking.
The valve will now stay on for 15 minutes before turning off the
gas to the burners.
After the clean cycle is complete, turn all knobs including
the AUTO-CLEAN™ valve to the OFF position.
Turn OFF the LP cylinder by turning the handwheel clockwise to a
full stop.
For safety in storing a grill, the LP cylinder should always be turned
OFF.
If red light comes on while green light is flashing, the batteries will
need to be replaced very soon.
Ignitor Check
•Turn gas off at LP cylinder. Press and hold electronic ignitor
button. "Click" should be heard and spark seen each time
between each collector box or burner and electrode. See
"Troubleshooting" if no click or spark.
Valve Check
•Important: Make sure gas is off at LP cylinder before
checking valves. Knobs lock in position. To check
valves, first push in knobs and release, knobs should spring
back. If knobs do not spring back, replace valve assembly
before using grill. Turn knobs to LOW position then turn back to
position. Valves should turn smoothly.
Hose Check
•Before each use, check to see if hoses are cut or worn.
Replace damaged hoses before using grill. Use only
valve/hose/regulator specified by manufacturer.
OFF
OFF
When changing the batteries, please replace both batteries at the
same time. Always replace with new batteries of the same type.
NOTE: Always follow the lighting instructions found in the instruction
manual and also located on the inside of the cabinet door prior to
using the Auto-Clean feature. Grill must be ignited prior to using the
Auto-Clean feature.

9
CAUTION
Storing Your Grill
•Clean cooking grates.
•Store in dry location.
•When LP cylinder is connected to grill, store outdoors in a well-
ventilated space and out of reach of children.
•Cover grill if stored outdoors. Choose from a variety of grill
covers offered by manufacturer.
•Store grill indoors ONLY if LP cylinder is turned off and
disconnected, removed from grill and stored outdoors.
•When removing grill from storage, follow “Cleaning the Burner
Assembly” instructions before starting grill.
SPIDER ALERT!
VALVE
CONTROL PANEL SPIDER WEBS
INSIDE VENTURI
If you notice that your grill is getting hard to light or that the
flame isn’t as strong as it should be, take the time to check and
clean the venturi’s.
In some areas of the country, spiders or small insects have been
known to create “flashback” problems. The spiders spin webs, build
nests and lay eggs in the grill’s venturi tube(s) obstructing the flow of
gas to the burner. The backed-up gas can ignite in the venturi behind
the control panel. This is known as a flashback and it can damage
your grill and even cause injury.
To prevent flashbacks and ensure good performance the burner and
venturi assembly should be removed from the grill and cleaned
before use whenever the grill has been idle for an extended period.
BURNER
SPIDER AND WEBS
INSIDE BURNER TUBE
General Grill Cleaning
•Do not mistake brown or black accumulation of grease and
smoke for paint. Interiors of gas grills are not painted at the
factory (and should never be painted). Apply a strong solution
of detergent and water or use a grill cleaner with scrub brush
on insides of grill lid and bottom. Rinse and allow to completely
air dry. Do not apply a caustic grill/oven cleaner to painted
surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry.
 Do not use citrisol, abrasive cleaners, degreasers or a
concentrated grill cleaner on plastic parts. Damage to and
failure of parts can result.
•Porcelain surfaces: Because of glass-like composition, most
residue can be wiped away with baking soda/water solution or
specially formulated cleaner. Use nonabrasive scouring powder
for stubborn stains.
•Painted surfaces: Wash with mild detergent or nonabrasive
cleaner and warm soapy water. Wipe dry with a soft
nonabrasive cloth.
•Stainless steel surfaces: To maintain your grill’s high quality
appearance, wash with mild detergent and warm soapy water
and wipe dry with a soft cloth after each use. Baked-on grease
deposits may require the use of an abrasive plastic cleaning
pad. Use only in direction of brushed finish to avoid damage.
Do not use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of
the grill cooking surfaces, ensure no loose bristles remain on
cooking surfaces prior to grilling. It is not recommended to
clean cooking surfaces while grill is hot.

3. Remove carryover tubes and burners.
4.
5. Carefully lift each burner up and away from valve openings.
We suggest three ways to clean the burner tubes. Use the one
easiest for you.
(A) Bend a stiff wire (a light weight coat hanger works well)
into a small hook. Run the hook through each burner
tube several times.
(B) Use a narrow bottle brush with a flexible handle (do not
use a brass wire brush), run the brush through each
burner tube several times.
(C) Wear eye protection: Use an air hose to force air into
the burner tube and out the burner ports. Check each
port to make sure air comes out each hole.
6. Wire brush entire outer surface of burner to remove food
residue and dirt.
7. Clean any blocked ports with a stiff wire such as an open
paper clip.
8. Check burner for damage, due to normal wear and corrosion
some holes may become enlarged. If any large cracks or
holes are found replace burner.
VERY IMPORTANT: Burner tubes must reengage valve
openings. See illustrations at right.
9. Attach electrode to burner.
10. Carefully replace burners.
11. Attach burners to brackets on firebox.
12. Reposition carryover tubes and attach
to burners. Replace flame tamers and
cooking grates.
Firebox
Carryover tube
Firebox
burner
bracket
Electrode
Correct
burner-to-valve
engagement
Detach electrode from burner.
NOTE: Removal/Detachment method will depend on the
burner configuration. See different configurations in
illustrations below.
Remove screws
Firebox
Carryover tube
Firebox burner
bracket
Pry off electrode with a
flat blade screwdriver
Electrode
Cleaning the Burner Assembly
Follow these instructions to clean and/or replace parts of burner
assembly or if you have trouble igniting grill.
1. Turn gas off at control knobs and LP cylinder.
2. Remove cooking grates and flame tamers.
10
