Char-Broil 463271009 User manual

Assembly instructions © 2008
PRODUCT GUIDE
MODEL 463271009
© 2008 Char-Broil, LLC Columbus, GA 31902 Printed in China
Serial Number
Date Purchased
IMPORTANT: Fill out the product record information below.
See rating label on grill for serial number.
grill, please visit us at
www.charbroil.com
If you have questions or need
Estimated assembly time: 30 - 45 minutes
assistance during assembly,
please call 1-888-430-7870.
10/17/08•80018625
For support and to register your
The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Char-Broil®; America's Legendary Barbeque Company®;
AmericanGourmet®;Bandera®;BrushHawg®;CB940®;Char-Diamonds®;Char-BroilCharcoal/Gas®;DiamondFlame®;EverybodyGrills®;EverybodyOutside®;
FastStart®; Fireball®; Firenzy®; FlavorMaster®; Grill2Go®; Grill2Go® Express®; Grill Lovers®; H20 Smoker®; Keepers of the Flame®; New Braunfels Smoker
Company®; Oklahoma Joe's®; Patio Bistro®; Patio Caddie®; Patio Kitchen®; Precision Flame®; Quantum®; Santa Fe®; Sear and Grill®; Sierra®; Signature
Series®;TheBigEasy®;TheMinuteGrill®;Trentino®;WildWestTradition®;andthefollowingmarks:
® ®
Protected under one or more of the following U.S. Patents: 4,989,579; 5,421,319; 5,458,309; 5,579,755; 5,996,573; 6,114,666; 6,135,104; 6,209,533; 6,279,566; 6,331,108; 6,484,900; 6,526,876; 6,595,197; 6,640,799; 6,640,803; 6,729,873; 6,739,473; 6,749,424;
6,863,100;6,935,327;6,951,213;6792,935;7,047,590;D364,535;D372,637;D373,701;D377,735;D383,035;D397,910;D405,643;D406,005;D406,009;D413,043;D413,229;D414,982;D415,388;D416,164;D416,441;D417,587;D417,588;D422,516;D423,876;
D428,303;D430,772; D435,396;D436,004;D438,059;D438,060; D438,427;D439,110; D442,505;D443,179;D443,354; D443,464;D447,384;D447,385; D447,909;D448,610;D448,614;D448,615; D448,616;D448,975;D449,492;D450,544; D451,759;D454,028;
D454,031;D455,205; D455,206;D456,202; D456,222;D456,223;D457,789; D458,520;D458,760; D458,802;D459,088;D459,148 D459,149;D459,161;D459,163; D459,586;D459,943; D460,312;D460,313;D460,318; D461,359;D465,123;D465,693; D466,307;
D466,439; D466,752; D473,414; D474,371; D477,498; D477,501; D477,504; D477,506; D477,746; D478,471; D478,472; D480,914; D491,410; D494,009; D494,413; D498,523; D500,359; D504,048; D530,098; D535,000; Canada: 87,743; 87,744; 97,504; 99,355;
102,037;104,200;2,315,567;2,336,036;France:010,231;010,422;010,590;010,849;1,089,646;Germany:1,089,646;SouthKorea:384,565;China:99,127,066.5;UnitedKingdom:2,099,402;1,089,646.OtherPatentsPending.
©2008W.C.BradleyCompany
The following are trademarks of W.C. Bradley Co.: Commercial Series™; Designer Series™; Grill2Go® Advantage™; Longhorn™; Double Chef™; QuickSet™;
ReadyWhenYouAre™;HogandYardBird™;YouBringtheParty™;SureFire™;UniversalGrillParts™
TEC™isatrademarkofTecInfraredGrills.
TM REVISION 00

1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
WARNING
CAUTION
For residential use only. Do not use for commercial
cooking.
DANGER
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING
WARNING: Indicates an potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION: Indicates a potentially hazardous situation or
unsafe practice which, if not avoided, may result in minor
or moderate injury.
Safety Symbols
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout
the manual.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
THIS GRILL IS FOR OUTDOOR USE ONLY.
CAUTION:
Read and follow all safety statements, assembly
instructions, and use and care directions before attempting
to assemble and cook.
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
WARNING:
Failure to follow all manufacturer’s instructions could result
in serious personal injury and/or property damage.
CAUTION:
Some parts may contain sharp edges – especially as noted
in the manual! Wear protective gloves if necessary.
TABLE OF CONTENTS
For Your Safety....................................2-3
Use and Care .....................................4-9
Limited Warranty....................................10
Parts List..........................................11

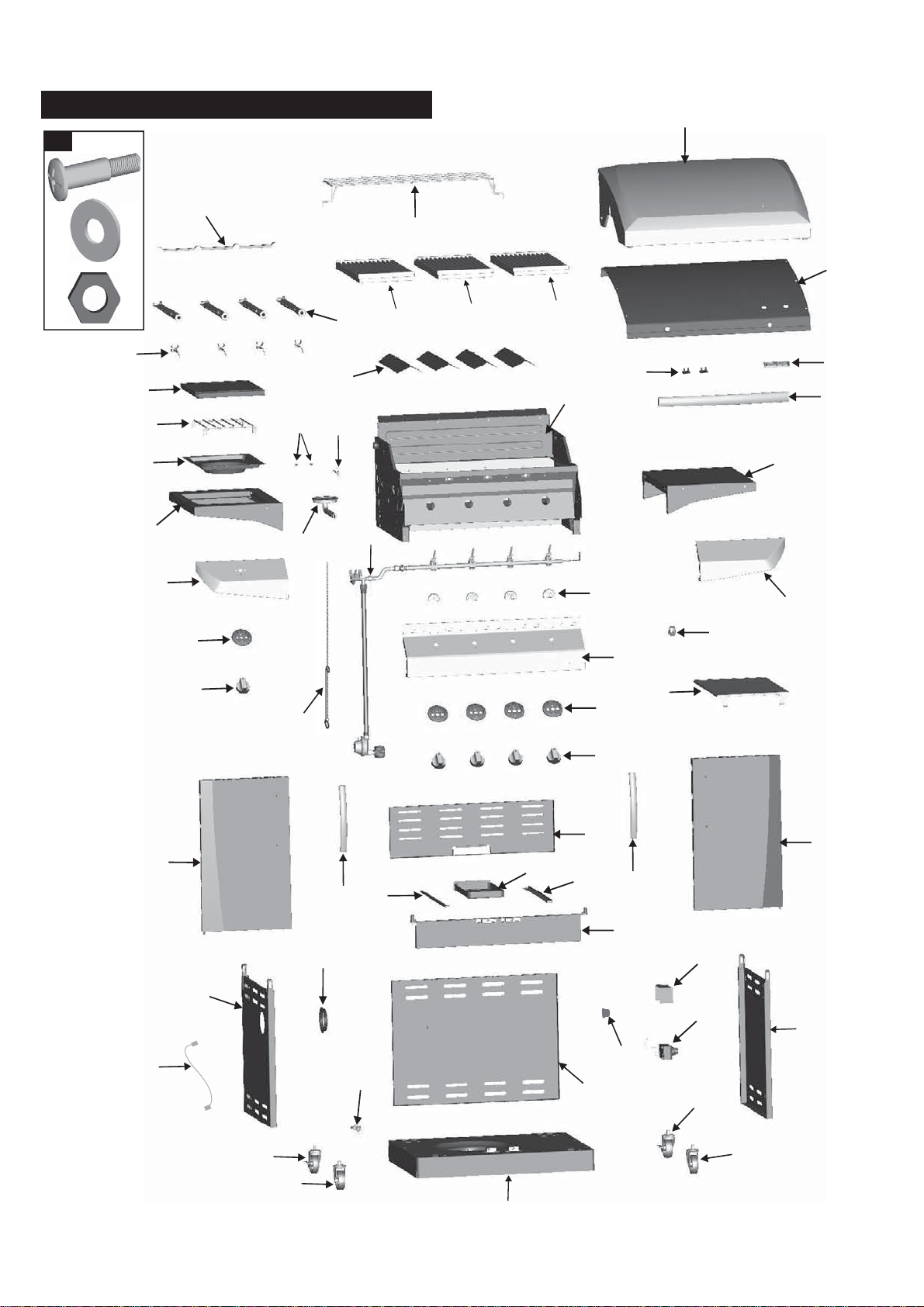

Parts Diagram......................................12

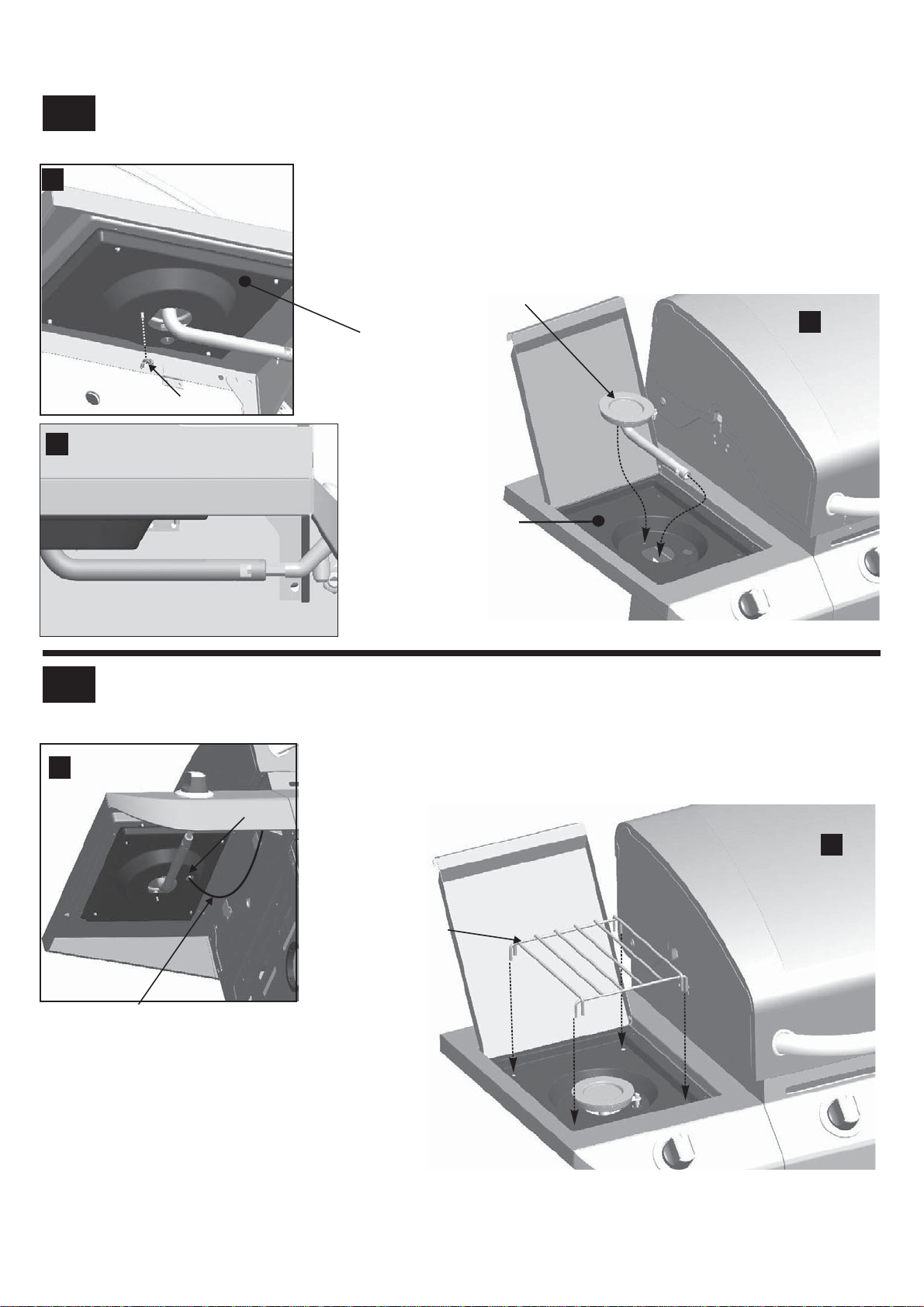

Assembly.......................................13-22
Troubleshooting..................................23-25
Registration Card...................................27
2

WARNING
CALIFORNIA PROPOSITION 65
1. Combustion by-products produced when using
this product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.
2. This product contains chemicals, including lead
and lead compounds, known to the State of
California to cause cancer, birth defects or other
reproductive harm.
Wash your hands after handling this product.
Installation Safety Precautions
•Use grill, as purchased, only with LP (propane) gas and the
regulator/valve assembly supplied. A conversion kit must be
purchased for use with natural gas.
•Grill installation must conform with local codes, or in their
absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1/ NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2, or the Standard for Recreational
Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series,
Recreational Vehicle Code, as applicable.
• All electrical accessories (such as rotisserie) must be
electrically grounded in accordance with local codes, or
National Electrical Code, ANSI / NFPA 70 or Canadian
Electrical Code, CSA C22.1. Keep any electrical cords and/or
fuel supply hoses away from any hot surfaces.
• This grill is safety certified for use in the United States and/or
Canada only. Do not modify for use in any other location.
Modification will result in a safety hazard.
WARNING
Do not attempt to repair or alter the
hose/valve/regulator for any “assumed” defect. Any
modification to this assembly will void your warranty
and create the risk of a gas leak and fire. Use only
authorized replacement parts supplied by
manufacturer.
3

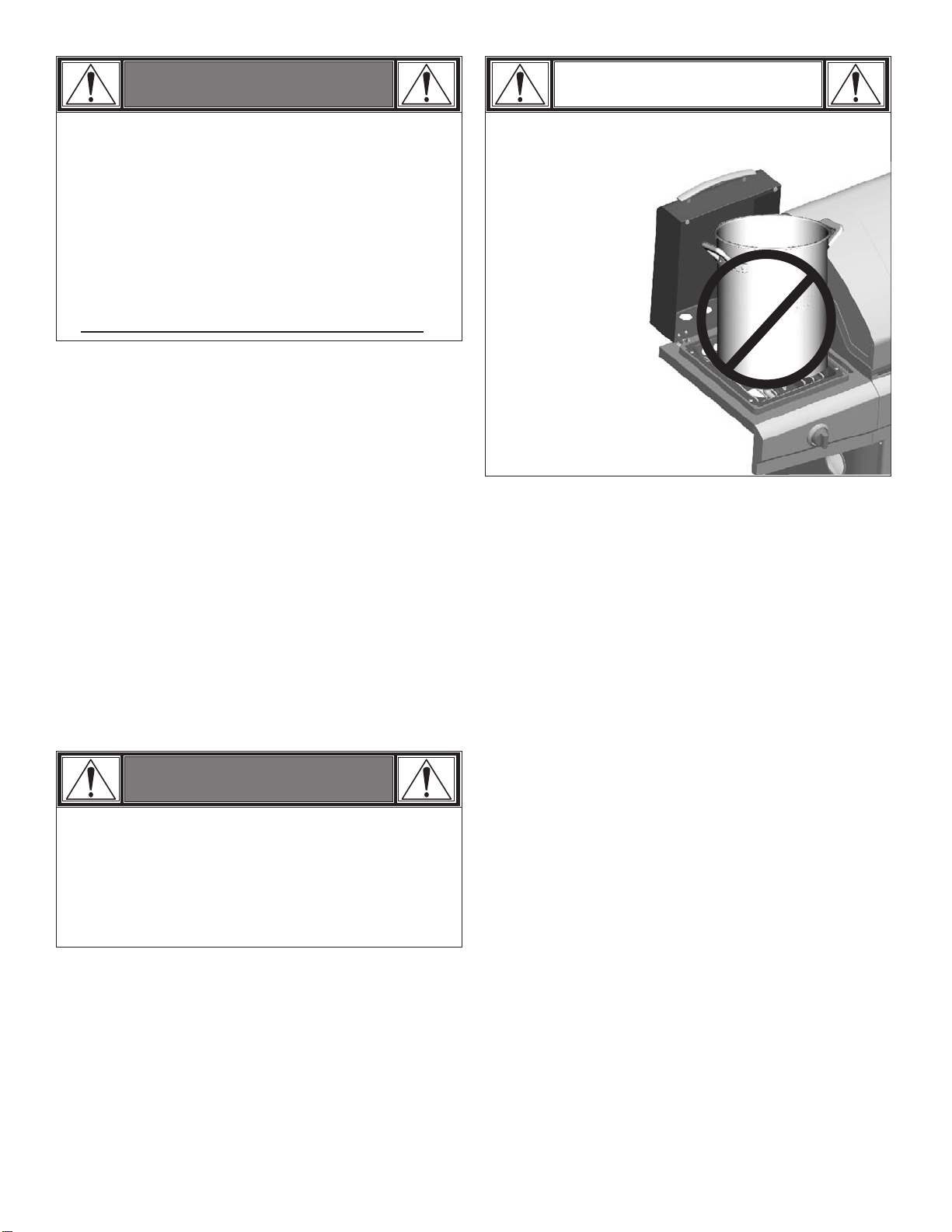

CAUTION
Using pots larger than 6 quarts in capacity could
exceed weight limit of the
side burner shelf,
resulting in failure
of grill cart
components.

OPD Hand Wheel
LP (Liquefied Petroleum Gas)
•LP gas is nontoxic, odorless and colorless when produced. For
Your Safety, LP gas has been given an odor (similar to rotten
cabbage) so that it can be smelled.
•LP gas is highly flammable and may ignite unexpectedly when
mixed with air.
LP Cylinder Filling
•Use only licensed and experienced dealers.
•LP dealer must purge new cylinder before filling.
•Dealer should NEVER fill LP cylinder more than 80% of LP
cylinder volume. Volume of propane in cylinder will vary by
temperature.
•A frosty regulator indicates gas overfill. Immediately close LP
cylinder valve and call local LP gas dealer for assistance.
•Do not release liquid propane (LP) gas into the atmosphere.
This is a hazardous practice.
•To remove gas from LP cylinder, contact an LP dealer or call a
local fire department for assistance. Check the telephone
directory under “Gas Companies” for nearest certified LP
dealers.

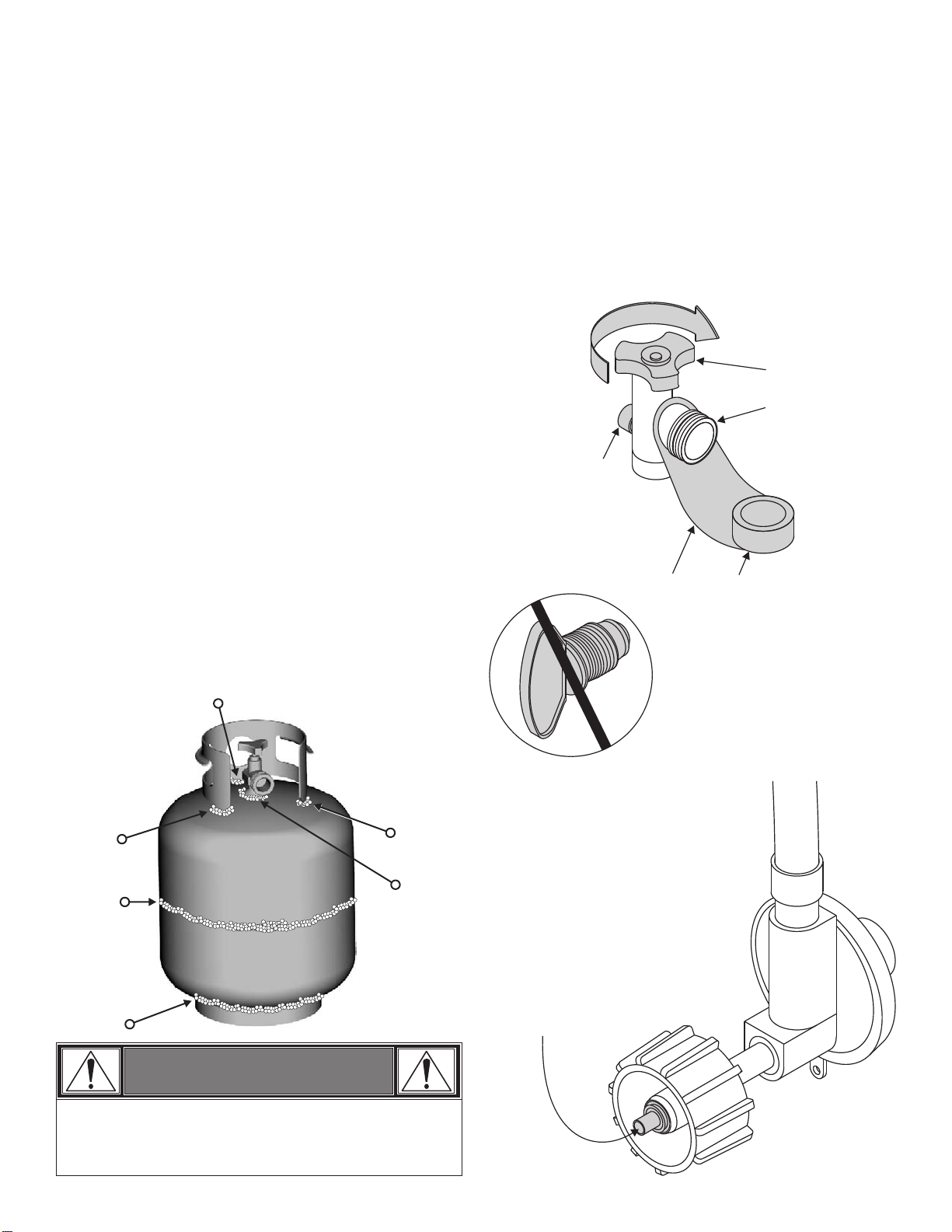

LP Cylinder
•The LP cylinder used with your grill must meet the
following requirements:
•Use LP cylinders only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
capacity maximum.
•LP cylinders must be constructed and marked in accordance
with specifications for LP cylinders of the U.S. Department of
Transportation (DOT) or for Canada, CAN/CSA-B339,
cylinders, spheres and tubes for transportation of dangerous
goods. Transport Canada (TC). See LP cylinder collar for
marking.
•LP cylinder valve must have:
•Type 1 outlet compatible with
regulator or grill.
•Safety relief valve.
•UL listed Overfill Protection
Device (OPD). This OPD safety
feature is identified by a unique triangular hand wheel. Use
only LP cylinders equipped with this type of valve.
•LP cylinder must be arranged for vapor withdrawal and include
collar to protect LP cylinder valve. Always keep LP cylinders in
upright position during use, transit or storage.
LP cylinder in upright position for vapor withdrawal
USE AND CARE
LP Tank Removal, Transport And Storage
• Turn OFF all control knobs and LP tank valve. Turn coupling
nut counterclockwise by hand only - do not use tools to
disconnect. Lift LP tank wire upward off of LP tank collar, then
lift LP tank up and off of support bracket. Install safety cap onto
LP tank valve. Always use cap and strap supplied with valve.
Failure to use safety cap as directed may result in serious
personal injury and/or property damage.
LP Tank Valve
Retainer Strap
Safety Cap
• A disconnected LP tank in storage or being transported must
have a safety cap installed (as shown). Do not store an LP tank
in enclosed spaces such as a carport, garage, porch, covered
patio or other building. Never leave an LP tank inside a vehicle
which may become overheated by the sun.
• Do not store an LP tank in an area where children play.
• NEVER store a spare LP cylinder under or near the
appliance or in an enclosed area.
• Never fill a cylinder beyond 80% full.
• If the information in two points above is not
followed exactly, a fire causing death or serious
injury may occur.
• An over filled or improperly stored cylinder is a
hazard due to possible gas release from the safety
relief valve. This could cause an intense fire with
risk of property damage, serious injury or death.
• If you see, smell or hear gas escaping, immediately
get away from the LP cylinder/appliance and call
your fire department.
DANGER
4

WARNING
If “growing” bubbles appear do not use or move the LP
cylinder. Contact an LP gas supplier or your fire
department!
Connecting Regulator to the LP Cylinder
1.LP cylinder must be properly secured onto grill. (Refer to
assembly section.)
2.Turn all control knobs to the OFF position.
3.Turn LP cylinder OFF by turning hand-wheel clockwise to a
full stop.
4.Remove the protective cap from LP cylinder valve. Always use
cap and strap supplied with valve.
Safety Relief Valve
Nipple has to be centered
into the LP cylinder valve.
OPD Hand Wheel
Type 1 outlet with
thread on outside
c k w
o
l
i
s
C
e
f
f
O
Do not use a POL transport plug
(plastic part with external threads)!
It will defeat the safety feature of
the valve.
Strap and Cap
LP Cylinder Exchange
•Many retailers that sell grills offer you the option of replacing
your empty LP cylinder through an exchange service. Use only
those reputable exchange companies that inspect, precision fill,
test and certify their cylinders. Exchange your cylinder only
for an OPD safety feature-equipped cylinder as described
in the "LP Cylinder" section of this manual.
•Always keep new and exchanged LP cylinders in upright
position during use, transit or storage.
•Leak test new and exchanged LP cylinders BEFORE
connecting to grill.
LP Cylinder Leak Test
For your safety
•Leak test must be repeated each time LP cylinder is exchanged
or refilled.
•Do not smoke during leak test.
•Do not use an open flame to check for gas leaks.
•Grill must be leak tested outdoors in a well-ventilated area,
away from ignition sources such as gas fired or electrical
appliances. During leak test, keep grill away from open flames
or sparks.
•Use a clean paintbrush and a 50/50 mild soap and water
solution.
s Do not use household cleaning agents. Damage to gas
train components can result.
Brush soapy solution onto areas indicated by arrows
in figure below.
5.Hold regulator and insert nipple into LP
cylinder valve. Hand-tighten the
coupling nut, holding regulator in a
straight line with LP cylinder valve so
as not to cross-thread the connection.
5

6.Turn the coupling nut clockwise and tighten to a full stop. The
regulator will seal on the back-check feature in the LP cylinder
valve, resulting in some resistance. An additional one-half to
three-quarters turn is required to complete the
connection. Tighten by hand only – do not use tools.
NOTE:
If you cannot complete the connection, disconnect regulator and
repeat steps 5 and 6. If you are still unable to complete the
connection, do not use this regulator!
Straight
Hold coupling nut and regulator
as shown for proper connection
to LP cylinder valve.
DANGER
• Do not insert any tool or foreign object into the valve
outlet or safety relief valve. You may damage the valve
and cause a leak. Leaking propane may result in
explosion, fire, severe personal injury, or death.
Leak Testing Valves, Hose and Regulator
1.Turn all grill control knobs to OFF.
2.Be sure regulator is tightly connected to LP cylinder.
3.Completely open LP cylinder valve by turning hand wheel
counterclockwise. If you hear a rushing sound, turn gas off
immediately. There is a major leak at the connection. Correct
before proceeding.
4.Brush soapy solution onto areas circled below.
5.If “growing” bubbles appear, there is a leak. Close LP
cylinder valve immediately and retighten connections. If leaks
cannot be stopped do not try to repair. Call for replacement
parts.
6.Always close LP cylinder valve after performing leak test by
turning hand wheel clockwise.
NOTE: Sideburner
shelf fascia not
shown for clarity.
• Outdoor gas appliance is not intended to be installed
in or on a boat.
• Outdoor gas appliance is not intended to be installed
in or on an RV.
• Never attempt to attach this grill to the self-contained
LP gas system of a camper trailer or motor home.
• Do not use grill until leak-tested.
• If a leak is detected at any time, STOP and call the fire
department.
• If you cannot stop a gas leak, immediately close
LPcylinder valve and call LP gas supplier or your fire
department!
WARNING
6

WARNING
For Safe Use of Your Grill and to Avoid Serious
Injury:
•Do not let children operate or play near grill.
•Keep grill area clear and free from materials that burn.
•Do not block holes in sides or back of grill.
•Check burner flames regularly.
•Use grill only in well-ventilated space. NEVER use in
enclosed space such as carport, garage, porch,
covered patio, or under an overhead structure of any
kind.
•Do not use charcoal or ceramic briquets in a gas grill.
(Unless briquets are supplied with your grill.)
• Use grill at least 3 ft. from any wall or surface.
Maintain 10 ft. clearance to objects that can catch fire
or sources of ignition such as pilot lights on water
heaters, live electrical appliances, etc.
• Apartment Dwellers:
Check with management to learn the requirements
and fire codes for using an LP gas grill in your
apartment complex. If allowed, use outside on the
ground floor with a three (3) foot clearance from walls
or rails. Do not use on or under balconies.
• NEVER attempt to light burner with lid closed. A
buildup of non-ignited gas inside a closed grill is
hazardous.
• Never operate grill with LP cylinder out of correct
position specified in assembly instructions.
• Always close LP cylinder valve and remove
coupling nut before moving LP cylinder from
specified operation position.
Safety Tips
sBefore opening LP cylinder valve, check the coupling nut for
tightness.
sWhen grill is not in use, turn off all control knobs and LP
cylinder valve.
sNever move grill while in operation or still hot.
sUse long-handled barbecue utensils and oven mitts to avoid
burns and splatters.
sMaximum load for sideburner and side shelf is 10 lbs.
sThe grease tray must be inserted into grill and emptied after
each use. Do not remove grease tray until grill has
completely cooled.
sClean grill often, preferably after each cookout. If a bristle
brush is used to clean any of the grill cooking surfaces,
ensure no loose bristles remain on cooking surfaces prior to
grilling. It is not recommended to clean cooking surfaces
while grill is hot.
sIf you notice grease or other hot material dripping from grill
onto valve, hose or regulator, turn off gas supply at once.
Determine the cause, correct it, then clean and inspect valve,
hose and regulator before continuing. Perform a leak test.
sKeep ventilation openings in cylinder enclosure (grill cart) free
and clear of debris.
sDo not store objects or materials inside the grill cart
enclosure that would block the flow of combustion air to the
underside of either the control panel or the firebox bowl.
sThe regulator may make a humming or whistling noise during
operation. This will not affect safety or use of grill.
sIf you have a grill problem see the "Troubleshooting Section".
sIf the regulator frosts, turn off grill and LPcylinder valve
immediately. This indicates a problem with the cylinder and it
should not be used on any product. Return to supplier!
CAUTION
• Putting out grease fires by closing the lid is not possible.
Grills are well ventilated for safety reasons.
• Do not use water on a grease fire. Personal injury may
result. If a grease fire develops, turn knobs and LP
cylinder off.
• Do not leave grill unattended while preheating or burning
off food residue on HI. If grill has not been regularly
cleaned, a grease fire can occur that may damage the
product.
Ignitor Lighting
sDo not lean over grill while lighting.
1.
2.
3.
4.
5.
Turn OFF gas burner control valves.
Turn ON gas source or tank.
Open lid during lighting.
To ignite, ignition burner knob to HI.
Push and hold ELECTRONIC IGNITION button.
6.If ignition does NOT occur in 5 seconds, turn the burner
controls OFF, wait 5 minutes and repeat the lighting
procedure.
7. To ignite remaining burners, turn knob to HI. Starting with
the burners closest to IGNITION BURNERS first.
If ignitor does not work, follow match lighting instructions.
After Lighting: Turn knobs to HI position for warm-up.

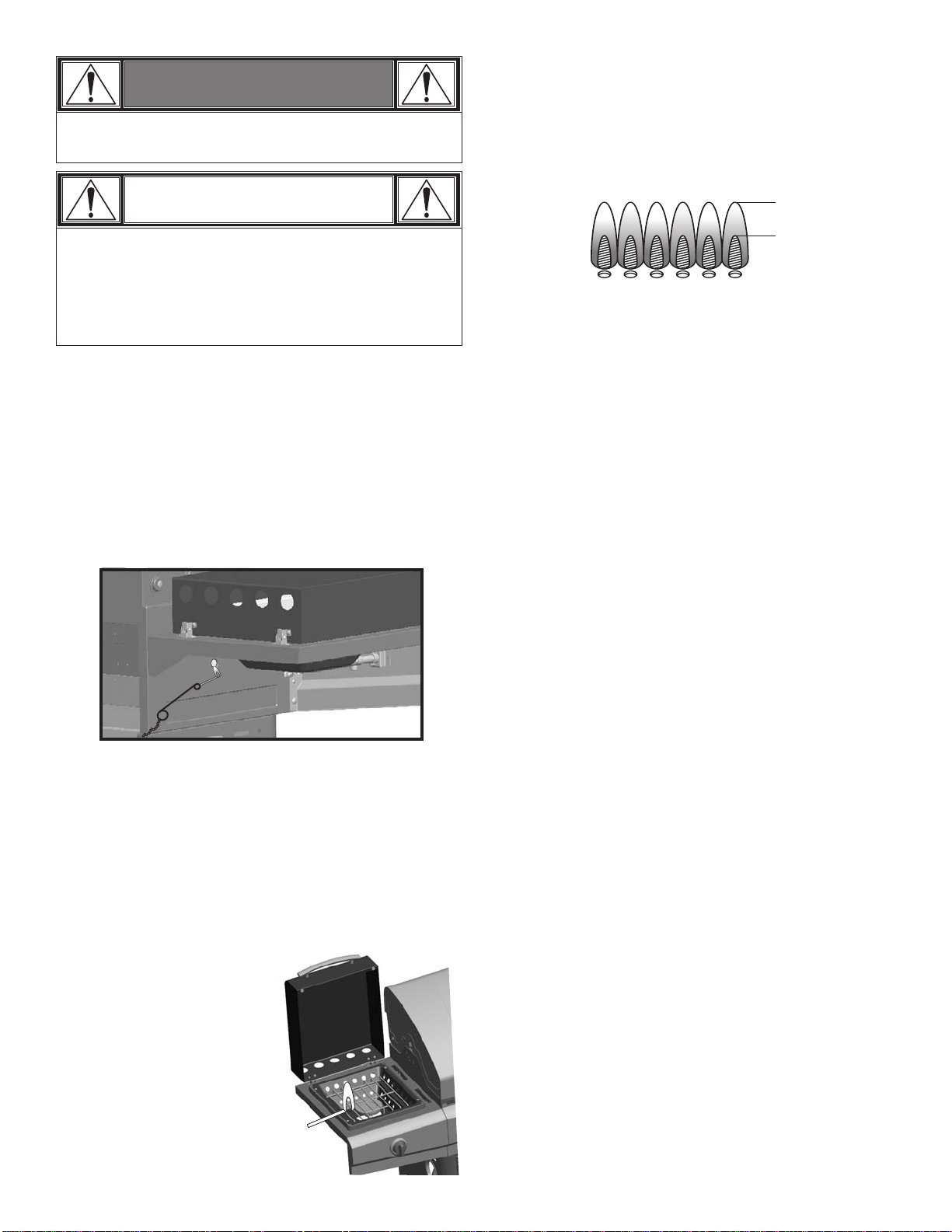

Burner Flame Check
•Remove cooking grates and flame tamers. Light burners, rotate
knobs from HIGH to LOW. You should see a smaller flame in
LOW position than seen on HIGH. Perform burner flame check
on sideburner, also.Always check flame prior to each use. If
only low flame is seen refer to "Sudden drop or low flame" in
the Troubleshooting Section.
HIGH
LOW
Match-Lighting
sDo not lean over grill while lighting.
1.Open lid. Turn on gas at LP cylinder.
2.Place lit match into match holder (hanging from cart side
panel), light burner on right or left side of grill.
3.Push in and turn far right or far left burner knob to HI. Be sure
burner lights and stays lit.
4.Light adjacent burners in sequence by pushing knobs in and
turning to HI.
Turning Grill Off
•Turn all knobs to position. Turn LP cylinder off by turning
hand-wheel clockwise to a full stop.
Ignitor Check
•Turn gas off at LP cylinder. Press and hold electronic ignitor
button. "Click" should be heard and spark seen each time
between collector box or burner and electrode. See
"Troubleshooting" if no click or spark.
Valve Check
•Important: Make sure gas is off at LP cylinder before
checking valves. Knobs lock in position. To check
valves, first push in knobs and release, knobs should spring
back. If knobs do not spring back, replace valve assembly
before using grill. Turn knobs to LOW position then turn back to
position. Valves should turn smoothly.
Hose Check
•Before each use, check to see if hoses are cut or worn.
Replace damaged hoses before using grill. Use only
valve/hose/regulator specified by manufacturer.
General Grill Cleaning
•Do not mistake brown or black accumulation of grease and
smoke for paint. Interiors of gas grills are not painted at the
factory (and should never be painted).Apply a strong solution
of detergent and water or use a grill cleaner with scrub brush
on insides of grill lid and bottom. Rinse and allow to completely
air dry. Do not apply a caustic grill/oven cleaner to painted
surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry.
sDo not use citrisol, abrasive cleaners, degreasers or a
concentrated grill cleaner on plastic parts. Damage to and
failure of parts can result.
•Porcelain surfaces: Because of glass-like composition, most
residue can be wiped away with baking soda/water solution or
specially formulated cleaner. Use nonabrasive scouring powder
for stubborn stains.
•Painted surfaces: Wash with mild detergent or nonabrasive
cleaner and warm soapy water. Wipe dry with a soft
nonabrasive cloth.
•Stainless steel surfaces: To maintain your grill’s high quality
appearance, wash with mild detergent and warm soapy water
and wipe dry with a soft cloth after each use. Baked-on grease
deposits may require the use of an abrasive plastic cleaning
pad. Use only in direction of brushed finish to avoid damage.
Do not use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of
the grill cooking surfaces, ensure no loose bristles remain on
cooking surfaces prior to grilling. It is not recommended to
clean cooking surfaces while grill is hot.
OFF
OFF
OFF
CAUTION
If ignition does NOT occur in 5 seconds, turn the
burner controls OFF, wait 5 minutes and repeat the
lighting procedure. If the burner does not ignite with
the valve open, gas will continue to flow out of the
burner and could accidently ignite with risk of injury.
Turn controls and gas source or tank OFF when not
in use.
WARNING
Sideburner Ignitor Lighting
sDo not lean over grill while lighting.
1.Open sideburner lid. Turn on gas at LP cylinder.
2.Turn sideburner knob to HI, push and hold ELECTRONIC
IGNITOR button.
3.If sideburner does NOT light, turn knob to OFF, wait 5 minutes,
then repeat lighting procedure.
Sideburner Match Lighting
1.Open sideburner lid. Turn on gas at LP cylinder.
2.Place lit match near burner.
3.Turn sideburner knob to HI.
Be sure burner lights and
stays lit.

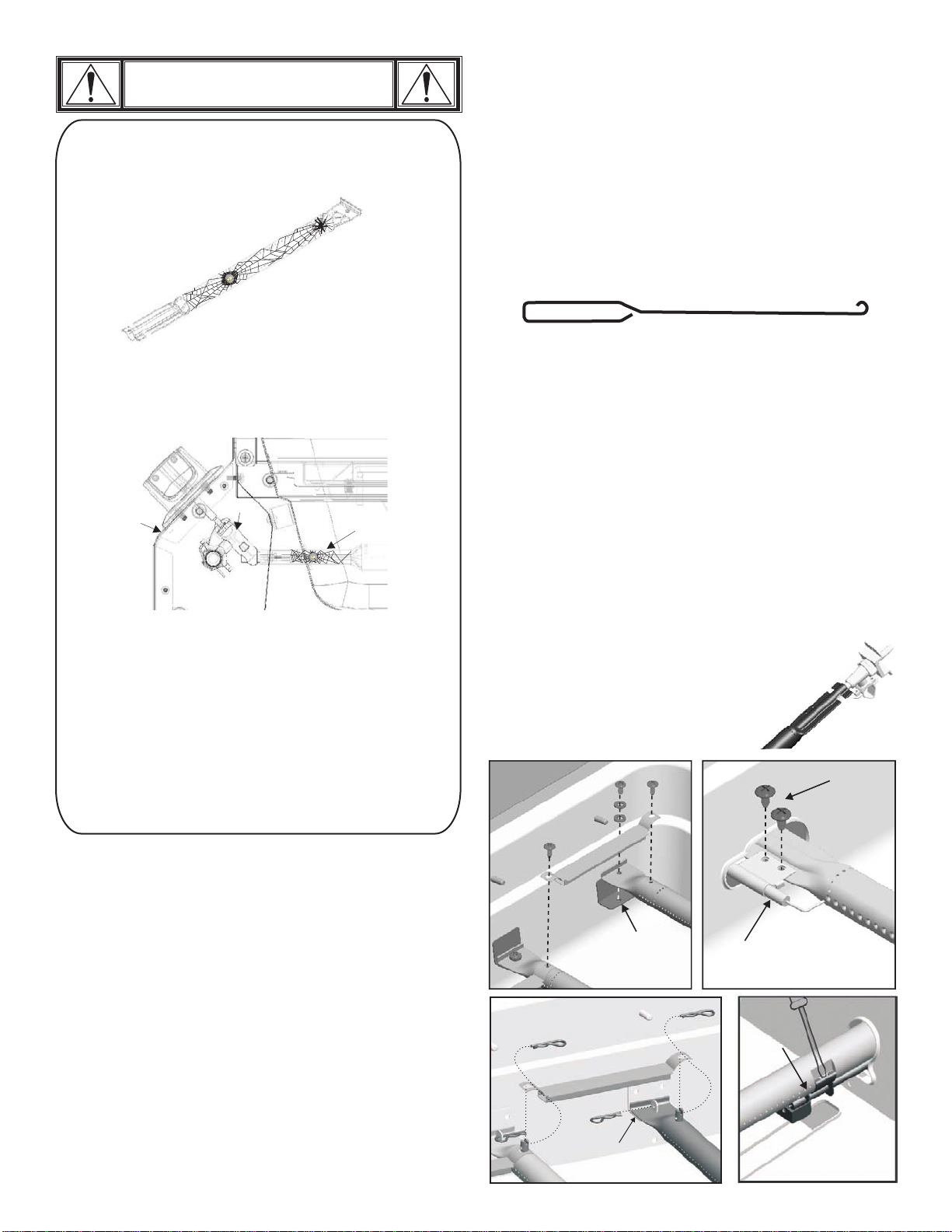

Cleaning the Burner Assembly
Follow these instructions to clean and/or replace parts of burner
assembly or if you have trouble igniting grill.
1. Turn gas off at control knobs and LP cylinder.
2. Remove cooking grates and flame tamers.
3. Remove carryover tubes and burners.
4.
5. Carefully lift each burner up and away from valve openings.
We suggest three ways to clean the burner tubes. Use the one
easiest for you.
(A) Bend a stiff wire (a light weight coat hanger works well)
into a small hook. Run the hook through each burner
tube several times.
(B) Use a narrow bottle brush with a flexible handle (do not
use a brass wire brush), run the brush through each
burner tube several times.
(C) Wear eye protection: Use an air hose to force air into
the burner tube and out the burner ports. Check each
port to make sure air comes out each hole.
6. Wire brush entire outer surface of burner to remove food
residue and dirt.
7. Clean any blocked ports with a stiff wire such as an open
paper clip.
8. Check burner for damage, due to normal wear and corrosion
some holes may become enlarged. If any large cracks or
holes are found replace burner.
VERY IMPORTANT: Burner tubes must reengage valve
openings. See illustrations at right.
9. Attach electrode to burner.
10. Carefully replace burners.
11. Attach burners to brackets on firebox.
12. Reposition carryover tubes and attach
to burners. Replace flame tamers and
cooking grates.
CAUTION
Storing Your Grill
•Clean cooking grates.
•Store in dry location.
•When LP cylinder is connected to grill, store outdoors in a well-
ventilated space and out of reach of children.
•Cover grill if stored outdoors. Choose from a variety of grill
covers offered by manufacturer.
•Store grill indoors ONLY if LPcylinder is turned off and
disconnected, removed from grill and stored outdoors.
•When removing grill from storage, follow “Cleaning the Burner
Assembly” instructions before starting grill.
Firebox
Carryover tube
Firebox
burner
bracket
Electrode
SPIDER ALERT!
VALVE
CONTROL PANEL SPIDER WEBS
INSIDE VENTURI
If you notice that your grill is getting hard to light or that the
flame isn’t as strong as it should be, take the time to check and
clean the venturi’s.
In some areas of the country, spiders or small insects have been
known to create “flashback” problems. The spiders spin webs, build
nests and lay eggs in the grill’s venturi tube(s) obstructing the flow of
gas to the burner. The backed-up gas can ignite in the venturi behind
the control panel. This is known as a flashback and it can damage
your grill and even cause injury.
To prevent flashbacks and ensure good performance the burner and
venturi assembly should be removed from the grill and cleaned
before use whenever the grill has been idle for an extended period.
BURNER
SPIDER AND WEBS
INSIDE BURNER TUBE
Correct
burner-to-valve
engagement
Detach electrode from burner.
NOTE: Removal/Detachment method will depend on the
burner configuration. See different configurations in
illustrations below.
Remove screws
Firebox
Carryover tube
Firebox burner
bracket
Pry off
electrode with
a flat blade
screwdriver
Electrode

This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this
product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods
indicated below beginning on the date of purchase*. The manufacturer reserves the right to require that defective parts be returned, postage and or
freight pre-paid by the consumer for review and examination.
*Note: A dated sales reciept WILL be required for warranty service.
The original consumer-purchaser will be responsible for all shipping charges for parts replaced under the terms of this limited warranty.
This limited warranty is applicable in the United States and Canada only, is only available to the original owner of the product and is not transferable.
Manufacturer requires proof of your date of purchase. Therefore, you should retain your sales slip or invoice. Registering your product is not a
substitute for proof of purchase and the manufacturer is not responsible for or required to retain proof of purchase records.
This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or
discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the
discoloration of stainless steel surfaces.
This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage.
ITEMS MANUFACTURER WILL NOT PAY FOR:
1. Shipping cost, standard or expedited, for warranty and replacement parts
2. Service calls to your home.
3. Repairs when your product is used for other than normal, single-family household or residential use.
acts of God, improper installation or maintenance, installation not in accordance with electrical or plumbing codes, or use
of products not approved by the manufacturer.
5. Any food loss due to product failures or operating difficulties.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. Pickup and delivery of your product.
8. Repairs to parts or systems resulting from unauthorized modifications made to the product.
9. The removal and/or reinstallation of your product.
DISCLAIMER OF IMPLIED WARRANTIES and LIMITATION OF REMEDIES
Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. Manufacturer will not be responsible for
any consequential or incidental damages arising from the breach of either this limited warranty or any applicable implied warranty, or for failure or
damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration, replacement of parts by anyone other than
Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper
installation or installation not in accordance with local codes or printed manufacturer instructions.
THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE
SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET
FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY STATE,
INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY
LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.
Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies
in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed the purchase price of the
product paid by the original consumer.
NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions
may not apply to you. This limited warranty gives you specific legal rights as set foth herein. You may also have other rights which vary from state
to state. In the state of California only, if refinishing or replacement of the product is not commercially practicable, the retailer selling this product or
the Manufacturer will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumer-purchaser
prior to discovery of the nonconformity. In addition, in the state of California only, you may take the product to the retail establishment selling this
product in order to obtain performance under this limited warranty.
If you wish to obtain performance of any obligation under this limited warranty, you should
write to:
Consumer Relations
P. O. Box 1240
Columbus, GA 31902-1240
Consumer returns will not be accepted unless a valid Return Authorization is first acquired. Authorized returns are clearly marked on the outside of
the package with an RA number and the package is shipped freight/postage pre-paid. Consumer returns that do not meet these standards will be
refused.
LIMITED WARRANTY
4. Damage, failures, or operating difficulties resulting from accident, alteration, careless handling, misuse, abuse, fire, flood,
RUST is not considered a manufacturing or materials defect.
SCOPE OF COVERAGE PERIOD OF COVERAGE TYPE OF FAILURE COVERAGE
PERFORATION, MANUFACTURING,
AND MATERIAL DEFECTS ONLY
Stainless Burner
Firebox and Lid
All Other Parts
Limited Lifetime
2 years from date of purchase*
1 year from date of purchase*
10

PARTS LIST
NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from
those on your particular grill model. However, the method of assembly remains the same.
Not Pictured:
11
Key Qty Description
A1
BOTTOM SHELF
B1
TANK SCREW, F/ BOTTOM SHELF
C2
CASTER, LOCKING
D2
CASTER, FIXED
E1
CART LEFT SIDE PANEL
F1
GROMMET, F/ REGULATOR HOLE
G1
CART RIGHT SIDE PANEL
H1
CART LOWER BACK PANEL
I1
FRONT BRACE
J1
HEAT SHIELD, F/ TANK
K1
LEFT RAIL, F/ GREASE TRAY
L1
RIGHT RAIL, F/ GREASE TRAY
M1
FIREBOX
N1
MATCH HOLDER
O4
MAIN BURNER
P4
ELECTRODE W/ WIRE/COLLECTOR, F/
MAIN BURNER
Q3
CARRYOVER TUBE W/ COTTER PIN
R1
IGNITER SWITCH MODULE
S1
HOSE VALVE REGULATOR ASSY
T1
MAIN CONTROL PANEL
U1
ELECTRONIC IGNITION MODULE
V1
BUTTON, F/ EI MODULE
W1
HEAT SHIELD, F/ EI MODULE
X1
GREASE TRAY
Y1
ELECTRODE WIRE, F/ SIDEBURNER
Z5
BEZEL, F/ CONTROL KNOB
AA 5
CONTROL KNOB
BB 4
TEMPERATURE GAUGE, UFC
MOUNTED
CC 1
CART UPPER BACK PANEL
DD 1
LEFT SIDE SHELF F/ S/B
EE 1
FASCIA, F/LEFT SIDE SHELF
FF 1
DRIP PAN, F/ SB
GG 2
RUBBER BUMPER, F/ LID
HH 1
LID, F/ SB
II 1
SIDEBURNER
JJ 1
ELECTRODE, F/ SB
KK 1
RIGHT SIDE SHELF
LL 1
FASCIA, F/ RIGHT SIDE SHELF
MM 1
TOP LID, OUTER
NN 1
INNER LINER, F/ TOP LID
OO 1
HANDLE F/ TOP LID
PP 2
RECTANGULAR BUMPER, F/ TOP LID
QQ 1
LOGO PLATE
RR 1
HARDWARE F/ TOP LID
SS 1
LEFT DOOR, NO HANDLE
TT 2
DOOR HANDLE
UU 1
RIGHT DOOR, NO HANDLE
Key Qty Description
VV 4
FLAME TAMER
WW 3
COOKING GRATE
XX 1
GRATE, F/ SB
YY 1
WARMING RACK
Key Qty
Description
…2
DOOR MAGNET
…1
CASTER WRENCH
…1
HARDWARE PACK
…1
ASSEMBLY MANUAL, ENGLISH
…1
ASSEMBLY MANUAL, SPANISH

PARTS DIAGRAM
RR
B
A
C
C
D
D
E
F
G
H
I
K
J
L
M
N
O
P
Q
R
T
S
U
V
W
X
Y
Z
Z
BB
AA
AA
CC
DD
EE
FF
GG
HH
II
KK
JJ
LL
MM
NN
OO
PP QQ
TT
TT
SS UU
VV
WW
XX
YY
WW WW
12

ASSEMBLY
21/4-20x1/2” screw
1
Attach side panels to bottom shelf using three
1/4-20x1/2” screws, 7mm lock washers, and
7mm flat washers per panel.
IMPORTANT: Panel with large hole must
Be on left side of bottom shelf. 7mm lock washer
7mm flat washer
Attach the two locking casters at the rear of the bottom shelf and the two fixed casters at the front.
Use the provided caster wrench to fully tighten casters.
Locking caster
Bottom shelf
Rear
Fixed caster
Front
13
Left side panel
(with large hole)
Make sure side panels
are pushed as far to the
rear of bottom shelf as
possible before fully
tightening screws.
Right side panel

3

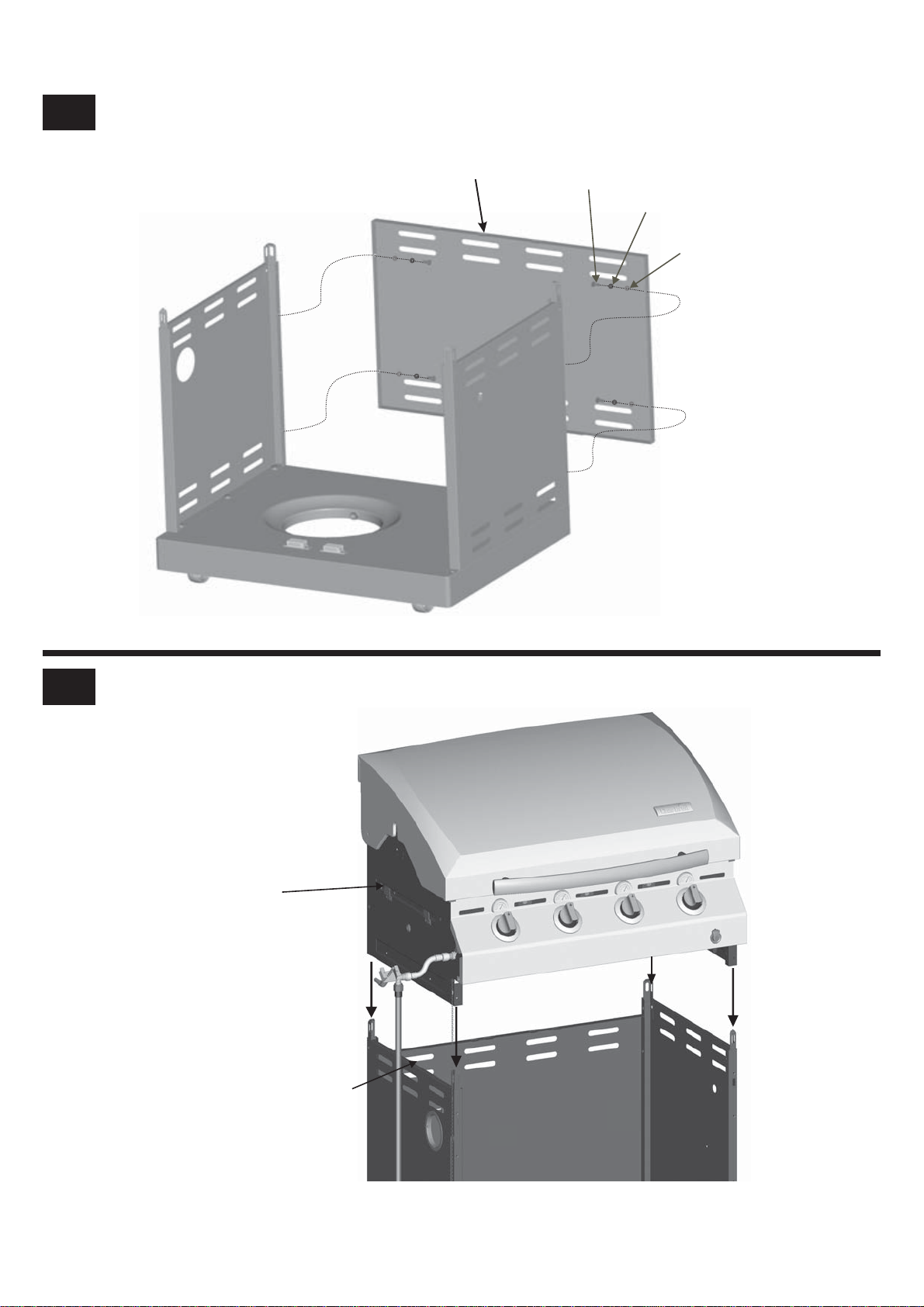

4This step requires two people
to lift and position grill head
onto cart. Carefully lower the grill
head onto the cart, aligning slots at
bottom of grill head with posts on
cart side panels. Make sure the
regulator hose is hanging outside
the cart. Grill head must face open
side of cart.
Place lower back panel between side panels at rear of bottom shelf. Make sure the slots are positioned as shown (A). Secure
lower back panel to side panels using four 1/4-20x1/2” screws, 7mm lock washers, and 7mm flat washers on each side.
14
Grill head
Regulator hose
Lower back panel 1/4-20x1/2” screw
7mm lock washer
7mm flat washer
(A)

Upper back panel
6
5
1/4-20x1½”
screw 7mm lock
washer 7mm flat
washer
15
On back of grill, place upper back panel between side panels and
above lower back panel. Secure upper back panel, in lower holes,
using one 1/4-20x1½” screw, 7mm lock washer, and 7mm flat
washer on each side. Do not fully tighten screws until side shelf
installation is complete in later steps.
Fascia, right side shelf
Bracket
Insert flange on right side shelf into side shelf brackets on side of firebox.
Attach rear of shelf using one 1/4-20x1½” screw, 7mm lock washer, and 7mm
Attach right side shelf using three 1/4”-20x3/4” screws, 7mm lock washers, 7mm flat washers, 1/4” nuts, shown A.
flat washer in lower hole, shown B.
flat washer, shown C.
Attach front of shelf and fascia using one #8x3/8” self-tapping screw and large
Attach front of shelf and fascia using one 1/4”-20x3/4” screw, 7mm lock washer, 7mm flat washer and 1/4” nut, shown D/C.
1/4-20x3/4”
screw
#8x3/8” self-tapping
Large flat
washer
1/4”nut
1/4”nut
washer
7mm flat
washer
7mm flat washer
A
C
screw
7mm lock
washer
7mm flat
washer
B
1/4-20x1½”
screw
Flange into bracket
D
Back of main control panel
1/4-20x3/4”
Igniter Switch
screw
Main control
panel
7mm lock
washer
7mm lock

7
16
Now you may fully tighten lower screws on upper back panel.
1/4-20x3/4”
screw
Back of main control panel
Control panel
Fascia, left sideburner shelf
Left sideburner shelf
Flange
into
Brackets
Bracket
1/4-20x3/4”
screw
screw
washer
7mm flat
#8x3/8” self-tapping
large flat
washer
7mm lock 7mm flat
1/4”nut
A
B
C
screw
1/4-20x1½”
washer 7mm lock
washer
ED

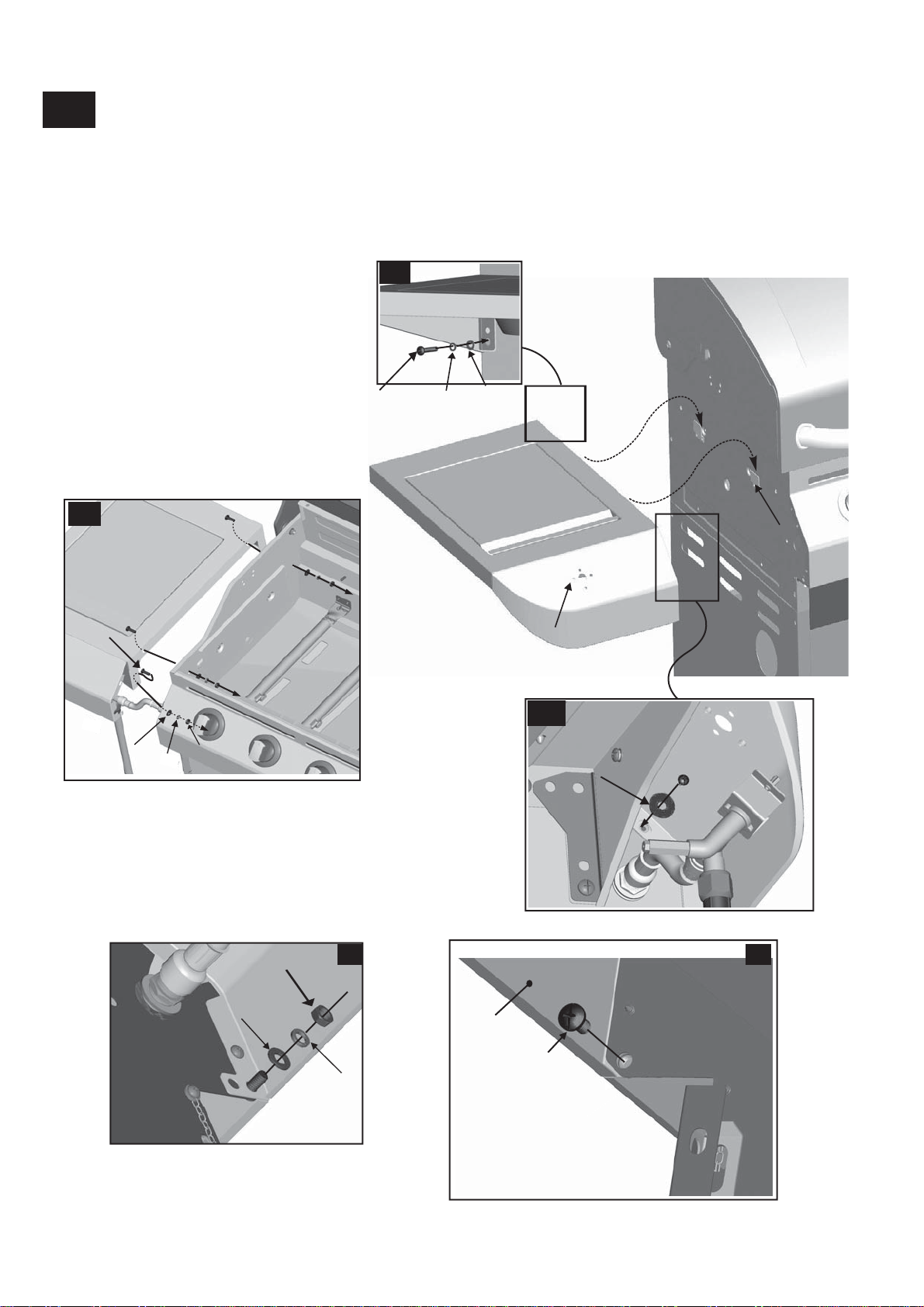

Insert flange on left sideburner shelf into side shelf brackets on side of firebox.
Attach rear of shelf using one screw, 7mm lock washer, and 7mm
Attach left sideburner shelf using three 1/4-20x3/4” screws, 7mm lock washers, 7mm flat washers, 1/4” nuts, shown A.
flat washer in lower hole, shown B.
flat washer, shown C.
Attach front of shelf and fascia using one #8x3/8” self-tapping screw and large
Under main control panel, attach front of shelf and fascia using one 1/4-20x3/4” screw, 7mm lock washer, 7mm flat
1/4-20x1½”
washer and 1/4” nut, shown D/E.
1/4”nut
7mm lock
washer
7mm flat
washer

8Insert front brace under control panel and between cart side panels. Make sure door hinge pins are on the top side and
facing the front. Secure using two 1/4-20x1½” screws, 7mm lock washers, and 7mm flat washers on each side.
NOTE: MAKE SURE THAT THE FRONT BRACE IS MOUNTED IN THE MOST DOWNWARD POSITION WHEN
ASSEMBLED TO CART.
9
17
First, remove the two screws and lock washers factory attached to the sideburner valve bracket. Position sideburner
valve bracket beneath sideburner shelf fascia so that valve stem comes through larger center hole in fascia.Align the holes
on valve bracket with left and right holes on fascia. Secure using lock washers and screws that were removed from bracket.
Next, place sideburner bezel over valve stem on front side of fascia.Align small holes on bezel with upper and lower holes on
fascia.Attach using two #8-32x3/8” screws and 4mm lock washers. Press sideburner control knob onto valve stem.
Front brace
1/4-20x1½”
screw
7mm lock
washer
7mm flat
washer
Door
Hinge Pin
for clarity of illustration
Note: some parts omitted
Control knob
Control knob bezel
Install bezel with “OFF” at top.
Sideburner
valve bracket
Screws and Washers
removed from valve bracket
Valve stem
#8-32x3/8” screw
4mm
lock washer
Sideburner
fascia
Note: Use left and right
holes on fascia to
attach valve bracket Note: Use upper and lower
holes on fascia to
attach bezel

10
11
Insert sideburner burner into left shelf.
shelf, shown A.The stud on bottom of burner fits into rear small hole in sideburner drip pan on
Secure burner to sideburner drip pan with one Wing nut, shown B.Make sure burner tube
engages sideburner valve, shown C.
B
18
A
Sideburner burner
Sideburner drip pan
Sideburner drip pan
Burner tube
Valve
C
Wing nut
Under sideburner shelf, attach sideburner ignitor wire to electrode, shown A.Place sideburner grate onto sideburner shelf,
aligning grate legs with holes in shelf, shown B.
A
Sideburner Ignitor Wire
Electrode
Sideburner grate
B

12
13
19
Inside of cart, insert rear shield tab into left slot on upper of lower back panel.
Attach front shield tabs under front brace and attach right and
Insert left and right grease tray rails into slots
left rails under front brace with three #8x3/8” self-tapping screws, shown B.
Rear
Front
Tank heat shield
Tank heat shield
Cart lower back panel
Right rail
Left rail
Front Brace
Right rail
Left rail
#8x3/8”
self-tapping screw
Grease tray opening
beneath grease tray opening in upper back panel, shown A.
for clarity of illustration
Note: some parts omitted
A
B
*This side UP
Tank heat shield
Release the cap and nut from electronic ignition module. Attach electronic ignition module and heat shield to the cart right
Insert AA battery into ignition module, negative (–) end first. Then put on the cap, shown B.
ignition module. Total (2) connections, shown C.
module. Total (5) connections. Connect the two wires (A and B) from the switch wiring harness into the back of the electronic
Connect each of the wires from the main burner electrodes, and sideburner electrode into the back of the electronic ignition
side panel with the nut, shown A.
+
-
ignition module
Electronic
Heat shield
Nut
Cap
wire NOTE: Switch terminals are larger than electrode
terminals and should only be installed in
location shown as (A), (B).
AA battery
Right side panel
A
B
C
1
2
3(A)
(B)
4
5

14
15
20

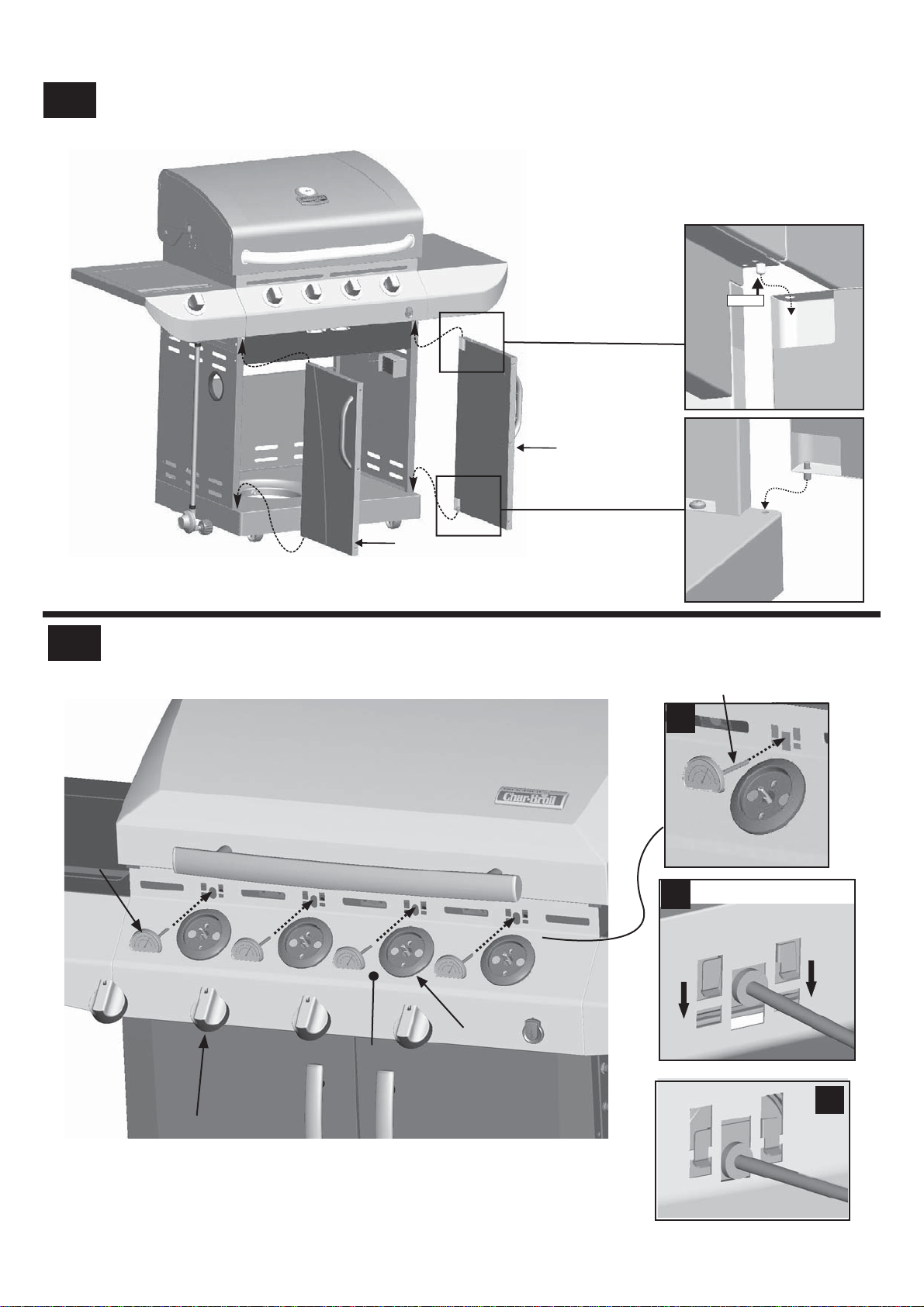

Insert hinge pin on bottom of doors into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole on top of
door, and release hinge pin into door.
Left door
Hinge pin
on bottom
of door
Top of
door
PRESS
Right door
Pull out the knobs from control panel. Insert temperature gauge stem into the biger hole above knob bezel,shown A.
Make the temperature gauge attached on the panel. Push the temperature gauge downward till it clips on the panel,
shown B/C. Re-install the knobs.
Knob
Knob bezel
Temperature gauge
Temperature gauge stem
Control panel
A
C
B
Back of the panel
