Chariot Carriers 51100460 User manual

Owners Manual / Guide d’utilisation
Revised www.chariotcarriers.com 51100460

Safety Guidelines............................................................................................................2
Trailer Care and Storage................................................................................................2
General Warning.............................................................................................................3
Assembly
Chariot Carrier.............................................................................................................4
Wheel ..........................................................................................................................4
Weather Cover ............................................................................................................5
Handlebar ....................................................................................................................6
Operating Instructions
Parking Brake..............................................................................................................6
Suspension..................................................................................................................6
Storage Bag.................................................................................................................6

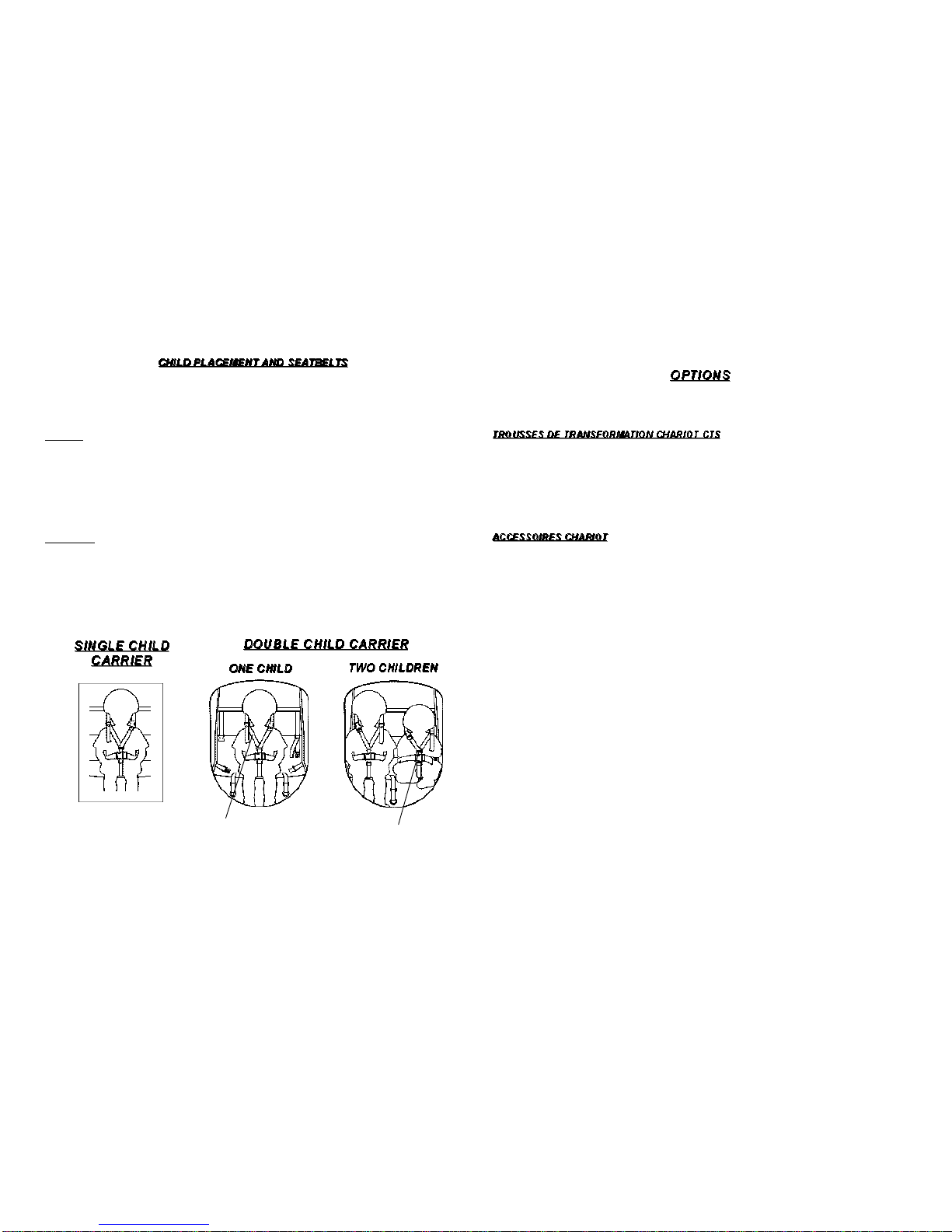

Seatbelts......................................................................................................................7
Parts List and Diagram
Cougar 1......................................................................................................................8
Cougar 2......................................................................................................................9
Cheetah 1....................................................................................................................10
Cheetah 2....................................................................................................................11
Options ...........................................................................................................................12
Instructions en français...................................................................................................13
Notes ..............................................................................................................................25
Warranty .........................................................................................................................27
Owners Manual
Congratulations on choosing a Chariot Carrier, the key component of the world’s premiere Child
Transport System (CTS). Your new CTS carrier offers superior quality, safety features, and comfort. In
addition, Chariot’s CTS Conversion Kits can provide you with the versatility to meet all of your child
transportation needs.
The CTS Conversion Kits available from your Chariot dealer are the following:1. Trailer Conversion Kit
2. Stroller Conversion Kit 3. Hiker Conversion Kit 4. XC Ski Conversion Kit
:Read all instructions before use.
Thank you for buying a
Chariot Carrier and for
buying Canadian!
1

Eight important rules for the safe use of your Chariot carrier.
1. Read all instructions before use!
Failure to read, understand and follow these instructions may result in an otherwise avoidable acci-
dent. You or your passengers could be seriously injured or die.
2. The safe and proper use of this product is your responsibility!
3. Do not modify or alter your carrier.
4. Children must be at least 1 year old and be able to sit upright alone.
Consult your pediatrician before carrying any child younger than one year.
5. The maximum capacity is 75 lbs/34 kgs for a single child jogging stroller and 100lbs/45 kgs for
a double jogging stroller. This includes children, luggage and other supplies.
Articles carried in the carrier should be well anchored to avoid shifting during travel. Unstable loads
and overloading make the carrier less stable and more difficult to control.
6. Always fasten shoulder harness, lap belt and crotch strap securely and tightly around children.
Periodically check placement of shoulder straps, especially for a sleeping child. Make sure children
cannot put fingers into the wheel spokes. Instruct children not to bounce, rock or lean.
7. Do not leave children unattended in the carrier.
8. To insure a smooth ride, keep tires inflated to 30-35 P.S.I. Check tire pressure before each use.
Over inflating tires or use of high pressure tires can cause the carrier to overturn.
A. Maintenance
Periodically check the carrier for damage, cracks, etc. Replace at first sign of damage. Any damage
or deterioration on any part of your Chariot carrier should be repaired or replaced immediately to
reduce the risk of personal injury.
B. Fabric/Shell Care
Your Chariot carrier is manufactured from a tough, durable, water resistant fabric. Clean fabric with
household soap or mild detergent and warm water only. Wipe dry. Do not machine dry.
C. Wheels
Wheels and axles should be serviced by a Chariot dealer at least twice a year. Before each outing,
check wheels for damage and axles to ensure they are properly installed (see pages 4 and 5 for
details). If axles stick or feel tight, dust off axle with a dry rag and use small amount of lubrication.
Note: Use an oil based lubricant only!
D. Storage
Store your carrier in a dry, well-ventilated area. To avoid mildew, make sure carrier is dry before
storing. Keep your carrier out of the sun when not in use to reduce fading. Do not store the trailer
attached to your bike.
Always check all parts every time you use your trailer!! 2
25

24
This manual contains manyWARNINGS and Cautions. Read and understand all of the WARNINGS and Cautions.
Failure to assemble and use this carrier correctly may lead to serious personal injury or death to you or your passen-
gers.
~ Do not install a car seat or any other seating device not approved by the manufacturer inside the carrier.
~ Make no modifications to the carrier.
~ The carrier may become unstable if a parcel bag or rack is attached to the carrier.
~ Do not allow any of the child’s body, clothing, shoe laces, or toys come in contact with moving parts.
~ Never leave children unattended in the carrier.
~ Failure to comply with the manufacturer’s instructions can lead to serious injury or death of the
passenger/rider.
~ Maximum capacity is 75 lbs/34 kgs for a single child carrier and 100 lbs/45 kgs for a double child carrier.
This includes child/children and cargo. Do not use with children who exceed the weight limitations.
~ Do not use cleaning solvents on the carrier. Clean only with mild soap and water.
~ When used with only one occupant, the occupant should be seated in a center seating position.
~ Passengers must always use seat belts.
~ Children must be at least 1 year old and able to sit upright unassisted.
~ Maximum tire pressure is 30-35 PSI.
~ Care must be taken when folding and unfolding to prevent finger entrapment.
~ Use wrist safety strap at all times.
~ Always use parking brake when the carrier is stationary.
~ Never in-line skate with your carrier. A serious accident could occur resulting in serious injury or death.
~ Maximum weight in the rear pocket is 22lbs/1 kgs. The carrier may become unstable if the pocket is
overloaded.
When carrier is used in Trailer mode, please observe the following:
~ A reflector that complies with CPSC regulations should be visible on the rear of the carrier.
~ Before each ride ensure the attached carrier does not interfere with braking, pedaling, or steering of the
bicycle.
~ Never ride a bicycle at night without adequate lighting. Obey all local legal requirements for lighting.
~ Ride with extreme caution, never exceed 25 km/h, and slow down to less than 10 km/h around corners and
on rough roads.
~ Wear a CPSC or CE approved bicycle helmet.
~ Pulling a trailer changes the stability, braking requirements, and riding characteristics of your bike.
~ Always use the flag for increased visibility.
~ Carrier can tip over causing serious injury to passenger/rider.
~ Hitting an obstacle with a wheel may cause the carrier to tip over at any speed!
3

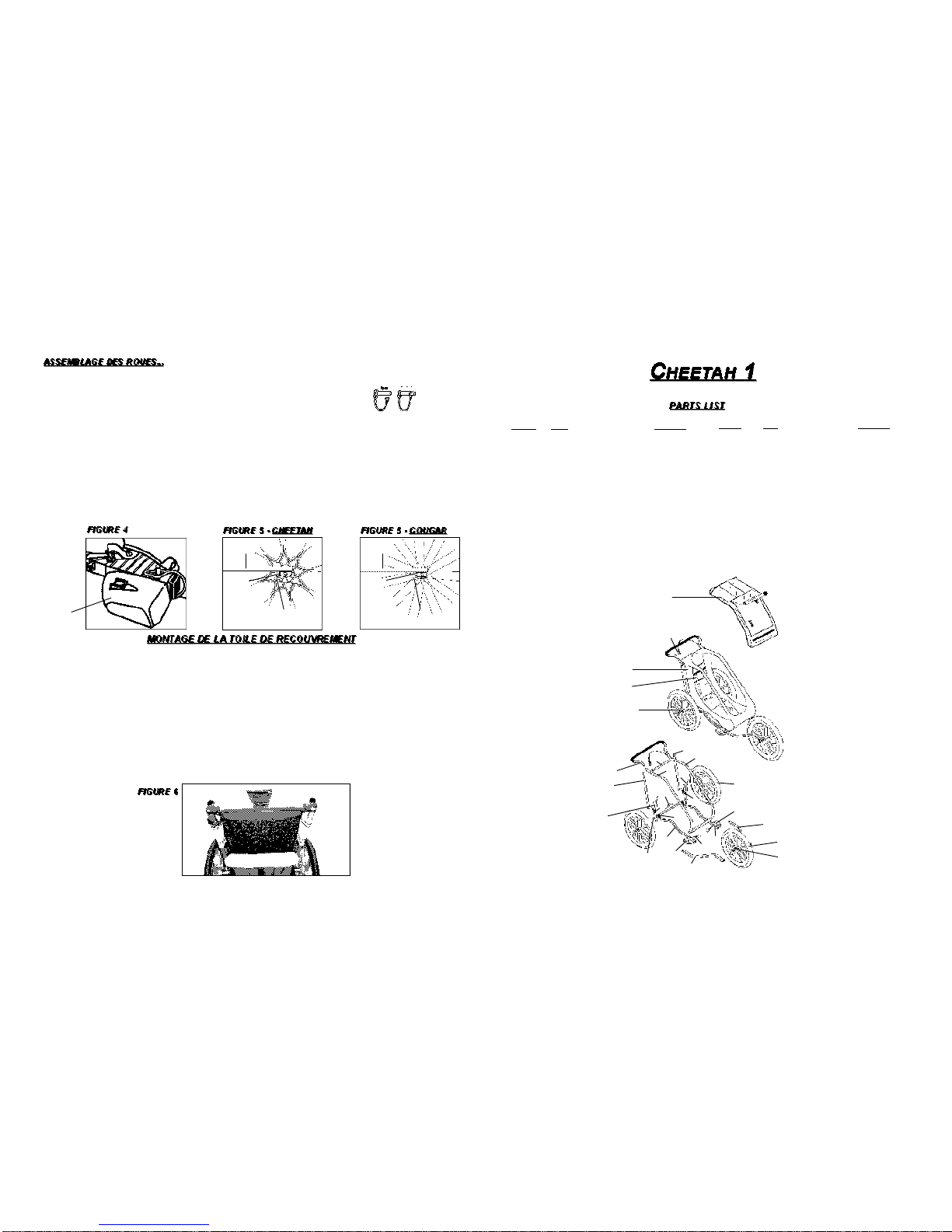

NoPièce Quantité
A40100133 Cadre supérieur - gauche.............................1
B40100134 Cadre supérieur - droit.................................1
C41100223 Cadre inférieur..............................................2
D41101290 Fixation du cadre inférieur............................2
E40100423 Cadre arrière - gauche.................................1
F40100424 Cadre arrière - droit......................................1
G40100722 Tube arrière..................................................2
H40100624 Cadre du siège.............................................1
I40101510 Fixation du bras de roue - gauche...............1
J40101511 Fixation du bras de roue - droite..................1
K40202006 Goupille de sécurité du bras de roue...........2
L50100901 Forme de D..................................................1
M41101283 Fixation arrière - gauche..............................2
N41101284 Fixation arrière - droite.................................2
O40202007 Goupille de sécurité.....................................2

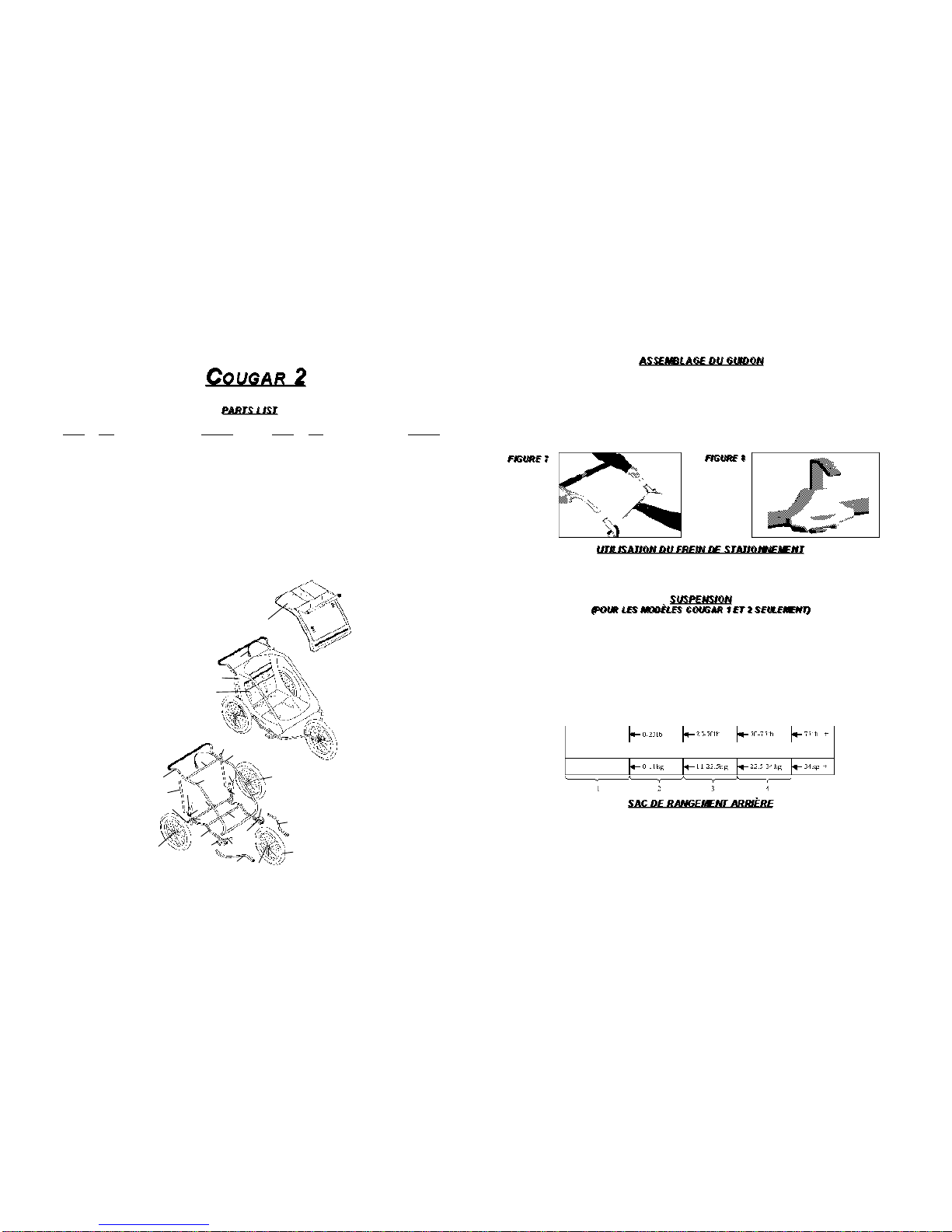

NoPièce Quantité
P40200104 Harnais d’épaule 16” . . . . . . . . . . . . .1
Q50101732 Roue en plastique 20” . . . . . . . . . . . .1
R50101733 Roue en plastique . . . . . . . . . . . . . . .2
S50101305 Essieu de chape . . . . . . . . . . . . . . . .2
T31100801/2 Toile de recouvrement . . . . . . . . . . . .1
U30100801/2 Coque en tissu . . . . . . . . . . . . . . . . .1
V50103101 Adaptateur d’essieu . . . . . . . . . . . . . .2
W40100625 Barre inférieure du siège . . . . . . . . . .2
X40101329 Guidon . . . . . . . . . . . . . . . . . . . . . . .1
Y40202011 Courroie de sécurité pour poignet . . .1
Z40101923 Frein de stationnement et essieu . . . .1
AA 41101035 Bras de roue - gauche . . . . . . . . . . . .1
AB 41101036 Bras de roue - droite . . . . . . . . . . . . .1
AC 50103012 Tige à déclenchement rapide . . . . . . .1
AD 33100801/2 Sac de rangement (non illustré) . . . . .1
A
R
E
B
M
W
O
H
F
V
X
G
N
Z
CJ
AB AC
AA
K
I
L
Q
D
Y
U
P
S
T

NoPièce Quantité
A40100135 Cadre supérieur - gauche.............................1
B40100136 Cadre supérieur - droit.................................1
C40100224 Cadre inférieur..............................................2
D41101290 Fixation du cadre inférieur............................2
E40100423 Cadre arrière - gauche.................................1
F40100424 Cadre arrière - droit......................................1
G40100722 Tube arrière..................................................2
H40100626 Cadre du siège.............................................1
I40101510 Fixation du bras de roue - gauche...............1
J40101511 Fixation du bras de roue - droite..................1
K40202006 Goupille de sécurité du bras de roue...........2
L50100901 Forme de D..................................................1
M41101283 Fixation arrière - gauche ..............................2
N41101284 Fixation arrière - droite.................................2
O40202007 Goupille de sécurité .....................................2
NoPièce Quantité
P40200104 Harnais d’épaule 16 po . . . . . . . . . . . .1
Q50101732 Roue en plastique 20 po . . . . . . . . . . .1
R50101733 Roue en plastique . . . . . . . . . . . . . . . .2
S50101305 Essieu de chape . . . . . . . . . . . . . . . . .2
T31100406/7 Toile de recouvrement . . . . . . . . . . . . .1
U30100406/7 Coque en tissu . . . . . . . . . . . . . . . . . .1
W50103101 Adaptateur d’essieu . . . . . . . . . . . . . .2
X40101311 Guidon . . . . . . . . . . . . . . . . . . . . . . . .1
Y40202011 Courroie de sécurité pour poignet . . . .1
Z40101922 Frein de stationnement et essieu . . . . .1
AA 41101024 Bras de roue - gauche. . . . . . . . . . . . .1
AB 41101025 Bras de roue - droite . . . . . . . . . . . . . .1
AC 50103012 Tige à déclenchement rapide . . . . . . .1
AD 33100401/2 Sac de rangement (non illustré) . . . . . .1
23 4
Your Chariot Carrier is shipped 99% assembled. Initial assembly takes a few minutes. After that, folding and
unfolding can be done in seconds.
Note: Any reference to orientation (left or right) is from the passenger’s point of view while in the carrier.
1. Stand at the back of the carrier body. Grab the upper frame and pull up until it stops.
2. Pull back on both the right and left lower bars until they “snap” all the way back over centre and the auto lock pin
engages.
CAUTION: PULL BACK ON THE LOWER BARS FROM BEHIND THE PIVOT BRACKETS TO AVOID PINCHING
YOUR FINGERS.
3. Insert both securing pins (hanging by straps attached to the frame) through both holes on the pivot brackets.
Figure 1
4. To collapse, remove securing pins, push the auto lock button, and then push both the right and left lower bars
forward until carrier is completely collapsed. Figure 2
NOTE: Do not attempt to collapse carrier without first pushing down the auto lock button.
WARNING! FAILURE TO INSERT SECURING PINS MAY CAUSE CARRIER TO COLLAPSE.
OCCUPANTS MAY BE INJURED.

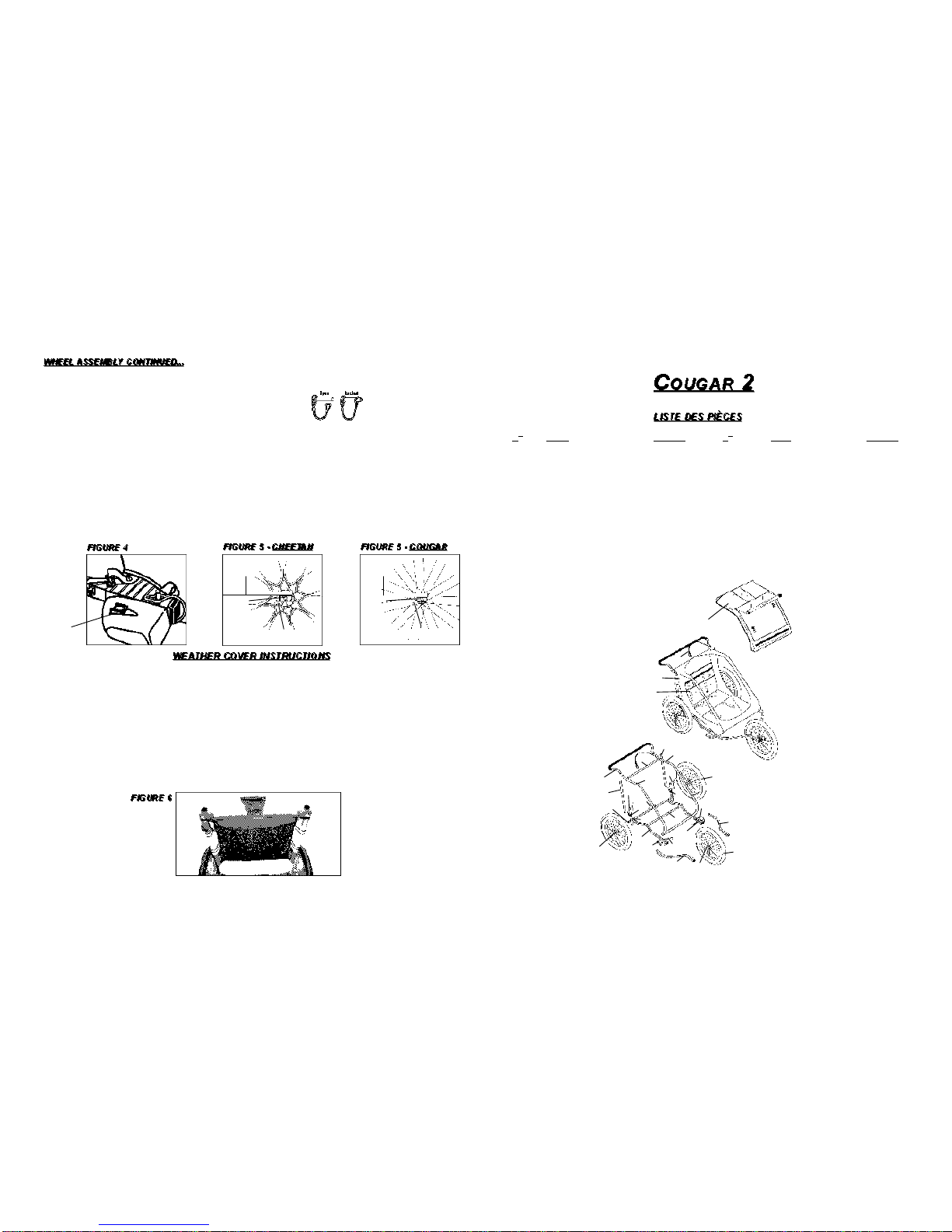

1. Depress the rubber cap on the wheel hub with your thumb and fully insert the clevis axle into the hollow
axle. Once fully inserted and secured, you should hear a “click” or “snap” sound.
IMPORTANT: To ensure the axle system is engaged properly, test by trying to pull the wheel outwards after
installing. The wheel should be locked in its installed position. If not, do not use and take your
carrier to your Chariot dealer for servicing
2. Repeat on other side with other wheel.
IMPORTANT:
Securing pins
must go through
both holes in
each bracket.
Auto Lock Pin
Hollow
Axle
ClevisAxle
T
U
P
S
E
A
R
I
H
B
X
FZ
GD
C
WJ
AB
AA
KLQ
AC
NM
O
Y
