Charmcare H2-BP User manual

Wristband Blood Pressure Monitor
H2
-
BP
User Manual
CHARMCARE CO.,LTD.

H2-BP www.h2care.com
Rev. 0
-
1
-
OP
-
ENG
-
14
Table of Contents
part 1 Before You Begin...........................................................................................................................................2
Part 2 Product Overview .........................................................................................................................................5

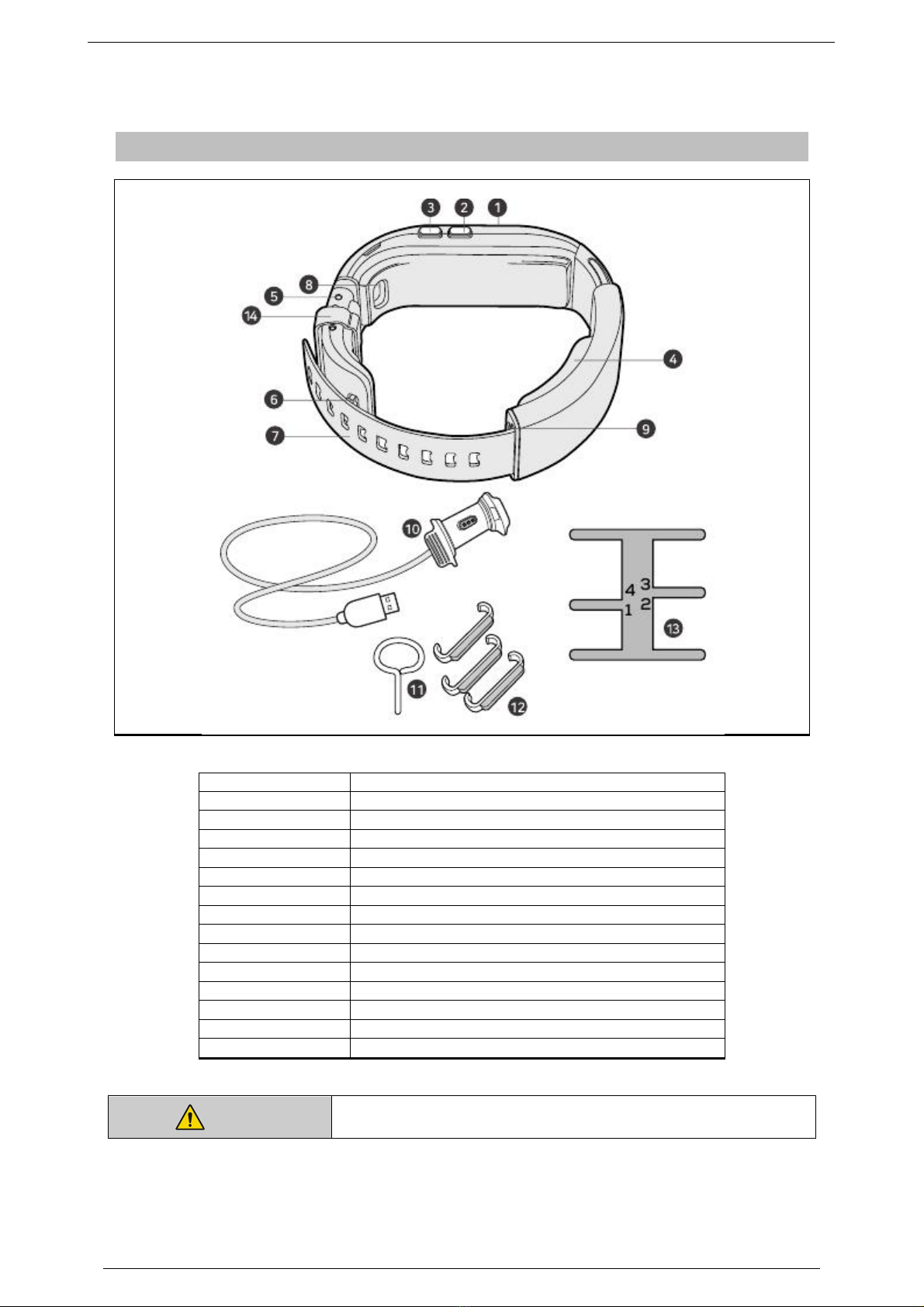

Part 3 Name Of Each Part.........................................................................................................................................6
Part 4 How To Use......................................................................................................................................................7
Part 5 Error Table....................................................................................................................................................17
Part 6 Simple Troubleshooting Tips...................................................................................................................18
Part 7 Product Specifications...............................................................................................................................19
Part 8 About Wristband Blood Pressure Monitor...........................................................................................20
Part 9 Differences In Blood Pressure According To Posture.......................................................................22
Part10 Measurement Q&A ....................................................................................................................................23
Part 11 Product Warranty.....................................................................................................................................25

H2-BP www.h2care.com
Rev. 0
-
2
-
OP
-
ENG
-
14
Part 1 Before You Begin
Thank you for purchasing the H2-BP(Automated Electronic Sphygmomanometer).
For the safe operation of this product, it is recommended that you read this user’s
manual thoroughly before using. In this user's manual, the H2-BP(Automated
Electronic Sphygmomanometer) is called to as a Wristband Blood Pressure
Monitor.
Purpose
This sphygmomanometer is a "Medical Device" suitable for IEC80601-2-30 and is an electronic device
that measures blood pressure indirectly (non-blood-vessel). This cuff is automatically pressurized and is
intended for the indication of systolic and diastolic blood pressure and heart rate.
Directive
lThis manual is copyrighted as the Charmcare Co.,Ltd. product manual. The contents of the manual
cannot be changed without permission.
lThe contents of this manual are subject to change without notice.
lThe contents of this manual should be correct. If for some reason, there are any questionable points,
please do not hesitate to contact our service center.
lThe patient is an intended operator.
lNo modification of this product is allowed.
lCharmcare Co.,Ltd. only provides the user manual in English. Since we are not asked in certain
countries, we are currently only providing it in English, but we are willing to provide it in other
languages upon request.
Warranty
This product has been manufactured and inspected following the strict quality assurance guidelines of
Charmcare Co.,Ltd.
lRefer to the Economic Planning Board’s “Regulations Regarding Consumer Compensation” for more
information on conditions for product repairs and exchanges.
lThe warranty period for this product is one year(4,000 measurements).
lProduct malfunctions occurring from regular use shall be repaired for free at the Charmcare service
center during the term of the warranty period.
lDuring the term of the warranty period, report all problems with the product to Charmcare by
including the model no., the product no., date of purchase and a detailed description of the error.
lManufacturer and/or the store where the product was purchased do not assume any responsibility
for any and/or all problems resulting from improper use or improper storage of the product.
Contact Us
Contact us at the following numbers and addresses to receive various services and products.
Need to purchase products or
parts?
Charmcare Co., Ltd.
(Gasan-dong, Woolim Lions2-cha) 714, 2, Gasandigital1-ro,
Geumcheon-gu, Seoul, Korea (ZIP 08591)
Tel : [phone] Fax : [phone]
E-mail : [e-mail]
Need service or repairs?

H2-BP www.h2care.com
Rev. 0
-
3
-
OP
-
ENG
-
14
Website http://www.h2care.com
Definition of Terms
●The user must follow all warnings and precautions.
Warning
“Warning” is used to refer to factors, which, when ignored, may result in
severe and/or fatal injuries and property damage.
Caution “Caution” is used to refer to factors, which, when ignored, may result in
moderate, but non-life-threatening, injuries.
Note “Note” is used to highlight factors that are not dangerous, but should be paid
close attention to during installation, use, and maintenance.
Abbreviation
SYS Systolic blood pressure
DIA Diastolic blood pressure
PUL Pulse

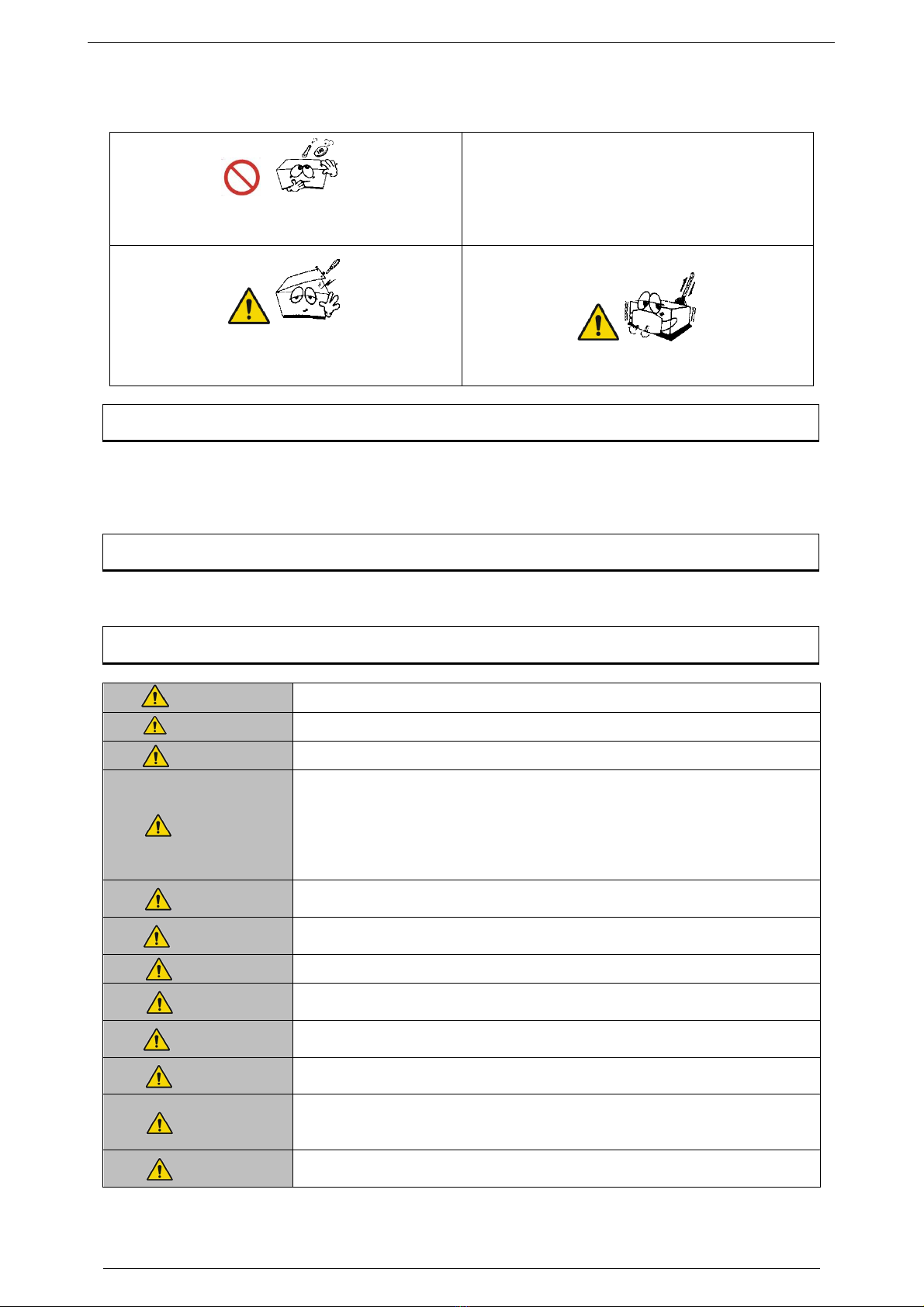

Proper Environments for the Product
Do not use or store the product in the following conditions:
Exposure to humidity and/or moisture
or areas where air circulation is a problem. Do not store or place the product in direct sunlight.
Use the product between temperatures of 5℃and
40℃, and at a humidity between 0% and 95%. Do not place the product near heat sources.
Do not store or place the product in places where
product is exposed to chemicals or flammable gas. Do not subject product to severe shock and or
vibrations.

H2-BP www.h2care.com
Rev. 0
-
1
-
OP
-
ENG
-
14
Keep product free of dust and debris, particularly
metallic objects.
Do not attempt to disassemble the product yourself.
Charmcare is not liable for any problems that may
occur should you attempt to do so.
Store below an altitude of 3,000m, and below 70℃.
Safety Precautions
lDo not shock or drop the unit.
lDo not operate the measurement without wearing it on your wrist.
lDispose of body, parts and accessories according to local regulations.
lFor specific information about your own blood pressure, consult with your physician.
Contraindication
lThis product is contraindicated for use in ambulatory environments.
lThis product is contraindicated for use on aircraft.
General Information
Warning Do not adjust dosage based on measurement results.
Warning Please take your medicine according to your physician's prescription.
Warning Diagnosis and treatment of hypertension is only possible with a physician.
Warning
If you have any of the following symptoms, please consult your physician
before using this product.
- Atrial fibrillation or arrhythmia such as atrial fibrillation,
arteriosclerosis, decreased circulation, diabetes, aging, pregnancy,
pregnancy addiction (preeclampsia or pre-eclampsia), kidney
disease.
Warning
During the measurement, blood pressure measurements may be affected by
movement, trembling, chills etc.
Warning
Do not make measurements on wrists that are injured or under treatment.
Do not press the cuff around any wound, as it could make the wound worse.
Warning Do not use cuffs on intravenous or transfused arms.
Warning
If you are measuring on an arm with an arteriovenous shunt (A
-
V), please
consult your physician in advance.
Warning
Do not use with other electronic medical products at the same time
because
mutual interference may undermine the intended purpose.
Warning
Do not use in the vicinity of HF surgical instruments, MRI, CT scanners or in
environments with high oxygen concentrations.
Warning
Small parts are likely to cause suffocation if swallowed by infants or
children. To help avoid strangulation, keep the charging cable away from
infants, toddlers or children.
Warning
If you feel any pain or other abnormalities
on your skin, discontinue use and
consult a physician.

H2-BP www.h2care.com
Rev. 0
-
2
-
OP
-
ENG
-
14
Warning
Do not use this product on infants, toddlers, children or persons who cannot
express themselves.
Warning
Consult with your physician before using this product if you have severe
blood flow problems or blood disorders as cuff inflation can cause bruising.
Warning
Do not use in a location where there is moisture or a risk of water splashing
this product. This may damage the product.
Warning
Keep this product clean. If this product is
causing skin irritation due to
sweat or contamination, stop using it and consult with your dermatologist.
Warning
Do not let chemical products such as lotions, oils, skin creams or cosmetics
collect on the product. To avoid damage to the product material, make sure
to wipe off any chemical products that have collected on the product.
Warning
Prolonged rubbing and pressure may irritate the skin. Give your wrist a
break by removing the product for a while after extended wear.
Warning
Do not take
blood pressure measurements more often than necessary
because bruising, due to blood flow interference, may occur.
Warning
Consult with your physician or healthcare provider if you begin a weight
reduction or exercise program.
Warning Be sure to tighten the band strap correctly and always check it.
Warning Do not change any part of the product at random.
Warning
Do not disassemble or attempt to repair this product or other components.
This may cause an inaccurate reading.
Warning
Do not touch
(with wet hands) or wet the charging port of the band,
terminal of the charging clip and plugs of cables.
Warning
Do not crush or puncture the battery because it may spontaneously
combust.
Warning
Do not connect the + and
-
poles using a piece of metal
or other conductive
objects.
Warning
This product has a built
-
in rechargeable battery. To prevent the risk of
overheating, fire or explosion, do not throw into fire, apply heat, puncture
or crush, use or leave in a high temperature environment.
Warning Do not use this product after durable period has ended.
Warning
Use of accessories, transducers and cables other than those specified or
provided by the manufacturer of this equipment could result in increased
electromagnetic emissions or decreased electromagnetic immunity of this
equipment and result in improper operation.
Warning
Portable RF communications equipment(including peripherals such as
antenna cables and external antennas) should be used no closer than
30cm(12 inches) to any part of the [ME EQUIPMENT or ME SYSTEM],
including cables specified by the manufacturer. Otherwise, degradation of
the performance of this equipment could result.
General Information
Caution
For specific information about your own blood pressure, p
lease consult
your physician.
Caution
Self
-
diagnosis or self
-
treatment according to measurement result is
dangerous.
Caution
If you have any of the following symptoms, please consult your
physician
before use.
-In case of wire ablation
-In cases of severe blood disorders or blood disorders, internal bleeding
may occur due to compression.
Caution Do not measure more than necessary. Internal bleeding may occur due to

H2-BP www.h2care.com
Rev. 0
-
3
-
OP
-
ENG
-
14
compression.
Caution
Do not use this
product
for purposes other tha
n blood pressure
measurement.
Caution Do not disassemble or modify the body or wrist cuff.
Caution
Do not use the
product
in a humid place or i
n a place where it may get wet.
This may cause malfunction.
Caution Avoid contact with water.
General Information
Note
Use this
product
to measure your blood pressure regularly, record your
results and consult your physician.
Note

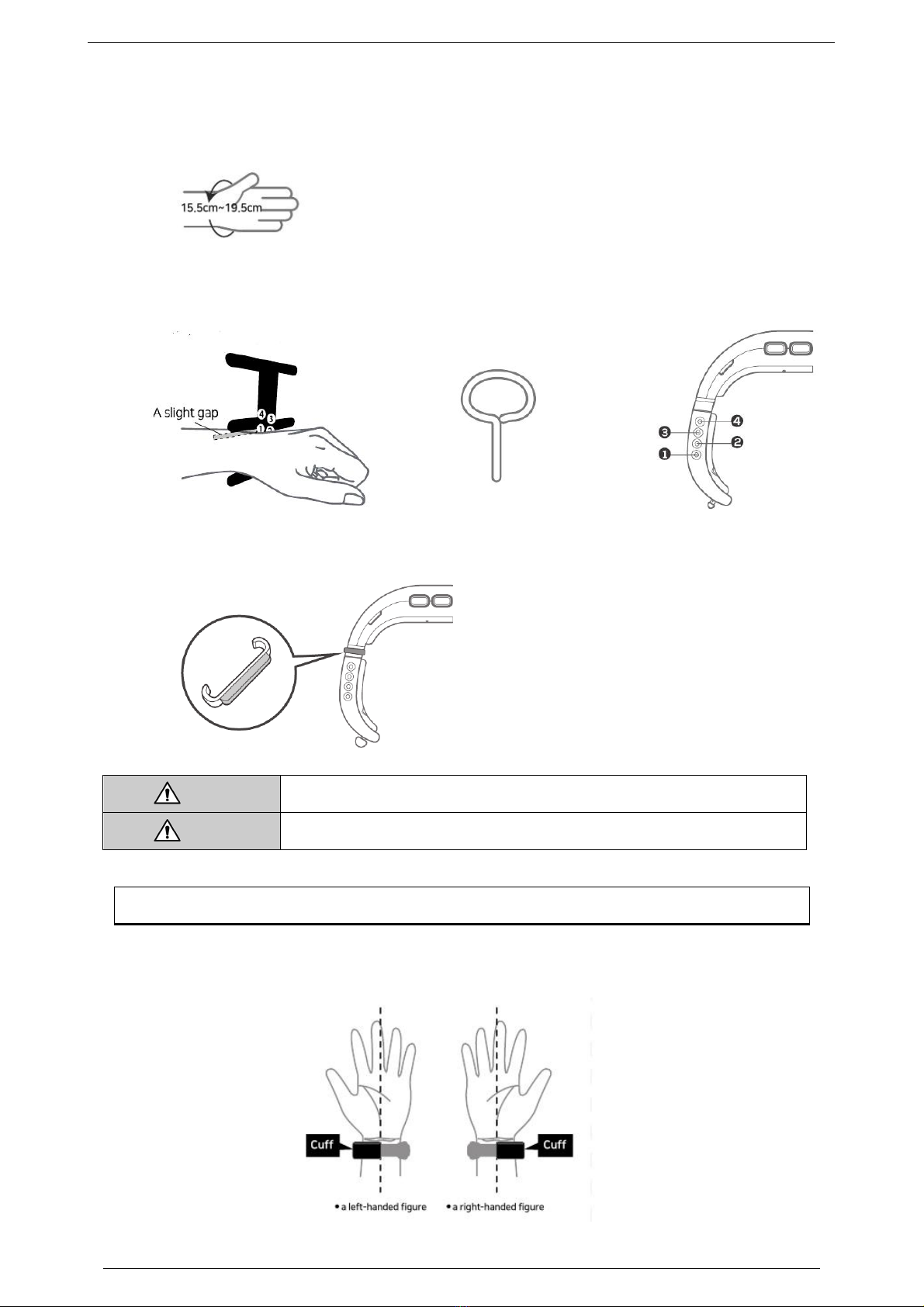

When measuring blood pressure, the position of the cuff should be
accurately located at the radial artery, and the cuff should be measured at
the heart height.
Note
Blood pressure changes frequently during the day, and can be greatly
affected by smoking, drinking, medication, and exercise, so please measure
30 minutes after exercise and 2 hours after meals.
Note
Be
careful not to apply shock or vibration to the blood pressure monitor
during blood pressure measurement. These shocks or vibrations may cause
the measurement results to be wrong or impossible to measure.
Note
While measuring your blood pressure, you shou
ld measure yourself
comfortably without speaking.
Note
The blood vessel expansion and contraction movements are very slight, and
it is impossible to measure due to arrhythmia, etc., or inaccurate
measurement values may be obtained.
Note
Because this
product
is for adult use, it cannot be used on infants or the
very young. For adults with small wrists, measurement may not be possible.
Note This product is for adults.
Note For adults with small wrist sizes, measurement may not be possible.
Product Symbol Description
Table 1. Descriptions on the visual symbols of the label
Label Symbol Description
1 The serial number that identifies the object.
2 Date of manufacture
3 Manufacturer
4 Warning
5 Caution
6 Instruction for User Manual

H2-BP www.h2care.com
Rev. 0
-
4
-
OP
-
ENG
-
14
7 Type of applied part
8 WEEE Mark
Maintenance and Cleaning
The wristband blood pressure monitor device can be kept clean using various methods. Avoid any
damage or contamination of the product using the methods recommended below.
lIn cases of using a substance that can damage the product (unauthorized substance), the
product is not covered under the guarantee period free of charge.
Caution After cleaning the product, check the blood pressure monitor.
Caution If the product is old or damaged, do not use it.
lUsing lukewarm water and / or alcohol, rub with a soft cloth once a month to keep the body clean.
Do not use lacquer, thinner, ethylene, or oxide. These materials can damage the product.
lDo not store the product in places exposed to excessive temperature, humidity, moisture or direct
sunlight.
lDo not disassemble the product.
lDo not apply strong shock or vibrations to the product.
(for example, dropping the product on the floor).
lIn any case, do not repair yourself.
lWipe the product with a soft, dry cloth.
lKeep the product and accessories in a clean and safe place.
Data Transmission
This product emits radio frequencies(RF) in the 2.4GHz band. Do not use this product in locations where
RF is restricted, such as on an aircraft or in hospitals.
Turn off the Bluetooth® feature in this product when in RF restricted areas.
Calibration and Service
lThe accuracy of this product has been carefully tested and is designed to last.
lTo maintain proper operation and accuracy of this product, it is recommended that you inspect it
regularly once a year. If necessary, please contact the customer service center.

H2-BP www.h2care.com
Rev. 0
-
5
-
OP
-
ENG
-
14
Part 2 Product Overview
Composition of Product
lBasic Unit
Part Quantity
H2
-
BP Main
unit
1
e
a
lBasic Accessories
Type
Description
Quantity
Charging cable
5V USB connector
1ea
Wrist thickness instrument
An instrument that measures the thickness
of the wrist 1ea
Adjusting pin
Pin to adjust height
1ea
Cushion clip
Clip to buffer pressure
3ea
Ancillary band strap hook
To fasten
the band strap hook
1ea
User manual
Manual for users
1ea
Quick manual
Quick
manual for users
1ea
Warning
Do not swallow accessories. This may result in choking.
Warning Please purchase accessories only via Charmcare Co.,Ltd.

H2-BP www.h2care.com
Rev. 0
-
6
-
OP
-
ENG
-
14
Part 3 Name of each part
Name of each part of
wristband
blood pressure monitor
Name
Description
①
Display
②
Switch
2
③
Switch
1
④
Cuff
⑤
H
eight adjusting hole
⑥
Band
strap
hook
⑦
Band
strap
⑧
Charging terminal
⑨
Cuff air switch
⑩
Charging cable
⑪
Adjusting pin
⑫
Cushion clip
⑬
Wrist thickness
instrument
⑭
Ancillary
b
and
strap
hook
Warning For electrical safety, the product should not be disassembled.

H2-BP www.h2care.com
Rev. 0
-
7
-
OP
-
ENG
-
14
Part 4 How to use
Describes the basic names and functions of the product that users need to know, and provides
information for simple use.
Precautions when using
lUse within the ambient temperature 5°C~40°C and humidity 0%~95%.
lCheck the battery charge status.
lBe careful because it is easily damaged by impact.
lUse in consideration of ambient temperature and humidity, and store it away from dust and
flammable materials.
lCheck the appearance of the wristband blood pressure monitor.
lMake sure that there is no abnormality in the appearance of the charging cable.
Principle of operation
lThis product starts measuring by pressing the switch1.
lThe motor is operated fully automatically to calculate peak blood pressure and minimum blood
pressure by analyzing the waveform amplitude and cuff pressure, using the oscillometric method of
measuring pulsating phenomena, while pressing the cuff and winding the band.
Preparation before wearing
lCuff initialization
• Normal cuff condition
- Make sure the cuff air switch is in position C.
• Abnormal cuff condition
- Move the cuff air switch to C->O->C without wearing it to create a normal cuff condition.
Caution
If you press the
cuff air switch
while wearing it, the cuff will be in a shrunk
state and measurement errors may occur.
Caution If the air pressure is not normal, errors may occur in the measurement.
Caution
Transporting and storing at an alt
itude of more than 3,000 met
er
s or
temperature of 70°C may cause the cuff to fail if the cuff air switch is not
previously in position O.

H2-BP www.h2care.com
Rev. 0
-
8
-
OP
-
ENG
-
14
lMeasurable wrist size
Measurable wrist of circumference size is 15.5cm~19.5cm as shown below.
lAdjust the height
Check the thickness number of the wrist with the measuring instrument and adjust the height
adjusting hole with the adjusting pin.
<wrist thickness instrument> <adjusting pin> <height adjusting hole>
lInsert cushion clip
Insert three cushion clips from the inside to align the gap created when adjusting the height.
<cushion clip>
Caution
When adjusting the height, give a space between the wrist and the product.
Otherwise, a measurement error will occur.
Caution
If you do not insert the cushion clip when adjusting the height, it may be
inconvenient to use.
How to wear
lPosition the cuff to the tip of the palm below the thumb, and align the end of the cuff with your
extended middle finger.

H2-BP www.h2care.com
Rev. 0
-
9
-
OP
-
ENG
-
14
Warning
Please do not allow the product come into contact with water because
there is not waterproof function.
Caution
After measuring blood pressure, the band strap may not come out
completely. Pull it out if necessary.
Caution
Wear on a
wrist with a strong pulse on the radial artery for accurate
measurement.
Caution
Do not measure on
a
wrist where the radial artery is blocked.
Measurement errors may occur.
Caution
Blood pressure can differ between the right and left wrists, and readings
can be different. Charmcare Co.,Ltd. recommends always using the same
wrist when measuring blood pressure. Consult with your physician to
determine which wrist you for taking your measurements.
Caution If the cuff position is not correct, a measurement error will occur.
Accurate measurement posture
If the position of the wrist is different from the height of the heart, the blood pressure values
change due to the weight of the blood itself.
The figure shows that when the wrist position is higher than the heart, the blood pressure value is
lowered. The converse also applies. (There is a change of 8mmHg per 10cm.)
However, since the blood pressure value is also affected by the measurement posture, it does
not necessarily follow this exact value. Please refer to the correct measurement posture.
Lightly clench your fist, and hold your arm in a position where the blood pressure monitor is at the
same level as your heart.
Caution Do not speak or move while measuring.
Power
lPress switch1 for more than 2 seconds.

H2-BP www.h2care.com
Rev. 0
-
10
-
OP
-
ENG
-
14
Blood pressure measurement
① While wearing the product, press switch1.
② As pressure is applied to the wrist, the current pressure is displayed on the screen.
⇒ ⇒ ⇒ ⇒
③ When the measurement is completed, the measured blood pressure value is displayed.
Caution If the band strap is loose, blood pressure measurement may not be possible.
Caution
If the cuff is not positioned over the radial artery, a blood pressure
measurement error may occur.
Caution During the measurement, you should not speak or move.
Caution
A single measurement does not provide an accurate
indication of your true
blood pressure. You need to take and record several readings over a period
of time.
Caution
Avoid bathing, drinking alcohol or caffeine, smoking, exercising and eating
for at least 30minutes before taking a blood pressure measurement.
Note
Pressing switch1 once automatically starts blood pressure measurement,
and pressing it again during measurement cancels the measurement.
Note Once the measurement is complete, the band strap is automatically released.
Note
If you
want to stop an emergency situation or blood pressure measurement
during measurement, press switch1 to automatically released the band strap.

H2-BP www.h2care.com
Rev. 0
-
11
-
OP
-
ENG
-
14

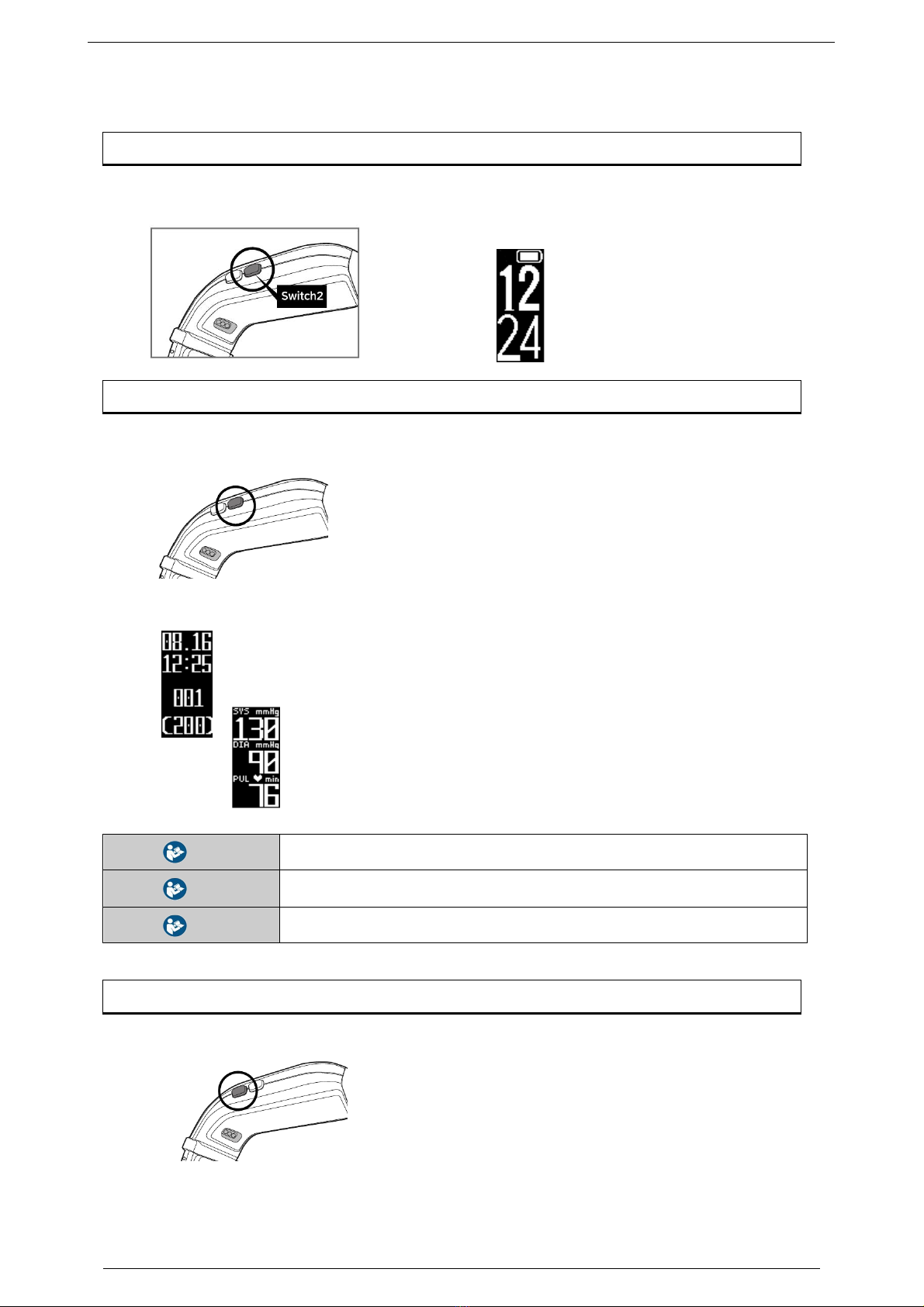

Display clock
①Press switch2. ②The current time is displayed.
Display stored blood pressure measurements
①Press switch2 twice.
②The blood pressure measurement date, time and index values are displayed.
③The blood pressure measurement value is displayed.
Note lEvery time you press switch2, the displayed contents change.
Note l
After confirming the last blood pressure value, press switch2 again to
display the clock.
Note lThe screen automatically turns off after 5seconds if no action is taken.
Setting switch description
-Switch1 : To complete the change

H2-BP www.h2care.com
Rev. 0
-
12
-
OP
-
ENG
-
14
-Switch2 : To change a menu or value
How to set up
①Press switch1 for 3seconds to switch to the setting menu.
lAUTO : Automatic clock display setting mode
lTIME : Current date, time settings
lDEL : Delete stored blood pressure values
lCOUNT : Display the number of measurements
lLANG : Language setting
lEXIT : Exit setup
②Select menu : Press switch2 to move to selected menu and press switch1 to complete menu
selection.
③Settings change: Press switch2 to change the selected setting, then press switch1 to complete
the setting change.
Note lIf no switches are pressed for 10seconds, the setting menu is exited.
Note lPress and hold switch2 for 3seconds to quickly change the setting.
Note l
Press switch1 for 3seconds to cancel the change and move to the upper
menu.
Note l
After saving all setting values, go to the upper menu and press EXIT
button to exit the setting menu.

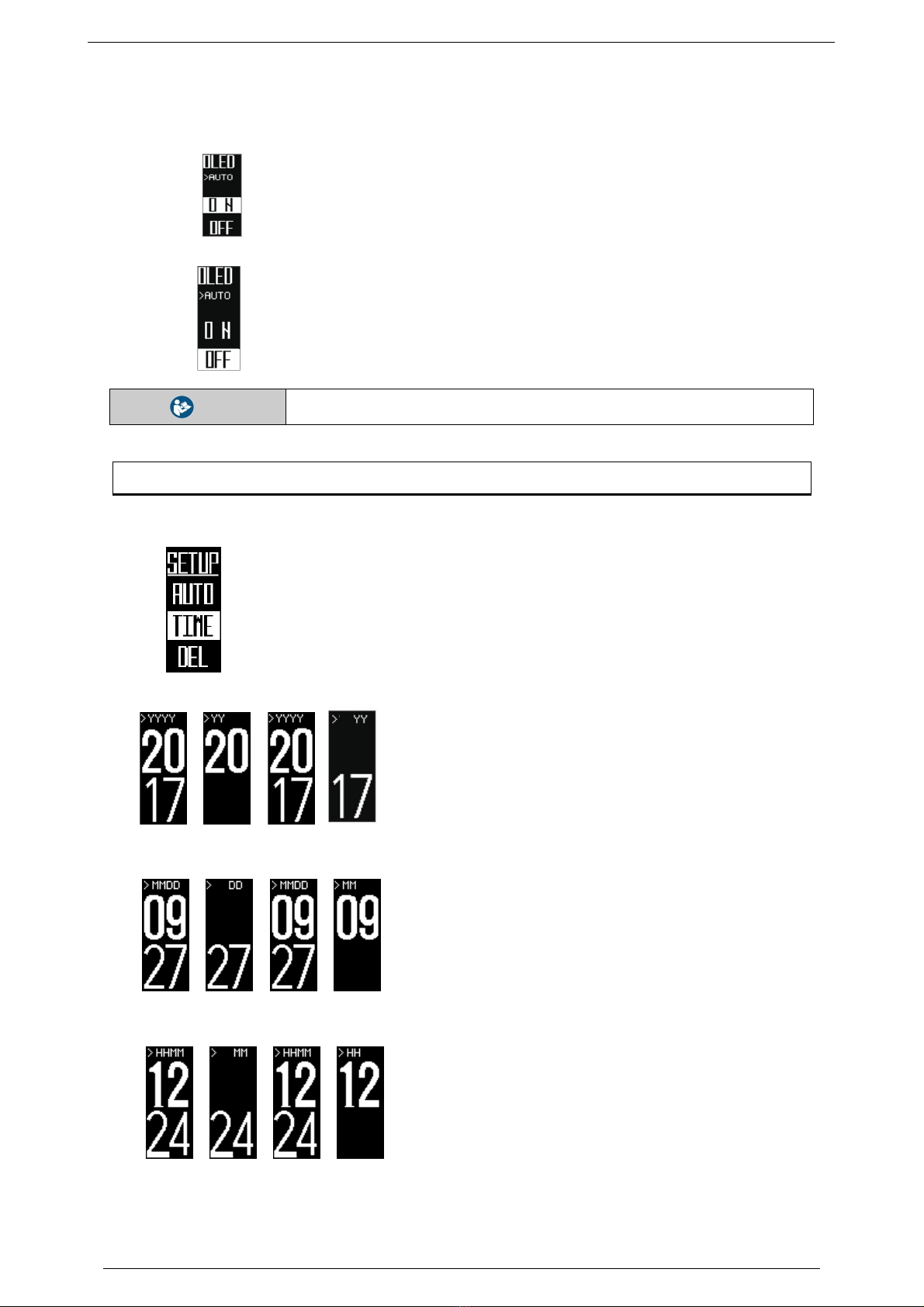

Automatic clock display mode by operation
①Select the AUTO menu.

H2-BP www.h2care.com
Rev. 0
-
13
-
OP
-
ENG
-
14
②When ON is selected, the screen auto-on by motion.
③When OFF is selected, the screen auto-off by motion.
Note If the screen auto-on is set, the battery may run out quickly.
Date and Time Setting
①Select from the TIME menu.
②Set the year
③Set the month, day
④Set the hour, minute

H2-BP www.h2care.com
Rev. 0
-
14
-
OP
-
ENG
-
14
Note
This function is a menu to set the dat
e
and time if you cannot synchronize
with the App. When you synchronize with the app, the time is automatically
set to the date and time on your mobile phone, so you do not need to set it
manually.
Delete Data
①Select from the DEL menu.
②If you select YES, the data will be deleted.
Caution
If you delete the data, it will not be possible to recover it, so please be careful
before deleting data.
Count
①Select the COUNT menu to view number of measurements.
Language
①Select the Language menu
②Select your language.

H2-BP www.h2care.com
Rev. 0
-
15
-
OP
-
ENG
-
14

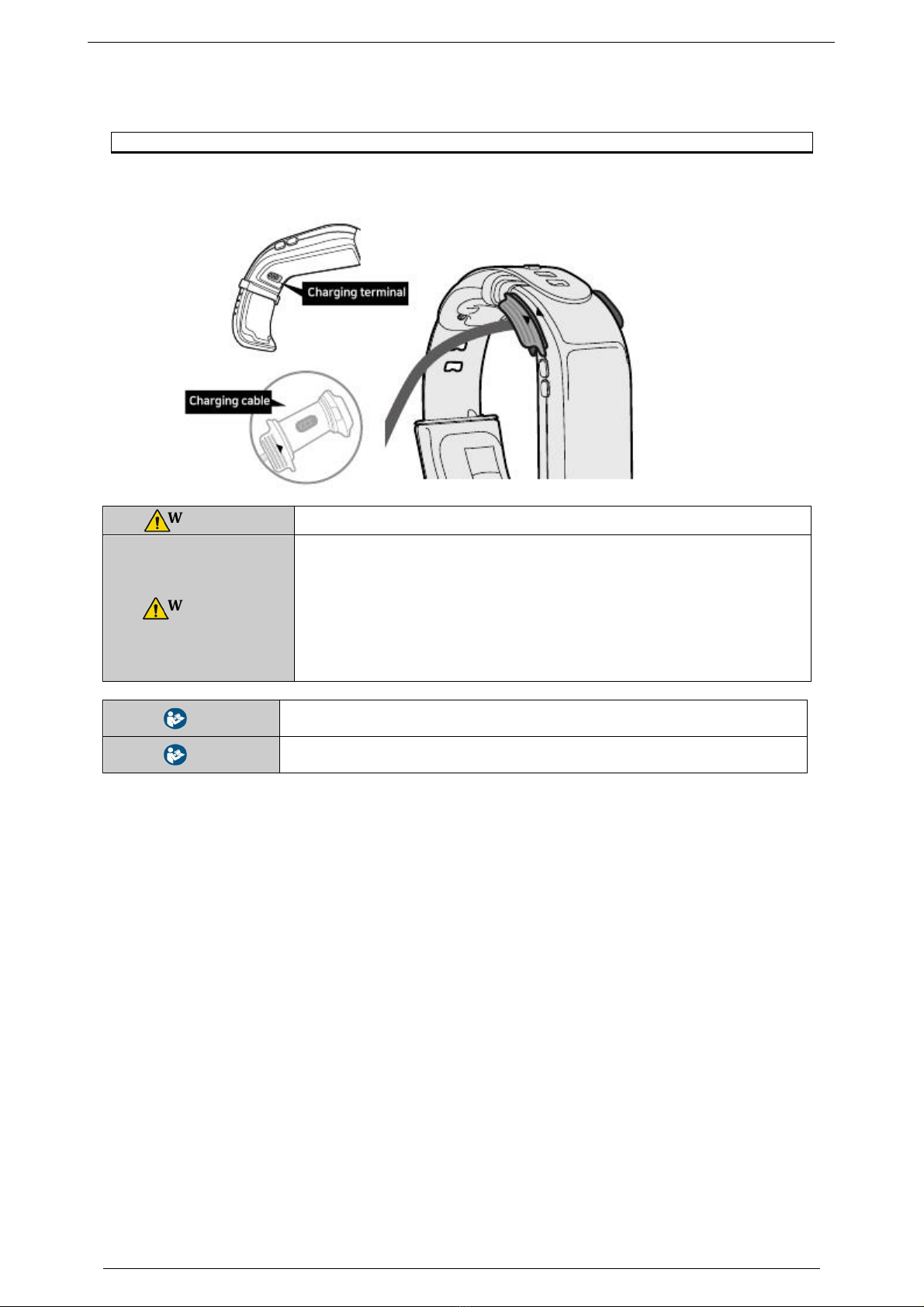

How to use the charger
①Connect the charging cable at the triangle mark of the wristband blood pressure monitor as
shown in the figure.
Warning Do not pull from the charging cable.
Warning
When handling the charging cable :
- Do not damage it.
- Do not break it.
- Do not tamper with it.
- Do not forcibly bend or pull it.
- Do not twist it.
- Do not use it if it is gathered in a bundle.
- Do not place it under heavy objects.
Note Charging time is about 1hour and 30minutes.
Note Make sure that the USB voltage is 5V.

H2-BP www.h2care.com
Rev. 0
-
16
-
OP
-
ENG
-
14
Battery Status
Note
If it is less than 10%,
blood pressure cannot be measured and only the clock
and blood pressure measurement values can be checked.
Smartphone application
lApp store, Google play
1) Run the App Store or Google Play Store, search for H2-BP and install the application.
2) After turning Bluetooth on, run the H2-BP application and register your account with your
wristband blood pressure monitor for Bluetooth connectivity.
3) Bluetooth 4.0 and upper version
Note
This smart phone application is
for use
with your product to
allow the
correct transfer data.
Note
Be aware that Charmcare Co.,Ltd. will not be
held
responsible for
any
loss of
data and / or information in the app.
Note
If you change your smart device that was paired with your monitor, delete
the pairing information from your old smart device to avoid any
communication issues.
