Charnwood BD46 User manual

BELT & DISC SANDER
OWNERS MANUAL
MODEL: BD46
Charnwood Machinery Ltd, Cedar Court, Walker Road,
Bardon Hill, Leicestershire, LE67 1TU
Tel. [phone] Fax. [phone]
email: [e-mail] website: www.charnwood.net

GENERAL SAFETY RULES
WARNING: Do not attempt to operate the machine until you have read thoroughly and
understood completely all instructions, rules, etc. contained in this manual. Failure to comply
may result in accidents involving fire, electric shock, or serious personal injury. Keep this
owner's manual and review frequently for continuous safe operation.
1. Know your machine. For your own safety, read the owner's manual carefully. Learn its application and
limitations, as well as specific potential hazards pertinent to this machine.
2. Make sure all tools are properly earthed.
3. Keep guards in place and in working order. If a guard must be removed for maintenance or cleaning,
make sure it is properly replaced before using the machine again.
4. Remove adjusting keys and spanners. Form a habit of checking to see that the keys and adjusting
spanners are removed from the machine before switched it on.
5. Keep your work area clean. Cluttered areas and workbenches increase the chance of an accident.
6. Do not use in dangerous environments. Do not use power tools in damp or wet locations, or expose
them to rain. Keep work areas well illuminated.
7. Keep children away. All visitors should be kept a safe distance
8. from the work area.
9. Make workshop childproof. Use padlocks, master switches and remove starter keys.
10. Do not force the machine. It will do the job better and be safer at the rate for which it is designed.
11. Use the right tools. Do not force the machine or attachments to do a job for which they are not
designed. Contact the manufacturer or distributor if there is any question about the machine's suitability for
a particular task.
12. Wear proper apparel. Avoid loose clothing, gloves, ties, rings, bracelets, and jewellery which could get
caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain long
hair.
13. Always use safety glasses. Normal spectacles only have impact resistant lenses. They are not safety
glasses.
14. Do not over-reach. Keep proper footing and balance at all times.
15. Maintain the machine in good condition. Keep the machine clean for best and safest performance.
Follow instructions for lubrication and changing accessories.
16. Disconnect the machine from power source before servicing and when changing the blade.
17. Never leave the machine running unattended. Turn the power off. Do not leave the machine until it
comes to a complete stop.
18. Do not use any power tools while under the effects of drugs, alcohol or medication.
19. Always wear a face or dust mask if operation creates a lot of dust and/or chips. Always operate the tool
in a well ventilated area and provide for proper dust removal. Use a suitable dust extractor.
Risk of Injury. Wear Eye Wear Ear
Never reach into Protection Protection
a moving part

BD46 Belt & Disc Sander Overview
Sanding Belt
Tracking Adjuster
Sanding Belt
Tension Lever
Sanding Disc Sanding Belt Stop
Sanding Table
Mitre Fence Belt Angle Lock
On Off Switch
Rubber Feet
Table Angle Lock
Specification
Disc Diameter
150mm (6”)
Disc Speed
2850rpm
Belt Size
100mm x 915mm (4” x 36”)
Belt Speed
550m/min
Motor (Induction) 240v 50hz
450w (0.6hp)
Dust Extraction Port Diameters (Belt & Disc)
37mm External / 31mm Internal
Weight
14kg
Manufacturer’s Warranty
1 year
Rating
Hobby
Rating Description
Hobby: Suitable for Weekend DIY'ers and woodworking enthusiasts.
Generally lighter weight machines with lower power ratings and smaller tooling capacities. Typically only
ever used by one person for short periods of time or longer periods of time infrequently. Machinery should
be well maintained in a clean, dry environment such as a home workshop, garage or timber shed.
Expected maximum use of 100 hours annually.
Please Note: Using a product in excess of its rating will void the manufacturer’s free warranty.

Unpacking
All items are contained in one carton.
Carefully unpack and check that all the
items are present.
Assembly
Place the sander on a flat surface.
Use a 14mm spanner to adjust the
supporting leg so that the belt bed is
horizontal.
To do this you might need to loosen the
hex
head bolt which clamps the bed in
position.

The table can be fitted in either of two
positions, depending upon whether you
are using the sanding disc or the sanding
belt.
To attach the table when using the
sanding disc:
Locate the table bracket into the curved
slot next to the disc.
Fix in place using the clamping screw &
washer provided.
Adjust the angle of the table using a set
square so that it is at right angles to the
disc.
Ensure that the gap between table & disc
is no more than 1.6mm. This will prevent
fingers from becoming trapped when
sanding.
Tighten the clamping screw.
Use a cross head screwdriver to adjust
the red pointer to ‘0’ degrees against the
scale.
Pointer
Locking screw

The sanding belt can be used in the
vertical or horizontal position - or any
angle in between.
When using the belt sander, either the
back stop or the sanding table must be
fitted.
The back stop is attached using the two
socket head screws and washers
provided.
Adjust the stop so that there is a
maximum gap of 1.6mm to the belt.
To adjust the angle of the sanding belt:
Loosen the hex socket clamping bolt
Lift the sanding belt into the vertical
position.
Re-tighten the bolt.
Remove the back stop.
Fit the sanding table in the same manner
as when using it with the sanding disc.
Secure using the clamping screw/washer.

Adjust the table so that it is at 90 degrees
to the belt.
Ensure a maximum gap of 1.6mm.
Adjust the red pointer so that it indicates
‘0’ degrees against the scale.
Pointer
Locking screw
The mitre guide is fitted to the slot in the
table.
It can be adjusted to any angle in a 120
degree range.
It is used to guide the work piece and
give an accurate angle.

It is advisable to use dust extraction when
using your sander. There are separate
extraction ports for the belt and disc with
an outside diameter of 37mm.
An appropriate adapter may be required.

Setting Up
Tracking the belt
Ensure the machine is disconnected from
the power supply.
Slowly rotate the belt by hand in the
direction shown.
If the belt is moves off to one side it
requires a tracking adjustment.
If the belt stays central it is already
correctly tracked.
Viewed from the switch end –if the belt
moves sideways towards the disc, turn
the tracking knob clockwise (1/4 turn is
usually sufficient).
If the belt moves sideways away from the
disc, turn the knob anti-clockwise.
Continue adjustments until the belt
remains central on the rollers.
Tracking knob.

Using the Sander
This sander is designed for use with wood and wood-based products only. It should not be used for
sanding metal and any such use would invalidate the warranty.
The machine should be placed on a firm level surface before use.
Sanding with the belt in the horizontal
position
The work table or back stop must always
be used as a support when carrying out
edge or face sanding in the horizontal
position.
Move the workpiece across the belt while
keeping one edge against the stop.
Do not use excessive pressure and take
extra care when sanding thin material.
Sanding internal curves
With care the idler drum end of the
sanding belt can be used for smoothing &
shaping the inside of curved workpieces.
Never present the end of a workpiece to
the drum as this can cause it to kick
back.

Sanding with the belt in the vertical
position
Sometimes sanding on the belt is more
convenient when it is positioned vertically
–or at any angle in between 0 & 90
degrees.
To adjust, loosen the locking screw using
the 5mm hex key. Position the belt bed
as required and then re-tighten the
screw.
Always use the work table or back stop to
support the workpiece.
Sanding with the Disc
The disc sander is ideally suited to
smoothing end grain and fine-tuning
angled cuts with the aid of the mitre
guide.
Whenever possible use the front half of
the exposed disc as this will hold the
workpiece down against the table.
If it is necessary to use the full width of
the disc, care must be taken to hold the
workpiece firmly as the rear half will tend
to cause it to lift off the table.
Keep the workpiece moving to achieve
the best finish.

Maintenance

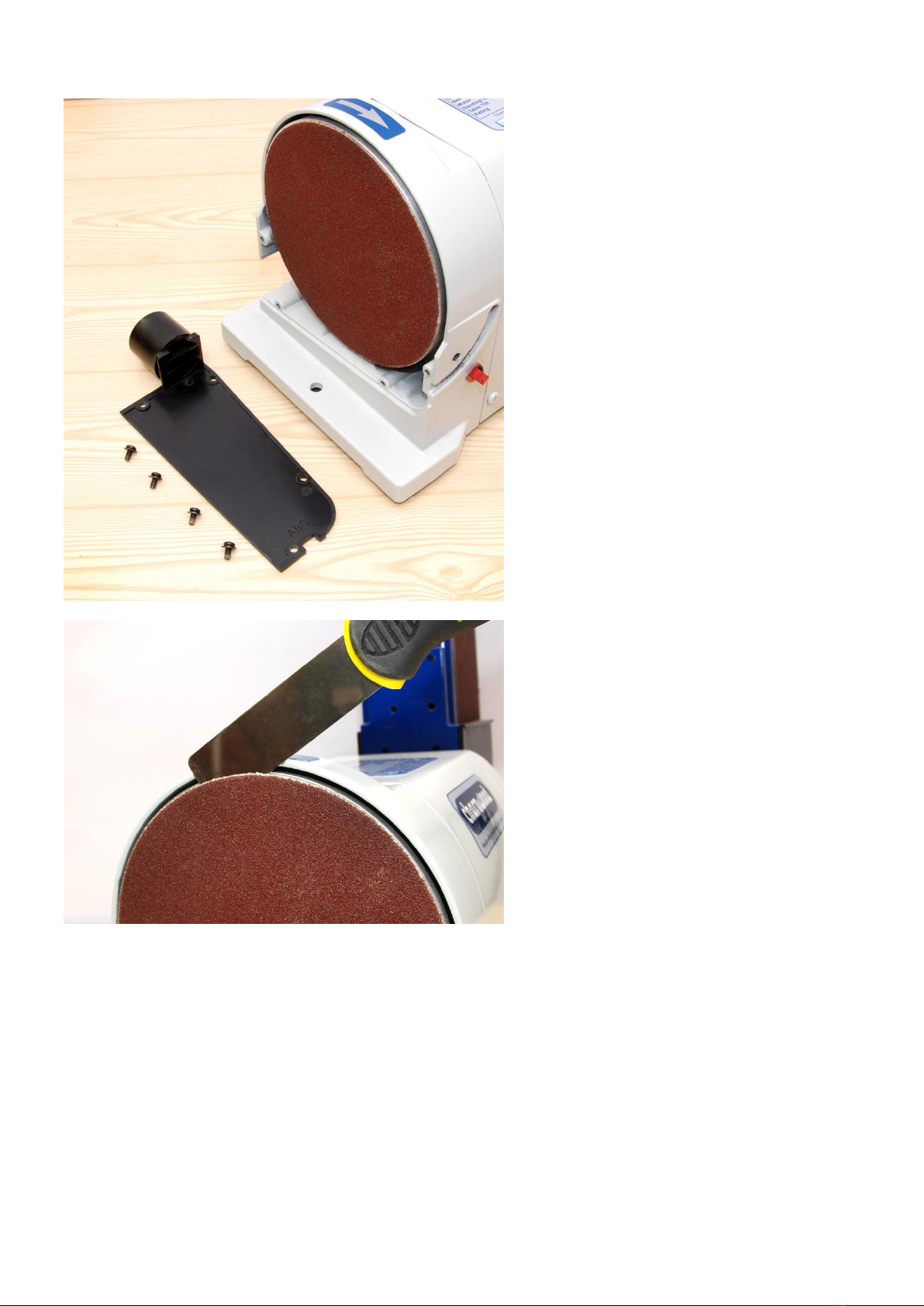

Replacing the Sanding Disc
Always ensure the machine is
disconnected from the power supply
before changing the sanding disc.
Remove the disc work table and then the
disc cover which is secured with four
screws.
Carefully remove the existing self-
adhesive sanding disc using a flat-bladed
scraper.
Remove any residue from the sanding
plate using mineral/methylated spirit.
Peel the backing from the new sanding
disc and apply to the sanding plate.
Ensure that it is positioned centrally on
the plate, then press firmly into place.
Re-fit the disc cover and tighten both
screws. Re-attach the work table.
The sanding disc can be converted to use the Hook & loop type discs.
A conversion backing pad (VB150) can be attached to the plate, then allowing Velcro-backed sanding
discs to be used. The great advantage of this system is that discs can be swapped in seconds and discs
can be remounted multiple times, allowing the user to work through different grits to achieve the desired
finish.

Replacing the Sanding Belt
Remove the bed support bolt using a
14mm spanner.
Remove the work table or tool rest if
fitted.
Loosen the two screws indicated and
slide off the drum dust cover.
Release the tension on the sanding belt
by pulling out the tension lever.
Loosen the two screws at the rear of the
belt which hold the bottom tray.
Slide and remove the tray.
It is now possible to remove the sanding
belt.
Locate the new belt over the two rollers.
Ensure that the arrow on the inside of the
belt corresponds to the direction marked
on the machine.
Replace the drum dust cover and bottom
tray, refitting/tightening all screws.
Re-tension the belt by closing the lever.
Track the belt.
Re-fit the bed support bolt and re-attach
the work/table or tool rest as required.
The life of the belts and discs can be greatly extended by regular cleaning with the BC01 Abrasive Disc &
Belt Cleaner which will remove any build-up of sawdust and resin.

Troubleshooting
Problem
Cause
Remedy
Machine does not start
Blown House Fuse
Replace Fuse
Loose switch terminal
Inspect back of switch
Faulty switch
Replace switch
Failed Motor
Replace Motor
Only starts when Green
button is held down
Faulty switch
Replace switch
Machine Slows Down when
Sanding
Operator applying too much
pressure to work Piece
Use less pressure when
applying work piece to
sanding surface
Sanding Belt Runs Off
Pulleys
Not tracked correctly
Adjust sanding belt tracking
Wood burns while sanding
Sanding surface clogged
Clean or replace disc or belt
Excessive pressure being
applied to work piece
Use less pressure when
applying work piece to
sanding surface
Motor overheats
Motor overloaded
Allow to cool, restart with
reduced load
Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to
protect the environment, take the packaging to the local amenity tip and place into the appropriate
recycling bin.
Only for EU countries
Do not dispose of electric tools together with household waste material!
In observance of European Directive 2002/96/EC on waste electrical and electronic equipment (EEE)
and its implementation in accordance with national law, electric tools that have reached the end of their
life must be collected separately and returned to an
environmentally compatible recycling facility.
Your local refuse amenity will have a separate collection area for EEE goods
Declaration of Conformity for CE Marking
Charnwood Declare that Belt & Disc Sander, Model BD46
Conforms with the following Directives: Machinery Directive 2006/42/EC
EMC Directive 2014/30/EU
And further conforms to the machinery example for which the EC type examination Certificate No. BM
50329827 and AE50419568 have been issued by TUV Rheinland LGA Products GmbH, Tillystrasse 2,
90431 Nurnberg, Germany.
I hereby declare that equipment named above has been tested and found to comply with the relevant
sections of the above referenced specifications. The machinery complies with all essential requirements of
the directive.
Signed: Dated: 27/04/2016 Location: Leicestershire
Richard Cook, Director

BD46 Belt & Disc Sander Parts Drawing

BD46 Belt & Disc Sander Parts List
Part No.
Description
Part No.
Description
001
Screw
002
Screw
003
Washer
004
Bearing
005
Rotor
006
Stator
007
Washer
008
Screw
009
Washer
010
Motor Cover
011
Screw
012
Cable Clamp
013
Switch
014
Cable Clamp
015-020
Suppressor
021
Capacitor mounting plate
022
M5 Nut
023
M6 x 10mm Screw
024
Base Plate
025
Screw
026
Rubber Foot
027
Belt End Cover
028
Screw
029
Bush
030
Support Leg
031
M6 Grub Screw x 2
032
Table Support Bracket
033
Screw
034
Round Plate
035
Belt Pivot Housing
036
Washer
037
Washer
038
M5 x 20mm Bolt
039
Screw
040
Sanding Belt Body
041
Spring
042
Rubber Sleeve
043
Idler Drum Bracket
044
Circlip
045
Bearing
046
Idler Drum
047
Idler Shaft
048
Driven Drum
049
M5 x 20mm Screws x 2
050
Tracking Adjuster
051
Spring
052
Washer
053
Washer
054
Screw
055
Screw
056
Screw
057
Belt Tension Lever
058
Link Bar
059
Link Arm
060
Washer
061
Screw
062
Screw
063
Screw
064
Screw
065
Belt Tension Cover
066
Screw
067
Angle Pointer
068
Sanding Belt
069
Sanding Belt Fence
070
Capacitor 100uf 250v 50mm x
40mm
071
Motor Housing Right
072
Cable & Plug
073
Cable Protector
074
Table Angle Scale
075
Table Angle Locking Knob
076
Allen Key
077
Work Table
078
Angle Pointer
079
Screw
080
Mitre Gauge Scale
081
Mitre Gauge Locking Knob
082
Screw
083
Mitre Gauge
084
Runner
085
Capacitor 10uf 450v M8 50mm x
40mm
086
Capacitor Mounting Bracket
087
M8 Nut
088
Sanding Disc
089
Disc Cover
090
Motor Housing Left
091
Sanding Plate
092
Belt Cover Plate
093
Sanding Disc
Updated February 2019
Charnwood Machinery Ltd, Cedar Court, Walker Road, Bardon Hill, Leicestershire, LE67 1TU, England
Tel. [phone] email: [e-mail] website: www.charnwood.net
