Charnwood BD48 User manual

BELT & DISC SANDER
OWNERS MANUAL
MODEL: BD48
Charnwood Machinery Ltd, Cedar Court, Walker Road,
Bardon Hill, Leicestershire, LE67 1TU
Tel. [phone] Fax. [phone]
email: [e-mail] website: www.charnwood.net

GENERAL SAFETY RULES
WARNING: Do not attempt to operate the machine until you have read thoroughly and
understood completely all instructions, rules, etc. contained in this manual. Failure to comply
may result in accidents involving fire, electric shock, or serious personal injury. Keep this
owner's manual and review frequently for continuous safe operation.
1. Know your machine. For your own safety, read the owner's manual carefully. Learn its application and
limitations, as well as specific potential hazards pertinent to this machine.
2. Make sure all tools are properly earthed.
3. Keep guards in place and in working order. If a guard must be removed for maintenance or cleaning,
make sure it is properly replaced before using the machine again.
4. Remove adjusting keys and spanners. Form a habit of checking to see that the keys and adjusting
spanners are removed from the machine before switched it on.
5. Keep your work area clean. Cluttered areas and workbenches increase the chance of an accident.
6. Do not use in dangerous environments. Do not use power tools in damp or wet locations, or expose
them to rain. Keep work areas well illuminated.
7. Keep children away. All visitors should be kept a safe distance
8. from the work area.
9. Make workshop childproof. Use padlocks, master switches and remove starter keys.
10. Do not force the machine. It will do the job better and be safer at the rate for which it is designed.
11. Use the right tools. Do not force the machine or attachments to do a job for which they are not
designed. Contact the manufacturer or distributor if there is any question about the machine's suitability for
a particular task.
12. Wear proper apparel. Avoid loose clothing, gloves, ties, rings, bracelets, and jewellery which could get
caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain long
hair.
13. Always use safety glasses. Normal spectacles only have impact resistant lenses. They are not safety
glasses.
14. Do not over-reach. Keep proper footing and balance at all times.
15. Maintain the machine in good condition. Keep the machine clean for best and safest performance.
Follow instructions for lubrication and changing accessories.
16. Disconnect the machine from power source before servicing and when changing the blade.
17. Never leave the machine running unattended. Turn the power off. Do not leave the machine until it
comes to a complete stop.
18. Do not use any power tools while under the effects of drugs, alcohol or medication.
19. Always wear a face or dust mask if operation creates a lot of dust and/or chips. Always operate the tool
in a well ventilated area and provide for proper dust removal. Use a suitable dust extractor.
Risk of Injury. Wear Eye Wear Ear
Never reach into Protection Protection
a moving part

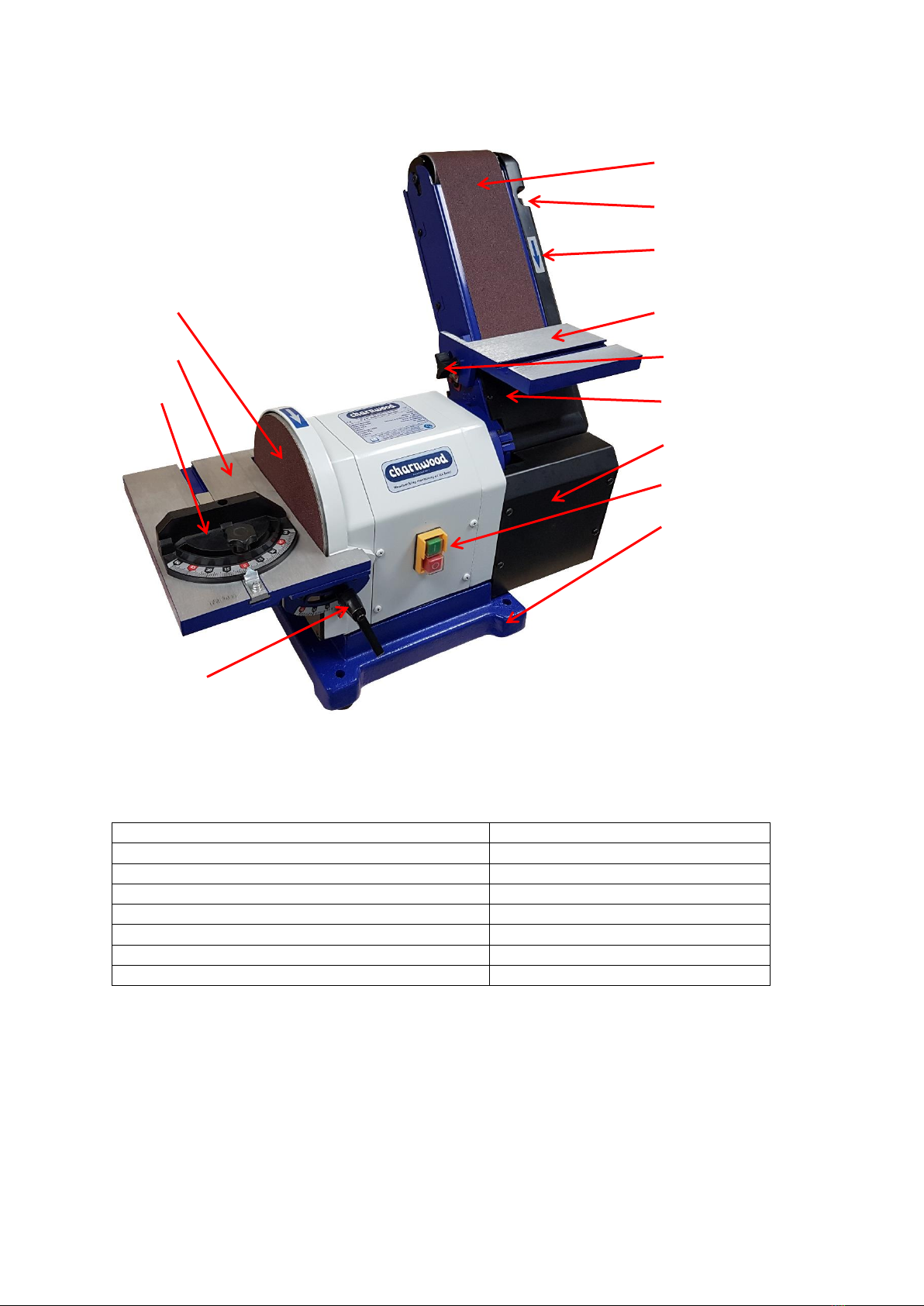

Overview of BD48 Belt & Disc Sander
Sanding Belt
Tracking Adjuster
Sanding Belt
Tension Lever
Sanding Disc Sanding Belt Table
Sanding Table Table Angle Lock
Mitre Fence Belt Angle Lock
Dust Extraction Unit
On Off Switch
Rubber Feet
Table Angle Lock
Specification
Disc Diameter
200mm (8”)
Disc Speed
2850rpm
Belt Size
100mm x 915mm (4” x 36”)
Belt Speed
550m/min
Motor (Induction) 240v 50hz
500w (0.67hp)
Weight
21.5kg
Manufacturer’s Warranty
1 year
Rating
Hobby
Rating Description
Hobby: Suitable for Weekend DIY'ers and woodworking enthusiasts.
Generally lighter weight machines with lower power ratings and smaller tooling capacities. Typically only
ever used by one person for short periods of time or longer periods of time infrequently. Machinery should
be well maintained in a clean, dry environment such as a home workshop, garage or timber shed.
Expected maximum use of 100 hours annually.
Please Note: Using a product in excess of its rating will void the manufacturer’s free warranty.

Unpacking
All items are contained in one
cardboard box.
Carefully unpack and check that
all items are included as in the
photograph.
Assembly
Attach the Disc Worktable using
two locking handles and washers.

Ensure the gap between the disc
and rear edge of the worktable is
a maximum of 1.6mm in order to
prevent finger trapping.
Using a set square ensure that
the table is at 90 degrees to the
sanding disc and lock in position.

If necessary, adjust the red index
pointer to align with the zero
degree mark on the angle scale
using a cross point screwdriver.
Loosen the belt angle locking
screw using a 5mm hex key and
raise the belt bed into a vertical
position.
Re-tighten the screw.
Locate the Belt Worktable onto
the circular slot in the belt bed.
Secure using the threaded knob
and washer.

Again, using a set square, adjust
the Worktable to 90 degrees to
the sanding belt and lock into
position.
Set the red index pointer to align
with the zero degree mark on the
angle scale.
Thread the open end of the Dust
Bag through the retaining clip and
attach to the dust port. The
tightness of the clamp can be
adjusted by turning the clamping
handle prior to locking it. Take
care not to over-tighten.
Alternatively the sander can be
connected to a suitable dust
extractor. In this case the filter
bag is removed and the extractor
hose connected directly to the
extractor port using an
appropriate adapter.

The port is 64mm/57mm
external/internal diameter.
Setting Up
Tracking the belt
Ensure the machine is disconnected
Slowly rotate the belt by hand by
turning the sanding disc, ensuring that
it is travelling in the direction of the
arrow.
Note if the belt is tending to slide off
the bed and to which side.
If the belt doesn’t slide sideways it is
already correctly tracked.
Viewed from the switch end, if the belt
moves sideways towards the disc:
Turn the tracking knob clockwise
(1/4 turn is usually sufficient).
If the belt moves sideways away from
the disc:
Turn the knob ant-clockwise.
Continue adjustments until the belt
remains central on the rollers.
Tracking Knob

Using The Sander
This sander is designed for use with wood and wood-based products only.
It should not be used for sanding metal and any such use would invalidate the warranty.

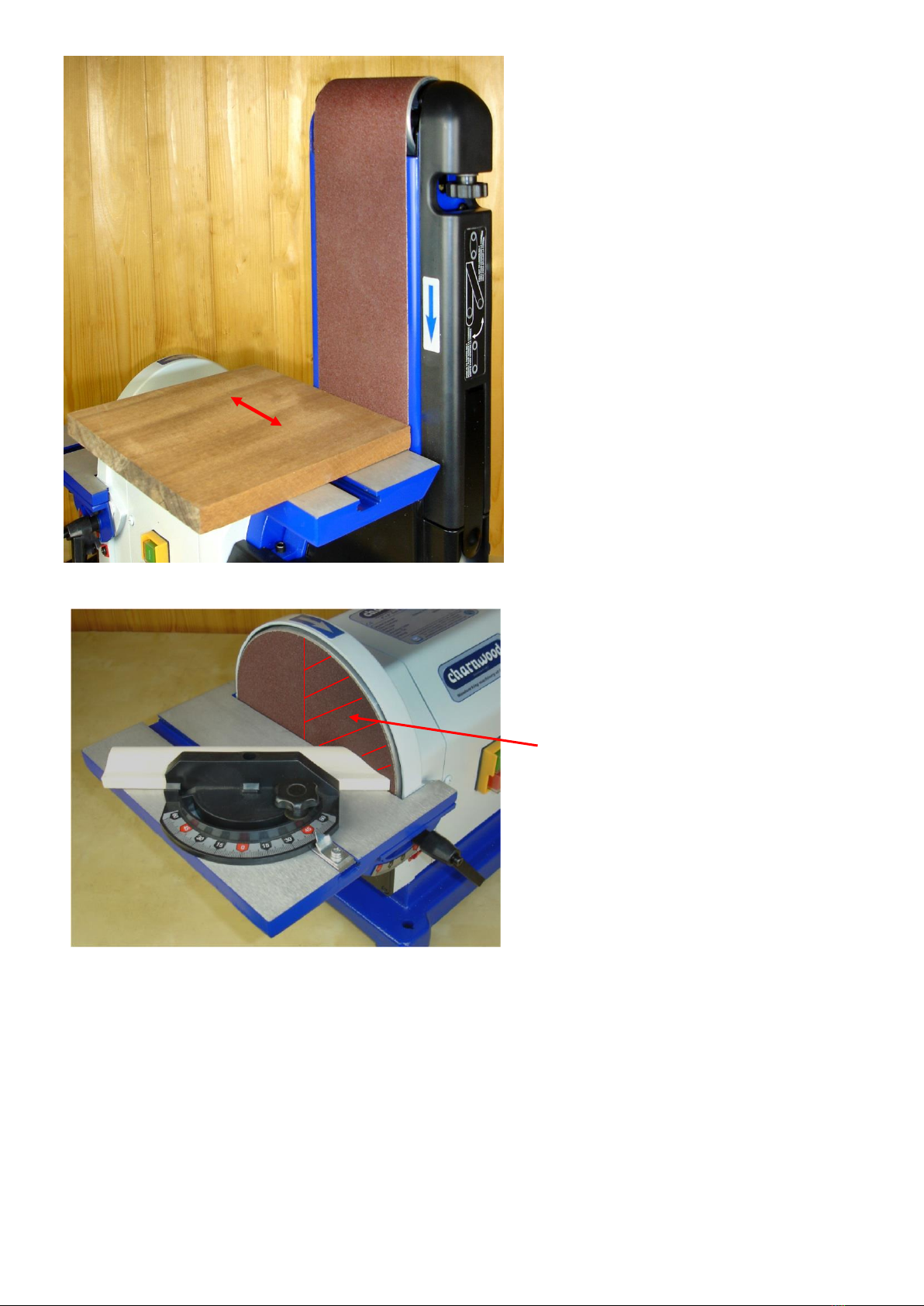

Sanding with the belt in the horizontal
position
The worktable must always be used
as a support when carrying out edge
or face sanding in the horizontal
position.
Move the workpiece across the belt
while keeping one edge against the
worktable.
Do not use excessive pressure and
take extra care when sanding thin
material.
Sanding internal curves
With care the idler drum end of the
sanding belt can be used for
smoothing & shaping the inside of
curved workpieces.
Never present the end of a workpiece
to the drum as this can cause it to
kick back.

Sanding with the belt in the
vertical position
Sometimes the sanding on the belt is
more convenient with it positioned
vertically –or any angle in between 0
& 90 degrees.
To adjust, loosen the locking screw
using a 5mm hex key. Position the
belt bed as required and then re-
tighten the screw.
Always use the worktable to support
the workpiece.
Sanding with the Disc
The disc sander is ideally suited to
smoothing end grain and fine-tuning
angled cuts with the aid of the mitre
guide.
Whenever possible use the front half
of the exposed disc as this will hold
the workpiece against the table.
If it is necessary to use the full width
of the disc, care must be taken to
hold the workpiece firmly as the rear
half will tend to cause it to lift.
Keep the workpiece moving to
achieve the best finish.

Maintenance
Replacing the Sanding Disc
Always ensure the machine is
disconnected from the power supply
before changing the sanding disc.
Remove the disc worktable and then
the disc cover which is secured with
six screws.
Carefully remove the existing self-
adhesive sanding disc with the aid of
a flat bladed scraper.
Remove any residue from the
sanding plate using mineral /
methylated spirit.
Peel the backing from the new
sanding disc and apply to the
sanding plate. Ensure that it is
positioned centrally on the plate, then
press firmly into place.
Re-fit the disc cover plate, tightening
all screws, re-attach the worktable.
A Velcro Conversion Backing Pad (VB300) can be attached to the plate in the same way as a
self-adhesive sanding disc. This enables Velcro backed sanding discs to be used which provide
easier changing without damage to the discs.

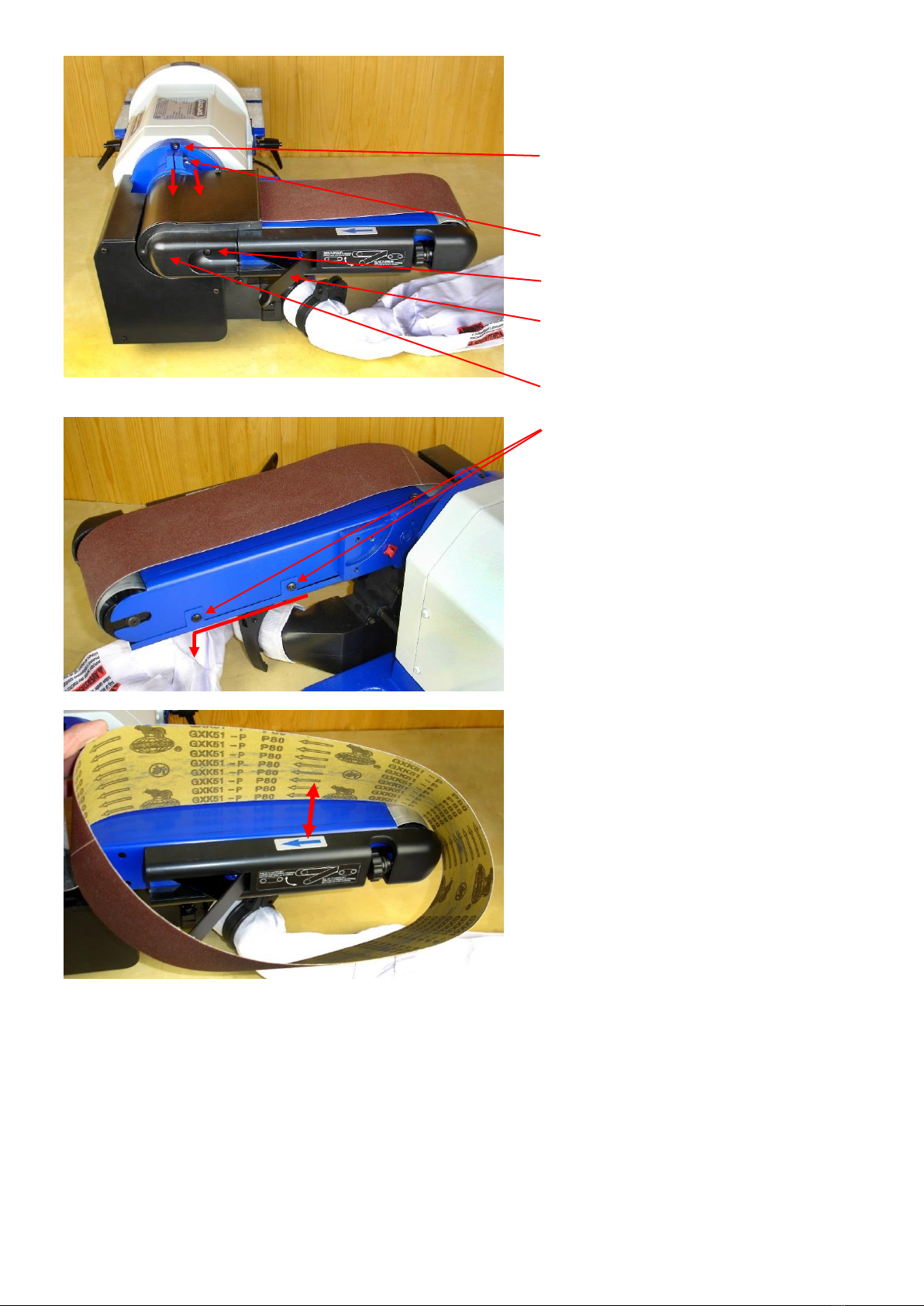

Replacing the Sanding Belt
Remove the belt worktable.
Position the belt horizontally by
loosening the hex head screw with a
5mm hex key.
Loosen this screw
Remove this screw
Release the tension on the sanding
belt by pulling out the tension lever.
Slide off the dust collecting cover
Loosen the two screws at the rear of
the belt which hold the bottom tray.
Slide and remove the tray.
It is now possible to remove the
sanding belt.
Locate the new belt over the two
rollers. Ensure that the arrow on the
inside of the belt corresponds to the
direction marked on the machine.
Replace the exhaust cover and
bottom tray, refitting/tightening all
screws. Re-tension the belt by
closing the tension lever.
Track the belt as in previous
instructions.

Troubleshooting
Problem
Cause
Remedy
Machine does not start
Blown House Fuse
Replace Fuse
Loose switch terminal
Inspect back of switch
Faulty switch
Replace switch
Failed Motor
Replace Motor
Only starts when Green
button is held down
Faulty switch
Replace switch
Machine Slows Down when
Sanding
Operator applying too much
pressure to work Piece
Use less pressure when
applying work piece to
sanding surface
Sanding Belt Runs Off
Pulleys
Not tracked correctly
Adjust sanding belt tracking
Wood burns while sanding
Sanding surface clogged
Clean or replace disc or belt
Excessive pressure being
applied to work piece
Use less pressure when
applying work piece to
sanding surface
Motor overheats
Motor overloaded
Allow to cool, restart with
reduced load
Dust collection ineffective
Collection bag is full
Empty collection bag
Collection bag is clogged
Clean inside of bag or
replace collection bag
Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to
protect the environment, take the packaging to the local amenity tip and place into the appropriate
recycling bin.
Only for EU countries
Do not dispose of electric tools together with household waste material!
In observance of European Directive 2002/96/EC on waste electrical and electronic equipment (EEE)
and its implementation in accordance with national law, electric tools that have reached the end of their
life must be collected separately and returned to an environmentally compatible recycling facility.
Your local refuse amenity will have a separate collection area for EEE goods
Declaration of Conformity for CE Marking
Charnwood Declare that Belt & Disc sander, Model BD48
Conforms with the following Directives: Machinery Directive 2006/42/EC
EMC Directive 2014/30/EU
And further conforms to the machinery example for which the EC type examination Certificate No. AM
50413122 and AE 50392019 have been issued by TUV Rheinland LGA Products GmbH, Tillystrasse 2,
90431 Nurnberg, Germany.
I hereby declare that equipment named above has been tested and found to comply with the relevant
sections of the above referenced specifications. The machinery complies with all essential requirements of
the directive.
Signed: Dated: 28/12/2017 Location: Leicestershire
Richard Cook, Director

Charnwood BD48 Parts Drawing

Charnwood BD48 Parts List
Part No.
Description
Part No.
Description
001
Rubber Foot
002
Philips Screw M4 x 10
003
Bottom Plate
004
Philips Screw M8x5
005
Lock Washer D8
006
Flat Washer D8
007
Base
008
Connect Tube
009
Big Pulley
010
Poly V Belt
011
Bearing 6000RZ
012
Spring Washer D26
013
Philips Screw ST4.2 x 15
014
Fan Cover
015
Fan
016
Big Washer D5
017
Spring Washer D5
018
Fan Housing
019
Fan Housing
020
Philips Screw M5 x 10
021
Front Cover
022
Dust Storage Box
023
Philips Screw M5 x 8
024
Exhaust Cover
025
Dust Exhaust
026
I type hex Nut M6
027
Bag Clamp
028
Clamp Handle
029
Screw M6 x 40
030
Tooth Lock Washer D5
031
Tension Level
032
Sleeve
033
Tension Handle
034
Pin 5 x 8
035
Pin 5 x 8
036
Philips Screw M5 x 25
037
Belt Tracking Knob
038
Flat Washer D6
039
Rubber Washer
040
Adjust Spring
041
Belt Frame
042
Tension Spring
043
Sleeve
044
Spring Washer D12
045
Bearing 6001RZ
046
Idler Shaft
047
Idler Pulley
048
Belt Tension Assembly
049
Inner Hex Screw
050
Belt Working Table
051
Big Washer D6
052
Mitre Gauge Knob
053
Sanding Belt 100mm x 915mm
054
Drive Pulley
055
Inner Hex Screw M8 x 12
056
Collector Shaft
057
Philips Screw M5 x 8
058
Flat Washer D5
059
Work Table Angle Point
060
Belt Frame Connect
061
Cord Bushing
062
Belt Cover
063
Pin 2 x 10
064
Spring Washer
065
Connection Plate
066
Right Cover
067
Left Cover
068
Small Pulley
069
Philips Screw M4 x 12
070
Belt Exhaust
071
Collector Mounting Shaft
072
Inner Hex Screw M5 x 20
073
Belt Mounting Plate
074
End Cap
075
Power Cord
076
Strain relief
077
Preventer Plate
079
Relay
081
Left End Cap
082
Key 5x5x15
083
Washer
084
Philips Screw M6 x 16
085
Sanding Disc
086
Disc Cover
087
Philips Screw M4x10
088
Angle Pointer
089
Disc Left Support
090
Handle Assembly
091
Disc Work Table
092
Mitre Gauge Bar
093
Mitre Gauge
094
Disc Right Support
095
Bearing 6203RZ
096
Rotor
097
Philips Screw M5 x 180
098
Stator
099
I Type Hex nut M5
100
Motor Cover
103
Switch
104
Tube Connector
105
Capacitor Support
106
Capacitor 12uf, 450V

107
Inner Hex Screw M6 x 25
108
Capacitor Support
109
Capacitor 100uf, 250V
110
Disc Plate
111
Flat Washer D4
112
Inner Hex Screw M5 x 8
113
Dust Bag
114
Position Shaft
115
Mitre Gauge Pointer
116
I Type Hex nut M8
117
Dust Box Cover
118
121
Scale Label Left
122
Scale Label Right
123
Rotation Label
124
Belt Tension Label
125
Inner Hex Wrench S=5
126
Scale Label
127
Spring Washer D40
128
Standard Spring Washer
129
Tooth Lock Washer D4
130
Bearing Bushing
131
Spring Pin 4x22
132
Spring Washer D6
133
Disc Work Table Knob
134
Inner Hex screw M5 x 12
135
Philips Screw M4 x 10
136
Spring Washer D5
137
Philips Screw M5 x 10
138
Flat Washer D5
139
Lock Washer D4
140
Flat Washer D4
141
Index Plate Scale
142
Support Locating Plate
143
Flat Washer D8
144
Over Current Protector 4A
145
Strain Relief
146
Strain Relief Plate
147
Philips Screw M4 x 16
Updated December 2018
Charnwood Machinery Ltd, Cedar Court, Walker Road,
Hilltop Industrial Estate, Bardon Hill, Leicestershire, LE67 1TU, England
Tel. [phone] Fax. [phone]
email: [e-mail] website: www.charnwood.net
