Chauvet DJ EVE TF-20X User manual

User Manual

Eve TF-20 X
Eve TF-20 X User Manual Rev. 1
Table of Contents
1. Before You Begin ....................................................................... 1
What Is Included ........................................................................................... 1
Unpacking Instructions.................................................................................. 1
Claims ............................................................................................................................ 1
Text Conventions .......................................................................................... 1
Symbols ........................................................................................................ 1
Disclaimer ..................................................................................................... 1
Intellectual Property ...................................................................................... 1
Safety Notes.................................................................................................. 2
2. Introduction ................................................................................ 3
Product Overview.......................................................................................... 3
Product Dimensions ...................................................................................... 3
3. Setup ........................................................................................... 4
AC Power...................................................................................................... 4
AC Plug .......................................................................................................................... 4
Track Adapter................................................................................................................. 5
Mounting ....................................................................................................... 7
Orientation...................................................................................................................... 7
Rigging ........................................................................................................................... 7
4. Maintenance................................................................................ 8
Product Maintenance .................................................................................... 8
5. Technical Specifications ........................................................... 9
Contact Us ...................................................................................... 10
Warranty & Returns....................................................................................... 10

1
Eve TF-20 X User Manual Rev. 1
Before You Begin
1. Before You Begin
What Is Included
Unpacking Instructions
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
Claims
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions
Symbols
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However,
Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,
damage or disruption caused by any errors or omissions in this document, whether such errors or
omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the
content of this document without any obligation to notify any person or company of such revision, however,
Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest
version from www.chauvetdj.com.
Intellectual Property
The works of authorship contained in this manual, including, but not limited to, all design, text and images
are owned by Chauvet.
© Copyright 2023 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
CHAUVET, the Chauvet logo, and Eve TF-20 X are registered trademarks or trademarks of Chauvet &
Sons LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company
and product names and logos referred to herein may be trademarks of their respective companies.
• Eve TF-20 X
• Track adapter
• Barn doors
• Gel frame
• Quick Reference Guide
Convention Meaning
1–512 A range of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified
<ENTER> A key to be pressed on the product’s control panel
ON A value to be entered or selected
Symbol Meaning
Electrical warning. Not following these instructions may cause electrical damage to
the product, accessories, or the user.
Critical installation, configuration, or operation information. Not following these
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function
correctly if this information is not used.
Useful information.
!

2
Before You Begin
Eve TF-20 X User Manual Rev. 1
Safety Notes
■ALWAYS:
♦Connect to a grounded circuit.
♦Connect to operating voltages as specified on the product's spec sticker.
♦Disconnect from power before replacing the fuse.
♦Disconnect from its power source during periods of inactivity.
♦Use a safety cable when suspending overhead.
♦Heed all restrictions and warnings on the spec sticker.
♦Mount in a location with at least 20 in (50 cm) of ventilation.
♦Replace the fuse with the same type and rating.
■In the event of a serious operating problem, stop using immediately.
■DO NOT:
♦Open this product or attempt any repairs. It contains no user-serviceable parts.
♦Look at the light source when the product is on.
♦Use if the power cord is crimped or damaged.
♦Disconnect by pulling on the power cord.
♦Allow flammable materials close to the product when it is operating.
♦Touch the housing when it is on.
♦Block any ventilation holes/slots in the housing.
♦Connect to a dimmer or rheostat.
♦Carry the product by its power cord.
♦Operate in temperatures higher than 104°F (40°C).
♦Expose to environments that exceed the Ingress Protection (IP) rating.
♦Expose to rain or moisture.
♦Use outdoors.
♦Submerge.
♦Expose to corrosive environmental conditions such as temperature, humidity, salinity,
pressure, radiation, or shock.
♦Set this product on a flammable surface.
Keep this User Manual for future use. If the product is sold to someone else, be sure that they
also receive this document.
!

3
Eve TF-20 X User Manual Rev. 1
Introduction
2. Introduction
Product Overview
Product Dimensions
Mounting hole
Barn doors
Barn door
attachment
clip
Power cable
7.9 in
201.5 mm
4.8 in
123 mm 3.4 in
87.8 mm

4
Setup
Eve TF-20 X User Manual Rev. 1
3. Setup
AC Power
The Eve TF-20 X has a fixed voltage power supply, and it can work with an input voltage range of either
120 VAC, 60 Hz or 220 VAC, 50 Hz, depending on the specific model. To determine the product’s power
requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to
the product’s back panel, or refer to the product’s specifications chart. The listed current rating indicates
the product’s average current draw under normal conditions.
AC Plug
This product can be connected to a dimmer or rheostat, by plugging in to a standard outlet controlled by a
dimmer or rheostat, or by splicing the power cable and connecting to the included track adapter.
• Always connect the product to a protected circuit (a circuit breaker or fuse).
Make sure the product has an appropriate electrical ground to avoid the risk of
electrocution or fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-
use completely disconnect the product from power via breaker or by
unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if
the rheostat or dimmer channel serves only as a 0 to 100% switch.
To eliminate wear and improve its lifespan, during periods of disuse completely
disconnect the product from power via breaker or by unplugging it.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green/Silver
Splicing to a commercial track lighting or dimmer setup should be completed by a
licensed professional.
!
!
!

5
Eve TF-20 X User Manual Rev. 1
Setup

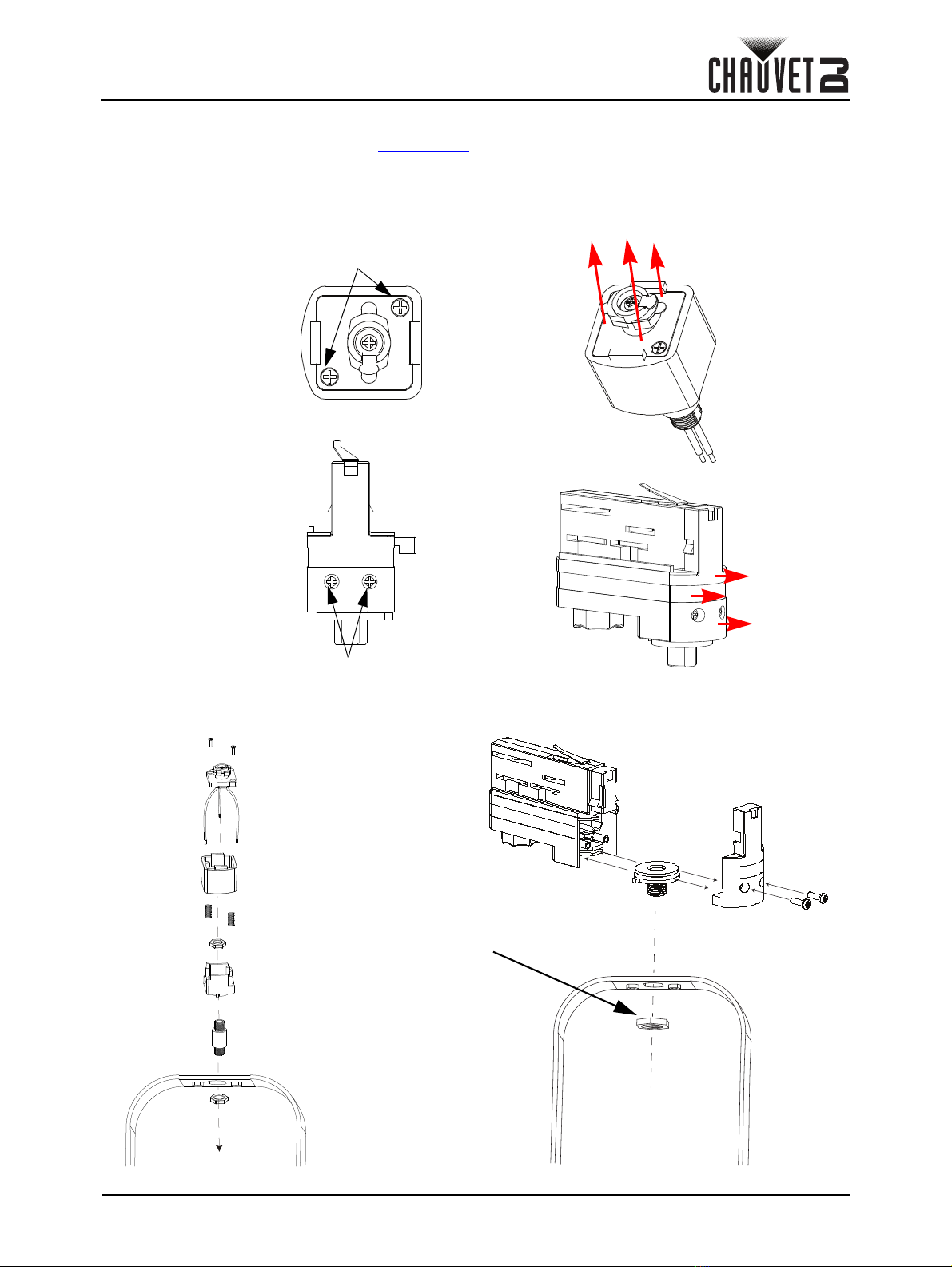

Track Adapter
Before mounting this product, read the Safety Notes. To splice the included Track Adapter onto the
Eve TF-20 X :
1. Cut the power cable, leaving 1.5 feet for maneuverability.
2. Strip enough of the cable and wires to allow for splicing.
3. Dismantle the Track Adapter:
4. Pass the cable through each piece and the mounting bracket, as shown in the diagram below.
Remove
2 screws
Pull
assembly
out
Remove 2 screws
120 VAC
220 VAC
Remove cover
220 VAC
120 VAC
Washer

6
Setup
Eve TF-20 X User Manual Rev. 1
5. Splice to the Track Adapter as shown in the diagram below.
6. Secure the Track Adapter to the mounting bracket using the hollow bolt and nut(s), and
reassemble it.
Splice Wires
(with included wire nuts)
Neutral
Ground
Live
Splice Wires
(with screws)
Neutral
Ground
Live
120 VAC 220 VAC

7
Eve TF-20 X User Manual Rev. 1
Setup
Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
Orientation
The Eve TF-20 X may be mounted in any position; however, make sure adequate ventilation is provided
around the product.
Rigging
• Before deciding on a location for the product, always make sure there is easy access to the product
for maintenance and programming purposes.
• Make sure that the structure onto which the product is being mounted can support the product’s
weight. See the Technical Specifications for weight information.
• When mounting the product overhead, always use a safety cable. Mount the product securely to a
rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• When power linking multiple products, mount the products close enough for power-linking cables to
reach.
• The bracket adjustment knobs allow for directional adjustment when aiming the product to the
desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the
knobs.
Mounting Diagram
Safety Cable
(such as CH-05 from Chauvet)
Mounting Clamp
(such as CLP-15N from Chauvet)
Mounting Bracket
Bracket
adjustment
knobs

8
Maintenance
Eve TF-20 X User Manual Rev. 1
4. Maintenance
Product Maintenance
Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of
the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean
your lighting products at least twice a month. However, be aware that usage and environmental conditions
could be contributing factors to increase the cleaning frequency.
To clean the product, follow the instructions below:
1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external
surface/vents.
4. Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl
alcohol.
5. Apply the solution directly to a soft, lint-free cotton cloth or a lens-cleaning tissue.
6. Softly drag any dirt or grime to the outside of the transparent surface.
7. Gently polish the transparent surfaces until they are free of haze and lint.
Always dry the transparent surfaces carefully after cleaning them.

Eve TF-20 X User Manual Rev. 1
Technical Specifications
9
5. Technical Specifications
Dimensions and Weight
Note: Dimensions in inches rounded to the nearest hundredth.
Power
Light Source
Photometrics
Thermal
Ordering
Length Width Height Weight
7.9 in (201.5 mm) 4.8 in (123 mm) 3.4 in (87.8 mm) 2 lb (0.9 kg)
Power Supply Type Range Voltage Selection
Fixed 120 VAC, 60 Hz
or 220 VAC, 50 Hz Fixed
Parameter 120 V, 60 HZ230 V, 50 HZ
Consumption 24 W 24 W
Operating current 0.2 A 0.1 A
Power I/O U.S./Canada Worldwide
Fixed Power cord Edison (U.S.) Local plug
Type Quantity Color Power Current Lifespan
COB LED 1 Warm white 20 W 0.5 A 50,000 hours
Parameter Value
Beam angle 24°
Field angle 40°
Maximum External Temperature Cooling System
104 °F (40 °C) Convection
Product Name Item Code UPC Number
Eve TF-20 X (120 V) 10031991 7814622223397
Eve TF-20 X (220 V) 10031989 7814622223373
Eve TF-20 X WHT (120 V) 10031992 7814622223403
Eve TF-20 X WHT (220 V) 10031990 7814622223380
UL 1573
CSA C22.2 No. 166
E113093

10
Contact Us
Eve TF-20 X User Manual Rev. 1
Contact Us
Warranty & Returns
For warranty registration and complete terms and conditions, please visit the Chauvet website.
For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg,
France, and Germany: www.chauvetlighting.eu/warranty-registration.
General Information Technical Support
Chauvet World Headquarters
Address: 3360 Davie Rd. Voice: (844) 393-7575
Davie, FL 33314 Fax: (954) 756-8015
Fax: (954) 929-5560
Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com
Chauvet U.K.
Address: Unit 1C Email: UKtech@chauvetlighting.eu
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu
NG16 6NT
Voice: +44 (0) 1773 511115
Fax: +44 (0) 1773 511110
Chauvet Benelux
9770 Kruishoutem
Belgium Website: www.chauvetprofessional.eu
Voice: +32 9 388 93 97
Chauvet France
Address: 3, Rue Ampère
91380 Chilly-Mazarin
Email: [email protected]
France Website: www.chauvetprofessional.eu
Voice: +33 1 78 85 33 59
Chauvet Germany
Address: Bruno-Bürgel-Str. 11
28759 Bremen
Email: [email protected]e
Germany Website: www.chauvetprofessional.eu
Voice: +49 421 62 60 20
Chauvet Mexico
Address: Av. de las Partidas 34 - 3B
(Entrance by Calle 2)
Email: [email protected]
Zona Industrial Lerma Website: www.chauvetprofessional.mx
Lerma, Edo. de México, CP 52000
Voice: +52 (728) 690-2010
Other manuals for EVE TF-20X
1
Table of contents
Other Chauvet DJ Floodlight manuals

Chauvet DJ
Chauvet DJ SlimPAR PRO Pix User manual

Chauvet DJ
Chauvet DJ Intimidator Spot 360X User manual

Chauvet DJ
Chauvet DJ Intimidator Beam Q60 User manual

Chauvet DJ
Chauvet DJ COLORband Q4 IP User manual

Chauvet DJ
Chauvet DJ 4BAR ILS User manual

Chauvet DJ
Chauvet DJ Intimidator Spot 475ZX User manual

Chauvet DJ
Chauvet DJ Intimidator Trio User manual

Chauvet DJ
Chauvet DJ Gobo Zoom 2 User manual

Chauvet DJ
Chauvet DJ Mini Kinta ILS User manual

Chauvet DJ
Chauvet DJ Intimidator Spot 260X User manual
