Chauvet Professional Rogue Outcast 3 Spot User manual

Model ID: ROGUEOUTCAST3SPOT
User Manual

Rogue Outcast 3 Spot User Manual Rev. 1
Edition Notes
The Rogue Outcast 3 Spot User Manual includes a description, safety precautions, installation,
programming, operation and maintenance instructions for the Rogue Outcast 3 Spot as of the release date
of this edition.
Trademarks
Chauvet, Chauvet Professional, the Chauvet logo, Rogue, Outcast, and Rogue Outcast are registered
trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United
States and other countries. Other company and product names and logos referred to herein may be
trademarks of their respective companies.
Copyright Notice
The works of authorship contained in this manual, including, but not limited to, all design, text and images
are owned by Chauvet.
© Copyright 2022 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
Manual Use
Chauvet authorizes its customers to download and print this manual for professional information purposes
only. Chauvet expressly prohibits the usage, copy, storage, distribution, modification, or printing of this
manual or its content for any other purpose without written consent from Chauvet.
Document Printing
For best results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If using A4
paper (210 x 297 mm), configure the printer to scale the content accordingly.
Intended Audience
Any person installing, operating, and/or maintaining this product should completely read through the guide
that shipped with the product, as well as this manual, before installing, operating, or maintaining this
product.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However,
Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,
damage or disruption caused by any errors or omissions in this document, whether such errors or
omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the
content of this document without any obligation to notify any person or company of such revision, however,
Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest
version from www.chauvetprofessional.com.
Document Revision
This Rogue Outcast 3 Spot User Manual is the 1st edition of this document. Go to
www.chauvetprofessional.com for the latest version.

Rogue Outcast 3 Spot User Manual Rev. 1
Table of Contents
i
TABLE OF CONTENTS
1. Before You Begin ....................................................................... 1
What Is Included ........................................................................................... 1
Claims ........................................................................................................... 1
Text Conventions .......................................................................................... 1
Symbols ........................................................................................................ 1
FCC Compliance........................................................................................... 1
Safety Notes.................................................................................................. 2
Personal Safety.................................................................................................. 2
Mounting and Rigging ........................................................................................ 2
Power and Wiring............................................................................................... 2
Operation ........................................................................................................... 3
Expected LED Lifespan................................................................................. 3
2. Introduction ................................................................................ 4
Description .................................................................................................... 4
Features........................................................................................................ 4
Product Overview.......................................................................................... 4
Product Dimensions ...................................................................................... 5
3. Setup ........................................................................................... 6
AC Power...................................................................................................... 6
AC Plug .............................................................................................................. 6
Power Linking..................................................................................................... 6
Fuse Replacement ............................................................................................. 6
DMX Linking.................................................................................................. 6
Remote Device Management (RDM) ................................................................. 6
USB Software Update ................................................................................... 6
Mounting ....................................................................................................... 7
Orientation.......................................................................................................... 7
Rigging ............................................................................................................... 7
Procedure........................................................................................................... 7
4. Operation .................................................................................... 8
Control Panel Description ............................................................................. 8
Menu Map ..................................................................................................... 8
Configuration (DMX) ..................................................................................... 10
Control Personalities .......................................................................................... 10
Starting Address................................................................................................. 10
Control Channel Assignments and Values.................................................... 10

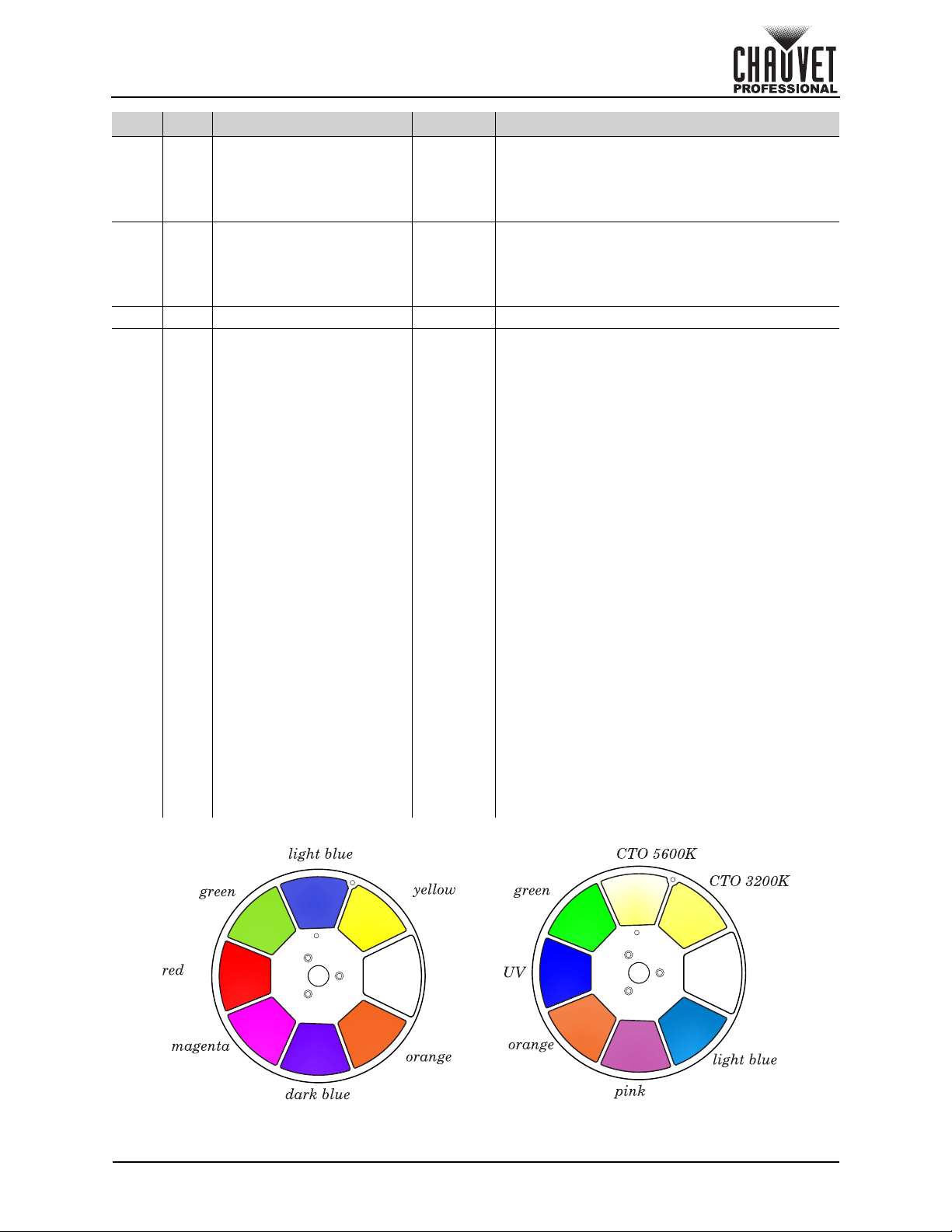

Color Wheels...................................................................................................... 13
Gobo Wheels ..................................................................................................... 14
Rotating Gobo Dimensions ............................................................................................. 14
Configuration (Settings) ................................................................................ 14
Pan Reverse ...................................................................................................... 14
Tilt Reverse ........................................................................................................ 14
Screen Reverse ................................................................................................. 14
Pan Angle........................................................................................................... 15
Tilt Angle ............................................................................................................ 15
Black Out on Movement..................................................................................... 15
Display Backlight Timer...................................................................................... 15

Table of Contents
Rogue Outcast 3 Spot User Manual Rev. 1
ii
Swap Pan and Tilt .............................................................................................. 15
DMX Loss........................................................................................................... 15
Fan Mode ........................................................................................................... 15
Dimmer Curve .................................................................................................... 15
Pulse Width Modulation ..................................................................................... 15
USB Update ....................................................................................................... 16
Reset Function ................................................................................................... 16
Factory Reset..................................................................................................... 16
Test Mode ..................................................................................................... 16
Auto Test............................................................................................................ 16
Manual Test ....................................................................................................... 16
System Information ....................................................................................... 16
Offset Mode (Zero Adjust)............................................................................. 16
Gobo Replacement ....................................................................................... 17
Procedure........................................................................................................... 17
Diagram .......................................................................................................................... 17
5. Maintenance................................................................................ 18
Product Maintenance .................................................................................... 18
6. Technical Specifications ........................................................... 19
Returns............................................................................................ 20
Contact Us ...................................................................................... 21

Page 1 of 21
Rogue Outcast 3 Spot User Manual Rev. 1
Before You Begin
1. Before You Begin
What Is Included
Claims
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions
Symbols
FCC Compliance
This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
• Rogue Outcast 3 Spot
• Seetronic Powerkon IP65 power cable
• 2 Omega brackets with mounting hardware
• Quick Reference Guide
Convention Meaning
1–512 A range of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified
<ENTER> A key to be pressed on the product’s control panel
Symbol Meaning
Critical installation, configuration, or operation information. Not following these
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function correctly
if this information is not used.
Useful information.
Any reference to data or power connections in this manual assumes the use of Seetronic
IP rated cables.
The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data
transmission protocol.

Page 2 of 21
Before You Begin
Rogue Outcast 3 Spot User Manual Rev. 1
Safety Notes
Read all the following safety notes before working with this product. These notes contain important
information about the installation, usage, and maintenance of this product.
Personal Safety
• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer
than 16.4 ft (5 m) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special
cord or cord exclusively available from the manufacturer or his service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service
agent or a similar qualified person.
• The luminaire is intended for professional use only.
• Always disconnect the product from the power source before cleaning or replacing the fuse.
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Do not touch the product’s housing when operating because it may be very hot.
Mounting and Rigging
• Do not submerge this product (IP65). Temporary outdoor operation is fine.
• When using this product in an outdoor environment, use IP65 (or higher) rated power and data
cables. Secure unused power and data ports with attached IP65 covers.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to
warm, humid ballroom) condensation may form on the internal electronics of the product. To avoid
causing a failure, allow product to fully acclimate to the surrounding environment before connecting
it to power.
• Not for permanent outdoor installation in locations with extreme environmental conditions. This
includes, but is not limited to:
• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
• Locations where the normal high or low temperatures exceed the temperature ranges in this
manual.
• Locations that are prone to flooding or being buried in snow.
• Areas where the product will be subjected to extreme radiation or caustic substances.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent
surfaces.
• Make sure there are no flammable materials within 20 cm of this product while it is operating.
• When hanging this product, always secure to a fastening device using a safety cable.
• Never carry the product by the power cable.
Power and Wiring
• Make sure the power cable is not crimped or damaged.
• Always make sure you are connecting this product to the proper voltage in accordance with the
specifications in this manual or on the product’s specification label.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
• Never connect this product to a dimmer pack or rheostat.
• Make sure to replace the fuse with another of the same type and rating.
• Never disconnect this product by pulling or tugging on the power cable.
This product contains no user-serviceable parts. Any reference to servicing in this User
Manual will only apply to properly trained, certified technicians. Do not open the housing
or attempt any repairs.
All applicable local codes and regulations apply to proper installation of this product.

Page 3 of 21
Rogue Outcast 3 Spot User Manual Rev. 1
Before You Begin
Operation
• Do not operate this product if there is damage on the housing, lenses, or cables. Have the damaged
parts replaced by an authorized technician at once.
• Do not cover the ventilation slots when operating to avoid internal overheating.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate the product at higher
temperatures.
• The minimum startup temperature is -4°F (-20°C). Do not start the product at lower temperatures.
• The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower
temperatures.
• In the event of a serious operation problem, stop using this product immediately!
Expected LED Lifespan
Over time, use and heat will gradually reduce LED brightness. Clustered LEDs produce more heat than
single LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is
40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit
the overall intensity.
If your Chauvet product requires service, contact Chauvet Technical Support.

Page 4 of 21
Introduction
Rogue Outcast 3 Spot User Manual Rev. 1
2. Introduction
Description
The Rogue Outcast 3 Spot is an outdoor-ready, IP65 moving head spot ideal for medium to large festivals
and events. This feature-packed moving spot has a bright 300 W LED light engine that produces an even
field of light, as well as rotating and static gobos, two 7-position and split-color enabled color wheels, and
five facet prism to create stunning looks. A zoom range of 4.5 – 38.1° allows the Rogue Outcast 3 Spot to
easily cover stages and large surfaces from a distance.
Features
• IP65 rated LED Spot with (2) color wheels, a static and rotating gobo wheel, motorized zoom, Iris,
5 facet prism, encased in a lightweight aluminum and magnesium alloy
• Zoom range of 4.5° to 38.1 to easily cover stages and surfaces from a distance
• Perfect gobo morphing between gobo wheels
• Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris, 5-facet prism, and frost for beam control
• Beautiful 16-bit LED dimming for ultimate fade control
• IP65 rated power input/output connections for power linking
• 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting
• Selectable PWM settings to maintain flicker free operation on camera
• Simple and complex DMX channel profiles for programming versatility
• USB-C port for uploading software

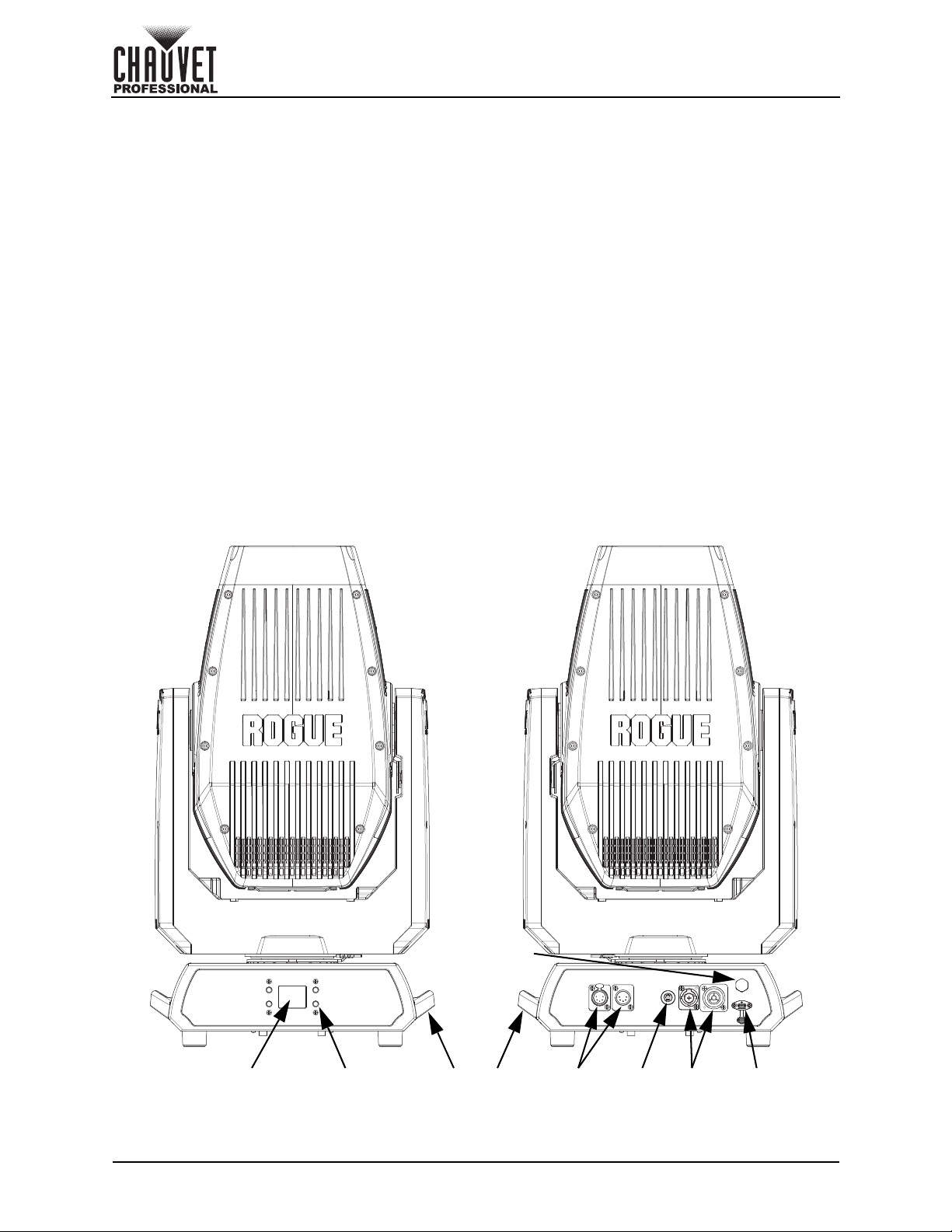

Product Overview
Menu
buttons
LCD
display
DMX
in/out
Carry
handle
Power
in/out
Fuse
holder
USB C
port
Condensation
valve

Page 5 of 21
Rogue Outcast 3 Spot User Manual Rev. 1
Introduction
Product Dimensions
10.12 in
257 mm
13.46 in
342 mm
25.16 in
639 mm
17.48 in
444 mm
9.61 in
244 mm
14.41 in
366 mm
9.5 in
241 mm
13.9 in
353 mm
4.23 in
107 mm

Page 6 of 21
Setup
Rogue Outcast 3 Spot User Manual Rev. 1
3. Setup
AC Power
The Rogue Outcast 3 Spot has an auto-ranging power supply and it can work with an input voltage range
of 100 to 240 VAC, 50/60 Hz.
To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current
value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
The listed current rating indicates the product’s average current draw under normal conditions.
AC Plug
The Rogue Outcast 3 Spot comes with a power input cable terminated with a Seetronic Powerkon A
connector on one end and bare wire on the other end (U.S. market). Use the table below to wire a plug.
Power Linking
The product supports power linking. It is possible to power link up to 2 Rogue Outcast 3 Spot products at
100 V or 120 V, 4 products at 208 V, or up to 5 products at 230 V or 240 V. Never exceed this number. This
product comes with a power input cable. Power linking cables are available from Chauvet for purchase.
Fuse Replacement
1. Disconnect this product from the power outlet.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with another fuse of the same type and rating (F 8 A, 250 V).
4. Screw the fuse holder cap back in place and reconnect power.
DMX Linking
The Rogue Outcast 3 Spot will work with a DMX controller using a 5-pin DMX serial connection. A DMX
Primer is available from www.chauvetprofessional.com.
Remote Device Management (RDM)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate
bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the
manufacturer as not all DMX controllers have this capability. The Rogue Outcast 3 Spot supports RDM
protocol that allows feedback to make changes to menu map options.
USB Software Update
The Rogue Outcast 3 Spot allows for software update through USB using the built-in USB port. The
product's USB port supports up to 32GB capacity and only works with FAT32 file format. To update the
software using a USB flash drive, do the following:
1. Power on the product and plug the flash drive into the USB port.
2. Once the flash drive has been detected, the message “Upgrade Firmware” will be displayed. Press
<ENTER>. If a different message appears on the display, search for the updated software in the
Menu (Updated Firmware). A list of the updated software files will be displayed.
3. Select the file that needs to be uploaded. The message “Are you sure?” will be displayed. Press
<ENTER>.
4. If the selected file is correct, the update will be completed. Restart the product.
If the selected file is incorrect, the update will fail, and the display will go back to the main interface.
Repeat steps 1–3 using the correct file.
• Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure
the product has an appropriate electrical ground to avoid the risk of electrocution or
fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the
rheostat or dimmer channel serves only as a 0 to 100% switch.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow or Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green

Page 7 of 21
Rogue Outcast 3 Spot User Manual Rev. 1
Setup
Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
For our Chauvet Professional line of mounting clamps, go to http://trusst.com/products/.
Orientation
Always mount this product in a safe position, making sure there is adequate room for ventilation,
configuration, and maintenance.
Rigging
Chauvet recommends using the following general guidelines when mounting this product.
• Before deciding on a location for the product, make sure there is easy access to the product for
maintenance and programming purposes.
• Make sure that the structure onto which you are mounting the product can support the product’s
weight. See the Technical Specifications for weight information.
• When mounting the product overhead, always use a safety cable. Mount the product securely to a
rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
Procedure
The Rogue Outcast 3 Spot comes with 2 omega brackets to which you can directly attach mounting
clamps (sold separately). Make sure the clamps are capable of supporting the weight of this product. Use
at least two mounting points per product. For the Chauvet Professional line of mounting clamps, go to http:/
/www.trusst.com/products.
Mounting Diagram
Safety cable
Mounting
clamp (x2)
Omega
bracket (x2)
Overhead mounting Surface mounting

Page 8 of 21
Operation
Rogue Outcast 3 Spot User Manual Rev. 1
4. Operation
Control Panel Description
Menu Map
Refer to the Rogue Outcast 3 Spot product page on www.chauvetprofessional.com for the latest menu map.
Button Function
<MENU> Exits from the current menu or function
<ENTER> Enables the currently displayed menu or sets the selected value into the selected function
<UP> Navigates upwards through the menu list or increases the value when in a function
<DOWN> Navigates downwards through the menu list or decreases the value when in a function
Main Level Programming Levels Description
Address 001–512 Sets the starting address
Run Mode
DMX 20CH Selects the DMX personality
25CH
Auto Test Auto test all functions
Manual Test
Pan
0–255 Manually control and test all
settings through the control panel
Pan Fine
Tilt
Tilt Fine
P/T Speed
Dimmer
Dimmer Fine
Shutter
Virtual Shaking
Color1
Color2
Gobo2
Gobo
Gobo Rotate
Gobo Index
Gobo2
Focus
Focus Fine
Auto Focus
Zoom
Zoom Fine
Prism
Prism Rotate
Iris
Frost
Special Function
Setup
Pan Reverse NO Normal pan
YES Reversed pan
Tilt Reverse NO Normal tilt
YES Reversed tilt

Page 9 of 21
Rogue Outcast 3 Spot User Manual Rev. 1
Operation
Setup
(cont.)
Screen Reverse
NO Normal screen display
YES Inverted screen display
AUTO Automatic screen orientation
Pan Angle
540 540° pan range
360 360° pan range
180 180° pan range
Tilt Angle
270 270° tilt range
180 180° tilt range
090 90° tilt range
BL.O.P/T Move NO Enable/disable blackout while
panning/tilting
YES
BL.O.
ColorMove
NO Enable/disable blackout while
color wheel is moving
YES
BL.O.
GoboMove
NO Enable/disable blackout while
gobo wheels are moving
YES
Backlight Timer
30S Display turns off after 30 seconds
1M Display turns off after 1 minute
5M Display turns off after 5 minutes
ON Display stays on
Swap XY NO Do not swap pan and tilt
YES Pan controls tilt, tilt controls pan
Loss of Data Hold Holds last signal received
Close Blacks out fixture
Fan Mode
Auto Fan set by product temperature
Full Fan speed set on high
ECO Quiet mode
Dimmer Curve
Linear
Set the dimmer curve
Square
I Squa
SCurve
Linear2
PWM Option
600Hz
Sets the PWM frequency
1200Hz
2000Hz
4000Hz
6000Hz
15000Hz
USB Update NO Update firmware via USB C
YES
Reset
Pan/Tilt
NO
YES
Reset individual functions or all
functions from start-up
Prism
Color/Iris
Gobo/Gobo2
Frost
All
Factory Set NO Reset to factory default settings
YES
Main Level Programming Levels Description

Page 10 of 21
Operation
Rogue Outcast 3 Spot User Manual Rev. 1
Configuration (DMX)
Use control configurations to operate the product with a DMX controller.
Control Personalities
To set the control personality:
1. Go to the Run Mode main level.
2. Select the DMX option.
3. Select the desired personality from 20CH or 25CH.
Starting Address
Each product will respond to a unique starting address from the controller. All products with the same
starting address will respond in unison. To set the starting address:
1. Go to the Address main level.
2. Select the starting address (001–512).
• The highest recommended starting address for 20CH is 493.
• The highest recommended starting address for 25CH is 48.
Control Channel Assignments and Values
Sys Info
Ver V_._ _ _ _ _ _ Shows firmware version
Running Mode _ _ _ Shows current running mode
Dmx Address _ _ _ Shows current DMX address
Temperature _ _ _ Shows the product temperature
in °C
Fixture Hours _ _ _ _ _ Shows time product has been on
LED Hours _ _ _ _ _ Shows time LED has been on
UID _ _ _ _ _ _ _ _ _ _ _ _ Shows UID information
_Fan_ _ _ _ (x3) _ _ _ _ _ Shows speeds of fans
Base Fan1 _ _ _ _ _ Shows speed of base fan
•SeetheStarting Address section for the highest starting address you can select for each
personality.
• Make sure that the starting addresses on the various products do not overlap due to the new
personality setting.
20CH 25CH Function Value Percent/Setting
11Pan 000 255 0–100%
2 2 Fine pan 000 255 Fine control (16-bit)
33Tilt 000 255 0–100%
4 4 Fine tilt 000 255 Fine control (16-bit)
5 5 Pan/tilt speed 000 255 Fast to slow
6 6 Dimmer 000 255 0–100%
– 7 Fine dimmer 000 255 Fine control (16-bit)
78Strobe
000 003 Off
004 007 On
008 076 Synchronized strobe, slow to fast
077 145 Pulse strobe, slow to fast
146 215 Random strobe, slow to fast
216 255 On
8 9 Virtual shaking
000 001 No function
002 128 Shaking effect, slow to fast
129 255 Fade effect, slow to fast
Main Level Programming Levels Description

Page 11 of 21
Rogue Outcast 3 Spot User Manual Rev. 1
Operation
9 10 Color wheel 1
000 006 Open
007 013 Yellow
014 020 Light blue
021 027 Green
028 034 Red
035 041 Magenta
042 048 Dark blue
049 059 Orange
060 187 Color wheel indexing
188 219 Color scroll, fast to slow
220 223 Stop
224 255 Reverse color scroll, slow to fast
10 11 Color wheel 2
000 006 Open
007 013 CTO 3200K
014 020 CTO 5600K
021 027 Green
028 034 UV
035 041 Orange
042 048 Pink
049 059 Light blue
060 187 Color wheel indexing
188 219 Color scroll, fast to slow
220 223 Stop
224 255 Reverse color scroll, slow to fast
11 12 Gobo wheel 1
(see Gobo Wheels)
000 007 Open
008 015 Gobo 1
016 023 Gobo 2
024 031 Gobo 3
032 039 Gobo 4
040 047 Gobo 5
048 055 Gobo 6
056 063 Gobo 7
064 071 Gobo 7 shaking, slow to fast
072 079 Gobo 6 shaking, slow to fast
080 087 Gobo 5 shaking, slow to fast
088 095 Gobo 4 shaking, slow to fast
096 103 Gobo 3 shaking, slow to fast
104 111 Gobo 2 shaking, slow to fast
112 119 Gobo 1 shaking, slow to fast
120 127 Open
128 191 Gobo scroll, slow to fast
192 255 Reverse gobo scroll, slow to fast
20CH 25CH Function Value Percent/Setting

Page 12 of 21
Operation
Rogue Outcast 3 Spot User Manual Rev. 1
12 13 Gobo wheel 1 rotate
000 063 Gobo index
064 145 Rotation, fast to slow
146 149 Stop
150 231 Reverse rotation, slow to fast
232 255 Alternating clockwise/counterclockwise rotation,
short to long
– 14 Fine gobo rotation 000 255 Fine control (16-bit)
13 15 Gobo wheel 2
(see Gobo Wheels)
000 005 Open
006 011 Gobo 1
012 017 Gobo 2
018 023 Gobo 3
024 029 Gobo 4
030 035 Gobo 5
036 041 Gobo 6
042 047 Gobo 7
048 053 Gobo 8
054 063 Gobo 9
064 069 Gobo 9 shaking, slow to fast
070 075 Gobo 8 shaking, slow to fast
076 081 Gobo 7 shaking, slow to fast
082 087 Gobo 6 shaking, slow to fast
088 093 Gobo 5 shaking, slow to fast
094 099 Gobo 4 shaking, slow to fast
100 105 Gobo 3 shaking, slow to fast
106 111 Gobo 2 shaking, slow to fast
112 117 Gobo 1 shaking, slow to fast
118 127 Open
128 191 Gobo scroll, slow to fast
192 255 Reverse gobo scroll, slow to fast
14 16 Focus 000 255 0–100%
– 17 Fine focus 000 255 Fine control (16-bit)
–18Autofocus
000 010 No function
011 030 0-5 meters
031 050 6 meters
051 070 7 meters
071 090 8 meters
091 110 9 meters
111 130 10 meters
131 150 12.5 meters
151 170 15 meters
171 190 17.5 meters
191 210 20-60 meters
211 255 Auto detect distance
15 19 Zoom 000 255 0–100%
– 20 Zoom fine 000 255 Fine control (16-bit)
16 21 Prism 000 004 No function
005 255 Prism insert
20CH 25CH Function Value Percent/Setting

Page 13 of 21
Rogue Outcast 3 Spot User Manual Rev. 1
Operation
Color Wheels
17 22 Prism rotate
000 127 Prism index
128 189 Clockwise rotation, fast to slow
190 193 Stop
194 255 Counterclockwise rotation, slow to fast
18 23 Iris
000 063 Big to small
064 127 Auto change, slow to fast
128 191 Slow open, fast close, slow to fast
192 255 Fast open, slow close, slow to fast
19 24 Frost 000 255 0–100%
20 25 Control
(3 second hold)
000 007 No function
008 015 Blackout during pan/tilt
016 023 Blackout while color wheels are moving
024 031 Blackout while gobo wheels are moving
032 039 Blackout during pan/tilt/color wheel
040 047 Blackout during pan/tilt/gobo wheels
048 055 Blackout during pan/tilt/color wheel/gobo wheels
056 095 No function
096 103 Pan reset
104 111 Tilt reset
112 119 Color wheels reset
120 127 Gobo wheels reset
128 135 No function
136 143 Prism reset
144 151 No function
152 159 All reset
160 167 Iris reset
168 175 Frost reset
176 183 Zoom reset
184 191 Fan ECO
192 199 Fan Full
200 215 Fan Auto
216 255 No function
20CH 25CH Function Value Percent/Setting
Color Wheel 1 Color Wheel 2

Page 14 of 21
Operation
Rogue Outcast 3 Spot User Manual Rev. 1
Gobo Wheels
Rotating Gobo Dimensions
Configuration (Settings)
Pan Reverse
To set the orientation of the pan:
1. Go to the Setup main level.
2. Select the Pan Reverse option.
3. Select from NO (normal pan motion), or YES (reversed pan motion).
Tilt Reverse
To set the orientation of the tilt:
1. Go to the Setup main level.
2. Select the Tilt Reverse option.
3. Select from NO (normal tilt motion), or YES (reversed tilt motion).
Screen Reverse
To set the orientation of the display:
1. Go to the Setup main level.
2. Select the Screen Reverse option.
3. Select from NO (right-side up), YES (upside-down), or AUTO (automatic orientation).
Gobo Wheel 1 Gobo Wheel 2
25.5 mm
14.8 mm

Page 15 of 21
Rogue Outcast 3 Spot User Manual Rev. 1
Operation
Pan Angle
To set the maximum angle of the pan:
1. Go to the Setup main level.
2. Select the Pan Angle option.
3. Select from 540 (540°), 360 (360°), or 180 (180°).
Tilt Angle
To set the maximum angle of the tilt:
1. Go to the Setup main level.
2. Select the Tilt Angle option.
3. Select from 270 (270°), 180 (180°), or 90 (90°).
Black Out on Movement
To set the product to black out on movement of the pan/tilt, color wheels, and/or gobo wheels.
1. Go to the Setup main level.
2. Select from BL.O.P/T Move (pan/tilt), BL.O. ColorMove (color wheels), or BL.O. GoboMove
(gobo wheels).
3. Select from NO (do not black out during the selected movement), or YES (black out during the
selected movement).
Display Backlight Timer
To set how long before an inactive display will turn off:
1. Go to the Setup main level.
2. Select the Backlight Timer option.
3. Select the length of the backlight timer, from 30S (30 seconds), 1M (1 minute), 5M (5 minutes), or
ON (always on).
Swap Pan and Tilt
To swap the controls for pan and tilt with each other:
1. Go to the Setup main level.
2. Select the Swap XY option.
3. Select from NO (pan controls pan, tilt controls tilt), or YES (pan controls tilt, tilt controls pan).
DMX Loss
To set how the product responds when the DMX signal is lost:
1. Go to the Setup main level.
2. Select the Loss of Data option.
3. Select from Hold (holds the last signal received), or Close (blacks out the product).
Fan Mode
To set the fan speed mode:
1. Go to the Settings main level.
2. Select the Fan Mode option.
3. Select the fan mode, from Auto (fan speed adjusts to product temperature), Full (fan speed at
maximum), or ECO (quiet mode).
Dimmer Curve
To set the dimmer curve:
1. Go to the Setup main level.
2. Select the Dimmer Curve option.
3. Select the dimmer curve, from Linear, Square, I Squa, SCurve, or Linear2.
Pulse Width Modulation
To adjust the frequency of the pulse width modulation:
1. Go to the Setup main level.
2. Select the PWM Option option.
3. Select the frequency, from 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, or 15000Hz.

Page 16 of 21
Operation
Rogue Outcast 3 Spot User Manual Rev. 1
USB Update
To enable or disable software update using USB:
1. Go to the Setup main level.
2. Select the USB Update option.
3. Select NO (disables software update through USB) or YES (enables software update through
USB).
Reset Function
To reset specific functions or the entire product:
1. Go to the Setup main level.
2. Select the Reset Function option.
3. Select the functions to reset, from Pan/Tilt, Prism, Color/Iris, Gobo/Gobo2, Frost, or All.
4. Select NO (to cancel) or YES (to reset the selected functions).
Factory Reset
To reset the product to factory settings:
1. Go to the Setup main level.
2. Select the Factory Set option.
3. Select NO (to cancel) or YES (to reset the product configuration).
Test Mode
Auto Test
To have the Rogue Outcast 3 Spot automatically test all functions one after the other:
1. Go to the Run Mode main level.
2. Select the Auto Test option.
Manual Test
To manually test an individual function of the Rogue Outcast 3 Spot:
1. Go to the Run Mode main level.
2. Select the Manual Test option.
3. Select a function to test, from Pan, Pan Fine, Tilt, Tilt Fine, P/T Speed, Dimmer, Dimmer Fine,
Shutter, Virtual Shaking, Color1, Color2, Gobo2, Gobo, Gobo Rotate, Gobo Index, Gobo2,
Focus, Focus Fine, Auto Focus, Zoom, Zoom Fine, Prism, Prism Rotate, Iris, Frost, or
Special Function.
4. Increase or decrease the value of the selected function from 000–255 to test it.
System Information
The information section of the menu displays statistics and the current status of the product’s various
functions. To view this information:
1. Go to the Sys Info main level.
2. Use <UP> and <DOWN> to view all information.
Offset Mode (Zero Adjust)
The Offset mode provides fine adjustments for the home position of the pan, tilt, and zoom movements. To
adjust these options:
1. From the main level screen, press and hold <MENU> until the passcode screen appears.
2. Use <UP> (increase value) and <DOWN> (next value) to enter the passcode: 2323 and press
<ENTER>.
3. Select the “zero” position to adjust, from PAN, TILT, COLOR1, COLOR2, GOBO, GOBO
ROTATE, GOBO2, FOCUS–GOBO, FOCUS–GOBO2, ZOOM, PRISM, IRIS, FROST, Light
Block, DIMMER1, DIMMER2, RDM4, RDM5, or RDM6.
4. Adjust the “zero” position for the selected function from 000–255.
See the USB Software Update section for the detailed instructions on how to update the
Rogue Outcast 3 Spot software using a USB C connection.
