Chauvet GigBAR 2.0 User manual

User Manual
LASER LIGHT
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
CLASSIFIED PER EN/IEC 60825-1:2007
Complies with FDA performance standards
for laser products except for deviations
pursuant to Laser Notice No. 50, dated
June 24, 2007.
Patent Pending

Page 2 of 156 GigBAR 2.0 User Manual Rev. 2
TABLE OF CONTENTS
1. Before You Begin................................................................................................................................8
What Is Included.......................................................................................................................................................8
Description................................................................................................................................................................8
Unpacking Instructions.............................................................................................................................................8
Claims .................................................................................................................................................................8
Manual Conventions.................................................................................................................................................8
Symbols....................................................................................................................................................................8
Disclaimer.................................................................................................................................................................8
Safety Notes.............................................................................................................................................................9
Non-Interlocked Housing Warning....................................................................................................................10
Laser Safety Notes.................................................................................................................................................10

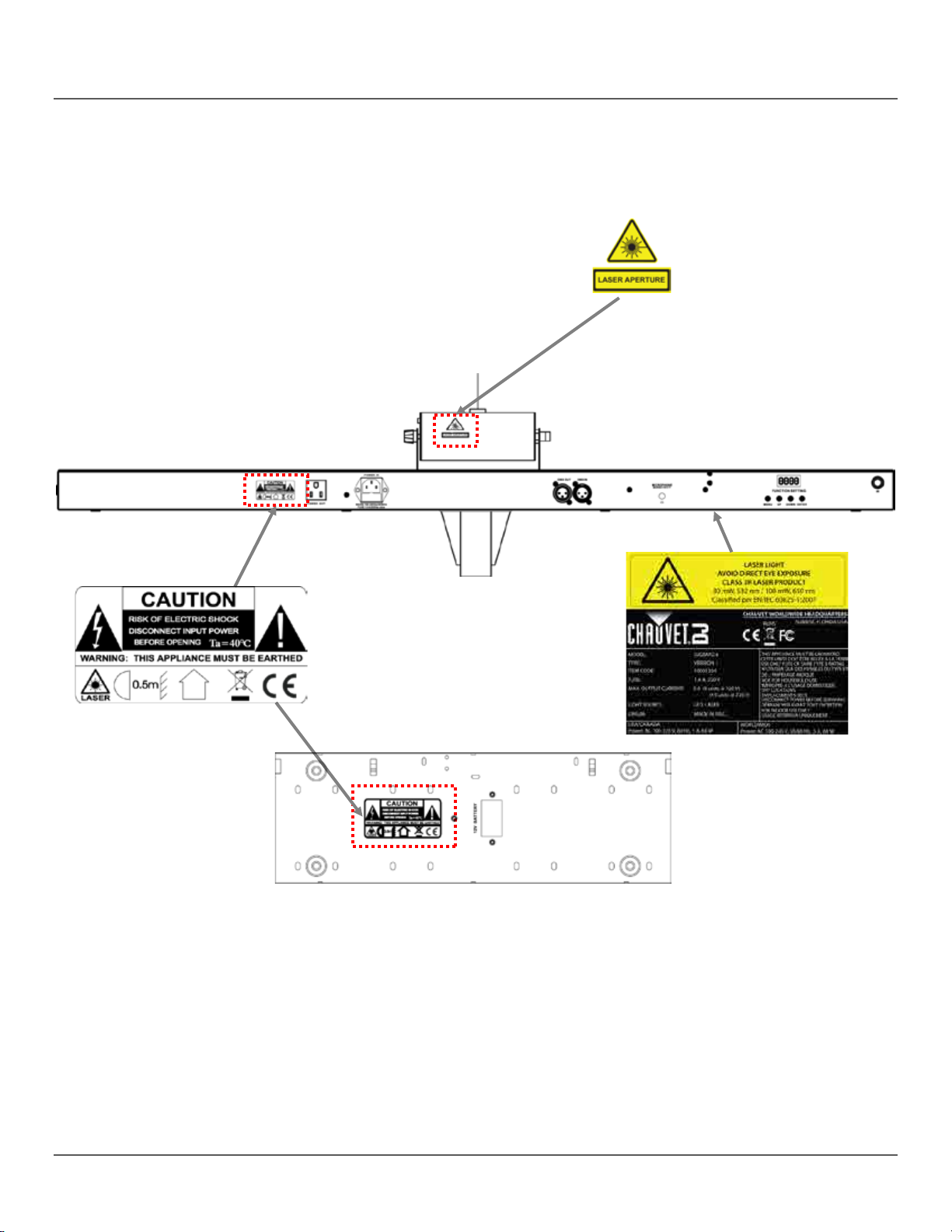

Laser Safety Label Reproduction......................................................................................................................12
Laser Exposure Warning...................................................................................................................................13
Laser Emission Data.........................................................................................................................................13
Laser Compliance Statement............................................................................................................................13
2. Introduction.......................................................................................................................................14
Overview.................................................................................................................................................................14
Overview.................................................................................................................................................................15
Dimensions.............................................................................................................................................................16
3. Setup .................................................................................................................................................17
AC Power ...............................................................................................................................................................17
Fuse Replacement............................................................................................................................................17
Footswitch Battery.............................................................................................................................................18
Battery Replacement.........................................................................................................................................18
Power Linking....................................................................................................................................................18
Mounting.................................................................................................................................................................19
Orientation.........................................................................................................................................................19
Rigging ..............................................................................................................................................................19
Mounting Diagram.......................................................................................................................................19
Proper Usage .........................................................................................................................................................20
4. Operation...........................................................................................................................................21
Control Panel Operation.........................................................................................................................................21
Menu Map...............................................................................................................................................................21
Configuration (Standalone) ....................................................................................................................................23
Sound Mixed Effect Sound-Active Mode ..........................................................................................................23
Auto Mixed Effect Automatic Mode...................................................................................................................23
Show Settings ...................................................................................................................................................23
Master/Slave .....................................................................................................................................................23
Mode .................................................................................................................................................................23
Master/Slave Mode (Cont.) ...............................................................................................................................24
Configuration (DMX)...............................................................................................................................................24
DMX Personality and Starting Address.............................................................................................................24
Custom Color Adjustment ......................................................................................................................................24
System Settings......................................................................................................................................................25
Default Pod Arrangement..................................................................................................................................25
Examples of Pod Order Rearrangement..........................................................................................................25
DMX Channel Assignments and Values...........................................................................................................26
23CH ...........................................................................................................................................................26
11CH ...........................................................................................................................................................28

GigBAR 2.0 User Manual Rev. 2 Page 3 of 156
3 CH ............................................................................................................................................................30
IRC-6 (Infrared Remote Control 6) Operation...................................................................................................31
Footswitch Operation ........................................................................................................................................32
5. Technical Information.......................................................................................................................33
Product Maintenance .............................................................................................................................................33
6. Technical Specifications.................................................................................................................. 34
Returns..................................................................................................................................................36
1. Antes de Empezar.............................................................................................................................37
Que va Incluido.......................................................................................................................................................37
Descripción.............................................................................................................................................................37
Reclamaciones..................................................................................................................................................37
Convenciones del Manual......................................................................................................................................37
Símbolos.................................................................................................................................................................37
Exención de Responsabilidad................................................................................................................................37
Notas de Seguridad................................................................................................................................................38
Advertencia sobre Carcasa no Cerrada............................................................................................................39
Notas de Seguridad sobre Láser............................................................................................................................39
Reproducción de la Etiqueta de Seguridad del Láser.......................................................................................41
Advertencia sobre Exposición al Láser.............................................................................................................42
Datos de Emisión Láser....................................................................................................................................42
Declaración de Conformidad Láser...................................................................................................................42
2. Introdución........................................................................................................................................43
Vista General..........................................................................................................................................................43
Vista General..........................................................................................................................................................44
Dimensiones...........................................................................................................................................................45
3. Configuración ...................................................................................................................................46
Corriente Alterna ....................................................................................................................................................46
Pila del pedal.....................................................................................................................................................46
Sustitución de la pila .........................................................................................................................................46
Sustitución del Fusible ......................................................................................................................................47
Alimentación en Cadena...................................................................................................................................47
Montaje...................................................................................................................................................................48
Orientación........................................................................................................................................................48
Colocación.........................................................................................................................................................48
Diagrama de Montaje..................................................................................................................................48
Uso Adecuado........................................................................................................................................................49
4. Funcionamiento................................................................................................................................50
Funcionamiento del Panel de Control....................................................................................................................50
Mapa de Menú........................................................................................................................................................50
Configuración (Independiente)...............................................................................................................................52
Modo Efecto Mezclado de Sonido Activo por Sonido.......................................................................................52
Modo Efecto Mezclado Automático...................................................................................................................52
Configuración del Show....................................................................................................................................52
Modo Maestro/Esclavo......................................................................................................................................53
Configuración (DMX)..............................................................................................................................................54
Personalidad DMX y Dirección de Inicio...........................................................................................................54
Ajuste de Color Personalizado...............................................................................................................................54
Configuración de Sistema ......................................................................................................................................55
Disposición de las Unidades por Defecto .........................................................................................................55
Ejemplos de Recolocación del Orden de las Unidades....................................................................................55
Asignaciones de Canal y Valores DMX ............................................................................................................56

Page 4 of 156 GigBAR 2.0 User Manual Rev. 2
23CH ...........................................................................................................................................................56
11CH ...........................................................................................................................................................59
3 CH ............................................................................................................................................................60
Funcionamiento del IRC-6 (Control Remoto por Infrarrojos 6).........................................................................61
Funcionamiento del Conmutador de Pie...........................................................................................................62
5. Información Técnica......................................................................................................................... 63
Mantenimiento del Producto...................................................................................................................................63
6. Especificaciones Técnicas............................................................................................................... 64
Devoluciones ........................................................................................................................................66
1. Avant de Commencer.......................................................................................................................67
Contenu..................................................................................................................................................................67
Description..............................................................................................................................................................67
Instructions de Déballage.......................................................................................................................................67
Réclamations.....................................................................................................................................................67
Conventions Manuelles..........................................................................................................................................67
Symboles................................................................................................................................................................67
Clause de Non Responsabilité...............................................................................................................................68
Consignes de Sécurité ...........................................................................................................................................68
Avertissement de Boîtier non-Verrouillé............................................................................................................70
Consignes de Sécurité des Lasers.........................................................................................................................70
Reproduction de l'Etiquette de Sécurité Laser..................................................................................................72
Avertissement d'Exposition au Laser................................................................................................................73
Données d'émission laser.................................................................................................................................73
Déclaration de Conformité Laser ......................................................................................................................73
2. Introduction.......................................................................................................................................74
Vue d'Ensemble .....................................................................................................................................................74
Vue d'Ensemble .....................................................................................................................................................75
Dimensions.............................................................................................................................................................76
3. Configuration....................................................................................................................................77
Alimentation CA......................................................................................................................................................77
Remplacement des fusibles..............................................................................................................................77
Chaînage Électrique..........................................................................................................................................77
Installation ..............................................................................................................................................................78
Orientation.........................................................................................................................................................78
Montage ............................................................................................................................................................78
Schéma de Montage...................................................................................................................................78
Utilisation Appropriée .............................................................................................................................................79
4. Fonctionnement................................................................................................................................80
Utilisation du panneau de commande....................................................................................................................80
Plan du Menu .........................................................................................................................................................80
Configuration (Autonome) ......................................................................................................................................82
Mode effet Mélangé Activé par le Son..............................................................................................................82
Mode Effet Mélangé Automatique.....................................................................................................................82
Paramètres du Spectacle..................................................................................................................................82
Mode Maître/Esclave ........................................................................................................................................83
Configuration (DMX)...............................................................................................................................................84
Personnalité DMX et Adresse DMX de Départ.................................................................................................84
Réglage de Couleur Personnalisé..........................................................................................................................84
Paramètres système...............................................................................................................................................85
Disposition par Défaut des Modules .................................................................................................................85

GigBAR 2.0 User Manual Rev. 2 Page 5 of 156
Des Exemples de Modification de l'Ordre des Modules ...................................................................................85
Affectation de Canaux DMX et Valeurs ............................................................................................................86
23CH ...........................................................................................................................................................86
11CH ...........................................................................................................................................................89
3 CH ............................................................................................................................................................90
Fonctionnement avec l'IRC-6 (Télécommande par infrarouge 6).....................................................................91
Fonctionnement avec la Pédale........................................................................................................................92
Batterie de la pédale .........................................................................................................................................93
Remplacement de la batterie............................................................................................................................93
5. Informations Techniques .................................................................................................................93
Entretien de l'Appareil ............................................................................................................................................93
6. Spécifications Techniques...............................................................................................................94
Renvois .................................................................................................................................................96
1. Erste Schritte ....................................................................................................................................97
Packungsinhalt.......................................................................................................................................................97
Beschreibung..........................................................................................................................................................97
Schadens-meldung ...........................................................................................................................................97
Konventionen des Handbuchs ...............................................................................................................................97
Symbole..................................................................................................................................................................97
Haftungsaus-schluss..............................................................................................................................................98
Sicherheits-hinweise...............................................................................................................................................98
Achtung! Kein Schutz bei geöffnetem Gehäuse...............................................................................................99
Hinweise zur Laser-sicherheit ................................................................................................................................99
Warn- und Sicherheitsschilder auf dem Lasergerät........................................................................................101
Laserexposition – Warnung ............................................................................................................................102
Laseremissions-daten.....................................................................................................................................102
Laser-Konformitäts-erklärung..........................................................................................................................102
2. Einleitung........................................................................................................................................103
Übersicht ..............................................................................................................................................................103
Übersicht ..............................................................................................................................................................104
Abmessungen.......................................................................................................................................................105
3. Einrichten des Geräts.....................................................................................................................106
Wechselstrom.......................................................................................................................................................106
Auswechseln der Sicherung............................................................................................................................106
Verriegelungsstecker ......................................................................................................................................107
Reihenschaltung der Geräte...........................................................................................................................107
Montage................................................................................................................................................................107
Montagerichtung..............................................................................................................................................107
Hängende Montage.........................................................................................................................................107
Montageansicht.........................................................................................................................................107
Bestimmungs-gemäße Verwendung....................................................................................................................108
4. Betrieb.............................................................................................................................................109
Betrieb des Bedienfeldes .....................................................................................................................................109
Menüstruktur.........................................................................................................................................................109
Konfiguration (Stand-alone) .................................................................................................................................112
Musiksteuerungs-Modus für musik-gesteuerten Mischeffekt..........................................................................112
Auto-Modus für automatischen Mischeffekt....................................................................................................112
Show-Einstellungen ........................................................................................................................................112
Master/Slave-..................................................................................................................................................113
Modus..............................................................................................................................................................113

Page 6 of 156 GigBAR 2.0 User Manual Rev. 2
Konfiguration (DMX).............................................................................................................................................114
DMX-Eigenschaften und -Startadresse ..........................................................................................................114
Benutzer-definierte Farbanpassung.....................................................................................................................114
Systemein-stellungen...........................................................................................................................................115
Standardmäßige Strahleranord-nung..............................................................................................................115
Beispiele für das erneute Anordnen der Strahler............................................................................................115
DMX-Kanal – Zuordnungen und Werte...........................................................................................................116
23CH .........................................................................................................................................................116
11CH .........................................................................................................................................................119
3 CH ..........................................................................................................................................................120
Betrieb der IRC-6 (Infrarot-Fernbedienung 6).................................................................................................121
Betrieb des Fußschalters ................................................................................................................................122
Batterie für Fußschalter...................................................................................................................................123
Austausch der Batterie....................................................................................................................................123
5. Technische Informationen .............................................................................................................123
Wartung des Geräts .............................................................................................................................................123
6. Technische Daten...........................................................................................................................124
Rekla-mationen...................................................................................................................................126
1. Voordat u begint .............................................................................................................................127
Wat is er inbegrepen ............................................................................................................................................127
Beschrijving..........................................................................................................................................................127
Claims .............................................................................................................................................................127
Conventies van deze handleiding ........................................................................................................................127
Symbolen..............................................................................................................................................................127
Disclaimer.............................................................................................................................................................127
Veiligheids-voorschriften ......................................................................................................................................128
Niet-bevestigde waarschuwing op de behuizing.............................................................................................129
Veiligheids-voorschriften voor de laser ................................................................................................................129
Reproductie van veiligheidsetiket voor de laser..............................................................................................131
Blootstellingswaarschuwing van de laser .......................................................................................................132
Emissiegegevens van de laser .......................................................................................................................132
Nalevingsverklaring van de laser ....................................................................................................................132
2. Inleiding........................................................................................................................................... 133
Overzicht ..............................................................................................................................................................133
Overzicht ..............................................................................................................................................................134
Afmetingen ...........................................................................................................................................................135
3. Instelling..........................................................................................................................................136
AC-stroom ............................................................................................................................................................136
Vervangen van de zekering ............................................................................................................................136
Vergrendelingsstekker ....................................................................................................................................136
Power Linking..................................................................................................................................................136
Montage................................................................................................................................................................137
Oriëntatie.........................................................................................................................................................137
Opbouw...........................................................................................................................................................137
Montagediagram .......................................................................................................................................137
Correct gebruik.....................................................................................................................................................138
4. Werking ........................................................................................................................................... 139
Werking van het bedieningspaneel......................................................................................................................139
Menu Map.............................................................................................................................................................139
Configuratie (losstaand) .......................................................................................................................................141

GigBAR 2.0 User Manual Rev. 2 Page 7 of 156
Gemengd geluidseffect in de geluidsactieve modus.......................................................................................141
Automatisch gemengd effect in de automatische modus ...............................................................................142
Show-instellingen............................................................................................................................................142
Master/Slave ...................................................................................................................................................142
-Modus ............................................................................................................................................................142
Master/Slave ...................................................................................................................................................142
Modus (vervolgd).............................................................................................................................................142
Configuratie (DMX)...............................................................................................................................................143
DMX-persoonlijkheid en startadres.................................................................................................................143
Aangepaste kleureninstelling ...............................................................................................................................143
Systeeminstellingen..............................................................................................................................................144
Standaard pod-samenstel...............................................................................................................................144
Voorbeelden van nieuwe samenstelling van de podvolgorde.........................................................................144
DMX-kanaaltoewijzingen en waarden.............................................................................................................145
23CH .........................................................................................................................................................145
11CH .........................................................................................................................................................148
3 CH ..........................................................................................................................................................149
Werking IRC-6 (infrarood afstandsbediening 6)..............................................................................................150
Bediening van de voetschakelaar...................................................................................................................151
Batterij van de voetschakelaar........................................................................................................................152
Vervanging van de batterij ..............................................................................................................................152
5. Technische informatie.................................................................................................................... 152
Productonderhoud................................................................................................................................................152
6. Technische Specificaties ...............................................................................................................153
Retouren..............................................................................................................................................155
Contact Us............................................................................................................................................156

Page 8 of 156 GigBAR 2.0 User Manual Rev. 2
1. BEFORE YOU BEGIN
What Is
Included
•GigBAR 2.0
•Power Cord
•2 L-Brackets
•Wireless Footswitch with Battery
•
VIP Gear Bag
•Tripod Stand
•Tripod Carry Bag
•Warranty Card
•User Manual
Description
The GigBAR 2.0 is the ultimate all-in-one system that includes two RGB LED rotating derby
effects, two high-power Quad-color LED PARs, a red/green laser and a white/UV strobe multi-
output effect. Easily allows for separate color and program control of each of the individually
adjustable heads. IRC-6 remote control sold separately.
Unpacking
Instructions
Carefully unpack the product immediately and check the box to make sure all the parts are in
the package and are in good condition.
Claims
If the box or the contents (the product and included accessories) appear damaged from
shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to
do so in a timely manner may invalidate your claim with the carrier. In addition, keep the
container and all the packing material for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or
concealed damage, file a claim with Chauvet within 7 days of delivery.
Manual
Conventions
Convention
Meaning
1–512
A range of values
50/60
A set of values of which only one can be chosen
Settings
A menu option not to be modified
Menu > Settings
A sequence of menu options to be followed
<ENTER>
A key to be pressed on the product’s control panel
ON
A value to be entered or selected
Symbols
Symbol
Meaning
Critical installation, configuration, or operation information. Ignoring this information
can cause the product to not work, damage it, or cause harm to the operator.
Important installation or configuration information. The product may not function
correctly if this information is not used.
Useful information.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet assumes
no responsibility and specifically disclaims any and all liability to any party for any loss, damage or disruption caused by
any errors or omissions in this document, whether such errors or omissions result from negligence, accident or any other
cause. Chauvet reserves the right to revise the content of this document without any obligation to notify any person or
company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such
revisions. Download the latest version from www.chauvetlighting.com.
The works of authorship contained in this manual, including, but not limited to, all design, text and images are owned by
Chauvet.
©Copyright 2016 Chauvet & Sons, LLC. All rights reserved.
Electronically publishedbyChauvet inthe United States ofAmerica.
CHAUVET, the Chauvet logo, and GigBAR 2.0 are registered trademarks or trademarks of Chauvet & Sons LLC (d/
b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and
logos referred to herein may be trademarks of their respective companies.

GigBAR 2.0 User Manual Rev. 2 Page 9 of 156
Safety Notes
The Safety Notes include important laser system safety information. Read and understand all
instructions before powering on the laser for the first time
. Knowing these safety instructions is
crucial to avoiding laser eye injury and breaking the law. Keep this User Manual
in a safe place
for future reference.
STOP AND READ ALL LASER SAFETY DATA
•Lasers can be hazardous and have unique safety considerations. Permanent eye injury and
blindness is possible if lasers are used incorrectly. Pay close attention to each safety
REMARK and WARNING statement in this User Manual. Read all instructions carefully
BEFORE operating this device.
•Always connect the product to a grounded circuit to avoid the risk of electrocution.
•Always disconnect the product from the power source before cleaning.
•Avoid direct eye exposure to the light source while the product is on.
•Make sure the power cord is not crimped or damaged.
•Never disconnect the product from power by pulling or tugging on the cord.
•If mounting the product overhead, always secure to a fastening device using a safety cable.
•Make sure there are no flammable materials close to the product when operating.
•Do not touch the product’s housing when operating because it may be very hot.
•This product is not intended for permanent installation.
•Always make sure that the voltage of the outlet to which you are connecting the product is
within the range stated on the decal or rear panel of the product.
•The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the
product to rain or moisture.
•Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from
adjacent surfaces.
•Be sure that no ventilation slots on the product’s housing are blocked.
•Never connect the product to a dimmer.
•Always use the mounting bracket to carry the product.
•Do not switch the product on/off in short intervals. This will reduce the laser diode life.
•Do not shake this product. Avoid brute force when mounting or operating this product.
•ALWAYS use a safety cable when mounting the product overhead.
•The ambient operating temperature for the laser is 59 °F to 95 °F (15 °C to 35 °C). Do not
operate this product outside this range.
•In the event of a serious operating problem, stop using the product immediately.
•Never try to repair the product. Repairs carried out by unskilled people can lead to damage
or malfunction. Contact the nearest authorized technical assistance center.
•To eliminate unnecessary wear and improve the lifespan, during periods of non-use
completely disconnect the products from power via breaker or by unplugging it.
CAUTION! Use of controls, adjustments, or procedures other than THOSE specified IN
THIS USER MANUAL may result in hazardous radiation exposure.
•Chauvet requires the placement of sandbags on the base of the stand for added
stability.
•DO NOT go past the printed stopping point on the mast.
•DO NOT over-tighten the knob at the tripod mounting insertion point, as it may
damage the mast of the stand.
•DO NOT use this stand in any way that it was not intended.

Page 10 of 156 GigBAR 2.0 User Manual Rev. 2
•Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to
direct laser light.
•This laser product can potentially cause instant eye injury or blindness if laser light directly
strikes the eyes.
•It is illegal and dangerous to shine this laser into audience areas, where the audience or
other personnel could get direct laser beams or bright reflections into their eyes.
•It is a U.S. federal offense to shine any laser at aircraft.
•Use of controls, adjustments, or procedures other than those specified in this User Manual
may result in hazardous radiation exposure.
•DO NOT attempt any repairs. Repairs and servicing must be carried out by a certified
technician. Unauthorized modifications are forbidden for safety reasons!
•Keep this User Manual for future consultation. If transferring ownership of the product
to another user, be sure this document is kept with the laser.
Non-Interlocked
Housing Warning
•This unit contains high power laser devices internally.
•Do not open the laser housing, due to potential exposure to unsafe levels of laser radiation.
•The laser power levels, accessible if the unit is opened, can cause instant blindness, skin
burns, and fires.
Laser Safety
Notes
STOP AND READ ALL THE LASER SAFETY NOTES BELOW
Laser light is different from any other light. Laser light can cause eye injury if the product is not
set up and used properly. Laser light is a thousand times more concentrated than
any other kind
of light. This concentration can cause instant eye injuries by burning the retina (the light-
sensitive portion at the back of the eye). The heat from a laser light cannot be felt, but it can still
injure or blind product operators and the audience. Even very small amounts of laser light
at
long distances are are potentially hazardous.
DO NOT
assume that exposure to an individual laser beam is safe, even a tiny beam split off
from a larger beam. This laser product uses dozens of milliwatts of laser power—Class 3
B
levels internally—and splits them into multiple beams—Class 3R levels. The individual
Class 3R
level beams are potentially hazardous to the eyes.
DO NOT assume that a moving laser light is safe. Laser light is never without risk
. Since eye
injuries can occur instantly, it is critical to prevent the possibility of ANY
direct eye exposure.
According to laser safety regulations, it is not legal to aim Class 3R lasers into areas where
people can be exposed, even if the laser is aimed below people’s faces, such as at
a dance
floor.

GigBAR 2.0 User Manual Rev. 2 Page 11 of 156
•Do not operate the laser without first reading and understanding all the safety and technical
data in this manual.
•ALWAYS set up and install all laser effects so that any laser light is at least 3 meters (9.8
feet) above the floor on which people are standing. See the Proper Usage section of this
manual.
•After setup, and prior to public use, test the lasers to ensure they are functioning properly.
Do not use the product if any defect is detected.
•DO NOT use laser if it is emitting only one or two beams, rather than dozens/hundreds, as
this indicates damage to the diffraction grating optic, and allows emission of laser levels
higher than Class 3R.
•DO NOT point lasers at people or animals.
•DO NOT look into the laser aperture or laser beams.
•DO NOT point lasers into areas where people could be exposed to them..
•DO NOT point lasers at highly reflective surfaces such as windows, mirrors, and shiny metal.
Even laser reflections can be hazardous.
•Never point a laser at aircraft; this is a U.S. federal offense.
•Never point un-terminated laser beams into the sky.
•Do not expose the output optic (aperture) to harsh cleaning chemicals.
•Do not use the laser if the housing is damaged, open, or if the optics appear damaged in any
way.
•Never open the laser housing. The high laser power levels inside of the protective housing
can start fires or burn skin, and will cause instant eye injury.
•Never leave this product running unattended.
•The operation of a Class 3R laser show is allowed only if the lasers are operated by a skilled
and well-trained professional, who is familiar with the data included in this manual.
•The legal requirements for using laser entertainment products vary from country to country.
The user is responsible for the legal requirements in the location/country of use.
CAUTION! Do not operate this device in ways not specified in this User Manual. Failure to follow the
instructions will void the warranty, may damage the product, or injure the user or the audience.
CAUTION! This product cannot be discarded with household waste. Contact your local waste
management service for electronic disposal regulations in your area.

Page 12 of 156 GigBAR 2.0 User Manual Rev. 2
Laser Safety Label
Reproduction
GigBAR 2.0 Rear
Footswitch Rear

GigBAR 2.0 User Manual Rev. 2 Page 13 of 156
Laser Exposure
Warning
LASER LIGHT AVOID DIRECT EYE EXPOSURE
Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1
Standard “For Safe Use of Lasers”, available from the Laser Institute o
f America:
www.laserinstitute.org. Many local governments, corporations, agencies, military,
and others,
require all lasers to be used under the guidelines of ANSI Z136.1. Laser Display guidance can
be obtained via the International Laser Display Association: www.laserist.org.
Laser Emission
Data
As measured under
IEC measurement
conditions for
classification
Laser Classification Class 3R
Green Laser Medium DPSS Nd:YVO4, 532 nm/30 mW
Red Laser Medium LD GaAIAs, 650 nm/100 mW
Beam Diameter <5 mm at aperture
Pulse Data All pulses < 4 Hz (>0.25 sec)
Divergence (each beam) <2 mrad
Divergence (total light) <160 degrees
Laser Power of Each Beam from Aperture <5 mW
Laser
Compliance
Statement
This laser product complies with EN/IEC 60825-1 Ed 2, 2007-03, and U.S. FDA/CDRH
FLPPS via the terms of Laser Notice No. 50 dated June 24, 2007. This laser device is
classified 3R. (Class 3R is the international equivalent of U.S. Class IIIa.
) No maintenance
is required to keep this product in compliance with laser performance standards.

Page 14 of 156 GigBAR 2.0 User Manual Rev. 2
2. INTRODUCTION
Overview
Mast
Collar
Safety Pin
Positioning
Holes
Tension
Knob
Tripod
Legs
Tripod
Stand

GigBAR 2.0 User Manual Rev. 2 Page 15 of 156
Overview
(Cont.)
Wireless
Antenna
Power
Out
Fuse
Holder
DMX
In/Out
Menu
Buttons
Sound
Sensitivity
Adjustment
Knob
LCD
Display
Rear IR
Sensor
Back Panel View
Underside Panel View
Front View
Power In
Pod Mounting
Locations
Output Ports
for Pods 3 & 4
Output Ports
for Pods 1 & 2
Laser
Strobes
Strobes
Derby 1
Derby 2
Par 1 Par 2
IR
Sensor
Microphone
Tripod Mounting
Insertion Point

Page 16 of 156 GigBAR 2.0 User Manual Rev. 2
Dimensions
At maximum
8.3 ft
2.5 m
4.3 in
110 mm
15.2 in
387 mm
46.7 in
1,185 mm

GigBAR 2.0 User Manual Rev. 2 Page 17 of 156
3. SETUP
AC Power
The GigBAR 2.0 has an internal auto-
ranging power supply and it can work with an input voltage
range of 100 to 240 VAC, 50/60 Hz.
To determine the product’s power requirements (
circuit breaker, power outlet, and wiring), use
the current value listed on the label affixed to the product’s back panel, or refer to
Technical
Specificationsin this manual. The listed current rating indicates the product
’s average current
draw under normal conditions.
•Always connect the product to a protected circuit (circuit breaker or fuse). Make
sure the product has an appropriate electrical ground to avoid the ris
k of
electrocution or fire.
•To eliminate wear and improve its lifespan, during periods of non-
use completely
disconnect from power via breaker or by unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the
rheostat or dimmer channel serves only as a 0 to 100% switch.
Fuse
Replacement
Disconnect the product from power.1.
Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.2. Pry the fuse holder out of the housing.3. Remove the blown fuse from the holder.4. Replace with a fuse of the exact same type and rating.5.
Insert the fuse holder back in place and reconnect power.6.
Disconnect the product from power before replacing the fuse.
The product does not ship with a spare fuse; however, the safety cap has room for a spare.
Always replace a blown fuse with a fuse of the same type and rating.
Installed fuse
(held by plastic clip)
Spare fuse holder
(inside safety cap)
Safety cap

Page 18 of 156 GigBAR 2.0 User Manual Rev. 2
Footswitch
Battery
The wireless footswitch uses a 12-volt battery located under the battery cover on the bottom of
the product, which can be replaced when necessary.
Battery
Replacement
To replace the battery in the wireless footswitch:
1. Turn the power switch to the Off position.
2. Remove the battery cover by removing 2 screws with a Phillips-head screwdriver.
3. Remove the old battery from the housing and unplug it from the leads.
4. Replace with a new 12-volt battery, ensuring that the positive (+) and negative (-) leads correspond to
the correct electrodes on the battery.
5. Place the battery into the housing and cover with the battery cover.
6. Secure the battery cover with the 2 Phillips-head screws.
Do NOT overtighten the screws!
Power Linking
Power linking is when products are daisy chained together through the power in and power out
plugs, allowing many products to be powered from one wall outlet.
Up to 8 GigBAR 2.0
products can be power linked at 120 V, and up to
15 GigBAR 2.0 products can be power linked at 230 V.
Do not power link more than 8 GigBAR 2.0 on 120 V.
Do not power link more than 15 GigBAR 2.0 on 230 V.

GigBAR 2.0 User Manual Rev. 2 Page 19 of 156
Mounting
Before mounting the product, read and follow the safety recommendations indicated in the
Safety Notes.
Orientation
The GigBAR 2.0 must be mounted in a position that includes planning for safe laser usage. I
n
addition, make sure adequate ventilation is provided around the product.
Rigging
•Before deciding on a location for the product, always make sure there is easy access to the
product for maintenance and programming.
•Make sure that the structure or surface onto which you are mounting the product can support
the product’s weight (see Technical Specifications).
•When mounting the product overhead, always use a safety cable (such as CH-05 from
Chauvet). Mount the product securely to a rigging point, such as an elevated platform or a
truss.
•The bracket adjustment knobs allow for directional adjustment when aiming the product to
the desired angle. Only loosen or tighten the bracket knobs manually. Using tools could
damage the knobs.
•When mounting to the tripod, be sure the stand is tightened properly and leveled.
Mounting Diagram
L-Brackets
Mounting Clamp
Tripod Mounting
Insertion Point
Bracket Adjustment
Knobs
Mounting Clamp
Bracket Adjustment
Knobs
Pod 1
Pod 2
Pod 3
Pod 4
Safety Cable

Page 20 of 156 GigBAR 2.0 User Manual Rev. 2
Proper Usage
This product is for overhead mounting only. For safety purposes, Chauvet recommends
mounting lighting effect products
on steady elevated platforms or sturdy overhead supports
using suitable hanging clamps. In all cases, use safety cables. O
btain appropriate mounting
hardware from your lighting vendor.
International laser safety regulations require that laser products must
be operated in the fashion
illustrated below, with a minimum of 3 meters (9.8 ft) of vertical separation between the floor and
the lowest laser light. Additionally, 3 meters of horizontal separation is required between laser
light and audience or other public spaces.
CAUTION! Use of controls, adjustments, or procedures other than THOSE specified IN
THIS USER MANUAL may result in hazardous radiation exposure.
•Chauvet requires the placement of sandbags on the base of the stand for added
stability.
•
IMPORTANT: DO NOT go past the printed stopping point on the mast.
•DO NOT over-tighten the knob at the tripod mounting insertion point, as it may damage
the mast of the stand.
•
DO NOT use this stand in any way that it was not intended.
