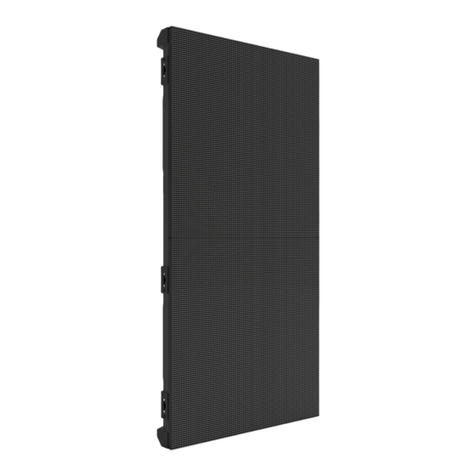

Chauvet pvp x3 User manual

User Manual

Edition Notes
ii PVP X3 User Manual, Rev. 6
Edition Notes
This User Manual covers the description, safety precautions, setup, installation,
operation, and maintenance for all Precision Video Panels offered by Chauvet
. This
edition was published in January 2016.
Trademarks
Chauvet is a registered trademark of Chauvet & Sons Inc. (d/b/a CHAUVET or Chauvet).
The CHAUVET logo in its entirety including the Chauvet name and the dotted triangle,
and all other trademarks on this manual pertaining to services, products, or marketing
statements are owned or licensed by Chauvet. Any other
product names, logos, brands,
company names, and other trademarks featured or referred to within this document are
the property of their respective trademark holders.
Copyright Notice
Chauvet owns the content of this user manual in its entirety, including but not limited to
pictures, logos, trademarks, and resources.
© Copyright 2016 Chauvet. All rights reserved.
Electronically published by Chauvet in the United States of America.
Manual Usage
Chauvet authorizes its customers to download and print this manual for professional
information purposes only. Chauvet expressly prohibits the u
sage, copy, storage,
distribution, modification, or printing of this manual or its content for any other purpose
without its written consent.
Document Printing
For best results, print this document in color, on letter size paper (8.5 x 11 inches),
double sided. If using A4 paper (210 x 297 mm), configure your printer to scale the
content accordingly.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all
respects. However, Chauvet assumes no responsibility and specifically disclaims any
and all liability to any party for any loss, damage or disruption caused by any errors or
omissions in this document, whether such errors or omissions result from negligence,
accident or any other cause. Chauvet reserves the right to revise the content of this
document without any obligation to notify any person or company of such revision,
however, Chauvet has no obligation to make, and does not commit to make, any such
revisions..

Table of Contents
PVP X3 User Manual, Rev. 6 iii
Table of Contents
Trademarks....................................................................................................................................................................................ii
Copyright Notice.............................................................................................................................................................................ii
Manual Usage................................................................................................................................................................................ii
Document Printing..........................................................................................................................................................................ii
Disclaimer......................................................................................................................................................................................ii
1. Before You Begin........................................................................................................................................1
What Is Included................................................................................................................................................................1
Unpacking Instructions...................................................................................................................................................... 1
Claims............................................................................................................................................................................................1
Manual Conventions ......................................................................................................................................................................1
Symbols.........................................................................................................................................................................................1
Safety Notes......................................................................................................................................................................2
Expected LED Lifespan..................................................................................................................................................... 2
2. Introduction.................................................................................................................................................3
Product Description...........................................................................................................................................................3
Features ............................................................................................................................................................................ 3
Additional Products........................................................................................................................................................................3
Optional Accessories .....................................................................................................................................................................3
Available Signal and Power Cables (optional)..............................................................................................................................3
Product Overview: PVP X3 ............................................................................................................................................... 4
PVP Pixels Per Panel........................................................................................................................................................ 5
Product Dimensions .......................................................................................................................................................... 6
3. Setup............................................................................................................................................................7
AC Power ..........................................................................................................................................................................7
AC Plug..........................................................................................................................................................................................7
Power Linking.................................................................................................................................................................................7
4. Mounting......................................................................................................................................................8
Orientation......................................................................................................................................................................... 8
Mounting Points.................................................................................................................................................................8
RB-X50CM Rig Bar (Sold Separately) ..............................................................................................................................9
Eye Bolt Installation........................................................................................................................................................................9
RB-X200CM Rig Bar (Sold Separately) ............................................................................................................................10
Rig Kit/Panel Assembly..................................................................................................................................................................10
Truss Installation ............................................................................................................................................................... 11
PVP X-Series Mounting Hardware.................................................................................................................................... 12
(Sold Separately)...............................................................................................................................................................12
Bracket Dimensions ..........................................................................................................................................................12
.......................................................................................................................................................................................................12
Method 1: Mounting to Steel Struts (or other surfaces)...........................................................................................................13
Method 2: Mounting to Steel Tubing..........................................................................................................................................14
5. Joining Each PVP X3 (Creating a Modular Design) ..................................................................................15
Vertically Joining the Panels ............................................................................................................................................. 15
Vertical Panel Connection..............................................................................................................................................................16
Horizontally Joining Panels............................................................................................................................................... 17
Horizontal Panel Connection..........................................................................................................................................................17
6. Connecting (Cabling) Each PVP X3 ...........................................................................................................18
Testing Signal and Power Connections ............................................................................................................................18

Table of Contents
iv PVP X3 User Manual, Rev. 6
Using the PVP X3 Test button........................................................................................................................................... 18
Connecting Power and Signal Cables...............................................................................................................................19
Connecting the Signal Between Joined Panels..............................................................................................................................19
Connecting the Power Between Joined Panels............................................................................................................................21
7. LED Module Care and Replacement ..........................................................................................................22
PVP X3 LED Module......................................................................................................................................................... 22
LED Lot Numbers...........................................................................................................................................................................22
Using MT-01...................................................................................................................................................................................22
PVP X3 LED Module Removal with MT-01....................................................................................................................................23
PVP X3 LED Module installation with MT-01 .................................................................................................................................25
8. Typical PVP X3 Installation.........................................................................................................................27
Step 1.............................................................................................................................................................................................27
Step 2.............................................................................................................................................................................................27
Step 3.............................................................................................................................................................................................27
Step 4.............................................................................................................................................................................................27
Step 5.............................................................................................................................................................................................27
Step 6.............................................................................................................................................................................................27
Step 7.............................................................................................................................................................................................27
Step 8.............................................................................................................................................................................................27
VIP Sample Video Wall System Setup.............................................................................................................................. 28
9. Operation.....................................................................................................................................................29
Additional Hardware and Software.................................................................................................................................... 29
About CHAUVET LED Studio............................................................................................................................................ 30
Description.....................................................................................................................................................................................30
10. Technical Information...............................................................................................................................31
PVP X3 Maintenance ........................................................................................................................................................31
Returns.............................................................................................................................................................................. 31
11. Technical Specifications...........................................................................................................................32
Contact Us.......................................................................................................................................................33
Marcas registradas.........................................................................................................................................................................34
Aviso de derechos de autor ...........................................................................................................................................................34
Uso del manual..............................................................................................................................................................................34
Impresión del documento...............................................................................................................................................................34
Exención de responsabilidad.........................................................................................................................................................34
1. Antes de empezar........................................................................................................................................35
Qué va incluido.................................................................................................................................................................. 35
Instrucciones de desembalaje........................................................................................................................................... 35
Reclamaciones...............................................................................................................................................................................35
Convenciones del manual..............................................................................................................................................................35
Símbolos........................................................................................................................................................................................35
Notas de seguridad ........................................................................................................................................................... 36
Vida útil prevista del LED..................................................................................................................................................37
2. Introducción ................................................................................................................................................38
Descripción del producto...................................................................................................................................................38
Características .................................................................................................................................................................. 38
Productos adicionales....................................................................................................................................................................38
Accesorios opcionales ...................................................................................................................................................................38
Cables de alimentación y señal disponibles (opcionales).............................................................................................................38

Table of Contents
PVP X3 User Manual, Rev. 6 v
Vista general del producto: PVP X3..................................................................................................................................39
Píxeles por panel del PVP.................................................................................................................................................40
Dimensiones del producto................................................................................................................................................. 41
3. Instalación ...................................................................................................................................................42
Corriente alterna................................................................................................................................................................42
Enchufe CA....................................................................................................................................................................................42
Alimentación en cadena.................................................................................................................................................................42
4. Montaje ........................................................................................................................................................43
Orientación........................................................................................................................................................................43
Puntos de montaje ............................................................................................................................................................ 43
RB-X50CM Kit de aparejamiento (Vendido por separado)...............................................................................................44
Instalación Armella.........................................................................................................................................................................44
RB-X200CM Kit de aparejamiento (Vendido por separado).............................................................................................45
Kit de aparejamiento/ Ensamblaje del panel..................................................................................................................................45
Instalación de truss ........................................................................................................................................................... 46
Material de montaje de la serie PVP X (vendido por separado)....................................................................................... 47
Dimensiones del soporte...................................................................................................................................................47
Método 1: montaje para puntales de acero (u otras superficies) ............................................................................................48
Método 2: montaje para tubos de acero ....................................................................................................................................49
5. Unir todos los PVP X3 (crear un diseño modular) ....................................................................................50
Unir los paneles verticalmente..........................................................................................................................................50
Conexión del panel vertical............................................................................................................................................................51
Unir los paneles horizontalmente...................................................................................................................................... 52
Conexión del panel horizontal........................................................................................................................................................52
6. Conectar (cablear) los PVP X3 ...................................................................................................................53
Probar la señal y las conexiones de alimentación............................................................................................................53
Utilizar el botón de prueba del PVP X3............................................................................................................................. 53
Conectar los cables de alimentación y señal.................................................................................................................... 54
Conectar la señal entre paneles unidos.........................................................................................................................................54
Conectar la alimentación entre paneles unidos..............................................................................................................................56
7. Cuidados y sustitución del módulo LED...................................................................................................57
Módulo LED del PVP X3................................................................................................................................................... 57
Números de lote LED.....................................................................................................................................................................57
Utilizar MT-01.................................................................................................................................................................................57
Quitar el módulo LED del PVP X3 con MT-01 ..............................................................................................................................58
Instalar el módulo LED del PVP X3 con MT-01 ............................................................................................................................60
8. Instalación típica del PVP X3......................................................................................................................62
Paso 1............................................................................................................................................................................................62
Paso 2............................................................................................................................................................................................62
Paso 3............................................................................................................................................................................................62
Paso 4............................................................................................................................................................................................62
Paso 5............................................................................................................................................................................................62
Paso 6............................................................................................................................................................................................62
Paso 7............................................................................................................................................................................................62
Paso 8............................................................................................................................................................................................62
Configuración de muestra de sistema de mural de vídeo VIP.......................................................................................... 63
9. Funcionamiento...........................................................................................................................................64
Hardware y software adicional..........................................................................................................................................64
Acerca de CHAUVET LED Studio..................................................................................................................................... 65

Table of Contents
vi PVP X3 User Manual, Rev. 6
Descripción....................................................................................................................................................................................65
10. Información técnica ..................................................................................................................................66
Mantenimiento del PVP X3 ............................................................................................................................................... 66
Devoluciones..................................................................................................................................................................... 66
11. Especificaciones técnicas........................................................................................................................67
Contacto ..........................................................................................................................................................68
Marques.........................................................................................................................................................................................69
Avis de copyright............................................................................................................................................................................69
Manuel d'utilisation.........................................................................................................................................................................69
Impression du document................................................................................................................................................................69
Clause de non Responsabilité .......................................................................................................................................................69
Révision du document....................................................................................................................................................................69
1. Avant de commencer..................................................................................................................................70
Contenu............................................................................................................................................................................. 70
Instructions de déballage .................................................................................................................................................. 70
Réclamations .................................................................................................................................................................................70
Conventions manuelles..................................................................................................................................................................70
Symboles.......................................................................................................................................................................................70
Consignes de Sécurité...................................................................................................................................................... 71
Durée de vie des LEDs .....................................................................................................................................................72
2. Introduction.................................................................................................................................................73
Description de l'appareil....................................................................................................................................................73
Caractéristiques ................................................................................................................................................................ 73
Appareils supplémentaires.............................................................................................................................................................73
Accessoires optionnels ..................................................................................................................................................................73
Câbles de signal et d'alimentation disponibles (en option) ...........................................................................................................73
Vue d'ensemble du produit : PVP X3................................................................................................................................ 74
Pixels par panneau PVP ................................................................................................................................................... 75
Dimensions de l'appareil ................................................................................................................................................... 76
3. Configuration...............................................................................................................................................77
Alimentation CA................................................................................................................................................................. 77
Prise CA.........................................................................................................................................................................................77
Chaînage électrique.......................................................................................................................................................................77
4. Montage .......................................................................................................................................................78
Orientation......................................................................................................................................................................... 78
Points de fixation...............................................................................................................................................................78
RB-X50CM Kit de montage (vendu séparément).............................................................................................................. 79
Installation d'un boulon à œil..........................................................................................................................................................79
RB-X200CM Kit de montage (vendu séparément)............................................................................................................80
Assemblage du kit de montage et du panneau..............................................................................................................................80
Installation sur treillis......................................................................................................................................................... 81
Matériel de fixation PVP X-Series.....................................................................................................................................82
Dimension du support .......................................................................................................................................................82
Méthode 1 : Montage sur traverse en acier (ou autre surface) :..............................................................................................83
Méthode 2 : Montage sur des tubes en acier.............................................................................................................................84
5. Assembler plusieurs PVP X3 ensemble (création d'une conception modulaire)....................................85
Assemblage vertical des panneaux .................................................................................................................................. 85
Connexion verticale des panneaux................................................................................................................................................86

Table of Contents
PVP X3 User Manual, Rev. 6 vii
Assemblage horizontal des panneaux.............................................................................................................................. 87
Connexion horizontale des panneaux............................................................................................................................................87
6. Connexion (câblage) des PVP X3...............................................................................................................88
Test des connexions de signal et d'alimentation...............................................................................................................88
Utilisation du bouton Test du PVPX3................................................................................................................................88
Connexion des câbles d'alimentation et de signal ............................................................................................................ 89
Connexion du signal entre des panneaux assemblés....................................................................................................................89
Connexion de l'alimentation entre des panneaux assemblés.........................................................................................................91
7. Entretien et remplacement des modules LED...........................................................................................92
Module LED PVP X3........................................................................................................................................................92
Numéros de lot LED.......................................................................................................................................................................92
Utilisation du MT-01.......................................................................................................................................................................92
Dépose d'un module LED du PVP X3 avec le MT-01 ....................................................................................................................93
Installation d'un module LED du PVP X3 avec le MT-01................................................................................................................95
8. Installation PVP X3 type..............................................................................................................................97
Étape 1...........................................................................................................................................................................................97
Étape 2...........................................................................................................................................................................................97
Étape 3...........................................................................................................................................................................................97
Étape 4...........................................................................................................................................................................................97
Étape 5...........................................................................................................................................................................................97
Étape 6...........................................................................................................................................................................................97
Étape 7...........................................................................................................................................................................................97
Étape 8...........................................................................................................................................................................................97
Exemple de configuration de système de mur vidéo VIP .................................................................................................98
9. Utilisation.....................................................................................................................................................99
Matériel et logiciel additionnels ......................................................................................................................................... 99
A propos de CHAUVET LED Studio .................................................................................................................................100
Description.....................................................................................................................................................................................100
10. Informations Techniques..........................................................................................................................101
Entretien du PVP X3 ........................................................................................................................................................ 101
Renvois.............................................................................................................................................................................. 102
11. Spécifications techniques ........................................................................................................................103
Nous contacter................................................................................................................................................104
Handelsmerken..............................................................................................................................................................................105
Auteursrechtvermelding.................................................................................................................................................................105
Gebruik van de handleiding ...........................................................................................................................................................105
Afdrukken van het document .........................................................................................................................................................105
Disclaimer......................................................................................................................................................................................105
1. Voordat u begint..........................................................................................................................................106
Wat is er inbegrepen ......................................................................................................................................................... 106
Uitpakinstructies................................................................................................................................................................ 106
Claims............................................................................................................................................................................................106
Conventies van deze handleiding..................................................................................................................................................106
Symbolen.......................................................................................................................................................................................106
Veiligheidsinstructies.........................................................................................................................................................107
Verwachte levensduur van de LED-lamp.......................................................................................................................... 108
2. Inleiding.......................................................................................................................................................109

Table of Contents
viii PVP X3 User Manual, Rev. 6
Productbeschrijving........................................................................................................................................................... 109
Eigenschappen.................................................................................................................................................................. 109
Extra producten..............................................................................................................................................................................109
Optionele accessoires....................................................................................................................................................................109
Beschikbare signaal- en voedingskabels (optioneel)....................................................................................................................109
Productoverzicht: PVP X3.................................................................................................................................................110
PVP-pixels per paneel.......................................................................................................................................................111
Afmetingen van het product ..............................................................................................................................................112
3. Instelling ......................................................................................................................................................113
AC-stroom ......................................................................................................................................................................... 113
AC-stekker.....................................................................................................................................................................................113
Power Linking.................................................................................................................................................................................113
4. Montage .......................................................................................................................................................114
Oriëntatie........................................................................................................................................................................... 114
Bevestigingspunten........................................................................................................................................................... 114
RB-X50CM Opbouwset (apart verkocht)........................................................................................................................... 115
Eye Bolt Installatie..........................................................................................................................................................................115
RB-X200CM Opbouwset (apart verkocht)......................................................................................................................... 116
Opbouwset/ paneelmodule ............................................................................................................................................................116
Spantinstallatie..................................................................................................................................................................117
Bevestigingsapparatuur PVP X-serie................................................................................................................................ 118
Beugelafmetingen ............................................................................................................................................................. 118
Methode 1: Montage aan stalen steunen (of andere oppervlakken)........................................................................................119
Methode 2: Montage aan stalen buis..........................................................................................................................................120
5. Samenvoegen van elke PVP X3 (Creëren van een modulair ontwerp) ....................................................121
Verticaal samenvoegen van de panelen........................................................................................................................... 121
Verticale paneelverbinding.............................................................................................................................................................122
Horizontaal samenvoegen van de panelen....................................................................................................................... 123
Horizontale paneelverbinding.........................................................................................................................................................123
6. Verbinden (bekabelen) van elke PVP X3....................................................................................................124
Testen van signaal- en stroomaansluitingen..................................................................................................................... 124
Gebruik van de testknop van de PVP X3.......................................................................................................................... 124
Aansluiten van stroom- en signaalkabels..........................................................................................................................125
Het signaal aansluiten tussen de samengevoegde panelen..........................................................................................................125
Het vermogen aansluiten tussen de samengevoegde panelen......................................................................................................127
7. Verzorging en vervanging van de LED-module.........................................................................................128
PVP X3 LED-module......................................................................................................................................................... 128
Lot-nummers van de LED..............................................................................................................................................................128
Gebruik van de MT-01 ...................................................................................................................................................................128
PVP X3 LED-moduleverwijdering met MT-01 ................................................................................................................................129
PVP X3 LED-moduleplaatsing met MT-01.....................................................................................................................................131
8. Gebruikelijke PVP X3-installatie.................................................................................................................133
Stap 1.............................................................................................................................................................................................133
Stap 2.............................................................................................................................................................................................133
Stap 3.............................................................................................................................................................................................133
Stap 4.............................................................................................................................................................................................133
Stap 5.............................................................................................................................................................................................133
Stap 6.............................................................................................................................................................................................133
Stap 7.............................................................................................................................................................................................133

Table of Contents
PVP X3 User Manual, Rev. 6 ix
Stap 8.............................................................................................................................................................................................133
Proefopstelling VIP videowandsysteem............................................................................................................................134
9. Werking........................................................................................................................................................135
Extra apparatuur en software............................................................................................................................................ 135
Over CHAUVET LED Studio............................................................................................................................................. 136
Beschrijving....................................................................................................................................................................................136
10. Technische informatie ..............................................................................................................................137
Onderhoud van de PVP X3............................................................................................................................................... 137
Retouren............................................................................................................................................................................ 138
11. Technische Specificaties..........................................................................................................................139
Contact opnemen met ons .............................................................................................................................140

Before You Begin
PVP X3 User Manual, Rev. 6 1
1. Before You Begin
What Is Included
•PVP X3
oSingle or 8-pack with road case
•Neutrik powerCON power cord
•Neutrik powerCON power linking cords
oIncluded with 8-pack only
•Neutrik etherCON signal linking cords
o1 or 8 cords based on the number of PVP X3 included
•Road case
oIncluded with 8-pack only
•Warranty Card
•User Manual
Unpacking
Instructions
Immediately upon receiving this product, carefully unpack and check the container. Make
sure you have received all the parts indicated above in good condition.
Claims
Upon receipt, if the container or the contents (the product and included accessories)
appear damaged from shipping, or show signs of mishandling, notify the carrier
immediately, not Chauvet. Failure to do so in a timely manner may invalidate your c
laim
with the carrier. In addition, keep the container and all the p
acking material for
inspection.
For other issues such as missing components or parts, damage not related to shipping,
or concealed damage, file a claim with Chauvet within 7 days of receiv
ing the
merchandise.
Manual Conventions Convention Meaning
1–512
A range of values in the text
50/60
A set of mutually exclusive values in the text
<SET>
A button on the product’s control panel
Settings
A product function or a menu option
MENU>Settings
A sequence of menu options
1–10
A range of menu values from which to choose in a menu
Yes/No
A set of two mutually exclusive menu options in a menu
ON
A unique value to be entered or selected in a menu
Symbols
Symbols
Meaning
Critical installation, configuration, or operation information.
Failure to comply with this information may
cause the product not
to work, damage third-party equipment, or cause harm to the
operator.
Important installation or configuration information. Failure to
comply with this information may keep the product from working.
Useful information.

Before You Begin
2 PVP X3 User Manual, Rev. 6
Safety Notes
Please read the following Safety Notes carefully before starting to work with the product.
These notes provide important safety information about
the installation, usage, and
maintenance.
•This product contains no user-serviceable parts. Any reference to servicing in
this User Manual will only apply to properly trained Chauvet certified
technicians. Do not open the housing or attempt any repairs.
•If product is being used in a mobile or touring application, the VIP Media
System must be mounted in a shock resistant (or shock mount) road case. This
will help prevent damage to the hard drives.
Please refer to all applicable local codes and regulations for the proper installation
of the product.
•Always connect the product to a grounded circuit to avoid the risk of electrocution.
•The product is rated IP43 and should only be used in environments meeting that
criteria.
•When hanging the product, always secure to a fastening device using a safety cable.
•The maximum ambient temperature is 122 °F (50 °C). Do not operate the product at
higher temperatures.
•CAUTION: When transferring product from extreme temperature environments,
(e.g. cold truck to warm humid ballroom) condensation may form on the internal
electronics of the product. To avoid causing a failure, allow product to fully acclimate
to the surrounding environment before connecting it to power.
•Do not operate the product if you see damage on the housing, LED modules, or
cables. In any of these cases, have the damaged parts replaced by an authorized
technician.
•Do not open or modify the product.
•To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
•Make sure the product is connected to the proper voltage provided in this manual’s
specifications and/or the specification sticker on the product.
•Never try to repair the product. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact Chauvet Technical Support.
•Any damages caused by manual modifications are not subject to warranty.
Chauvet will not accept liability for any resulting damages caused by
unauthorized modifications or not observing the safety warnings and
instructions in the manual.
•DO NOT mount this product outdoors! These panels do not allow wind to flow
through them and will act like a sail.
In the unlikely event that your Chauvet product requires service, contact Chauvet
Technical Support.
Expected LED
Lifespan
LEDs gradually decline in brightness over time, mostly because of heat. Packaged in
clusters, LEDs exhibit higher operating temperatures than in ideal, single LED
conditions. For this reas
on, using clustered LEDs at their fullest intensity significantly
reduces the LEDs’ lifespan. The electrical, thermal management design of the PVP X3
panel is designed to provide the longest LED lifespan possible. Under normal operating
conditions, this li
fespan can be 50,000 hours or longer. If extending this lifespan is vital,
lower the operational temperature by improving ventilation around the fixture and
reducing the ambient temperature to an optimal operating range. In addition, limiting the
overall projection intensity may also help to extend the LEDs’ lifespan.

Before You Begin
PVP X3 User Manual, Rev. 6 3
2. Introduction
Product
Description
The PVP X3 is part of the PVP X series VIP line of video wall products. In addition to the PVP
X3, this line includes the PVP X6IP.
Each model is a video panel consisting of multiple tri-color LEDs
. When multiple panels are
assembled and connected (signal and power), the entire configuration becomes a modular
video wall design.
The aluminum die cast construction makes the PVP X3
reliable and solid, as well as easy to
install and dismantle. Multiple panels can be assembled
horizontally or vertically, and each
model is interchangeable with the others. This flexibility provides numerou
s modular design
possibilities.
The PVP video wall system is addressed using a PC and CHAUVET
LED Studio software.
Refer to the CHAUVET
LED Studio User Manual for detailed information and instructions on
using CHAUVET LED Studio.
Features
•3.9 mm pixel pitch modular video panel with SMD 2121 LEDs
•Stainless steel hardware is integrated into each panel for secure interlocking between
panels
•Solid aluminum die-cast construction makes these panels durable for the touring/rental
market
•Magnetic LED modules make replacing them fast and painless in the field or on the repair
bench
•Tri-color, full black body LEDs provide the highest in class contrast and black levels
•Computer guided CNC cutting provides ultimate precision for seamless modular
connections
•Works with VIP Driver and VIP Signal Distributor
•Use with the X-series Rig Bar (RB-X50CM) and (RB-X200CM) to hang the panels, or with
the M12 threaded inserts on the back of each panel
Additional Products
•VIP Driver (required)
Optional
Accessories
•VIP Signal Distributor
•PVP X-series Rig Bar (RB-X50CM) and (RB-X200CM)
•VIP Media Server Pro
•VIP 5162b Signal Processor
Available Signal and
Power Cables
(optional)
•Signal cables (Neutrik etherCON Signal Extensions)
oETHERCONEXT5FT
oETHERCONEXT10FT
oETHERCONEXT25FT
oETHERCONEXT50FT
•Power cables (Neutrik powerCON Power Extensions)
oPOWERCONEXT5FT
oPOWERCONEXT10FT
oPOWERCONEXT25FT
oPOWERCONEXT50FT

Before You Begin
4 PVP X3 User Manual, Rev. 6
Product Overview: PVP X3
The difference between each PVP model is the pixel pitch (space) between the
LEDs and the number of pixels (LEDs) in each row and column
. The basic housing
and components are identical.
Warning: Service Access Latch is for use by Chauvet authorized technicians only!
Opening this may void the Chauvet warranty.
Male Speego Connection
Service Module
Access Latch
Power In
Power Out
Test Button
Power LED
Signal In/Out
Signal Indicator
LED
Speego Female
Connection
Threaded
Mounting Hole
Size M12
(4x)
Handle
LED Module Retaining
Thumb Screw
Alignment Hanger
Service Module
Door Security
Screw
Alignment Marks

Before You Begin
PVP X3 User Manual, Rev. 6 5
PVP Pixels Per
Panel
Although each PVP has the same outer dimensions, the LED pixels per panel vary. Each
pixel is 1 tri-
color LED. The following table provides the pixels per panel in each PVP.
The model number (e.g., X3) indicates the pixel pitch in millimeters between each
light
strip in that PVP model. For detailed specifications, refer to the Technical Specifications
table at the end of this User Manual.
PVP X3
Pixels per Panel
128 x 128
Total Pixels per Panel
16,384
Pixels per LED Module
64 x 64
Total Pixels LED Module
4,096
LED Module Dimentions
250 x 250 mm
To calculate the number of panels, horizontally and vertically, supported by a
single VIP Driver, you will use :
•The number of pixels per panel.
•The screen resolution you would like to use for your video wall display.
The VIP Driver
is required to operate a Chauvet VIP video wall system. Diagrams
of how the PVP X3
panels and the VIP Driver connect follow later in this manual.
For detailed information a
bout the VIP Driver and panel calculation examples,
refer to the VIP Driver Quick Reference Guide.
Alignment Hanger
Male Speego Connection
LED Module

Before You Begin
6 PVP X3 User Manual, Rev. 6
Product Dimensions
Each PVP model in the series has the same outside housing dimensions.
6.69 in
(170 mm)
12.60 in
(320 mm)
19.69 in
(500 mm)
17.72 in
(450 mm)
18.39 in
(467 mm)
19.69 in
(500 mm)
6.69 in
(170 mm)
9.84 in
(250 mm)
1.69 in
(43 mm)
1.81 in
(46 mm)
3.50 in
(89 mm)
3.11 in
(79 mm)
0.55 in
(14 mm)
20.35 in
(517 mm)

Setup
PVP X3 User Manual, Rev. 6 7
3. Setup
AC Power
Each PVP X3 has an auto-ranging power supply that works with an input voltage range
of 100–240 VAC, 50/60 Hz.
To determine the power requirements for each
PVP X3, refer to the label affixed to the product. You can also refer to the
Technical
Specifications chart in this manual.
The listed current rating indicates the maximum current draw during normal operation.
For more information, download Sizing Circuit Breakers from the Chauvet website
:
www.chauvetprofessional.com.
•Always connect this product to a protected circuit with an appropriate
electrical ground to avoid the risk of electrocution or fire.
•To eliminate unnecessary wear and improve its lifespan, during periods of non-
use completely disconnect the product from power via breaker or by
unplugging it.
Never connect this product to a rheostat (variable resistor) or dimmer circuit, even
if the rheostat or dimmer channel serves only as a 0 to 100% switch.
AC Plug
Each PVP X3 comes with a power linking cord to connect power between panels; and a
power input cord.
This cable has a powerCON connector to connect to the PVP X3 and an Edison
plug for
power input. Use the table below as a reference to wire a new plug.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live
Black
Brown
Yellow or Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
Power Linking
All panels in the PVP Series support power linking. Refer to the following table for
specifications on each panel.
PVP X3
@ 120 V, 60 Hz
20
@ 208 V, 60 Hz
35
@ 230 V, 50 Hz
37
Please refer to all applicable local codes and regulations for the proper installation
of this product.

Mounting
8 PVP X3 User Manual, Rev. 6
4. Mounting
Orientation
Each PVP X3 is constructed of aluminum die-cast. This ensures each panel is stable
and easy to install. Each panel also has a convenient built-in handle
located on the top,
backside of the panel along with an alignment nipple on the top. This combination
enables you to easily pick up and securely hold each panel while mounting and working
with the panels.
The PVP X3 can be assembled to provide any number of modular designs. The panels
on the top can be securely hung
from a truss or other stable surface. Always hang in a
safe position with adequate space for ventilation, configuration, and maintenance.
Chauvet recommends following the general guidelines below.
•When selecting an installation location, consider ease of access for operation and
routine maintenance.
•Make sure to hang away from any flammable material, as indicated in the Safety
Notes section.
•Never mount in places where rain, extreme temperature changes, or restricted
ventilation may affect it.
•Make sure that the structure to which you are hanging the panels can support the
weight.
See the Technical Specifications for the weight requirement of each PVP X3.
Mounting Points
1. Threaded Mounting
Holes Size M12 (4x)
2. Male Speego
Connection
3. Female Speego
Connection
1.
1.
1.
1.
2.
2.
2.
3.
3.
3.
3.
2.

Mounting
PVP X3 User Manual, Rev. 6 9
RB-X50CM Rig Bar
(Sold Separately)
Eye Bolt Installation
1. Remove cotter-pin from set-pin by first pressing the safety button in the middle of the
handle.
2. Remove set-pin from eye bolt.
3. Align the eye bolt over one of the pre-cut holes on the rig bar.
4. Re-insert the set-pin to secure the eye bolt to the rig bar
5. Re-insert the cotter-pin into the set-pin.
5.12 in
(130 mm)
3.54 in
(90 mm)
6.46 in
(164 mm)
19.69 in
(500 mm)
18.50 in
(470 mm)
12.60 in
(320 mm)
1.73 in
(44 mm)
1.73 in
(44 mm)
23.15 in
(588 mm)
Safety Button
Cotter-pin
Set-Pin

Mounting
10 PVP X3 User Manual, Rev. 6
RB-X200CM Rig Bar
(Sold Separately)
Be advised that the RB-X2000CM includes 2 eye bolt kits preinstalled.
Rig Kit/Panel Assembly
1. Insert alignment hanger into the alignment hole and push panel forward.
2. Push both male Speego into female Speego connections and turn clockwise to
tighten panel to the rig bar.
3. Reverse the steps above to remove panel from rig bar. Push tab on female Speego
connection to release male Speego
The alignment hanger on the PVP X3 is designed to temporarily hold the weight of
the panel to allow the user to properly align and tighten the panel into place.
Alignment Hole
5.12 in
(130 mm)
3.54 in
(90 mm)
6.46 in
(164 mm)
78.74 in
(2000 mm)
7.09 in
(180 mm)
12.60 in
(320 mm)
1.73 in
(44 mm)
1.73 in
(44 mm)
12.60 in
(320 mm)
12.60 in
(320 mm)
12.60 in
(320 mm)
7.09 in
(180 mm)
7.09 in
(180 mm)
82.20 in
(2088 mm)
