Chauvin Arnoux PA32ER User manual

PA32ER
User Manual
ENGLISH
POWER ADAPTER
WITH AEMC
®
INSTRUMENTS

Copyright © Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments. All rights reserved.
No part of this documentation may be reproduced in any form or by any means (including electronic
storage and retrieval or translation into any other language) without prior agreement and written consent
from Chauvin Arnoux®, Inc., as governed by United States and International copyright laws.
Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments
15 Faraday Drive • Dover, NH 03820 USA
Tel: [phone] or [phone] • Fax: [phone]
This documentation is provided “as is,” without warranty of any kind, express, implied, or otherwise.
Chauvin Arnoux®󰀨
but does not warrant the accuracy or completeness of the text, graphics, or other information contained
in this documentation. Chauvin Arnoux®, Inc. shall not be liable for any damages, special, indirect,


user of the documentation has been advised of the possibility of such damages.

TABLE OF CONTENTS
1. INTRODUCTION ................................................................................ 4
1.1 PRECAUTIONS FOR USE ....................................................... 5
1.2 RECEIVING YOUR SHIPMENT................................................ 6
1.3 ORDERING INFORMATION..................................................... 6
1.3.1 Accessories and Replacement Parts............................................. 6
2. PRODUCT FEATURES ..................................................................... 7
2.1 DESCRIPTION ........................................................................... 7
2.2 OVERALL VIEW............................................................................... 7
3. OPERATING INSTRUCTIONS ......................................................... 8
3.1 POWER FROM THE MEASUREMENT SOURCE .................. 8
3.2 CHARGE DIRECTLY FROM THE WALL PLUG...................... 9
4. SPECIFICATIONS............................................................................ 10
4.1 REFERENCE CONDITIONS................................................... 10
4.2 ELECTRICAL SPECIFICATIONS........................................... 10
4.2.1 Input voltage characteristics ........................................................ 10
4.2.2 Ouput voltage characteristics...................................................... 10
󰀩 ..................................................................................... 11
4.2.4 Charger........................................................................................ 11
4.3 ENVIRONMENTAL CONDITIONS ......................................... 11
4.4 MECHANICAL CHARACTERISTICS .................................... 12
4.5 COMPLIANCE WITH INTERNATIONAL STANDARDS ....... 12
4.5.1 Electrical Safety ........................................................................... 12
4.5.2 Electromagnetic compatibility (EMC) .......................................... 12
5. MAINTENANCE ............................................................................... 13
5.1 CLEANING................................................................................ 13
5.2 REPAIR AND CALIBRATION ................................................. 13
5.3 TECHNICAL ASSISTANCE .................................................... 14
5.4 LIMITED WARRANTY............................................................. 14
5.5 WARRANTY REPAIRS ........................................................... 15

Power Adapter PA32ER 1
1. INTRODUCTION
Thank you for purchasing this PA32ER power supply and battery charger. This
accessory is designed to be used with the PowerPad®IV Model 8345, the
Oscilloscope 9000 Series and the C.A 6117.
For the best results from your instrument and for your safety, you must read the
enclosed operating instructions carefully and comply with the precautions for use.


CAUTION - Risk of Danger! Indicates a WARNING. Whenever this symbol is
present, the operator must refer to the user manual before operation
Suitable for indoor use
Chauvin Arnoux®has adopted an Eco-Design approach in order to design this
󰀨
on the environment. In particular this appliance exceeds regulation requirements
with respect to recycling and reuse
Important instructions to read and understand completely
Important information to acknowledge
USB socket
This product complies with the Low Voltage & Electromagnetic Compatibility
European directives (73/23/CEE & 89/336/CEE)


Electromagnetic Compatibility, and the Restriction of Hazardous Substances
In the European Union, this product is subject to a separate collection system
for recycling electrical and electronic components in accordance with directive
WEEE 2002/96/EC
Denition of Measurement Categories (CAT)
CAT IV corresponds to measurements performed at the primary electrical
supply (<1000 V).
Example: primary overcurrent protection devices, ripple control units, and meters.
CAT III corresponds to measurements performed in the building installation at
the distribution level.
Example: hardwired equipment in xed installation and circuit breakers.
CAT II corresponds to measurements performed on circuits directly connected
to the electrical distribution system.
Example: measurements on household appliances and portable tools.

2 Power Adapter PA32ER
1.1 PRECAUTIONS FOR USE
For personal safety and for the safety of the environment of use, you must read
and comply with the precautions for use. If you do not comply with these safety


the protection that they provide could be compromised and endanger you.
This instrument complies with safety standard IEC/EN 61010-1 and the leads are
compliant with IEC/EN 61010-031, for voltages up to 1,000 V in overvoltage category
IV. The protection provided by the instrument may be impaired if it is used other

Comply with the rated maximum voltage and current and the overvoltage
category.
(§ 4.2).
Observe the environmental conditions of use (§ 4.3).
Use only the leads and accessories supplied. The use of leads (or accessories)
of a lower voltage or category limits the voltage or category of the combined
instrument and leads (or accessories) to that of the leads (or accessories).
Before each use, check the condition of the insulation for the cables, case, and
accessories—anything that appears damaged (even partially) must be reported
for repair or scrapping.

󰀩

Use protective equipment when required.
Do not modify the instrument and use only original replacement parts. Repairs
or adjustments must be performed by authorized personnel.
If hazardous voltages are present at the location of measurement, use suitable
personal protective equipment.

Power Adapter PA32ER 3
1.2 RECEIVING YOUR SHIPMENT
Upon receiving your shipment, make sure that the contents are consistent
with the packing list. Notify your distributor of any missing items. If the

and notify your distributor at once, giving a detailed description of any
damage. Save the damaged packing container to substantiate your claim.
1.3 ORDERING INFORMATION
Adapter - 1000 V PA32ER Power Supply for Model 8345 .............. Cat. #5100.15
Includes Power Supply, (2) 1000 V CAT IV safety leads, two 600 V CAT IV 10 ft black leads,
(2) 1000 V CAT IV black alligator clips, (1) power plug adapter with banana jacks, (1) 115 V
power cord, and user manual.
1.3.1 Accessories and Replacement Parts
Adapter – 110 V Outlet Adapter w/4 mm Banana Plugs .............. Cat. #2118.49
Lead – One 10 ft (3 m) Black Lead w/Black Alligator Clip
{Lead rated 1000 V CAT IV 10 A, Clip rated 1000 V CAT IV 15 A,UL}
for PowerPad®& PEL series. ................................................... Cat. #2140.44
Lead – Replacement 10 ft (3 m) Black Stackable 600 V CAT IV
for PA31ER & PA32ER.................................................................. Cat. #5000.88
Adapter – Replacement Power Plug Adapter for PA32ER ............ Cat. #5100.14
Order Accessories and Replacement Parts Directly Online
Check our Storefront at www.aemc.com/store for availability

4 Power Adapter PA32ER
2. PRODUCT FEATURES
2.1 DESCRIPTION
The PA32ER power adapter and battery charger are used to power the
attached instrument for long-term applications and thereby optimize the
instrument’s internal battery. It also serves to recharge the battery.
The power supply may come from the measurement source or from the
wall plug.

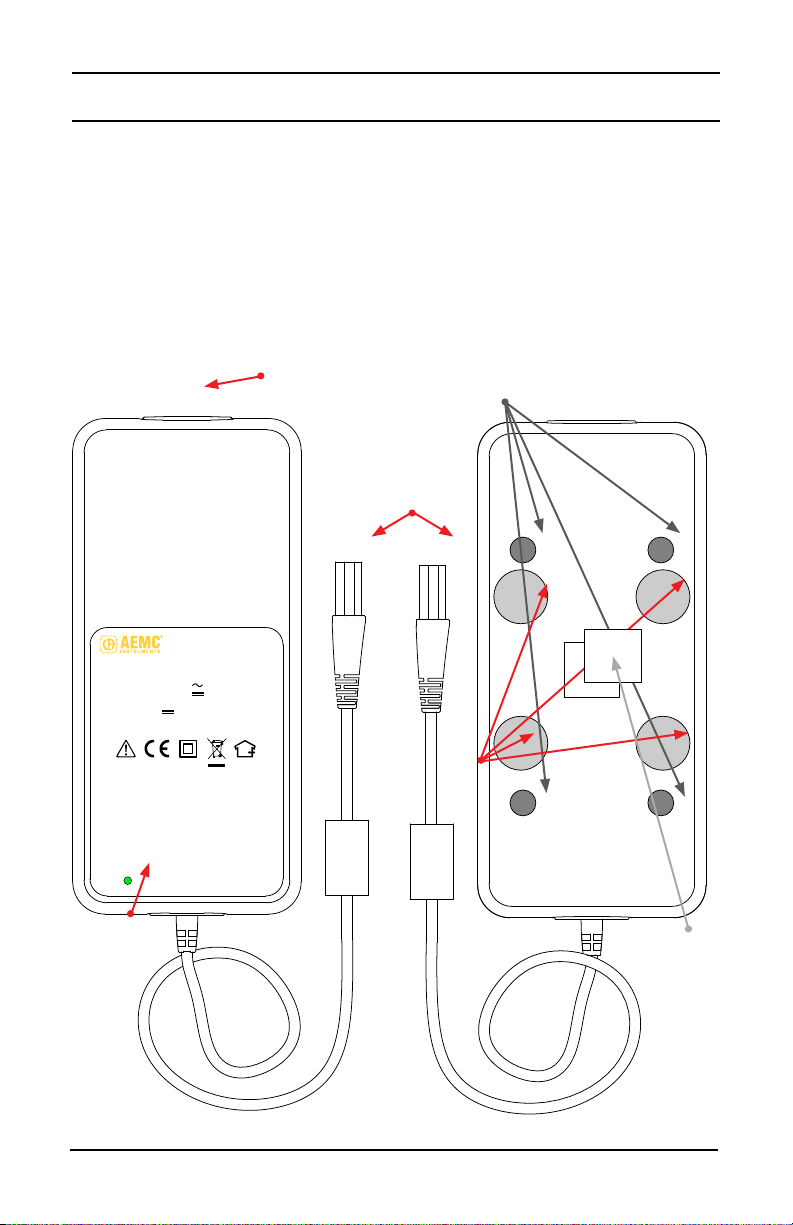

2.2 OVERALL VIEW
MODEL PA32ER
POWER ADAPTER
INPUT : 100 ... 1000 V 40 ... 400 Hz 30 W or
150 ... 1000 V 30 W
OUTPUT : 15 V 2 A Max
GREEN : Power
ORANGE : Charging
BLINK : No bat.
CHAUVIN ARNOUX®Inc.
d.b.a. AEMC®Instruments
15 Faraday Drive •Dover, NH 03820 USA
www.aemc.com
4 non-skid pads
4 magnets for4 magnets for
attachment to aattachment to a
metallic surfacemetallic surface
Bottom viewTop view
4-point connector
for connection to
the instrument
Voltage input
Indicator QR-code

Power Adapter PA32ER 5
3. OPERATING INSTRUCTIONS

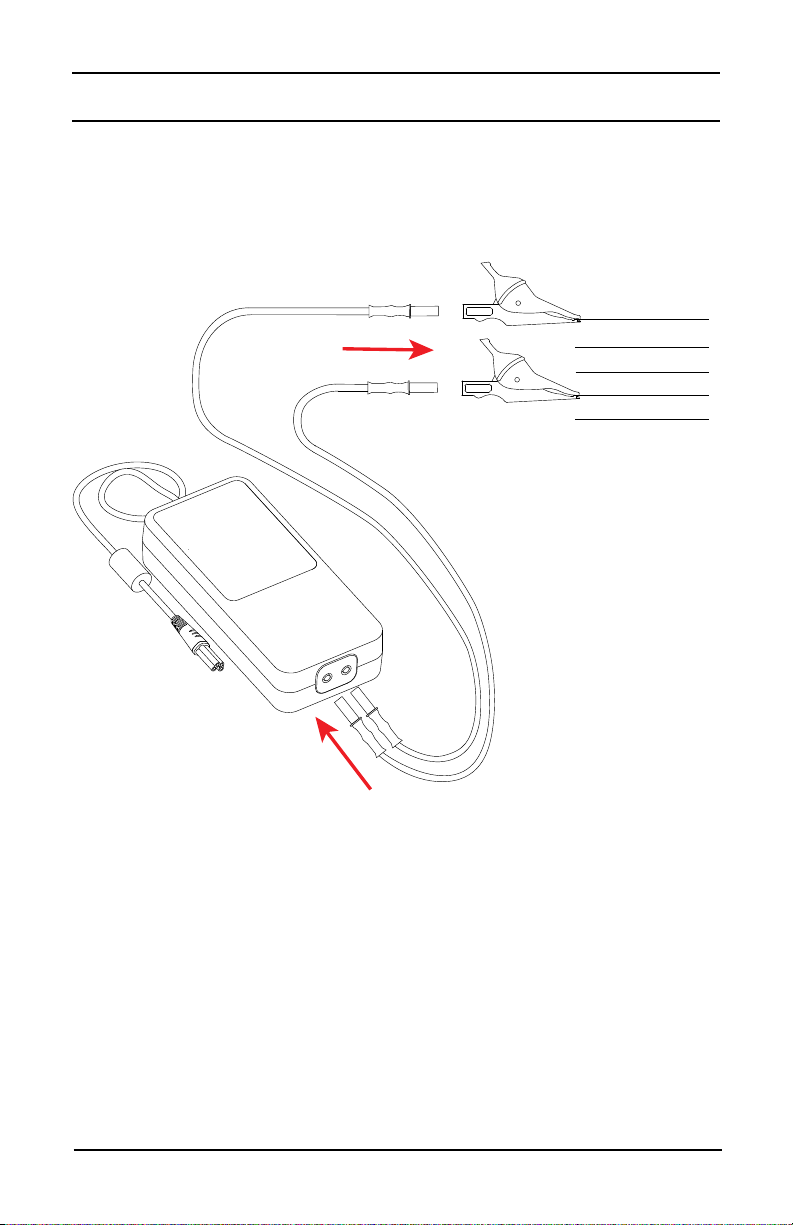

3.1 POWER FROM THE MEASUREMENT SOURCE
Using the leads provided and alligator clips, connect the adapter to a line voltage.
Either between a phase (L1, L2, or L3) and neutral or between 2 phases.
L3
PE
N
L1
L2
In the image above, the adapter is connected between the neutral (N) and phase L1.
■Open the elastomer cap and connect the 4-point connector to the external
power supply input of the instrument.
The indicator light on the front of the adapter displays:
■A steady green when the power is on
■A steady orange when the battery is charging
■If it blinks, the battery is missing and the instrument is powered by the external
power supply alone.

6 Power Adapter PA32ER

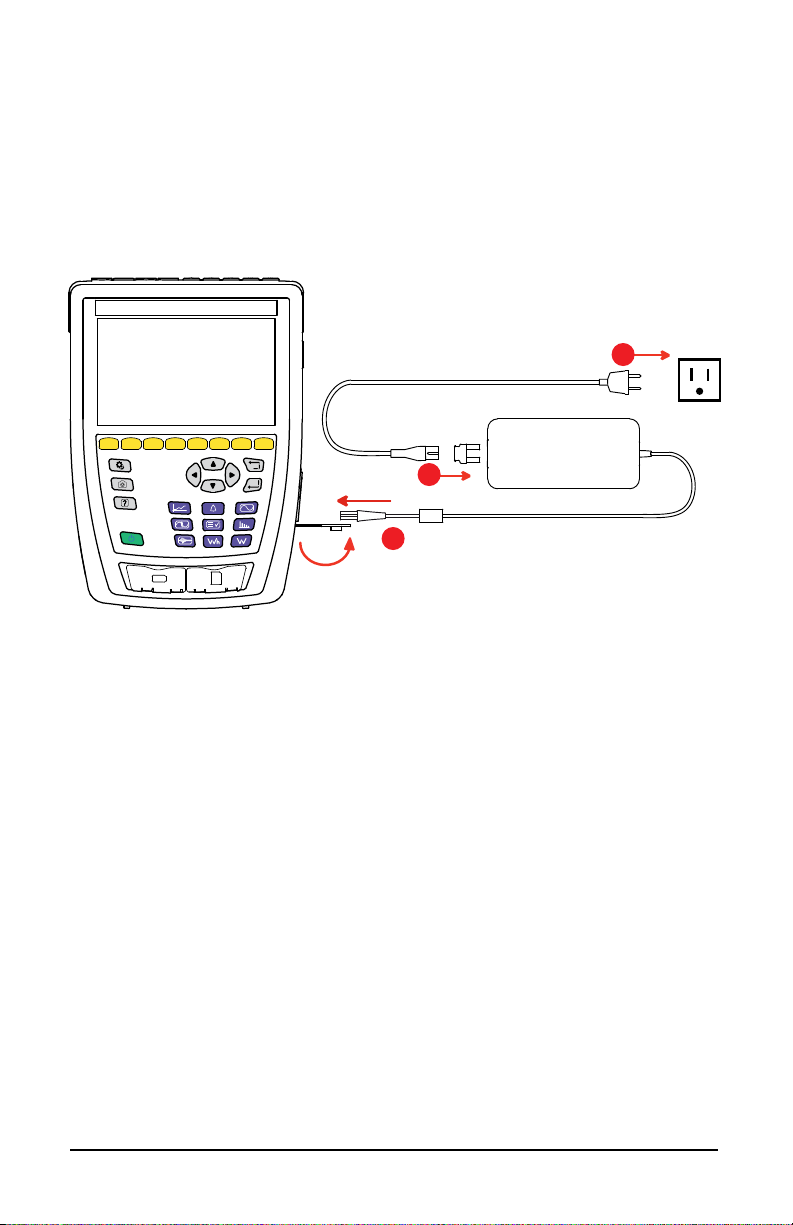

3.2 CHARGE DIRECTLY FROM THE WALL PLUG
1. Connect the adapter banana plug to the PA32ER power adapter.
2. Connect the plug adapter cord between the adapter and the power socket.
3. Open the elastomer cap on the instrument and connect the 4-point connector
of the power supply to the instrument.
The indicator light on the front of the adapter displays:
■A steady green when the power is on
■A steady orange when the battery is charging
■If it blinks, the battery is missing and the instrument is powered by the external
power supply alone.
120 V ± 15 %, 60 Hz
230 V ± 15 %, 50 Hz
1
3
2

Power Adapter PA32ER 7
4. SPECIFICATIONS
4.1 REFERENCE CONDITIONS
Quantity of inuence Reference values
Ambient temperature 20 °C ± 3 °C
4.2 ELECTRICAL SPECIFICATIONS
4.2.1 Input voltage characteristics
■Voltage range:100 V to 1000 V at a frequency from 40 Hz to 400 Hz
150 V to 1,000 V
■Overload tolerance: ± 10% permanent, ± 15% temporary
■Frequency range: DC, 40 Hz - 70 Hz, 340 Hz - 440 Hz
■Input current: 0.5 A max
■No-load consumption:
Supply voltage
(V)
Input current
(mA)
Apparent power
(VA)
RMS power
(W)
115 11.5 0.92 0.65
230 6 1.265 0.6
400 5.3 1.920 1
1,000 3.5 3.3 1.4
4.2.2 Ouput voltage characteristics
Characteristics Values
Permanent output power 23 W
Output voltage @ 30 W 15 V ± 8%
Maximum no-load output voltage 16.2 V
Ripple of the output voltage 550 mV
Maximum short-circuit duration Permanent
Starting-up time at 110 V < 13 s

8 Power Adapter PA32ER
4.2.3 E󰀩ciency
󰀩
4.2.4 Charger
Charging current: 1A
4.3 ENVIRONMENTAL CONDITIONS
Range of operation: from (-4 to 113) °F (-20 to +45) °C, from (30 to 95) %RH
without condensation
Range of storage: from (-13 to 158) °F (-25 to +70) °C, from (10 to 90) %RH
without condensation


Indoor use:
Altitude : < 2000 m
Degree of pollution: 3
󰀩
40
20
60
400 600 800 1000
0
80
100
(V)
(%)
2000
Supply voltage

Power Adapter PA32ER 9
4.4 MECHANICAL CHARACTERISTICS
Dimensions (L x D x H): (8.7 x 4.4 x 2.1) in (220 x 112 x 53) mm
Lead: 
Weight: Approximately 2 lbs (930 g)
Inrush protection: IP54 when not in operation,
IP50 in operation per IEC 60529
IK08 per IEC 62262
Drop Test: 3.3 ft (1 m) per IEC 60068-2-31
4.5 COMPLIANCE WITH INTERNATIONAL STANDARDS
4.5.1 Electrical Safety
The instrument is compliant with IEC/EN 61010-1 and IEC/EN 61010-031 or BS
EN 61010-031 for a voltage of 1000 V CAT IV, degree of pollution 3.
The instruments are compliant with FCC Rules part 1 under number 83TD07571.
4.5.2 Electromagnetic compatibility (EMC)
The instrument is compliant with standard IEC/EN 61326-1.

10 Power Adapter PA32ER
5. MAINTENANCE
The instrument contains no parts that can be replaced by untrained or
unaccredited personnel. Any unapproved work or part replacement using
equivalents may gravely compromise safety.
5.1 C LE A N I N G
1. Disconnect the unit completely.
2. Use a soft cloth, moistened with soapy water.
3. Rinse with a damp cloth.
4. Dry rapidly with a dry cloth or forced air.
Do not use alcohol, solvents, or hydrocarbons to clean.
5.2 REPAIR AND CALIBRATION

that it be sent back to our factory Service Center at one-year intervals for
recalibration, or as required by other standards or internal procedures.
For instrument repair and calibration:
You must contact our Service Center for a Customer Service Authorization
Number (CSA#). Send an email to [email protected] requesting a CSA#.
You will be provided a CSA Form and other required paperwork along with the
next steps to complete the request. Then return the instrument along with the
signed CSA Form. This will ensure that when your instrument arrives, it will be
tracked and processed promptly. Please write the CSA# on the outside of the
shipping container. If the instrument is returned for calibration, we need to know
if you want a standard calibration or a calibration traceable to N.I.S.T. (includes

Ship To: Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments
15 Faraday Drive, Dover, NH 03820 USA
Phone: [phone] (Ext. 360)
[phone] (Ext. 360)
Fax: [phone] or [phone]
E-mail: [email protected]
(Or contact your authorized distributor.)
Contact us for the costs for repair, standard calibration, and calibration traceable
to N.I.S.T.
NOTE: You must obtain a CSA# before returning any instrument.

Power Adapter PA32ER 11
5.3 TECHNICAL ASSISTANCE
If you are experiencing any technical problems, or require any assistance with
the proper operation or application of your instrument, please call, mail, fax, or
e-mail our technical support team:
Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments
Phone: [phone] (Ext. 351)
Fax: [phone]
E-mail: techsuppor[email protected]
www.aemc.com
5.4 LIMITED WARRANTY
The instrument is warrantied to the owner for a period of two years from the
date of original purchase against defects in manufacture. This limited warranty
is given by AEMC®Instruments, not by the distributor from whom it was
purchased. This warranty is void if the unit has been tampered with, abused, or
if the defect is related to service not performed by AEMC®Instruments.
Full warranty coverage and product registration is available on our
website at www.aemc.com/warranty.html.
Please print the online Warranty Coverage Information for your records.
What AEMC® Instruments will do:
If a malfunction occurs within the warranty period, you may return the instrument
to us for repair, provided we have your warranty registration information on
®Instruments will repair or replace the faulty
material at their discretion.
REGISTER ONLINE AT: www.aemc.com/warranty.html

12 Power Adapter PA32ER
5.5 WARRANTY REPAIRS
What you must do to return an Instrument for Warranty Repair:
First, request a Customer Service Authorization Number (CSA#) by email from
our Service Department at [email protected] (see link below). Then, return
the instrument along with the signed CSA Form. Please write the CSA# on
the outside of the shipping container. Return the instrument with postage or
shipment pre-paid to:
Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments
15 Faraday Drive
Dover, NH 03820 USA
Phone: [phone] (Ext. 360)
[phone] (Ext. 360)
Fax: [phone] or [phone]
E-mail: [email protected]
Caution: To protect yourself against in-transit loss, we recommend you insure
your returned material.
NOTE: You must obtain a CSA# before returning any instrument.

Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments
15 Faraday Drive • Dover, NH 03820 USA
Phone: [phone] • [phone] • Fax: [phone]
www.aemc.com
11/22
99-MAN 100569 v0
© Chauvin Arnoux, Inc. d.b.a. AEMC Instruments. All Rights Reserved.
