Chemin'Arte 221 User manual

www.cheminarte.com
ELECTRIC FIREPLACE INSTRUCTION
MANUAL for models 221 149 222 150
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS FOR FUTURE USE
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS
SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, AND INJURY TO PERSONS, INCLUDING THE
FOLLOWING:
ATTENTION:
1.Find a location for the electric heater that is
protected from direct sunlight.
2.Do not plug the electric heater into the power
outlet before you read all instructions.

Read all instructions before using this heater. Failure to follow these important
safety instructions may cause fire, electric shock or damage. Following
proper safety and operating instructions is the responsibility of the owner.
1) This heater is hot when in use. To avoid burns, do not let skin come in
direct contact with hot surfaces. The grill directly in front of the heater outlet
becomes hot during heater operation.
2) Front of fireplace should remain not blocked while in use.
3) CAUTION: Extreme caution is necessary when any heater is used by or
near children or those with disabilities. Never leave the heater operating
unattended.
4) Do not operate any heater with a damaged cord or plug or after the heater
malfunctions, has been dropped or damaged in any manner. Take heater to
authorized service facility for examination, electrical or mechanical
adjustment or repair.
5) Under no circumstance should this electric heater be modified. Parts
having to be removed for servicing must be replaced by a certified repair
center prior to operating this electric heater again.
6) Do not use outdoors or anywhere it can get wet. This heater is not intended
for use in bathrooms, laundry areas and similar indoor locations. Never
locate heater in bathrooms, laundry areas and similar indoor locations.
Never locate this appliance where it may fall into a bathtub or other water
container.
7) Do not run cord under carpeting. Do not cover cord with throw rugs,
runners, or similar coverings. Arrange cord away from traffic area and
where it will not be tripped over.
8) To disconnect heater, turn off all controls, then remove plug from outlet.
9) Connect to property grounded outlets only.
10)Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or fire, or damage the heater.
11)To prevent a possible fire, do not block air intakes or exhaust in any manner.
Do not use on soft surfaces, like a bed, where openings may become
blocked.
12)CAUTION: A heater has hot and arcing or sparking parts inside. Do not use
it in areas where gasoline, propane, paint, or flammable liquids are used or
stored or where the unit will be exposed to flammable vapors. The heater
should not be used as a drying rack for clothing. Do not hand any
decorations on the heater.
13)Do not modify this heater. Use this heater only as described in this manual.
Any other use not recommended by the manufacturer may cause fire,
electric shock, or injury to persons.
14)Avoid the use of an extension cord because the extension cord may
overheat and cause a risk of fire. However, if you have to use an extension
cord, the cord shall be No.16AWG minimum size and rated not less than

1875 watts, and 3-wire cord with grounding type plug and cord connector.
15)Do not plug this product into a receptacle controlled by a wall switch or
dimmer.
16)Always use a certified electrician should new circuits or outlets be required.
17)Always disconnect power before performing any cleaning, maintenance or
relocation of the heater.
18)For off-season storage, keep in a dry place.
NOTE: Procedures and techniques that are considered important enough to
emphasize.
CAUTION: Procedures and techniques, which, if not carefully followed, will
result in damage to the equipment or personal property or may cause personal
injury.
WARNING: Procedures and techniques, which, if not carefully followed, will
expose the user to the risk of serious injury, illness or death.
WARNING:
This heater and parts become hot when in use. The area directly around and
under the heater must be clear and free of any obstructions.
DO NOT ALLOW CHILDREN TO OPERATE THIS HEATER. KEEP
CHILDREN AND PETS AWAY FROM HEATER AND CONTROLS.
Electrical Parameter
◆Power supply: AC220-240V
◆Frequency: 50Hz
◆Power: 2000W
NOTE: If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent
or similarly qualified persons in order to avoid a hazard.

Parts list
REF NO
DESCRIPTION
QTY
A
#8 x 1”
4 PCS
B
4 PCS
C
1 PC
D
4 PCS
E
2 PCS
Installation:
Caution: This heater can be installed in two ways, which can be selected
according to your preference.
Type 1. Built-in Wall
Clearance: Please allow a minimum of 1,5cm spacing from the rear of the unit
to a wall.
Wall Opening Dimensions:
Note: Before installing the heater, please confirm the opening size of the wall.

Model
Unit Overall Dimensions
Cutout Dimensions(W*D*H)
221
122 x 15,30 x 45cm
112 x 15 x 43,20cm
149 / 222
152,5 x 15,30 x 45cm
140 x 15 x 43,20cm
150
183 x 15,30 x 45cm
180,40 x 15 x 43.20cm
Step 1: (1)Find the two mounting screws and remove them. (2)Remove the
front cover by pulling it upward (See Fig. A(1)and Fig.A(2)).
Fig. A(1) Fig. A(2)

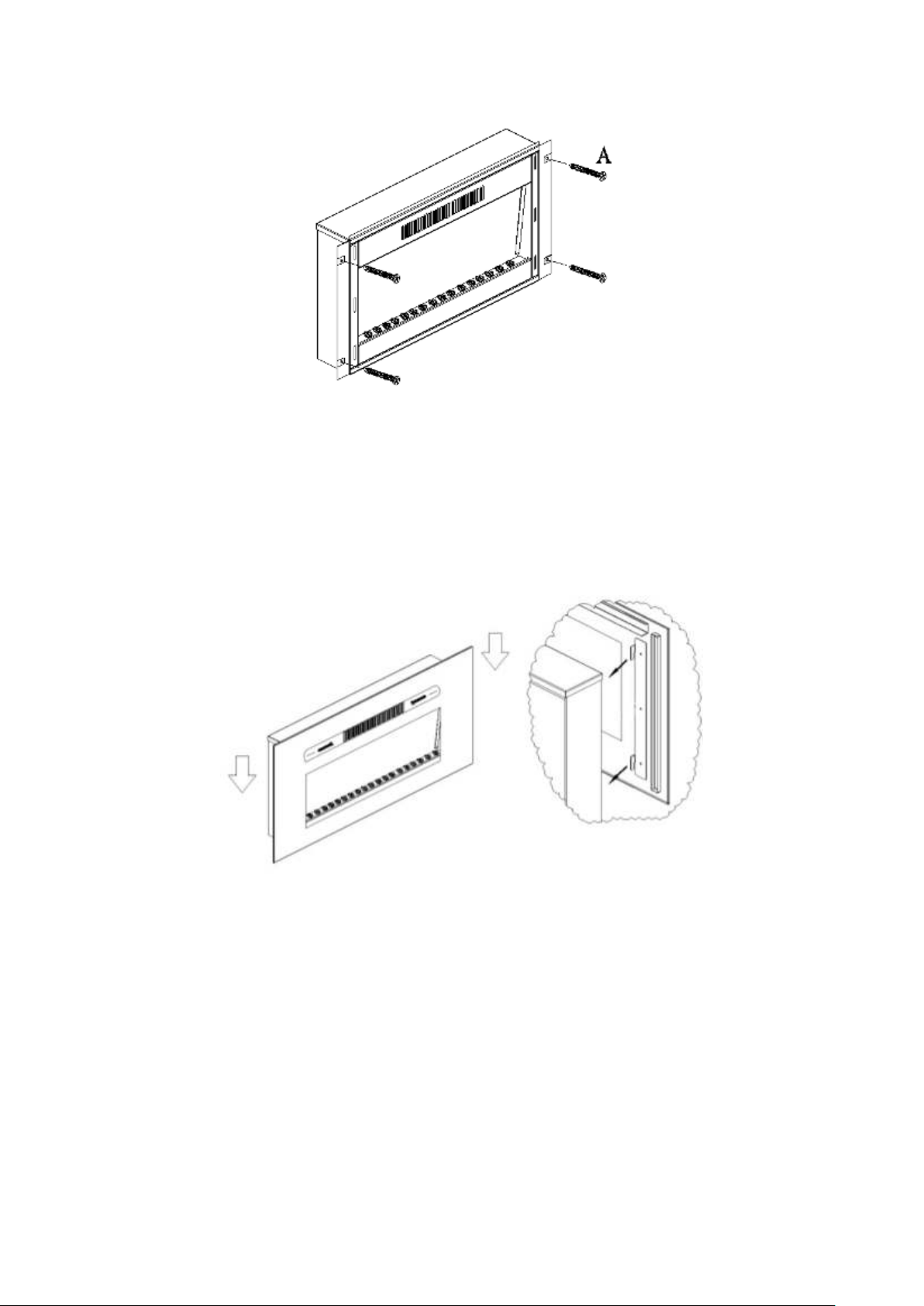

Step 2: Secure the unit to the back wall using the 4 screws (A) as shown in Fig.
B.

Fig. B
Step 3：Replace the front cover and secure it with two mounting screws (See
Fig. C).
Fig. C
Type 2. Wall Hanging

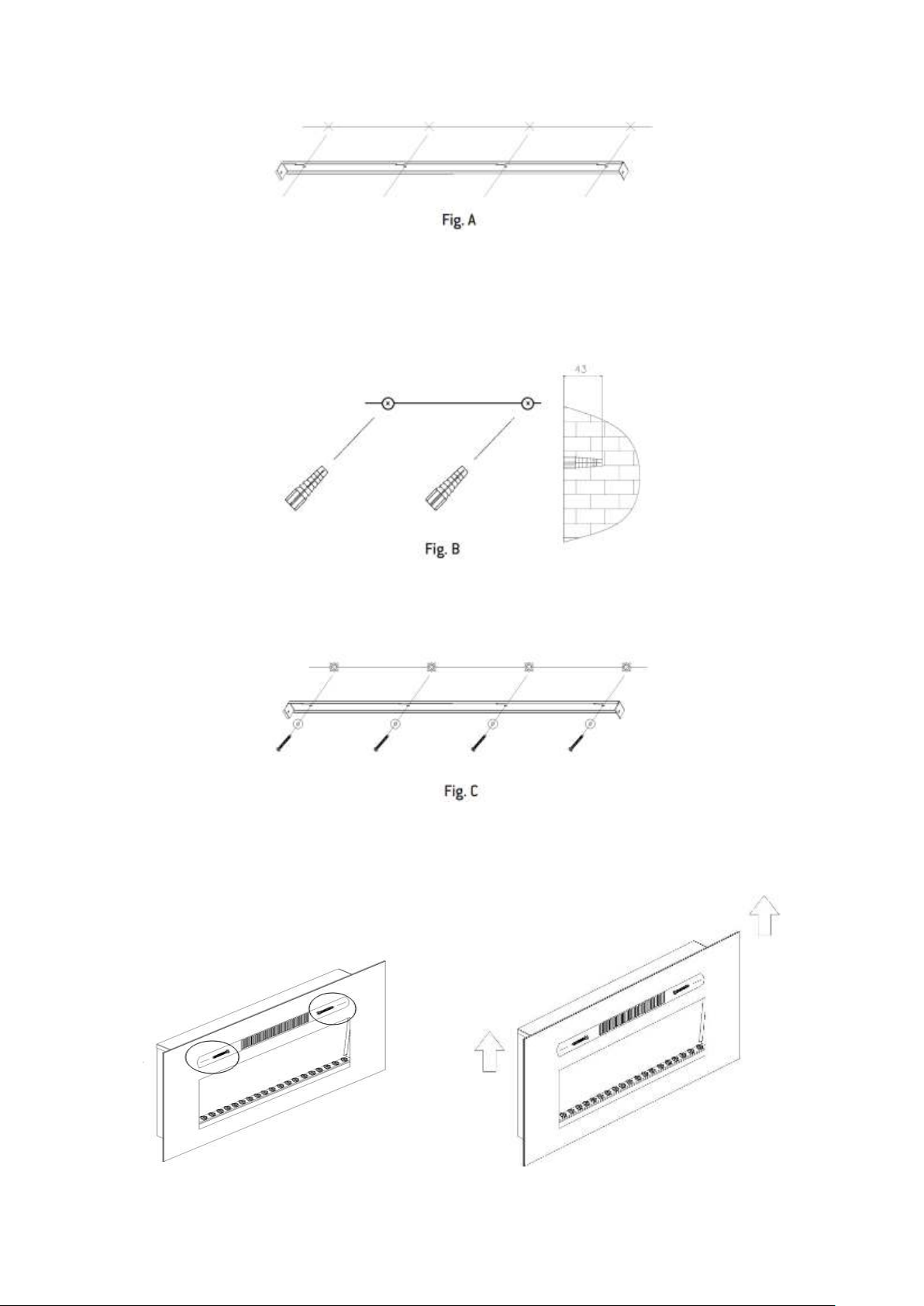

Step 1: Select the wall location where you want to hang your electric heater.
Draw a horizontal line using a level and mark 4 drill holes for the 4 anchor
screws.
Note: The holes are for mounting of heater and it shall be level so that the
heater can be mounted properly and leveled.

Step 2: Drill 4 holes 8 mm in diameter and 43 mm deep on the marked
locations. For holes that do not hit stud, use the supplied wall anchor. Install
the wall anchors into the holes and gently tap them into place with a hammer
until the flange of the wall anchor is flush with the wall surface. See Fig. B.
Step 3: Secure the mounting bracket to the wall anchors using the 4 anchor
screws and 4 washers as shown in Fig. C.
Step 4: (1)Find the two mounting screws and remove them. (2)Remove the
front cover by pulling it upward (See Fig. D(1)and Fig.D(2)).

Fig.D(1) Fig. D(2)
Step 5: Mount the heater on wall using the keyhole slots of the metal bracket at
the back of the heater. See Fig. E.
Make sure that the mounting bracket is completely engaged into the metal
bracket at the back of the heater.
Fig. E
Step 6: Secure the mounting bracket to the heater using 2 mounting screws.
See Fig. F.
Fig. F
Step 7：Replace the front cover and secure it with two mounting screws (See
Fig. G).

Fig. G

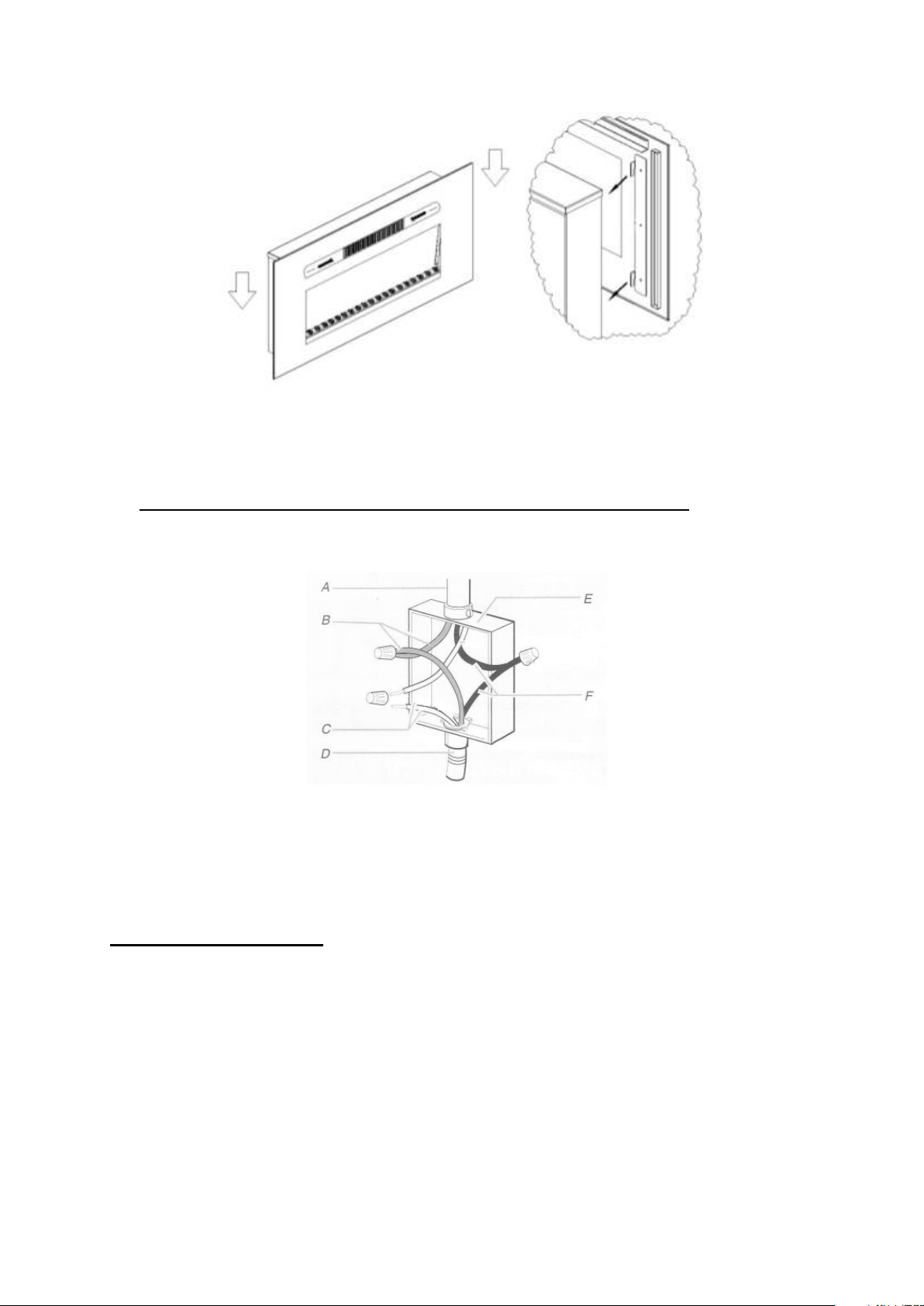

3-wire cable from power supply to 3-wire cable from heater
Use the 3-wire cable from power supply where local codes permit connecting the frame-ground
conductor to the neutral (white) junction box wire:
A. 3-wire cable from power supply
B. Live wire (Brown wire from heater)
C. Null wire (Blue wire from heater)
D. 3-wire cable from heater
E. Junction box
F. Ground wire (Green yellow wire from
heater)
Operating Instructions
Once the electric heater has been properly installed and connected to a ground electrical outlet, it is ready to
operate.
Note: Ensure the circuit breakers for the power supply are turned on.

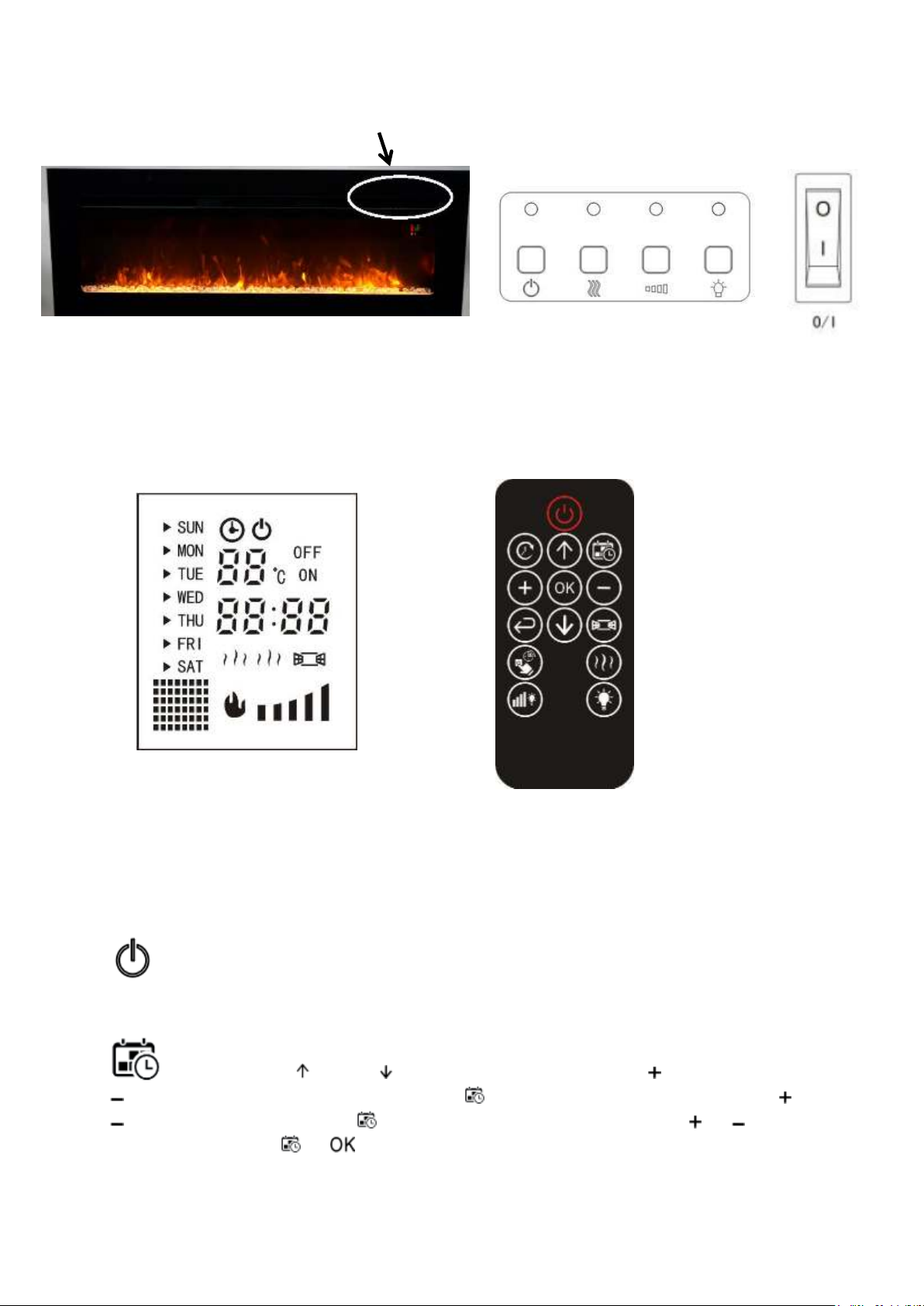

The control panel is located right side of the heater.
Control Panel
LED Screen Remote Control
: Press this button, the unit will enter standby mode. The indicator light will be on. Then you can
select the following functions as desired. Press again to turn off the heater.
: For modification time function - Press this button, the ‘SUN’on the LED screen starts to
twinkle. Press up or down button to the desired date, and press button to select, press
button to cancel. After set the desired date, press button switch to the ‘hour’position. Press or
button to the desired hour. Press button switch to the ‘minute’position. Press or button to
the desired minute. Press or button to complet date setting.

NOTE: The date will be reset after power interrupt.
: For automatic working time setting function - There are 10 time periods you can set to make the
unit work automatically. Press this button, time serial number starts to twinkle. The ‘ON’on the
LED screen lights up. Press or button to the desired serial number. Press button again, the
‘SUN’on the LED screen starts to twinkle. Press up or down button to the desired date, and press
button to select, press button to cancel. After set the desired date, press button switch to the
‘hour’position. Press or button to the desired hour. Press button switch to the ‘minute’
position. Press or button to the desired minute. At this time you have completed the boot time
setting. Press button again, the ‘ON’extinguished and the ‘OFF’lights up. Complete the shutdown
time in the same way. Finally, you need to set a temperature which stop heating. Press or button to
the desired temperature. When desired ambient temperature is reached, the heater will automatically stop
heating.
: For Window detection function - Press this button to turn on the window detection function.
During the heating process, if the room temperature drops obviously caused by the outdoor cold
air blowing, such like open windows or open the door. In order to save energy, the heater will automatically
stop heating. The corresponding icon on the screen will twinkle. Press again to turn off the window
detection function to normally heating.
: For reset function - Press this button to clear the Timing parameters.
: For heat function - Press this button to turn on the heat function. Press again to turn off.
: For timer function - Press this button to turn on the timer function. Press again to turn off.
Note: the working state of the time period is the same as that before start timer function. That is to say, adju
st the working state you want and turn on the timer function, then the machine will work according to your
working state in the time period.
: For flame function - Press this button for 3 seconds to change the flame colors
: For flame effect function - Press this button to change flame effect. Press again to decrease the
flame intensity. There are 4 light intensities for your selection. The flame optics will go lower
under the sequence of 4,3,2 and 1. Pressing the button again will go higher under the sequence of 1,2,3 and
4.
NOTE: After the display screen is extinguished, it can be activated by any key.
NOTE: In the absence of timing mode, you can press or button to the desired temperature
directly. When desired ambient temperature is reached, the heater will automatically stop heating.

Fast Menu:
：Press the standby button and the heating button, the unit can heating immediately.
Maintenance:
WARNING: Completely disconnect power before attempting any maintenance or cleaning, to
reduce the risk of fire or electric shock. Maintenance should only be performed by a certified
technician.
Cleaning:
Before cleaning any parts of the fireplace make sure to first turn off the controls and then unplug the
unit from power source.
CAUTION: Wait until the unit has completely cooled before attempting any cleaning.
Cleaning Glass Panel: Remove dust with clean dry cloth. Remove fingerprints and other marks
from glass door by using a clean damp cloth. Do not use abrasive cleaners or spray liquids on glass
door surfaces.
Metal and metal painted parts should be cleaned with clean damp cloth only. Do not use abrasive
cleaners or spray liquids on these surfaces.

Information requirements for electric fixed local space heaters
Model identifier(s): 150 149 222 221
Item
Symbol
Value
unit
Item
unit
Heat output
Type of heat input, for electric storage local
space heaters only (select one)
Nominal heat
output
Pnom
2
kW
manual heat charge control, with
integrated thermostat
[no]
Minimum heat
output
(indicative)
Pmin
0
kW
Manual heat charge control with
room and/or outdoor temperature
feedback
[no]
Maximum
continuous heat
output
Pmax,c
2
kW
Electronic heat charge control with
room and/or outdoor temperature
feedback
[no]
Auxiliary
electricity
consumption
Fan assisted heat output
[no]
At nominal heat
output
elmax
0
kW
Type of heat output/room temperature
control (select one)
At minimum
heat output
elmin
0
kW
single stage heat output and no room
temperature control
[no]
In standby
mode
elsb
0
kW
Two or more manual stages, no room
temperature control
[no]
with mechanic thermostat room
temperature control
[no]
with electronic room temperature
control
[yes]
electronic room temperature control
plus day timer
[no]
electronic room temperature control
plus week timer
[yes]
Other control options (multiple selections
possible)
room temperature control, with
presence detection
[no]
room temperature control, with open
window detection
[yes]
with distance control option
[no]
with adaptive start control
[no]
with working time limitation
[yes]
with black bulb sensor
[no]
Contact details:
EFYDIS, 4 allee de l’olivet 07300 Saint Jean, France.
www.cheminarte.com
