Chess Mymesh mini BLC 4DI User manual

1
- HCL
1. Bioloog Ian
2. Kerel met duikbril
Installation instruction mini BLC 4DI
V8.0 / 06-04-2020
www.chess.nl
The Mymesh mini BLC 4DI is a product in the Chess program for building light control. The mini
BLC 4DI is a wireless sensor for monitoring of up to four voltage free contacts and executing
related control commands.
Safety
•Installation and service should be performed by qualified personnel only.
•The electrical installation must be in conformance with the national legislation and relevant
standards.
•The mains connection of the mini BLC 4DI must be provided with a fuse or circuit breaker.
•Disconnect power at the source before installation, inspection or removal.
•Do not use the mini BLC 4DI if it is damaged.
•The mini BLC 4DI is suitable for use at indoor locations (IP20 protection class). Mount the mini
BLC 4DI in an IP66 housing for use at outdoor locations.
•The mini BLC 4DI is double insulated (protection class II).
•The optional strain relief mini BLC can be used to fixate and protect wiring to the mini BLC
4DI.
mini BLC 4DI
Installation instruction

2
- HCL
1. Bioloog Ian
2. Kerel met duikbril
Installation instruction mini BLC 4DI
V8.0 / 06-04-2020
www.chess.nl
Application
Refer to the mini BLC 4DI product sheet (see chess.nl) for the product specifications and
environmental conditions.
Installation
•Install the mini BLC 4DI in the direct neighborhood of other Mymesh products.
•Mount the mini BLC 4DI with 2x M3 screw/bolt (76 mm distance).
•Use maximal 1.5 mm2 wiring for all connections. Push the wires completely into the terminal
block. Use wire end sleeves when using flexible wires.
•Connect the 230VAC supply voltage to the mini BLC 4DI. Connect one up to four contact
inputs and the common GND to external voltage free contacts (see wiring diagram below).
•One mini BLC 4DI controls one luminaire.

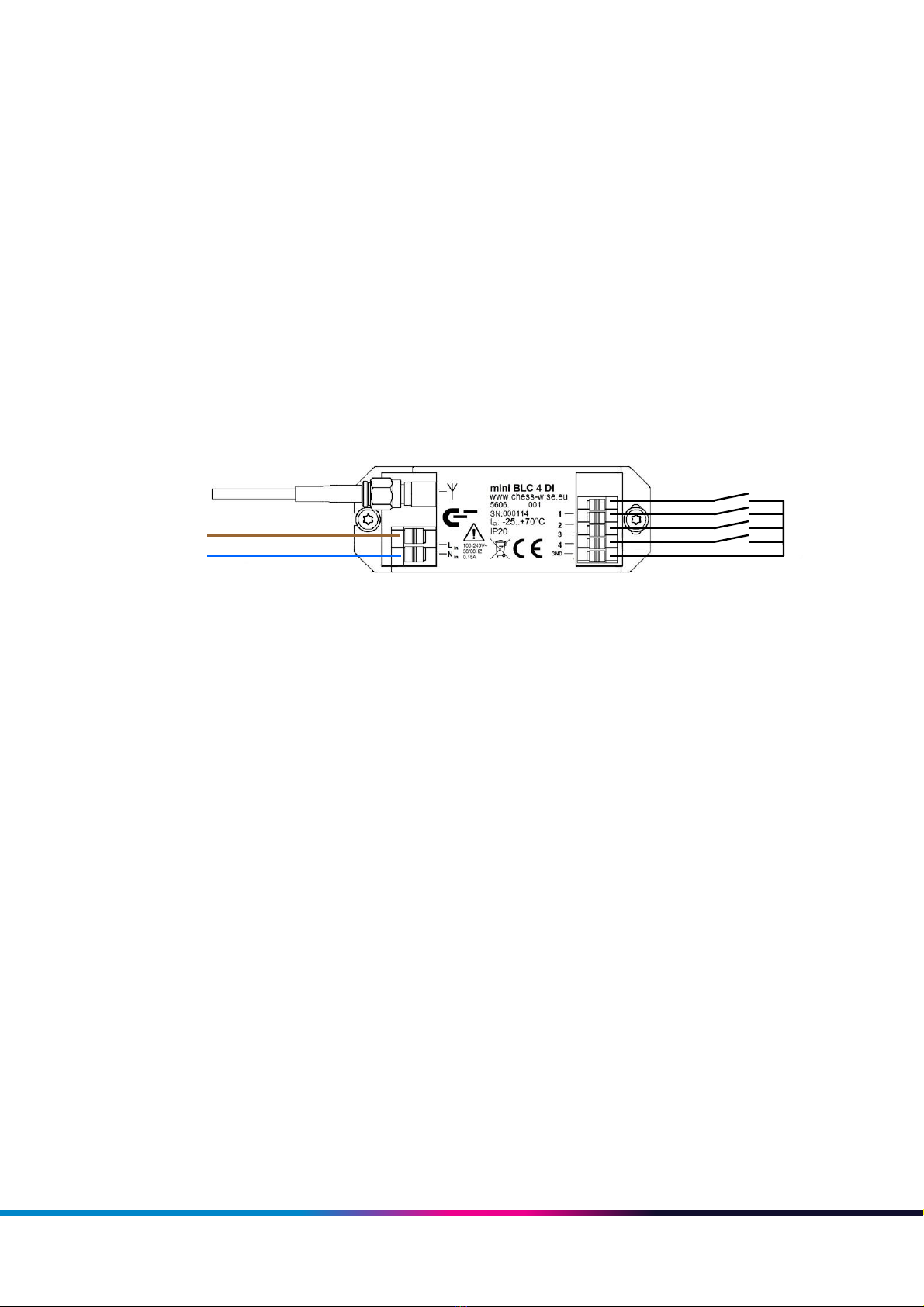

mini BLC 4DI + voltage free contacts:
Antenna mounting
•Connect the supplied antenna to the antenna connector.
•The antenna is used for wireless communication with other Mymesh products. Operation of
the antenna should not be disrupted.
oDo not mount the antenna inside a metal housing, flat on a metal surface or directly
next to a large metal object.
oSome glass and plastic materials such as safety glass, tinted glass and double glass
influence the operation of an antenna.
oUse a plastic, polycarbonate or fiberglass housing without carbon
oMount the antenna outside the housing/cabinet if necessary. Ensure that the
thickened part at the end of the antenna is positioned outside a housing plus 1.5cm of
the antenna cable. Use a grommet for protection of the antenna cable.
230VAC
1
2
3
4
5004.

3
- HCL
1. Bioloog Ian
2. Kerel met duikbril
Installation instruction mini BLC 4DI
V8.0 / 06-04-2020
www.chess.nl

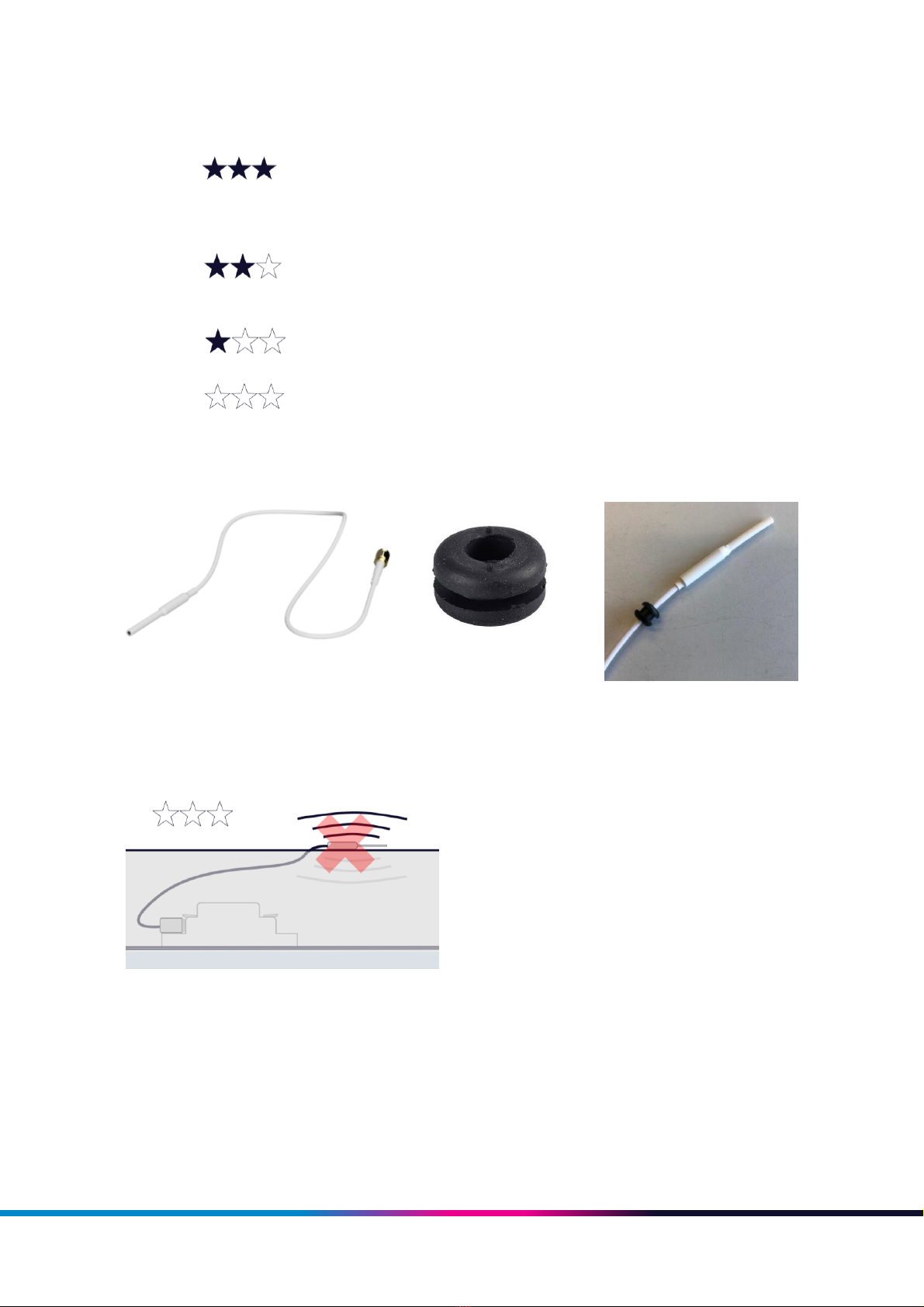

•Depending on the installation of the antenna in the housing/cabinet the range is damped to a
greater or lesser extent. The range of the antenna is divided into four categories:
o–75 to 100% antenna range for situations where luminaires are installed
far apart in an open space (approx. 30-50 meters) OR
for situations where luminaires are installed in close proximity (approx. 20-30 meters)
in complex buildings with a lot of damping through walls, partitions and ceilings
o–50 to 75% antenna range is acceptable for situations where luminaires
are installed in close proximity (approximately 10-20 meters) in buildings with limited
attenuation due to partitions.
o–25 to 50% antenna range is acceptable for situations where luminaires
are installed in an open space in close proximity (approximately 10-20 meters).
o–no antenna range. Do not apply.
•The following installation examples of the antenna are for illustrative purposes. Contact
Chess in case of doubt.
Grommet
Antenna with grommet
Antenna Mini BLC
Figure 1: Do not mount the antenna flat on a metal
surface.

4
- HCL
1. Bioloog Ian
2. Kerel met duikbril
Installation instruction mini BLC 4DI
V8.0 / 06-04-2020
www.chess.nl

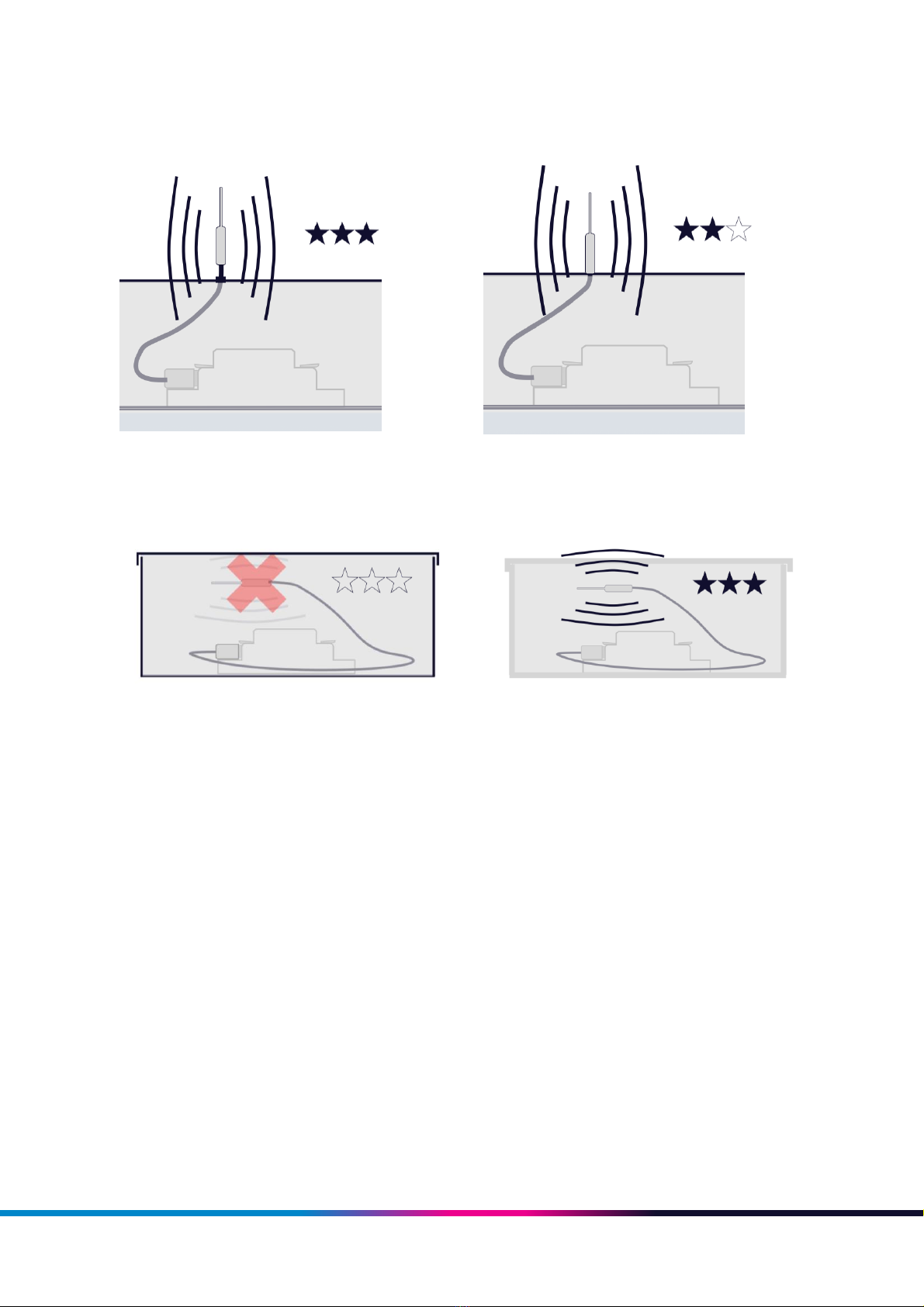

Figure 4: Do not place the antenna in a metal housing /
junction box.
Figure 5: Freely place the antenna in a plastic
junction box / housing (not against plastic)
Figure 3: Route the thickened part of the antenna
completely through the metal housing / cabinet
Figure 2: Route the thickened part of the antenna
completely through the metal housing / cabinet plus
1.5cm of the antenna cable.

5
- HCL
1. Bioloog Ian
2. Kerel met duikbril
Installation instruction mini BLC 4DI
V8.0 / 06-04-2020
www.chess.nl
Configuration
Use the iPad Mymesh commission app for configuration of the mini BLC 4DI.
Warning: the mini BLC 4DI solely detects contact changes (for example from open to closed
contact) and no contact status.
Usage
The mini BLC 4DI will detect changes of the connected contacts and execute the related
operations..
Compliance
This product complies with the European directives and relevant standards for low voltage, EMC,
RED, REACH and RoHS. The mini BLC 4DI contains a 2.4 Ghz radio. The applied frequency of the
radio is within the band 2.401 –2.483 GHz and the maximum transmit power is +4 dBm.
Hereby, Chess Wise declares that the radio equipment type mini BLC 4DI is in compliance with
Directive 2014/53/EU. The full text of the EU declaration of conformity is available at chess.nl
Repair
Do not open this product. In case of failure the mini BLC 4DI must be replaced.
Recycling
Do not dispose this product as household waste, but bring it to an appropriate collection point for
recycling.
