Chiayo VICTORY 2000 User manual

CHIAYO ELECTRONICS CO., LTD.
Operation manual
VICTORY 2000
Portable Wireless PA System

1
VICTORY 2000 Portable Wireless PA System
Important safety instructions
⚫Read all of the instructions before the product is operated.
⚫Keep these instructions well for future reference.
⚫Follow all of the warnings and instructions when installing, setting up and using the product.
⚫Only clean the product when it is not connected to the power supply system. Clean only with
a dry cloth.
⚫Keep ventilation openings unblocked and follow with the manufacturer’s instructions for
installation.
⚫Do not immerse product in any liquid or expose to heat or moisture
⚫Keep the complete polarized or grounding type plug without any modification. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wider blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
⚫Power supply cords should be well routed to prevent from being walked on or pinched by
items placed upon or against them, particularly at plugs, convenience receptacles, and the
point where they exit from the product.
⚫Use only manufacturer authorized or recommended accessories.
⚫Use only with a cart, stand, tripod or accessories specified or provided by Chiayo. Be careful
when using a cart to avoid injury from tip-over.
⚫Unplug the product during an electrical strom or when unused for long periods of time.
⚫Never disassemble, modify or service the product. Any unauthorized modifications may result
in personal injury and/or product failure. Additionally, your warranty will be void.

2
Operation manual
Warning
Please read and follow the instructions in this manual thoroughly to obtain optimum results from
this unit. We also recommend that you keep this manual handy for future reference.
Safety Precautions
⚫Be sure to read the instructions in this section carefully before use.
⚫Make sure to observe the instructions in this manual as the conventions of safety symbols
and messages regarded as very important precautions are included.
Safety symbols and messages described below are used in this manual to prevent bodily injury
and property damage which could result from mishandling. Before operating your product, read
this manual first and understand the safety symbols and messages so you are thoroughly aware
of the potential safety hazards.
WARNING
Indicates a potentially hazardous situation which, if mishandled,
could result in death or serious personal injury.
CAUTION
Indicates a potentially hazardous situation which, if mishandled,
could result in moderate or minor personal injury, and/or property
damage.
Make sure to observe the following handling precautions so that a fire or personal injury does
not result from leakage or explosion of the battery.
⚫Do not short, disassemble, heat or put the battery into a fire.
⚫Never charge batteries of the type which are not rechargeable.
⚫Do not solder a battery directly.
⚫Be sure to use the specified type of battery.
⚫Note the correct polarity when inserting a battery in the unit.
⚫Avoid locations exposed to the direct sunlight, high temperature and high humidity when
storing batteries.
WARNING
To prevent the electromagnetic wave from badly influencing
medical equipment, make sure to switch off the unit's power when
placing it in close proximity to the medical equipment.
CAUTION
Battery discharges naturally according to a certain pattern even
when not in use. For best performance and a prolonged lifespan,
battery should be charged regularly after every use or every
month when the system is in storage and not being used!
CD player optical pick up head is a very delicate device and
sensitive to humidity. Please avoid using it in high humidity area
to avoid damage!

3
VICTORY 2000 Portable Wireless PA System
INDEX
Instruction...............................................................................................................................4
1-1 In the box...........................................................................................................................4
1-2 Optional related products ..................................................................................................4
1-3 Parts and functions of VICTORY 2000..............................................................................5
1-4 Parts and functions of passive companion speaker V-SP.................................................6
1-5 Parts and functions of active companion powered speaker V-SLAVE ..............................6
1-6 Charging the battery..........................................................................................................7
1-7 Module compartment.........................................................................................................7
1-8 Connection with external audio sources............................................................................8
Settings and Operations........................................................................................................9
2-1 Using the wired microphone (MIC 1, MIC 2)......................................................................9
2-2 Using the wireless receiver..............................................................................................10
2-2-1 Parts and functions..................................................................................................10
2-2-2 Channel synchronization of the receiver and transmitter.........................................10
2-2-3 Channel scanning....................................................................................................11
2-2-4 Squelch (SQ) setting ...............................................................................................11
2-3 Music audio input-DVD player (LINE)..............................................................................12
2-4 EQUALIZER for MUSIC ..................................................................................................13
2-5 Voice Priority...................................................................................................................13
Application............................................................................................................................14

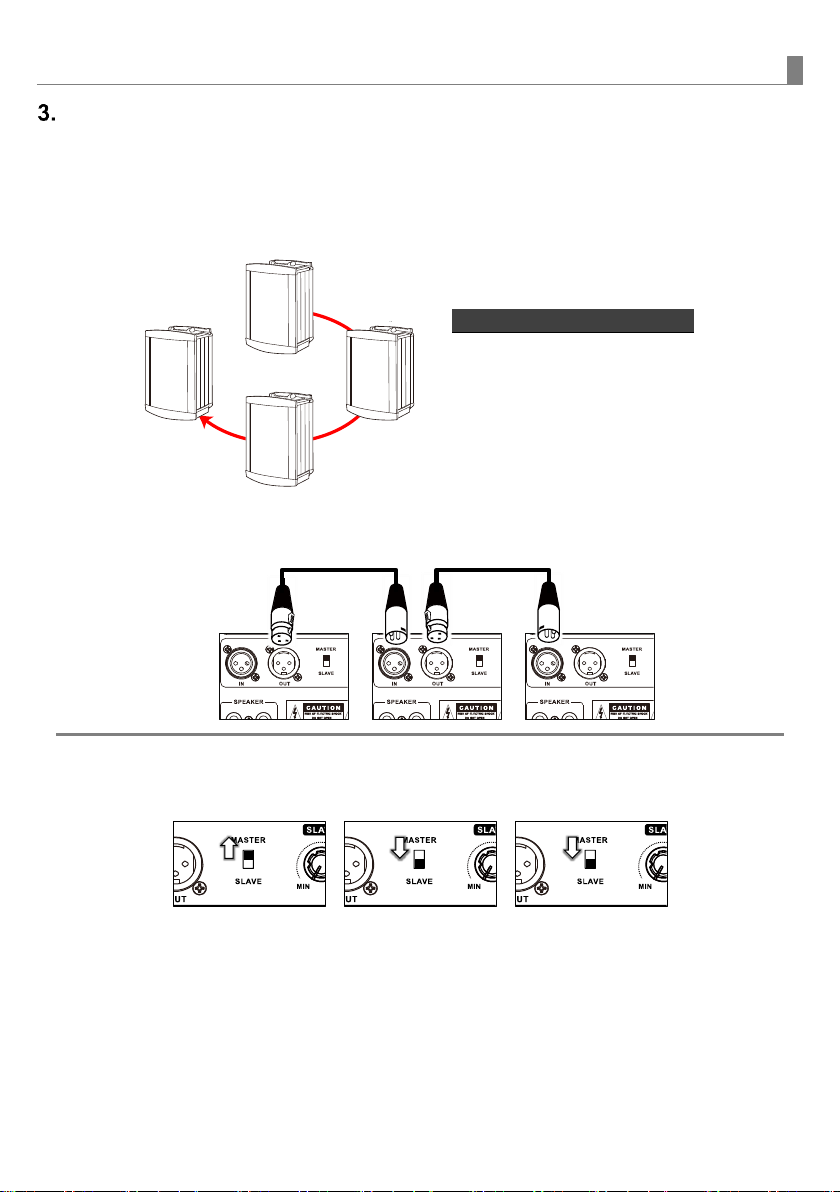

3-1 Active audio link: VICTORY 2000 to VICTORY 2000......................................................14
3-2 Active audio link: VICTORY 2000 to V-SLAVE................................................................16
3-3 Wireless audio link: repeat all audio to linked VICTORY 2000 / V-SLAVE......................18
3-3-1 Parts and functions of RP-5100M............................................................................18
3-3-2 Changing channels..................................................................................................18
3-3-3 Music audio input (AUX IN)- Smart phone / tablet / MP3 player..............................19
3-3-4 Adjust internal audio gain level................................................................................19
3-3-5 Output power setting ...............................................................................................19
3-4 More extension................................................................................................................21
3-5 Connecting VICTORY 2000 / V-SLAVE to 1 or 2 passive companion speakers.............22
Installing or replacing a receiver/repeater/MP3 module ...................................................23
FAQ & useful operation tips................................................................................................24
Maintenance-free Lead-acid and Lithium batteries...........................................................26

4
Instruction
Instruction
Congratulations and thank you for purchasing this all-in-one portable
sound system. To ensure a trouble-free operation, please read the manual
thoroughly to fully understand its controls and functions.
The rear panel of these portable sound systems is divided into 2 sections:
1.Module compartment
2.Control Unit compartment

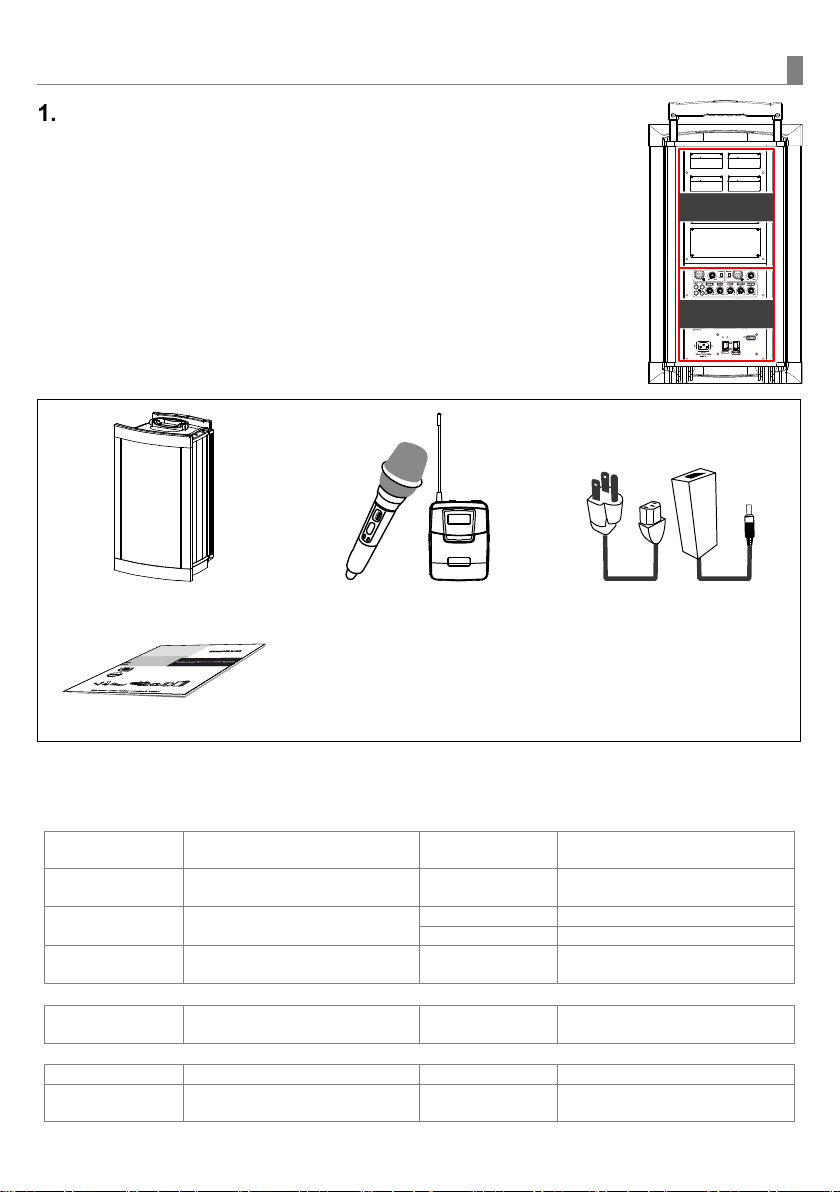

1-1 In the box
VICTORY 2000 amplifier
0~4 transmitters
(handheld/beltpack)
switching power supply
(plug varies from country to country)
operation manual
1-2 Optional related products
▍Modules & transmitters (For more information about transmitter, please refer to its user
manual)
SDR-8200M IrDA
Ture diversity receiver module
SQ-6100 IrDA
SQ-5100 IrDA
Handheld microphone
SDR-8100M IrDA
Diversity receiver module
SM-7100 IrDA
SM-6100 IrDA
Belt-pack transmitter
DWR-5410M
2.4G digital receiver module
DH-5400
Handheld digital microphone
DB-5400
Belt-pack digital transmitter
RP-5100M
Repeater module
DPRB-600M
MP3 recorder player +
bluetooth receiver module
▍Speakers
V-SLAVE
Active companion powered
speaker
V-SP
Passive companion speaker
▍Accessories
ST-50
Tripod stand: standard
ST-51
Tripod stand: height adjustable
DC-50
Weather proof dust cover
DM-series
Wired microphone, please refer
to CHIAYO website.
Module
compartment
Control unit
compartment

5
VICTORY 2000 Portable Wireless PA System

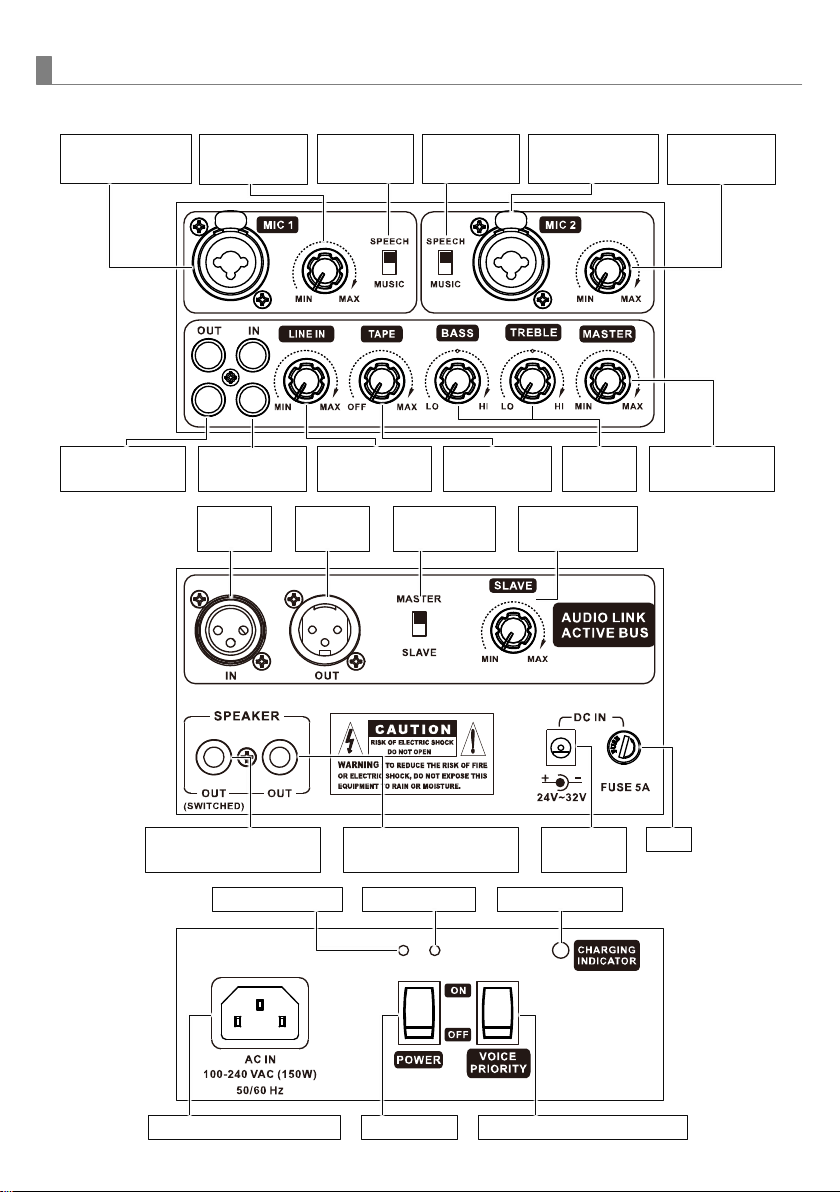

1-3 Parts and functions of VICTORY 2000
MIC/LINE input ①
(combo)
MIC/LINE ①
volume control
MIC/LINE ①
level switch
MIC/LINE ②
level switch
MIC/LINE input ②
(combo)
MIC/LINE ②
volume control
LINE OUT socket
(RCA R/L)
LINE IN socket
(RCA R/L)
LINE IN volume
control
CD power +
volume control
TREBLE/
BASS
MASTER volume
control
audio link
input
audio link
output
MASTER/
SLAVE switch
MASTER
volume control
External speaker socket
V-SLAVE muted
External speaker socket
V-SLAVE not muted
DC input
(24-32V/4A)
Fuse
Batter low indicator
Power indicator
charging indicator
AC input (90-260V/5A Max)
power switch
VOICE PRIORITY push button

6
Instruction
1-4 Parts and functions of passive companion speaker V-SP
1-5 Parts and functions of active companion powered speaker V-SLAVE
audio link input
audio link output
MASTER volume control
External speaker socket
V-SLAVE muted
External speaker socket
V-SLAVE not muted
DC input
(24-32V/4A)
Batter low indicator
Power indicator
charging indicator
AC input (90-260V/5A Max)
power switch
speaker input
speaker output
Fuse

7
VICTORY 2000 Portable Wireless PA System
1-6 Charging the battery
This amplifier uses either two lead-acid batteries. If the battery indicator turns solid RED, the
battery might not be sustainable for long operation and needs to be charged.
VICTORY 2000 V-SLAVE
Charging indicator
Condition
Flashes RED
During recharging
Solid GREEN
Fully charged
1-7 Module compartment
For Bluetooth MP3 recorder module DPRB-600M.
Battery low indicator
Charging status indicator
Charging status indicator
Battery low indicator
For receiver / repeater module
For receiver / MP3 module
For receiver module
For receiver module

8
Instruction
1-8 Connection with external audio sources
WIRED MIC
AMPLIFIER
DVD PLAYER
ACTIVE SPEAKER
PASSIVE SPEAKER
ACTIVE SPEAKER
Sound control, e.g.,
volume and equalizer,
of audio output from
VICTORY 2000 is
only operated on this
external amplifier.

9
VICTORY 2000 Portable Wireless PA System
Settings and Operations

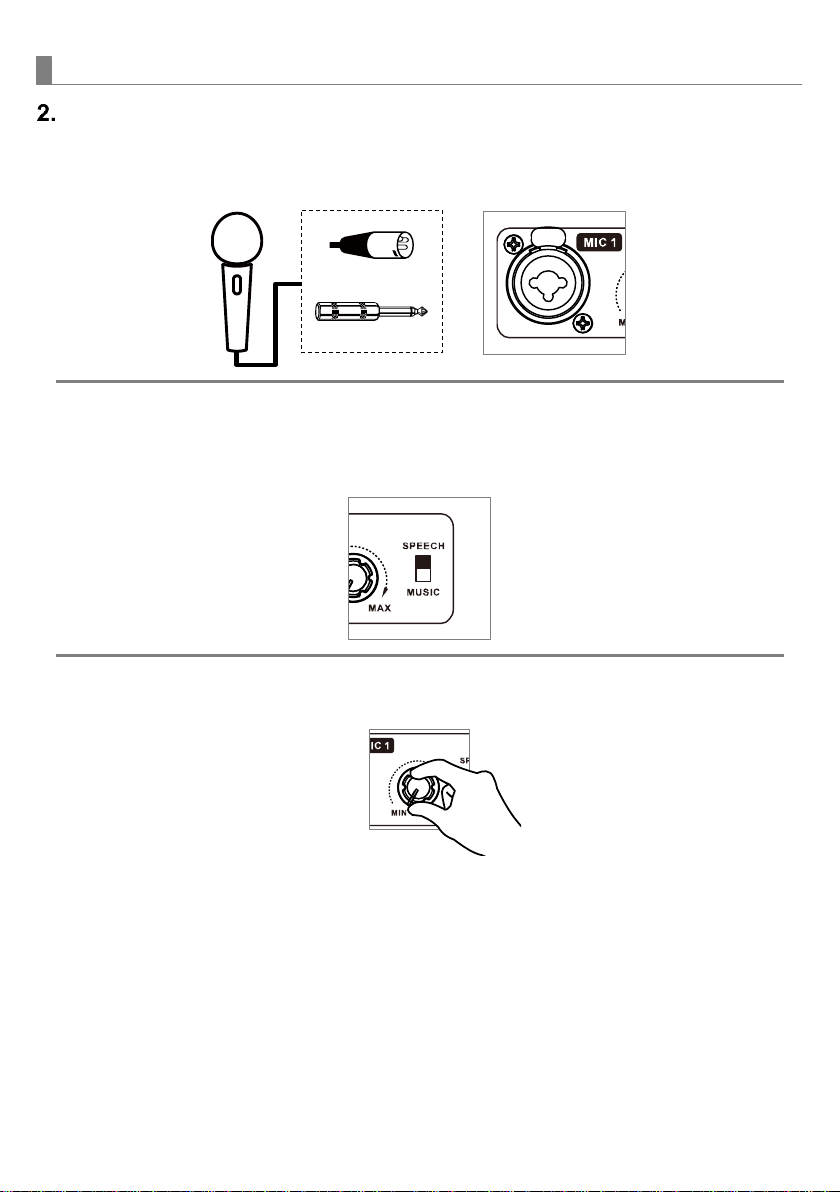

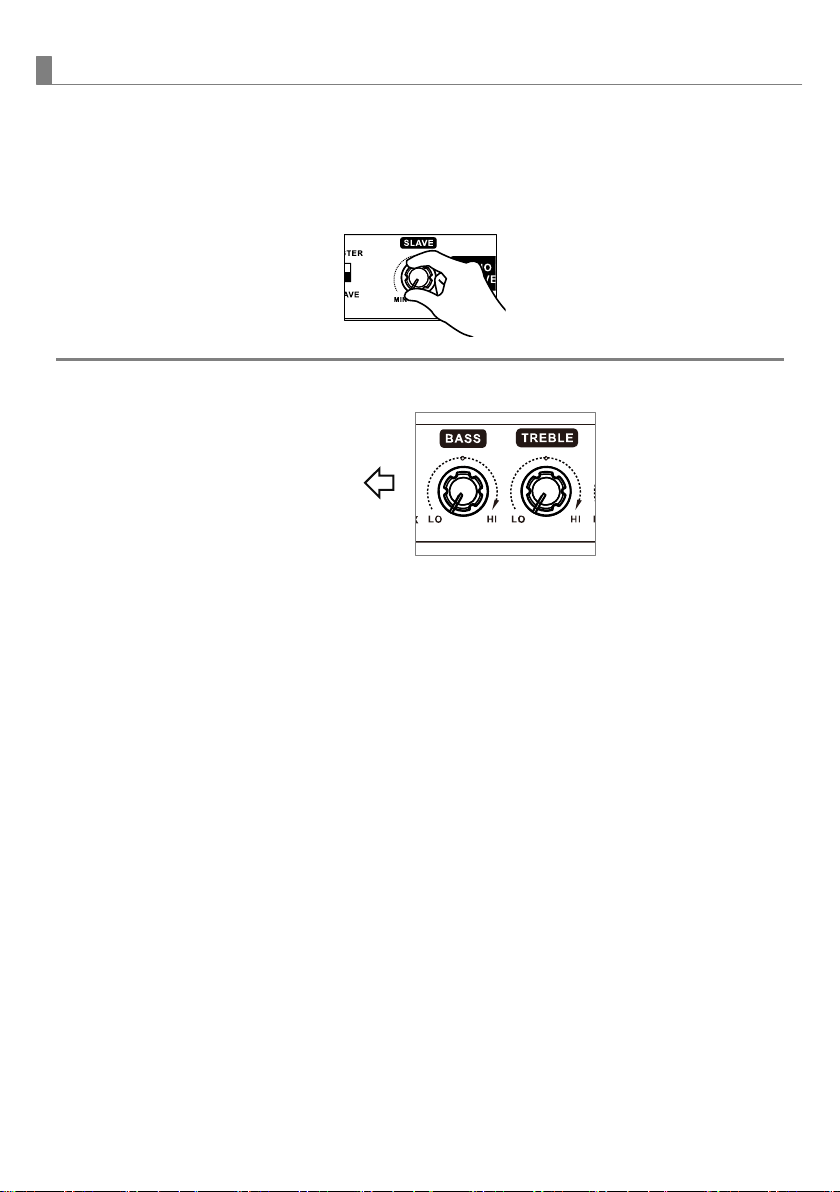

2-1 Using the wired microphone (MIC 1, MIC 2)
1 Plug a wired microphone with a 6.3mm or XLR connector to MIC 1 or MIC 2.
2 The nearby SPEECH/MUSIC switch filters out low frequencies from an audio signal.
In SPEECH mode, frequencies lower than 200 Hz will be removed, thus, unwanted
bass noises won’t be heard.
In MUSIC mode, no frequencies are cut so all bass sound can be heard and recorded.
3 Turn on master POWER and then adjust the specific (either MIC 1 or MIC 2) volume
control to desired level.
or
