Chicago Electric 40315 Installation manual

7" PORTABLE WET CUTTING
TILE SAW
Model 40315
SET UP AND OPERATING INSTRUCTIONS
Please Note: Diamond Blade not included, sold separately.
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2008 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any
artwork contained herein may be reproduced in any shape or form without the express written
consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due
to continuing improvements, actual product may differ slightly from the product described herein.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 10e

Page 2SKU 40315 For technical questions, please call 1-800-444-3353.
SAVE THIS MANUAL
Keep this manual for the safety warn-
ings and precautions, assembly, operat-
ing, inspection, maintenance and cleaning
procedures. Write the product’s serial
number in the back of the manual near the

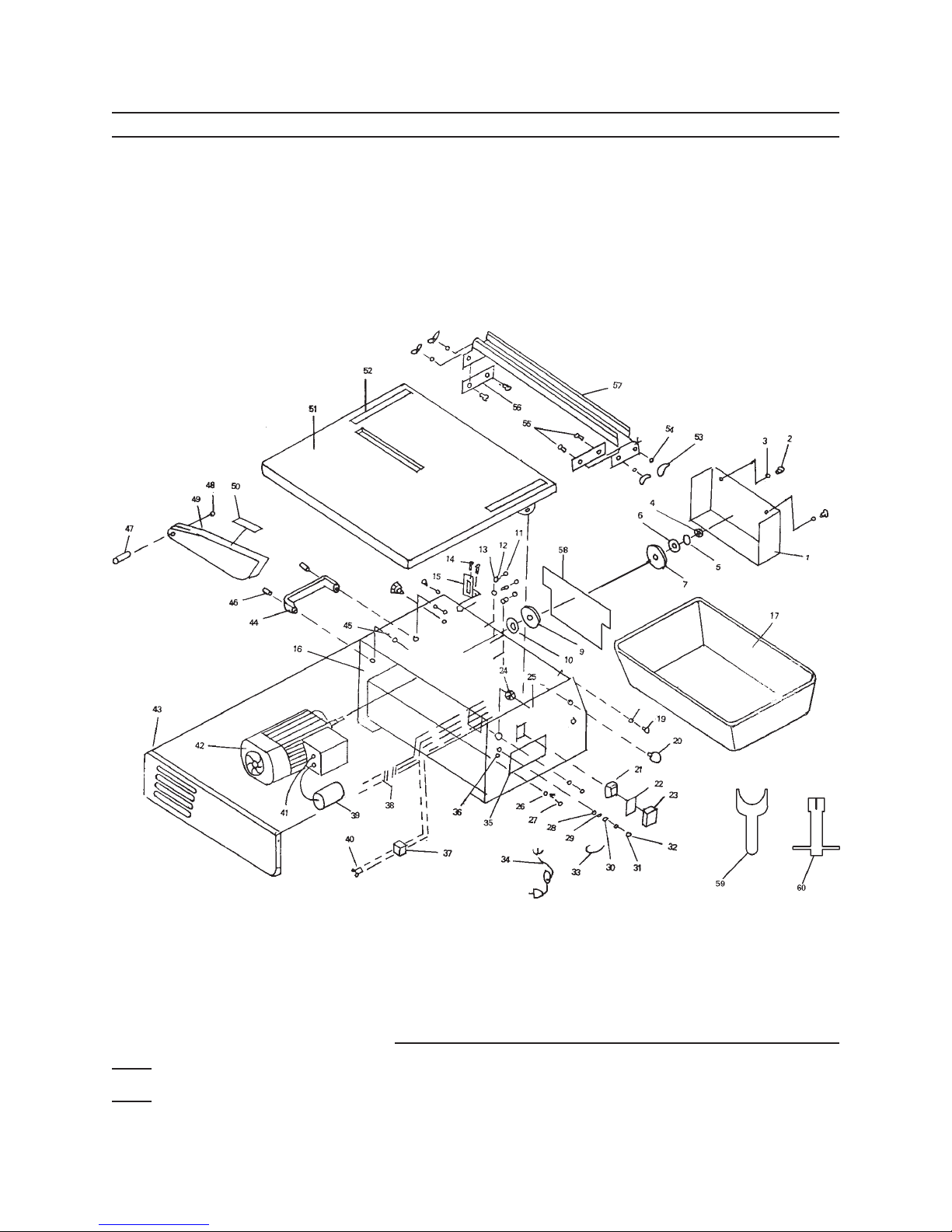

assembly diagram (or month and year of
purchase if product has no number). Keep
this manual and the receipt in a safe and
dry place for future reference.
IMPORTANT SAFETY
INFORMATION
In this manual, on the labeling,
and all other information
provided with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
General Power Tool Safety
Warnings
WARNING Read all safety
warnings and instructions.
Failure to follow the warnings and
instructions may result in electric
shock, re and/or serious injury.
Save all warnings and
instructions for future reference.
The term ″power tool″ in the
warnings refers to your mains-
operated (corded) power tool or
battery-operated (cordless) power
tool.
1. Work area safety
a.Keep work area clean and well lit.
Cluttered or dark areas invite acci-
dents.
b.Do not operate power tools in
explosive atmospheres, such as in
the presence of ammable liquids,
gases or dust. Power tools create
sparks which may ignite the dust or
fumes.
c. Keep children and bystanders
away while operating a power tool.
Distractions can cause you to lose
control.
2. Electrical safety
a.Power tool plugs must match the
outlet. Never modify the plug in
any way. Do not use any adapter

Page 3SKU 40315 For technical questions, please call 1-800-444-3353.
plugs with grounded power tools.
Unmodied plugs and matching out-
lets will reduce risk of electric shock.
b.Avoid body contact with grounded
surfaces such as pipes, radiators,
ranges and refrigerators. There is
an increased risk of electric shock if
your body is grounded.
c. Do not expose power tools to rain
or wet conditions. Water entering
a power tool will increase the risk of
electric shock.
d.Do not abuse the cord. Never use
the cord for carrying, pulling or
unplugging the power tool. Keep
cord away from heat, oil, sharp
edges or moving parts. Damaged
or entangled cords increase the risk
of electric shock.
e.When operating a power tool out-
doors, use an extension cord suit-
able for outdoor use. Use of a cord
suitable for outdoor use reduces the
risk of electric shock.
f. If operating a power tool in a damp
location is unavoidable, use a
Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of
a GFCI reduces the risk of electric
shock.
3. Personal safety
a.Stay alert, watch what you are do-
ing and use common sense when
operating a power tool. Do not use
a power tool while you are tired
or under the inuence of drugs,
alcohol or medication. A moment
of inattention while operating power
tools may result in serious personal
injury.
b.Use safety equipment. Always
wear ANSI-approved eye protec-
tion. Safety equipment such as dust
mask, non-skid safety shoes, hard
hat, or hearing protection used for
appropriate conditions will reduce
personal injuries.
c. Keep guards in place and in good
working order.
d.Prevent unintentional starting.
Ensure the switch is in the off-po-
sition before connecting to power
source and/or battery pack, pick-
ing up or carrying the tool. Carry-
ing power tools with your nger on
the switch or energizing power tools
that have the switch on invites acci-
dents.
e.Remove any adjusting key or
wrench before turning the power
tool on. A wrench or a key left at-
tached to a rotating part of the power
tool may result in personal injury.
f. Do not overreach. Keep proper
footing and balance at all times.
This enables better control of the
power tool in unexpected situations.
g.Dress properly. Do not wear loose
clothing or jewelry. Keep your
hair, clothing and gloves away
from moving parts. Loose clothes,
jewelry or long hair can be caught in
moving parts.
h.If devices are provided for the con-
nection of dust extraction and col-
lection facilities, ensure these are
connected and properly used. Use
of these devices can reduce dust-
related hazards.
4. Power tool use and care
a.Do not force the power tool. Use
the correct power tool for your ap-
plication. The correct power tool will

Page 4SKU 40315 For technical questions, please call 1-800-444-3353.
do the job better and safer at the rate
for which it was designed.
b.Do not use the power tool if the
switch does not turn it on and off.
Any power tool that cannot be con-
trolled with the switch is dangerous
and must be repaired.
c. Disconnect the plug from the
power source and/or the battery
pack from the power tool before
making any adjustments, chang-
ing accessories, or storing power
tools. Such preventive safety mea-
sures reduce the risk of starting the
power tool accidentally.
d.Store idle power tools out of the
reach of children and do not allow
persons unfamiliar with the power
tool or these instructions to oper-
ate the power tool. Power tools are
dangerous in the hands of untrained
users.
e.Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any
other condition that may affect the
power tool’s operation. If dam-
aged, have the power tool repaired
before use. Many accidents are
caused by poorly maintained power
tools.
f. Keep cutting tools sharp and
clean. Properly maintained cutting
tools with sharp cutting edges are
less likely to bind and are easier to
control.
g.Use the power tool, accessories
and tool bits etc. in accordance
with these instructions, taking into
account the working conditions
and the work to be performed. Use
of the power tool for operations differ-
ent from those intended could result
in a hazardous situation.
5. Service
a.Have your power tool serviced by
a qualied repair person using
only identical replacement parts.
This will ensure that the safety of the
power tool is maintained.
Vibration Safety
This tool vibrates during use. Re-
peated or long-term exposure to
vibration may cause temporary or
permanent physical injury, particularly
to the hands, arms and shoulders. To
reduce the risk of vibration-related
injury:
1. Anyone using vibrating tools regu-
larly or for an extended period should
rst be examined by a doctor and
then have regular medical check-
ups to ensure medical problems are
not being caused or worsened from
use. Pregnant women or people
who have impaired blood circulation
to the hand, past hand injuries, ner-
vous system disorders, diabetes, or
Raynaud’s Disease should not use
this tool. If you feel any medical or
physical symptoms related to vibra-
tion (such as tingling, numbness, and
white or blue ngers), seek medical
advice as soon as possible.
2. Do not smoke during use. Nico-
tine reduces the blood supply to the
hands and ngers, increasing the risk
of vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.

Page 5SKU 40315 For technical questions, please call 1-800-444-3353.
4. Use tools with the lowest vibration
when there is a choice between dif-
ferent processes.
5. Include vibration-free periods each
day of work.
6. Grip tool as lightly as possible (while
still keeping safe control of it). Let
the tool do the work.
7. To reduce vibration, maintain the tool
as explained in this manual. If any
abnormal vibration occurs, stop use
immediately.
SPECIFIC SAFETY WARNINGS
1. Maintain labels and nameplates on
the Tile Saw. These carry important
information. If unreadable or miss-
ing, contact Harbor Freight Tools for a
replacement.
2. Use the right product for the right
job. There are certain applications
for which this product was designed.
Do not use small equipment, tools, or
attachments to do the work of larger
industrial equipment, tools, or attach-
ments. Do not use this product for a
purpose for which it was not intended.
3. Be sure the product is properly in-
stalled with the water hose hooked
up to the Blade Guard (49) to keep
the blade wet while in use.
4. This product must continuously
run with cold water. Dry running will
cause serious damage.
5. WARNING! Keeps hands and
ngers away from cutting area and
Saw Blade.
6. Check Blade Guard for proper for-
ward/backward movement before
each use. Do not operate the Tile
Saw if the Blade Guard does not
move freely. Make sure the Blade
Guard moves freely and does not
touch the Saw Blade or any other
part of the Saw, in all angles and
depths of cut.
7. Do not handle the Power Switch
(21) with wet hands.
8. Make sure the Tile Saw is located
on a at, level, sturdy surface ca-
pable of supporting the weight of
the Saw and work pieces.
9. Always use 67393 7” Continu-
ous Rim Diamond Saw Blade (not
included, sold separately) with a 1”
round arbor hole, and rated at 3565
RPM or greater.
10. Use the Tile Saw only for cutting
dry or wet ceramic tile, quarry
tile, marble, terra-cotta, and slate
with 1” arbor hole and a maximum
thickness 1”.
11. Do not use the Tile Saw for cutting
metals or for cutting curves. This
may cause the Saw Blade to break
and/or reduce its service life.
12. Make sure the Saw Blade is wet at
all times when cutting.
13. To reduce the risk of electrocution,
keep all connections dry and off
the ground. Do not touch plug with
wet hands. Ground Fault Circuit In-
terrupter (GFCI) protection should be
provided on the circuit(s) or outlet(s)
to be used for the tile saw (GFCI is
not included in this machinery). Re-
ceptacles are available having built-in
GFCI protection and may be used for
this measure of safety.
REV 10e

Page 6SKU 40315 For technical questions, please call 1-800-444-3353.
14.
POWER
CORD
120 VOLT,
GROUNDED
ELECTRICAL
OUTLET
TILE SAW
DRIP LOOP
Figure 1
Always arrange a “drip loop” in the
Power Cord/Plug (34) connecting
the Tile Saw to a 120 volt, ground-
ed, electrical outlet. A drip loop is
that part of the Power Cord below the
level of the outlet, or the connector
if an extension cord is used, to pre-
vent water traveling along the Power
Cord and coming in contact with the
outlet. If the Power Plug or electrical
outlet does get wet, do not unplug the
Power Cord. Disconnect the fuse or
circuit breaker that supplies power to
the tool. Then, unplug and examine
for presence of water in the outlet.
See Figure 1, above.
15. Use cold water only. Never use
hot water.
16. Never run the Tile Saw without a
water supply. Running the unit with-
out a water supply will cause irrepa-
rable damage.
17. Make sure the water supply used
for the Tile Saw is not dirty, sandy,
and does not contain any corro-
sive chemicals.
18. Make sure to change the water
when necessary while in use and
clean and rinse out the Tub after
every use.
19. Never leave the Tile Saw unattend-
ed when it is plugged into an elec-
trical outlet. Turn off the Tile Saw,
and unplug it from its electrical outlet.
20. Always keep the water level at the
recommended level. Fill the Tray
(17) until it is about 3/4 completely
submerged, but do not overll.
21. Avoid splashing water on the
Motor (42), Power Switch, Power
Cord/Plug, or any other electrical
component. Make sure to stand on
a dry, insulated surface such as a
rubber mat while using the Tile Saw.
22. To avoid accidental injury, always
wear heavy duty work gloves when
changing the Saw Blade. Before
using the Tile Saw, make sure the
Saw Blade is properly and securely
mounted on the Saw Spindle. Make
sure the Saw Blade is balanced, and
is not cracked or bent.
23. The Saw Blade will become hot
while cutting. Allow Blade to com-
pletely cool before handling.
24. Allow the Saw Blade to spin up to
full speed before feeding a work
piece into it. When turning off the
Tile Saw, allow the Saw Blade to spin
down and stop on its own. Do not
press against the Saw Blade to stop
it.
25. Do not force workpiece onto the
Saw Blade. Apply moderate pres-
sure, allowing the Saw Blade to cut
without being forced.
26. Turn off the Tile Saw and allow it
to stop on its own if the Blade is to
be backed out of an uncompleted
cut.
REV 10e

Page 7SKU 40315 For technical questions, please call 1-800-444-3353.
27. Never attempt to remove material
stuck in the moving parts of the
Tile Saw while it is plugged in and
running.
28. When cutting a large work piece
make sure its entire length is prop-
erly supported. If necessary, use a
roller stand (not included) with larger
work pieces.
29. Never lean on the Tile Saw. Seri-
ous injury could result if the Tile Saw
is tipped or if the rotating Saw Blade
is accidently contacted.
30. Industrial applications must follow
OSHA requirements.
31. For your safety: In extreme work-
ing conditions, sensors in the Tile
Saw will automatically switch off
the Motor to prevent overheating.
In this event, turn the Power Switch
to its “OFF” position. Wait ve min-
utes or until the Motor has cooled.
Making sure your hands are dry, de-
press the Circuit Breaker. Then, turn
the Power Switch to its “ON” position
to resume cutting.
32. Never attempt to cut more than
one tile at a time.
33. Never attempt to cut freehand.
Make sure the tile to be cut is
pressed rmly against the Cutting
Guide (57).
34. Never cut pieces too small to be
held securely against the Cutting
Guide without leaving enough
space for the hand to be a safe
distance from the Saw Blade.
35. Make sure the tile to be cut off has
sufcient room to move sideways.
Failure to do so may result in the tile
binding against the Saw Blade.
36. Make sure the surrounding area of
the Table is clear with the excep-
tion of the tile to be cut.
37. Always turn off the Tile Saw and
unplug it from its electrical outlet
before changing accessories or
performing any inspection, mainte-
nance, or cleaning procedures.
38. WARNING! Some dust created
by power sanding, sawing, grind-
ing, drilling, and other construction
activities, contain chemicals known
(to the State of California) to cause
cancer, birth defects or other repro-
ductive harm. Some examples of
these chemicals are: lead from lead-
based paints, crystalline silica from
bricks and cement and other masonry
products, arsenic and chromium from
chemically treated lumber. Your risk
from these exposures varies, depend-
ing on how often you do this type of
work. To reduce your exposure to
these chemicals: work in well venti-
lated areas, and work with approved
safety equipment such as those dust
masks that are specially designed to
lter out microscopic particles.
(California Health & Safety Code §
25249.5, et seq.)
39. WARNING! People with pacemak-
ers should consult their physician(s)
before using this product. Opera-
tion of electrical equipment in close
proximity to a heart pacemaker could
cause interference or failure of the
pacemaker.
40. WARNING! The warnings and cau-
tions discussed in this manual can-
not cover all possible conditions and

Page 8SKU 40315 For technical questions, please call 1-800-444-3353.
situations that may occur. It must
be understood by the operator that
common sense and caution are fac-
tors which cannot be built into this
product, but must be supplied by the
operator.
Abrasive Cutting-Off Operation
Safety Warnings
1. This power tool is intended to
function as a cut-off tool. Read all
safety warnings, instructions, illus-
trations and specications pro-
vided with this power tool. Failure
to follow all instructions listed below
may result in electric shock, re and/
or serious injury.
2. DO NOT EXPOSE TO RAIN.
3. Specic Cautions:
a. Wear ANSI-Approved eye protection.
b. Use splash guard for every opera-
tion for which it can be used.
c. Disconnect saw before servicing,
when changing cutting wheel or
cleaning.
d. Use only with continuous rim blade.
e. Do not operate the tool with a dam-
aged cutting wheel.
4. Operations such as grinding,
sanding, wire brushing, polishing
are not recommended to be per-
formed with this power tool. Opera-
tions for which the power tool was not
designed may create a hazard and
cause personal injury.
5. Do not attempt to free a stalled
blade without turning the Tile Saw
OFF rst. If the blade stalls, turn the
power switch to the OFF position im-
mediately to prevent damage to the
motor.
6. Do not use accessories which
are not specically designed and
recommended by the tool manu-
facturer. Just because the accessory
can be attached to your power tool, it
does not assure safe operation.
7. The rated speed of the accessory
must be at least equal to the maxi-
mum speed marked on the power
tool. Accessories running faster on
the Saw than their RATED SPEED
indicates can break and y apart.
8. The diameter of your accessory
must be within the capacity rating
of your power tool. Incorrectly sized
accessories cannot be adequately
guarded or controlled.
9. Wear personal protective equip-
ment. Depending on application,
use face shield, safety goggles
or safety glasses. As appropriate,
wear dust mask, hearing protec-
tors, gloves and workshop apron
capable of stopping small abra-
sive or workpiece fragments. The
eye protection must be capable of
stopping ying debris generated by
various operations such as safely
goggles or glasses. The dust mask or
respirator must be capable of ltrating
particles generated by your opera-
tion. Prolonged exposure to high in-
tensity noise may cause hearing loss.
10. Keep bystanders a safe distance
away from work area. Anyone
entering the work area must wear
personal protective equipment.
Fragments of workpiece or of a
broken accessory may y away and

Page 9SKU 40315 For technical questions, please call 1-800-444-3353.
cause injury beyond immediate area
of operation.
11. Position the cord clear of the spin-
ning blade. If you lose control, the
cord may be cut or snagged and your
hand or arm may be pulled into the
spinning accessory. Avoid uninten-
tional starting. Prepare to begin work
before turning on the tool.
12. Do not leave the tool unattended
when it is plugged into an electri-
cal outlet. Turn off the tool, and un-
plug it from its electrical outlet before
leaving.
13. This product is not a toy. Keep it
out of reach of children.
14. People with pacemakers should
consult their physician(s) before
use. Electromagnetic elds in close
proximity to heart pacemaker could
cause pacemaker interference or
pacemaker failure. In addition, peo-
ple with pacemakers should:
• Avoid operating alone.
• Do not use with power switch locked
on.
• Properly maintain and inspect to
avoid electrical shock.
• Any power cord must be properly
grounded. Ground Fault Circuit Inter-
rupter (GFCI) should also be imple-
mented – it prevents sustained elec-
trical shock.
15. Some dust created by power sand-
ing, sawing, grinding, drilling,
and other construction activities,
contains chemicals known [to the
State of California] to cause can-
cer, birth defects or other repro-
ductive harm. Some examples of
these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and ce-
ment or other masonry products
• Arsenic and chromium from chemi-
cally treated lumber
Your risk from these exposures var-
ies, depending on how often you do
this type of work. To reduce your
exposure to these chemicals: work in
a well ventilated area, and work with
approved safety equipment, such as
those dust masks that are specially
designed to lter out microscopic
particles. (California Health & Safety
Code § 25249.5, et seq.)
16. WARNING: Handling the cord on
this product will expose you to lead,
a chemical known to the State of
California to cause cancer, and birth
defects or other reproductive harm.
Wash hands after handling. (Califor-
nia Health & Safety Code § 25249.5,
et seq.)
17. The warnings, precautions, and
instructions discussed in this in-
struction manual cannot cover all
possible conditions and situations
that may occur. It must be under-
stood by the operator that common
sense and caution are factors which
cannot be built into this product, but
must be supplied by the operator.
SAVE THESE
INSTRUCTIONS.

Page 10SKU 40315 For technical questions, please call 1-800-444-3353.
GROUNDING
TO PREVENT
ELECTRIC SHOCK
AND DEATH FROM
INCORRECT GROUNDING
WIRE CONNECTION:
Check with a qualied
electrician if you are in doubt
as to whether the outlet is
properly grounded. Do not
modify the power cord plug
provided with the tool. Never
remove the grounding prong
from the plug. Do not use the
tool if the power cord or plug
is damaged. If damaged, have
it repaired by a service facility
before use. If the plug will not
t the outlet, have a proper
outlet installed by a qualied
electrician.
Grounded Tools: Tools with Three
Prong Plugs
1. This Tile Saw comes with a
3-prong power cord.
2. Tools marked with “Grounding
Required” have a three wire cord
and three prong grounding plug.
The plug must be connected to a
properly grounded outlet. If the tool
should electrically malfunction or
break down, grounding provides a
low resistance path to carry electricity
away from the user, reducing the risk
of electric shock. (See 3-Prong Plug
and Outlet.)
3. The grounding prong in the plug
is connected through the green
wire inside the cord to the ground-
ing system in the tool. The green
wire in the cord must be the only wire
connected to the tool’s grounding
system and must never be attached
to an electrically “live” terminal. (See
3-Prong Plug and Outlet.)
4. The tool must be plugged into
an appropriate outlet, properly
installed and grounded in accor-
dance with all codes and ordinanc-
es. The plug and outlet should look
like those in the preceding illustration.
(See 3-Prong Plug and Outlet.)
Double Insulated Tools: Tools
with Two Prong Plugs
1. Tools marked “Double Insulated”
do not require grounding. They
have a special double insulation
system which satises OSHA require-
ments and complies with the applica-
ble standards of Underwriters Labo-
ratories, Inc., the Canadian Standard
Association, and the National Electri-
cal Code. (See Outlets for 2-Prong
Plug.)

Page 11SKU 40315 For technical questions, please call 1-800-444-3353.
2. Double insulated tools may be used
in either of the 120 volt outlets shown
in the preceding illustration. (See
Outlets for 2-Prong Plug.)
Extension Cords
1. Grounded tools require a three wire
extension cord. Double Insulated
tools can use either a two or three
wire extension cord.
2. As the distance from the supply outlet
increases, you must use a heavier
gauge extension cord. Using exten-
sion cords with inadequately sized
wire causes a serious drop in voltage,
resulting in loss of power and pos-
sible tool damage.
(See Table A.) The smaller the
gauge number of the wire, the greater
the capacity of the cord. For ex-
ample, a 14 gauge cord can carry a
higher current than a 16 gauge cord.
(See Table A.)
3. When using more than one exten-
sion cord to make up the total length,
make sure each cord contains at
least the minimum wire size required.
(See Table A.)
4. If you are using one extension cord
for more than one tool, add the
nameplate amperes and use the sum
to determine the required minimum
cord size. (See Table A.)
5. If you are using an extension cord
outdoors, make sure it is marked with
the sufx “W-A” (“W” in Canada) to
indicate it is acceptable for outdoor
use.
6. Make sure the extension cord is prop-
erly wired and in good electrical con-
dition. Always replace a damaged
extension cord or have it repaired by
a qualied electrician before using it.
7. Protect the extension cords from
sharp objects, excessive heat, and
damp or wet areas.
RECOMMENDED MINIMUM WIRE
GAUGE FOR EXTENSION CORDS*
(120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25’ 50’ 75’
100’ 150’
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
TABLE A
* Based on limiting the line
voltage drop to ve volts at
150% of the rated amperes.
Symbology
Double Insulated
Canadian Standards Association
Underwriters Laboratories, Inc.
V~ Volts Alternating Current
AAmperes
n0xxxx/min. No Load Revolutions per Minute
(RPM)

Page 12SKU 40315 For technical questions, please call 1-800-444-3353.
SPECIFICATIONS
Blade Diameter
(Blade Not Included,
Sold Separately)
7"
(67393 7” Continuous
Rim Diamond Blade
Recommended)
Arbor Diameter 1"
Maximum Cutting
Capacity 1” Thick, 12” Wide
Electrical Requirements 120 V~ / 60 Hz / 5 A
Single Phase
Tilting Head 45° for Bevels
Blade Rated Speed 3565 RPM
Table Size 15-3/4” x 16-1/2”
Accessories 1 Spanner Wrench
1 Nut Driver
UNPACKING
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at the number
shown on the cover of this manual as soon
as possible.
INSTRUCTIONS FOR
PUTTING INTO USE
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section
at the beginning of this manual
including all text under
subheadings therein before set
up or use of this product.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the
tool to its “OFF” position and
unplug the tool from its
electrical outlet before
assembling or making any
adjustments to the tool.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Assembly
To Permanently Mount Tile Saw On A
Workbench:
1. WARNING! Make sure the Power
Switch (21) of the Tile Saw is in
its “OFF” position and its Power
Cord/Plug (34) is unplugged from
the electrical outlet prior to per-
forming any assembly.
2. The Tile Saw may be temporarily
placed upon a workbench for use.
Also, the Tile Saw may be perma-
nently mounted on a workbench.
3. CAUTION! Make sure the work-
bench on which the Tile Saw will be
temporarily or permanently used is
at, level, sturdy enough to support
the weight of the Tile Saw, any work-
pieces, and any additional tools, and
is not affected by spilled water.
4. To permanently mount the Tile Saw
on a workbench, place the Tile Saw
in the desired work location on the
workbench. Use the four 7/16” wide
x 3-1/2” long mounting slots at the
base of the Inner Cover (16) as a
template to mark the areas where
four 7/16” diameter mounting holes
should be drilled through the work-
bench. WARNING! Before drilling,
verify there are no hidden utility wires
below work surface.
5. Temporarily remove the Tile Saw, and
drill the four 7/16” diameter mounting
holes through the workbench, mak-

Page 13SKU 40315 For technical questions, please call 1-800-444-3353.
ing sure no hidden electric cords or
cables are in the drilling path.
6. Once the mounting holes are drilled,
align the four 7/16” wide x 3-1/2” long
mounting slots in the base of the
Inner Cover (16) with the four pre-
drilled mounting holes in the work-
bench. Secure the Tile Saw to the
workbench, using four appropriate
length Bolts, Lock Washers, and Nuts
(not included).
To Attach The Star Knob:
1. The Star Knob (53) is used to lock
the Cutting Guide (57) in position.
The Cutting Guide is used to set the
desired width of cut when cutting a
workpiece. (See Figure F.)
2. To attach the Star Knob (53), place
the Cutting Guide (57) on the Table
(51) of the Tile Saw. Place the
Clamping Plate (56) behind the edge
of the Table. Attach the Star Knob
to the Cutting Guide. (See Figure 2,
below.).
Install The Cutting Wheel Blade:
1. Make certain power is disonnected
and the power switch is in the “OFF”
position.
2. Empty the Tray (17). Turn it 90° (side-
ways) and remove it.
3. Remove the Screws (2) and Washers
(3). Remove the Front Cover (1), and
Rear Blade Cover (58).
4. Use the prongs on the Spanner
Wrench (59) to hold the Outside
Flange (7) while you use the Nut
Driver (60) to remove the Nut (4).
5. Install a new 7” diameter, 1” round
arbor hole, wet, diamond-bonded
Cutting Wheel Blade (SKU 67393)
rated at a minimum of 3565 RPM.
6. Replace the Outside Flange (7) and
Nut (4). Use the Spanner (59) to
hold the Outside Flange (7) while you
tighten the Nut (4) securely with the
Nut Driver (60).
STAR KNOB
(53)
CLAMPING PLATE
(56)
EDGE OF
TABLE
(51)
CUTTING GUIDE
(57)
FIGURE 2

Page 14SKU 40315 For technical questions, please call 1-800-444-3353.
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section
at the beginning of this manual
including all text under
subheadings therein before set
up or use of this product.
Tool Set Up
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION: Turn the Power
Switch of the tool to its “OFF”
position and unplug the tool
from its electrical outlet
before performing any
inspection, maintenance, or
cleaning procedures.
1. Use Clamping Plate (56) to secure
and support smaller work pieces to
the built-in fence. Holding work by
hand or against your body is unstable
and may lead to loss of control.
2. Do not force tool. Use the cor-
rect tool for your application. The
correct tool will do the job better and
safer at rate for which it is designed.
3. Do not use the power tool if the
Power Switch does not turn it on
or off. Any tool that cannot be con-
trolled with its Power Switch is dan-
gerous and must be replaced.
4. Disconnect Power Cord Plug from
the power source before making
any adjustments, changing acces-
sories, or storing the tool. Such
preventive safety measures reduce
risk of starting the tool accidentally.
5. Store idle tools out of reach of chil-
dren and other untrained persons.
Tools are dangerous in the hands of
untrained users.
6. Maintain tools with care. Keep
tools clean. Properly maintained
tools are easier to control. Do not
use a damaged tool. Tag damaged
tools “Do not use” until repaired.
7. Check for misalignment or binding
of moving parts, breakage of parts,
and any other condition that may
affect the tool’s operation. If dam-
aged, have the tool serviced before
using. Many accidents are caused
by poorly maintained tools.
8. Use only accessories that are
recommended by the manufacturer
for your tool. Accessories suitable
for one tool may become hazardous
when used on another tool.
Work Piece and Work Area Set Up
1. Designate a work area that is clean
and well lit. The work area must not
allow access by children or pets to
prevent injury and distraction.
2. Route the power cord along a safe
route to reach the work area with-
out creating a tripping hazard or
exposing the power cord to pos-
sible damage. The power cord must
reach the work area with enough
extra length to allow free movement
while working.
3. Secure loose work pieces using
clamps (not included) to prevent
movement while working.

Page 15SKU 40315 For technical questions, please call 1-800-444-3353.
General Operating Instructions
1. Fill Tray (17) with water and carefully
slide Tray under Blade. Make sure
water level is deep enough to cover
lower edge of Cutting Wheel Blade,
but not so deep as to spill over edge
of Tray. (See Figure 3, below.)
2. Loosen Star Knob (20) and adjust the
Cutting Guide (57) to set desired cut-
ting width. Retighten the Star Knob.
3. If necessary, loosen second Star
Knob (53) and tilt Table (51) to adjust
angle of cut. Retighten Star Knob.
4. Connect Power Cord/Plug (34) of Tile
Saw to the nearest 120 volt, ground-
ed, electrical outlet.
5. Put on ANSI-approved safety
glasses under ANSI-approved
safety impact full face shield.
6. Fill water in Tray (17) to proper level.
Turn Power Switch (21) to its “ON”
position, and allow Blade to spin up
to full speed.
7. Check to make sure Blade is picking
up water from Tray (17). If not, turn
off Tile Saw. Unplug machine, and
rell Tray to appropriate level. Re-
start Tile Saw.
8. Place workpiece you are cutting
rmly against Cutting Guide (57) and
slowly feed workpiece into Blade.
9. CAUTION! Keep hands and ngers
away from Blade. Also hold the work-
piece you are cutting rmly against
Cutting Guide (57) throughout cutting
process. Failure to do so may cause
workpiece to be propelled by Blade
toward your body and/or into Saw.
10. Once cut is complete, turn Power
Switch (21) to its “OFF” position.
Unplug Power Cord/Plug (34) from its
electrical outlet. Allow Blade to stop
on its own. Then remove the work-
piece and any scrap material from the
Table (51) of Saw.
11. Remove and empty Tray (17) of its
contents, and thoroughly rinse with
clean, cold water. Replace Tray.
12. Store Saw in a safe, clean, dry loca-
tion out of reach of children and other
unauthorized people.

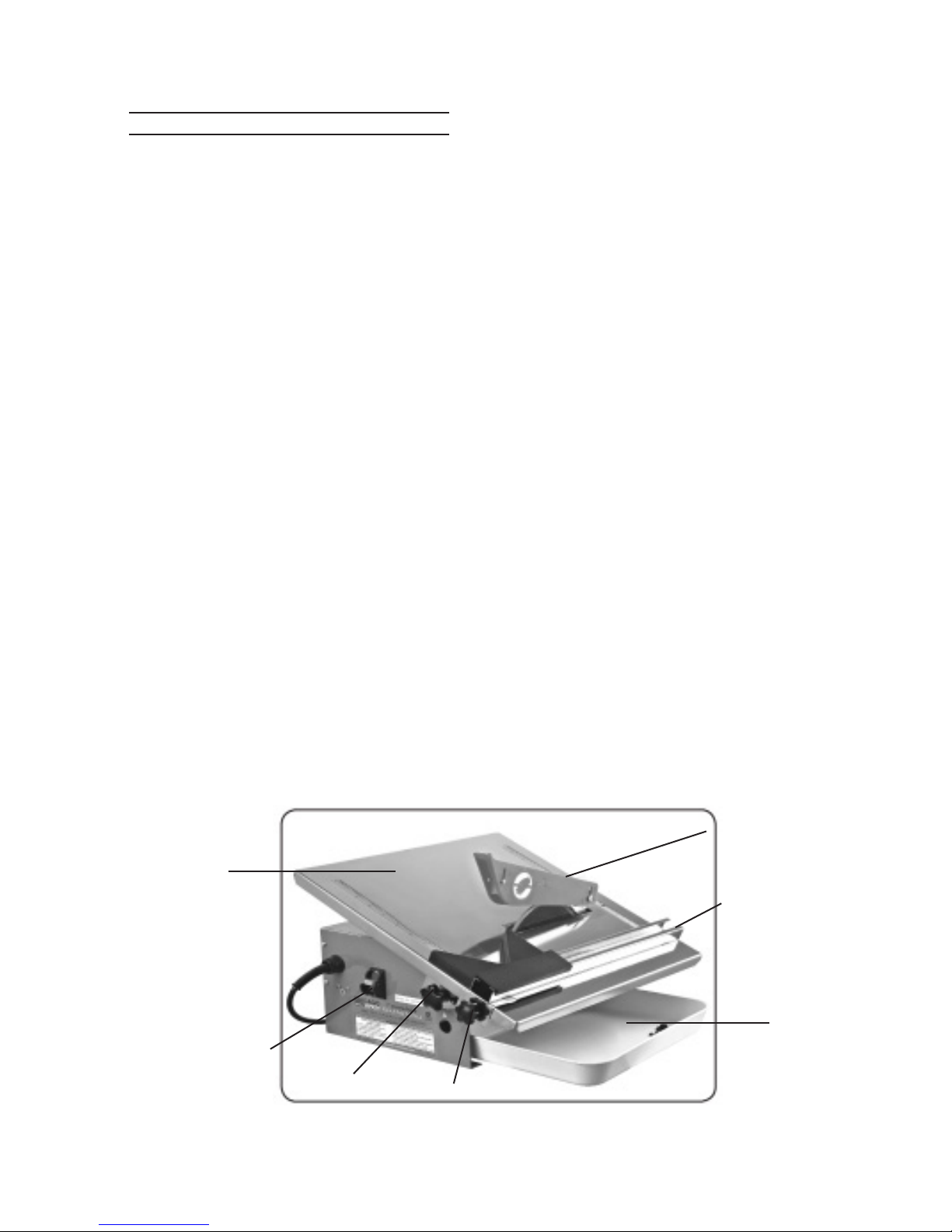

Table (51)
Power
Switch
(21) Star Knob
(20) Star Knob
(53)
Tray
(17)
Cutting Guide
(57)
Blade Guard
(49)
FIGURE 3

Page 16SKU 40315 For technical questions, please call 1-800-444-3353.
MAINTENANCE AND
SERVICING
Procedures not specically
explained in this manual
must be performed only by a
qualied technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the
tool to its “OFF” position and
unplug the tool from its
electrical outlet before
performing any inspection,
maintenance, or cleaning
procedures.
TO PREVENT SERIOUS
INJURY FROM TOOL
FAILURE:
Do not use damaged
equipment. If abnormal noise
or vibration occurs, have the
problem corrected before
further use.
Cleaning, Maintenance, and
Lubrication
1. BEFORE EACH USE, inspect the
general condition of the tool. Check
for loose screws, misalignment or
binding of moving parts, cracked or
broken parts, damaged electrical
wiring, loose or worn out blade, and
any other condition that may affect its
safe operation.
2. AFTER USE, clean external surfaces
of the tool with clean cloth. Drain wa-
ter from the water tray and wash out
any residue.
3. Tool service must be performed
only by qualied repair personnel.
Service or maintenance performed by
unqualied personnel could result in
a risk of injury.
4. When servicing a tool, use only
identical replacement parts. Fol-
low instructions in the “Inspec-
tion, Maintenance, And Cleaning”
section of this manual. Use of
unauthorized parts or failure to follow
maintenance instructions may create
a risk of electric shock or injury.
5. WARNING! If the supply cord of
this power tool is damaged, it must
be replaced only by a qualied
service technician.
6. WARNING! Always turn the
Tool Saw’s Power Switch (21) to
its “OFF” position and unplug
the tool from its electrical outlet
before performing any inspection,
maintenance, or cleaning.
7. To install a Cutting Wheel Blade:
A. Make certain power is
disconnected and the power
switch is in the “OFF” position.
B. Empty the Tray (17). Turn it 90°
(sideways) and remove it.
C. Remove the Screws (2) and
Washers (3). Remove the Front
Cover (1), and Rear Blade
Cover (58).
D. Use the prongs on the Spanner
Wrench (59) to hold the Outside
Flange (7) while you use the
Nut Driver (60) to remove the
Nut (4). Remove the old Cutting
Wheel Blade.
E. Install a new 67393 7”
Continuous Rim Diamond Blade
REV 10e

Page 17SKU 40315 For technical questions, please call 1-800-444-3353.
(not included, sold separately),
making sure to install Blade
according to indicated rotation
direction on Blade.
F. Replace the Outside Flange (7)
and Nut (4). Use the Spanner
(59) to hold the Outside Flange
(7) while you tighten the Nut
(4) securely with the Nut Driver
(60). Do not overtighten.
G. Replace the Front Cover (1),
Rear Blade Cover (58), Screws
(2), Washers (3), and Tray (17)
in the reverse order of removal.
8. To clean: Wipe with a damp cloth,
vacuum or use compressed air. Do
not use solvents.
9. When storing: Store the Tile
Saw in a safe, clean, dry, location
out of reach of children and other
unauthorized people.
10. CAUTION! All maintenance, service,
or repairs not listed in this manual are
only to be attempted by a qualied
service technician..
Troubleshooting
Problem Possible Causes Likely Solutions
Tool will not start 1. No power at outlet.
2. Cord not connected.
1. Check power at outlet.
2. Check that cord is plugged in.
Blade spins slowly 1. Arbor shaft binding
2. Motor brushes worn
1. Check shaft for free spinning.
2. Replace brushes.
Excessive vibration 1. Bent or off-balance blade.
2. Bent Arbor Shaft.
1. Replace blade with new one.
2. Check shaft for run-out.
Running hot;
excess dust or
chips or not cutting
clean
1. Water ow problem.
2. Not cutting tile cleanly.
3. Running with hot/warm water.
1. Check water level; ll to proper level.
2. Turn off Saw; let cool and turn back on,
slowing feed rate .
3. Always run with cold water.
Follow all safety precautions whenever diagnosing or servicing the
tool. Disconnect power supply before service.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.

Page 18SKU 40315 For technical questions, please call 1-800-444-3353.
PARTS LIST
Part Description Part Description Part Description
1 Front Cover 21 Power Switch 41 Motor Lead Wire
2 Screw (M4x10) 22 Switch Seal 42 Motor
3 Washer (M4) 23 Switch Cover 43 Rear Cover
4 Nut (M12) 24 Inlet Clip 44 Handle
5 Lock Washer (M12) 25 Rubber Collar 45 Washer (M6)
6 Washer (M12) 26 Washer (M4) 46 Bolt (M6x10)
7 Outside Flange 27 Screw (M4x10) 47 Holder
28 Copper Nut (M4) 48 Square Cap
9 Inner Flange 29 Lock Washer (M4) 49 Blade Guard
10 Scaling Ring 30 Washer (M4) 50 Safety Label
11 Bolt (M5x12) 31 Cold Pressed Terminal 51 Table
12 Lock Washer (M5) 32 Copper Screw (M4x22) 52 Ruler
13 Washer (M5) 33 Insulation Line 53 Star Knob (M6)
14 Bolt (M3x6) 34 Power Cord/Plug 54 Washer (M6)
15 Splitter 35 Nameplate 55 Bolt (M6x16)
16 Inner Cover 36 Ground Sign 56 Clamping Plate
17 Tray 37 3 Hole, 10 A Connector 57 Cutting Guide
18 Nut (M6) 38 Cord Clamp 58 Rear Blade Cover
19 Bolt (M6x10) 39 Capacitor 59 Spanner Wrench
20 Star Knob (M8x16) 40 Screw (M3x16) 60 Nut Driver

Page 19SKU 40315 For technical questions, please call 1-800-444-3353.
ASSEMBLY DIAGRAM
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available individually as
replacement parts.
18

Page 20SKU 40315 For technical questions, please call 1-800-444-3353.
90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality
and durability standards, and warrants to the original purchaser that this product is free
from defects in materials and workmanship for the period of 90 days from the date of
purchase. This warranty does not apply to damage due directly or indirectly, to misuse,
abuse, negligence or accidents, repairs or alterations outside our facilities, criminal
activity, improper installation, normal wear and tear, or to lack of maintenance. We
shall in no event be liable for death, injuries to persons or property, or for incidental,
contingent, special or consequential damages arising from the use of our product.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY
IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the
complaint must accompany the merchandise. If our inspection veries the defect, we
will either repair or replace the product at our election or we may elect to refund the
purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that
the defect resulted from causes not within the scope of our warranty, then you must
bear the cost of returning the product.
This warranty gives you specic legal rights and you may also have other rights which
vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
