Chicago Electric Professional Series 60608 Instruction Manual

Page 2 For technical questions, please call 1-800-444-3353. Item 60608
SAFETY OPERATION MAINTENANCESETUP
Table of Contents
Safety ......................................................... 3
Specifications ............................................. 7
Setup .......................................................... 8
Operation................................................... 11
Maintenance.............................................. 14
Parts List and Diagram.............................. 18
Assembly Diagram .................................... 19
Warranty .................................................... 20
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.

Page 3For technical questions, please call 1-800-444-3353.Item 60608
SAFETYOPERATIONMAINTENANCE SETUP
IMPORTANT SAFETY INFORMATION
General Tool Safety Warnings
WARNING Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1. KEEP GUARDS IN PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND WRENCHES.
Form habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
3. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
4. DON’T USE IN DANGEROUS ENVIRONMENT.
Don’t use power tools in damp or wet locations, or
expose them to rain. Keep work area well lighted.
5. KEEP CHILDREN AWAY. All visitors should
be kept safe distance from work area.
6. MAKE WORKSHOP KID PROOF with padlocks,
master switches, or by removing starter keys.
7. DON’T FORCE TOOL. It will do the job better
and safer at the rate for which it was designed.
8. USE RIGHT TOOL. Don’t force tool or attachment
to do a job for which it was not designed.
Table A: RECOMMENDED MINIMUM WIRE GAUGE
FOR EXTENSION CORDS
(120 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD LENGTH
25 FT. 50 FT. 100 FT. 150 FT.
0 – 6 18 16 16 14
6.1 – 10 18 16 14 12
10.1 – 12 16 16 14 12
12.1 – 16 14 12 Do not use.
9. USE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. When using
an extension cord, be sure to use one heavy
enough to carry the current your product will
draw. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating.
Table A shows the correct size to use depending
on cord length and nameplate ampere rating.
If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
10. WEAR PROPER APPAREL. Do not wear loose
clothing, gloves, neckties, rings, bracelets, or
other jewelry which may get caught in moving
parts. Nonslip footwear is recommended. Wear
protective hair covering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also use
face or dust mask if cutting operation is dusty.
Everyday eyeglasses only have impact resistant
lenses, they are NOT safety glasses.
12. SECURE WORK. Use clamps or a vise to hold
work when practical. It’s safer than using your
hand and it frees both hands to operate tool.
13. DON’T OVERREACH. Keep proper
footing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep tools sharp
and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
15. DISCONNECT TOOLS before servicing;
when changing accessories, such as
blades, bits, cutters, and the like.
16. REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure switch is in
off position before plugging in.
17. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recommended
accessories. The use of improper accessories
may cause risk of injury to persons.
18. NEVER STAND ON TOOL. Serious injury
could occur if the tool is tipped or if the
cutting tool is unintentionally contacted.
19. CHECK DAMAGED PARTS. Before further use
of the tool, a guard or other part that is damaged
should be carefully checked to determine that
it will operate properly and perform its intended
function – check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting, and any other conditions that may
affect its operation. A guard or other part that is
damaged should be properly repaired or replaced.
20. DIRECTION OF FEED. Feed work into
a blade or cutter against the direction of
rotation of the blade or cutter only.
21. NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN POWER OFF. Don’t leave tool until it comes to
a complete stop.

Page 4 For technical questions, please call 1-800-444-3353. Item 60608
SAFETY OPERATION MAINTENANCESETUP
Grounding Instructions
TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING WIRE CONNECTION
READ AND FOLLOW THESE INSTRUCTIONS:
110-120 V~ Grounded Tools: Tools with Three Prong Plugs
1. In the event of a malfunction or breakdown,
grounding provides a path of least resistance for
electric current to reduce the risk of electric shock.
This tool is equipped with an electric cord having an
equipment-grounding conductor and a grounding
plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
2. Do not modify the plug provided – if it will
not fit the outlet, have the proper outlet
installed by a qualified electrician.
3. Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
The conductor with insulation having an outer
surface that is green with or without yellow
stripes is the equipment-grounding conductor.
If repair or replacement of the electric cord or
plug is necessary, do not connect the equipment-
grounding conductor to a live terminal.
4. Check with a qualified electrician or service
personnel if the grounding instructions are
not completely understood, or if in doubt as
to whether the tool is properly grounded.
5. Use only 3-wire extension cords that
have 3-prong grounding plugs and 3-pole
receptacles that accept the tool’s plug.
6. Repair or replace damaged or worn cord immediately.
Figure 1: 125 V~ 3-Prong Plug and Outlet
(for up to 125 V~ and up to 15 A)
Grounding
Pin
7. This tool is intended for use on a circuit that has
an outlet that looks like the one illustrated above
in Figure 1: 125 V~ 3-Prong Plug and Outlet.
The tool has a grounding plug that
looks like the plug illustrated above in
Figure 1: 125 V~ 3-Prong Plug and Outlet.
8. The outlet must be properly installed and grounded
in accordance with all codes and ordinances.
9. Do not use an adapter to connect
this tool to a different outlet.
Tile Saw Safety Warnings
For Your Own Safety Read Instruction Manual Before Operating Saw
1. Wear eye protection.
2. Use saw-blade guard and spreader
for every operation for which it can be
used, including all through sawing.
3. Keep hands out of the line of saw blade.
4. Know how to reduce risk of kickback.
5. Do not perform any operation freehand.
6. Never reach around or over saw blade.
7. Make sure the workpiece is supported at all
times while sawing. Use a roller stand (not
provided) with larger workpieces if necessary.
8. To properly understand all safety warnings, be familiar
with the following safety terms and equipment:
a. Featherboard – A block with “fingers″ that hold
the workpiece against the fence while sawing.
b. Through-sawing – A cut made from one side of the
workpiece to the opposite side, without stopping.
c. Freehand – Feeding a workpiece through the
saw without using a fence or guided support
to guide it. NOT A SAFE METHOD.
d. Kerf – The gap made by the saw in the workpiece.
e. Kickback – A sudden reaction to a pinched,
bound, or misaligned blade, causing
an uncontrolled workpiece to lift up and
out of the saw toward the operator.

Page 5For technical questions, please call 1-800-444-3353.Item 60608
SAFETYOPERATIONMAINTENANCE SETUP
f. Spreader – A metal plate that follows the
saw blade to keep the kerf (gap) from closing
on the saw blade. Spreaders, except riving
knives, must be aligned to the blade after
blade adjustment to prevent binding.
9. As noted previously, Kickback is a sudden reaction
to a pinched, bound, or misaligned blade, causing an
uncontrolled workpiece to lift up and out of the saw
toward the operator.
Kickback is usually a result of tool misuse and can be
limited or avoided by following the precautions below:
• Fence must be completely parallel to the saw blade.
• Workpiece must be free from aws
and from foreign objects.
• Support large workpieces along their entire length.
Large workpieces tend to bend, grabbing the blade.
• Do not use a dull or damaged blade.
• Maintain control of the workpiece. Do not
allow the workpiece to rest against the
moving blade without holding onto it.
• If the blade binds or a cut is interrupted,
turn off the power switch and hold the workpiece
still until the blade stops. Correct the cause
of blade binding before proceeding.
10. Check guards for proper operation with saw
disconnected from power before each use.
Do not disable any guard. Do not operate
saw if any movable guard does not move
freely and close instantly. Make sure any
movable guard does not touch the blade in
all angles, depths of cut, and positions.
11. Keep the guard in place while through-sawing.
Verify that the spreader lines up with
the blade to prevent binding.

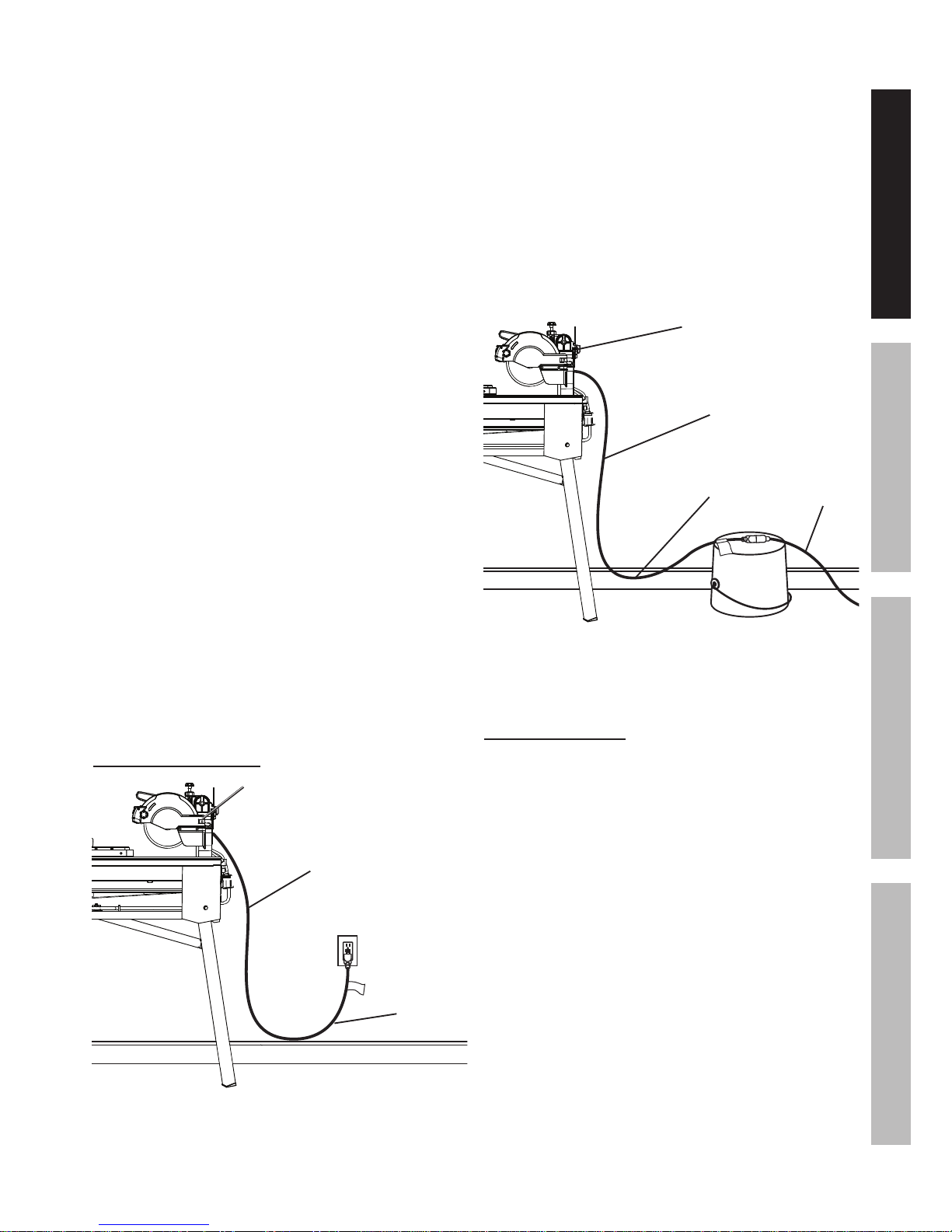

POSITION OF TILE SAW
Power Cord
Tile Saw
Drip Loop
Figure 2: Drip Loop
12. To avoid the possibility of the tool plug or receptacle
getting wet, position tile saw to one side of a
wall mounted receptacle to prevent water from
dripping onto the receptacle or plug. The user
should arrange a “drip loop” in the cord connecting
the saw to a receptacle. The “drip loop” is that
part of the cord below the level of the receptacle,
or the connector if an extension cord is used,
to prevent water traveling along the cord and
coming in contact with the receptacle.
13. If the plug or receptacle does get wet, DON’T unplug
the cord. Disconnect the fuse or circuit breaker
that supplies power to the tool. Then unplug and
examine for presence of water in the receptacle.
Figure 3: Extension Cord Drip Loop
Power Cord
Extension
Cord
Tile Saw
Drip Loop
14. If an extension cord is used, the drip loop must be
before the cord connection and the extension cord
connection must be placed on an elevated surface.
EXTENSION CORDS
15. Use only extension cords that are intended for
outdoor use. These extension cords are identified
by a marking “Acceptable for use with outdoor
tools; store indoors while not in use.” Use only
extension cords having an electrical rating not
less than the rating of the product. Do not use
damaged extension cords. Examine extension
cord before using and replace if damaged. Do
not abuse extension cords and do not yank on
any cord to disconnect. Keep cord away from
heat and sharp edges. Always disconnect
the extension cord from the receptacle before
disconnecting the product from the extension cord.
16. WARNING – To reduce the risk of electrocution,
keep all connections dry and off the ground.
Do not touch plug with wet hands.
17. Ground Fault Circuit Interrupter (GFCI) protection
should be provided on the circuit(s) or outlet(s)
to be used for the tile saw. Receptacles are
available having built-in GFCI protection and
may be used for this measure of safety.

Page 6 For technical questions, please call 1-800-444-3353. Item 60608
SAFETY OPERATION MAINTENANCESETUP
ADDITIONAL TILE SAW SAFETY WARNINGS
19. DO NOT OPERATE WITH ANY GUARD DISABLED,
DAMAGED, OR REMOVED. Moving guards
must move freely and close instantly.
20. The use of accessories or attachments not
recommended by the manufacturer may
result in a risk of injury to persons.
21. When servicing use only identical replacement parts.
22. Only use safety equipment that has been approved
by an appropriate standards agency. Unapproved
safety equipment may not provide adequate
protection. Eye protection must be ANSI-approved
and breathing protection must be NIOSH-approved
for the specific hazards in the work area.
23. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication.
A moment of inattention while operating power
tools may result in serious personal injury.
24. Industrial applications must follow OSHA guidelines.
25. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
26. Avoid unintentional starting.
Prepare to begin work before turning on the tool.
27. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields
in close proximity to heart pacemaker could
cause pacemaker interference or pacemaker
failure.WARNING: Some dust created by power
sanding, sawing, grinding, drilling, and other
construction activities, contains chemicals
known [to the State of California] to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement
or other masonry products
• Arsenic and chromium from
chemically treated lumber
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are
specially designed to filter out microscopic particles.
(California Health & Safety Code § 25249.5, et seq.)
28. WARNING: Handling the cord on this product will
expose you to lead, a chemical known to the State
of California to cause cancer, and birth defects or
other reproductive harm. Wash hands after handling.
(California Health & Safety Code § 25249.5, et seq.)
29. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.

Page 7For technical questions, please call 1-800-444-3353.Item 60608
SAFETYOPERATIONMAINTENANCE SETUP
Vibration Safety
This tool vibrates during use. Repeated or long-term
exposure to vibration may cause temporary or permanent
physical injury, particularly to the hands, arms and
shoulders. To reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for an
extended period should first be examined by a
doctor and then have regular medical check-ups
to ensure medical problems are not being caused
or worsened from use. Pregnant women or
people who have impaired blood circulation to
the hand, past hand injuries, nervous system
disorders, diabetes, or Raynaud’s Disease should
not use this tool. If you feel any medical or
physical symptoms related to vibration (such as
tingling, numbness, and white or blue fingers),
seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration when there
is a choice between different processes.
5. Include vibration-free periods each day of work.
6. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
7. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
SAVE THESE INSTRUCTIONS.
Specifications
Electrical Rating 120 V~ / 60 Hz / 9.2 A
Motor No Load Speed 3550 RPM
Max. Cutting Depth 1" @ 90°
7/8" @ 45°
Max. Cutting Length 25"
Rip Fence Scale 0" to 9-1/2" in 1/8" increments
0 to 245 mm in 2 mm increments
Arbor 5/8"
227541

Page 8 For technical questions, please call 1-800-444-3353. Item 60608
SAFETY OPERATION MAINTENANCESETUP
Setup - Before Use:
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Functions
Stand
Water
Tray
Table
Power
Switch
Circuit
Breaker
Miter
Gauge
Blade Guard
Blade
(sold separately)
Handle
Locking
Knob

Page 9For technical questions, please call 1-800-444-3353.Item 60608
SAFETYOPERATIONMAINTENANCE SETUP
ASSEMBLY
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool to its “OFF” position and unplug the tool from its
electrical outlet before assembling or making any adjustments to the tool.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.

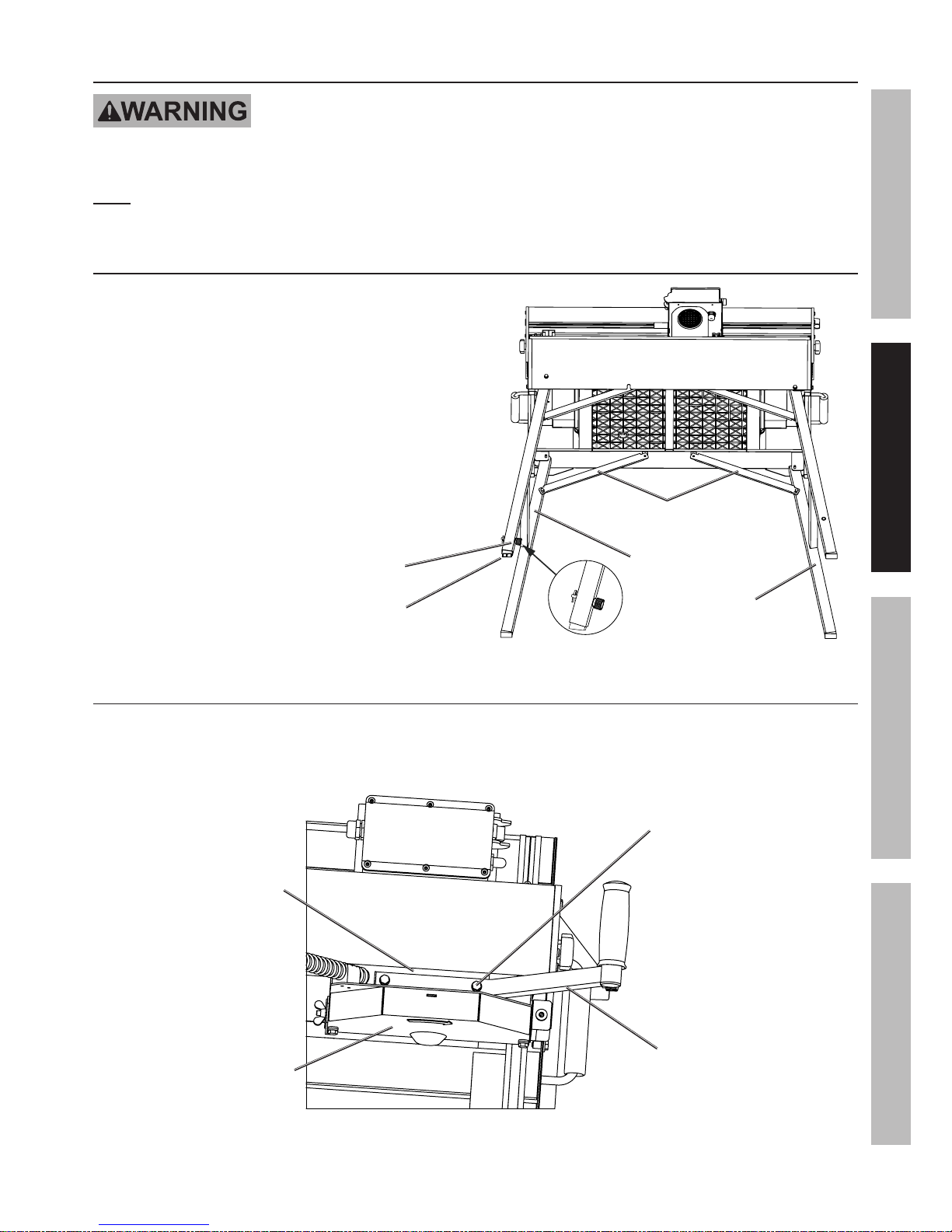

Stand Set Up
1. With assistance, carefully lay the Tile Saw
on its side on a flat, level floor surface.
2. Pull out Stand I (119) and Stand II (120),
fully extending the Support Brackets
(117, 118). See Figure 4.
3. With assistance, set the Tile Saw upright.
4. Use the Adjusting Knob (123), located at the bottom
of Stand II (120), to level the Tile Saw stand and keep
it balanced evenly on the floor. Turn the Adjusting
Knob clockwise or counterclockwise to raise or
lower the Adjustable Leg (121). See Figure 4.
Figure 4: Stand Set Up
Stand II (120)
Adjusting
Knob (123)
Stand I (119)
Support Brackets (117, 118)
Adjustable Leg (121)
Attaching the Handle
Attach the Handle (4) to the Motor Support
Bracket (25) using two each Bolts (1), Spring
Washers (2), and Flat Washers (3). See Figure 5.
Figure 5: Attaching the Handle
Motor Support
Bracket (25)
Bolt (1)
Spring Washer (2)
Flat Washer (3)
Handle (4)
Blade Guard (41)

Page 10 For technical questions, please call 1-800-444-3353. Item 60608
SAFETY OPERATION MAINTENANCESETUP

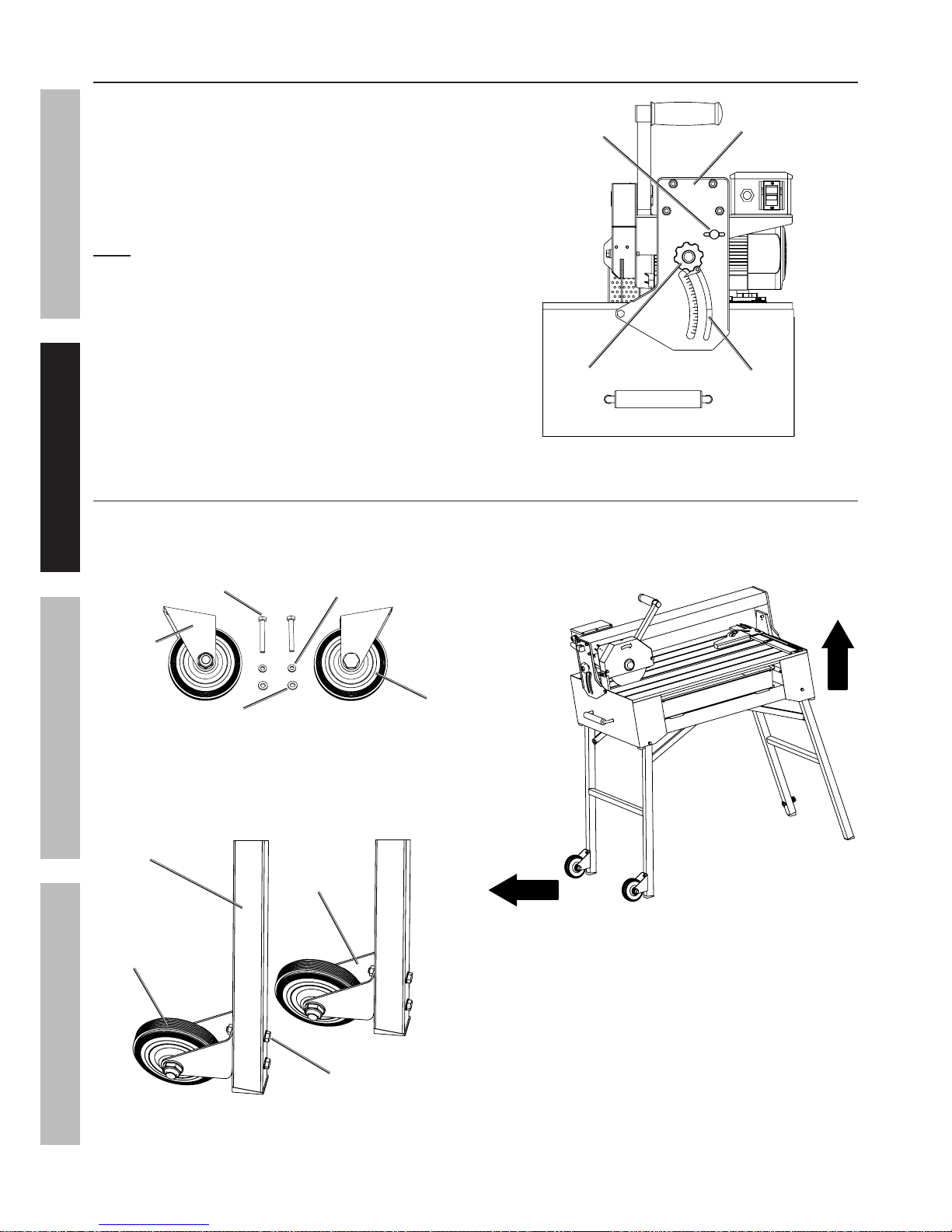

Attaching Locking Knobs
1. Align the Right Guide Rail Stand (111)
as shown in Figure 6, right.
2. Remove the shipping screw and attach one Locking
Knob (75) through the slot in the Right Guide Rail
Stand (111) and into the threaded hole as shown.
Note: The Right Guide Rail Stand (111) is held in
place by the packaging during shipment. Always
tighten the T-Knob (107) to lock the Rail Stand prior to
performing maintenance or relocating the Tile Saw.
3. Repeat procedure for the Left Guide Rail
Stand (72) and the other Locking Knob (75).
4. Tighten Knobs securely.
Figure 6: Attaching Locking Knobs
Locking
Knob (75)
Right Guide
Rail Stand
(111)
Slot
T-Knob (107)
Wheel Assembly
1. Attach the Wheels (54) to Stand I (119) using
two Bolts (57), Spring Washers (2), and Flat
Washers (3) per wheel assembly. See Figures 7– 8.
Figure 7: Wheel Assembly Components
Wheel
Bracket
(55)
Wheel (54)
Bolt (57) Spring Washer (2)
Flat Washer (3)
2. Insert Bolts and Washers from outside,
through the leg of the stand and into the
nut on the Wheel Bracket (55).
Wheel
Bracket
(55)
Wheel (54)
Bolt (57),
Spring Washer (2),
Flat Washer (3)
Stand I (119)
Figure 8: Wheel Assembly
3. Tighten all hardware securely.
4. To move the Tile Saw, engage the wheels by lifting
the saw stand using the handle on the end of the
saw opposite the wheels, as shown in figure 9.
Figure 9: Moving Tile Saw

Page 11For technical questions, please call 1-800-444-3353.Item 60608
SAFETYOPERATIONMAINTENANCE SETUP
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TOOL SET UP
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool to its “OFF” position, remove the key, and unplug the tool
from its electrical outlet before assembling or making any adjustments to the tool.
TO PREVENT SERIOUS INJURY:
DO NOT OPERATE WITH ANY GUARD DISABLED, DAMAGED, OR REMOVED.
Installing/Changing Blade
1. Remove the Bolts (47) from the Blade
Guard (41). See Figure 10.
Figure 10: Blade Guard
Bolt (47)
Blade Guard (41)
Bolt (47)
2. Carefully lift up and move the Blade Guard away
from the catch on the top end of the Motor Support
Bracket (25) to expose the Saw Blade, if installed.
Saw Blade
Figure 11: Blade Guard Removed
Blade
Guard (41)
Spindle
Nut (39)
Directional
Arrow
Outer
Flange (38)
3. Hold the end of the Motor Spindle firmly with
a wrench and with a second wrench unscrew
and remove the Spindle Nut (39) by turning it
clockwise. Remove the Outer Flange (38) and
remove old Saw Blade, if installed. Do not remove
the Inner Flange (32). See Figures 11 and 12.
Inner
Flange (32)
DO NOT
REMOVE
Figure 12: Saw Blade Removed
Motor
Support
Bracket
(25)
Blade
Guard (41)
WARNING! TO PREVENT SERIOUS INJURY:
Only use a continuous rim, wet cutting, 7" diamond
saw blade with a 5/8" round arbor hole and
rated to at least 3550 RPM on this tool.
4. Install a new Saw Blade (sold separately).
Make sure the directional “ARROW” depicted
on the side of the Saw Blade points in the
same direction as that of the Blade Guard.
5. Reattach the Outer Flange and Spindle
Nut. Hold the end of the Motor Spindle firmly
with a wrench and with a second wrench
tighten Spindle Nut securely by turning it
counterclockwise until snug. Do not overtighten.
Figure 13: Saw Blade/Blade Guard Installed
Blade
Guard (41)
Directional
Arrow
Saw Blade
Bolt (47)
6. Carefully lower Blade Guard back into
its original position. Replace the Bolts
to secure Blade Guard in place.

Page 12 For technical questions, please call 1-800-444-3353. Item 60608
SAFETY OPERATION MAINTENANCESETUP
Miter Adjustment
1. Loosen the T-Knob (103A) on the Miter Gauge
(102) and position the Miter Gauge at the
desired angle. Retighten the T-Knob.
2. To adjust the gap between the Miter Gauge
(102) and the cutting slot in the Table, loosen
the T-Knob (103B) on the Miter Gauge
Guide (105). Move the Miter Gauge to the
desired position. Retighten the T-Knob.
T-Knob (103B)
Miter Gauge
Guide (105)
Miter Gauge
(102)
T-Knob
(103A)
Table
Cutting Slot
Figure 14: Miter Adjustment
Bevel Adjustment
1. Loosen the Locking Knobs (75) on each
end of the Tile Saw. Also loosen two Bolts
(73) located on the lower ends of the Right
and Left Guide Rail Stands (72, 111).
Locking
Knob (75)
Figure 15: Right End of Tile Saw
Right Guide
Rail Stand
(111)
Right Side
Angle Scale
(110)
Bolt (73)
2. Tilt the Guide Rail Stands to the desired
angle (0 to 45°) as indicated on the Right and
Left Side Angle Scales (74, 110). Retighten
the two Locking Knobs and two Bolts.
Figure 16: Left End of Tile Saw
Left Guide
Rail Stand
(72)
Left Side
Angle Scale
(74)
Bolt (73)
Locking
Knob (75)
Work Piece and Work Area Set Up
1. Designate a work area that is clean and well-lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Route the power cord along a safe route to reach
the work area without creating a tripping hazard or
exposing the power cord to possible damage. The
power cord must reach the work area with enough
extra length to allow free movement while working.
Set up the Power Cord with a drip loop —
see POSITION OF TILE SAW on page 5.
3. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
4. Keep workpieces pressed firmly against the
Table and Scale Plates while cutting.
5. Mark cut lines using waterproof marker or crayon.

Page 13For technical questions, please call 1-800-444-3353.Item 60608
SAFETYOPERATIONMAINTENANCE SETUP
Filling and Draining Water Tray
1. Fill Water Tray (60) before every use with
enough clean, cold water to submerge 3/4 of the
Water Pump (51). Do not overfill the Tray.
2. To drain the Water Tray (60) place a large
bucket under the Drain Plug (62). Remove
the Drain Plug located at the bottom of the
Water Tray. Once drained, replace the Drain
Plug. The user may also pull out the Water Tray
from the Tile Saw and pour out the water.
3. After draining the water, rinse Tray
to remove any sediment. Figure 17: Water Tray and Pump
Water Tray (60)
Water Pump (51)
Drain Plug (62)
GENERAL OPERATING INSTRUCTIONS
1. Clean out any sediment from previous uses
and fill the Water Tray with clean water so that
the Water Pump is about 3/4 submerged.
2. Adjust the Miter and Bevel settings as needed — see
previous page. Lock all settings in place.
3. Place the workpiece on the Table and
firmly against the Miter Gauge and
Scale Plates. See Figure 18 –19.
4. Make sure the workpiece is clear of the Blade.
Plug in the Tile Saw, insert the Key and turn
the Power Switch to the ON position.
5. Make sure the pump is supplying
enough water to the Saw Blade.
CAUTION: To prevent excessive wear on the Saw
Blade, make sure to maintain a continuous flow of
water over the entire Saw Blade while cutting.
6. Let the Blade build up to full speed before cutting.
7. Hold the tile firmly against the Miter Gauge
and Scale Plates with one hand. Always keep
fingers a safe distance away from the Saw
Blade. With the other hand, hold the Handle
and slowly move the Saw Blade over the tile.
Note: If the Tile Saw motor stops suddenly while
cutting, turn the Power Switch (18) to its OFF
position. Wait approximately 5 minutes. Reset the
Circuit Breaker (17) by pushing in the button. Make
sure the workpiece is clear of the Blade and turn the
Power Switch to its ON position to resume cutting.
8. When the cut is made, turn the Saw OFF. Wait
for the Saw Blade to come to a complete stop
before removing any part of the workpiece.
9. To prevent accidents, turn off the Saw, remove the
Key, and unplug the Tile Saw after use. Clean, then
store the Tile Saw indoors out of children’s reach.
Miter
Gauge
Guide
Miter
Gauge
Table
Tile
Scale
Plate A
Scale
Plate B
Figure 18: Straight Cut
Miter
Gauge
Guide
Miter
Gauge
Table
Tile
Scale
Plate A
Scale
Plate B
Figure 19: Miter Cut

Page 14 For technical questions, please call 1-800-444-3353. Item 60608
SAFETY OPERATION MAINTENANCESETUP
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool to its “OFF” position, remove the key, and unplug the tool from
its electrical outlet before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for loose screws,
misalignment or binding of moving parts, cracked
or broken parts, damaged electrical wiring,
improper mounting of the Saw Blade and any
other condition that may affect its safe operation.
2. AFTER USE, wipe external surfaces of the tool
with clean cloth. Also, clean the following after
every use, and as needed during extended use:
• Water Tray (see page 13,
empty out sediment and water)
• Water Pump filter and housing
3. If Saw Blade is out of alignment, moving parts
do not slide smoothly or other issues interfere
with smooth operation, have the saw serviced
by a qualified technician before further use.
4. Empty all water from the Tile Saw before storing.
Ice crystals will damage the Water Pump if the unit
contains water in freezing temperatures. Store
the Tile Saw indoors in a dry, frost-free room.
5. WARNING! If the supply cord of this
power tool is damaged, it must be replaced
only by a qualified service technician.

Page 15For technical questions, please call 1-800-444-3353.Item 60608
SAFETYOPERATIONMAINTENANCE SETUP
Troubleshooting
Problem Possible Causes Likely Solutions
Tool will not start. 1. Cord not connected.
2. No power at outlet.
3. Tool’s circuit breaker tripped.
4. Internal damage or wear. (Carbon
brushes or switch, for example.)
1. Check that cord is plugged in.
2. Check power at outlet. If outlet is unpowered,
turn off tool and check circuit breaker.
If breaker is tripped, make sure circuit is right
capacity for tool and circuit has no other loads.
3. Turn off tool and wait approximately 5 minutes.
Press circuit breaker button on tool.
4. Have technician service tool.
Tool operates
slowly.
Extension cord too long or
wire size too small.
Eliminate use of extension cord.
If an extension cord is needed, use shorter/
heavier gauge cord. See Table A on page 3.
Performance
decreases
over time.
1. Blade dull or damaged.
2. Carbon brushes worn or damaged.
1. Keep cutting accessories sharp. Replace as needed.
2. Have qualified technician replace brushes.
Excessive noise
or rattling.
Internal damage or wear. (Carbon
brushes or bearings, for example.)
Have technician service tool.
Overheating. 1. Forcing machine to work too fast.
2. Blade misaligned.
3. Blade dull or damaged.
4. Motor being strained by long or
small diameter extension cord.
1. Allow machine to work at its own rate.
2. Check and correct blade alignment to fence and table.
3. Keep cutting blades sharp. Replace as needed.
4. Eliminate use of extension cord.
If an extension cord is needed, use shorter/
heavier gauge cord. See Table A on page 3.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect power supply before service.

Page 16 For technical questions, please call 1-800-444-3353. Item 60608
SAFETY OPERATION MAINTENANCESETUP
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 17For technical questions, please call 1-800-444-3353.Item 60608
SAFETYOPERATIONMAINTENANCE SETUP
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.

Page 18 For technical questions, please call 1-800-444-3353. Item 60608
SAFETY OPERATION MAINTENANCESETUP
Parts List and Diagram
Parts List
Part Description Qty
1 Bolt M6 x 30 2
2 Spring Washer 6
3 Flat Washer 22
4 Sliding Handle 1
5 Plastic Insert 1
6 Handle Sleeve 1
7 Power Cord 1
8 Cable Sleeve 2
9 Capacitor 1
10 Capacitor Clamp Plate 1
11 Screw 6
12 Screw 3
13 Switch Box Cover 1
14 Switch Box Seal 1
15 Screw M4 x 10 8
16 Flat Washer 6
17 Circuit Breaker 1
18 Key Switch 1
19 Rubber Cable Ring 1
20 Screw M5 x 14 7
21 Flat Washer 11
22 Motor 1
23 Switch Box 1
24 Rubber Pad 1
25 Motor Support Bracket 1
26 Screw M4 x 8 2
27 Spring Washer 6
28 Ground Terminal 2
29 Star Washer 2
30 Rubber Ring 1
31 Buffer Pad 1
32 Inner Flange 1
33 Plastic Clamp 2
34 Cable Clamp 2
35 Screw M4 x 16 2
36 Spring Washer 6
37 Saw Blade (sold separately) 1
38 Outer Flange 1
39 Spindle Nut 1
40 Thin Nut 2
41 Blade Guard 1
42 Wing Nut 1
Part Description Qty
43 Flap Holder 1
44 Water Hose Connector 2
45 Rubber Flap 1
46 Bolt M6 x 12 1
47 Screw M4 x 40 2
48 Water Hose 1
49 Three-Way Connector 1
50 Water Hose 1
51 Water Pump 1
52 Water Pump Cable 1
53 Bolt M12 x 60 2
54 Wheel 2
55 Wheel Bracket 2
56 Leg Pad 3
57 Bolt M6 x 45 4
58 Flat Washer 4
59 Lock Nut 2
60 Water Tray 1
61 O-Ring 1
62 Drain Plug 1
63 Drain Plug Insert 1
64 Wing Nut 1
65 Pump Plug Cover 1
66 Bolt M6 x 40 4
67 Lock Nut 9
68 Carrying Handle 2
69 Carrying Handle Sleeve 2
70 Tension Adjusting Bracket 1
71 Screw M6 x 12 8
72 Left Guide Rail Stand 1
73 Bolt M6 x 16 2
74 Left Side Angle Scale 1
75 Locking Knob 2
76 Screw M6 x 25 8
77 Spring Washer 12
78 Flat Washer 12
79 Bolt M6 x 90 1
80 Lock Washer 1
81 Ball Bearing Bracket 1
82 Buffer Pad 1
83 Left Rail Stand Support 1
84 Guide Rail 1
Part Description Qty
85 Bolt M6 x 20 4
86 Work Table Pad 1
87 Work Table (A) 1
88 Water Tube Cover Adaptor 1
89 Rubber Washer 1
90 Nut 1
91 Water Tube Cover 1
92 Work Table (B) 3
93 Work Table (C) 3
94 Scale Plate (A) 1
95 Scale Plate (B) 1
96 Miter Gauge Guide Holder 1
97 Screw M4 x 20 9
98 Coach Bolt M4 x 20 4
99 Plate 4
100 Miter Gauge Bracket 1
101 Miter Gauge Angle Scale 1
102 Miter Gauge 1
103A T-Knob (Miter Gauge) 1
103B T-Knob (Miter Gauge Guide) 1
104 Large Flat Washer 2
105 Miter Gauge Guide 1
106 Work Table Insert 7
107 T-Knob 1
108 Insert Pad 2
109 Angle Pointer 1
110 Right Side Angle Scale 1
111 Right Guide Rail Stand 1
112 Right Rail Stand Support 1
113 Cotter Pin 4
114 Wing Nut 4
115 Machine Frame 1
116 Plastic Insert 5
117 Support Bracket II 2
118 Support Bracket I 2
119 Stand I 1
120 Stand II 1
121 Adjustable Leg 1
122 Cotter Pin 1
123 Adjusting Knob 1
124 Adjusting Plate 1

Page 19For technical questions, please call 1-800-444-3353.Item 60608
SAFETYOPERATIONMAINTENANCE SETUP
Assembly Diagram
1
2
3 4
5
6
7
8
910
12
26 29
27
28
42
43 44 45 46
47
48
49
50
50
40
39
38
37
20
32
8
35
34
36
21
76
15
78
77
75
11
25
22
66 3
20
21
19
18
17
2430
13
14
23
15
16
73
74
72
33
60
62
63
61
65
64
3
67
53
58
55
54
58 59
56
57
2
3
118
117
71
3
67
116
114
69
68
113
112
111 73 110
75
20
107
21
76
77
78
109
36
108
97
106
92
87 93 88 90
89
91
103A
104
102
15
105
100
98
99
97
95
94 96
16 27
101
84
85 77
78
83
3
82
81
70
79 80
71 23
68
69
56
120
121
123
122
104
124
31
12
33
41
51
52
119
86
67
115
71
103B

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
