Chicago Electric 2665 User manual

ARC WELDER - 160 AMP ACARC WELDER - 160 AMP AC
ARC WELDER - 160 AMP ACARC WELDER - 160 AMP AC
ARC WELDER - 160 AMP AC
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit ourWeb site at http://www.harborfreight.com
Copyright © 2003 by Harbor Freight Tools®. All rights reserved. No portion of
this manual or any artwork contained herein may be reproduced in any shape or
form without the express written consent of Harbor FreightTools.
For technical questions and replacement parts, please call 1-800-444-3353
02665

Page 2SKU 02665
Specifications
ITEM DESCRIPTION
Arc Welding Current 80 and 160 amp
Power Requirement 220 VAC, 40 amps, single phase, 60 Hz
Open Voltage 22 VAC at 80 amps; 28 VAC at 160 amps
Duty Cycle 40% at 80 amps; 10% at 160 amps
Thermal Overload
Protection Automatic overload shutdown and reset
Dimensions 16 (L) x 6-7/8 (W) x 12-1/4 (H) inches
Ground Cable 4 AWG, single insulation, 6 foot
Torch Cable 4 AWG, single insulation, 6 foot
Power Cord 3-core, double insulated, 12 AWG, U.L. Approved
Features Power switch with green light indicator Thermal overload protection with red light indicator
AC output
Weight 55.8 lbs
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instructions,
operating and maintenance procedures, parts list and diagram. Keep your invoice with this
manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING:When using tool, basic safety precautions should always be followed to re-
duce the risk of personal injury and damage to equipment.
Read all instructions before using this tool!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in damp or wet
locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically
powered tools in the presence of flammable gases or liquids.
3. Keep children away. Children must never be allowed in the work area. Do not let them
handle machines, tools, or extension cords.
4. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit
rust. Always lock up tools and keep out of reach of children.
5. Do not overreach. Keep proper footing and balance at all times. Do not reach over or
across running machines.
6. Use the right tool for the job.Do not attempttoforce asmalltoolorattachmenttodothe
workofalargerindustrialtool.Therearecertainapplicationsfor whichthistoolisdesigned.
It will do the job better and more safely at the rate for which it was intended. Do not
modify this tool and do not use this tool for a purpose for which it was not intended.
7. Dress properly. Do not wear loose clothing or jewelry as they can be caught in moving
parts. Protective, electrically non-conductive clothes and non-skid footwear are
recommended when working. Wear restrictive hair covering to contain long hair.
8. Use eye protection. Always wear ANSI approved impact safety glasses under an arc
shaded, welding helmet. Wear an ANSI approved dust mask or respirator when working

Page 3SKU 02665
aroundmetal,wood,andchemicaldustsandmists. AlwayswearANSIapprovedwelding
gear: leather gloves, leather apron and shoes.
9. Maintain tools with care. Keep tools clean for better and safer performance. Follow
instructionsforlubricating and changing accessories.Inspecttoolcordsperiodically and,
if damaged, have them repaired by an authorized technician.The handles must be kept
clean, dry, and free from oil and grease at all times.
10. Disconnect power.Unplug Arc Welder when not in use.
11. Remove adjusting keys and wrenches. Check that keys and adjusting wrenches are
removed from the tool or machine work surface before plugging it in.
12. Avoid unintentional starting. Be sure the switch is in the Off position when not in use
and before plugging in. Do not carry Arc Welder when it is plugged in.
13. Stay alert. Watchwhat youaredoing,usecommonsense.Do not operate anytoolwhen
you are tired.
14. Check for damaged parts. Beforeusinganytool, anypartthatappearsdamagedshould
be carefully checked to determine that it will operate properly and perform its intended
function.Check for alignment andbinding ofmovingparts;anybrokenparts ormounting
fixtures;and anyotherconditionthatmayaffectproperoperation.Anypartthatisdamaged
should be properly repaired or replaced by a qualified technician. Do not use the tool if
any switch does not turn On and Off properly.
15. Guard against electric shock. Prevent body contact with grounded surfaces such as
pipes, radiators, ranges, and refrigerator enclosures.
16. Replacement parts and accessories. When servicing, use only identical replacement
parts. Use of any other parts will void the warranty. Only use accessories intended for
use with this tool. Approved accessories are available from Harbor Freight Tools.
17. Do not operate tool if under the influence of alcohol or drugs. Read warning labels
if taking prescription medicine to determine if your judgment or reflexes are impaired
while taking drugs. If there is any doubt, do not operate the tool.
18. Pacemaker safety warning. People with pacemakers should consult with their
physician(s) before using this product; operation of equipment in close proximity to a
heart pacemaker could cause interference or failure of the pacemaker.
19. Use proper size and type extension cord.Ifanextensioncord is required, itmustbeof
the proper size and type to supply the correct current to the tool without heating up.
Otherwise, the extension cord could melt and catch fire, or cause electrical damage to
the tool.This tool requires use of an extension cord with up to 50 amps capability (up to
50 feet), with wire size rated at 8 AWG.Longer extension cords require larger size wire.
If you are using the tool outdoors, use an extension cord rated for outdoor use. (signified
by “WA” on the jacket).
20. Maintenance. For your safety, service and maintenance should be performed regularly
by a qualified technician.

Page 4SKU 02665
Additional Arc Welding Safety Warnings and Precautions
Warning:This product,when used for welding and similar applications,produces chemi-
cals known to the State of California to cause cancer and birth defects (or other repro-
ductive harm). California Health & Safety Code 25249.5, et seq.
1. Avoid electrical shock. Do not permit electrically live parts, cables, or electrodes to
contact skin, clothing, or gloves. Protective clothing should be hole-free, dry, and ANSI
approved.
This unit draws enough current to cause serious injury or death. Before turning the Arc
Welder on, check the electrode holder to be sure that there are no protruding screw
heads, and that all insulation is secure, covering all conductors. Do not weld unless you
are insulated from ground and the work piece.

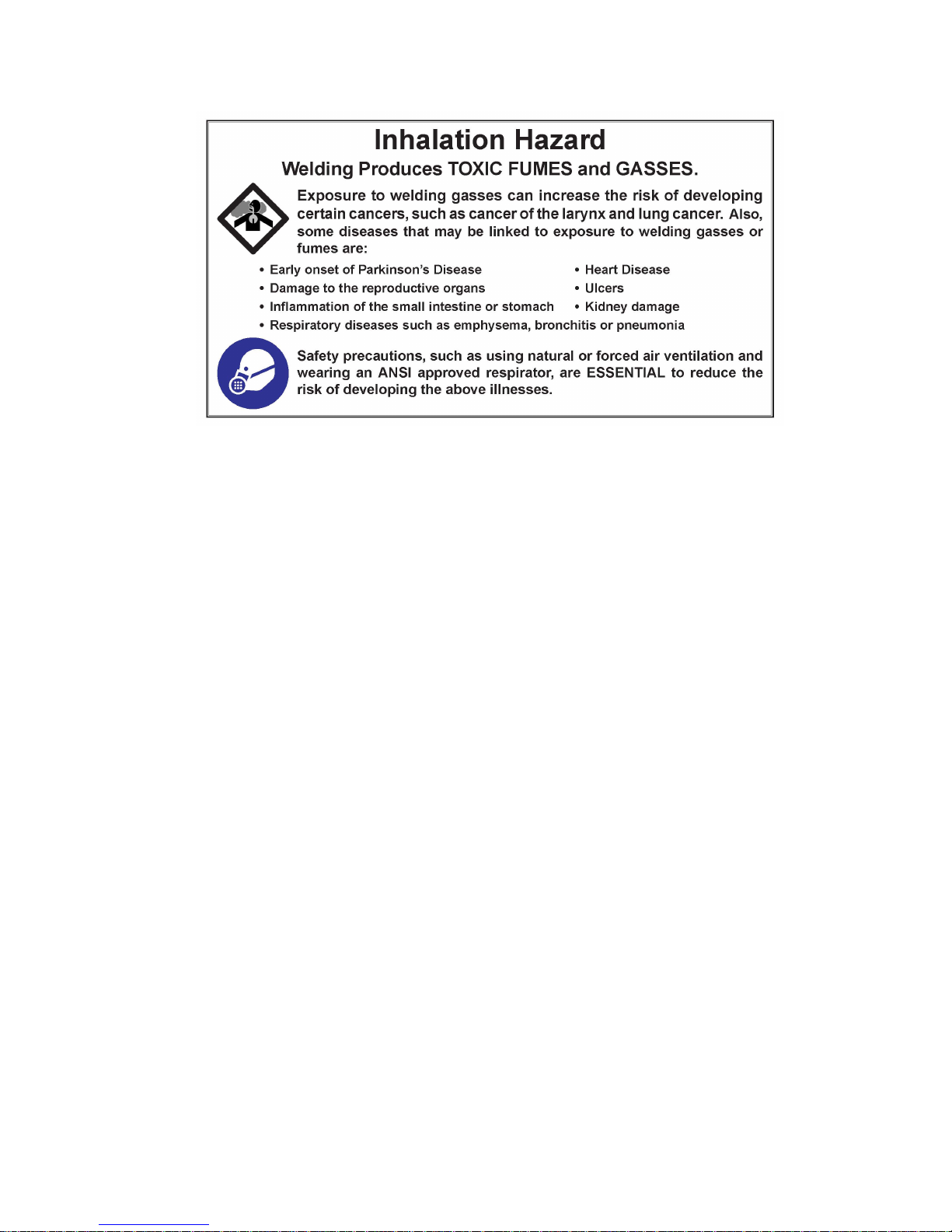

2. Avoid breathing fumes or gases. They can cause serious health problems. Use an
active ventilation system directly above the welding area. Keep your head out of the
fumes.
3. Avoid eye and body damage. Arc rays and infrared radiation can injure eyes and burn
skin. Wear ANSI approved eye and body protection. Do not allow viewing by visitors
without proper eye and body protection. Use a Face Shield with an arc shaded filter
plate.
4. Know proper arc welding practices. Read and understand the manufacturer’s
instructions, and well as your employer’s safety practices for arc welding.
5. Connect only to a code approved power source. Connect only to a grounding power
source conforming to the National Electrical Code and Local Codes.
6. Avoid fire and explosion. Remove flammable and explosive material from at least 35
feet from the welding arc to prevent welding sparks or molten metal from starting a fire.
Keep a type ABC fire extinguisher within easy reach.Thoroughly clean the object being
welded of any paint, grease, or other foreign material.
Warning:The warnings, cautions,and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be under-
stood by the operator that common sense and caution are factors which cannot be
built into this product,but must be supplied by the operator.
REV 05/04

Page 5SKU 02665
Note: Performance of this tool may vary depending on variations in local line voltage.Exten-
sion cord usage may also affect tool performance.
Unpacking
When unpacking, check to make sure the following parts are included.
If any parts are missing or broken, please call Harbor FreightTools at the number on the
cover of this manual as soon as possible.
Assembly
1. Connect an appropriate 220 VAC electrical plug to the Line Cord. This should only be
done by a licensed electrician.
2. Connect a AWG # 6 solid wire from the ground screw terminal (screw not included) on
the back of the unit to earth ground before welding.This grounds the internal
transformer in case of short circuits.
Operation
Caution: Before arc welding, read and understand all safety precautions and warnings
listed on pages 2 through 5.
1. Secure the pieces of metal to be welded so they cannot move.
2. Connect theTorch Cable (1A) to the ArcWelder connector for either 80 amp or 160
amp operation. See photo at the top of the next page.
3. Securely clamp the Ground Cable Clamp (2A) as close as possible to the metal object
to be welded, or to the metal work bench where the object is mounted and electrically
connected.
GroundCable(2A)
Torch Cable(1A)
LineCord(3A)
ArcWelderUnit

Page 6SKU 02665
4. Place the desired welding electrode rod securely into the jaws of the Torch Cable
Clamp (1A).Generally, the higher the amperage, the thicker the welding rod.
5. Verify that the Power Switch is in the OFF position, then plug the ArcWelder 220VAC
plug into a dedicated, 50 amp line with delayed action type circuit breaker or fuses.
If an extension cord is used, it must have the following wire size: up to 30 feet, use 10
AWG size wire;30 to 50 feet, use 8 AWG wire; Over 50 feet, use 6 AWG wire.
6. While holding the Torch Cable Clamp with electrode clearly out of the way of any
grounded objects, turn the Power Switch to the ON position.
7. Orient yourself on the area to be welded, then lower the Face Shield over your eyes.
WARNING: NEVER LOOK AT THE IGNITED ARC WITHOUT ANSI APPROVED, ARC
SHADED, EYE PROTECTION IN A FULL FACE SHIELD. PERMANENT EYE DAMAGE
OR BLINDNESS CAN OCCUR. SKIN BURNS CAN OCCUR. NEVER BREATH ARC
FUMES.
8. Stroke the area to be welded with the electrode to ignite the arc.
Never tap the electrode into the welding surface to ignite the arc.This damages its
external coating on the electrode which prevents oxygen in the air from coming into
contact with the molten metal, causing it to oxidize.
9. Once the arc is ignited, tilt the electrode forward at an angle of approximately 30° and
hold it at a distance from the welding object equal to the diameter of the electrode.
Note: If too much current is drawn from the Arc Welder, the Thermal Overload protector will
activate, the red indicator will light, and the Arc Welder will turn off until it cools down. If this
happens, turn the Power Switch to the OFF position and wait about 20 minutes.
10. When the weld is complete, lift the electrode clearly away from any grounded object
and lift the Face Shield up.Turn toward the ArcWelder to turn the Power Switch to the
OFF position.
Switch(5)
PowerOn(green)Indicator ThermalOverload(red)Indicator
160AmpConnector
80AmpConnector
GroundCable(2A) TorchCable(1A)

Page 7SKU 02665
11. Remove the electrode from theTorch Cable Clamp after it cools.
12. Unplug the Torch Cable plug from the Arc Welding unit.
13. Turn the ArcWelder unit on to allow the fan to cool it down for 20 minutes.
14. Unplug the Arc Welder Power Cord from the electrical outlet.
Maintenance
Warning; Unplug the ArcWelder before performing any maintenance.
1. Periodically tighten all cable connection screws on the cable clamps and line cord plug.
2. Periodicallycleanbothcable clamps of all grease,dirt,weldingslag, andcarbondeposits.
3. Store the Arc Welder and cable clamps in a clean and dry location free from airborne
impurities and contaminants which can breakdown insulation.
4. Periodically blow out dust from within the unit.
5. If the Arc Welder fails to operate after troubleshooting it, do not attempt to open and
repair it yourself.Take it to a qualified technician.
Troubleshooting
Symptom Probable Cause Suggested Remedy
Welder does not
operate, or
continually blows
fuses
1. Improper fuse or circuit breaker
2. Fuse blown or circuit breaker tripped
3. Thermal overload protection activated
4. Using incorrect welding techniques
1. Replace fuse, reset breaker, or use
delayed action breaker
2. Replace fuse or reset breaker
3.Turn switch OFF and wait until the unit
cools down and try again.
4. Review recommended welding
techniques
Welding current
low or weak
1. Low line voltage
2. Welding current too low
3. Poor cable connections
1. Check power source for at least 220
VAC at 40 amps.
2.Use the 160 amp output connector.
3. Check and tighten all cable connections
Will not hold an
arc
1. Using a D.C. welding rod
2. Using a low hydrogen rod 1. Use a proper size, AC welding electrode 2. Use a rod of 0.078" (2 mm) diameter or
smaller on 60 amp.
PLEASE READTHE FOLLOWING CAREFULLY
THEMANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDEDTHEPARTSDIAGRAM INTHIS
MANUALAS AREFERENCETOOLONLY. NEITHERTHEMANUFACTURERNORDISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KINDTO THE BUYERTHAT HE OR
SHEISQUALIFIEDTOMAKEANYREPAIRSTOTHEPRODUCTORTHATHEORSHEISQUALI-
FIEDTO REPLACE ANY PARTS OFTHE PRODUCT. IN FACT,THE MANUFACTURER AND/OR
DISTRIBUTOREXPRESSLYSTATESTHATALLREPAIRSANDPARTSREPLACEMENTSSHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSEDTECHNICIANS AND NOT BYTHE BUYER.
THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO
THEORIGINALPRODUCTOR REPLACEMENTPARTSTHERETO,ORARISINGOUTOFHISOR
HERINSTALLATION OF REPLACEMENTPARTSTHERETO.

Page 8SKU 02665
NOTE:Some parts are listed and shown for illustration purposes only and are not available indi-
vidually as replacement parts.
Parts List
Item # Designation Description Qty
1 T1 Power Transformer 1
2 T2 Control Transformer 1
3 M Vane, 1,0 CB-1, 4-4-140 1
4 VS1 Triac TC242-80-5 1
5SA1Switch,T120-15A 1
6 XS1 Socket, CHTI58-16B-21-2-B 1
7 SP1 Plug, CHTI58-16P-20-0-B 1
Diodes
8VD1-VD4,VD7KA243 5
9VD5,VD6KA212A 2
10 VD8 LED, AJ1307 LM 1
11 VD9 LED, AJI307AM 1
Resistors
12 R1 MJIT-2-100 ohms 1
13 R2 MJIT-0, 25-2, 7K ohms 1
14 R3 MJIT-0, 25-100 ohms 1
15 R4, 12, 13 MJIT-0, 25-3, 6k ohms 3
16 R5, R16 MJIT-0, 25-10K ohms 2
17 R6 MJIT-0, 25-5, 6k ohms 1
18 R7, R9 MJIT-0, 25-2k ohms 2
19 R8, R10 MJIT-0, 25-20k ohms 2
20 R11 MJIT-0, 25-360k ohms 1
21 R14 MJIT-0, 25-6.8k ohms 1
22 R15 MJIT-0, 25-200k ohms 1
23 R17 Posistor, CT-14-2A-1150M 1
24 R18 MJIT-0, 5-22 ohms 1
25 R19 MJIT-2-2, 2 ohms 1
26 R20 MJIT-1-24k ohms 1
Capacitors
27 C1, C2, C11 K73-17-1uf-250V 3
28 C3 K50-25-470uf-40V 1
29 C4, C5, C10 K10-17-1B (2B, 3B)-4700pF 3
30 C6 K10-17-1E (2E, 3E)-0, 01uf 1
31 C7 K10-17-1E (2E, 3E)-0, 068uf 1
32 C8 K50-35-10uf-25V 1
33 C9 K50-35-22uf-63V 1
Transistors
34 VT1 KT 973A 1
35 VT2, VT7 KT 3102A 2
36 VT3, VT4 KT 815L 2
37 VT5, VT6 KT 3107A 2
Main Unit Components
38 1A Torch Cable with Clamp 1
39 2A Ground Cable with Clamp 1
40 3A Line Cord 1

Page 9SKU 02665
Schematic Drawing
