Chicago Pneumatic Hydraulic PAC P9 Maintenance and service guide

www.cp.com Chicago Pneumatic Construction Tools
Safety and Operating instructions
Hydraulic Power Pack
PAC P 9
Prescriptions de sécurité et instructions
pour l’opérateur
Bloc d’alimentation hydraulique
Sicherheitshinweise und Betriebsanleitung
Hydraulische Kraftstation
Instrucciones de seguridad y de
funcionamiento
Unidad de potencia hidráulica
Instruções de segurança e operação
Unidade hidráulica
Istruzioni per la sicurezza e per l’uso
Demolitori idraulici manuali
Veiligheidsvoorschriften en bedieningshandleiding
Alimentatore idraulico
Sikkerhedsinstruktioner og betjeningsvejledning
Hydraulisk drivstation
Säkerhetsinstruktion och bruksanvisning
Hydrauliskt kraftpaket

2
PAC P 9Safety and operating instructions
3392 5182 83
2008-06
No. 3392 5182 83
© Copyright Chicago Pneumatic Construction Tools
STOCKHOLM • SWEDEN

Safety and operating instructionsContents
3392 5182 83
Contents
English ................................................................ 4
Français .............................................................. 18
Deutsch............................................................... 32
Español ............................................................... 46
Português ............................................................ 60
Italiano............................................................... 74
Nederlands ........................................................... 88
Dansk ............................................................... 102
Svenska...............................................................116

ContentsSafety and operating instructions
4 3392 5182 83
ENGLISH
Contents
SAFETY INSTRUCTIONS ......................................................6
Safety symbols used .........................................................6
Protective equipment........................................................6
Machine operating hazards ...................................................6
Fume and exhaust hazard ....................................................6
Hydraulic oil and lubrication hazards............................................7
Explosion and fire hazard .....................................................7
Noise hazard...............................................................7
Machine modification hazard..................................................7
Additional safety instructions ..................................................7
Service and maintenance .....................................................8
OPERATING INSTRUCTIONS ..................................................9
Design and function.........................................................9

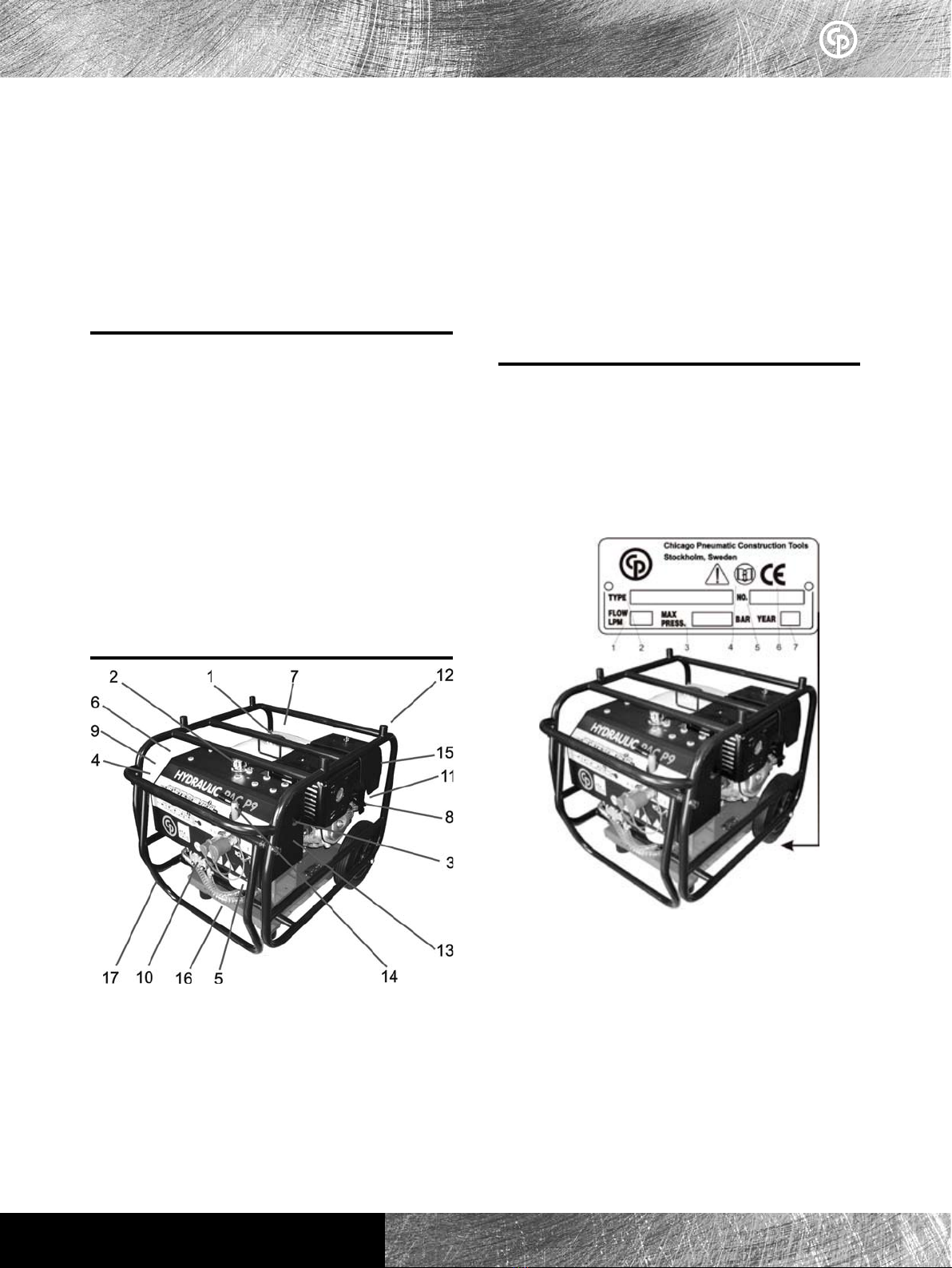

Main parts ................................................................9
Signs and stickers on the machine ..............................................9
Actions before starting ......................................................10
Start and stop.............................................................11

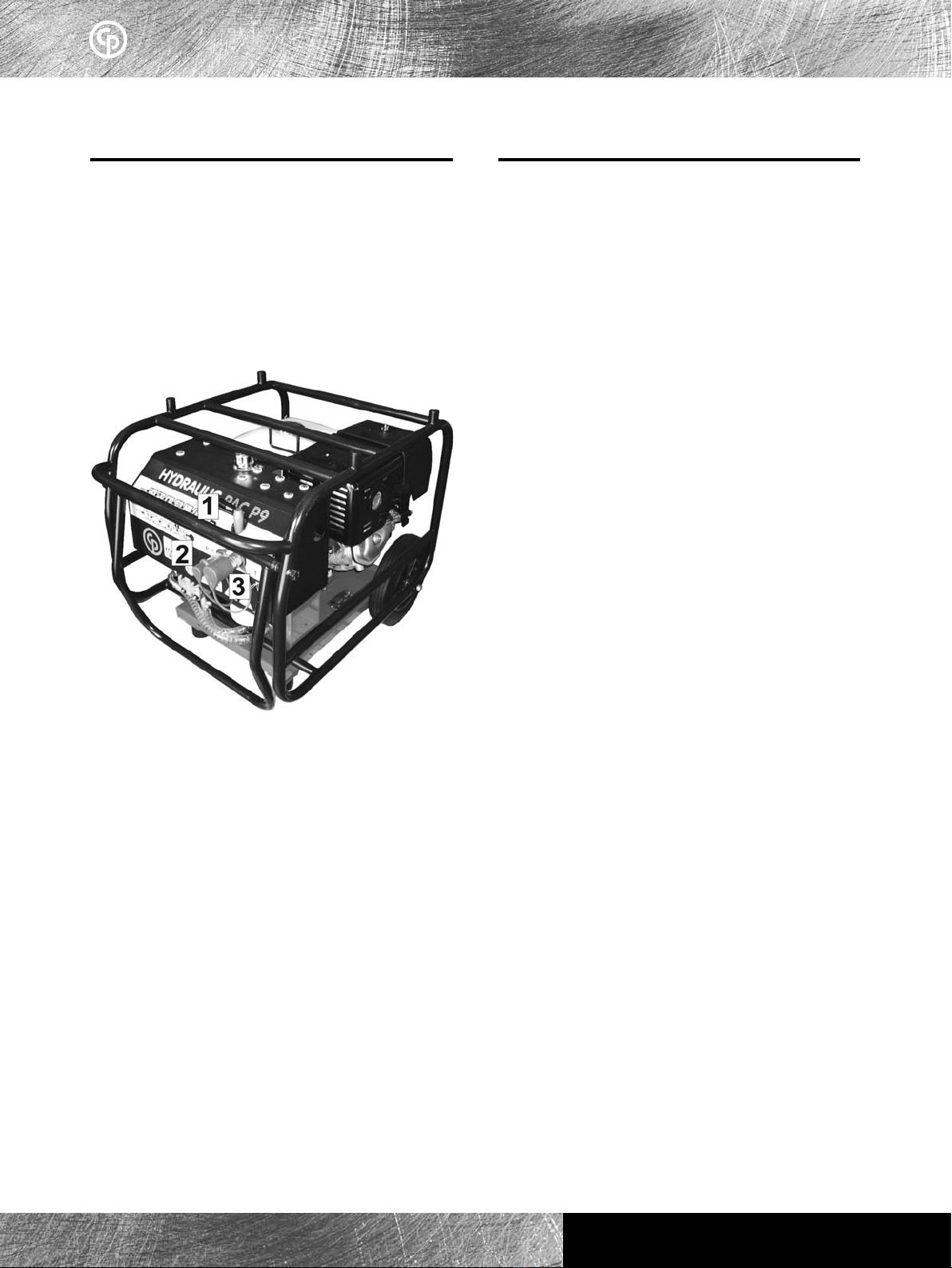

Hydraulic control and connectors .............................................12
Connecting/disconnecting hoses..............................................12

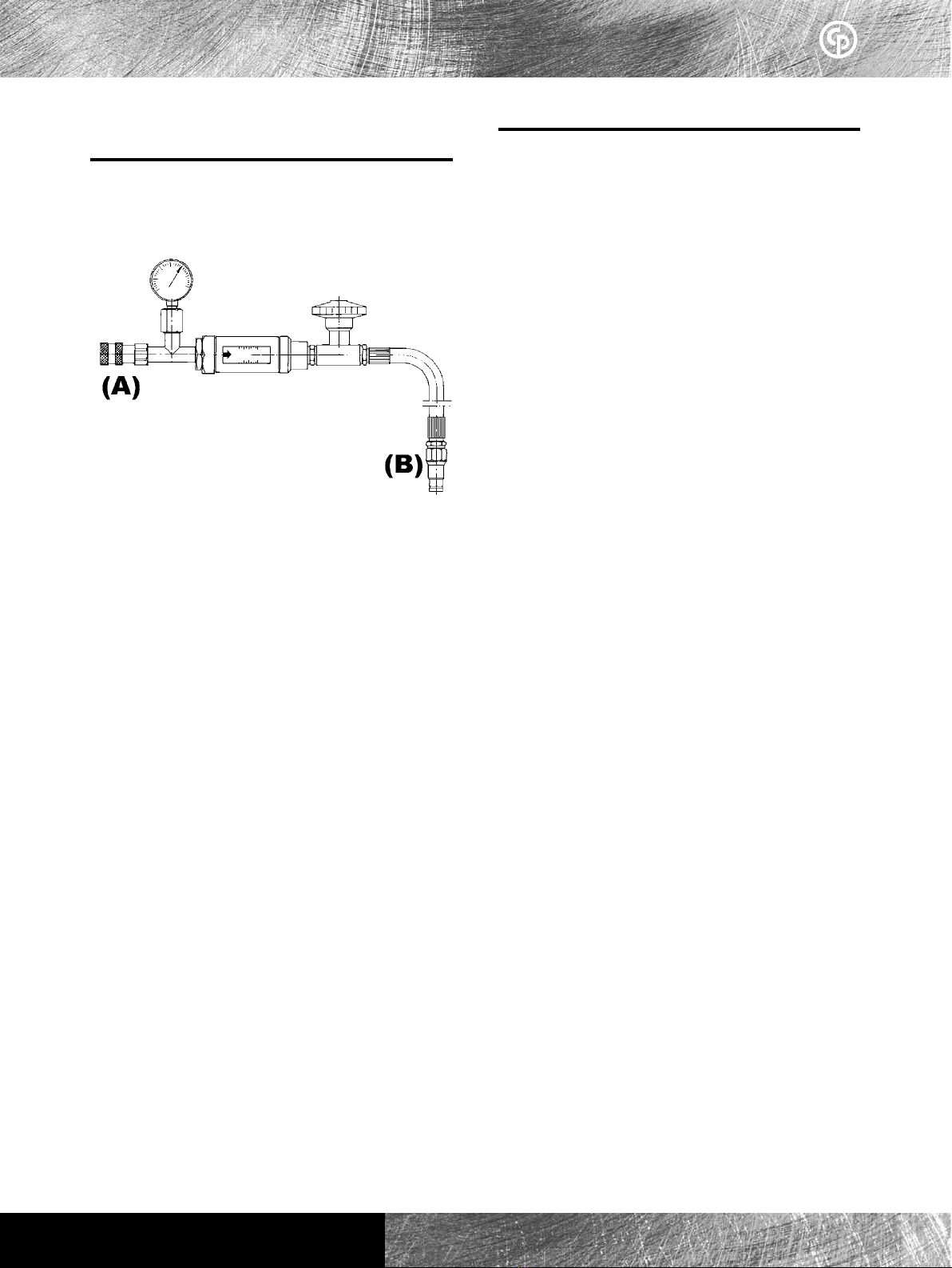

How to check the hydraulic system ............................................13
Maintenance..............................................................13
Disposal of used machine ...................................................14
Troubleshooting...........................................................15
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Noise data................................................................17
Noise declaration statement .................................................17

Safety and operating instructionsPAC P 9
53392 5182 83
Introduction
Thank you for choosing Chicago Pneumatic as a supplier for tools and services.
Chicago Pneumatic is a global company offering a wide range of pneumatic and
hydraulic tools that include breakers, rock drills, chipping hammers, clay-diggers,
picks and busters, scabblers, pumps and a whole lot more.
In 2001 Chicago Pneumatic Tool Company celebrated 100 years as a pioneer
and market-leader in the pneumatic tool industry. Chicago Pneumatic has always
focused on providing powerful and reliable products that are easy to maintain and
that give good value for money. It’s a philosophy that has made us the market-
leader for air tools in the USA.
Read more at www.cp.com
About the Safety and operating
instructions
The aim of the instructions is to provide you with knowledge of how to use the
machine in an efficient, safe way. The instructions also give you advice and tell you
how to perform regular maintenance on the machine.
Before using the machine for the first time you must read these instructions
carefully and understand all of them.

6
PAC P 9Safety and operating instructions
3392 5182 83
SAFETY INSTRUCTIONS
To reduce the risk of serious injury or death to
yourself or others, read these safety instructions
before operating the machine.
Post these safety instructions at work locations,
provide copies to employees, and make sure that
everyone reads the safety instructions before
operating or servicing the machine.
Follow all safety instructions given in this
manual. All the safety instructions conform to the
applicable laws and directives in the European
Union. You should also respect any additional
national/regional directives.
In countries outside the European Union, the valid
local statutes and regulations shall apply. Any
additional regional laws and regulations must be
observed.
Safety symbols used
The indications Danger, Warning and Caution
have the following meanings:
Danger Indicates an imminently
hazardous situation
which, if not avoided,
will result in death or
serious injury.
Warning Indicates a potentially
hazardous situation
which, if not avoided,
could result in death or
serious injury.
Caution Indicates a potentially
hazardous situation
which, if not avoided,
may result in minor or
moderate injury.
Protective equipment
Always use approved protective equipment.
Operators and all other persons in the working
area must wear protective equipment, including at
a minimum:
Hearing protection.
When the machine is used as a power source for
breakers, cut-off saws and similar work tools, also
use the following protective equipment:
Protective helmet.
Impact resistant eye protection with side
protection.



Respiratory protection when appropriate.
Protective gloves.
Protective boots.
Machine operating hazards
Warning
Under normal working conditions the engine
components, particularly the exhaust system,
will get hot - DO NOT TOUCH. The hydraulic oil,
pump, valve and tank can also reach temperatures
high enough to burn - DO NOT TOUCH.
Danger
Petrol is flammable - keep naked flames away from
the machine. Do not smoke while refuelling the
machine or working with the engine. Do not refuel
with the engine running. Turn off the engine and
let the engine cool for at least 2 minutes before
refuelling. Do not overfill the tank. Fill the tank
approx. 30-40 mm (1-1.5 in) below the top of the
neck to allow for fuel expansion.
Warning
The setting of the pressure relief valve on the
machine can in some cases be higher than the
prescribed maximum setting according to the
E.H.T.M.A. category (see "E.H.T.M.A. category").
A too high pressure relief valve setting can harm
the work tool to be used.
Readjust the pressure relief valve on the machine,
if the technical specifications of the work tool
prescribe a lower pressure relief valve setting than
the standard setting of the machine.
Caution
Do not operate the work tool when adjusting the
machine's choke control or fuel valve in order not
to injure your fingers.
Fume and exhaust hazard
Danger
The exhaust fumes from the machine's engine
contain carbon monoxide which is poisonous.
Inhalation of exhaust fumes can cause serious
injury or death.
Do not inhale exhaust fumes.





Safety and operating instructionsPAC P 9
73392 5182 83
Never operate the machine in closed spaces,
even if doors and windows are open. Start and
run the machine outdoors.
Hydraulic oil and
lubrication hazards
Danger
Thin jets of hydraulic oil under high pressure can
penetrate the skin and cause blood poisoning.
Never use your hands when searching for oil
leaks.
Keep your face away from any possible leaks.
Immediately seek medical attention if hydraulic
oil has penetrated the skin.
Warning
Spilled hydraulic oil can cause accidents by
causing slippery conditions and will also harm the
environment.
Handle the hydraulic oil with care.
Take care of all spilled oil and handle
it according to your local safety and
environmental regulations.
Caution
Hot hydraulic oil can cause burns.
Never dismount the machine when the
hydraulic oil is hot.
Caution
Hydraulic oil can cause eczema when it comes in
contact with the skin.
Avoid getting hydraulic oil on your hands.
Always use protective gloves when working
with hydraulic oil.
Caution
Grease can cause eczema when it comes in
contact with the skin.
Avoid getting grease on your hands.
Explosion and fire hazard
Danger
Sparks from the exhaust or the electrical system
can cause explosions and fire, which may cause
serious injury or death.










To reduce such risks of explosion:
Never operate the machine in any explosive
environment.
Never use the machine in closed spaces.
Noise hazard
Warning
High sound levels may cause permanent hearing
loss.
Use hearing protection in accordance with
occupational health and safety regulations.
Machine modification
hazard
Warning
Any machine modification not approved by
Chicago Pneumatic may result in serious injuries to
yourself or others.
The machine must not be modified
without Chicago Pneumatic's permission.
Use only original parts and accessories
approved by Chicago Pneumatic.
Additional safety
instructions
Machines and accessories must only be used for
their intended purpose.
Only qualified and trained persons may operate
or maintain the machine.
Learn how the machine is switched off in the
event of an emergency.
The maximum permissible hydraulic pressure
for the machine must not be exceeded.
Always inspect the equipment prior to use. Do
not use the equipment if you suspect that it is
damaged.
Always use your common sense and good
judgment.
Pay attention and look at what you are doing.
Do not use the machine when you are tired
or under the influence of drugs, alcohol or














8
PAC P 9Safety and operating instructions
3392 5182 83
anything else that may affect your vision,
reactions or judgment.
Avoid lifting a greater weight than that allowed
according to occupational health and safety
regulations.
Participate in safety and training courses.
Never strike or abuse any equipment.
Never leave the machine while it is turned on.
Keep the machine in a safe place, out of the
reach of children and locked up.
Make sure that all the attached and related
equipment is properly maintained.
Signs and stickers bearing important
information regarding personal safety and
care of the machine are supplied with every
machine. Make sure that the signs are always
legible. New signs and stickers can be ordered
from the spare parts list.
Make sure that no unauthorized personnel
trespass into the working zone.
Keep the workplace clean and free from foreign
objects.
Service and maintenance
Regular maintenance is a prerequisite for keeping
the machine safe and effective. Carefully follow the
operating instructions.
Use only authorized parts. Any damage or
malfunction caused by unauthorized parts will
not be covered by the Warranty or Product
Liability.
Change damaged parts immediately.
Replace worn components in good time.
For major service to the machine, contact your
nearest authorized workshop.
When cleaning mechanical parts with solvent,
make sure to comply with occupational health
and safety regulations, and make sure that there
is satisfactory ventilation.















Safety and operating instructionsPAC P 9
93392 5182 83
OPERATING
INSTRUCTIONS
To reduce the risk of serious injury or death
to yourself or others, before operating
the machine, read the Safety instructions
section found on the previous pages of this
booklet.
Design and function
The Chicago Pneumatic PAC P 9 is a hydraulic
power pack designed for operating Chicago
Pneumatic hydraulic breakers and other work
tools. The power pack is fitted with a 9 HP Honda
GX 270 air cooled petrol engine with hydraulic
POD system (power on demand). The oil flow of
the PAC P 9 power pack is 20 l.p.m. (5 US gal/
min).
Note! The torque of the engine is reduced
when reducing the rpm. The power pack
can therefore not in all cases deliver the
maximum pressure at low rpm.
Main parts
1. Filler cap, fuel
2. Filler cap, hydraulic oil
3. Sight glass, hydraulic oil level
4. Filter condition gauge
5. Hydraulic oil filter
6. Engine oil, dipstick
7. Ignition switch OFF and ON
8. Fuel tap
9. Oil cooler
10. Hydraulic pump
11. Choke control
12. Recoil start
13. Pressure relief valve
14. By-pass valve
15. Air filter
16. Drain plug
17. Foldable handle
Signs and stickers on the
machine
Signs and stickers with important information
about personal safety and machine care are
mounted on the machine. The signs and stickers
must always be legible. New signs and stickers can
be ordered from the spare parts list.
Data plate
The data plate contains the following important
information:
Maximum permitted hydraulic oil flow.
Machine type.
Maximum permitted hydraulic pressure.
The warning symbol together with the book
symbol means that the user must read the
safety and operating instructions before the
machine is used for the first time.
Serial number.
1.
2.
3.
4.
5.

10
PAC P 9Safety and operating instructions
3392 5182 83
The CE symbol means that the machine is
CE-approved. See the CE declaration which
is delivered with the machine for more
information.
Year of manufacture.
Note! Certain machines in this range are not CE-
approved
Noise level
WA
xxx
dB
The noise level sign displays the guaranteed noise level
according to EC directive 2000/14/EC.
E.H.T.M.A. category
The European Hydraulic Tool Manufacturers
Association (E.H.T.M.A.) has categorised hydraulic
power packs and tools in terms of flow rate and
working pressure.
Our PAC P 9 is categorised by the E.H.T.M.A. as
category C:
Flow rate: 20 l.p.m. (5 US gal/min).
Nominal pressure: 120 bar (1800 psi).
Maximum pressure: 138 bar (2000 psi).
The power pack is clearly marked with this
E.H.T.M.A. category. It is important that any work
tool used with the power pack is of a compatible
category. If in any doubt, consult your Chicago
Pneumatic dealer.
6.
7.
Actions before starting
The following checks should be made each time
you return to the power pack after leaving it for
a period of time. All these checks concern the
serviceability of the power pack. Some concern
your safety:
Remove dirt and debris especially from around
the linkages and hydraulic oil cooler.
Clean all safety stickers. Replace any that are
missing or cannot be read.
Inspect the power pack and hoses generally for
signs of damage.
Check for oil and fuel leakages beneath the
power pack.
Check all fastenings.
Make sure the fuel filler cap is tightly closed.
Check the hydraulic oil level and add as
necessary.
Note! The first time the power pack is started
with new hoses, these will take approx. 1.5
litres (0.4 US gal) of oil to fill up. Add this
after the first start-up.
Place the power pack in a safe position.
Ensure that the hydraulic couplings are clean
and fully serviceable.
Ensure that any work tool you plan to use is
compatible with the power pack model used.
Check the engine oil level and add oil as
necessary.
Ensure that you have adequate fuel for the job.
Top up as necessary, taking care not to overfill.













Safety and operating instructionsPAC P 9
113392 5182 83
Start and stop
Starting the engine
Turn the engine switch (A) to position 1.
Turn on the fuel by setting the fuel ON/OFF
control (B) to the ON position.
Move the choke control (C) to the CLOSE
position. If the engine is warm, or the air
temperature high, the choke control should
be set to the OPEN position.
Set the hydraulic by-pass valve to the OFF
position.
Pull the starter grip (E) lightly until resistance
is felt, then pull briskly.
As the engine warms up, gradually move the
choke control (C) to the OPEN position.
Stopping the engine
Turn the engine switch (A) to position 0.
Turn off the fuel by setting the ON/OFF
control (B) to the OFF position.
1.
2.
3.
4.
5.
6.
1.
2.

12
PAC P 9Safety and operating instructions
3392 5182 83
Hydraulic control and
connectors
The by-pass valve (1) shall be in the OFF position
when starting and in the ON position when using
the work tool.
Connectors (2) and (3) are used to connect the
power pack to the work tool as follows:
Connector (2) = Return (female Q.R. coupling
on hose).
Connector (3) = Feed (male Q.R. coupling on
hose).


Connecting/disconnecting
hoses
Ensure that the work tool you plan to use is
compatible with the model of power pack being
used. Otherwise, both the power pack and the
work tool might be harmed. Check the "Technical
data" in this instruction book and compare the
flow rate with the technical specifications in the
instruction book for the work tool.
Connecting hoses
Turn the by-pass valve to the OFF position and
stop the engine.
Make sure the couplings are clean and
serviceable.
Attach the return line hose and the feed line
hose.
Start the engine and run the power pack to fill
up the hydraulic circuit. Check the hydraulic oil
level.
Disconnecting hoses
Turn the by-pass valve to the OFF position and
stop the engine.
Remove the return line hose and the feed line
hose.
The couplings are unlocked by moving the collar
back on the coupling.
Hose length
For power packs giving a flow of 20 l.p.m. (5 US
gal/min), a maximum hose length of 21 m (69 ft)
is recommended. For power packs giving a higher
flow, a maximum hose length of 14 m (46 ft) is
recommended.
Normally, 7 m (23 ft) of Twin hose is used for the
power pack.
Twin hoses and other accessories are shown in the
spare parts list.







Safety and operating instructionsPAC P 9
133392 5182 83
How to check the hydraulic
system
To set or check the hydraulic oil flow and the
pressure relief valve we recommend using the
Chicago Pneumatic test equipment or similar test
equipment.
0-250 bar (0-3600 psi)
5-46 l.p.m. (1-12 US gal/min)
Part Number 3371 8011 54
Stop the engine (see "Stopping the engine").
Connect the test equipment to the power
pack. Male (B) to the return connector and
female (A) to the feed connector on the
power pack. Make sure that the loading
valve of the test equipment is fully open.
Start the engine (see "Starting the engine").
Move the by-pass valve on the power pack to
the ON position.
Turn the loading valve, until the gauge
shows approx. 70 bar (1000 psi) and allow
the power pack to warm up for 3-4 minutes.
Slowly close the loading valve, until the
pressure gauge shows a pressure of 100 bar
(1400 psi).
Check that the flow is according to the flow
rate in the technical specifications.
Note! The inaccuracy of the reading on the flow
meter is ±2 l.p.m. (±0.5 US gal/min). If the
performance is not in accordance with the
technical specifications for the power
pack, please see "Troubleshooting".
1.
2.
3.
4.
5.
6.
7.
Maintenance
General
Regular maintenance is a fundamental prerequisite
for the machine to continue to be safe and
efficient.
Do not use a machine that is due for regular
service. Rectify any defects found during regular
maintenance before clearing the machine for use.
Note! Maintenance must only be done by
suitably qualified and competent persons.
Before doing any maintenance, make sure
that the machine is safe and correctly sited
on the ground.
Daily
Clean and inspect the machine.
Check fuel lines, tank, fuel cap and fittings for
cracks or leaks. Replace if necessary.
Check for damage.
Check hydraulic oil level.
Check engine oil level.
Check hydraulic couplings.
Check hydraulic hoses.
Check hydraulic oil filter.
Note! When the filter gauge needle remains in
the red sector (while the engine is running
idle and the oil is service warm), the filter
must be replaced. The old filter is removed
by turning it clockwise (use a filter strap
wrench if necessary). Tilting the power
pack rearwards will minimise oil spilling.
Before mounting the new filter, it is
recommended to grease the surface of
the seal with oil in order to ease correct
tightening of the filter.
Note! Check tightness of nuts, bolts, screws and
hose fittings after the first days of
operation and thereafter in accordance
with the maintenance schedule.
Note! The engine oil should be replaced after the
first 8 hours of operation and thereafter in
accordance with the maintenance
schedule in the engine manufacturer's
operating and maintenance instructions.









14
PAC P 9Safety and operating instructions
3392 5182 83
Every 3 months
Check tightness of nuts, bolts, screws and hose
fittings.
Clean the air cleaner element (see engine
manufacturer's handbook).
Every 300 hours of operation or every
year
Change the hydraulic oil.
Change the hydraulic oil filter.
Disposal of used machine
A used machine must be treated and disposed of
in such a way that the greatest possible portion
of the material can be recycled and any negative
influence on the environment is kept as low as
possible.
Note! Before a used machine is scrapped, it must
be emptied and cleaned from all hydraulic
oil. Remaining hydraulic oil must be
deposited in a responsible manner.





Safety and operating instructionsPAC P 9
153392 5182 83
Troubleshooting
Problem Cause Solution
Engine turns over but
does not start No fuel Top up tank
Fuel line blocked Clear line
Ignition switch in OFF position Turn switch to ON
Low engine oil Top up
Fuel tap in the 0 position Turn tap to 1
Choke not tripped Trip choke
Engine malfunction Consult engine manual
Engine does not turn
over or is difficult to
turn
By-pass valve in the ON position Turn valve to OFF
Engine malfunction Consult engine manual
Low hydraulic oil level Damaged hoses Check and replace if necessary
Leaking connections Check for tightness/leaks
Defective hose couplings Replace couplings
Poor work tool
performance Low pressure relief valve setting Adjust valve
High back pressure Check hose system for blockage
Worn hydraulic pump Replace pump
Incorrect POD setting Adjust to increase engine speed
Frothy or creamy
coloured hydraulic oil Air or water in oil Check for loose connections on line to pump
Make sure that the filler cap on the tank is
not loose
Check that oil level is at the top of the
sight glass
Work tool runs hot Poor siting of power pack causing
warm air to recirculate Resite power pack for free air circulation
Blocked oil cooler Blow cooler clean. NEVER use a wire
brush
Defective fan Replace fan
Back pressure too high Check hose system
Work tool defective Check and service work tool
Power pack stops
suddenly Out of fuel Top up tank
Low engine oil, tripping oil alert Add engine oil

16
PAC P 9Safety and operating instructions
3392 5182 83
Technical data
Dimensions Height 585 mm (23.0 in)
Width 525 mm (20.7 in)
Length 680 mm (26.8 in)
Weight Incl. oil 65 kg (143 lb)
Hydraulics Flow 20 l.p.m. (5 US gal/min)
E.H.T.M.A. category C
Nominal pressure 120 bar (1800 psi)
Standard pressure setting 150 bar (2200 psi)
Circuit type Open centre
Pump type Gear pump, directly driven from the engine
crankshaft by means of a flexible coupling
Oil tank capacity 5 litres (1 US gal)
Filtration 25µ filter in return line. Filter by-pass valve in valve
block
Cooling system Thermostatically controlled air blast oil cooler
Engine Type Honda GX 270 QX, air cooled 1 cylinder 4-stroke
petrol engine with oil alert system and transistor
ignition system
Performance 9 HP (6.6 kW) at 3600 rpm
Fuel Unleaded petrol
Engine oil Consult engine manual
Fuel tank 6 litres (1.5 US gal)
Starter Recoil handstart

Safety and operating instructionsPAC P 9
17
3392 5182 83
Noise data
Model
Total emitted A-weighted sound power level Sound pressure
level
1 m LPA
dB re 20 µPa
Measured
LWAm
dB re 1 pW
Declared
LWAd
dB re 1 pW
Guaranteed
LWAg
dB re 1 pW K value dB
PAC P 9 99 100 101 1.2 88
Sound power level:
In accordance with Directive 2000/14/EC.
The measured sound power level is based on max. rpm = 2850 and a pressure of 110 bar (1600 psi).
Sound pressure level:
In accordance with EN/ISO 11203.
Noise declaration statement
Guaranteed sound power level in accordance with directive 2000/14/EC.
Sound pressure level in accordance with EN/ISO 11203.
Please see table "Noise data".
These declared values were obtained by laboratory type testing in accordance with the stated directive
or standards and are suitable for comparison with the declared values of other tools tested in accordance
with the same directive or standards. These declared values are not adequate for use in risk assessments,
and values measured in individual work places may be higher. The actual exposure values and risk of harm
experienced by an individual user are unique and depend upon the way the user works, in what material
the machine is used, as well as upon the exposure time and the physical condition of the user, and the
condition of the machine.
We, Chicago Pneumatic, cannot be held liable for the consequences of using the declared values, instead of
values reflecting the actual exposure, in an individual risk assessment in a work place situation over which
we have no control.

SommairePrescriptions de sécurité et instructions pour l’opérateur
18 3392 5182 83
FRANÇAIS
Sommaire
PRESCRIPTIONS DE SÉCURITÉ ...............................................20
Symboles de sécurité utilisés .................................................20
Équipements de protection individuelle ........................................20
Dangers liés au fonctionnement de la machine...................................20
Dangers liés à la fumée et aux gaz d'échappement................................21
Dangers liés à l’huile hydraulique et à la lubrification ..............................21
Danger d'incendies et d'explosions............................................21
Danger lié au bruit .........................................................21
Danger lié aux modifications sur la machine .....................................22
Prescriptions de sécurité supplémentaires .......................................22
Entretien et maintenance ....................................................22
INSTRUCTIONS POUR L'OPÉRATEUR .........................................23
Conception et fonctionnement ...............................................23
Principales pièces ..........................................................23
Signes et étiquettes sur la machine ............................................23
Actions à entreprendre avant le démarrage ......................................24
Marche/arrêt..............................................................25
Commande hydraulique et connecteurs ........................................26
Branchement/débranchement des flexibles......................................26
Comment contrôler le système hydraulique .....................................27
Maintenance..............................................................27
Destruction d'une machine usagée ............................................28
Recherche de pannes .......................................................29
Caractéristiques techniques ..................................................30
Données acoustiques .......................................................31
Énoncé déclaratif sur le bruit .................................................31

Prescriptions de sécurité et instructions pour l’opérateurPAC P 9
193392 5182 83
Introduction
Nous vous remercions d’avoir choisi Chicago Pneumatic comme fournisseur
d’outils et de services.
Chicago Pneumatic est une société internationale qui offre une vaste gamme
d’outils pneumatiques et hydrauliques comprenant brise-béton, trépans, marteaux
burineurs, marteaux-bêches, pioches et défricheuses, bouchardeuses, pompes et
bien d’autres outils.
En 2001, la société d’outillage Chicago Pneumatic a fêté son 100ème anniversaire
comme pionnier et leader sur le marché de l’industrie des outils pneumatiques.
Chicago Pneumatic a toujours misé sur la fourniture de produits puissants et
fiables, faciles à entretenir et ayant un bon rapport qualité-prix. Cette philosophie
nous a permis de devenir leader sur le marché des outils pneumatiques aux États-
Unis.
Plus d’informations sur www.cp.com
À propos des prescriptions de sécurité
et des instructions pour l'opérateur
Ces instructions ont pour objectifs de vous apprendre à utiliser le produit de
manière efficace et en toute sécurité. Ces instructions vous fournissent également
des conseils et vous indiquent comment effectuer l'entretien régulier de votre
produit.
Vous devez lire ces instructions attentivement et les comprendre avant d'utiliser le
produit pour la première fois.

20
PAC P 9Prescriptions de sécurité et instructions pour l’opérateur
3392 5182 83
PRESCRIPTIONS DE
SÉCURITÉ
Afin de réduire au minimum tout risque de
blessures graves ou d'accident mortel, pour vous-
même ou votre entourage, nous vous invitons à
lire attentivement ces consignes de sécurité avant
d'utiliser la machine.
Affichez les consignes de sécurité sur les différents
sites de travail ; faites en des copies pour les
employés et assurez-vous que chaque personne
concernée a bien lu les prescriptions de sécurité
avant d'utiliser ou d'intervenir sur la machine.
Suivre attentivement les consignes de sécurité
contenues dans ce manuel. Toutes les prescriptions
de sécurité sont conformes aux règlements et
directives applicables dans l’Union Européenne.
Veuillez également respecter les directives
nationales ou régionales, le cas échéant.
Dans les pays qui ne font pas partie de l’Union
Européenne, il convient d'appliquer les statuts et
réglementations locales en vigueur. Toute loi ou
réglementation complémentaire doit également
être observée.
Symboles de sécurité
utilisés
Les indications Danger, Attention et Prudence
ont les significations suivantes :
Danger
Indique une situation
dangereuse imminente
qui, si elle n'est pas évitée,
provoquera la mort ou des
blessures graves.
Attention
Indique une situation
dangereuse qui, si elle
n'est pas évitée, pourrait
provoquer la mort ou des
blessures graves.
Prudence
Indique une situation po-
tentiellement dangereuse
qui, si elle n'est pas évitée,
pourrait provoquer des
blessures mineures ou mo-
dérées.
Équipements de protection
individuelle
Utilisez toujours des équipements de protection
individuelle homologués. Les opérateurs ainsi que
toute autre personne présente dans la zone de
travail doivent porter un équipement de protection
individuelle comprenant au minimum :
des protections auditives.
Si la machine est utilisée pour alimenter des
broyeurs, des tronçonneuses ou tout autre outil
de ce type, vous devez utiliser également les
équipements de protection suivants :
un casque de protection.
des lunettes de protection résistant aux chocs
avec protection latérale.
un appareil de protection respiratoire, le cas
échéant.
des gants de protection.
des chaussures de sécurité.
Dangers liés au
fonctionnement de la
machine
Attention
Dans des conditions d'utilisation normale, les
différents éléments du moteur et en particulier
le système d'échappement, chauffent - NE PAS
TOUCHER. L'huile hydraulique, la pompe, la
soupape et le réservoir peuvent alors atteindre
des températures élevées pouvant provoquer des
brûlures graves - NE PAS TOUCHER.
Danger
L'essence est un produit inflammable - ne pas
approcher de la machine une flamme nue. Ne
fumez pas lorsque vous faites le plein d'essence de
la machine ou que vous intervenez sur le moteur.
Ne remettez pas d'essence pendant que le moteur
tourne. Coupez le moteur et laissez-le refroidir
pendant au moins 2 minutes avant de remettre
de l'essence. Ne remplissez pas le réservoir à ras
bord. Remplissez le réservoir jusqu'à environ 30-
40 mm (1-1.5 in) du bord, afin de tenir compte de
l'expansion de l'essence.
Attention
Le réglage du clapet de décharge sur la machine
peut, dans certains cas être supérieur à la valeur
maximum préconisée pour la catégorie E.H.T.M.A.
(voir « catégorie E.H.T.M.A. »).
Un réglage trop élevé du clapet de décharge peut
endommager l'outil utilisé.






