CHIEF PAC735 User manual

INSTALLATION INSTRUCTIONS
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Secure Storage Cabinet
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
PAC735

PAC735 Installation Instructions
2
DISCLAIMER
Milestone AV Technologies and its affiliated corporations and
subsidiaries (collectively "Milestone"), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief® is a registered trademark of Milestone AV Technologies.
All rights reserved.
IMPORTANT WARNINGS AND
CAUTIONS!
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all equipment stored within the PAC735 does not exceed 40
lbs (18.14 kg).

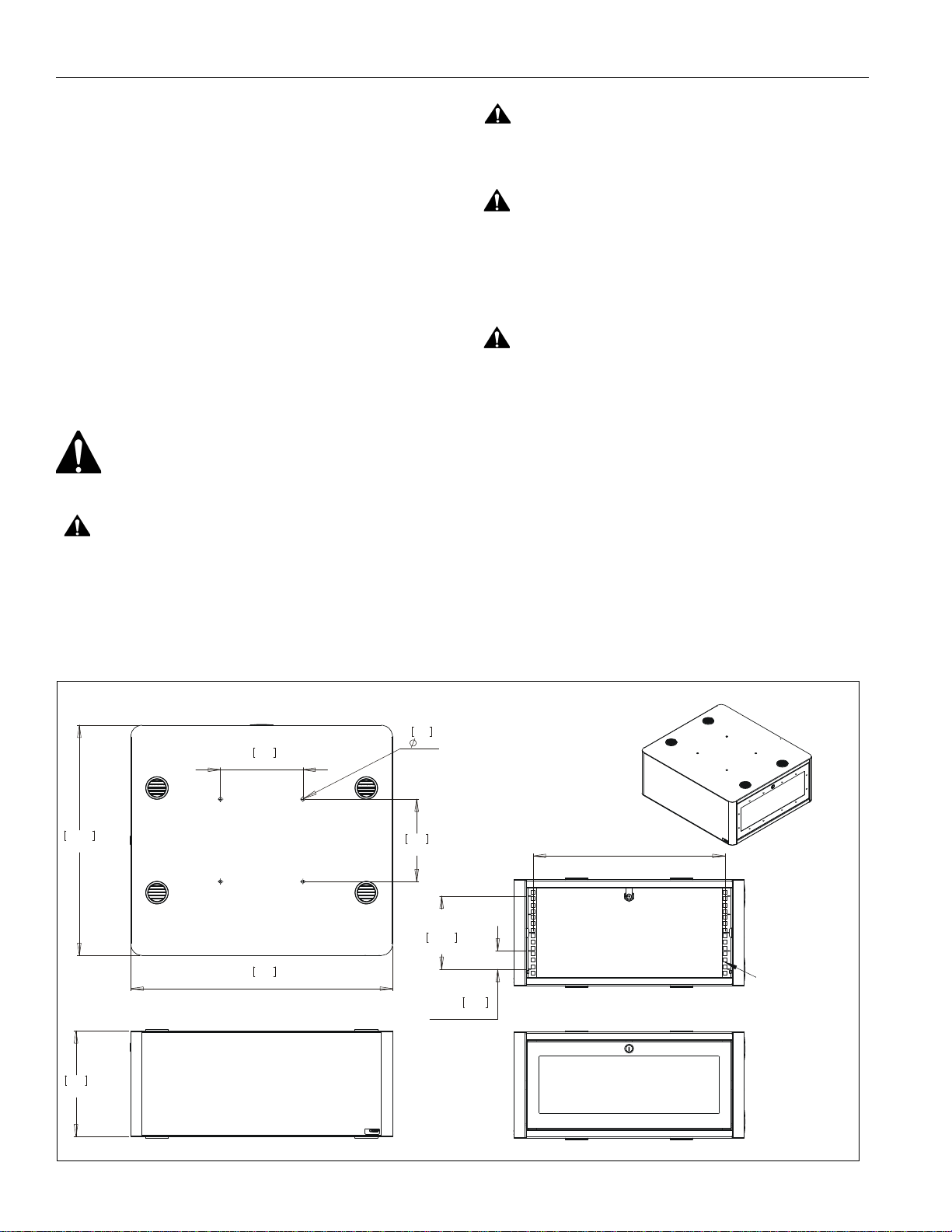

DIMENSIONS
10.12
257
22.00
558.8
25.00
635
7.87
200
7.87
200
0.33
8.4
1U = 1.75
44.5
7.00
177.8
4U RACK
SPACING
19" RACK SPACING
DOOR NOT SHOWN
SUITED TO 10-32 UNF
CAGE NUTS
SCALE 1:10
MAX RACK DEPTH = 20"

Installation Instructions PAC735
3
LEGEND
Tighten Fastener
Apretar elemento de fijación
Befestigungsteil festziehen
Apertar fixador
Serrare il fissaggio
Bevestiging vastdraaien
Serrez les fixations
Loosen Fastener
Aflojar elemento de fijación
Befestigungsteil lösen
Desapertar fixador
Allentare il fissaggio
Bevestiging losdraaien
Desserrez les fixations
Phillips Screwdriver
Destornillador Phillips
Kreuzschlitzschraubendreher
Chave de fendas Phillips
Cacciavite a stella
Kruiskopschroevendraaier
Tournevis à pointe cruciforme
Open-Ended Wrench
Llave de boca
Gabelschlüssel
Chave de bocas
Chiave a punte aperte
Steeksleutel
Clé à fourche
By Hand
A mano
Von Hand
Com a mão
A mano
Met de hand
À la main
Hex-Head Wrench
Llave de cabeza hexagonal
Sechskantschlüssel
Chave de cabeça sextavada
Chiave esagonale
Zeskantsleutel
Clé à tête hexagonale
Pencil Mark
Marcar con lápiz
Stiftmarkierung
Marcar com lápis
Segno a matita
Potloodmerkteken
Marquage au crayon
Drill Hole
Perforar
Bohrloch
Fazer furo
Praticare un foro
Gat boren
Percez un trou
Adjust
Ajustar
Einstellen
Ajustar
Regolare
Afstellen
Ajuster
Remove
Quitar
Entfernen
Remover
Rimuovere
Verwijderen
Retirez
Optional
Opcional
Optional
Opcional
Opzionale
Optie
En option
Security Wrench
Llave de seguridad
Sicherheitsschlüssel
Chave de segurança
Chiave di sicurezza
Veiligheidssleutel
Clé de sécurité

PAC735 Installation Instructions
4
TOOLS REQUIRED FOR INSTALLATION
PARTS
1/2" (12.7mm)
3/16"
A(1) B(1) C(2)
D(1) E(1)
[Front cross bar]
[Storage Cabinet] [Left wedge plate] [Right wedge plate]
[Clamp bracket]
F(1)
[Rear cross bar]
G(4)
5/16-18 x 5/8" H(4)
5/16-18 x 1" J(12)
5/16-18" K(2)
[Key]

Installation Instructions PAC735
5
Assembly And Installation

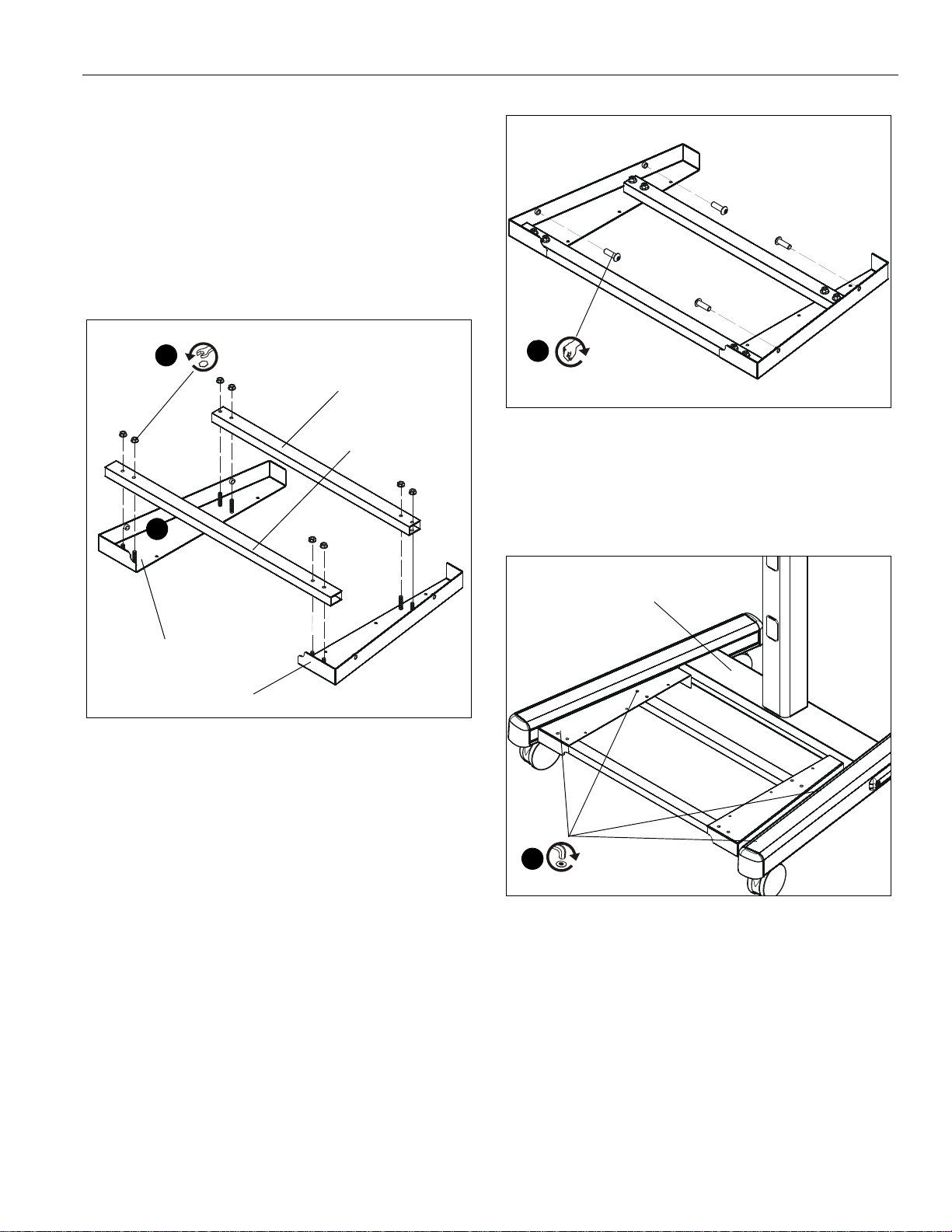

Assemble Base Support
1. Placeleftwedgeplate(B)andrightwedgeplate (C) on a flat
surface with threaded bolts facing up. (See Figure 1)
2. Place front cross bar (E) and rear cross bar (F) on top of
wedge plates and insert bolts through corresponding holes
on cross bars. (See Figure 1)
3. Install eight 5/16-18" hex nuts (J) over each threaded bolt
and tighten until cross bars are secured to wedge plates.
(See Figure 1)
Figure 1
Attach Base Support to Cart/Stand
1. Partially install four 5/16-18 x 1" button head cap screws
into holes on wedge plates. DO NOT TIGHTEN! (See
Figure 2)
NOTE: Screws should protrude approximately 1/8" beyond
wedge plate edge in order to comfortably sit on cart/
stand grooves in next step.
Figure 2
2. Place support plate inside legs of cart/stand. (See Figure 3)
3. Thread four 5/16-18 x 1" button head cap screws (H) from
Step 1 further into cart/stand until base support is secured
to cart/stand. (See Figure 3)
Figure 3
3
2
(J) x 8 (F)
(E)
(B)
(C)
1
(H) x 4
cart/stand
3
(H) x 4

PAC735 Installation Instructions
6

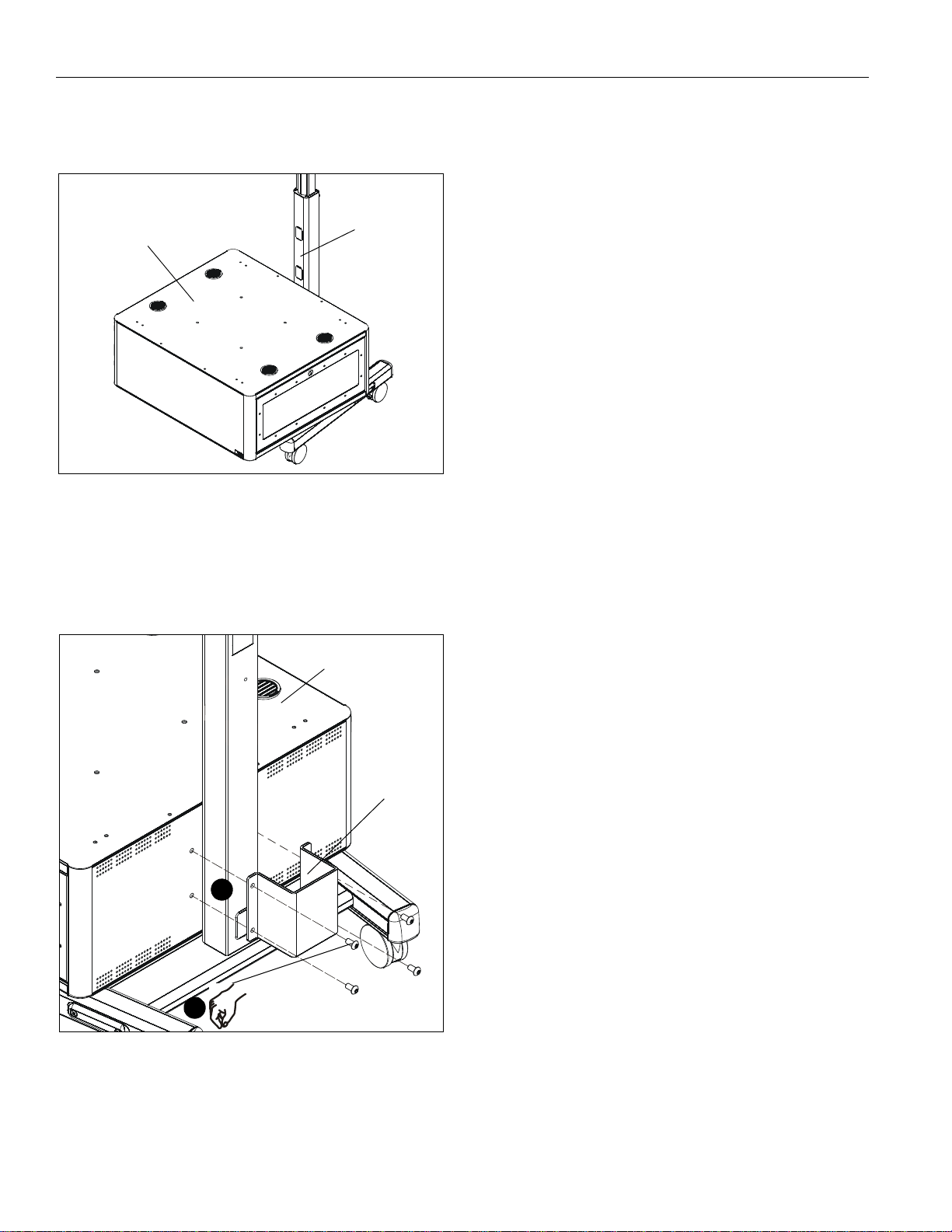

Mount Storage Cabinet
1. Place storage cabinet (A) on top of base support. (See
Figure 4)
Figure 4
2. Place clamp bracket (D) around cart/stand and line up with
holes on back of storage cabinet (A). (See Figure 5)
3. Insert four 5/16-18 x 5/8" button head cap screws (G)
through clamp bracket holes and into holes on back of
storage cabinet (A). (See Figure 5)
Figure 5
4. Open either door on accessory to install remaining four 5/
16-18" hex nuts (J) onto screws (G) until accessory is fully
secured to cart/stand.
NOTE: Up to three storage cabinets can be stacked vertically
on top of each other per cart/stand. Repeat steps 1-4
for additional cabinets and use holes on top of cabinets
to bolt cabinets together.
Rack Installation (Optional)
1. Open windowed door.
2. Slide rack equipment (not included) into storage cabinet.
NOTE: Each storage cabinet supports 19" (483 mm) wide rack
mount equipment and has a capacity of 4 U.
3. Use #10-32 cage nuts (not included) to secure storage
racks to storage cabinet.
(A) cart/stand
(A)
(rear view)
(D)
(G) x 4
3
2

Installation Instructions PAC735
7
