Chill Station Water and Beverage Dispenser User manual

CS00101‐09
Keepthisguide
inaconvenientlocation
forfutureuse.



ChillStation
WaterandBeverageDispenser
User’sGuide









9SAFEUSE
9TIPSFORTROUBLEFREEOPERATION
9CAREANDCLEANING





ChillStation.com

2

























©2009Al’sBeverageCompany.Allrightsreserved.

3
Contents

ImportantSafetyInformation.........................................................................................................4
SelectingtheRightLocation...........................................................................................................5
UseaGroundedElectricalOutlet...................................................................................................5
SettingUpYourChillStation...........................................................................................................5
LearningabouttheFeaturesandControls.....................................................................................6
TipsforTrouble‐FreeOperation.....................................................................................................8
LoadingaBottleofWater...............................................................................................................9
LearningabouttheSyrupCartridges............................................................................................10
LoadingandRemovingSyrupCartridges......................................................................................11
CleaningtheChillStation..............................................................................................................14
SanitizingtheWaterDeliverSystem.............................................................................................16
TroubleshootingTips....................................................................................................................17
DisposingoftheChillStation........................................................................................................19
Warranty.......................................................................................................................................19






4
ImportantSafetyInformation
WARNING!Readandensureyouunderstandallthesafetyandoperating
instructionsinthisuserguidebeforeusingtheChillStation.

UsingtheChillStationinanunsafemannercancausebodilyinjuryordeathduetocrushing,electric
shock,andfire.Followthesesafeoperatingpracticestoreducetheriskofbodilyinjuryanddeath:

SafeInstallationPractices
•InstalltheChillStationaccordingtotheinstructionsbeforeusingit.
•UseonlythepowercordprovidedwiththeChillStation.Plugitintoagrounded,
3‐prong,115‐volt,60‐cycleelectricaloutlet.
KeepChildrenSafe
•SupervisechildrenwhentheyusetheChillStation.
•DonotallowchildrentoclimborhangontheChillStation.
•IfasyrupadjustingknoboranysmallpartbreaksfreeoftheChillStation,itcouldbecome
achokinghazardtosmallchildren.Donotallowchildrentoplaywithsmallparts
ifonebreaksfreefromtheChillStation.
SafeOperationPractices
•UseonlywithbottleddrinkingwaterandChillStationbrandsyrupcartridgesintheChillStation.
•DonotstoreoruseflammableliquidssuchasgasolineinthevicinityoftheChillStation.
•BeforecleaningtheChillStationorloadingwaterbottlesontheChillStation,movethepump
andrefrigeratorpowerswitchesonthebackofthecabinettotheOffpositionanddisconnect
thepowercord.
•DonotremovethecabinetpanelsorperformserviceonChillStation.
•MovethepumpandrefrigeratorpowerswitchestotheOffpositionwhennowaterbottle
isinplace.





!

5
SelectingtheRightLocation
Selectalocationthatisdry,level,andoutofdirectsunlight.Thelocationshouldremainbetween
50°F(l0°C)andl00°F(38°C).
PlacetheChillStationoutofthewayofpedestrianflowandinalocationthatwillsafelysupport
itsweightincludinga5‐gallonwaterbottle.
Allow2inchesofspacebetweentheChillStationandwallsorotherappliancesforaircirculation.The
ChillStationisdesignedforinterioruse.DonotusetheChillStationinoutsidelocations.

UseaGroundedElectricalOutlet
WARNING!IfyoudonotproperlygroundtheChillStation,youcanreceivea
seriouselectricalshockresultingininjuryordeath.Topreventelectricalshock,ensureyou
plugtheChillStationintoagroundedelectricaloutletasdescribedbelow.
TheChillStationusesagroundedpowercordanda3‐prongelectricalplugtoprotectagainstelectrical
shock.Plugthepowercordintoagrounded,115‐volt,60‐cyclepowerreceptacle.
Donotdefeatthegroundingbyremovingthegroundingprongfromtheplugorbyusinganadaptor.
DonotusetheChillStationwithastandard2‐prongreceptacle.
DonotuseadaptorsorextensioncordswiththeChillStation’spowercord.TheChillStationshouldhave
itsowndedicatedelectricaloutlet.

SettingUpYourChillStation
YournewChillStationincludesthesecomponents:
•FullyassembledChillStation
•Thisuserguide
•Quick‐startguide
Beforesettingupyourchillstation,readthisuserguidecompletely.ThensetupyouChillStationusing
thesuppliedQuick‐StartGuide.Consultthisuserguidefordetailedoperatingandcareinstructions.
Keepthisguideinaconvenientlocationforfutureuse.Troubleshootingtipsarelocatedattheendof
thisuserguideandonourwebsiteatChillStation.com
!

6
LearningabouttheFeaturesandControls

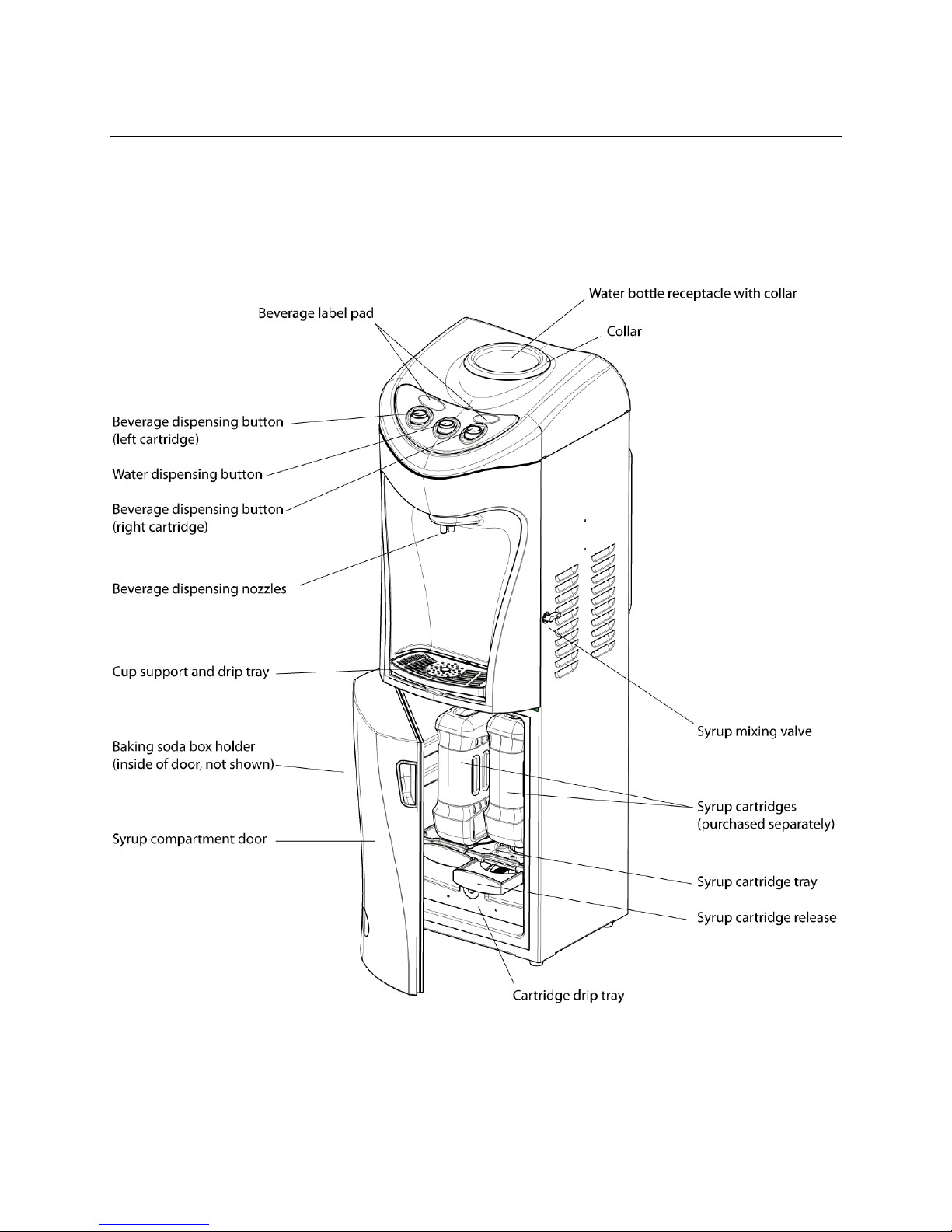

LocationandNamesofComponentsandControls—FrontSide




7

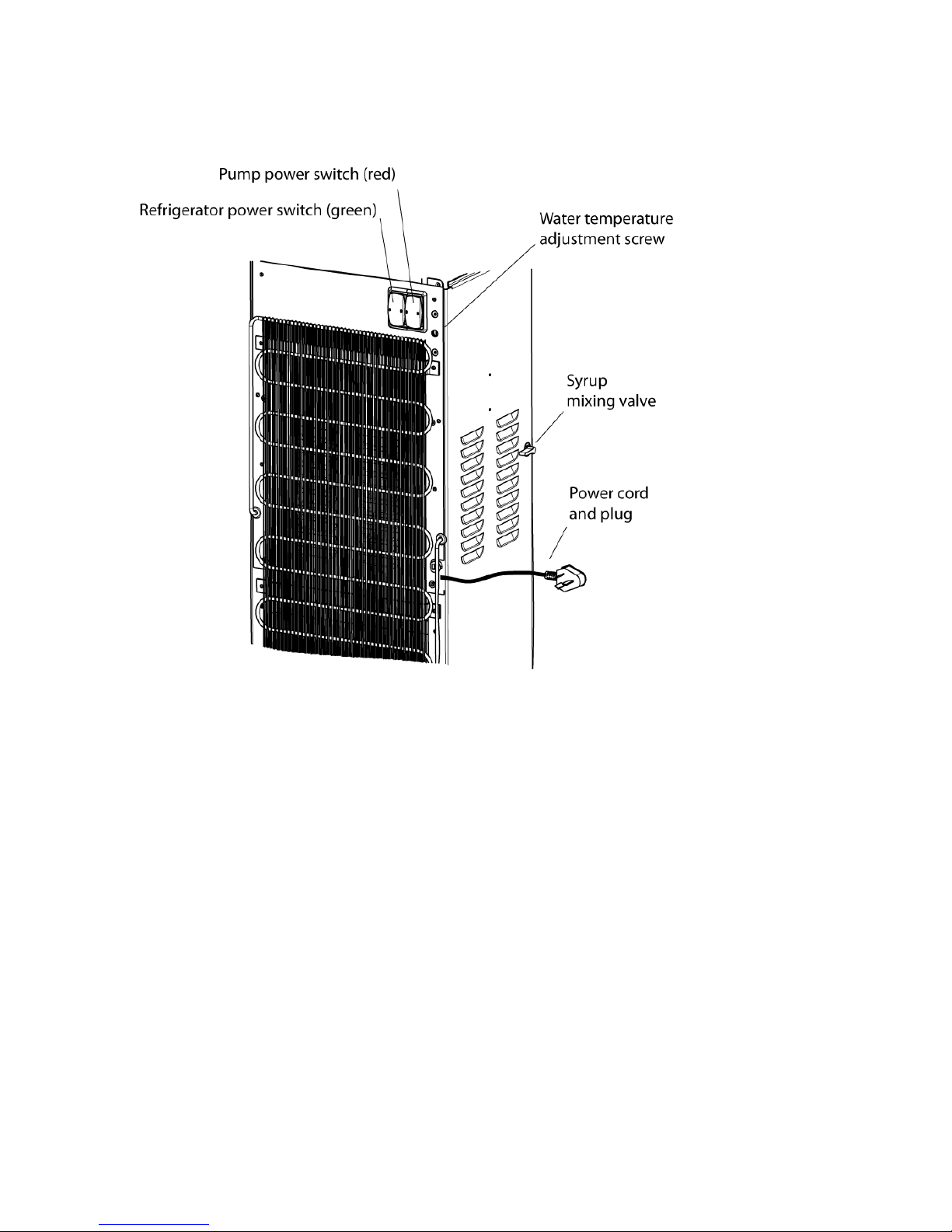

LocationandNamesofComponentsandControls—BackSide




WaterTemperatureAdjustmentScrew
Thewatertemperatureadjustmentscrewnotedaboveissetatthefactorytoprovidechilledwater.
Ifthewateristoowarmorcoldforyourpreference,youcanadjustthewatertemperature.
Useamedium‐sizedscrewdrivertoturnthescrew1/8‐turnclockwisetolowerthewatertemperature
or1/8‐turncounterclockwisetoraisethetemperature.WaitanhourwithoutusingtheChillStation
andcheckthewatertemperature.Ifneeded,continuetoadjustthewatertemperaturefollowing
thisprocedure.



8
TipsforTrouble‐FreeOperation
CAUTION!Syrupcanstainfloors,countertops,clothing,rugs,plastics
andothermaterials.Cleansyrupspillsimmediatelywithwarmwaterandmild
detergenttoavoidstaining.

•KeeptheChillStationFresh—Keepthesyrupcompartmentfreshbyplacingabox
ofbakingsodaintheboxholderontheinsideofthedoor.Changetheboxasrecommended
foruseinyourrefrigerator.
•GettingtheDesiredFlavor—Samplethebeverageforflavorafterinstallingasyrupcartridge.
Adjustthesyrupmixingvalveandsampleagainforflavor.Repeatthisprocessuntilthedesired
flavorisachieved.


Place a new, opened box of baking soda inside the
syrup compartment door to maintain freshness in
the syrup compartment. Replace as recommended
for use in your refrigerator.
Clean up syrup spills immediately
to minimize risk of staining.
!

9
LoadingaBottleofWater
Warning!Ifyouspillwaterintothecabinetwhileloadingabottleofwateronto
thewaterbottlereceptacle,youcouldreceiveanelectricalshockresultingininjuryor
death.Topreventreceivinganelectricalshockwhenloadingabottleofwater,movethe
twopowerswitchesonthebackoftheChillStationtotheOffpositionanddisconnectthepower
cord.Avoidspillingwaterintothecabinet.
Caution!Ifyouarereplacinganexistingwaterbottle,ensurethewaterlevel
inthewatertankislowenoughtoavoidoverflowingthetankwhenthenewbottleis
insertedinthereceptacle.

FollowthesestepstoloadabottleofwaterontheChillStation:
1. MovebothpowerswitchesonthebackoftheChillStationtotheOffposition.
2. Unplugthepowercord.
3. Wipethetopofthebottlewithaclothtoremovedustanddirt.
4. Removeanylabelsthatsealthespoutorvalveofthewaterbottle.Note—Seethewatersupplier
instructionsifneeded.
5. PlacethewaterbottleontopoftheChillStation’sbottlereceptacleandpushdownifneeded
toletthepiercingpinpenetratethebottlecap.Thebottleshouldbecenteredandrestingon
thecollarofthebottlereceptacle.
6. Wipeupanyspills.
7. Pluginthepowercord.
8. Movebothpowerswitchesontheback
oftheChillStationtotheOnposition.

Note—TheChillStationwillcoolthewater
tothedesiredtemperatureinaboutonehour.


!
!

10
LearningabouttheSyrupCartridges
Caution!Syrupcanstainfloors,countertops,clothing,rugs,plastics
andothermaterials.Cleansyrupspillsimmediatelywithwarmwaterandmild
detergenttoavoidstaining.
WheretoPurchaseSyrupCartridges
Youcanpurchasesyrupcartridgesthreeways:onlineatChillStation.com,bycallingcustomerserviceat
Al’sBeverageat1‐860‐627‐7003,oratfoodandbeverageretailersnotedonourwebsite.
UsingandStoringSyrupCartridges
Syrupcartridgesarereadytouseandincludeafood‐gradesiliconsealinthecap.Thecapisself‐sealing,
so,ifdesired,youcansafelyremoveandstoreapartially‐usedsyrupcartridgeforuseatalaterdate.
Note—Somesyrupcandripfromthesealduringremoval.Syrupcanstainfloors,countertops,clothing,
rugs,plastics,andothermaterials.Cleansyrupspillsimmediatelywithwarmwaterandmilddetergent
toavoidstaining.
Storesyrupsatroomtemperature(50to70°F).Storageattemperaturesoutsideofthisrangecan
shortentheshelflifeoralterthetasteandusabilityofthesyrup.
ABestifUsedBy(BIUB)dateisprintedoneachcartridge.
Thetypicalmixratioformostproductsis5partswaterto1partsyrup.Syrupcartridgestypicallyhold64
ouncesofsyrup.Soamixratioof5+1producesabout3gallonsoffinishedbeveragefromacartridge.
Note—Refertothelabelonyoursyrupcartridgefortherecommendedmixratio.




!

11
LoadingandRemovingSyrupCartridges
Caution!Whenyoupushasyrupcartridgeinplace,thebeveragecanmomentarily
spurtfromitsbeveragedispensingnozzle.Toavoidaspill,placeacupunderthedelivery
nozzletocatchanyflow.
LoadingaSyrupCartridge
FollowthesestepstoloadasyrupcartridgeintotheChillStation:
1. Removeasyrupcartridgefromitsbox.
2. Placealargecupunderthedeliverynozzle.
3. Openthecartridgecompartment.
4. Invertbottleovercartridgetray
5. Insertbottleintooneoftheholesinthetray
6. Placethesuppliedflavoridentificationstickeronthedispensingbuttonlabelpad
7. Placeacupunderthedeliverynozzle.
8. Pressthedispensingbuttonuntilyoucanseethebeverageflowfromthedispensingnozzle.
Thisflushesair,cleaningsolution,orthepreviousbeveragefromthedeliveryline.
Note—Severalouncesofclearwatermaybedispensedpriortoreceivingthefinishedbeverage.
9. Disposeofthebeveragecollectedduringflushing.



!!

12

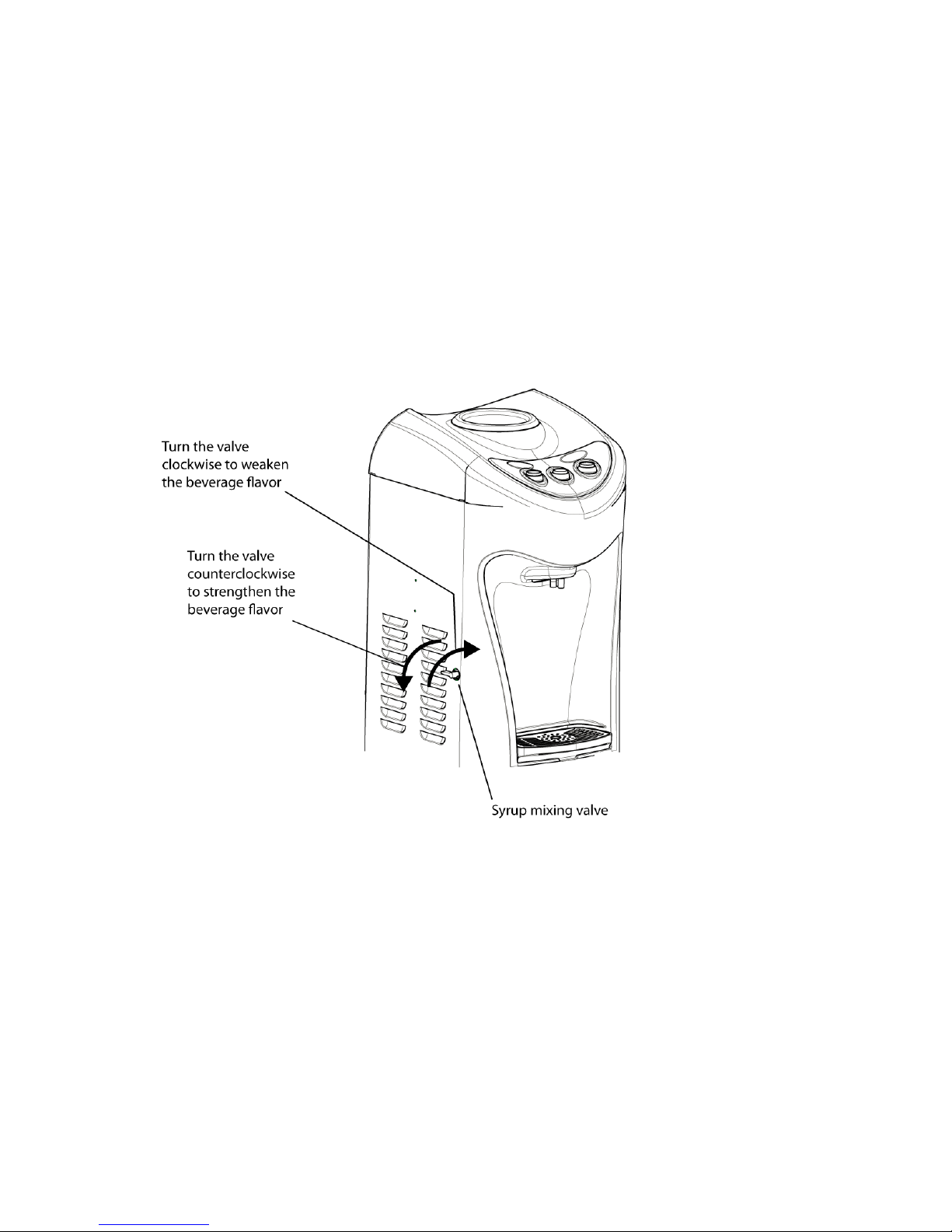

AdjustingtheTasteoftheBeverage
Afterinstallinganewsyrupcartridgeandflushingthebeveragethroughtothedispensingnozzle,adjust
thetasteofthebeveragefollowingthesesteps:
1. Samplethebeverageforflavor.
2. Iftheflavoristooweak,turnthesyrupmixingvalveslightlycounterclockwise.Iftheflavor
istoostrong,turnthesyrupmixingvalveslightlyclockwise.
3. Samplethebeverageforflavor.
4. Repeatstep2and3untilyouachievethetasteyoudesire.
5. Nofurtheradjustmentisneeded.






13

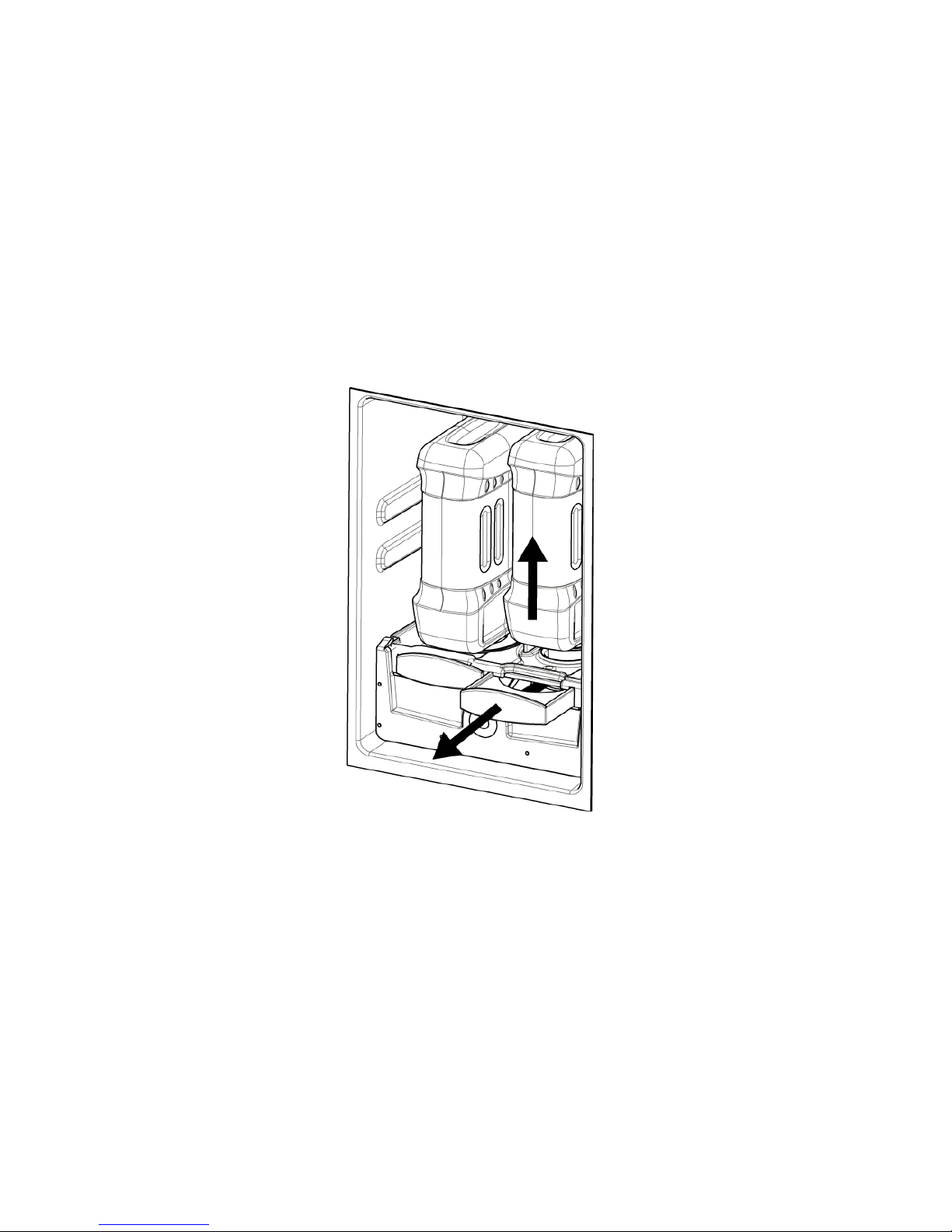

RemoveaSyrupCartridge
Youcanremoveasyrupcartridgebeforeitisempty,storingitforlateruse.Followthesestepsto
removeasyrupcartridgefromtheChillStation:
1. Holdreceivingtrayinplacewithonehandwhileyoupullthecartridgereleaseleverout
toraisethecartridgeupoffthetray.
2. Withoutsqueezingthecartridgetoohard,rockthecartridgegentlywhileliftingthecartridge
straightupandoutofthetray.
3. Ifthebottleisempty,pleaserecycleit.
4. Ifthebottlecontainssyrupforlateruse,storeitcap‐sideup,inacooldrylocation.







14
CleaningtheChillStation
Warning!IfyouspillwaterintothecabinetwhilecleaningtheChillStation,
youcouldreceiveanelectricalshockresultingininjuryordeath.Topreventreceiving
anelectricalshockduringcleaning,movethetwopowerswitchesonthebackofthe
ChillStationtotheOffpositionanddisconnectthepowercord.Avoidspillingwaterintothecabinet.
TherearethreeelementstocleaningtheChillStation:
1. Cleaningthecabinet,driptrays,andcartridgetray(cleanasrequired)
2. Cleaningthewaterdeliverysystem(cleanevery3months)
3. Cleaningthesyrupdeliverysystem(cleanevery3months)
CleaningtheCabinet,DripTrays,andCartridgeTray
Asrequired,wipethecabinet’sexteriorwithacleanclothdampenedwithwater.Removethecupdrip
traybyliftingitoutandcleaningwithwarmwaterandmildsoap.
RemovedustfromthecoilsonthebackoftheChillStationusingasoftbrushoravacuumcleaner.
Followthesestepstocleanthecartridgetrayandcartridgedriptray:
1. Removethesyrupcartridgesfromthecartridgetray.
2. Removethecartridgetraybypushingitintowardsthebackofthecompartment,
thenliftingthefrontupandout.
3. WashthecartridgetrayandO‐ringsusingwarmwaterandamildsoap.
4. Applyathinfilmoffood‐gradesanitarylubricatesuchasHaynesLubri‐FilmtotheO‐rings.
5. Useacleanragmoistenedwithwaterto
wipesyrupoutofthecartridgedriptray.
6. Reinstallthecartridgetraybyanglingthe
backedgedownandpushingrearwardas
youpushthefrontedgedownwarduntilit
snapsintoplace.
7. Reinstallthesyrupcartridgesinthe
cartridgetray.
!

15
CleaningtheWaterDeliverySystem(RecommendedEveryThreeMonths)
Waituntilthewaterbottleisemptyandthenfollowthesestepstocleanthewaterdeliverysystem:
1. Placeacontainerunderthedispensingnozzleandpressthewaterdispensingbutton
untilnomorewaterflowsfromthewatertank.
2. MovethetwopowerswitchesonthebackoftheChillStationtotheOffposition
anddisconnectthepowercord.
3. Removetheemptywaterbottlefromthechillstation.
4. Placebothhandsonthecollarofthewaterbottlereceptacle,rotateitcounterclockwise
aboutone‐halfinch,andliftthebottlereceptaclefromtheChillStation.
5. Cleanthebottlereceptaclethoroughlybyhandusingwarmwaterandmildsoap.
6. Removeanyiceringsthatmaybepresentinthewatertank.
7. Gentlyandcarefullywipethetankcomponentsandtheinsideofthetankdrywith
acleanclothorpapertowels.
8. Replacethewaterreceptacleintothewatertankandrotateclockwiseuntillocksintoplace.
9. Installawaterbottleonthewaterbottlereceptacle.
10. Pluginthepowercord.
11. MovethetwopowerswitchestotheOnposition.
CleaningtheSyrupDeliverySystem(RecommendedEveryThreeMonths)
Everythreemonths,cleanthesyrupdeliverysystembyfollowingthesesteps:
1. Removetheleft‐handcartridgefromthecartridgetrayandinstallaChillStationcleaning
cartridge(availableanywhereyoucanpurchaseChillStationsyrupcartridges).
2. Placeacontainerunderthedispensingnozzlestocatchthecleaningsolution.
3. Presstheleft‐handbeveragedispensingbuttonuntil8ouncesoffluidisdispensed.
4. Removethecleaningcartridgeandstoreitcapsideupinacooldrylocation.
5. Continuetopressthedispensingbuttonfor10moresecondstofullyflushthelines.
6. Reinstallthesyrupcartridge.
7. Presstheleft‐handbeveragedispensingbuttonuntilthebeveragebeginstoflowfrom
thedispensingnozzle.
8. Continuetopressthedispensingbuttonfor10moresecondstofullyflushthelines
ofthecleaningsolution.
9. Repeatsteps1though8fortheright‐handsyrupdeliverysystem.
10. Storethecleaningcartridgecapsideupinacooldrylocation.



16
SanitizingtheWaterDeliverSystem
Periodically,dependingonusageandwaterquality,youshouldsanitizethewaterdeliverysystem
byfollowingthestepsbelow.
SanitizingtheWaterTank
1. MovethetwopowerswitchesonthebackoftheChillStationtotheOffpositionanddisconnect
thepowercord.
2. RemovethewaterbottlefromtheChillStation.
3. Placebothhandsonthecollarofthewaterbottlereceptacle,rotateitcounterclock‐wiseabout
one‐halfinch,andliftthebottlereceptaclefromtheChillStation.
4. Cleanthebottlereceptaclethoroughlybyhandusingwarmwaterandmildsoap.
5. Pluginthepowercordandmovethepumppowerswitch(red)onthebackoftheChillStation
totheOnposition.
6. Placeacontainerunderthebeveragedispensingnozzleandpressthewaterdispensingbutton
untilthewatertankishalfempty.
7. Movethepumppowerswitch(red)onthebackoftheChillStationtotheOffpositionand
disconnectthepowercord.
8. Mix½teaspoonofunscentedhouseholdbleachwith2quartsofwarmwater.[Usewarmwater
tomelticeringsinthewatertank.]
9. Pourthesanitizingsolutionintothewatertanksothatthelevelinthetankisatthetop
ofthestainlesssteelpartofthetank.
10. Allowthesolutiontositfor15to20minutesorlongertomelttheiceringsandsanitize
thetank.
11. Pluginthepowercordandmovethepumppowerswitch(red)onthebackoftheChillStation
totheOnposition.
12. Placeacontainerunderthedispensingnozzleandpressthewaterdispensingbuttonuntil
thetankiscompletelyempty.
13. Movethepumppowerswitch(red)onthebackoftheChillStationtotheOffposition
anddisconnectthepowercord.
14. Wipetheinsideofthewatertankdrywithacleanclothorpapertowels.
15. InstallafreshbottleofwaterfollowingtheprocedureinLoadingaBottleofWateronpage9.


17
TroubleshootingTips
ProblemPossibleCauseCorrectiveAction
Beveragesarenot
cold
Refrigerationswitchisoff.MoverefrigerationswitchtotheOn
position.
ChillStationwasjuststarted.Waitonehourforrefrigerationunit
tochillwater.
Highusageinashortperiodoftime. Waitforrefrigerationunittochill
freshwaterenteringwatertank.
Watertemperatureadjustmentscrew
turneddown.
Adjustwatertemperature
adjustmentscrew.
Airflowblockedatbackofcabinet.Ensure2inchesofunrestricted
clearanceisprovidedatthebackof
thecabinet.
Beveragedoes
notdispense
Waterbottleisempty.Replacewaterbottle.
Syrupcartridgeisempty.Replacesyrupcartridge.
Powercordisunplugged.Plugpowercordin.
Redpumpswitchisoff.MoveredpumpswitchtotheOn
position.
Syrupmixingvalveisclosed.Rotatesyrupmixingvalveclockwise
andfollowbeveragetasteadjustment
procedure.
Fuseisblownorcircuitbreakeristripped.Replacethefuseorresetthecircuit
breaker.
O‐ringinsyrupcartridgetrayisdamaged. Call1–888–ALS–SODAforsupport.
O‐ringinsyrupcartridgetrayisnot
properlylubricated.
Applyathinfilmoffood‐grade
sanitarylubricatesuchasHaynes
Lubri‐FilmtotheO‐ring.
Cartridgecapisdamagedorflawed.Applyathinfilmoffood‐grade
sanitarylubricatesuchasHaynes
Lubri‐FilmtotheO‐ring.
Waterdoesnot
tastefresh
Watertankandlineneedtobecleaned.Seethecleaningsectioninthisuser
guide.
Waterisnotfreshorcontaminated.Sanitizewatertankandensure
bottledwateriscleanandfresh.
Beveragesdonot
tastefresh
Watertank,waterline,syruptankand
syruplinesneedtobecleaned.
Seethecleaningsectioninthisuser
guide.
Syrupcartridgeisbeyonditsexpiration
date.
Replacesyrupcartridgewithfresh
cartridge.
Beveragestaste
toostrongortoo
weak
Syrupmixingvalvenotsetproperly.Adjustsyrupmixingvalvestoachieve
thedesiredtaste.
Syrupcartridgeisempty.Replacesyrupcartridge.
Syrupcartridgenotseatedproperly.Reinstallsyrupcartridgefollowing
instructionsinthisuserguide.

18
ProblemPossibleCauseCorrectiveAction
Syruplinesnotprimed.Placecontainerunderdispensing
nozzlesandpressbeverage
dispensingbuttonuntilbeverage
flowsfromthenozzle.
Odorincartridge
compartment
Cartridgetrayordrippanneedscleaning.Seecleaningsection.
Nobakingsodastoredincompartment.Placeaboxofbakingsodain
compartmentdoor.
Waterleakingon
outsideofcabinet
Waterbottlenotinsertedstraight.Reinsertbottlefollowinginstructions
inthisuserguide.
ChillStationnotlevel.LevelChillStation.
Crackorpinholeinwaterbottle.Replacewaterbottle.
Waterbottleinsertedintofullwatertank
causingoverflow.
Placeacontainerunderthe
dispensingnozzlesandpressthe
waterdispensingnozzletoremove
somewaterfromthewatertank.
Hummingnoise
whendispensing
waterorbeverage
Normal.N/A
Vibrationor
rattlingduring
use
Loosepanel.Tightenpanelscrews.
ChillStationonunevensurface.LevelChillStation.
Backofcabinettouchingwall.MoveChillStation2inchesfromwall.




19
DisposingoftheChillStation
YourChillStationusesanenvironmentally‐friendlyrefrigerant.However,shouldadayarrivethat
youmustdisposeofyourChillStation,youmuststillhaveanEPA‐certifiedtechnicianrecoverand
properlydisposeoftherefrigerant.Failuretoproperlyrecovertherefrigerantcanresultinfinesor
imprisonmentunderlaw.
Warranty
Al’sBeveragewarrantiestheChillStationforoneyearagainstdefectsinmaterialsandworkmanship.
IfyourChillStationdoesnotoperateproperly,readandfollowthetroubleshootingtipsprovidedinthis
userguide.IfyourChillstationstilldoesnotfunctionproperly,callthetechnicalsupportteamatAl’s
Beverageat1‐860‐627‐7003.
Iftheproblemcannotberesolvedbyourtechnicalsupportteam,youmustreturnyourChillStation
totheretailerfromwhichitwaspurchasedalongwithproofofpurchase.Al’sBeveragewillreplace
theChillStationwithaneworreconditionedunit.Youmustpayforshippingthereplacementunit
toyourhomeoroffice.
Thewarrantydoesnotcoverproblemsattributableto:
•Improperinstallationormaintenance
•Improperuse
•Abuseordamage
•Alterationsormodificationsmadebytheuser
•Dispensingdirtywaterunfitfordrinking
•Dispensingfluidsotherthansafedrinkingwater
•DispensingsyrupsotherthanChillStationsyrups

Al’sBeverageCompany
EastWindsor,CT
USA
www.alsbeverage.com
Telephone1–860–627–7003or1–888–ALS–SODA



















Notice
Allinformationinthisuserguideisbasedoninformationwebelievetobereliableatthetime
ofprinting.Al’sBeverageCompanyreservestherighttomakechangeswithoutpriornotice.
Becauseofdevelopmentsintechnology,theinformationandproceduresinthisuserguide
maybesubjecttochange.Consequently,weadviseuserstoconsulttheChillStationwebsite
(ChillStation.com)forthelatestinformation.





ChillStation.com

