Chipsee AIO-CM4-156 User manual

www.chipsee.com
www.chipsee.com
AIO-CM4-156
User Manual
Release 1.0
AIO-CM4-156 (CS19108RA4156A-N111) is an all-in-one desktop
computer based on Raspberry Pi CM4 – easy to use, perfect for
developers and makers who are accustomed to the Raspberry Pi
and are looking for a computer they can use on a daily basis.
It is fully compatible with the Raspberry Pi 4 Linux
distribution and offers the full Raspberry Pi GPIO connector
for further expansion.

www.chipsee.com
www.chipsee.com

www.chipsee.com
www.chipsee.com
Hardware Features
Key Features:
CPU Module Raspberry Pi CM4 Lite, Quad Cortex-A72 at 1.5GHz
Storage TF card slot for boot. Internal M.2 NVMe connector
for SSD card

www.chipsee.com
www.chipsee.com
RAM Default 2GB, can also be 1/4/8GB based on CM4 Lite
onboard
Display 15.6 inch IPS
LCD, 1920*1080 Pixel Resolutions, Brightness: 250nit
Touch Optional Ten-Point Capacitive Touch with 1.1mm
Armored Glass
USB 2 x USB 3.0 Host connector, 1 Type-C USB Slave
connector
LAN 1 Channel Giga LAN
HDMI HDMI 2.0 connectors, slave HDMI port for CM4
Audio 2W internal Stereo Speaker, 3.5mm Audio Out
Connector
Buzzer Internal Buzzer
RTC High accuracy internal RTC. The time can be kept for
one week after power off.
HAT
connector Standard Raspberry Pi 40-way HAT connector
Micro SD
Card socket For use only with CM4 Lite modules
WIFI/BT Available on the CM4
Camera A camera on the front panel. NOT mounted on by
default
Power Input 12V DC
Current @
12V 700 mA max
Power
Consumption 8.4W Typical

www.chipsee.com
www.chipsee.com
Working
Temperature0 0°- 50°C
OS Debian, Ubuntu
Dimension 374*238*33 mm
Weight 1600g
Plastic Case
Color Black
CS19108RA4156A-
N111

www.chipsee.com
www.chipsee.com

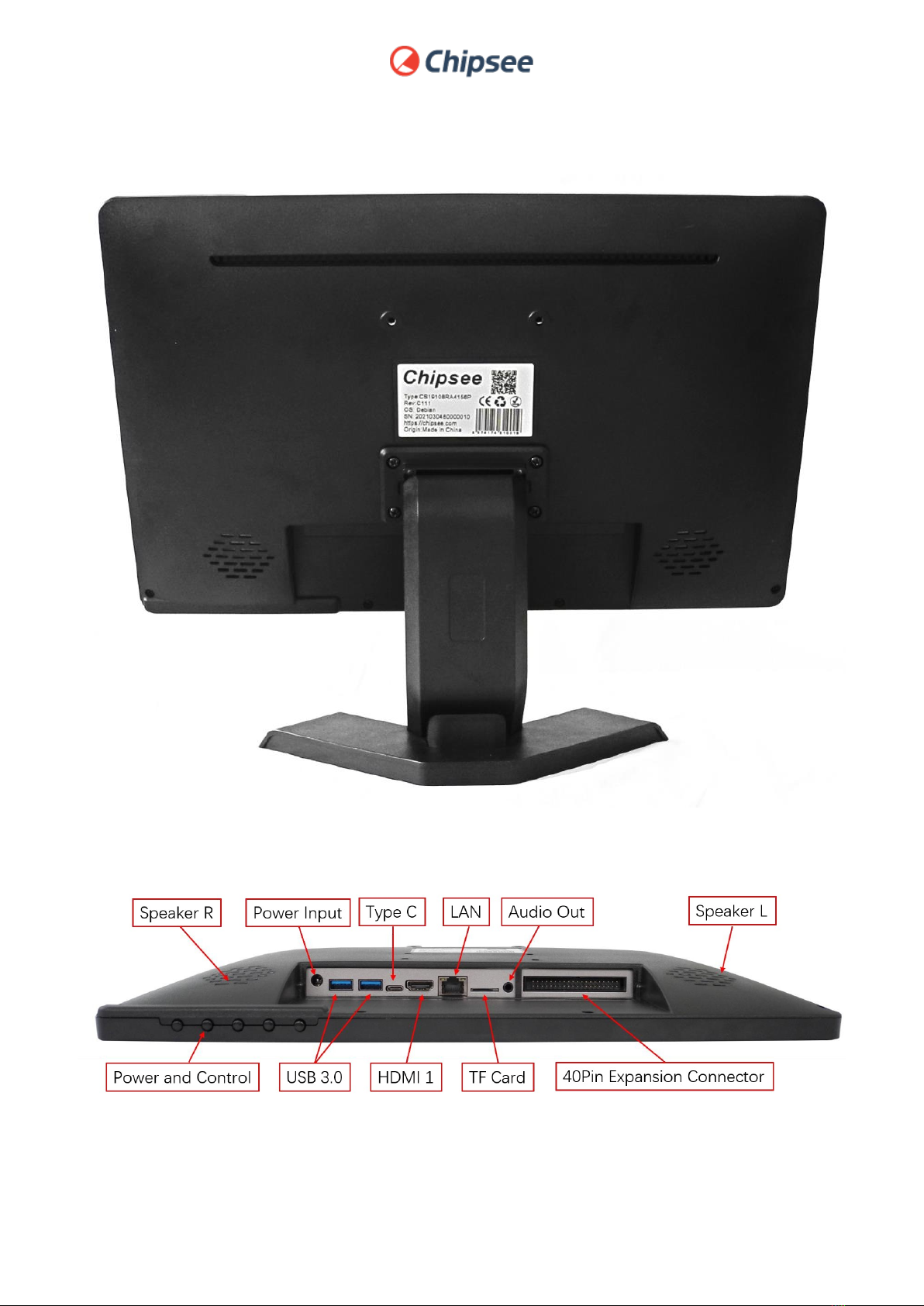

Figure 1: Front View (Debian)

www.chipsee.com
www.chipsee.com
Figure 2: Back View

www.chipsee.com
www.chipsee.com

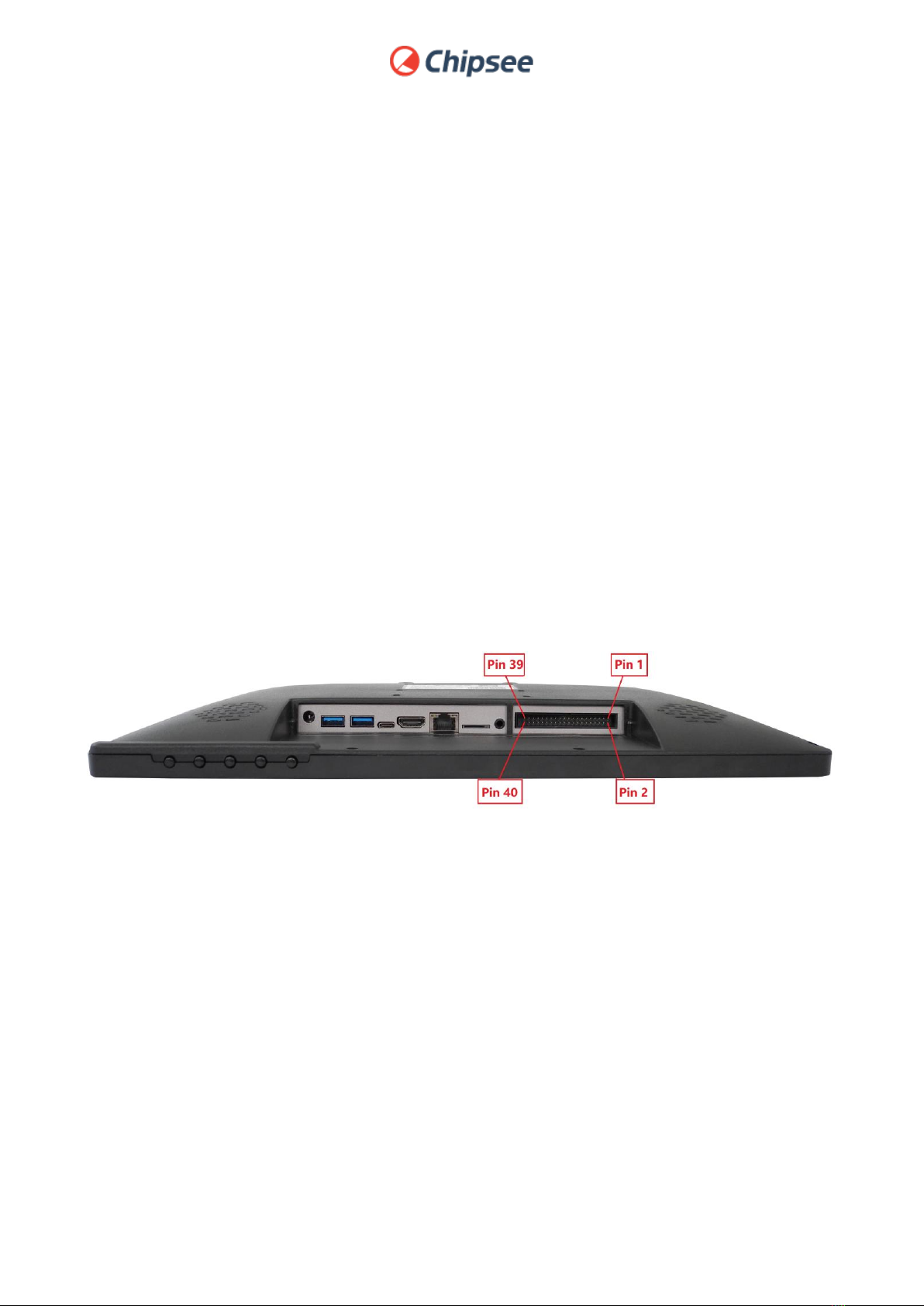

Figure 3: Side View with available connectors
Power Input Connector
The product CS19108RA4156A uses a power input DC of 12V. The
total power consumption is typically about 8.4W. The power
supply connector must be 2.1mm I.D x 5.5mm O.D x 9.5mm. Figure
4 shows the dimensions of a suitable DC power adapter
connector.
Figure 4: Power Adapter Connector
USB HOST and Type C
This product has two channels of USB3.0 host and 1 channel
Type-C connector as shown in Figure 3. The USB 3.0 host is
used to connect a USB disk or a USB mouse, keyboard, etc.
The Type-C port is used to download software to the Raspberry

www.chipsee.com
www.chipsee.com
Pi CM4 eMMC. And the USB3.0 host will be disabled
automatically when the Type-C Port is connected.
HDMI
The CM4 supports dual HDMI 2.0 connectors. The product uses
the master HDMI for the LCD display, so customers can use the
slave HDMI port, as Figure 3 shows.
LAN Connector
This product features a Giga LAN connector (refer to Figure
3).
TF Card
There is also a TF card slot onboard, as shown in Figure 3,
that can only be used with CM4 Lite modules.
Audio Out Connector
As well as one audio out connector (refer to Figure 3).

www.chipsee.com
www.chipsee.com
Camera
The product CS19108RA4156A supports the camera on the front
panel, but it is not mounted by default.

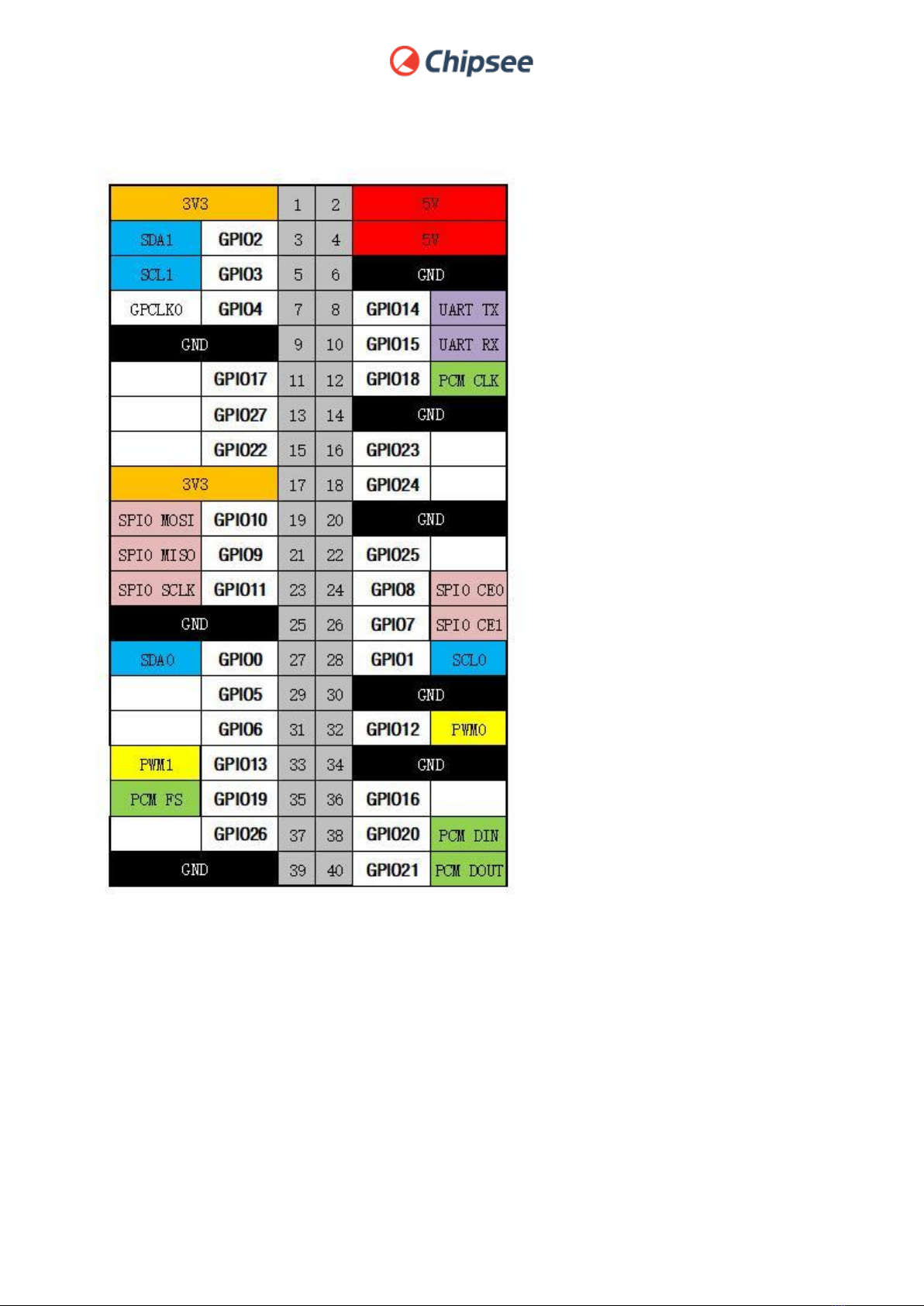

40-Pin Expansion Connector
The product CS19108RA4156A has a standard Raspberry Pi 40 way
HAT connector, as Figure 5 shows.
You also can check https://pinout.xyz for more details.
