CAL-K1 Self-build guitar kit
174.460UK
Version 1.0

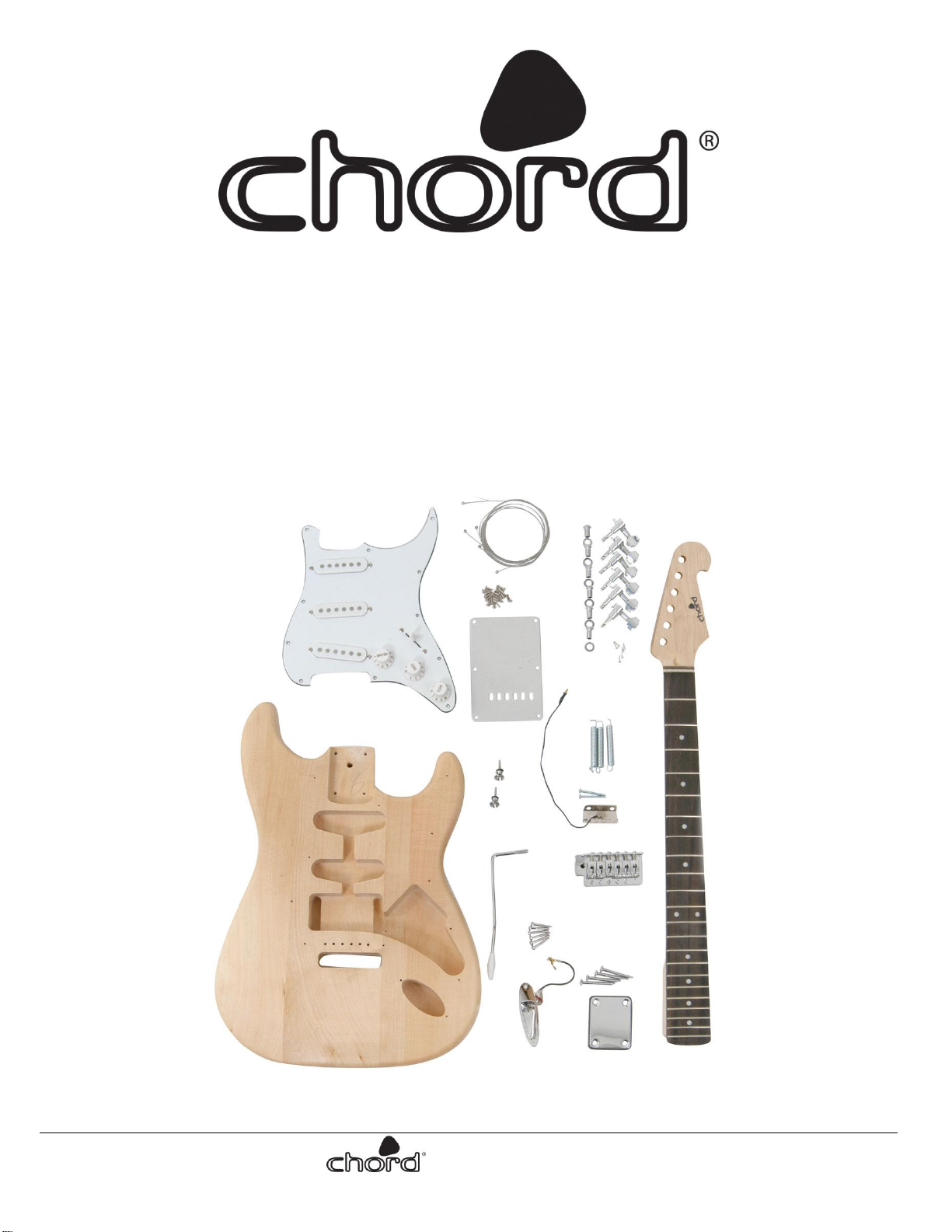

Thank you for buying the CAL-K1 kit. All the wood, hardware and electrical components of a Chord
CAL93 guitar are contained in this package. Please read the following instructions to help with
assembly and finishing

CAL-K1 Page 2
Body finish
The first consideration to be made before assembly is choosing the preferred finish of the guitar body.
The basswood body of the CAL-K1 is sealed and prepared for various types of lacquer coating. A wide
variety of finishes can be procured from DIY, timber and automotive outlets in aerosol cans making
finishing straightforward without requiring specialist skills.
Firstly, check the fit of the body to neck joint. The CAL-K1 is machined from very high grade tone-
woods to avoid any misalignments but all woods have a natural propensity to change shape very
slightly over time. If the fit is too tight, gentle adjustment using a sharp chisel or sandpaper may be
required. Please remember that the coating of lacquer will make the neck fit a little more tightly into the
pocket.
Before coating the body, ensure all surfaces are clean and free of dirt and dust. Conduct all coating
processes in a well-aired, dust-free environment. Slow and patient progress is the key to a good quality
body finish and it is advised to test the colour and technique on a spare piece of wood first.
A hole is drilled in the neck pocket so that it can be suspended by a hook for spraying and drying or
alternatively, a spare length of wood can be screwed in place of the neck in the pocket as a handle.
Spray the edges of the body first and allow to “touch-dry”. Once the edges are dry, move on to the back
and then the front of the body. Gradual and smooth passes will ensure an even coat. If there are any
imperfections, allow to fully dry and then sand out with fine grade (e.g. 800+ grit) before re-spraying.
Apply 3 or more coats for full coverage.
Finally, after allowing 2 to 3 days drying to fully cure the finish, then buff or polish the body as required
to give the desired level of gloss. Take care not to buff too vigorously as this may remove the finish.
Neck finish
The neck of the CAL-K1 is supplied sealed with a light coat of matte lacquer and is ready to use.
If preferred, the neck can be finished with a colour or gloss lacquer. If so, do the following.
The rosewood fingerboard does not need coating with lacquer, so it is important to mask off the
exposed rosewood and frets prior to spraying. Ensure all parts to be sprayed are free from dirt and dust
and that the environment is dust-free and well-aired. Use of a dust-mask is essential when spraying.
Choose a good quality, clear or lightly tinted wood lacquer aerosol for the neck and begin with the front
and sides of the headstock. Start with a gradual, even pass to apply a thin coat, allow drying (to the
touch) and repeating 2 or 3 times, taking care not to apply too much, which may cause runs. If this
happens, sand down the area and re-apply evenly.
When the headstock is dry, turn the neck over and lay it on its fingerboard. Repeat the above process
for the rest of the exposed maple.
Allow 2 to 3 days for the lacquer to fully harden and then, if desired, polish the lacquered surfaces to a
suitable shine.

CAL-K1 Page 3
Assembly
Tuners
Before attaching the neck to the body, fit the tuning machine-heads to the headstock by inserting the
thread through the pre-drilled holes and setting a washer and bush over it.
Screw down the bush onto the thread until tight to the touch and then adjust the rear of the machine-
head so that the tuning button sits vertically above the top edge of the headstock.
Fix the retaining screw through the loop on the rear of the gear housing into the pilot hole to hold the
tuner in position. Then tighten the nut on the front face of the tuner until firm using a spanner
Repeat this for the remaining 5 tuners and then fit the 2 string trees with the one with the taller spacers
nearer to the top nut.

CAL-K1 Page 4
Neck
With the body placed on a protective surface face-up, position the neck into the neck pocket until fully
inserted.
Turn the assembly over and position the neck plate (with its black protective seal) over the 4 bolt-holes
at the rear of the body and drive in the 4 long screws through the neck plate, body and pilot holes in the
neck until tight.
Bridge assembly
Lie the body face-up on a soft surface. Take the vibrato bridge and sit it into the routed section toward
the rear of the body, allowing the sustain block (the metal block underneath the bridge) to hang into the
hole through the body.
Ensure that the sustain block is positioned in the centre of the hole and line up the six screw holes that
have been pre-drilled and secure with the 6 screws provided –not too tightly –allowing the bridge to
rock back and forth.
Turn the guitar over and screw the spring claw part-way into the pre-drilled holes at the forward edge of
the rear body cavity

CAL-K1 Page 5
Attach the loops of the 3 springs provided to the claw and the straight hook ends to the small holes in
the sustain block. Continue to tighten the claw towards the neck until some tension is applied to the
bridge.
Wiring
A lead is attached to the spring claw, this should be threaded through the hole halfway along the
bottom edge of the rear cavity so that it feeds into the front control cavity.
The pickups and controls are pre-assembled onto the pick-guard and simply need connecting to the
output jack socket and earth. The wiring is supplied as “plug-in” format, so that soldering isn’t required.
There are 2 loose cables in the wiring assembly. One has 2 connectors and the other just has 1
connector. Attach the single connector lead to the earth lead fed through from the spring claw earlier.
Gently thread the twin connector lead through the hole behind the tone control cavity to the separate
routing for the jack socket plate.

CAL-K1 Page 6
Now position the pick-guard over the front of the body so that pickups and all wiring sit neatly into the
routed cavities. Ensure that the edge of the pick-guard sits snugly to the end of the neck and straight to
the bridge assembly. Secure the pick-guard with the small dome-head screws provided into the pre-
drilled pilot holes.

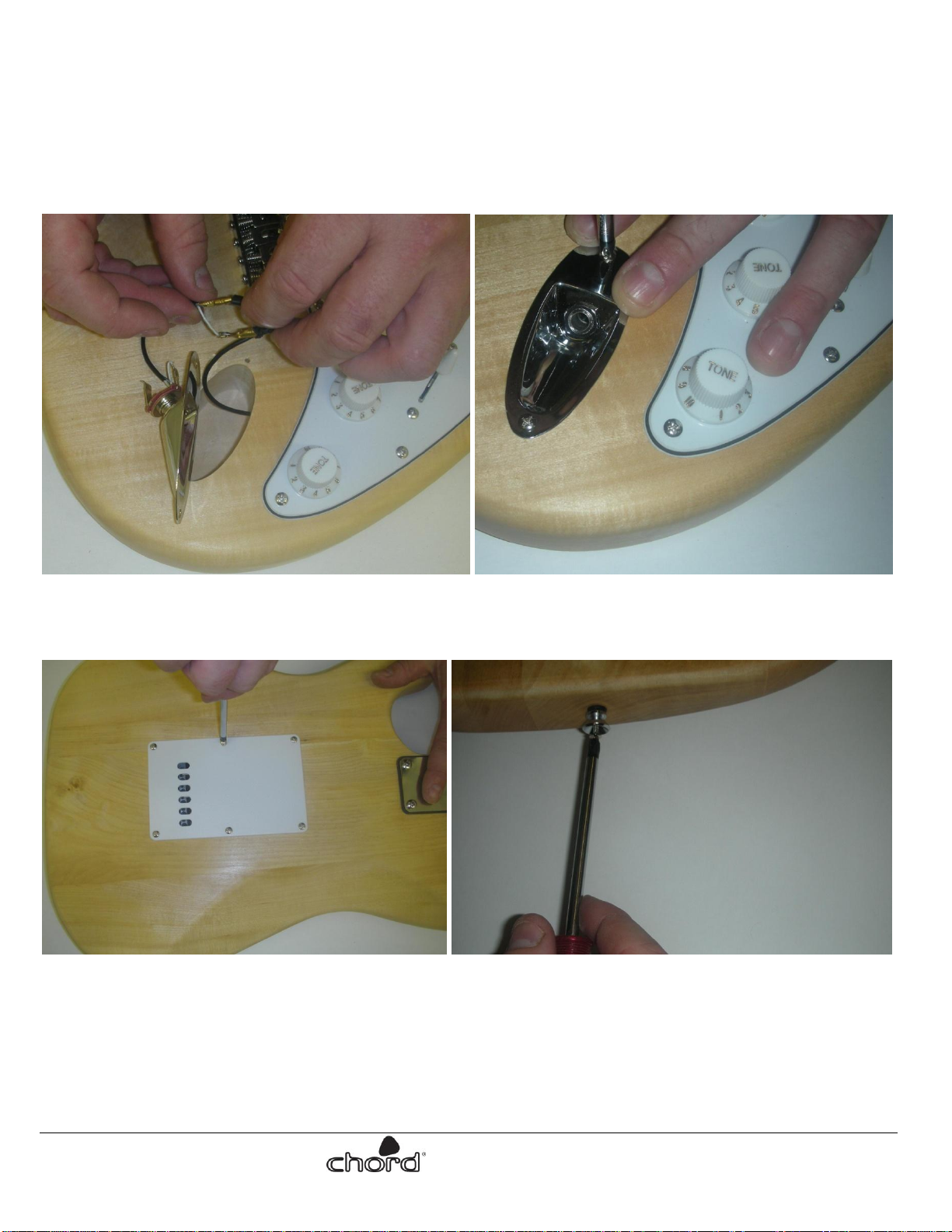

Connect the twin connector wire to the 2 connectors on the jack socket (they only fit one way round)
then fit the jack socket plate and secure with dome-head screws.
The plastic rear body plate can now be fitted to cover the spring cavity. Secure the plate with dome-
head screws into the pre-drilled holes.
Strap buttons
Screw the strap buttons into the pre-drilled holes at the rear edge of the body and at the tip of the upper
horn of the body.

CAL-K1 Page 7
Setting up

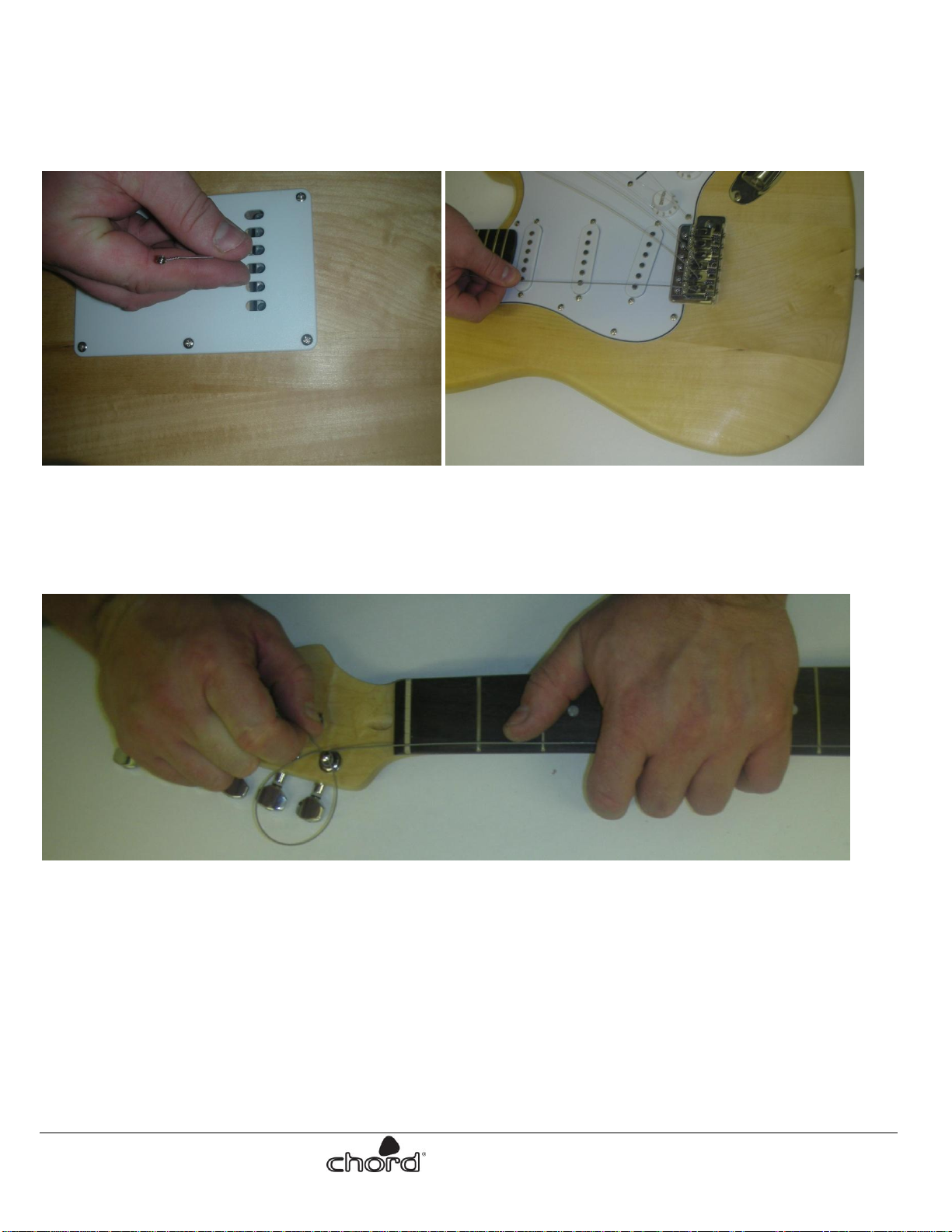

Fitting strings to the guitar is achieved by threading from the rear, through the sustain block to the front,
emerging through the relevant saddle on the bridge. Start with the thickest string –bottom E –in the
uppermost position on the bridge.
Ensure the string sits smoothly over its saddle and keep taut whilst winding a couple of turns on the
relevant tuner. Thread through the string post and bend the string back on itself to anchor it in place.
Apply a little tension from the tuner and move on to the next string, repeating the above process for all
6 strings.
Bringing all the strings up to pitch gradually is better achieved with a digital guitar tuner or pitch pipes
as a reference. Please be aware that the tension in the strings and vibrato springs may take some time
to settle and re-tuning a few times might be necessary. Stretching each string gently after reaching
pitch will help to take up slack.

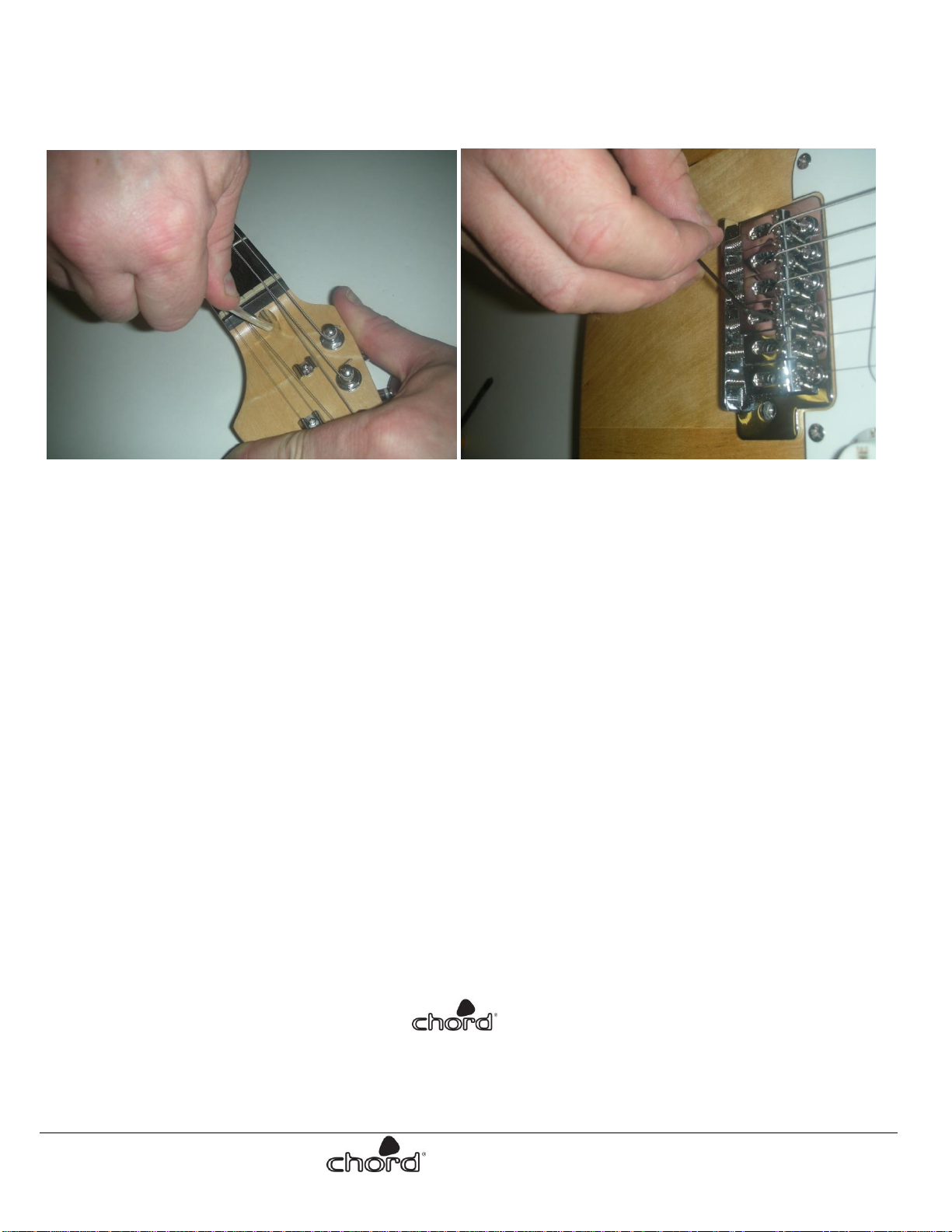

The neck is fitted with a truss rod which may need adjusting. When the strings are tuned up, they will
try to pull away from the neck, which may mean that the action becomes too high. If this happens, use
the larger of the 2 hex keys provided to gradually tighten the truss rod –a half turn is usually enough
and may not take effect immediately –allow adjustments to settle each time –do not be tempted to

CAL-K1 Page 8
over-tighten the truss rod. Sighting along the neck should show a very slight concave tendency –this is
called “relief” and too straight a neck may lead to “fret buzzing”. Some strings may need to be raised or
lowered individually to give the correct action and this can be adjusted using the smaller of the 2 hex
keys provided.
Once the desired action is achieved, all that remains is to set the vibrato tension and intonation. After
tuning up all the strings, the spring claw may need tightening (or slackening) in the rear cavity to make
the vibrato system “float” (note: some players prefer that the bridge lies completely flat against the
body). Also, the harmonic at the 12th fret should be the same as a fretted note in this position. Adjusting
the saddle for each string back or forth on the bridge can compensate for inconsistencies with this.
Careful listening and gentle adjustment until the 2 notes match will achieve correct intonation.
Please also remember that over time, slight adjustments may need to be made and different gauges of
strings will need compensating for in the set up.
Pickup height can now be adjusted for best performance and balance by adjusting the screws at top
and bottom of each pickup. As a general rule, hold down the strings at the 22nd fret and adjust so that
the strings are at least 2mm clear of the pickup. Any pickups that are noticeably louder than others can
be made quieter by adjusting them further away from the strings.
For future adjustments, keep these instructions as a reference and enjoy your custom made Chord
CAL guitar.
