Christie A Series User manual

A Series Barbecue Cabinet
Single and Double Unit
Product and Assembly Manual
dachristie.com
[phone]
Product numbers 1542, 1543, and 1544 Please read all relevant parts of
this document carefully before
commencing product assembly.
Product and Assembly Manual 6868_00

A Series Barbecue Cabinet - Single and Double Unit (Product numbers 1542, 1543 and 1544)
2| Table of contents
1 GENERAL INFORMATION 3
1.1 Safety instructions 4
1.2 How to read this manual 4
1.3 Manufacturer liability 5
1.4 Conditions of use 5
1.5 Description 5
1.6 Disposal 6
2 CLEANING AND MAINTENANCE 7
2.1 Safety considerations 8
2.2 Environmental considerations 8
2.3 Cleaning the cabinet and general maintenance 9
2.4 Cleaning the waste container | Figure 1 10
3 INSTALLATION 12
3.1 Siting Guidelines 13
3.2 Positioning of underground services 13
3.3 Tools required 14
4 A SERIES SINGLE CABINET ASSEMBY AND INSTALLATION 15

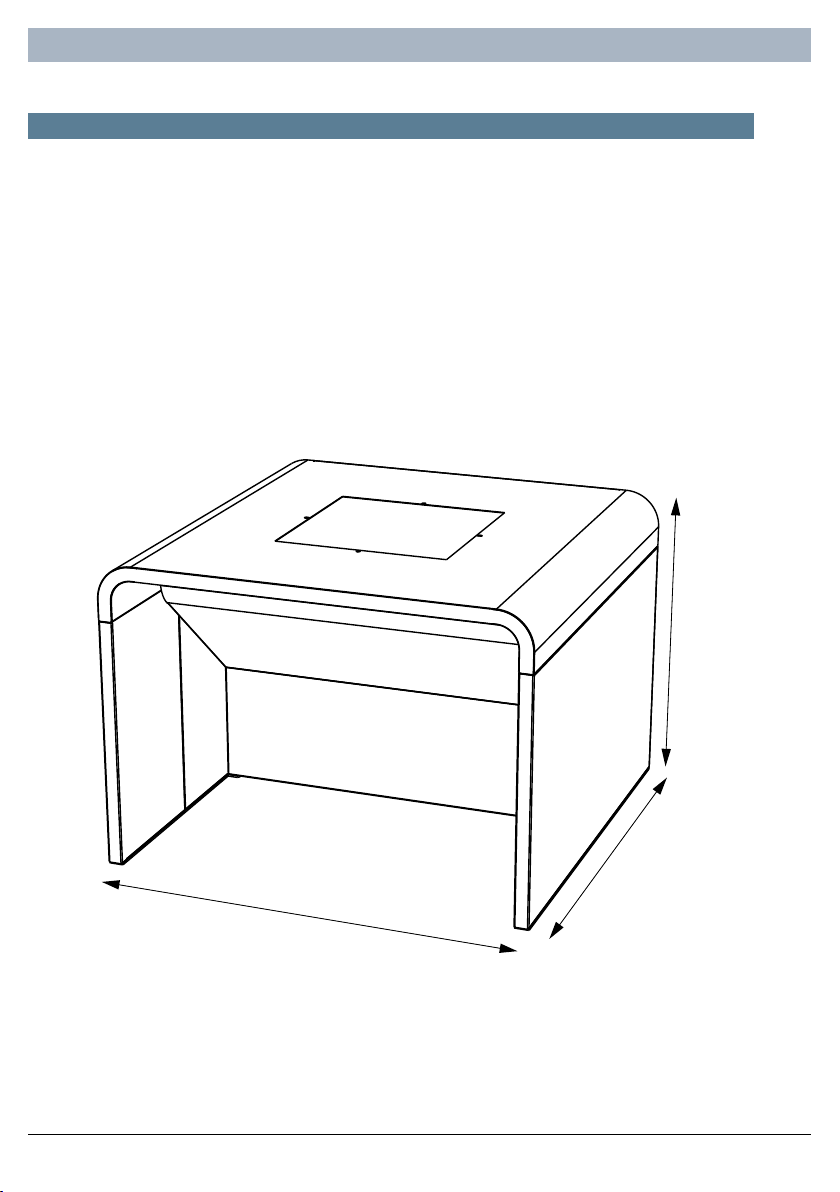

4.1 Specifications | Figure 2 16

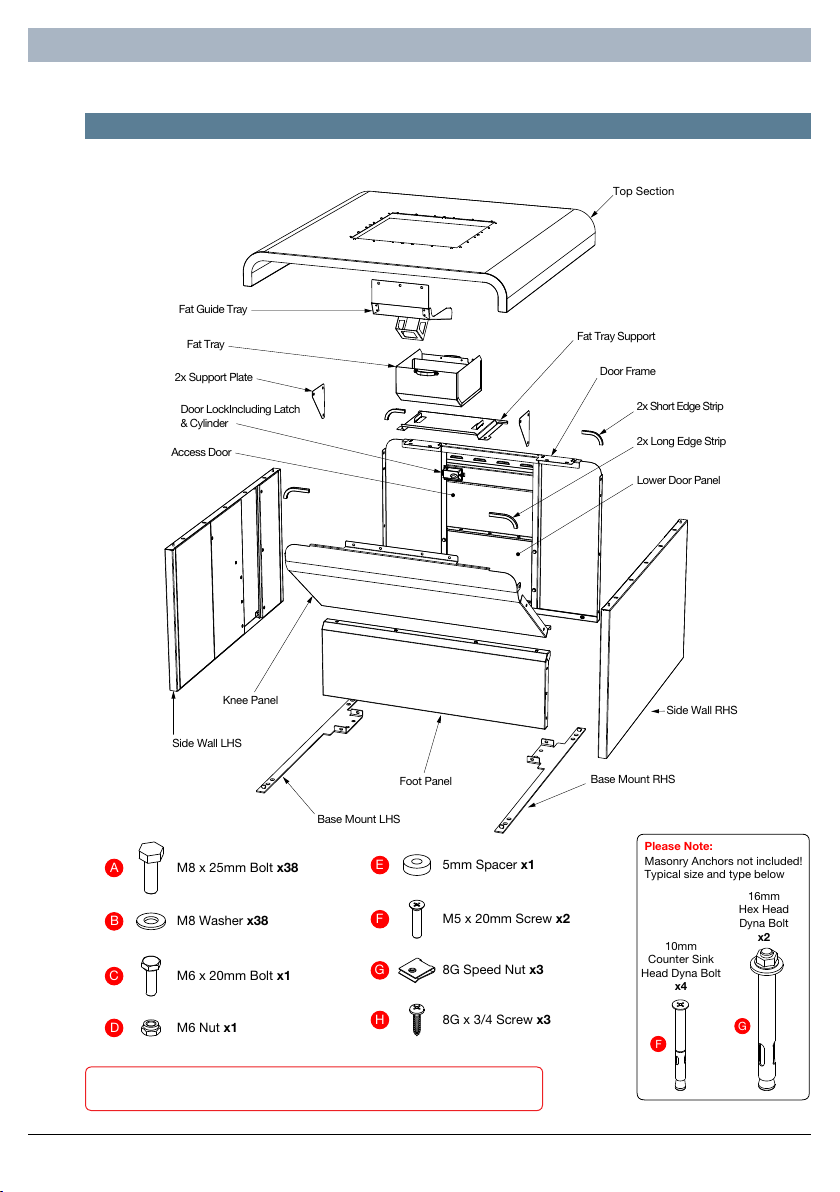

4.2 Boxed contents and parts identification | Figure 3 17
4.3 Assembly and installation | Figure 4, 5, 6, 7, 8, 9, 10, 11, 12, 13.1, 13.2, 14, 15 18
5 A SERIES DOUBLE CABINET ASSEMBY AND INSTALLATION 31
5.1 Specifications | Figure 16 32
5.2 Boxed contents and parts identification | Figure 17 33
5.3 Assembly and installation | Figure 18, 19, 20, 21, 22, 23, 24, 25, 26, 27.1, 27.2, 28, 29 34
6 WARRANTY 47

Product and Assembly Manual 6868_00
3General information |
1.

A Series Barbecue Cabinet - Single and Double Unit (Product numbers 1542, 1543 and 1544)
4
1.1 Safety instructions
| General information
Risk of personal injury
• Any alteration of the Product or variation
from the original specification, including
the use of different components, may result
in injury and void the Safety Certification
and Product Warranty
• Use personal protection equipment
including gloves, safety glasses, and ear
protection during installation
• Do not sit or stand on the barbecue cabinet
at any time
• Surfaces may become hot in
direct sunlight
• Bottled gas (LPG) must not be stored
inside the barbecue cabinet at any time
Risk of damage to the product
• During assembly, take suitable
precautions against scratching surfaces
and components
• Corrosive cleaners may damage the
surfaces and coatings, voiding any
warranty claim. Use only non-toxic, pH
neutral cleaning products (with a pH
between 6 and 9)
• Products intended for cleaning mild steel
may damage stainless steel surfaces
and must not be used
• Do not place heavy objects on the
bench top
1.2 How to read this manual
Chapter headings and subheading are listed in the Table of Contents along with the
relevant page numbers.
Key words:
• “Must” and “must not” are mandatory instructions
• “Should’ and “should not” are advisory instructions
The following icon is used throughout the manual
Warning or Caution icons warn how to
prevent personal injury and product damage

Product and Assembly Manual 6868_00
5
1.3 Manufacturer’s liability
General information |
The manufacturer declines all liability for damage to persons or property caused by:
• The use of non-original spare parts
• Use of the product other than as intended
• Modifying or tampering with any part of the product
• Non-observance of instructions contained in this Product and Assembly Manual
1.4 Conditions of use 1.5 Description
• The product must be assembled,
installed and maintained in accordance
with the manufacturer’s instructions
• The A Series Cabinet is intended for
use with a Christie cooktop only
• Christie accepts no responsibility for
Warranty repairs made without prior
authorisation
• This manual contains relevant
information and should be kept in its
entirety for the design life of the product
• Read this manual carefully before using
the product
• The safety instructions in Section 1.1
form part of the conditions of use
• The A Series Barbecue Cabinet is
Disability Discrimination Act (DDA)
certified and designed to provide
universal access for seated or standing
users of all abilities
• Cabinets are shipped flat-packed to
reduce transportation costs and facilitate
site access. They are ready for assembly
by any competent person following the
step-by-step instructions in this manual
• All stainless-steel construction provides
corrosion resistance and ease of cleaning
and maintenance
• Once assembled, the seamless finish
and the robust engineering aims for
durability and vandal resistance

A Series Barbecue Cabinet - Single and Double Unit (Product numbers 1542, 1543 and 1544)
6
1.6 Disposal
| General information
• The Product does not contain substances considered hazardous to health or the
environment, according to current (2019) Australian and European directives
• To dispose of the Product, remove and deliver the metals to an appropriate recycling facility
• Christie products are packaged in non-polluting, recyclable materials. Deliver all packing
materials to the appropriate recycling facility

Product and Assembly Manual 6868_00
7
2.
Cleaning and maintenance |

A Series Barbecue Cabinet - Single and Double Unit (Product numbers 1542, 1543 and 1544)
8| Cleaning and maintenance
2.1 Safety considerations
• Gloves should be worn to protect against heat and skin irritation
• Wear safety glasses
• Beware of hot steam if using heat when cleaning
• Be aware hotplate may be hot
• Follow Material Safety data Sheet (MSDS) and Safe Work Guidelines
2.2 Environmental considerations
Your local or national Environmental Protection authority should be contacted for advice on
how to safely dispose of fats and oils.

Product and Assembly Manual 6868_00
9Cleaning and maintenance |
WARNING: Do not use corrosive cleaning products on this
appliance. Use only non-toxic products with a neutral pH between
6 and 9
2.3 Cleaning the cabinet and general maintenance
To preserve the appearance and integrity of your Christie barbecue cabinet, we recommend
the entire structure be cleaned weekly and all components be inspected and serviced
at least every 12 months.
1. Spray the benchtop with a mild detergent or pH-neutral, bio-degradable degreaser
2. Rinse with water, or wipe with a clean cloth or paper towel
3. Rinse the exterior of the cabinet with water. If it is contaminated with fat or oil, spray
it with a mild detergent or pH-neutral, bio-degradable degreaser and rinse
4. Regularly sweep and wash down pathways around the barbecue. If contaminated with
fat or oil, spray with a mild detergent or pH-neutral bio-degradable degreaser and rinse
Note: Stainless steel is a low maintenance material that does require regular cleaning,
especially in corrosive environments up to one kilometre from marine waters and up to five
kilometres from a surf beach.
Lack of maintenance may result in surface discoloration or “tea staining”, caused by superficial
corrosion. If barbecues are cleaned frequently, tea staining generally does not occur. When
it does, prompt removal - preferably within 30 days - is recommended. Staining should be
removed using a “Scotch Brite” or similar non-steel household scourer to lightly polish the
surface. Staining should occur less frequently after each removal.
The most effective way to prevent tea staining is to ensure that any asset maintenance
schedule includes washing and rinsing of the entire barbecue. Regular washing of stainless
will remove deposits that can cause superficial corrosion, including sea salt and airborne
chemicals. Application of oils or waxes will temporarily restrict chloride access to
the stainless steel, but these tend to attract and trap airborne pollutants and dull the
stainless surface.

A Series Barbecue Cabinet - Single and Double Unit (Product numbers 1542, 1543 and 1544)
10
2.4 Cleaning the waste container
The waste container must be emptied on a regular basis. Do not allow the waste
container to overflow into the interior of the barbecue cabinet. All fat, grease and oil
should be disposed of in accordance with local regulations. Do not dispose of it on the
ground, as this will create a health hazard.
Baffled waste container
A baffled waste container is recommended for use in locations where the barbecue hot
plate is exposed to rain, sprinklers, or other sources of significant water ingress.
The baffled container acts as a grease trap, separating the oils and fats from water.
Oils float and the baffle allows water to pass underneath and both chambers of the
container to fill, but keeping oils in the large chamber. When the water level reaches the
overflow, excess water will drain away and the oils and fats will remain behind.
A container without an internal baffle and overflow will progressively fill until the water
level reaches the top container and oils and fats overflow, which may cause cleaning
and hygiene problems inside the barbecue cabinet.
1. Before use, fill the container with water to approximately 50mm above the bottom
of the internal baffle to ensure that fat, grease and oil will be separated from water
2. Place container inside barbecue surround, underneath the hotplate. Align so that
the main chamber of the waste container is directly under the drain tube
3. When emptying, skim the layer of oils and fats off the water. Place the fat in
a suitable receptacle and dispose of it in accordance with local regulations.
Dispose of the remaining contaminated water into a sewerage or other approved
disposal system
4. Clean and wash the container with a mild detergent or pH-neutral, biodegradable
degreaser, before replacing it inside barbecue surround. A high-pressure cleaner
or steam cleaner may also be used. Extra waste containers can be ordered from
Christie, to exchange and clean containers thoroughly off site
| Cleaning and maintenance

Product and Assembly Manual 6868_00
11
FIG. 1
Cleaning and maintenance |
Hotplate
Drain Tube
Overflow Oils
Water
Water
Internal
Baffle
Bagged waste container
An optional bagged waste container is available for locations where the hotplate is not
prone to excessive water ingress i.e. where barbecues are installed under a shelter,
or where a Christie Barbecue Hood has been fitted to the cooktop.
Each bagged waste container is supplied with a starter pack of 25 bags. Replacement bags
can be purchased from Christie in lots of 100.
1. The bagged waste container consists of a metal container and a specially designed,
heavy duty, plastic bag. The bag is inserted into the container and is large enough
and high enough to allow the top of the bag to be folded down over the outside of
the container
2. Once inserted, pour approximately 20mm of water into bag. To empty, lift the bag out of
the waste container and place into a suitable container for disposal. The collected oils
and fats can then be poured into a suitable receptacle and disposed of in accordance
with local regulations

A Series Barbecue Cabinet - Single and Double Unit (Product numbers 1542, 1543 and 1544)
12 | Installation
3.

Product and Assembly Manual 6868_00
13
Important: To allow the product to be used as intended - by persons of all abilities,
including seated and wheelchair users - the cooktop controls must always face towards
the knee panel area of the cabinet and not the doors.
• Barbecue facilities should be installed in plain view, where they can be monitored for
safe and appropriate use
• Ensure there are no climbing aids that will allow children access to the cooking surface
• Due to the nature of this product it requires clear access on all sides
• Cabinet doors require a minimum 1000 mm clearance when opened
• Ensure there is at least 1200 mm clearance above barbecue cooking surfaces
• When designing for access and mobility in Australia and New Zealand, please refer to the
Australian Standard, AS 1428 (Design for access and mobility)
Underground services should terminate in the 200 mm space between the two base mounts.
Once out of the ground, these services should be routed so as to avoid the drip tray.
The GPO should be positioned at least 600 mm above ground.
• Christie CC2 Barbecue Cooktop Gas appliances: Gas inlet to the appliance is on the
right-hand side
• Christie CC2 Barbecue Cooktop Electric appliances: Electric cable with plug is 1m long
terminating into the left-hand side of the appliance

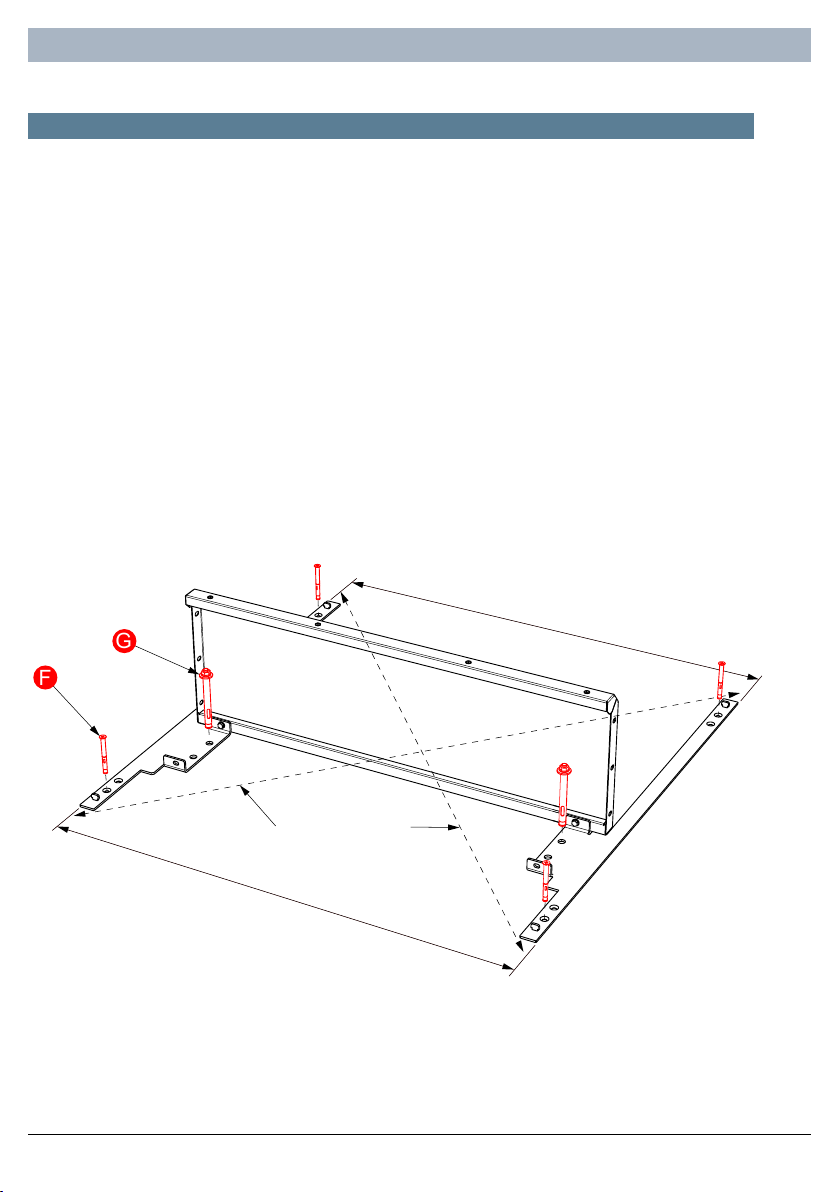

Note: Refer to Step 1, Figure 4 in this Product and Assembly Manual for further information
Installation |
3.1 Siting Guidelines
3.2 Positioning of underground services
WARNING: Work on underground services must be carried out only
by suitably qualified trades people i.e. electricians or gas fitters

A Series Barbecue Cabinet - Single and Double Unit (Product numbers 1542, 1543 and 1544)
14 | Installation
3.3 Tools required
• Rachet tool, extension piece and sockets to suit M8 and M6 bolts
• Spanner to suit M6 nut
• Masonry anchors, plus spanner and screwdriver to suit
• Hammer drill with bit to suit masonry anchors

Product and Assembly Manual 6868_00
15Installation |
4.
A SERIES
SINGLE CABINET
assembly and installation
(For A Series Double Cabinet installation, see Section 5)

A Series Barbecue Cabinet - Single and Double Unit (Product numbers 1542, 1543 and 1544)
16
860 mm
1150 mm
1200 mm
FIG. 2 (FINISHED DIMENIONS, SINGLE CABINET)
The Christie A Series Barbecue Cabinet is constructed from 4622 grade stainless steel
and 306 grade components
Height: 1200 mm width x 1150 mm depth x 860 mm height
Weight: Nominal weight 136kg (without cooktop)
Cooktop cut-out: 495 mm x 495 mm
| Single cabinet assembly and installation
4.1 Specifications

Product and Assembly Manual 6868_00
17
F
G
C
D
E
B
A
G
F
H
Base Mount RHS
Base Mount LHS
Side Wall LHS
Side Wall RHS
Foot Panel
Knee Panel
Please Note:
10mm
Counter Sink
Head Dyna Bolt
x4
16mm
Hex Head
Dyna Bolt
x2
2x Support Plate
Access Door
Fat Tray
Fat Guide Tray
Door LockIncluding Latch
& Cylinder
M6 x 20mm Bolt x1
M6 Nut x1
5mm Spacer x1
M8 Washer x38
M8 x 25mm Bolt x38
8G Speed Nut x3
M5 x 20mm Screw x2
8G x 3/4 Screw x3
Masonry Anchors not included!
Typical size and type below
Top Section
Fat Tray Support
Door Frame
2x Long Edge Strip
2x Short Edge Strip
Lower Door Panel
FIG. 3 (BOXED CONTENT, SINGLE CABINET)
Single cabinet assembly and installation |
4.2 Boxed contents and parts identification
F
G
C
D
E
B
A
G
F
H
Base Mount RHS
Base Mount LHS
Side Wall LHS
Side Wall RHS
Foot Panel
Knee Panel
Please Note:
10mm
Counter Sink
Head Dyna Bolt
x4
16mm
Hex Head
Dyna Bolt
x2
2x Support Plate
Access Door
Fat Tray
Fat Guide Tray
Door LockIncluding Latch
& Cylinder
M6 x 20mm Bolt x1
M6 Nut x1
5mm Spacer x1
M8 Washer x38
M8 x 25mm Bolt x38
8G Speed Nut x3
M5 x 20mm Screw x2
8G x 3/4 Screw x3
Masonry Anchors not included!
Typical size and type below
Top Section
Fat Tray Support
Door Frame
2x Long Edge Strip
2x Short Edge Strip
Lower Door Panel
F
G
C
D
E
B
A
G
F
H
Base Mount RHS
Base Mount LHS
Side Wall LHS
Side Wall RHS
Foot Panel
Knee Panel
Please Note:
10mm
Counter Sink
Head Dyna Bolt
x4
16mm
Hex Head
Dyna Bolt
x2
2x Support Plate
Access Door
Fat Tray
Fat Guide Tray
Door LockIncluding Latch
& Cylinder
M6 x 20mm Bolt x1
M6 Nut x1
5mm Spacer x1
M8 Washer x38
M8 x 25mm Bolt x38
8G Speed Nut x3
M5 x 20mm Screw x2
8G x 3/4 Screw x3
Masonry Anchors not included!
Typical size and type below
Top Section
Fat Tray Support
Door Frame
2x Long Edge Strip
2x Short Edge Strip
Lower Door Panel
F
G
C
D
E
B
A
G
F
H
Base Mount RHS
Base Mount LHS
Side Wall LHS
Side Wall RHS
Foot Panel
Knee Panel
Please Note:
10mm
Counter Sink
Head Dyna Bolt
x4
16mm
Hex Head
Dyna Bolt
x2
2x Support Plate
Access Door
Fat Tray
Fat Guide Tray
Door LockIncluding Latch
& Cylinder
M6 x 20mm Bolt x1
M6 Nut x1
5mm Spacer x1
M8 Washer x38
M8 x 25mm Bolt x38
8G Speed Nut x3
M5 x 20mm Screw x2
8G x 3/4 Screw x3
Masonry Anchors not included!
Typical size and type below
Top Section
Fat Tray Support
Door Frame
2x Long Edge Strip
2x Short Edge Strip
Lower Door Panel
NOTE: Boxed contents A and B are provided loose and bagged,
and C to H are fitted on the assembled cabinet

A Series Barbecue Cabinet - Single and Double Unit (Product numbers 1542, 1543 and 1544)
18
STEP 1
Lay both left (LHS) and right (RHS) Base Mounts on the concrete slab in the desired position,
taking into consideration the location of the electrical or gas services.
4.3 Assembly and installation
| Single cabinet assembly and installation
2
0
0
m
m
900 mm
7
5
0 mm
1200 mm
25
0
m
m
E
lec
t
ri
c
al
a
n
d g
a
s
s
upply
s
e
r
vices
a
r
e
a
500 mm
2
0
0
m
m2
0
0
m
m
Front of bench
Base Mount RHS
Base Mount LHS
FIG. 4

Product and Assembly Manual 6868_00
19
STEP 2
• Remove any protective plastic film from Foot Panel
• Place Foot Panel into position and secure onto Base Mounts in 2 (two) places with M8
bolts and washers as shown in Figure 5
4.3 Assembly and installation
Single cabinet assembly and installation |
FIG. 5
B
A
Foot Panel
2x M8 Washer
2x M8 x 25 mm Bolt

A Series Barbecue Cabinet - Single and Double Unit (Product numbers 1542, 1543 and 1544)
20
4.3 Assembly and installation
| Single cabinet assembly and installation
STEP 3
• Ensure both ends are square and the same distance apart (this will affect the proper fit
and alignment of other panels)
• Using the frame as a template, carefully mark hole locations on the slab
• Remove frame and drill the holes as marked
• Check the surface is level before fixing down the masonry anchors, as packing may be
required under the base mounts
• Fix both Base Mounts into position with suitable masonry anchors (not included)
as shown in Figure 6
1200mm Doublecheck distance
1200 mm Double check distance
F
G
Note: Check diagonal
distances are equal
to ensure squareness
FIG. 6
