Christie 38-FP0001-01 User manual

MODEL 38-FP0001-01 (with Video Card)
38-FP0001-02 (without Video Card)
User's Manual

1
Table of contents
Precautions ............................................................................................... 2
Before First Use
Names and Functions (Monitor).......................................................... 3-4
Check Accessories................................................................................. 3
Outer Dimension.................................................................................. 5-6
Installation ........................................................................................... 7-8
Names and Functions (Remote Controller)....................................... 9-10
Preparation for remote control.............................................................. 11
LCD Monitor Instructions
Adjusting the Screen............................................................................. 12
Adjustment Items............................................................................. 12-13
Mode..................................................................................................... 14
Adjustment Procedure
Before Adjustment...................................................................... 15-17
Adjustment for computer screen
A. Picture Menu................................................................. 18-21
B. Advanced Menu............................................................ 22-23
C. Picture in picture Menu................................................. 24-28
D. Advanced picture in picture Menu ................................ 29-30
E. Options Menu................................................................ 31-33
F. Utilities Menu................................................................. 34-35
Additional Functions
Power Management System ........................................................... 36
Plug and Play .................................................................................. 36
Maintenance............................................................................................ 37
Troubleshooting
Fault Finding......................................................................................... 38
Screen Display...................................................................................... 38
Specifications
Table of Preset Data............................................................................. 39
Cable Pin Arrangement ........................................................................ 40
Monitor Specifications........................................................................... 41
Microsoft and Windows are registered trademarks of Microsoft Corporation in
the U.S.A. and other countries.

2
38-FP0001-02
2
Precautions
Important matters
• Plug the included AC Power Cord to the power supply and voltage as
mentioned in the rating label. IF NOT, DAMAGE TO THE AC POWER
CORD IS A SAFETY RISK AND CAN CAUSE A FIRE.
Placement precautions
• Avoid placing the unit in humid or dusty places, or where it will be exposed
to excessive heat (direct sunlight, heaters, etc.)
• Do not step on or set anything on the AC Power Cord. DAMAGE TO THE
AC POWER CORD IS A SAFETY RISK AND CAN CAUSE A FIRE.
• Install the unit only on a stable and smooth surface.
• Do not connect the unit to the same AC outlet with appliances that
generate large amounts of interference (such as heaters with thermostats,
appliances with motors, etc.). It is best to use a completely separate
electrical outlet.
• Keep the unit away from water or small objects. If they accidentally enters
the unit, unplug the AC power cord immediately. DO NOT PLUG IN THE
UNIT AGAIN.
• Never cover the rear ventilators with cloth or something.
Handling precautions
•"WARNING: The AC power cord and cables on this product contains
chemicals, including lead, known to the State of California to cause cancer,
and birth defects or other reproductive harm. Wash hands after handling."
• Avoid bending, kinking or damaging the AC Power Cord.
• Never insert or remove the power cord with wet hands. Also, be sure to
hold cord by the plug when removing it from the outlet.
• Do not remove any parts that are held in place with screws. (The unit does
not contain any user-serviceable items.)
• Maintain standard room temperature (5˚C to 35˚C, or 41˚F to 95˚F) during
use. Do not subject the unit to shock or vibration. Do not move the unit
while it is in use.
• A rapid increase in room temperature in cool weather can cause
condensation to form inside the unit. If this occurs, wait at least 15 minutes
after turning the unit on before attempting to operate it.
• Do not attempt to service this monitor yourself as opening unit may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified
service personnel.
This symbol on the nameplate means the product is Listed by Underwriters
Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety
standards against risk of fire, casualty and electrical hazards.
The CE Mark is a Directive conformity mark of the European Community (EC).

3
Before First Use
Names and Functions (Monitor)
Display Screen
Front View
Check Accessories
Check that the main unit and all accessories are present.
¡¡AC Power Cord ( x1) ¡¡Remote Controller ( x1)
¡¡AA Batteries ( x2) ¡¡RGB Cable ( x1)
¡¡User's Manual ( x1)
¡When you move the LCD monitor, please unplug AC cables connected to AC-IN
and disconnect the cables connected to the external equipment.
¡When you carry the LCD monitor, please be careful not to shock it. To avoid
damaging the LCD panel, be sure not to touch the LCD panel when carrying the
monitor.
NOTE

4
38-FP0001-02
Power Switch ( )
Turns the power to the
monitor on and off.
External Control
Connector
( )
DVI Connector
RGB Connector
Ventilators
AC-IN
Ventilators
Ventilators

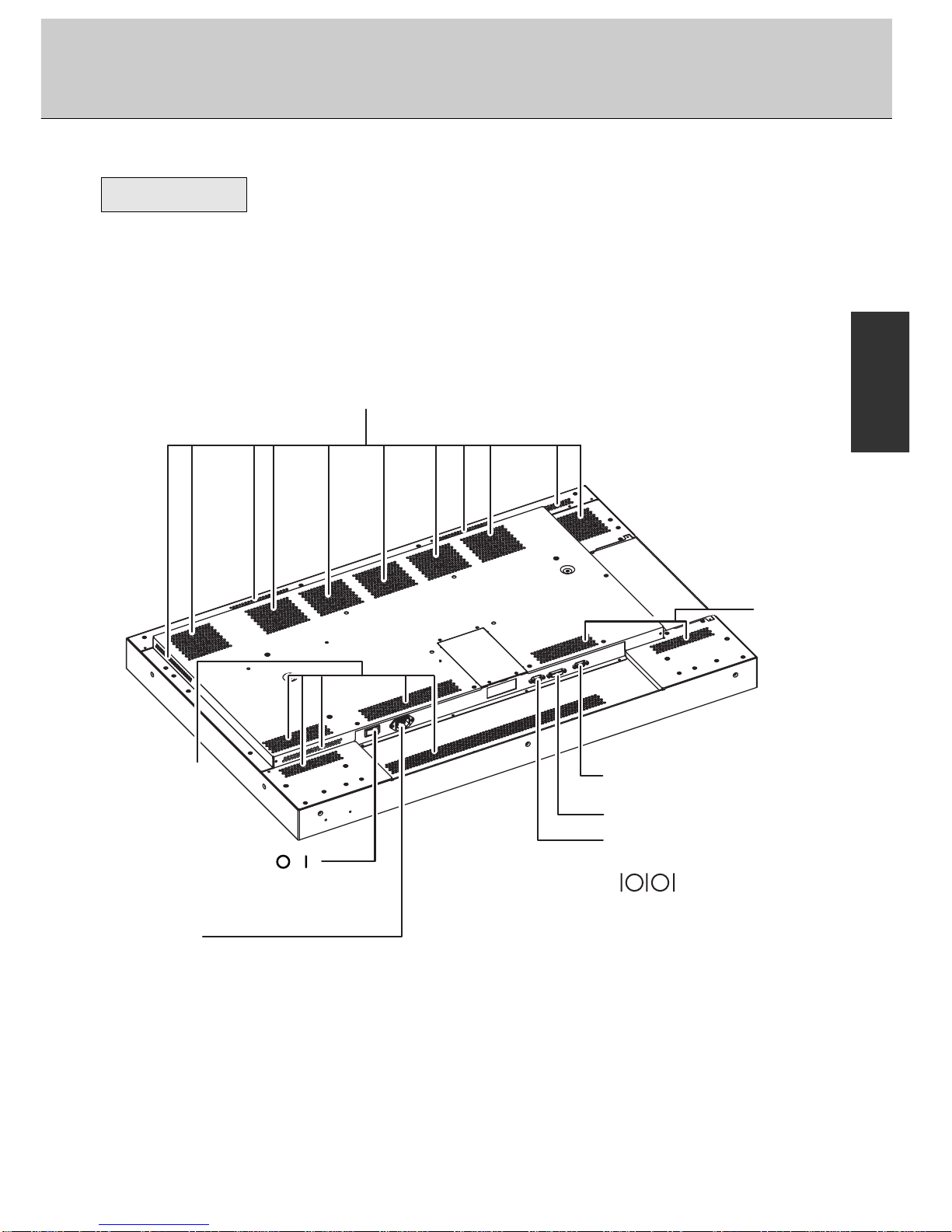

Rear View

5
Before First Use

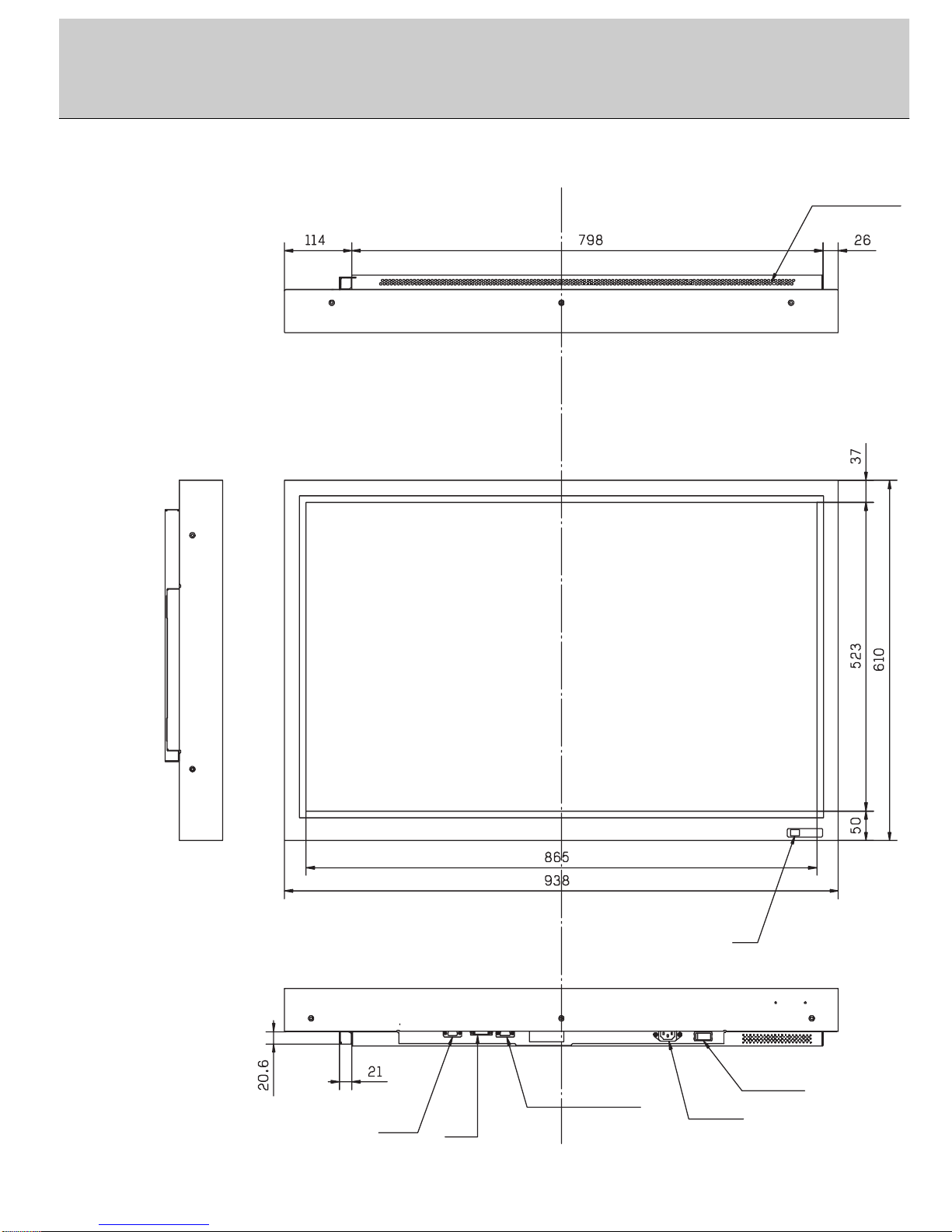

Outer Dimension
External Control
RGB DVI AC-IN
POWER
IR
Ventilators

6
38-FP0001-02
Ventilators
Ventilators
Ventilators
Ventilators
Ventilators
Ventilators

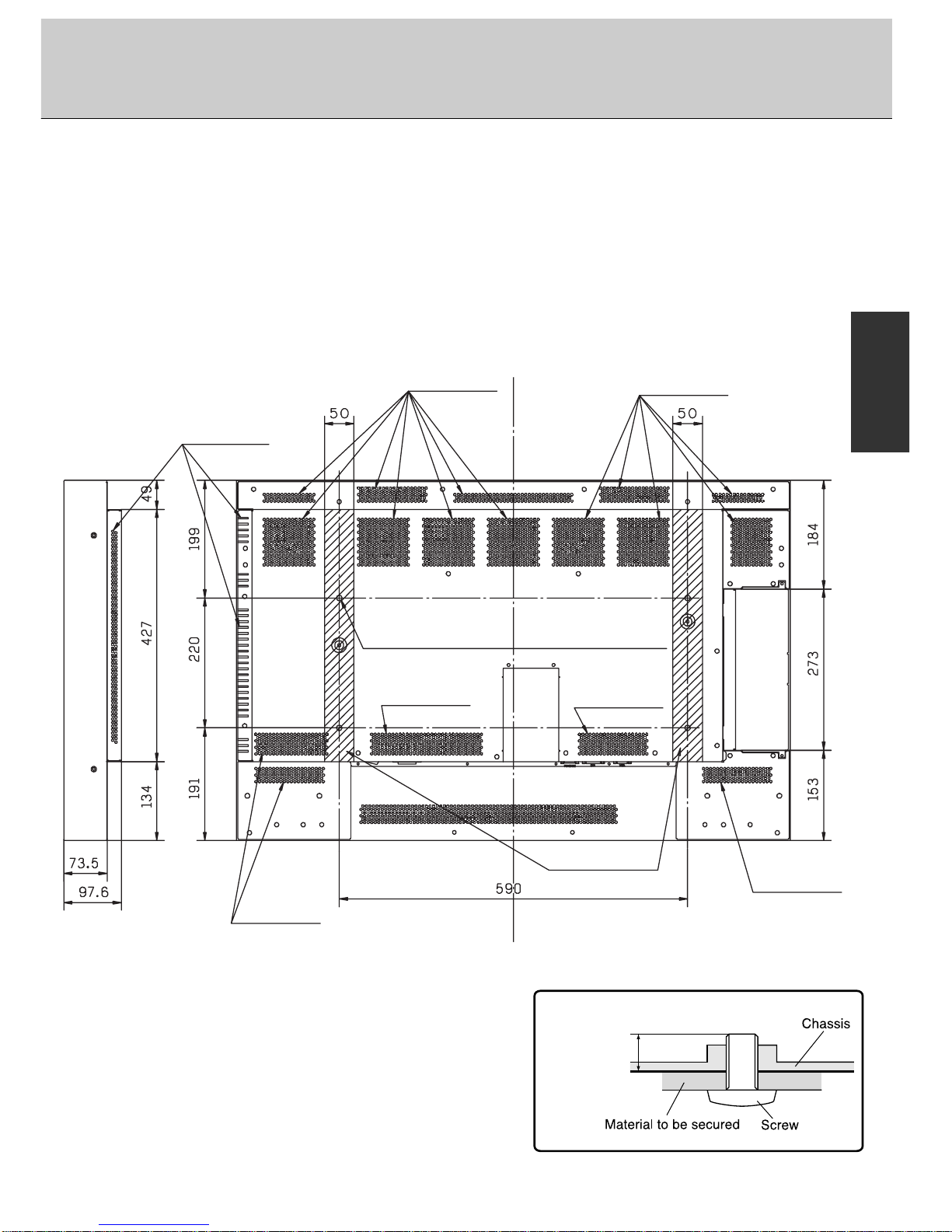

Mounting Area
4-M6 (Depth : Min.12mm/Max.20mm)
Ventilators
L: 12mm(min.)
20mm(max.)
When you install the LCD Monitor, please
take care the following:
•Use the M6 screws only for installation.
•The maximum length of the screw put through a
hole is 20mm on the surface of a metal chassis
(as shown right). Use the screw with effective
length 12-20mm, if not it may damage to the LCD
monitor.
•When you install the LCD monitor, please check
the strength of material to be secured.

7
Before First Use
Installation
External OSD Connector
DVI Connector
RGB
Connector
DVI Cable
(not included)
RGB Cable
Connect to the
computer’s
connectors
Power Plug
AC Power
Cord
AC-IN
Connect the Computers
Before doing anything, make sure the Power Switch on the monitor and a computer is
turned off.
1 Plug the cable(s) into the connector on the monitor securely and fix
them in place with two screws (each).
2 Plug the other end of the cable(s) into the connector on a computer.
3 Plug the AC Power Cord into the AC-IN on the monitor.
4 Plug the Power Plug into an outlet.
5 Switch on the monitor before starting up a computer.

8
38-FP0001-02
How to secure the monitor on a wall
Note:The following figure is only recommended.
Never cover the rear ventilators with cloth or something.
Secure enough space more than 30mm from the rear part of the monitor.
Side view of the monitor Rear view of the monitor
Side view of the monitor Rear view of the monitor
M6 bolt (4 places)
M6 bolt (4 places)
Depth: Min. 12mm
Max. 20mm
Bracket
(not included)
Bracket
(not included)
Depth: Min. 12mm
Max. 20mm
UP
b
UP
b
Vertical
Horizontal
Caution

9
Before First Use

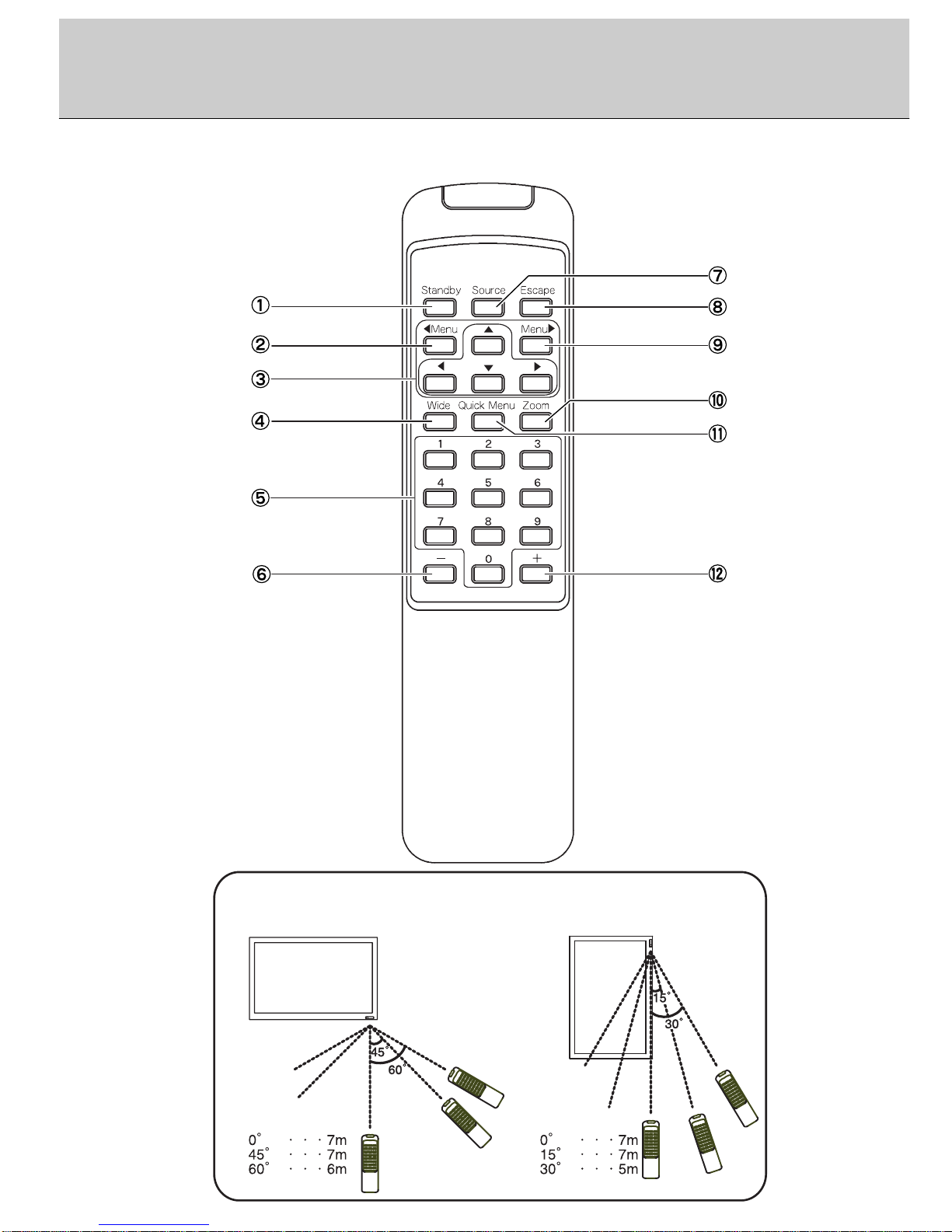

Names and Functions (Remote Controller)
Operating Range (when there is no obstacle)
Horizontal Vertical

10
38-FP0001-02
Standby key
Standby ON/OFF.
Menu key
Show Main menu. Used to move cursor leftward while displaying the menu.
Wide key
Set the scale mode in wide.
Numeric keys (see page 72)
Used to switch each input signal. [0], [8] and [9] keys are not used.
[1] Analog RGB1 selection [2] Digital RGB selection [3] Composite VIDEO selection
[4] S-Video selection [5] Analog RGB2 selection [6] Component VIDEO selection
[7] RGB+CSync selection
key (see page 72)
Zoom out the picture.
Source key
Search and switch to current input signal automatically.
Escape key
Escape from menu.
Menu key
Show Main menu. Used to move cursor rightward while displaying the menu.
Direction keys
key･･･Select upper items in the menu.
key･･･Select lower items in the menu.
key･･･Change set level down or move the cursor leftward.
key･･･Change set level up or move the cursor rightward.
Zoom key (see page 72)
Display Zoom menu.
Quick Menu key (see page 70,71)
Display Quick menu.
＋＋key (see page 72)
Zoom in the picture.

11
Before First Use
Preparation for remote control
O P E N
O P E N
Rearview
2 Be sure and put two AA dry batteries into the remote controller.
Make sure of the direction of them as indicated inside the remote
controller.
3 Replace the lid by sliding it up over the batteries until it is firmly in
place.
1 Remove the battery compartment lid with pushing .
O P E N

12
38-FP0001-02

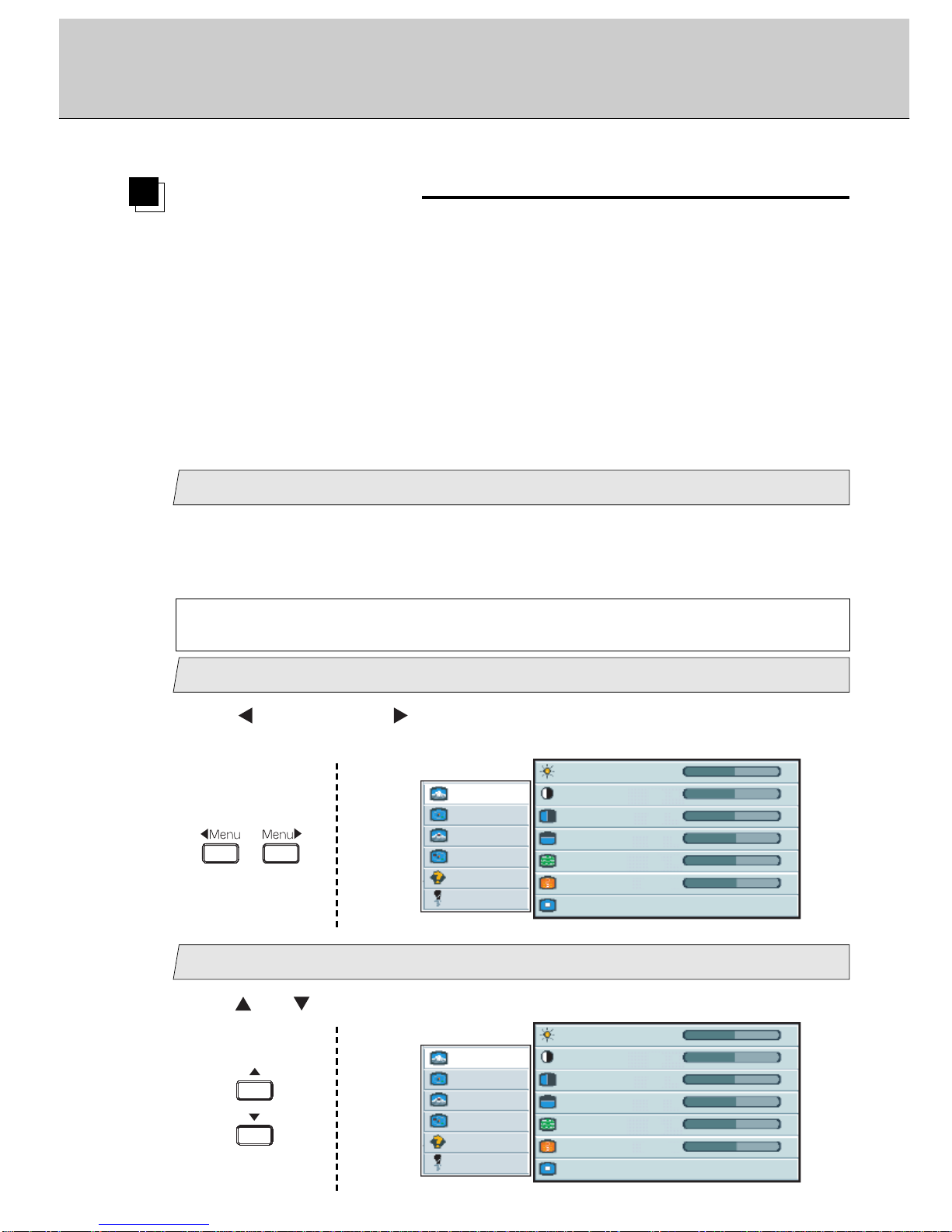

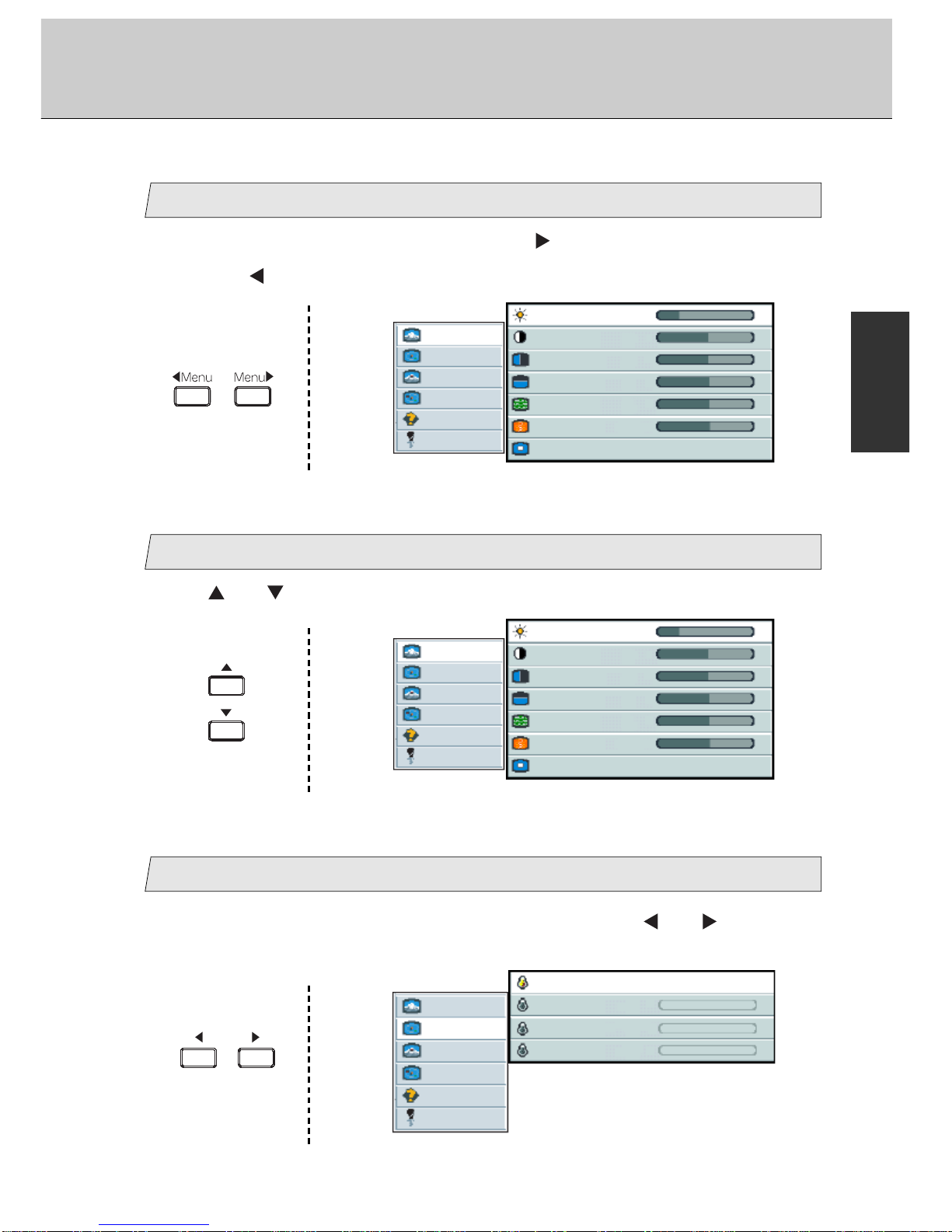

Adjusting the Screen
LCD Monitor Instructions
This LCD monitor decodes the signal from a computer automatically, and displays the
image on a screen in accordance with the preset mode. Unless a display mode has
been in preset table, the image is displayed under the similar mode in preset table. In
this case, the adjustment for this LCD monitor must be done in accordance with a
computer connected with. Please follow the OSD (On Screen Display) menu to adjust
screen settings.

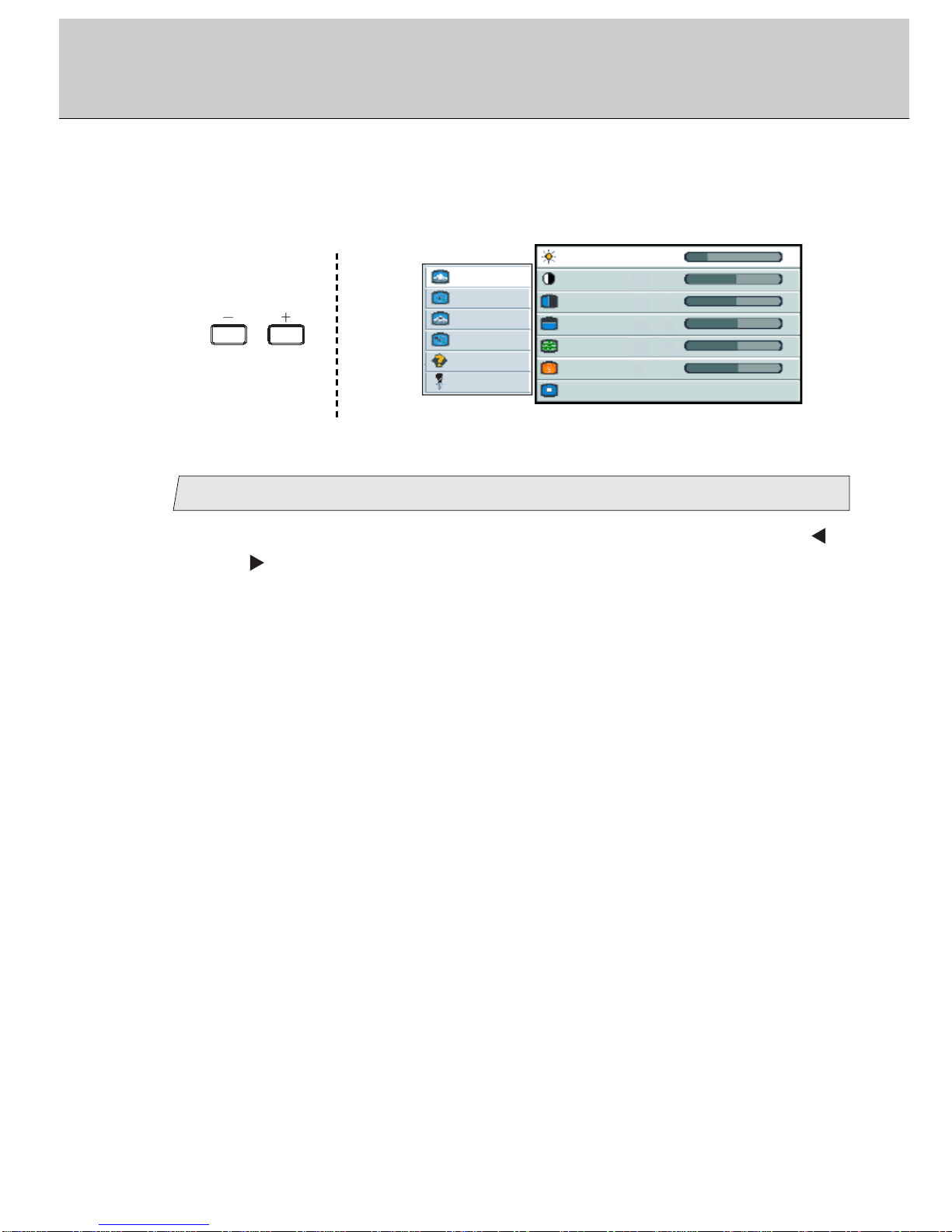

Picture Menu (refer to page 18-21)
Adjustment Items for computer screen
BRIGHTNESS ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the brightness for the screen
CONTRAST ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the contrast for the screen
H POSITION ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the horizontal position for the screen
V POSITION ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the vertical position for the screen
PHASE ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the phase for the screen
FREQUENCY ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the horizontal width for the screen
SCALING ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Scale the screen
Note
H position, v position, phase and frequency for the screen can be adjusted in Analog
mode only.
Advanced Menu (refer to page 22-23)
COLOR ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the color temperature for the screen
USER RED ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the level of red for the screen
USER GREEN ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the level of green for the screen
USER BLUE ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the level of blue for the screen
Pip(picture in picture) Menu (refer to page 24-28)
SIZE ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Select the size of pip
POSITION‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Select the position of pip
SOURCE ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Change the input signal
BRIGHTNESS ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the brightness of pip
CONTRAST ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the contrast of pip
COLOR ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the color of pip
TINT ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the tint of pip
SHARPNESS ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the sharpness of pip
Note
BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS for pip can be adjusted
when inputting Composite Video or S-Video signal and also selecting [small] or
[medium] or [large] in [size] menu.

13
LCD Monitor Instructions
Adjustment Items
Adv pip(Advanced picture in picture) Menu (refer to page 29-30)
H POSITION ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Select the horizontal position of pip
V POSITION ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Select the vertical position of pip
VIDEO FORMAT ‥‥‥‥‥‥‥‥‥‥‥‥‥‥Select the video format (ntsc/pal/secam)
Options Menu (refer to page 31-33)
OSD ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Select the osd position
ROTATION ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Select PORTRAIT or LANDSCAPE
OSD TIMEOUT‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Change the osd timeout
OSD BACKGROUND ‥‥‥‥‥‥‥‥‥‥Select the osd background
LANGUAGE ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Select language used in osd
BACKLIGHT‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the backlight of the screen
Utilities Menu (refer to page 34-35)
AUTO ADJUST ‥‥‥‥‥‥‥‥‥‥‥‥‥‥Adjust the screen automatically
RESET ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Delete the data saved at the current display
mode
INTERNAL FIRMWARE ‥‥‥‥‥‥‥‥Display the osd version
RESOLUTION ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥Display the resolution of the screen
Note
Adv pip Menu can be used when inputting Composite Video or S-Video signal and also
selecting [small] or [medium] or [large] in [size] menu.
Note
If selected [Rotated] in Options menu, [Internal Farmware] is not displayed.

14
38-FP0001-02
Mode
You can change or indicate the signal input type following the steps.
Change or indicate the input signal
1. While the OSD (On Screen Display) is not displayed, it is possible
to change or indicate the current mode.
Press [Source] key to indicate the current mode in the lower right corner
of the screen.
Analog RGB1
Mode: 88
1024 x 768 / 75 Hz
(Ex.)
2. While displaying the current mode, press [Source] key again.
Start searching another mode according to the order [Analog RGB1] /
[Analog RGB2] / [Digital RGB].
[Analog RGB1]/ Switch to the signal from RGB connector.
[Analog RGB2]/ Switch to the signal from R/G/B/HD/VD connector.
[Digital RGB]/ Switch to the signal from DVI connector.
•Every time the input signal is searched, display the searched and stop
searching picture.
•The current mode is indicated for each input signal type as follows:
Analog RGB1
Mode: 88
1024 x 768 / 75 Hz
Digital RGB
Mode: 88
1024 x 768 / 75 Hz
Analog RGB2
Mode: 88
1024 x 768 / 75 Hz
In case there is no signal when the screen is on, the screen will be in the waiting
mode and nothing is shown.
NOTE

15
LCD Monitor Instructions
Adjustment Procedure
1Display the Windows or other screen
After a computer is connected with this LCD monitor, activate a computer and
then shows a bright screen on this LCD monitor. It might not be possible to adjust
the screen correctly for a dark screen.
For DOS mode, run an application that shows the edges of the screen (edit
etc.) to adjust screen.
Before Adjustment
Advanced
Pip
Adv pip
Options
Utilities
Main menu
(Ex.)
Sub menu
Brightness 50
-
+
Contrast 50
-
+
H position 50
-
+
V position 50
-
+
Phase 15
-
+
1056
Frequency
-
+
Scaling Wide
Show OSD (On Screen Display) menu
Press [ Menu] or [Menu ] key to show the following menu while no menu is
displayed on the monitor.
2
Advanced
Pip
Adv pip
Options
Utilities
Main menu
(Ex.)
Sub menu
Brightness 50
-
+
Contrast 50
-
+
H position 50
-
+
V position 50
-
+
Phase 15
-
+
1056
Frequency
-
+
Scaling Wide
Select item of the menu
Press [ ] or [ ] key to select item of the menu while displaying the OSD menu.
3
The signal timing for a computer which this LCD monitor supports is listed in "Table of
Preset Data" on Page 39, the recommended value of Vertical Frequency for this model
is 60Hz. (Unlike CRT Monitors, the display becomes stable when Vertical Frequency is
low.) It is recommend to set Vertical Frequency of a computer connected at 60Hz by
"refresh rate setting" before starting adjustment procedure.
*This user's guide illustrates the OSD(On Screen Display) when installing this LCD
monitor in the standard direction. If selects the "Rotated" in Options menu (see page
31), OSD menu is displayed in the opposite order.
This monitor does not have the convertible function of Landscape display. When using
this monitor with vertical installation, it is necessary to adapt the input signal to this
monitor to the Portrait display.

16
38-FP0001-02
Advanced
Pip
Adv pip
Options
Utilities
Main menu
(Ex.)
Sub menu
Brightness 25
-
+
Contrast 50
-
+
H position 50
-
+
V position 50
-
+
Phase 15
-
+
1056
Frequency
-
+
Scaling Wide
Move the cursor to Sub menu
After Main menu item is selected, press [Menu ] key.
･Press [ Menu] key to return to Main menu from Sub menu.
4
Advanced
Pip
Adv pip
Options
Utilities
Main menu
(Ex.)
Sub menu
Brightness 25
-
+
Contrast 50
-
+
H position 50
-
+
V position 50
-
+
Phase 15
-
+
1056
Frequency
-
+
Scaling Wide
Select item of Sub menu
Press [ ] or [ ] key as well as the Main menu item selection.
5
Advanced
Pip
Adv pip
Options
Utilities
Main menu
Sub menu
(Ex.)
User red
-
+
User green
-
+
User blue
-
+
Color
Warm Neutral Cold user
Match the cursor to the operation item
61. When there are some selections like "color" item, press [ ] or [ ] key to
move the cursor to switch.
*Continued on the following page.

17
LCD Monitor Instructions
Adjustment Procedure
Adjustment or Setting
7For each item selected, the adjustment/setting has been made by pressing [ ]
and/or [ ] key. This monitor saves adjusted value at intervals of about 5
seconds. Do not turn off the monitor for at least 5 seconds after adjustment or
setting. (The detail steps for each item are described in the page 18-35)
2. For the adjustment item like "brightness", press [−] or [＋] key to change
levels of selected item.
Advanced
Pip
Adv pip
Options
Utilities
Main menu
(Ex.)
Sub menu
Brightness 25
-
+
Contrast 50
-
+
H position 50
-
+
V position 50
-
+
Phase 15
-
+
1056
Frequency
-
+
Scaling Wide

18
38-FP0001-02
(Picture Menu)
A. Picture Menu
Adjust the brightness
11. Select [Picture] on the Main menu and press [Menu ] key.
You can see the cursor moving to the Sub menu.
Advanced
Pip
Adv pip
Options
Utilities
Main menu
(Ex.)
Sub menu
Brightness 25
-
+
Contrast 50
-
+
H position 50
-
+
V position 50
-
+
Phase 15
-
+
1056
Frequency
-
+
Scaling Wide
2. Select [Brightness] on the Sub menu with pressing [ ] or [ ] key.
The selected item of [Brightness] turns blue.
3. Use [ ] and/or [ ] key to adjust. (Interval: 0~100)
By pressing [ ] key, the whole screen is brighter.
By pressing [ ] key, the whole screen is darker.
Adjust the contrast
21. Select [Picture] on the Main menu and press [Menu ] key.
You can see the cursor moving to the Sub menu.
Advanced
Pip
Adv pip
Options
Utilities
Main menu
(Ex.)
Sub menu
Brightness 25
-
+
Contrast 50
-
+
H position 50
-
+
V position 50
-
+
Phase 15
1056
-
+
Frequency
-
+
Scaling Wide
If you wish to adjust the screen finely or in case the result adjusted by Auto Adjust (see
page 34) sequence is not sufficient enough, adjust the screen manually.
Manual Adjustment
2. Select [Contrast] on the Sub menu with pressing [ ] or [ ] key.
The selected item of [Contrast] turns blue.
*Continued on the following page.
Adjustment for computer screen

19
LCD Monitor Instructions
Adjustment Procedure (Picture Menu)

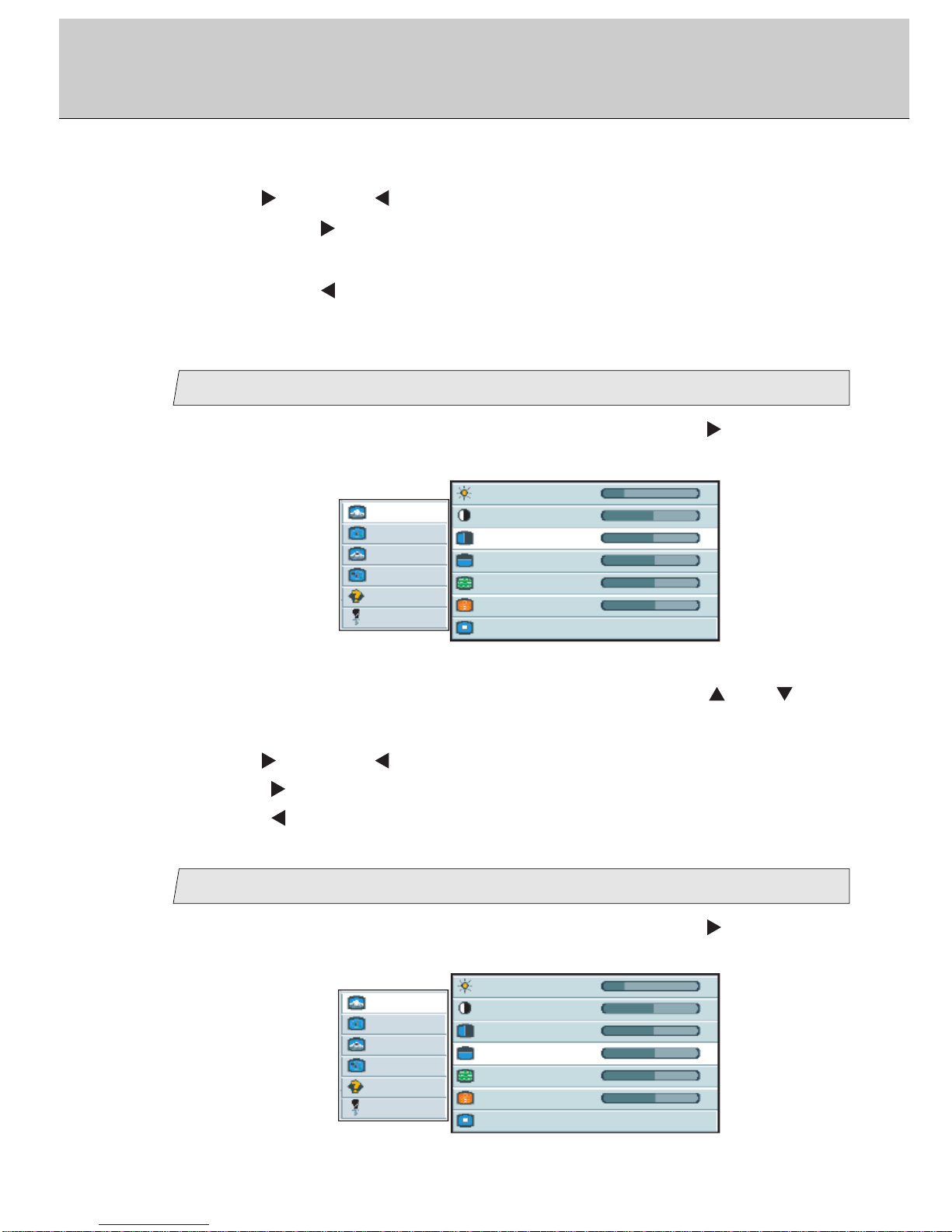

3. Use [ ] and/or [ ] key to adjust. (Interval: 0~100)
By pressing [ ] key, the contrast (difference between bright and dark)
becomes darker.
By pressing [ ] key, the contrast (difference between bright and dark)
becomes lighter.
Adjust the horizontal position (Analog mode only)
31. Select [Picture] on the Main menu and press [Menu ] key.
You can see the cursor moving to the Sub menu.
2. Select [H position] on the Sub menu with pressing [ ] or [ ] key.
The selected item of [H position] turns blue.
3. Use [ ] and/or [ ] key to adjust. (Interval: 0~100)
Press [ ] to shift the screen to the right.
Press [ ] to shift the screen to the left.
Advanced
Pip
Adv pip
Options
Utilities
Main menu
(Ex.)
Sub menu
Brightness 25
-
+
Contrast 50
-
+
H position 50
-
+
V position 50
-
+
Phase 15
1056
-
+
Frequency
-
+
Scaling Wide
Adjust the vertical position (Analog mode only)
41. Select [Picture] on the Main menu and press [Menu ] key.
You can see the cursor moving to the Sub menu.
Advanced
Pip
Adv pip
Options
Utilities
Main menu
(Ex.)
Sub menu
Brightness 25
-
+
Contrast 50
-
+
H position 50
-
+
V position 50
-
+
Phase 15
1056
-
+
Frequency
-
+
Scaling Wide
