Chrysler 2007 Sebring Sedan User manual

TABLE OF CONTENTS
SECTION PAGE
1INTRODUCTION .............................................................3
2THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ...........................7
3UNDERSTANDING THE FEATURES OF YOUR VEHICLE ............................67
4UNDERSTANDING YOUR INSTRUMENT PANEL .................................133
5STARTING AND OPERATING ................................................203
6WHAT TO DO IN EMERGENCIES .............................................271
7MAINTAINING YOUR VEHICLE ..............................................285
8MAINTENANCE SCHEDULES ................................................331
9IF YOU NEED CONSUMER ASSISTANCE .......................................349
10 INDEX ...................................................................357
1
2
3
4
5
6
7
8
9
10

INTRODUCTION
CONTENTS
䡵Introduction ........................... 4
䡵How To Use This Manual ................. 4
䡵Warnings And Cautions .................. 6
䡵Vehicle Identification Number .............. 6
䡵Vehicle Modifications / Alterations .......... 6
1

INTRODUCTION
This manual has been prepared with the assistance of
service and engineering specialists to acquaint you with
the operation and maintenance of your new vehicle. It is
supplemented by a Warranty Information Booklet and
various customer oriented documents. You are urged to
read these publications carefully. Following the instruc-
tions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.
NOTE: After you read the manual, it should be stored
in the vehicle for convenient reference and remain with
the vehicle when sold, so that the new owner will be
aware of all safety warnings.
When it comes to service, remember that your dealer
knows your vehicle best, has the factory-trained techni-
cians and genuine Mopar威parts, and is interested in
your satisfaction.
WARNING!
Engine exhaust, some of its constituents, and certain
vehicle components contain or emit chemicals
known to the State of California to cause cancer and
birth defects or other reproductive harm. In addition,
certain fluids contained in vehicles and certain prod-
ucts of component wear contain or emit chemicals
known to the State of California to cause cancer and
birth defects or other reproductive harm.
HOW TO USE THIS MANUAL
Consult the table of contents to determine which section
contains the information you desire.
The detailed index, at the rear of this manual, contains a
complete listing of all subjects.
Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this owner manual:
4 INTRODUCTION

Common Icons
INTRODUCTION 5
1

WARNINGS AND CAUTIONS
This manual contains WARNINGS against operating
procedures, which could result in an accident or bodily
injury. It also contains CAUTIONS against procedures,
which could result in damage to your vehicle. If you do
not read this entire manual you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
Vehicle Identification Number (VIN) is found on the
driver’s front corner of the instrument panel, visible
through the windshield. This number also appears on the
vehicle registration or title.
VEHICLE MODIFICATIONS / ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle
could seriously affect its roadworthiness and safety
and may lead to an accident resulting in serious
injury or death.
Vehicle Identification Number
6 INTRODUCTION

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
䡵A Word About Your Keys .................10
▫Ignition Key Removal ...................10
▫Automatic Transaxle Ignition
Interlock System .......................11
▫Key-In-Ignition Reminder ................11
▫Locking Doors With The Key ..............12
䡵Sentry Key ............................12
▫Replacement Keys ......................13
▫Sentry Key Programming .................13
▫General Information ....................14
䡵Security Alarm System — If Equipped .......14
▫Rearming Of The System .................14
▫To Arm The System .....................14
▫To Disarm The System ...................15
▫Security System Manual Override ...........16
䡵Illuminated Entry System — If Equipped .....16
䡵Remote Keyless Entry ....................17
▫To Unlock The Doors ...................17
▫To Lock The Doors .....................18
▫ToUnlatchTheTrunk ...................18
▫Using The Express Down Window
Feature — If Equipped ..................19
▫Using The Panic Alarm: ..................19
▫To Turn Off “Flash Lights With Lock” ........19
2

▫To Program Transmitters .................20
▫General Information ....................20
▫Battery Replacement ....................20
䡵Remote Start System — If Equipped .........21
▫How To Use Remote Start ................21
䡵Door Locks ...........................23
▫Manual Door Locks .....................23
▫Power Door Locks .....................24
▫“Child-Protection” Door Lock System
(Rear Doors) ..........................25
䡵Power Windows ........................26
▫Power Window Switches .................26
▫Auto Window Down (Express Down) —
If Equipped ..........................26
▫Auto Window Up (Express Up) With Anti–Pinch
Protection — If Equipped ................27
▫Window Lockout Switch .................28
▫Reset Express Up ......................29
▫Wind Buffeting ........................29
䡵Trunk Release ..........................29
䡵Trunk Safety Warning ....................30
▫Trunk Internal Emergency Release ..........30
䡵Occupant Restraints .....................31
▫Lap/Shoulder Belts .....................32
▫Adjustable Upper Shoulder Belt Anchorage ....37
▫Automatic Locking Retractors (ALR)
Mode – If Equipped ....................37
▫Rear Seat Belts ........................38
▫Seat Belt Pretensioners ...................38
▫BeltAlert威Enhanced Warning System ........38
▫Seat Belts And Pregnant Women ............39
▫Seat Belt Extender ......................40
▫Supplemental Restraint System (SRS) - Airbag . .40
8 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Airbag System Components ...............41
▫Front Seat Airbag Features ................42
▫Airbag Deployment Sensors And Controls .....47
▫Event Data Recorder (EDR) ...............52
▫Child Restraint ........................54
䡵Engine Break-In Recommendations ..........63
䡵Safety Tips ............................64
▫Exhaust Gas ..........................64
▫Safety Checks You Should Make Inside
TheVehicle ..........................64
▫Periodic Safety Checks You Should Make
Outside The Vehicle ....................65
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 9
2

A WORD ABOUT YOUR KEYS
The dealer that sold you your new vehicle has the key
code numbers for your vehicle locks. These numbers can
be used to order duplicate keys from your dealer. Ask
your dealer for these numbers and keep them in a safe
place.
Ignition Key Removal
Automatic Transaxle
Place the shift lever in PARK. Turn the ignition switch to
the ACC position, push the key and cylinder inward,
rotate the key to the LOCK position, and remove the key.
NOTE: If you try to remove the key before you place
the lever in PARK, the key may become trapped tempo-
rarily in the ignition cylinder. If this occurs, rotate the key
to the right slightly, then remove the key as described. If
a malfunction occurs, the system will trap the key in the

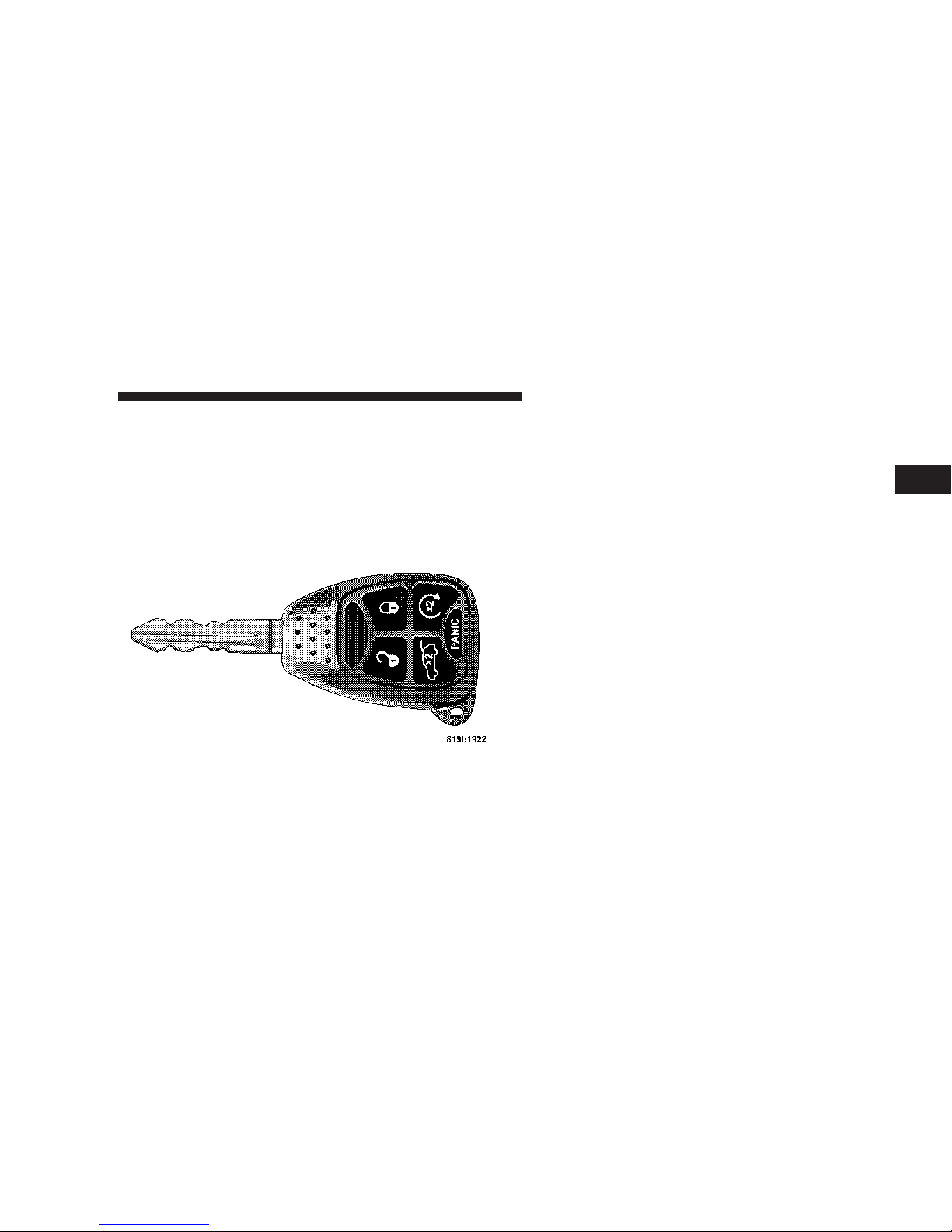

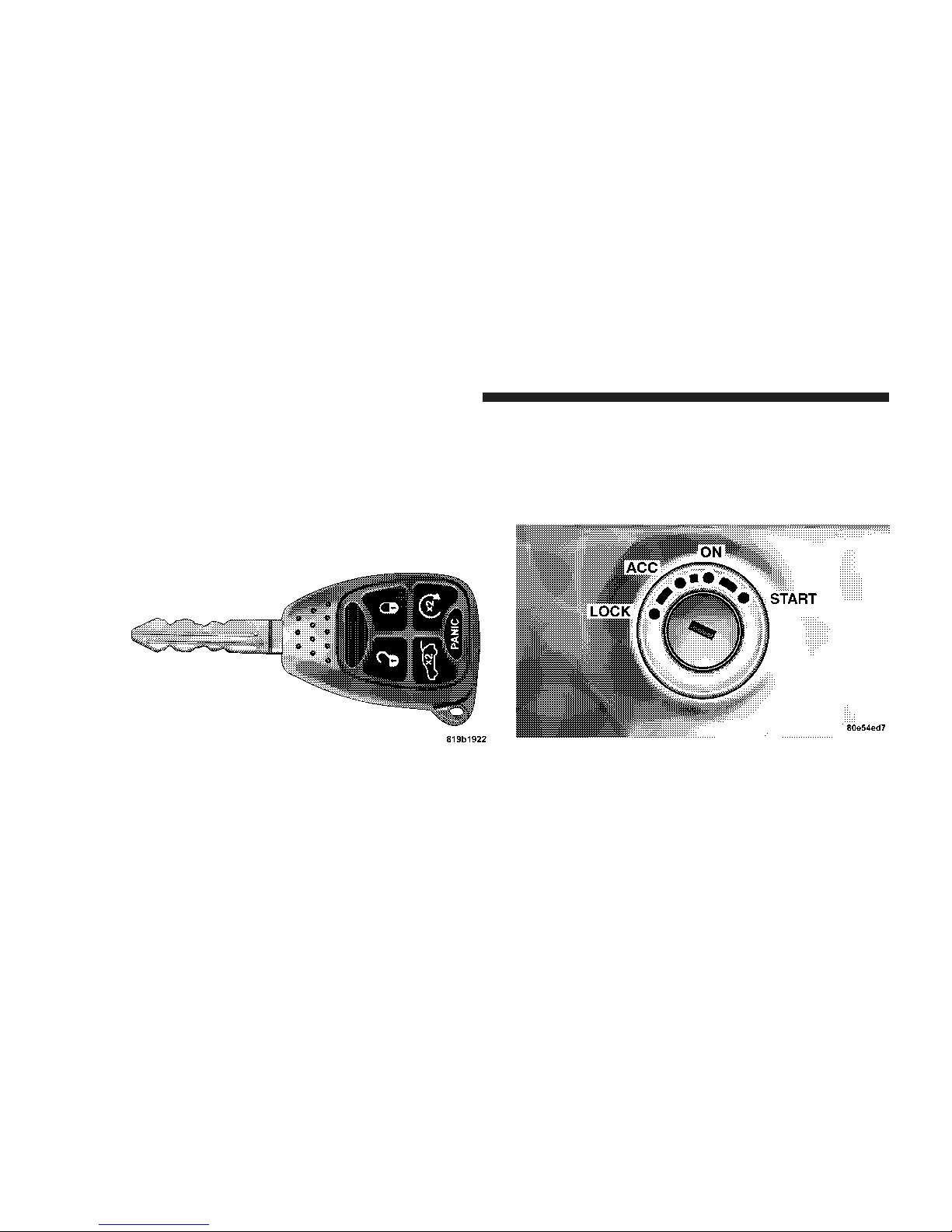

Vehicle Key Ignition Key Position
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

ignition cylinder to warn you that this safety feature is
inoperable. The engine can be started and stopped but
the key cannot be removed until you obtain service.
NOTE: The power window switches, radio, and power
outlets, will remain active for up to 45 seconds after the
ignition switch has been turned off. Opening a vehicle
front door will cancel this feature.
WARNING!
NEVER leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power windows,
other controls, or move the vehicle
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Automatic Transaxle Ignition Interlock System
This system prevents the key from being removed unless
the shift lever is in PARK. It also prevents shifting out of
PARK unless the key is in the ACC, or ON positions, and
the brake pedal is depressed.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition,
sounds a signal to remind you to remove the key.
NOTE: With either front door open, and the key in the
ignition, both the power door locks and Remote Keyless
Entry (RKE) will not function.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

Locking Doors With The Key
There is only one external door lock cylinder which is
located in the driver’s door only.
You can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. See Section 7 of this manual for door lock
lubrication.
SENTRY KEY
The Sentry Key Immobilizer System prevents unautho-
rized operation of the vehicle by disabling the engine.
The system will shut the engine off after 2 seconds of
running if an invalid key is used to start the vehicle. This
system utilizes ignition keys which have an electronic
chip (transponder) embedded into them. Only keys that
have been programmed to the vehicle can be used to start
and operate the vehicle.
The Sentry Key Immobilizer System does not need to be
armed or activated. Operation of the system is automatic
regardless of whether or not the vehicle is locked or
unlocked. During normal operation, the Theft Alarm/
Immobilizer Light will come on for three (3) seconds
immediately after the ignition switch is turned on for a
bulb check. Afterwards, if the bulb remains on, this
indicates a problem with the electronics.
If the bulb begins to flash after the bulb check, this
indicates that an invalid key has been used to start the
vehicle. Both of these conditions will result in the engine
being shut off after two (2) seconds of running.
Keep in mind that a key, which has not been pro-
grammed is also considered an invalid key even if it is
cut to fit the ignition lock cylinder for that vehicle.
If the Theft Alarm/Immobilizer Light comes on during
normal vehicle operation, (the vehicle has been running
for longer than 10 seconds), a fault has been detected in
the electronics and the vehicle should be serviced as soon
as possible.
NOTE:
•
The Sentry Key Immobilizer System is not compatible
with remote starting systems. Use of these systems
may result in vehicle starting problems and loss of
security protection.
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• Exxon/Mobil Speed Pass,™ additional Sentry Keys, or
any other transponder equipped components on the
same keychain will not
cause a key-related (tran-
sponder) fault unless the additional part is physi-
cally held against the ignition key being used
when starting the vehicle. Cell phones, pagers, or
other RF electronics will not cause interference with
this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE:
Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it cannot
be programmed to any other vehicle.
At the time of purchase, the original owner is provided
with a four-digit PIN number. This number is required
for dealer replacement of keys. Duplication of keys may
be performed at an authorized dealer or by using the
Customer Key Programming procedure. This procedure
consists of programming a blank key to the vehicle
electronics. A blank key is one, which has never been
programmed.
NOTE: When having the Sentry Key Immobilizer
System serviced, bring all vehicle keys with you to the
dealer.
Sentry Key Programming
You can program new keys to the system if you have two
valid sentry keys by performing the following procedure:
1. Cut the additional Sentry Key Transponder blank(s) to
match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch and
turn the ignition switch ON for at least 3 seconds but no
longer than 15 seconds. Turn the ignition switch OFF and
remove the first key.
3. Insert the second valid key and turn the ignition
switch ON within 15 seconds. After ten seconds, a chime
will sound and the Theft Alarm Light will begin to flash.
Turn the ignition switch OFF and remove the second key.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

4. Insert a blank Sentry Key into the ignition switch and
turn the ignition switch ON within 60 seconds. After 10
seconds a single chime will sound. The Theft Alarm Light
will stop flashing, turn on for 3 seconds; then turn off.
The new Sentry Key has been programmed.
Repeat this procedure to program up to 8 keys. If you do
not have a programmed sentry key, contact your dealer
for details.
General Information
The Sentry Key system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM — IF EQUIPPED
The Vehicle Theft Security Alarm (VTSA) system moni-
tors the doors, trunk, and ignition switch for unautho-
rized operation.
If something triggers the alarm, the system will signal for
about 18 minutes. For the first 3 minutes, the horn will
sound intermittently and the headlights, park lights,
taillights and the indicator light in the cluster will flash.
Then the exterior lights will flash for another 15 minutes.
Rearming of the System:
If something triggers the alarm, and no action is taken to
disarm it, the system will turn off the horn after 3
minutes, turn off all of the visual signals after 15 minutes,
and then the system will rearm itself.
To Arm the System:
1. Remove the keys from the ignition switch and get out
of the vehicle.
2. Lock the door using either the power door lock switch
or the Keyless Entry Transmitter, and close all doors.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. The indicator light in the instrument cluster will flash
rapidly for 16 seconds. This shows that the system is
arming. During this period, if a door is opened, the
ignition switch is turned ON, or the power door locks are
unlocked in any manner, the system will automatically
disarm. After 16 seconds, the indicator light will flash
slowly. This shows that the system is fully armed.
NOTE: For added security, whenever the Security
Alarm is armed, the Homelink/Garage Door Opener (if
equipped) is disabled as well.
To Disarm the System:
Either press the UNLOCK button on the remote keyless
entry transmitter or insert a valid sentry key into the
ignition lock cylinder and turn the key to the ON/START
position.
NOTE:
• The driver’s door key cylinder and the trunk button on
the keyless entry transmitter cannot arm or disarm the
system.
• The system remains armed during trunk entry. Press-
ing the trunk button will not disarm the system. If
someone enters the vehicle through the trunk and
opens any door, the alarm will sound.
• When the system is armed, the interior power door
lock switches will not unlock the doors.
The Vehicle Security Alarm system is designed to protect
your vehicle; however, you can create conditions where
the system will give you a false alarm. If one of the
previously described arming sequences has occurred, the
system will arm regardless of whether you are in the
vehicle or not. If you remain in the vehicle and open a
door, the alarm will sound. If this occurs, disarm the
system.
If the alarm system is armed and the battery becomes
disconnected the system will remain armed when the
battery is reconnected. The exterior lights will flash, the
horn will sound, and the ignition will not start the
vehicle. If this occurs, disarm the system.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

Tamper Alert
If the alarm was triggered, but the warning signals have
timed out, the park and taillights flash three times
(instead of the normal twice) when unlocking the vehicle
with a valid Remote Keyless Entry (RKE) transmitter to
alert the driver.
Security System Manual Override
The Vehicle Theft Security Alarm (VTSA) system will not
arm if you lock the doors using the manual door lock
plunger.
ILLUMINATED ENTRY SYSTEM — IF EQUIPPED
The courtesy lights will turn on when you use the keyless
entry transmitter or open the doors. This feature is only
available if you have Remote Keyless Entry.
The lights will fade to off after about 30 seconds or they
will immediately fade to off once the ignition switch is
turned on.
NOTE:
• The front courtesy overhead console and door cour-
tesy lights do not turn on if the dimmer control is in
the interior lights ON position (extreme top position).
• The illuminated entry system will not operate if the
dimmer control is in the “defeat” position (extreme
downward position).
Manual Lock Plunger
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

REMOTE KEYLESS ENTRY
This system allows you to lock or unlock the doors and
trunk or activate the panic alarm from distances a maxi-
mum of 66 feet (20 meters) using a hand held radio
transmitter. The transmitter need not be pointed at the
vehicle to activate the system.
NOTE: The line of transmission must not be blocked
with metal objects.
To unlock the doors:
Press and release the UNLOCK button on the key fob
once to unlock only the driver’s door or twice to unlock
all the doors. When the UNLOCK button is pressed, the
illuminated entry will initiate, the parking lights will
flash on twice, and the headlights will remain on. The
time for headlamp delay is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). Refer to “Headlamps Off Delay” under “Personal
Settings” in the Electronic Vehicle Information Center
(EVIC) section of this manual for details.
NOTE: The system can also be programmed to unlock
all doors on the first press of the UNLOCK button. On
electronic vehicle information center (EVIC) equipped
vehicles refer to “Remote Unlock Driver’s Door 1st”
under “Personal Settings” in the EVIC section of this
manual. On non EVIC – equipped vehicles perform the
following steps:
The system can be programmed to unlock all the doors
upon the first UNLOCK button press by using the
following procedure:
Five Button Vehicle Key
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

1. Press and hold the LOCK button on a programmed
key fob.
2. Continue to hold the LOCK button at least 4 seconds,
but not longer than 10 seconds, then press and hold the
UNLOCK button. A single chime will sound to indicate
that this feature has changed.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK button on the keyfob.
NOTE: Pressing the LOCK button on the keyfob while
you are inside the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
To lock the doors:
Press and release the LOCK button on the transmitter to
lock all doors. The turn signal lights will flash and the
horn will chip once to acknowledge the lock signal. If
desired, the “Sound Horn On Lock” feature can be
turned on or off. On electronic vehicle information center
(EVIC) equipped vehicles refer to “Personal Settings” in
the “Electronic Vehicle Information Center (EVIC)” sec-
tion of this manual. On non EVIC – equipped vehicles
perform the following steps:
1. Press the LOCK button for 4 to 10 seconds.
2. While the LOCK button is pressed (after 4 seconds),
press the PANIC button. Release both buttons.
The “Sound Horn On Lock” feature can be reactivated by
repeating this procedure.
To Unlatch the Trunk:
Press the trunk button on the transmitter two times to
unlatch the trunk.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Using The Express Down Window Feature — If
Equipped
The key fob remotely lowers both driver and passenger
front windows simultaneously. Lowering the front win-
dows using the key fob is a two step operation:
1. Press the unlock button once.
2. Press the unlock button a second time and hold the
button until the glass lowers completely or the windows
drop to the desired level
Using The Panic Alarm:
To turn the panic alarm feature ON or OFF, press and
hold the PANIC button on the transmitter for at least one
second and release. When the panic alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off and the interior lights will turn on.
The panic alarm will stay on for 3 minutes unless you
turn it off by pressing the PANIC button a second time or
if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE: When you turn off the panic alarm by pressing
the PANIC button a second time, you may have to be
closer to the vehicle due to the radio frequency noises of
the system.
To Turn Off “Flash Lights With Lock”
NOTE:
The “Flash Lights With Lock” feature can be
turned on or off. On electronic vehicle information center
(EVIC) equipped vehicles refer to ⬙Personal Settings⬙in
the EVIC section of this manual. On non EVIC - equipped
vehicles perform the following steps:
1. Press the UNLOCK button for 4 to 10 seconds.
2. While the UNLOCK button is pressed, (after 4 sec-
onds) press the LOCK button. Release both buttons.
3. Test the flash lamps with LOCK feature while outside
of the vehicle, by pressing the LOCK button on the key
fob with the ignition in the LOCK position, and the key
removed.
The “Flash Lights On Lock/Unlock” feature can be
reactivated by repeating this procedure.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

NOTE: Pressing the LOCK button on the key fob, while
you are in the vehicle, will activate the Security Alarm.
Opening a door with the Security Alarm activated will
cause the alarm to sound. Press the UNLOCK button to
deactivate the Security Alarm.
To Program Transmitters:
Refer to SENTRY KEY “Sentry Key Programming.”
If you do not have a programmed transmitter, contact
your dealer for details.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your Remote Lock Control fails to operate from a
normal distance, check for these two conditions.
1. Weak batteries in transmitter. The expected life of
batteries is five years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.
Battery Replacement
The recommended replacement battery is CR2032.
1. With the transmitter buttons facing down, use a flat
blade to pry the two halves of the transmitter apart. Make
sure not to damage the seal during removal.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
