Chrysler Imperial 1965 User manual

MyMopar.com

AC-iCHRYSLHmmoRi CONVEX
Fig. 965 Imperial and Chrysler Models
MyMopar.com

INTRODUCTION AND GENERAL SPECIFICATIONS 3
DEALER—FACTORY CONTACT
The following outlineoftheproper procedure touseinobtaining assistance oradviceonanymat-
terapplyingtoService will insureyourinquiriesreceivingpromptattentionandhandling.Make cer-
tain those members ofyourorganizationwhomight have theoccasiontocontacteitheryourRegional
Office orthefactory,arethoroughlyfamiliar with thisprocedure.
All matters pertaininginanywaytoWarrantyServiceClaims,orofa technicalnature,shouldbe
handledbyyoudirect with yourRegionalService Office. Whenindoubtastotheproper procedure to
follow inthehandlingofa claimorcomplaint,prompt results canbeobtainedthrougha letter,telegram
or phone call toyourRegionalServiceOffice—makingcertaintoincludeall necessary information.
If theaidofa Service Representative is necessary, theRegionalOffice will arrange forhiscon-
tactaspromptlyas circumstances permit.
Lettersor telegrams totheRegionalService Office, shouldbeconfinedtoonesubjectonlyandshould
includethe following information:
CarSerial NumberOwner'sName
Dateof Sale Mileage
Completedescriptionof difficulty, correctiveactiontaken,yourrecommendationsastowhatshould
be done andthe reason forsodoing.
IncludePaintand Trim Code Numberswhere finish, upholstery,bodyor sheet metalis involved, and
estimate ofnet cost ofrepairs.
CHRYSLER-PLYMOUTH DIVISION
With theexceptionof orders for parts or parts literature,all requests forImperial,Chrysler,Plym-
outh ServiceliteraturesuchasServiceBulletins,ServiceManuals,OwnerManuals,Time Sched-
ules,W.S.C.'sorotherChrysler—Plymouth Division Serviceliterature,shouldbe addressed to:
(Letters)
ChryslerCorporation
Chrysler—Plymouth Division
ServiceDepartment
P.0.Box1658
Detroit, Michigan48231
Phone [phone](Area Code 313)
(Telegrams)
Chrysler—Plymouth Division
Attention
(Nameof person towhom sent)
WUX
Detroit, Michigan
NOTE: Pleas© make certain to Include the Code WUX on all telegrams tothe Chrysler-Plymouth Divi-
sion as this insures delivery direct toour Teleprint Room thus eliminating delay.
MASTER TECHNICIANS SERVICE CONFERENCE
All correspondence concerningenrollmentintheM.T.S.C.Program, issuance of awards, orders for
additional material,thereturnofreports,oranyother matters relatingtothisprogram,shouldbead-
dressed to:
MasterTechnicianServiceConference
ChryslerCorporation Training Center
P.O. Box 2119
Detroit, Michigan 48231
Phone [phone]—Area Code 313
MyMopar.com

INTRODUCTION AND GENERAL SPECIFICATIONS
PARTS DIVISION
General
ALL orders for parts or accessories, emergency orotherwise,shouldbeforwardeddirecttoyour
source ofsupplyortothe parts plantlistedbelowservingthe area inwhichyouarelocated.
To insureyourreceivingthe parts requiredbyyoumorepromptly, close attentionshouldbe
given totheprocedurelistedunder"OrderingInformation"and"Your Parts Orders"inthein-
troductoryfrontpartofallMoPar Parts ListsandPriceLists.Particularlywhere parts areordered
for a specificcar,itisvery essential thatyourorderincludethecarserialandenginenumbers,and
in the case ofbodyparts,thebodynumber.
CENTER LINE, MICHIGANSAN LEANDRO, CALIFORNIA
ChryslerMotorsCorporation ChryslerMotorsCorporation
P.O.Box3001955Davis Street
Center Line, Michigan 48015P.O.Box5
Telephone—DetroitSanLeandro,California94577
539-3000Telephone—SanLeandro,Neptune 8-6200
Area Code—313 Area Code—415
NEWARK, DELAWARE KANSAS CITY, KANSAS
ChryslerMotorsCorporation ChryslerMotorsCorporation
SouthCollegeAvenueFunston& Chrysler Roads
P.O.Box120P.O.Box2188
Newark,Delaware19711 Kansas City, Kansas 66110
Telephone—Newark,Endicott8-2521 Telephone—Kansas City, Kansas—Fairfax 1-3300
AreaCode—302Area Code—913
ATLANTA, GEORGIA CEDAR GROVE, ESSEX COUNTY, NEW JERSEY
ChryslerMotorsCorporation Cedar Grove Parts Depot
1150MurphyAvenue,S.W.20 Sand ParkDrive
P.O.Box10957 Cedar Grove, Essex County, N.J.
Atlanta, Georgia30310Telephone—
Telephone—Atlanta, Plaza 5-2531 Cedar Grove,239-8100
AreaCode—404AreaCode—201
Parts Division Literature
Request for Parts Division literaturesuchas Parts Books, Parts PriceLists, Parts Bulletins,etc.,
shouldbeforwardeddirectto:ChryslerMotorsCorporation P.O.Box1718Detroit31,Michigan,At-
tention: Parts CatalogDepartment.
Shortage of Accessories orOther Equipment onNew Cars
Beforeplacinganorderformissing accessories, other parts orequipment,onnew cars received,
examinethevehicleforthe presence ofa "backorder"notice,whichif present, will befound attached
tothebracketfortheinside rear viewmirror.Suchback-orderedshortitems will beshipped from
the assembly plantassoonasstockisavailable,andshouldnotbeordered from the Parts Division.
Emergency Orders—Car Downor Truck Down
1. When parts arenotimmediatelyavailable from yourlocalMoPar source ofsupply.TELEPHONE,
TELEGRAPH orAIR MAIL yourorderto:
a.PARTS PLANT SERVING YOUR AREA forall parts coded"V","F", "M", "N"and"P".Use
Parts OrderFormNo.81-670-0139.
b. FACTORY PARTS PLANT ATCENTER LINE forall parts coded"D"...and orders for"D"
parts combined with "V", "F", "M", "N"and"P" parts requiredforanindividualservicejob.
Use Parts OrderFormNo.81-670-0190 (Supersedes D-16712).
c.Quantitiesorderedshouldnot exceed actualrequirementsforvehicleoutofservice. Always
supply car, vehicle serial numberand Truck Parts AvailabilityNumber(1960-62Models)inad-
dition to Vehicle Number.
2. Identify orders as"EmergencyCarDown."
3. List part numbers innumerical sequence. Useyour dealer code numberonallorders.Assign
only oneordernumbertotheorder regardless ofsize.
4."V", "F", "M","N" and"P" parts will beshippedtransportation charges collect."D" parts will be
shippedtransportationprepaidwhen"NormalPrepaidTransportation"isspecified;shipped col-
lectwhen"PremiumTransportation"isspecified.
MyMopar.com

INTRODUCTION AND GENERAL SPECIFICATIONS 5
If65 MODELS
Chrysler Newport A C-1
Chrysler 300 AC-2
Chrysler New Yorker AC-3
Chrysler 300-L
Imperial Crown
Imperial LeBaron
AC-2-300L
AY-2
AY-3
VEHICLE AND ENGINENUMBERS
VEHICLE NUMBER—The vehiclenumber(Serial
Number) islocatedona metalplateattachedtothe
left front doorbodyhinge pillar, asshowninFigure
2.
All vehiclenumberscontainten digits. Thevehicle
numberisa code which tellsthemakeofvehicle(1st
digit), modelofvehicle(2nd digit), year built (3rd
digit), assembly plant(4th digit), andvehicle sequence
number(lastsix digits) starting with 100001.
ENGINE NUMBER—The enginenumberis
stampedonthe boss onthetop side ofthecylinder
block justbackofthewaterpump,asshownin Fig-
ure3.
ft
e ix22.4"
Fig. 2—Vehicle Number
1st Letter 2ndDigit 3rdDigit 4thDigit
Make of Vehicle Model of Vehicle
Year Built Assembly Plant
C. Chrysler 1. Newport
5. Newport-StationWagon 5 (1965) 3-Detroit
2.
300 7.New Yorker-StationWagon 6-Delaware
3. NewYorker 9. Police
4. 300L
Y. Imperial
2. Crown 3. LeBaron 5 (1965)
3-Detroit
BODY PLATE NUMBERLOCATION
Thebodynumberisstampedona plate which is
attachedontheengine side ofthe cowl just above
the master cylinderonImperialModels,Fig.4.On
ChryslerModelstheplateislocated above thetop
hingeofthedrivers side door.Theplate shows the
bodytype, trim code, schedule date, trim code and
thepaintcode.
INCLUDES SOME SPECIAL AND
STANDARD EQUIPMENT TO AGREE
WITH CAR ORDERED
i 1
V / -i
SSI
INCLUDES DATE AND
MONTH OF YEAR AND
ORDER NUMBER
/ /
BODY TRIM
CODECODE
NUMBERNUMBER
PAINT
CODE
NUMBER
NK1175
Fig. 3—Engine Number
Fig. 4—Body Number
MyMopar.com

6INTRODUCTIONAND GENERAL SPECIFICATIONS
GENERAL DATAAND SPECIFICATIONS
Body Styles
Starting
Serial No.
Chrysler
AC-l
Chrysler
AC-2
AC-2 300L
Chrysler
AC-3
Imperial
AY-1
4Dr. Sedan, 4 Dr.HardTop
2 Dr.HardTop,Convertible C153100001 Newport
4Dr.HardTop,2 Dr.HardTop C253100001 300
4Dr. Sedan, 4 Dr.HardTop C353100001 NewYorker
2 Dr.HardTop,Convertible C453100001
300L
Station Wagon C553100001 Newport
Station Wagon C753100001 NewYorker
Police Car C953100001 Newport
4Dr.HardTop,Convertible Y253100001 Crown
4Dr.HardTop
Y353100001
Le Baron
Wheelbase
All Models Except Sta.Wgn.
Station Wagon 124.0"
121.0"
124.0" 124.0"
121.0" 129"
Tread (Front)
All Models
62" 62" 62" 61.8"
Tread (Rear)
All Models 60.7" 60.7" 60.7" 61.7"
Length with
Bumper
All Models Except Sta.Wgn.
Station Wagon
218.2"
219.0"
218.2" 218.2"
219.0"
Width with
Bumper
All Models
79.5" 79.5" 79.5"
80.0"
Rear Axle with
3- Speed or
4- Speed Manual
Transmission
All Models
3.23"
3.23"
3.23"
3.23"
.
Rear Axle with
TorqueFlite
Transmission
All Models 2.76" 3.23" 2.76" 2.93"
Tire Size
All Models Except Sta.Wgn.
Station Wagon
C-300L
8.25x 14
8.55x14
8.55x14
8.55x14
8.55x14
9.00x14
9.15x 15
MyMopar.com

GROUP 0
LUBRICATIONANDMAINTENANCECHART
NORMALSERVICE
Engine Oil Filter—Replace with new filter.
lottery—Checklevel and specificgravity.
PSF PowerSteeringReservoir—Checklevel. If fluid
is cold,levelshould beat base of filler neck, if
hot,levelshould be halfway up filler neck.
Engine Oil Dipstick—Whenrefueling,check
engine oil level.
EO Oil FilterPipeBreatherCap#—Wash in kerosene
andlubricate with SAE 30 engine oil.
EO EngineOil—Drain and refill. See viscositychart
below:
Multi-Grades
SAE 20W-40 Wheretemperatures are consistently
above32°F.
SAE 10W-30 Suitable for yearlongoperation in many
parts oftheU.S.;maybe usedwhere
temperaturesoccasionallydrop aslow
as—10°F.
SAE 5W-20 Recommendedwhereminimumtempera-
turesconsistently are below 10°F.
SingleGrades
SAE 30 Wheretemperaturesconsistently are
above32°F.
SAE 10W Wheretemperaturesrangebetween
+32°F. and— 10°F.
Manual SteeringGear—Checklevel. Add lubri-
cant, if necessary.
HL
or
MP
MMLColumn-Mounted Manual TransmissionGear-
shiftControls
MMLColumn-MountedAutomaticTransmission
orControls—If boot is damaged,replace and
AMGrelubrlcatemechanism.
HTFBraWMasterCylinder—Checklevel.Fill if
necessary.
MMLFrontSuspensionBallJoints—Inspect seals for
damage.Replace if necessary.
MMLSteeringLinkageBallJoints—Inspect seals for
damage,replace if damaged or worn.
MML
orClutchTorqueShaft.
AMG
MMLClutchDrive Lugs, ReleaseBearingSleeve,
orForkFingers and Pivot.
AMG C
EO Floor Mounted Manual TransmissionGear-
shaftMechanism—Lubricatemechanism from
under car with light engine oil.
EO Floor Mounted Manual TransmissionControls
—Lubricate with SAE30 after removingconsole
top trim panel.
#See CrankcaseVentilationSystemServicing.
CAPACITIES
Engine Oil.....4 qts.
(Add 1 qt. whenreplacing filter)
CoolingSystem 16qts.
(Add 1 qt.for heater)
Rear Axle. 4 pts.
Transmission
TorqueFlite 19.5pts.
Manual
3- Speed ...5 pts.
4- Speed 7.5pts.
Fuel Tank—exceptStationWagons. . . . 25 gals.
—StationWagons 22 gals.
(See FuelSection, for propercapapplication
andFuelTankventing.)
H Positionforliftadapter
A Prepackedbearing
©Coolingsystemdrain
CHRYSLER
NK572
EO
cc
AA
Engine Coolant—Checkleveland /or anti-freeze.
DCL Distributor Camand RubbingBlock—Apply to
cam and rubbingblock.
Distributor OilCupandCam Wickunder
Rotorblock.
CarburetorFuelFilter—Replace with new filter.
Carburetor Air Cleaner—Clean or replace.
CarburetorChokeShaft and Linkage—Apply
solvent to chokeshaftendsthrough air horn.
Manifold Heat ControlValve—Treatshaft with
solvent.
Crankcase VentilationSystem—Testsystem and
service, as required.
AutomaticTransmission—Checklevel with
engineidling in neutral and thoroughlywarm.
Engine Tune-Up
AMGFrontBrakeAssemblies and WheelBearings
AA Manual Transmission—Checklevel,maintain
tofiller hole.
AMG(EP)UniversalJoint(AC-3)—Inspect seals for
leakage.Inspect joint parts for wear.
UniversalJoints (All exceptAC-3)—Inspect
seals for leakage.Inspect joint parts for wear.
UniversalJoints (All Models)—Inspect seals for
leakage.Inspect joint parts for wear.
Rear Axle and Sure-Grip—Checklevel.Main-
tain level to filler hole.
UJ
UJ
BodyMechanism—SeeBodyMaintenance
Section
Deck Lid Hinges
DoorHinges
DoorStrikerPlates
DoorStrikerRotor
Fuel TankFillerDoor
HoodHinges
TailgateTorsion Barand Check Arm GuidePlate
ThrottleLinkage
TIRE PRESSURES (PSI) (COLD)
Size FrontRear
8.25x14 AC-l2422
8.55x14 AC-1 (With Air
Conditioning)AC-2,AC-3 2424
8.55x14 AC-l StationWagons 2226*
9.00x14 AC-3 StationWagons 2226*
increase rear tire pressure 6 psion loaded
StationWagons.
Fig. 1—LubricationChart
(AC-l, AC-2,AC-3Models)
KEY TO LUBRICANTS
AAAutomaticTransmission
Fluid, AQ-ATF,Suffix "A" 1843314
AMGAutomotiveMulti-PurposeGrease
AMG(EP)AutomotiveMulti-Purpose
Grease E.P.NLGI—Grade 2
CC CarburetorCleaner
DCL Cam Lubricant
EO Engine Oil
HTF High TemperatureBrake
Fluid
HLHypoidLubricant
MLLubriplate
MML Multi-Mileage Lubricant
MPMulti-PurposeGear
Lubricant
PSF PowerSteeringFluid
S Manifold Heat ControlValve
Solvent
SL StainlessStickLubricant
UJ UniversalJointGrease
1473595
2421352
1879414
1064768
2525035
2084329
1879318
1064769
MyMopar.com

0-2LUBRICATION AND MAINTENANCE —
LUBRICATIONANDMAINTENANCECHART
NORMALSERVICE
PSF
EO
Engine Oil Filler—Replace with new filter.
Battery—Check level and specificgravity.
PowerSteeringReservoir—Checklevel. If fluid
is cold,levelshould beat base of fillerneck, if
hot,levelshould be halfway up filler neck.
Engine Oil Dipstick—Whenrefueling,check
engine oil level.
OilFilterPipeBreatherCap#—Wash in kerosene
andlubricate with SAE30 engine oil.
EO EngineOil—Drain and refill. See viscositychart
below:
Multi-Grades
SAE 20W-40 Wheretemperatures are consistently
above 32°F.
SAE 10W-30 Suitable for yearlongoperation in many
parts oftheU.S.;maybe usedwhere
temperaturesoccasionallydrop aslow
as —10°F.
SAE 5W-20 Recommendedwhereminimumtempera-
turesconsistently are below+10°F.
Single Grades
SAE 30 Wheretemperaturesconsistently are
above 32°F.
SAE 10W Wheretemperaturesrangebetween
+32°F. and— 10°F.
MMLColumn-MountedAutomaticTransmission
orControls—Ifboot is damaged,replace and
AMGrelubricatemechanism.
HTF BrakeMasterCylinder—Checklevel.Fill
necessary.
MMLFrontSuspensionBallJoints—Inspect seals for
damage.Replace if necessary.-Inspect for
lubricant
MMLSteeringLinkageBallJoints—Inspect seals for
damage,replace if damaged or worn.
AMG(EP)UniversalJoint—Inspect seals for
leakage.Inspectjointparts for wear.
AMG(EP)UniversalJointSpline—Inspect for
leakage.
HL
or
MP
Rear Axle and Sure-Grip—Checklevel. Main
tainlevel to fillerhole.
#See CrankcaseVentilationSystemServicing.
TIRE PRESSURES (PSI) (COLD)
Size
9.15x15 All Sedans
9.15x15Convertibles
FrontRear
22 22
24 24
A Prepacked bearing
# Cooling system drain
IMPERIAL
NK573
Engine Coolant—Checkleveland/oranti-freeze.
DCL Distributor Camand RubbingBlock—Apply to
cam and rubbingblock.
Distributor OilCupandCam Wickunder
Rotorblock.
CarburetorFuelFilter—Replace with new filter.
Carburetor Air Cleaner—Clean or replace.
CarburetorChokeShaft and Linkage—Apply
solvent to chokeshaftendsthrough air horn.
Manifold HeatControlValve—Treatshaft with
solvent.
Crankcase VentilationSystem—Testsystem and
service, as required.
AutomaticTransmission—Checklevel with
engineidling in neutral and thoroughlywarm.
Engine Tune-Up
AMGFrontBrakeAssemblies and WheelBearings
Body Mechanism—SeeBodyMaintenance
Section
Deck Lid Hinges
DoorHinges
DoorStrikerPlates
DoorStrikerRotor
Fuel TankFillerDoor
HoodHinges
TailgateTorsion Barand Check Arm GuidePlate
ThrottleLinkage
KEY TO LUBRICANTS
AutomaticTransmission
Fluid, AQ-ATF,Suffix "A" 1843314
AutomotiveMulti-PurposeGrease
(EP) AutomotiveMulti-Purpose
Grease E.P.NLGI—Grade 2
CarburetorCleaner
Cam Lubricant
Engine Oil
HighTemperatureBrake
Fluid
HypoidLubricant
Lubriplate
Multi-Mileage Lubricant
Multi-PurposeGear
Lubricant
PowerSteeringFluid
Manifold HeatControlValve
Solvent 1879318
SfarnJess StickLubricant 1064769
1473595
2421352
1879414
1064768
2525035
2084329
Fig. 2—LubricationChart
(AY-1 Models)
CAPACITIES
Engine Oil.5 qts.
(Add 1 qt. whenreplacing filter)
CoolingSystem(Includingheater) 17qts.
Rear Axle. 4 pts.
Transmission
TorqueFlite . 19.5pts.
Fuel Tank 23 gals.
MyMopar.com

LUBRICATIONANDMAINTENANCE0-3
LUBRICATIONANDMAINTENANCE
CONTENTS
Page
CERTIFIED CAR CARE 3
SUMMARYOFLUBRICATIONAND
MAINTENANCE SERVICES 5
LUBRICATIONANDMAINTENANCE
CHART(AC1,AC2,AC3MODELS)2
LUBRICATIONANDMAINTENANCE
CHART(AY-1MODELS)1
HOISTING6
CLASSIFICATION OFLUBRICANTS6
CHASSIS LUBRICATION6
CLUTCH ANDGEARSHIFTLINKAGES7
TRANSMISSION—MANUAL8
TRAILER TOWING SERVICE 9
PROPELLER SHAFTANDUNIVERSALJOINTS. 9
REAR AXLE10
TRAILER TOWING SERVICE 11
FRONTWHEELBEARINGS11
TIRES 11
COOLINGSYSTEM12
ENGINE OIL—SELECTION OF12
FREQUENCY OFOILCHANGES12
ENGINEOILFILTER13
CRANKCASE VENTILATIONSYSTEM13
CARBURETOR AIRCLEANER15
CARBURETOR CHOKESHAFTANDLINKAGE16
Page
FUEL FILTER16
MANIFOLD HEATCONTROLVALVE16
DISTRIBUTOR16
ALTERNATOR 17
BATTERY 17
TRANSMISSION—AUTOMATIC17
STEERING GEAR18
BRAKES 18
HYDRAULICBRAKESYSTEM18
PARKINGBRAKE MECHANISM 19
HEADLAMPS19
WINDSHIELDWIPER BLADES 19
PARTS REQUIRINGNOLUBRICATION19
SPEEDOMETER 19
HOOD LOCK20
BODYMAINTENANCE20
HOOD HINGES20
DOORHINGES21
DOORSTRIKERROTOR22
DOORSTRIKER PLATES 22
DECK LIDHINGES23
TAILGATE TORSIONBARANDCHECKARM
GUIDEPLATE23
FUEL TANK ACCESS DOORHINGE23
THROTTLE LINKAGE23
SUMMARYOFLUBRICATIONANDMAINTENANCE
Maintenance and lubrication service recommenda-
tions forthe1965 Chrysler Corporation-built vehi-
cles have been compiled to, provide maximum protec-
tionforthecar owner's investment against all rea-
sonable types ofdriving conditions.
Since these conditions vary withthe individual car
owner's driving habits, the area in which thecaris
operated andthe type of service to which thecaris
subjected, itis necessary to prescribe lubrication and
maintenance service ona time frequency aswellas
mileage interval basis.
To assure thecar owner the benefits to which heis
entitled, the mileage intervals and time frequencies
at which the various lubrication and maintenance serv-
ices should be performed are clearly defined and
carefully outlined in Certified Car Care Maintenance
Services.
Information concerning the types of lubricants
specified, the quantities required andthe location of
the various points of application are shown inLu-
brication and Maintenance Charts (Figs. 1 and2).Lu-
brication and servicing intervals areon page 5.
MyMopar.com

LUBRICATION ANDMAINTENANCE
Fig. 3—Support Locations for Frame Contact Moisting (AC-l, AC-2, AC-3 Models!
Fig. 4—Support Locations for Frame Contact Hoisting Locations (AY-1 Models!
MyMopar.com

LUBRICATION AND MAINTENANCE 0-5
LUBRICATION AND MAINTENANCE SERVICES
SERVICE
SERVICE ITEM
INTERVAL
PAGE Replace
Check
Fluid
Level
Inspect
and/or
Clean Lubricate Service
3 Months, or 4,000
Miles,Whichever
Comes First
EngineCrankcase Oil
12 X
Every Second
Oil Change
Engine Oil Filter 13 X
6-Month
Service
Carb. Air Cleaners—Paper & Oil
15 X
6-Month
Service
Crankcase Ventilating System 13 X X
6-Month
Service
CarburetorChokeShaft 16 X
6-Month
Service
OilFiller Pipe Air Cleaner 13 X X X
6-Month
Service
Manifold Heat ControlValve 16 X
6-Month
Service
Distributor 16 X
6-Month
Service
Transmission
17 X
6-Month
Service
Rear Axle 10 X
6-Month
Service
Gear 18 X
6-Month
Service
Linkage 6 X
6-Month
Service
Suspension BallJoints 6 X
6-Month
Service
UniversalJoints
9
X
6-Month
Service
PropellerShaftSpline (Imperial)
9 X
6-Month
Service
BrakeMasterCylinder 18 X
6-Month
Service
BrakeHoses 18 X
6-Month
Service
BodyMechanisms 20 X X
10,000 Miles EnginePerformanceEvaluation 23 X
20,000 Miles
Fuel Filter 16 X
20,000 Miles
Brakes and BrakeLinings 18 X
20,000 Miles
FrontWheelBearings
11
X
Every 2 Years
Carburetor Air Filter 15 X
Every Oil Change
Crankcase Ventilating System
(Fully Closed Type)
13 X
Every Year Carburetor
Air Filter
(Non-SilencedType) 14 X
32,000 Miles
FrontSuspensionBallJoints 6 X
32,000 Miles Steering
Tie Rod Ends
6 X
32,000 Miles
ClutchTorqueShaft 7 X
When Necessary
SparkPlugs—See
EnginePerformanceEvaluation 23
When Necessary
SpeedometerCable 19 X
When Necessary
ClutchDrive Lugs, Release
BearingSleeve, and Fork
Fingers and Pivot 7 X
When Necessary
Column-MountedGearshiftLinkage
Floor-MountedGearshiftLever 7 X
X
When Necessary
WheelBrakes 18 X
When Necessary
ParkingBrakes 18 X
When Servicing Air
ConditioningSystem AirConditioningCompressor
Crankcase Oil Level X
PointsThatShould Not BeLubricated 19
MyMopar.com

0-6 LUBRICATION AND MAINTENANCE
HOISTING
Special care shouldbetakenwhenraisingthevehi-
cleona framecontacttypehoist.Thehoistmustbe
equipped with theproper adapters inorderthatthe
vehicle will besupportedinthecorrect locations(Figs.
3 and4).
Conventionalhydraulic hoists maybe used afterde-
termining thatthe adapter plates will make firm con-
tact with thelowercontrol arms andthe rear axle
housing.
A regular floor jackmaybe used under the rear axle
housing,or under thefront suspension lowercontrol
arms, however, a floor jack must never be used onany
parts ofthe underbody.
CAUTION: Donotattemptto raise oneentire side
of the vehicle by placing a jack midwaybetween
front and rear wheels. This practice may result in
permanent damage tothe body.
The bumpers are designed to accept a bumperjack
in an emergency, ifit becomes necessary to change a
tire ontheroad. Notches areprovidedinthebump-
ersforthe purpose ofraisingthevehicle with the
bumperjack.
CLASSIFICATION-OF LUBRICANTS
Oils andlubricantsareclassifiedand graded accord-
ing to standards recommended bytheSocietyofAuto-
motive Engineers (SAE),theAmericanPetroleum
Institute(API)andtheNationalLubricating Grease
Institute (NLGI).
Engine Oil
TheSAE grade numberindicatestheviscosityof
engine oils,forexampleSAE30,whichisa single
grade oil. Engineoilsare also identifiedbya dualnum-
ber,forexampleSAE10W-30,whichindicatesa mul-
tigradeoil.
TheAPIdesignationindicatestheclassificationof
engine oilsforuse under certainoperatingcondi-
tions.Only engine oils designated "ForServiceMS"
shouldbe used. These oilscontainsufficientchemi-
caladditivestoprovidemaximum engine protection.
Both theSAE grade andtheAPIdesignationmustbe
found onthecontainer.
Gear Lubricants
TheSAE grade number also indicatestheviscosity
of Multi-Purpose Gear Lubricants,definedby MIL-L-
2105B.AnexampleisSAE75,whichisa light viscosity
lubricant.
Lubricants—Greases
Semi-solid grease lubricants, such asspecifiedfor
propellershaftuniversaljoints, bear the NLGI des-
ignation. Theyarefurtherclassifiedas grades "0"or
at) >j
Information pertainingtothelubricationandmain-
tenance pointsisshownonLubricationandMainten-
ance Charts (Figs.1 and2).
CHASSIS LUBRICATION
Fmnf Suspension Ball Joints
Thefront suspension balljoints(Fig.5)aresemi-
permanentlylubricated with speciallubricantatthe
factory.Theyshouldbeinspected,asoutlinedinthe
Car Care Schedule, for damage tothe seals whichmay
resultin loss oflubricant.Cleanaccumulated dirt and
lubricant from theoutside surface ofthe seals to per-
mit thoroughinspection.Damaged seals shouldbe
replacedimmediatelytopreventcontaminationofthe
lubricantor damage tothe parts. Lubricateballjoints,
if necessary.
Whenlubricatingballjoints,useMulti-MileageLu-
bricant, Part Number2525035. Remove the threaded
plug from each ball joint and temporarily install lubri-
cation fittings. Avoid theuseof high pressure equip-
ment to prevent damaging orrupturingthe seals.
Stop filling theballjointswhenthelubricant begins
to flow freely from thebleed areas atthe base ofthe
seal, orifthe seal begins toballoon. Remove the fit-
tingsandreinstallthe threaded plugs.
Steering Linkage Ball Joints
Thefourtierodendballjointsandthesteering
gear armball joint (Fig.6)aresemi-permanently
lubricated with a speciallubricantatthefactory.
Theyshouldbeinspectedandlubricatedinaccord-
ance with theCertifiedCar Care Schedule.
Wheninspectingballjoints,cleanaccumulated dirt
andlubricant from theoutside surfaces ofthe seals to
Fig. 5—Upper and Lower Ball Joint Lubrication
Points (AC-7, AC-2, AC-3, AY-1 Models)
MyMopar.com

LUBRICATION AND MAINTENANCE 0-7
Jill
NK665
fig. 6—Steering Linkage Lubrication Points
(AC-1, AC-2, AC-3, AY-1 Models)
permit thoroughinspection.Damaged seals orjoints
should bereplacedimmediatelytopreventcontamina-
tion ofthelubricantor failure ofthepart.
When lubrication isrequired,use Multi-Mileage Lu-
bricant, PartNumber2525035.Removethethreaded
plug from each ball joint and temporarily install a
lubricationfitting. Avoid theuseof high pressure
equipment to prevent damaging or rupturing the seals.
Inject lubricant until it flows freely from theseal
bleed area atthe base oftheseal.Stopwhentheseal
beginstoballoon.Removethe fittings andreinstall
thethreadedplugs.
CLUTCH AND GEARSHIFT LINKAGES
(Manual Transmission)
Clutch Torque Shaft Bearings
To lubricatethetwotorqueshaftbearings(Fig.7)
disassemble,cleanandinspectthelinkage.Replace
damagedparts.Whenreassembling,coatthebearings
with Multi-Mileage Lubricant,PartNumber2525035,
or Automotive Multi-Purpose Grease, NLGI Grade2.
Clutch Drive lugs, Release Bearing Sleeve,
Fork fingers and Pivot
When disassemblingthe clutch torqueshafttolu-
FILL CAVITY
INNER MATING SURFACE 64x172 A
to 5
NK561
Fig. 7—Clutch Torque Shaft and Linkage—
Lubrication Points
Fig. 8—Column-Mounted Manual Transmission
Gearshift Control—Lubrication Points
bricatethetorqueshaftbearings,lubricatethe clutch
drive lugs(Fig.7) release bearingsleeveand fork
fingers andpivots. Fill cavityinsleeveandcoatlugs,
fingers andpivots with Multi-Mileage Lubricant,Part
Number 2525035,ofAutomotiveMulti-Purpose
Grease, NLGI grade2.
To gain access to these areas, removethe clutch
inspection plateatbottomofthe clutch housingand
the fork bootand fork.
CAUTION: Care Must Be Taken To Avoid Getting
Lubricant On Clutch The Disc And Pressure Plate.
Co/umn-Mounfed Manual Transmission
Gearshift Controls
Apply a film of Multi-Mileage Lubricant,PartNo.
2525035orAutomotiveMulti-Purpose Grease, NLGI
grade2,tothecontactsurfaces (Fig. 8).
Column-Mounted Automatic Transmission
Controls ACT, AC2-AC-3 Models
The control mechanism(Fig.9)islocatedatthe
lower endofthesteeringcolumnintheenginecom-
partment.Itissealedinsidea rubberboot which
should beinspectedfor condition and position.
AY-J Models
On these models,the control mechanismislo-
catedonthedashpanelinthe passenger compart-
ment.
If thebootisdamaged,itshouldbereplacedand
themechanismlubricatedbyapplyinga film of Multi-
Mileage Lubricant,PartNumber2525035,or Automo-
tive Multi-Purpose Grease, NLGI Grade2 (Fig. 9).
MyMopar.com

0-8 LUBRICATION ANDMAINTENANCE
NK560
Fig, 9—Column-MountedAutomatic Transmission
Control—Lubrication Points
NK562
fig.f |—Floor-MountedAutomatic Transmission
Controls—Lubrication Points (AC-I, AC-2,
AC-3 Models)
Floor-Mounted Manual Transmission Gearshift
Mechanism
Lubricatethemechanism from under thecar(Fig.
10) usingSAE30 engine oilapplied with a pump
typeoilcan.
NOTE: Make sure the stoneshield forthelower
shifthousing isin place.
Floor Mounted Automatic Transmission
Controls
Lubricatethecontrols(Fig.11)usingSAE30en-
gineoilappliedtothe connections with a pumptype
oil can. Access tothecontrolsisbyremovingthecon-
sole top trim panel.
TRANSMISSION
Manual-Three Speed-Standard
The fluid levelinthetransmissionshouldbemain-
tainedtothebottomofthe filler plughole(Fig.12).
When necessary toreplenish, refillwith Automatic
Transmission Fluid,AQ-ATF, Suffix "A," Part Num-
ber1843314,forallambient temperatures. Inwarm
weather, however,Multi-Purpose Gear LubricantSAE
90,asdefinedby MIL-L-2105B, maybe used.
It isnot necessary to change thelubricantwhenthe
caris used innormalservice.Wherethecaris used
for towingtrailersorotherthannormal passenger
service,refertotheCertifiedCar Care Schedule for
recommended servicing.
HM ^^H^^^^^^^^^^^^^ff^^PLUG
^^^^^^^^ • ^i^^^B I WU^
DRAINPLUG
/
NK563
Fig. 10—Floor-Mounted Manual Transmission
Gearshift Mechanism—Lubrication Points
NK564
Fig. 72—TransmissionFiller and Drain Plugs
MyMopar.com

LUBRICATION AND MAINTENANCE 0-9
Four Speed
Thetransmissionis filled atthefactory with a
Special Gear Lubricant.If necessary toreplenishthe
fluid to restore theleveltothebottomofthe filler
plug hole(Fig.12),useMulti-Purpose Gear OilSAE
140,asdefinedby MIL-L-2105B.
During cold weather,iftheshift effort becomes ex-
tremely high,thetransmissionshouldbedrained(Fig.
12) and refilled with Multi-Purpose Gear Lubricant
SAE 80orSAE90,asdefinedby MIL-L-2105B or
with AutomaticTransmission Fluid, AQ-ATF, Suffix
"A." AutomaticTransmission Fluid maybereplaced
with Multi-Purpose Gear LubricantSAE140inwarm
weather.
It isnot necessary to change thelubricantwhenthe
caris used innormalservice.Wherethecaris used
for otherthannormal passenger service,refertothe
Certified Car Care Schedule forrecommendedservic-
ing.
Trailer Towing Service
Drive linecomponentson passenger cars used to
pull trailersor engaged insimilarheavyduty usage
will requiremorefrequentinspectionandservice
than those used innormal passenger carservice. Fol-
low recommendationsoutlinedintheCar Care Sched-
ule.
PROPELLER SHAFT AND UNIVERSAL JOINTS
Universal jointsshouldbeinspectedforexternal
leaks or damage, in accordance with theCertifiedCar
Care Schedule.Thejointsshouldnotbedisassembled
orrelubricated unless external leaks or damage has
occurred.
When necessary tolubricatethejoints, disassemble
mm
V: !r'''\»'
KD5936
T""
Fig. 14—Universal Joint—Cross and Roller Type
completely, cleanandinspect parts forserviceability.
Damaged parts shouldbereplaced.Repack ball and
trunnion joints(Fig.13) with two ounces ofUniver-
salJoint Grease, NLGI Grade 2.Bearingsin cross and
roller joints, (Figs.14and15),shouldberepacked with
Universal Joint Grease NLGI Grade "0."
Lubrication ofthe front universal joint sliding yoke
on models with automatictransmissionisrequired
only whenthepropellershaftisremovedand disas-
sembledforservicing,orifthecarisoperatedun-
derconditionslistedas severe. Inthelatterevent,
lubricatein accordance with theCertifiedCar Care
Schedule.Cleanoldlubricant from thesplinesand
spread a film of Multi-Mileage Lubricant,Part Num-
ber2525035,evenlyovertheentiresplined area. Do
not use in excess of one-half ounce of lubricant.
Carefully examinetherubber seal beforereinstall-
ing itinthehousingextension.Ifnotserviceable,re-
' place with a newone.
OUTPUT SHAFT FRONT YOKE INERTIA YOKE
EXTENSION HOUSING
SHAFT
SEAL
BUSHING
NK565
Fig. 13—Universal Joint—Ball and V.wnion Type
Fig. 15—Front Universal Joint—Cross and Roller
—Sliding Yoke Type
MyMopar.com

0-10 LUBRICATION AND MAINTENANCE
BEARING
ASSEMBLY
NK684
Fig. 16—Constant Velocity Universal Joint
(AC-3 Models)
Constant Velocity Universal Joints
(AC-3, Models)
Undernormaloperatingconditions,relubrication
of the constant velocityjoints(Fig.16)isnotre-
quired. The seals shouldbeinspectedforexternal
leaks or damage at least twicea year, butthejoints
shouldnotbe disassembled orrelubricated unless
external leaks or damage hasoccurred.
Whenthecaris operated under severe conditions
suchasoutlinedbelow,thejointsshouldbe disas-
sembled,cleanedandrelubricatedevery32,000miles:
Policeortaxicabuse.
Frequenttowingoftrailers.
Continuousoperationathigherthannormalloading.
Very dirty or sandy operatingconditions.
Whenlubricatingthejointsandcenteringpivots,
useAutomotiveMulti-PurposeE.P. Grease, NLGI
grade 2.Thesplineshouldbelubricated with Automo-
tive Multi-PurposeE.P. Grease, NLGI grade 0.Ap-
proximately one ounce oflubricantisrequired.
REAR AXLE
Standard and Sure-Grip
Whencheckingthelubricantlevel,thecarshould
beina levelpositionona wheeloraxle-typehoist.
Thelevelshouldbebetweenthebottomofthe filler
plug holetoone-halfinchbelow.
If necessary toadd,useMulti-Purpose Gear Lubri-
cant, asdefinedby MIL-L-2105B. Hypoid Lubricant,
Part Number1879414, meets thisrequirementand
its useisrecommended.
Periodicchangingof rear axlelubricantisnot nec-
essary for cars used innormalservice,exceptwhen
theaxlelubricanthas been contaminated with water,
ortoprovidethecorrectviscosity grade fortheantic-
ipated range, asindicatedbytheaccompanyingtable:
AnticipatedTemperatureRange
Above-10°F.
As lowas -30°F.
Below-30°F.
Viscosity Grade
SAE 90
SAE 80
SAE 75
If necessary to change thelubricant,removetheold
lubricant with a suctionpump (Fig. 17).
Fig. 17—Removing the Lubricant
MyMopar.com

LUBRICATION AND MAINTENANCE 0-11
Trailer Tawing Service
NOTE: Drive line componentsof passenger cars
usedto pull trailersorengagedin similar heavy
duty usage will requiremorefrequentinspection
andservicethan those usedinnormal passenger
carservice. Follow recommendations outlined inthe
CarCareSchedule.
FRONT WHEEL BEARINGS
When aninspectionofthewheelbearingsindicates
thelubricantislowinquantity,orcontaminated with
dirt orwatertoproducea milky appearance, the bear-
ingsshouldbecleaned,inspectedandrelubricatedif
serviceable.
CAUTION: To avoid possiblecontaminationofthe
lubricant by mixing lubricantsthatarenotcompat-
ible, donotaddlubricanttothebearings.
Thoroughly cleantheoldlubricant from the bear-
ingsandhubs.Repackthebearingsandhubs with
Automotive Multi-Purpose Grease, NLGI grade2.
When repackinghubs,make sure allsurfacesofthe
hubandouter grease cupinteriorsarecovered with
grease (Fig.18)to minimize condensationand grease
travel outofthebearing.DoNot overfill.
Adjust thebearingsas follows:
(1) Tightenthewheelbearingadjustingnut(Fig.
19) to90inch-pounds while rotatingthewheel.
(2) Positionthenut lock ontheadjustingnutso
onepairofcotterpinslots align with theholeinthe
spindle (Fig.19).
(3) Backofftheadjustingnutandnut lock tothe
next slotand install thecotterpin.
(4) Install thewheels,tightenthewheelnutsto65
Fig. 18—Front Wheel Bearing Lubrication
Fig. 19—Front Wheel Bearing Adjustment
foot-pounds. Install thewheelcovers.
TIRES
Tires, including the spare, shouldberotatedac-
cording tothe tire rotationdiagram(Fig.20)topro-
vide uniform wear, long tire life, andtoretaincom-
fortable riding qualities.
Tires shouldbeexaminedforunusualwearpatterns,
foreign materialandproper inflation pressures. Unus-
ual wearconditionsmayreflectunusual driving habits
or indicatethatmechanicalcorrectionsmaybenec-
essary.
Refertothe Lubrication andMaintenanceCharts
(Figs. 1 and 2), forrecommended inflation pressures.
LEFT FRONT RIGHT FRONT
Fig. 20—Tire Rotation Diagram
MyMopar.com

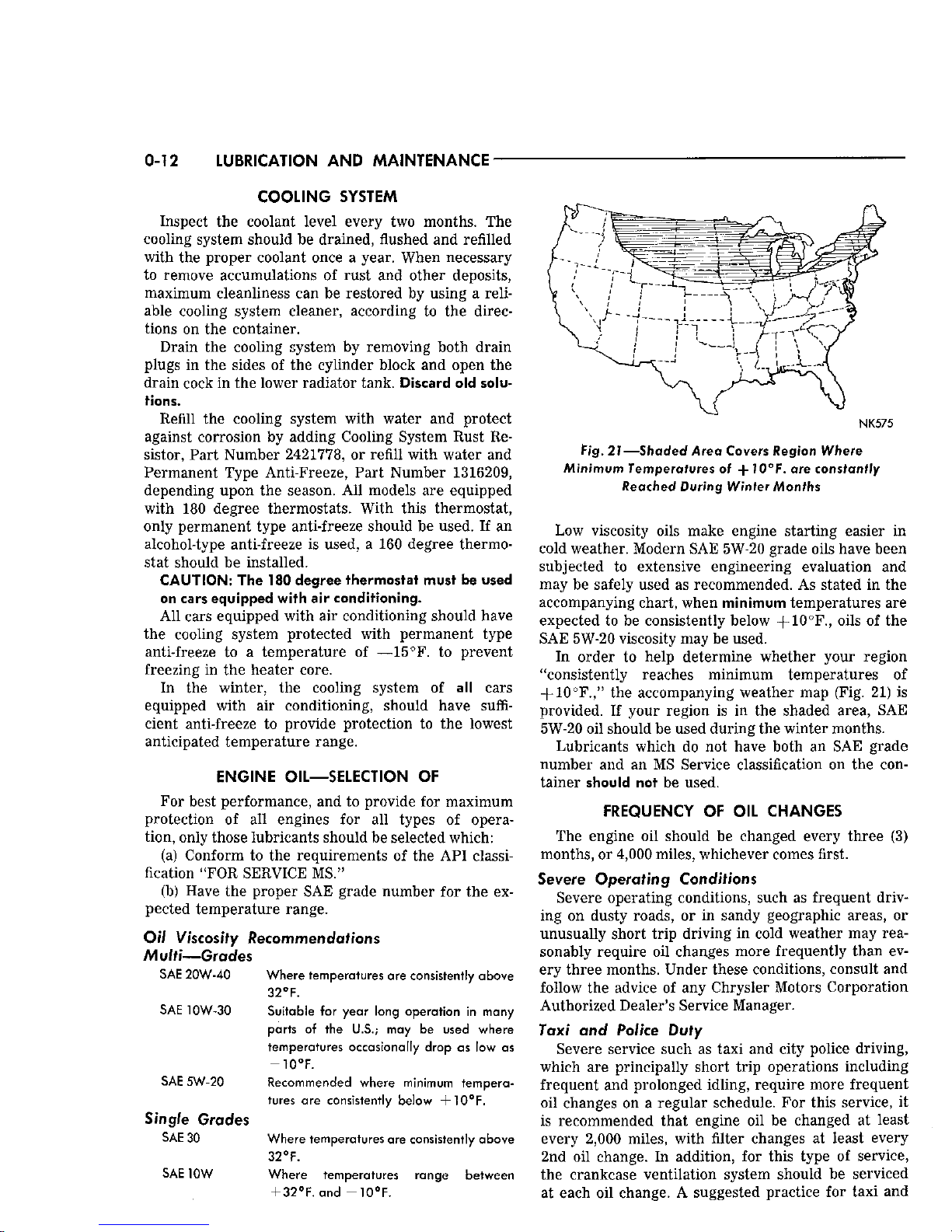

0-12 LUBRICATION AND MAINTENANCE
COOLING SYSTEM
Inspectthecoolant level everytwomonths.The
cooling systemshouldbedrained,flushed and refilled
with thepropercoolantoncea year.When necessary
to removeaccumulationsofrustandotherdeposits,
maximum cleanlinesscanberestoredbyusing a reli-
able cooling systemcleaner,accordingtothedirec-
tions onthecontainer.
Drain the cooling systembyremovingbothdrain
plugsinthe sides ofthecylinderblockandopenthe
drain cockinthelowerradiatortank. Discardoldsolu-
tions.
Refill the cooling system with waterandprotect
againstcorrosionbyadding Cooling SystemRustRe-
sistor,PartNumber2421778,or refill with waterand
PermanentTypeAnti-Freeze,PartNumber1316209,
dependinguponthe season. All modelsareequipped
with 180 degree thermostats. With thisthermostat,
only permanenttype anti-freezeshouldbeused.Ifan
alcohol-type anti-freezeisused,a 160 degree thermo-
statshouldbeinstalled.
CAUTION: The180 degree thermostat must be used
on cars equipped with air conditioning.
All cars equipped with air conditioning shouldhave
the cooling systemprotected with permanenttype
anti-freezetoa temperatureof —15°F. toprevent
freezing inthe heater core.
In thewinter,the cooling systemofall cars
equipped with air conditioning, shouldhave suffi-
cient anti-freezetoprovideprotectiontothelowest
anticipated temperaturerange.
ENGINE OIL—SELECTION OF
For best performance,andtoprovideformaximum
protection ofallenginesforalltypesofopera-
tion, only those lubricantsshouldbeselected which:
(a) ConformtotherequirementsoftheAPIclassi-
fication "FOR SERVICE MS."
(b) HavetheproperSAEgradenumberfortheex-
pectedtemperaturerange.
Oil Viscosity Recommendations
Multi—Grades
SAE 20W-40
SAE 10W-30
SAE 5W-20
Single Grades
SAE 30
SAE 10W
Where temperatures are consistently above
32°F.
Suitable for year long operation in many
parts oftheU.S.;maybe used where
temperatures occasionally drop aslowas
-10°F.
Recommended where minimum tempera-
tures are consistently below + 10°F.
Where temperatures are consistently above
32°F.
Where temperatures range between
+ 32°F. and -10°F.
HK575
Fig. 21—Shaded Area Covers Region Where
Minimum Temperatures of + 70°F. are constantly
Reached During Winter Months
Low viscosity oils makeenginestarting easier in
cold weather.Modern SAE 5W-20grade oils havebeen
subjectedtoextensiveengineeringevaluationand
maybesafelyusedasrecommended.Asstatedinthe
accompanyingchart,when minimum temperaturesare
expectedtobeconsistentlybelow +10°F., oils ofthe
SAE 5W-20 viscosity maybeused.
In ordertohelpdeterminewhetheryourregion
"consistently reaches minimum temperaturesof
+ 10°F.," theaccompanyingweathermap(Fig.21)is
provided. Ifyourregionisintheshaded area, SAE
5W-20 oil shouldbeused during thewintermonths.
Lubricants which donothavebothanSAEgrade
numberandanMSServiceclassificationonthecon-
tainer shouldnot beused.
FREQUENCY OFOIL CHANGES
Theengineoilshouldbechangedeverythree(3)
months,or4,000 miles, whichevercomes first.
Severe Operating Conditions
Severe operatingconditions,suchasfrequent driv-
ing ondustyroads,orinsandygeographic areas, or
unusually short trip driving in cold weathermayrea-
sonablyrequireoil changes morefrequentlythanev-
ery threemonths.Under these conditions,consultand
follow theadviceofanyChryslerMotorsCorporation
Authorized Dealer'sServiceManager.
Taxi and Police Duty
Severe servicesuchas taxi and city police driving,
which are principally short trip operations including
frequentandprolonged idling, requiremorefrequent
oil changes ona regularschedule.Forthisservice,it
is recommendedthatengineoilbechangedatleast
every2,000miles, with filter changes atleastevery
2nd oilchange.Inaddition,forthistypeofservice,
thecrankcase ventilation systemshouldbeserviced
ateachoilchange.A suggestedpracticefor taxi and
MyMopar.com

LUBRICATION AND MAINTENANCE 0 13
police operationsistomaintain spare valves, install-
ing a cleanvalveat each oil change. Valvessore-
movedcanbecleanedbysoakingovernightincarbu-
retor cleaner, followed bydrying with compressed
air.
During Break-In
Cars shouldbedrivenmoderatelyduringthe first
300miles. After the initial 50miles, speeds upto
50to60mpharedesirable. While cruising, brief full-
throttle accelerationscontributetoa goodbreak-in.
Wide-openthrottleaccelerationsinlow gear canbe
detrimentalandshouldbeavoidedforat least 500
miles.
Theoilinstalledintheengineatthefactoryisa
high qualitylubricant,classified"ForServiceMS,"
and should be retained until the first regularly sched-
uled three-monthor4,000mileoil change, whichever
comes first. Ifit becomes necessary toaddoilduring
this initial period,anoil with the"ForServiceMS"
classification andoftheproperviscosity grade should
be used. Nondetergent or straight mineral oils must
never be used.
Frequently,a newengine will consume some oil
during its first fewthousandmilesofoperation.This
shouldbeconsideredasa normalpartofthebreak-in
andnottobeinterpretedasanindicationof diffi-
culty.
ENGINE OIL FILTER
All engines areequipped with full-flow, throw-away
oil filters (Fig.22)toprovideefficient filtering ofthe
engine oil formaximumengineprotection.
The filter shouldbereplacedeverysecondoil
change. Since filters vary widely inquality,whenre-
placing the filter itisrecommendedthata Chrysler
Corporation EngineOilFilterbeinstalledto assure
mostefficientservice.
Fig. 22—Engine Oil Filter (383and473Cu.
In. Engines)
VALVE ASSEMBLY
V-8 ENGINES 64X 307A
Fig. 23—Standard Crankcase Ventilation System
CRANKCASE VENTILATION SYSTEM
Periodicserviceofthepositive crankcase ventila-
tion system(Fig.23)isrequiredtopreventmalfunc-
tion ofthesystem because ofcombustionproducts
depositedinthe valve, hose andcarburetor passages.
Standard Ventilation System
Theventilationsystemshouldbeinspectedand
servicedat least everysixmonthsandtheventilator
valve replacedevery year, preferablytocoincide with
theannualengineperformanceevaluation.Thecarbu-
retorair cleaner elementshouldbereplacedevery
two years.
This service will berequiredmorefrequentlyifthe
vehicle is used extensivelyforshort-trip driving less
than10miles with frequent idling, suchasin city
traffic.
Service Procedure
With theengine idling, removetheventilatorvalve
andcapassembly from therockercover(Fig.23).If
thevalveis working freely,a hissingnoise will usually
beheardasair passes throughthevalve,anda strong
vacuumshouldbe felt whena finger isplacedover
thevalveinlet.
If thevalveis working properly,reinstalltheven-
tilator valveandcapassemblyandremovethe oil filler
pipe breather cap. With theengine still idling, loose-
ly hold a pieceof stiff paper ora parts tagoverthe
oil filler pipe. After allowing a few seconds forcrank-
case pressure toreduce,the paper shouldbedrawn
againstthe filler pipe with a noticeableforce.Ifthis
occurs,a final checkshouldbe made tobecertainthe
valve shuttleisfree.Shutofftheengine,removethe
MyMopar.com
