Chuango DML-100 User manual

User Manual
Multipurpose Sensor
DML-100
Ver: DML-100-UM-ML-V1.0
© 2022 Chuango. All Rights Reserved.
Magnet base
Charging port
Light
Loudspeaker

Product Introduction
This multipurpose sensor can be used by connecting to AC power or wirelessly by built-in
battery (after it is fully charged). There are two preset working modes: Away Mode and
Home Mode. Easily switch the modes or set schedules to switch on the app.
Please charge it 7-8 hours before use.
In Away Mode, once the sensor detects human movement, the built-in siren sounds, the
LEDs ash, and an app push notication will be sent to you.
In Home Mode, when the sensor detects human movement and the surrounding
brightness is dark or slightly dark, the LEDs will automatically turn on as a night light.
Ambient light sensing function is default on. If it is toggled off, the LEDs will turn on
anytime when motion is detected.
In Away and Home Mode, you can choose to set temperature, humidity and ambient
light detecting range, get notied when values exceeding the preset value.
In Away Mode, turn on smoke alarm sound detection function, you’ll be notied when
your home’s smoke alarm goes off.
* Connect to Wi-Fi directly, no hub needed.
* Set schedules to switch between modes.

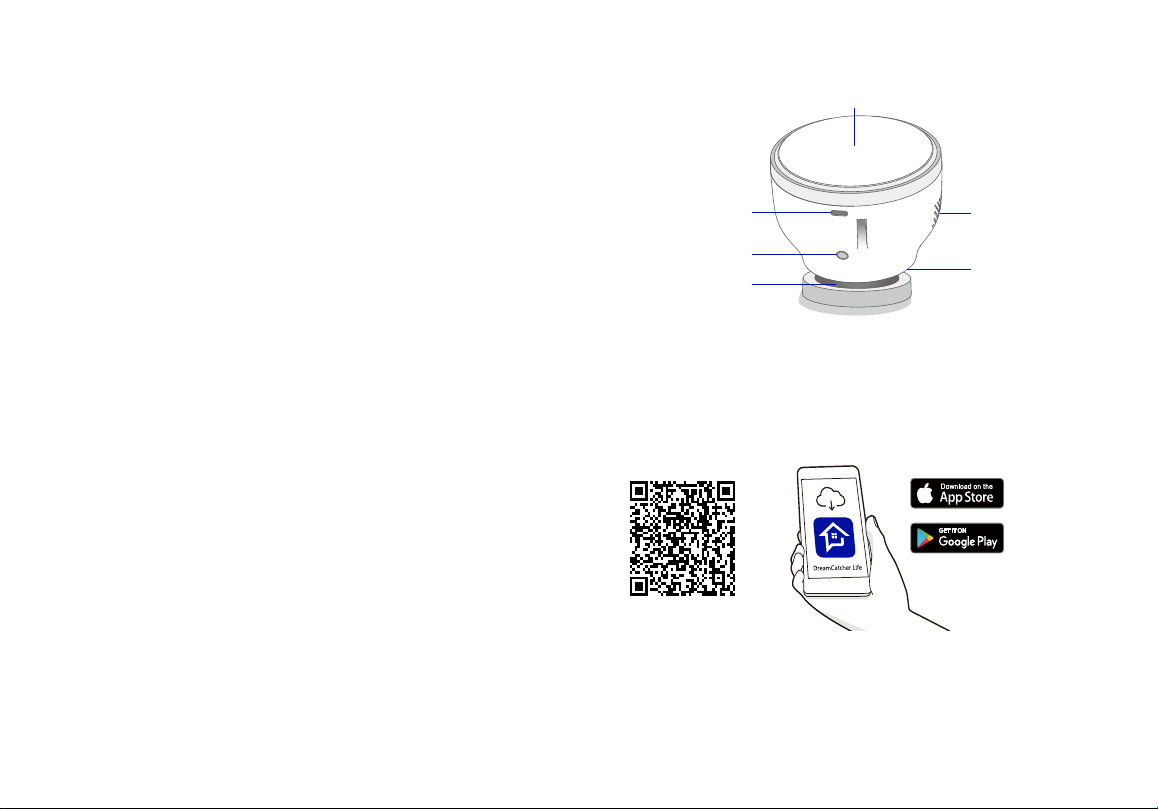

Product Overview
Magnet base
Charging port
Light
Loudspeaker
Magnetic Base
Conguration Button
Loudspeaker
LED Lights
Charging Port
PIR Sensor
Power On the Sensor
Press and hold the conguration button for 3 seconds to turn the sensor on/off.
Download DreamCatcher Life App
After the device is powered on, add it via Bluetooth or via Wi-Fi AP mode.

Network Setup

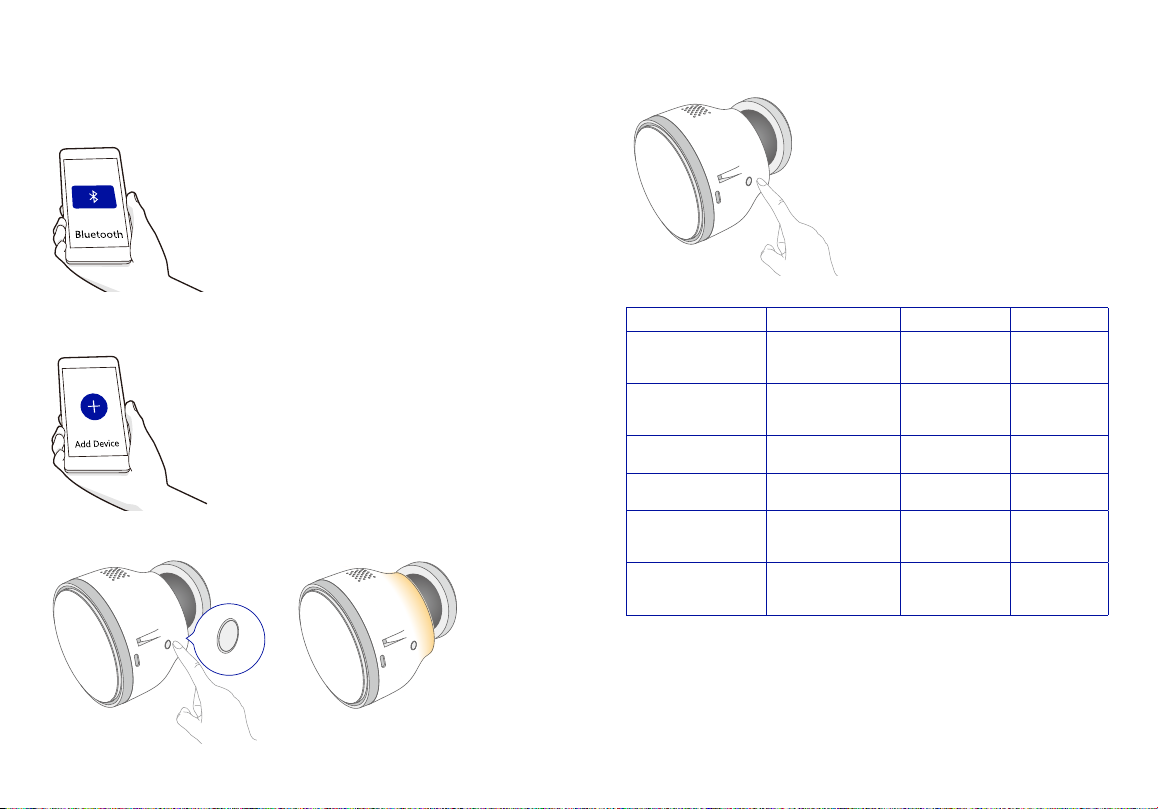

Bluetooth: Select Bluetooth toggle to turn it on, it will automatically search for the device.
Tap to add it to your home Wi-Fi network.
Magnet base
Charging port
Light
Loudspeaker
Wi-Fi AP mode: Tap Add Device or “+”in the upper right corner, then select DML-100 under
“Security” .
Magnet base
Charging port
Light
Loudspeaker
Press and hold the Conguration Button for 3 seconds to power on the device, wait for the
device to complete a 40-seconds self-test until the indicator light gradient ashes.
Magnet base
Charging port
Light
Loudspeaker
Magnet base
Charging port
Light
Loudspeaker
Short press the Conguration Button 3 times, the device will enter the WiFi conguration
state. The breathing light goes off to indicate the conguration is successful.
Magnet base
Charging port
Light
Loudspeaker
Operation Light Status Meaning Prompt Tone
Press and hold the
conguration button for
3 seconds
On Sensor is powered
on Power on tone
Press and hold the
conguration button for
3 seconds
Off Sensor is powered
off Power off tone
/Flash on and off for 40
seconds Device self-test /
Press the conguration
button 3 times Gradient ashing Device is under conguration state Beep once
/ Gradient ashing off
Successfully
connected to the
network
Beep twice
Press the conguration
button 5 times
On for 1 second then
gradient ashes
(conguration mode)
Device reset Long beep once
Note: Deleting the sensor on the APP while it's online will also reset it.

Installation
There are two ways to install the sensor: mount it on the wall or place it on desktop.
On Desktop
Put the sensor on a at surface with the provided desktop bracket.
Magnet base
Charging port
Light
Loudspeaker
Wall Mount
To get optimal detection coverage, check the following factors before mounting:
• Determine the area of detection and ensure there is no obstructed eld of view.
• Determine the height and adjust angle.
• Avoid direct sources of heat or sunshine, swinging objects like curtains.
2-2.2m
2-2.2m
2-2.2m
2-2.2m
Pet-Immune Function
The motion sensor should be mounted 2-2.2m above the oor and adjust the detecting
angle according to your need. When the sensor is installed parallel to the wall, pet under
25kg will not trigger alarm.
Note: when the sensor is put on desktop. The pet-immune function could not work as it
intends.
2-2.2m
2-2.2m
Sensitivity
The sensitivity can be adjusted on the app. The default setting is medium sensitivity.

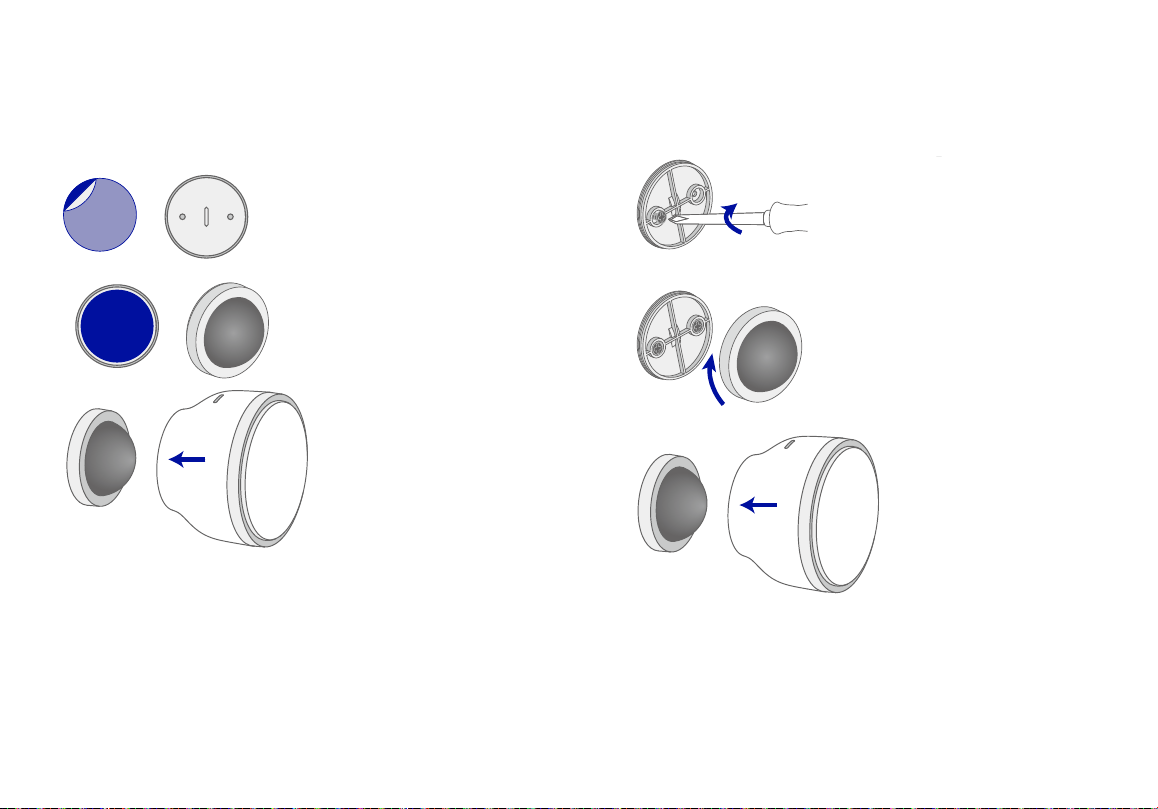

Mount the Sensor
Use the 3M Double-side Adhesive Tape
Remove the adhesive tape lm, and stick one side on the back of the magnetic base, the
other side on the wall.
Snap the sensor on the base.
Magnet base
Charging port
Light
Loudspeaker
Magnet base
Charging port
Light
Loudspeaker
Magnet base
Charging port
Light
Loudspeaker
Use the Provided Screws
Place the base against the wall and use a pencil to mark the desired location for mounting.
Drill holes at each marking. Insert anchors into the holes if needed, and x the base onto
the wall with the provided screws.
Snap the sensor back onto the base.
Magnet base
Charging port
Light
Loudspeaker

Specications
Model: DML-100
Power Supply: DC 5V (18650 rechargeable battery)
Standby Time: around 60* days
*Under the circumstances of stable network, estimated by 8 nightlight triggers per day and 2 alarm triggers
per month. If the network is unstable or the signal is poor, the standby time will be shortened.
Wireless: Wi-Fi 2.4G
Detection Scope: 5-10 meters
Detection Angle: 95°max.
Pet Immunity: <25kg
Casing Material: PC+ABS
Operating Temperature: 0°C to 50°C
Operating Humidity: 0-90% RH
Sensor Dimensions (L x W x H): 85 x 85 x 84.5 mm
Bracket Dimensions (L x W x H): 98.5x 98.5 x 101.5 mm
