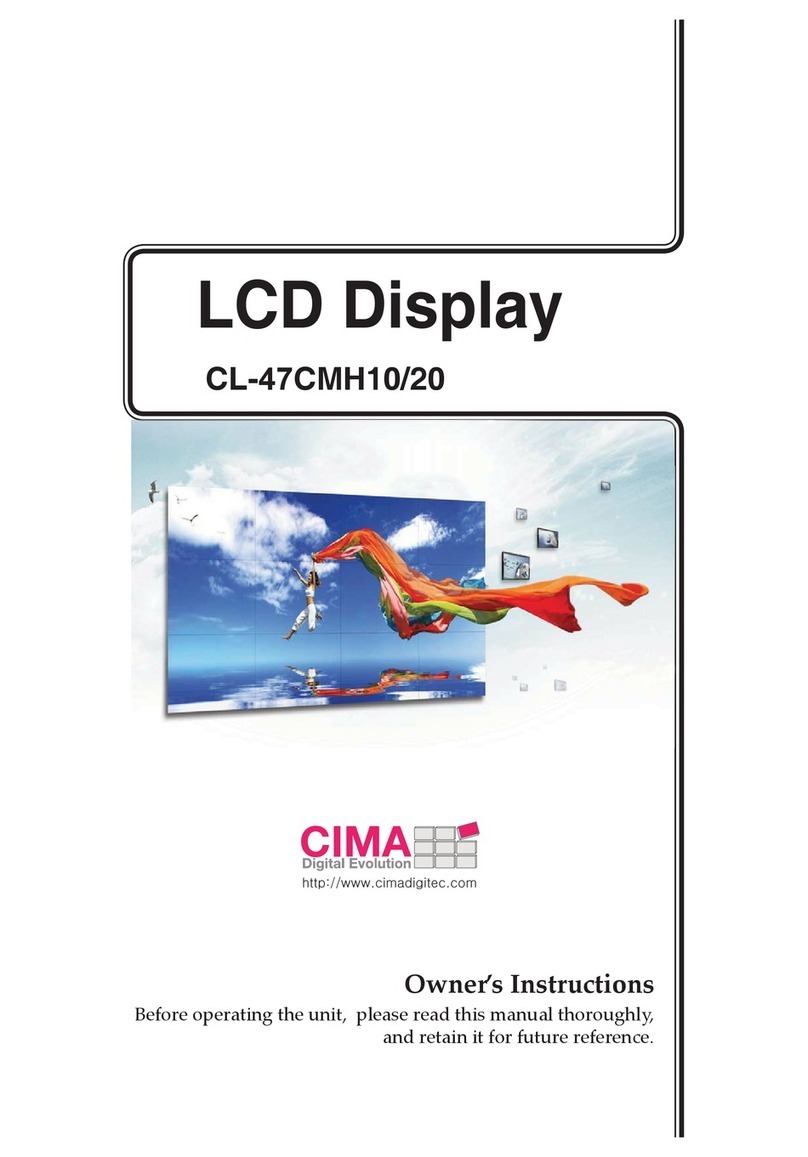

Cima CL-46CMH10 Use and care manual

Owner’s Instructions
Before operating the unit, please read this manual thoroughly,
and retain it for future reference.
LCD Display
CL-46CMH10/20
http://www.cimadigitec.com

This multi-LCD Display system supports high resolution and multi-screen format up to
127. So these monitors can be used individually or all together.
There are various designs such as wall-mounting or stand-alone type for the best
installation.
You can connect the player directly to the LCD Display or network for a remote
control.
- Provides real-time information like weather and traffic reports, stock market
information, etc.
- Provides display solution used as in-store mediums to present product
advertisement, full motion video, photo-realistic graphics, text and animation.
- Designed for simple installation and maintenance
- Cost efficient for maintenance and handling.
- Needs only a small space because of the ultra slim LCD Display.

1English
Contents
CAUTION .......................................................................................................................................2
Important Safety Instruction........................................................................................................3
Precaution.....................................................................................................................................4
Before considering as a failure ...........................................................................................................................4
About LCD display panel .....................................................................................................................................4
Unpacking and Setup...................................................................................................................5
Scope of Supply .................................................................................................................................................5
Viewing the control ......................................................................................................................5
Rear View .............................................................................................................................................................5
Remote Control.............................................................................................................................6
Connection and start Operation..................................................................................................7
Connecting the Cables .......................................................................................................................................7
Connecting to a Computer ...................................................................................................................................8
Connecting to External Devices with Component Input ......................................................................................8
Connecting Several Devices ...............................................................................................................................8
Inserting the Batteries ..........................................................................................................................................9
Settings ......................................................................................................................................10
Switching on ......................................................................................................................................................10
Switching Off .....................................................................................................................................................10
Setting up for Operation ....................................................................................................................................10
DIP Switch Setting(No.0~69)
.............................................................................................................................11
DIP Switch Setting(No.70~128)
..........................................................................................................................12
Setting ID Example for LCD display panel
..................................................................................................13
Connecting S-Video Cable 14
Connecting the Power Cord ..............................................................................................................................15
AC Power Connection ........................................................................................................................................15
Set Screen Language ........................................................................................................................................16
Set Geometry .....................................................................................................................................................16
Set MISC. ..........................................................................................................................................................16
Select Source (Main Input).................................................................................................................................17
Troubleshooting .........................................................................................................................18
Technical Specifications............................................................................................................19
Memo ...........................................................................................................................................20
..............................................................................................................................
Connecting VGA Cable 14
..............................................................................................................................
Connecting RS-232C Cable 13
..............................................................................................................................

2 English
CAUTION
The Lightning flash and arrow head within the triangle is a warning sign
alerting you of “dangerous voltage” inside the product.
This symbol indicates
additional safety instructions
in the text.
This symbol indicates
instructions to facilitate
the operation.
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION
CAUTION : TO PREVENT ELECTRICAL SHOCK,
DO NOT REMOVE REAR COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This device has been tested and found to comply with the limits for a Class B device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in home environment as well as in a commercial, industrial or business environment.
This equipment can generate, use and radiate radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or Monitor reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/LCD display panel technician for help.
Changes or modification not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
FCC NOTICE

3English
Important Safety Instruction
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other ap-
paratus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polar-
ized or grounding type plug. A polarized plug
has two blades with one wider than the other.
A grounding type plug has two blades and a
third grounding prong. The wide blade or the
third prong is provided for your safety. When
the provided plug does not fit into your outlet,
consult an electrician for the replacement of the
obsolete outlet.
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles and the point where they exit from
the apparatus.
Only use the attachments/accessories specified
by Runco Systems.
Use only with a cart, stand, tripod, bracket or
table specified by the manufacturer or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus to avoid injury
from tip-over.
Unplug this apparatus during lightning storms
or when unused for long periods of time.
Refer all servicing to qualified service person-
nel. Servicing is required when the apparatus
has been damaged in any way, such as power
supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the appara-
tus, the apparatus has been exposed to rain
or moisture, does not
operate normally, or has
been dropped.

4 English
Precaution
Before considering as a failure
Before calling for any repair, check the following and then refer to a near A/S center.
“Tick” sound from the main body.
If there is no problem with the screen or sound, the “tick” sound is likely to result
from the cabinet lightly shrinking with change of room temperature. The sound
does not affect product’s performance.
No image at upper and bottom part of screen.
As for a screen which is over 16:9 in width (such as cinema-sized one) no image
may be displayed at upper and bottom part of the screen.
Speckles or white lines on the screen
Check whether the problem is caused by vehicle, streetcar, high voltage cable
or neon sign, which intererence wave or electromagnelic induction. Avoid any
intering object.
Screen size can be changed.
The screen size may be fitted to the first dark scene depending on contents.
About LCD display panel
The followings are phenomena caused by characteristics of the LCD display panel. Since it is not any
failure, you may use it at rest.
Black or twinkling sports on the screen
Although the LCD display panel is manufactured with high-precision technology,
there may exist black or twikling sports on the screen. Since it is not any failure,
you may use it at rest.
Noise From the inside
When you turn on the prouct, driving sound may be heard from the display panel.
Since it is not any failure, you may use it at rest.

5English
Unpacking and Setup
Scope of Supply
Please check, that the delivery is complete.
1
Unit
5
Serial Cable
2
Remote control & Batteries (AA x 2)
6
VGA Cable
3
Power Cord
7
DVI Cable
4
Operating Instructions
Viewing the control
Rear View
1
Input Source selection button
2
Menu Selection button
3
Menu Control button(Left, Right)
4
Menu Control button(Top, Bottom)
5
Power button( )
6
Power Indicator
7
Remote Control Sensor
8
Power Switch(Main)
9
Power Input
10
Power Output
11
Component Video (Y Pb Pr) Input
12
Composite Video Input
13
S-Video Input
14
PC (RGB) Input
15
PC (DVI-D) Input
16
RS-232C Input
17
ID No(DIP Switch)
18
Component Video (Y Pb P r) Output
19
Composite Video Output
20
S-Video Output
21
PC (RGB) Output
22
PC (DVI-D) Output
23
RS-232C Output

English
Remote Control
1
Power On/Off button
2
Numeric buttons
3
Favorite Channel Selection
4
Volume Up/Down
5
Sound Selection (Mono/Stereo/SAP)
6
Picture Mode Selection
7
Sound Mode Selection
8
Control the Cursor in the OSD Menu
9
MENU Confirmation
10
Display OSD Menu
11
Information Display
12
DVD Player Function Buttons
(Available in the model that has a built-in DVD Player)
13
Temporary Sound Mute
14
DVD Player Function
(Available in the model that has a built-in DVD Player)
15
External Source Input Selection
16
Internet/Media Player Function
17
Closed Captions
18
Previous Channel
19
Picture Size Selection
20
SRS WOW Selection
21
Exit from the OSD
6

7English
Connection and start Operation
Connecting the Cables
You can use the Monitor set to connect camcorder and video games. Use the cinch sockets on the rear
side of the unit.
Connecting the AV Cable
1 Connect the AV cable to the sockets [VIDEO]
and the output sockets of the external
devices.
Connecting the S-Video Cable
1 Connect the S-Video cable to the socket
[S-VIDEO] on the rear side of the unit and the
output sockets of the external devices.

8 English
Connecting to a Computer
Use a 15-pin D-Sub cable or DVI-D cable to connect the LCD display panel set to the computer.
1 Plug the cable into the output socket of the
graphic board.
2 Plug the other end of the cable into the socket
[RGB] or [DVI-D].
3 Adjust the settings of the Monitor picture
corresponding to the settings for Monitor
operation. See “Settings” on page 10.
Connecting to External Devices with Component Input
You can use the LCD display panel to connect DVD recorder/player and set-top-box. Connect the audio
and video cables from the external equipment’s output jacks to the LCD display panel input jacks, as
shown in the figure. When connecting the LCD display panel to external equipment, match the jack
colours.
Connecting to External Devices
1 Plug the video cable according into the colours
to the output sockets of the external devices.
2 Plug the other end of the video cable according
to the colours into the [Y, Pb, Pr] sockets on the
LCD display panel.
Connecting Several Devices
You can use the connections described parallel . On how to select the desired source see “Select
Source” on page 20 and “Select Signal Source for PIP” on page 20.
If the LCD display panel does not receive any signal, adjust the output of the
computer. For information on how to setup the computer, refer to the
corresponding manual of the computer.

9English
Inserting the Batteries
For the operation of the remote control 2 type R03 1.5V Size AA batteries are included in the delivery.
1 Remove the cover on the back of the remote control and insert the batteries.
Notes on Handling Batteries
When used properly batteries are a safe and reliable source of energy. However, when misused or not
used according to the intention, they may leak. In extreme cases there is a danger of explosion or fire.
Therefore please understand that the manufacturer will not be liable in case of misuse or improper use.
For detailed information on how to handle the batteries, please contact the respective
manufacturer.
▪ When inserting the batteries, ensure the polarity is matched correctly
(+ and - marking on the battery and on the unit).
▪ Never try to recharge non-rechargeable batteries.
Disposal of batteries is clearly regulated by legal acts. Consumer quantities
of batteries must be taken back by the dealer or by local public collectors.
Never discharge batteries together with common waste. Make use of the free
public collection system! Protect your environment. Return used batteries.

10 English
Settings
Switching on
1 Press the power switch on the back of the unit.
2 Press on the remote control.
This switches the unit on and it can be operated using the remote control.
Switching Off
Stand by
1 Press on the remote control.
Switch Stand by Off
1 Press the power switch on the back of the unit.
Now the unit is switched off completely and does not consume any power.
Setting up for Operation
You can adjust various settings of the unit to adapt it to your requirements.
If it is not explicitly stated otherwise, it will be assumed that the unit and the
LCD display panel set are switched on and will be operated by the remote
control.
By default, the unit is set to the english language. For information on how to
change the on-screen language later, refer to: “Set Screen Language” on
page 16.
Please note that the unit also consumes a little power when in stand by mode.

11English
DIP Switch Setting(No.0~69)
Each Screen must have a unigue ID number by DIP switch.

12 English
DIP Switch Setting(No.70~127)
Each Screen must have a unigue ID number by DIP switch.

Setting ID example for LCD display panel
When connecting a number of LCD Dispay Panel through Displaychain(Link), surrounding noise
may come out lower the image quality.
Daisy chain can connect with LCD display panel to maximum 16EA. (by DVI)
But, If you need additional connection, you must connect daisy chainusing distributer.
Connecting RS-232C Cable
LCD ID1 LCD ID2 LCD ID3
LCD ID4
LCD ID7
LCD ID5
LCD ID8
LCD ID6
LCD ID9
13English

Connecting S-video Cable
Connecting VGA Cable
14 English

Connecting the Power Cord
1 Connect the supplied power cord.
AC Power Connection
The AC power cord can be connected with Daisychain. But the maximum current must be restricted 15A.
-The Model CL-46CMH10/20 can be configured serially maximum 4 SETS in USA (AC100V).
-The Model CL-46CMH10/20 can be configured serially maximum 10 SETS in Europe (AC220V).
-The Model CL-55KMF10 can be configured serially maximum 4 SETS in USA (AC100V).
-The Model CL-55KMF10 can be configured serially maximum 10 SETS in Europe (AC220V).
▪ Don,t plug another AC power cord into extension cord. It’s a good to start a
fire.The maximum current is 15A in normal extension cord.
15English

Set Screen Language
The screen display text can be displayed in several languages. Use this function to set screen
language. By default, the unit is set to the english language.
1 Press .
2 Press ◄ or ► and select Setup .
3 Press ▲ or ▼ and select OSD Language .
4 Press .
5 Press ▲ or ▼ to select the desired setting.
6 Press to save the setting.
7 Press .
Set Geometry
Use this function to adjust screen status.
1 Press .
2 Press ◄ or ► and select Setup .
3 Press ▲ or ▼ to select Geometry .
4 Press .
5 Press ▲or ▼to select the desired menu.
♦If you want to reset to the factory default
setings, select “Reset” and press .
6 Press ◄ or ► to adjust desired setting.
7 Press .
Set MISC.
Set RGB Input (Video or PC)
1 Press .
2 Press ◄ or ► to select Option .
3 Press ▲ or ▼ to select MISC .
4 Press .
5 Press ▲ or ▼ to select RGB Input .
6 Press ◄ or ► to select desired setting.
7 Press .
Picture Audio Timer Channel Setup Option
Mode Custom
Brightness 50
Contrast 50
Black Level 50
Sharpness 50
Colour 50
Tint
Mode
Standard
Sport
Natural
Mild
Custom
Move
OK
Select
MENU
Back
Picture Audio Timer Channel Setup Option
OSD Language
AV Out
Geometry
Input label
Video Input Select
Zoom Mode
Parent
Caption
Geometry
Auto Adjust
Clolk
1792
Phase 18
H.Position 3
V.Position -5
H.Size
V.Size
Reset
Move Enter
MENU
Back
OK
Picture Audio Timer Channel Setup Option
No Signal Off
No Operation Off
Local Lock
Noise Reduction
MISC.
MISC.
RGB Input PC
1280/1360 1360
HDMI Audio PC
Move Adjust
MENU
Back
16 English

Set Video Resolution (1280/1360)
1 Repeat steps from 1 to 4 in chapter “Set MISC.”
2 Press ▲ or ▼ to select 1280/1360 .
3 Press ◄ or ► to select desired setting.
4 Press .
Select Source (Main Input)
Use this function to select which signalwill be displayedon the main screen, if you have connected
severalsources (e.g. a decoder anda roof aerial).
1 Press .
Main Input
Video
S-Video
YPbPr
RGB
DVI
Move
OK
Select
17English

Remote Control
Default Display
2
2
COM SET
Communications Port Setup
3
3
PANEL
Multi Screen Setup
Set up number of screen on X-Axis
Set up number of screen on Y-Axis
4
4
INPUT
Select input source
※ To adjust settings, you should press “Apply”key.
5
5
ZOOM
Select input source on chosen screen
Display enlargement / reduction
Real : Display full screen on each panel
Zoom : Display full screen on 2x2
SAVE
Save settings
1
1
18 English
