Cima CL-47CMH10 User manual

Owner’s Instructions
Before operating the unit, please read this manual thoroughly,
and retain it for future reference.
LCD Display
CL-47CMH10/20
aVVUU

This multi-LCD Display system supports high resolution and multi-screen formatGG
G127UGSo these monitors can be used individually or all together.
There are various designs such as wall-mounting or stand-alone type for the best
installation.
You can connect the player directly to the LCD Display or network for a remote
control.
- 3rovides real-time information like weather and traf¿c reports, stock market
information, etc.
- Provides display solution used as in-store mediums to present product
advertisement, full motion video, photo-realistic graphics, text and animation.
- Designed for simple installation and maintenance
- Cost ef¿cient for maintenance and handling.
- Needs only a small space because of the ultra slim LCD Display.

1English
j
CAUTION .......................................................................................................................................2
Important Safety Instruction........................................................................................................3
Precaution.....................................................................................................................................4
Before considering as a failure ...........................................................................................................................4
About LCD display panel .....................................................................................................................................4
Unpacking and Setup...................................................................................................................5
Scope of Supply .................................................................................................................................................5
Viewing the control ......................................................................................................................5
Rear View .............................................................................................................................................................5
Remote Control.............................................................................................................................6
Connection and start Operation..................................................................................................7
Connecting the Cables .......................................................................................................................................7
Connecting to a Computer ...................................................................................................................................8
Connecting to External Devices with Component Input ......................................................................................8
Connecting Several Devices ...............................................................................................................................8

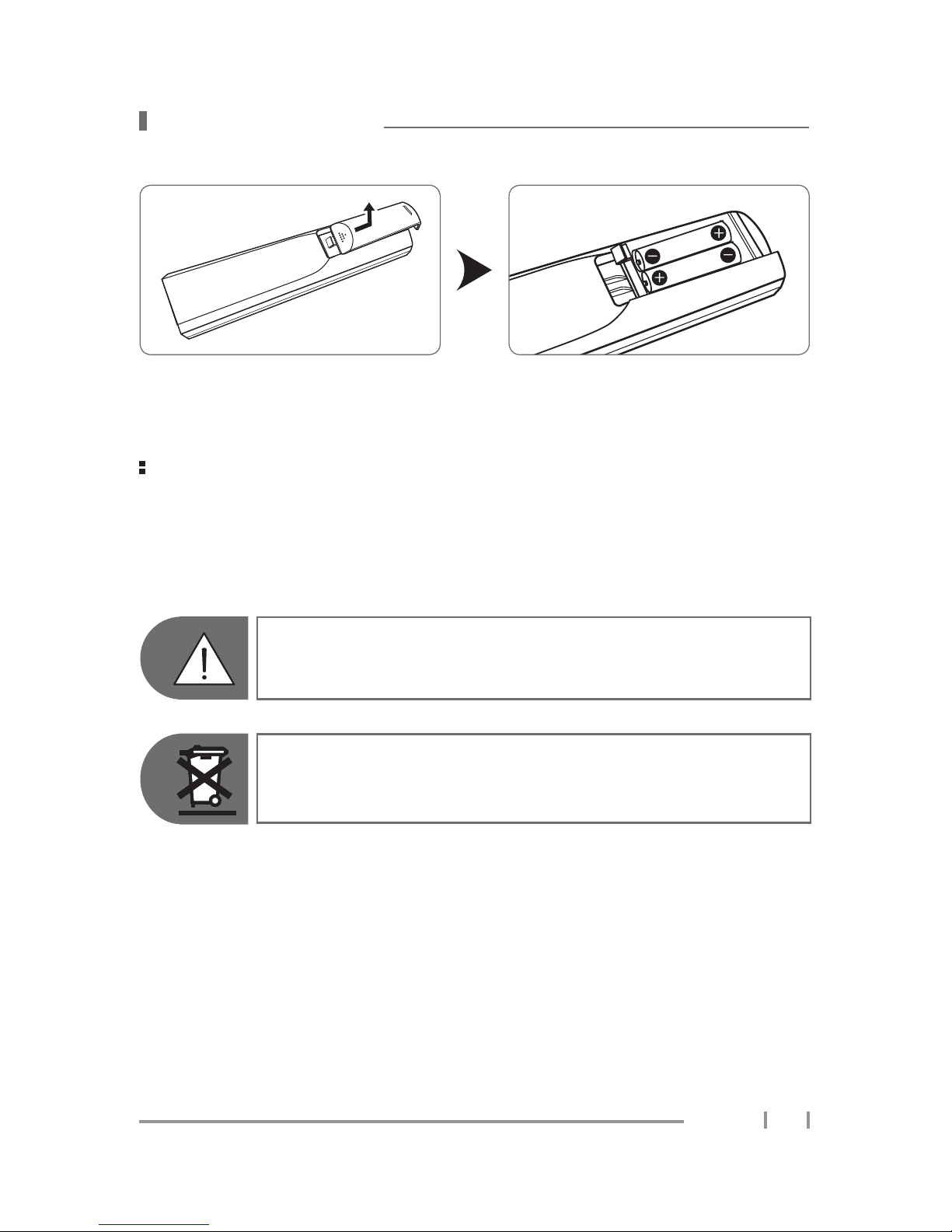

Inserting the Batteries ..........................................................................................................................................9
Settings ......................................................................................................................................10
Switching on ......................................................................................................................................................10
Switching Off .....................................................................................................................................................10
Setting up for Operation ....................................................................................................................................10
DIP Switch Setting(No.0~69)
.............................................................................................................................11
DIP Switch Setting(No.70~128)
..........................................................................................................................12

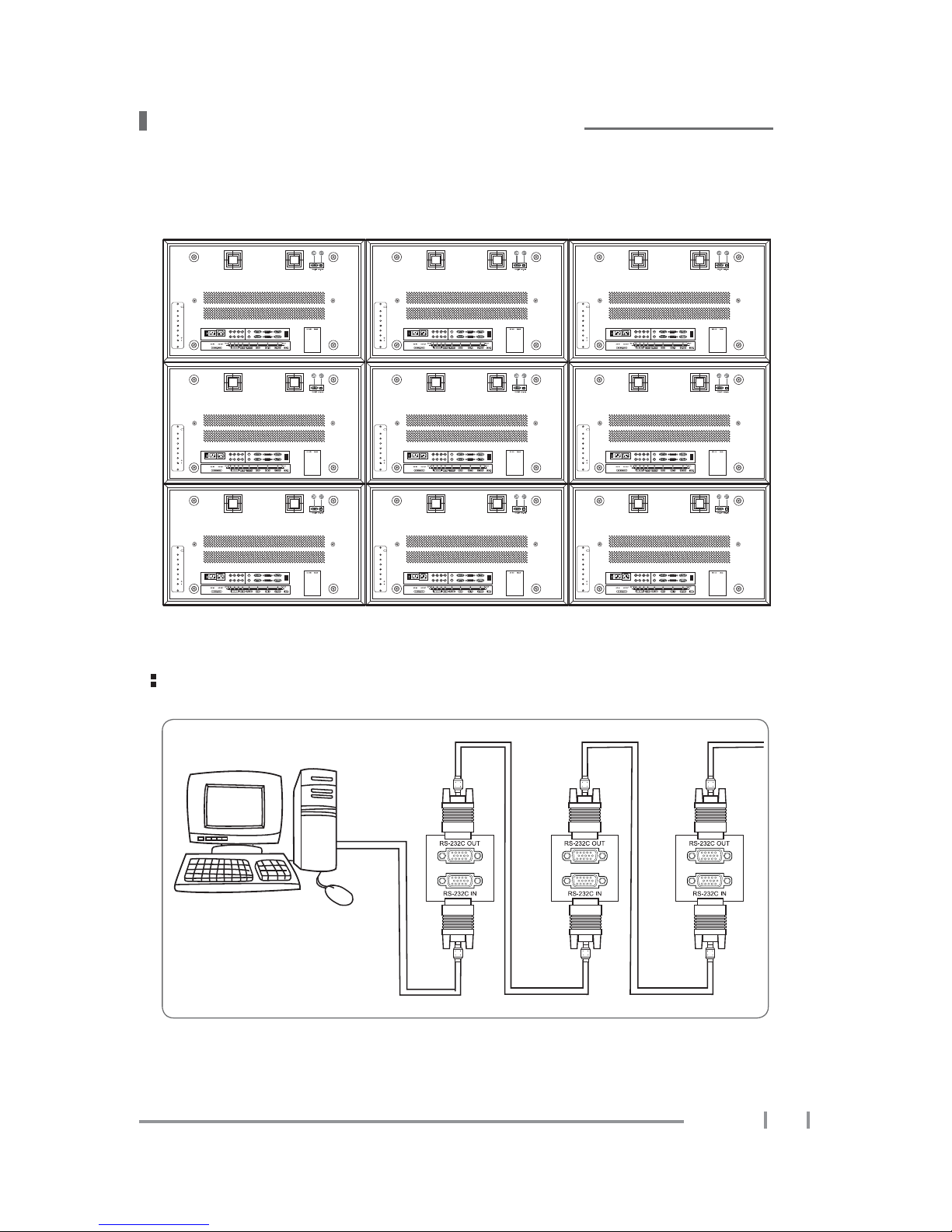

Setting ID Example for LCD display panel
..................................................................................................13
Connecting S-Video Cable 14

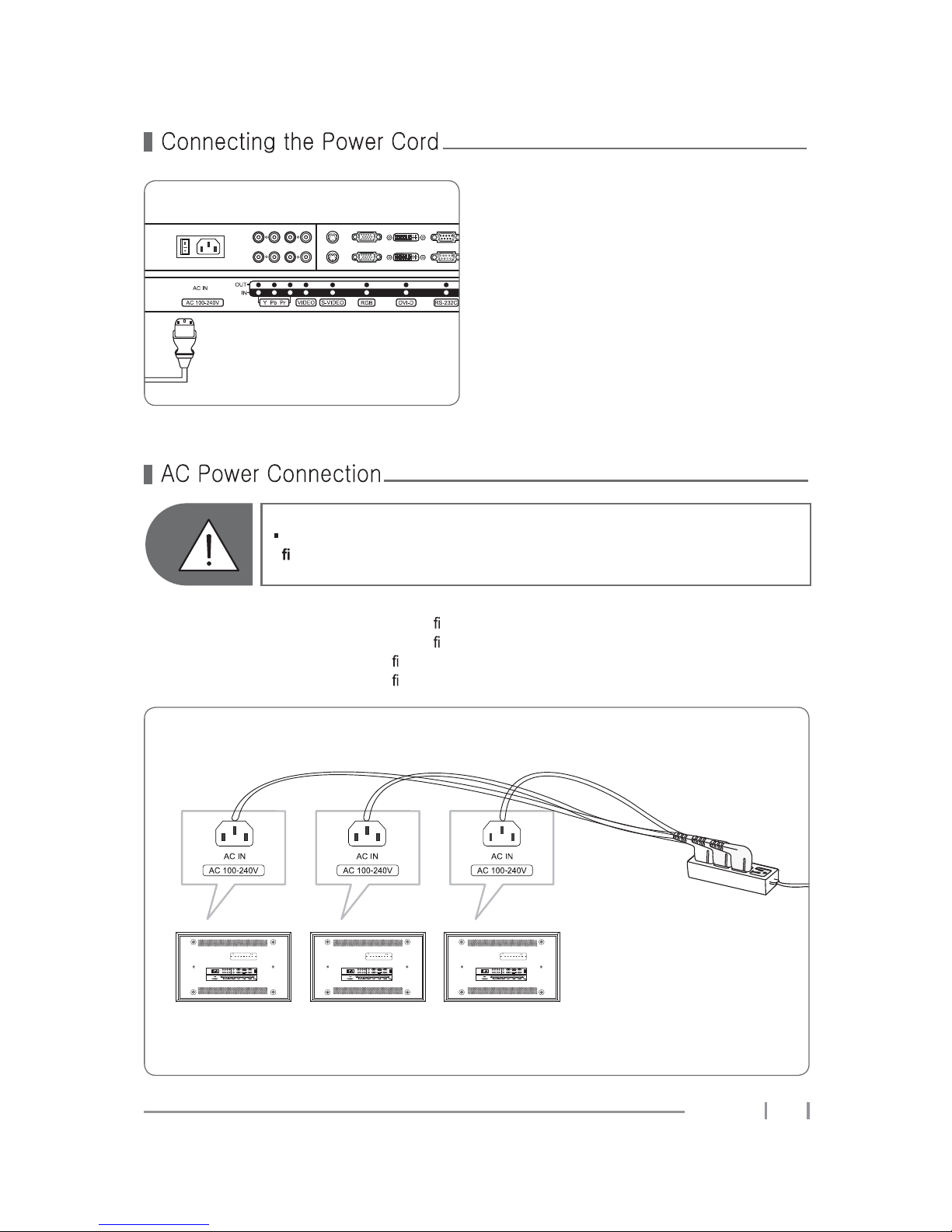

Connecting the Power Cord ..............................................................................................................................15
AC Power Connection ........................................................................................................................................15

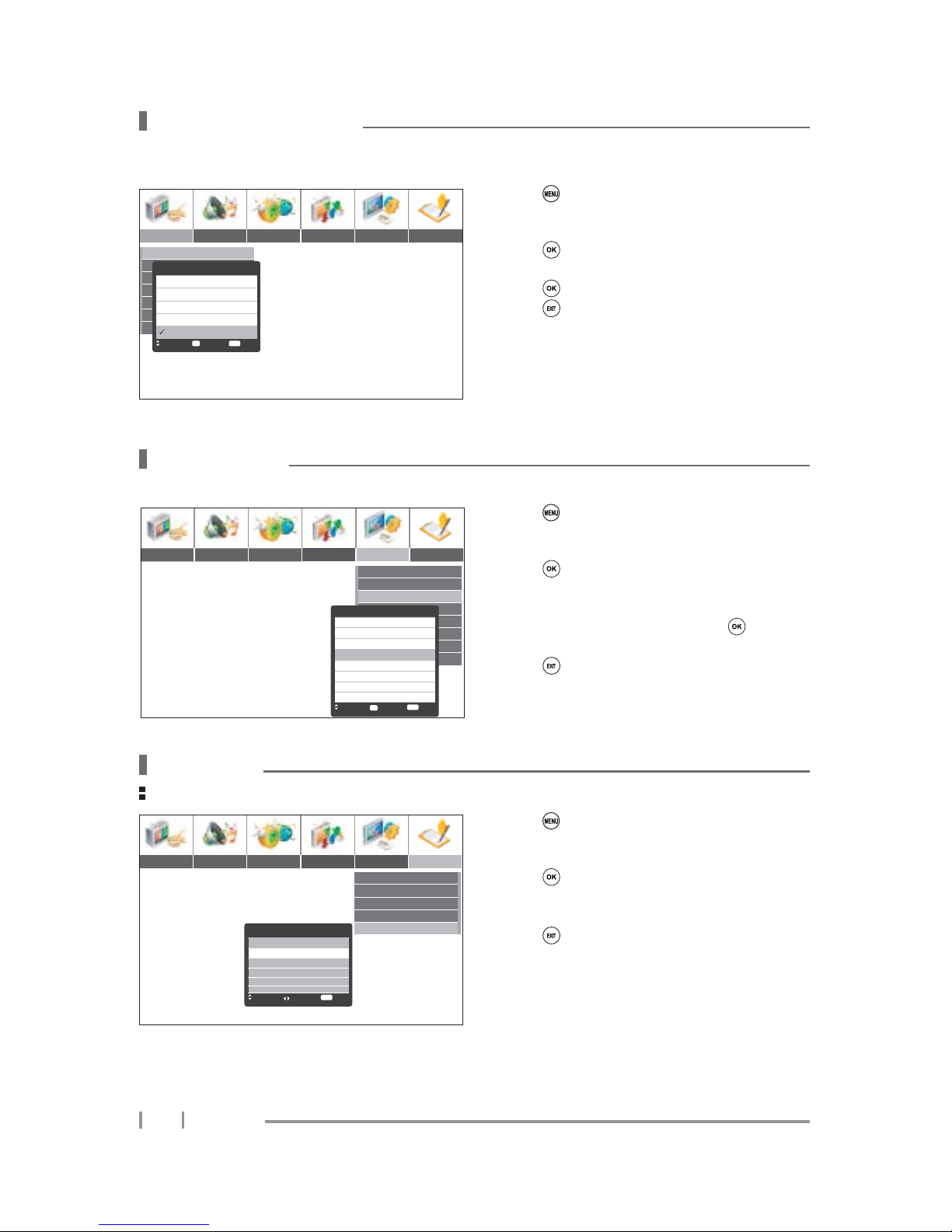

Set Screen Language ........................................................................................................................................16
Set Geometry .....................................................................................................................................................16
Set MISC. ..........................................................................................................................................................16
Select Source (Main Input).................................................................................................................................17
Troubleshooting .........................................................................................................................18
Technical Speci¿cations............................................................................................................19
Memo ...........................................................................................................................................20
..............................................................................................................................
Connecting VGA Cable 14
..............................................................................................................................
Connecting RS-232C Cable 13
..............................................................................................................................

2 English
jh|{pvu
The /ightning Àash and arrow head within the triangle is a warning sign
alerting you of ³dangerous Yoltage´inside the product.
This symbol indicates
additional safety instructions
in the te[t.
This symbol indicates
instructions to facilitate
the operation.
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION
CAUTION : TO PREVENT ELECTRICAL SHOCK,
DO NOT REMOVE REAR COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This device has been tested and found to comply with the limits for a Class B device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in home environment as well as in a commercial, industrial or business environment.
This equipment can generate, use and radiate radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or Monitor reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/LCD display panel technician for help.
Changes or modi¿cation not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
FCC NOTICE

3English
pGzGp
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other ap-
paratus (including ampli¿ers) that produce heat.
Do not defeat the safety purpose of the polar-
ized or grounding type plug. A polarized plug
has two blades with one wider than the other.
A grounding type plug has two blades and a
third grounding prong. The wide blade or the
third prong is provided for your safety. When
the provided plug does not ¿t into your outlet,
consult an electrician for the replacement of the
obsolete outlet.
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles and the point where they exit from
the apparatus.
Only use the attachments/accessories speci¿ed
by &,0$'LJLWHF
Use only with a cart, stand, tripod, bracket or
table speci¿ed by the manufacturer or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus to avoid injury
from tip-over.
Unplug this apparatus during lightning storms
or when unused for long periods of time.
Refer all servicing to quali¿ed service person-
nel. Servicing is required when the apparatus
has been damaged in any way, such as power
supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the appara-
tus, the apparatus has been exposed to rain
or moisture, does not
operate normally, or has
been dropped.

4 English
w
GiGGGGGG
Before calling for any repair, check the following and then refer to a near A/S center.
X“Tick” sound from the main body.
If there is no problem with the screen or sound, the “tick” sound is likely to result
from the cabinet lightly shrinking with change of room temperature. The sound
does not affect product’s performance.
XNo image at upper and bottom part of screen.
As for a screen which is over 16:9 in width (such as cinema-sized one) no image
may be displayed at upper and bottom part of the screen.
XSpeckles or white lines on the screen
Check whether the problem is caused by vehicle, streetcar, high voltage cable
or neon sign, which intererence wave or electromagnelic induction. Avoid any
intering object.
XScreen size can be changed.
The screen size may be ¿tted to the ¿rst dark scene depending on contents.
GhGsjkGGG
The followings are phenomena caused by characteristics of the LCD display panel. Since it is not any
failure, you may use it at rest.
XBlack or twinkling sports on the screen
Although the LCD display panel is manufactured with high-precision technology,
there may exist black or twikling sports on the screen. Since it is not any failure,
you may use it at rest.
XNoise From the inside
When you turn on the prouct, driving sound may be heard from the display panel.
Since it is not any failure, you may use it at rest.

5English

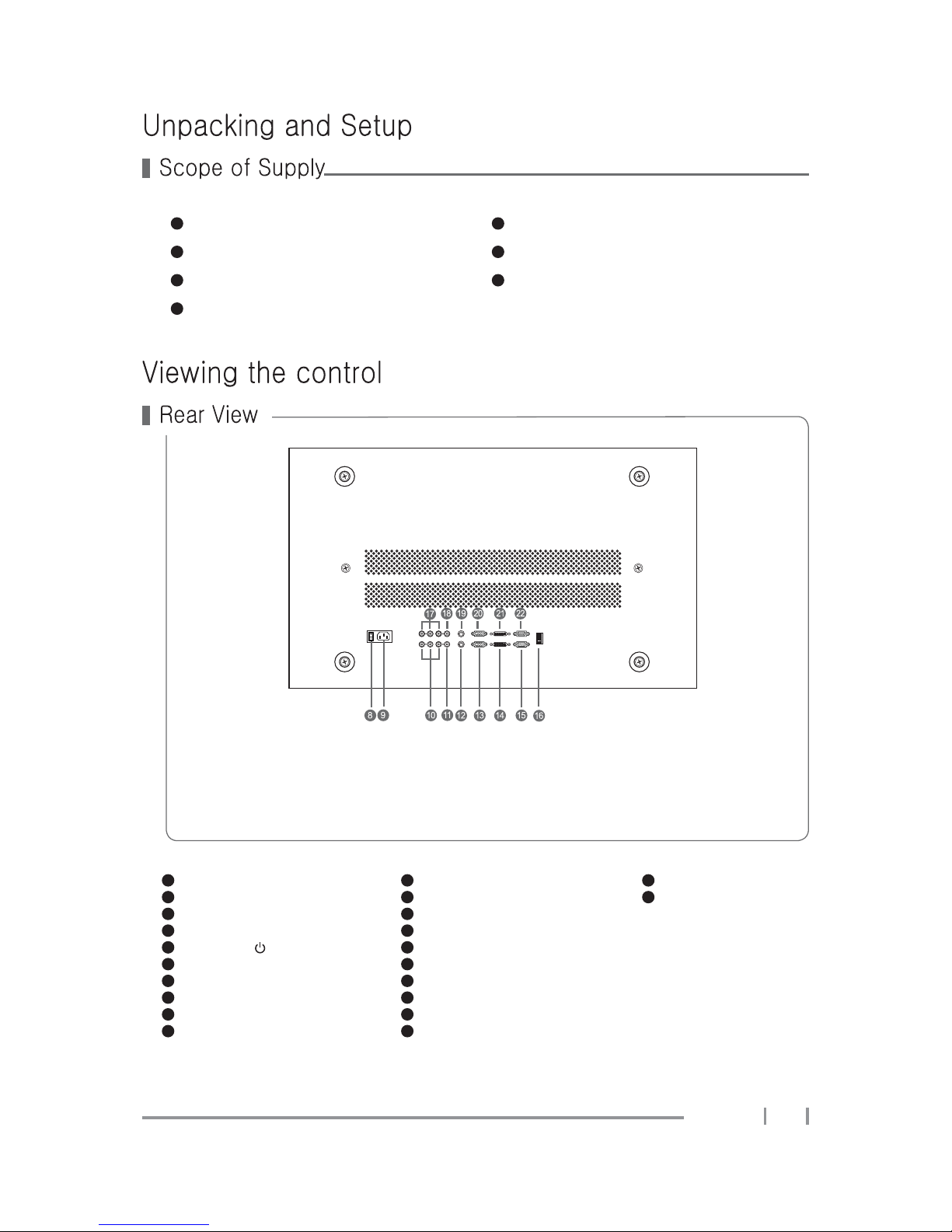

Please check, that the delivery is complete.
1
Unit
5
Serial Cable
2
Remote control & Batteries (AA x 2)
6
VGA Cable
3
Power Cord
7
DVI Cable
4
Operating Instructions
1
Input Source selection button
2
Menu Selection button
3
Menu Control button(Left, Right)
4
Menu Control button(Top, Bottom)
5
Power button( )
6
Power Indicator
7
Remote Control Sensor
8
Power Switch(Main)
9
Power Input
10
11
Component Video (Y Pb Pr) Input
12
Composite Video Input
13
S-Video Input
14
PC (RGB) Input
15
PC (DVI-D) Input
16
RS-232C Input
17
ID No(DIP Switch)
18
Component Video (Y Pb P r) Output
19
Composite Video Output
20
S-Video Output
21
PC (RGB) Output
22
PC (DVI-D) Output
RS-232C Output

English
yGj

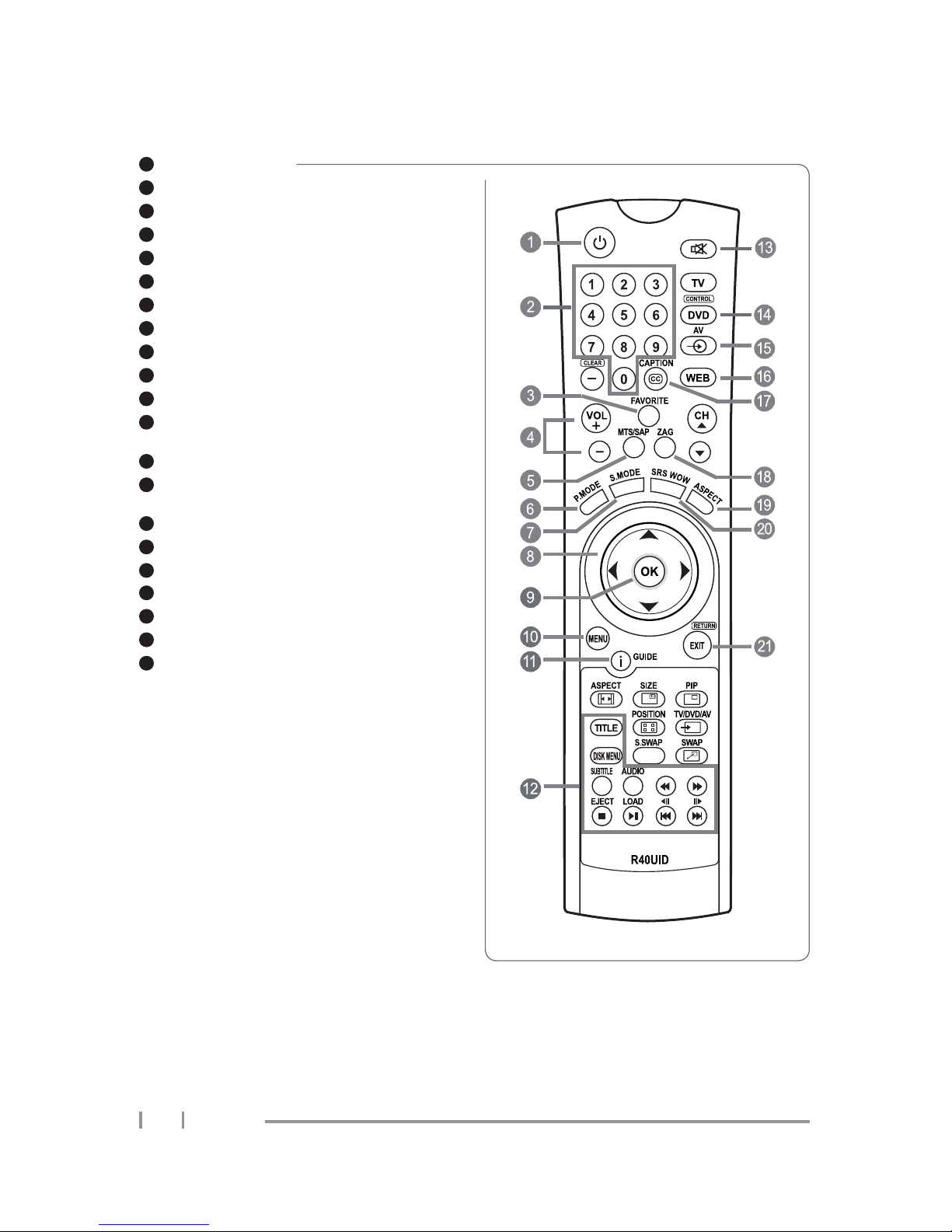

1
Power On/Off button
2
Numeric buttons
3
Favorite Channel Selection
4
Volume Up/Down
5
Sound Selection (Mono/Stereo/SAP)
6
Picture Mode Selection
7
Sound Mode Selection
8
Control the Cursor in the OSD Menu
9
MENU Con¿rmation
10
Display OSD Menu
11
Information Display
12
DVD Player Function Buttons
(Available in the model that has a built-in DVD Player)
13
Temporary Sound Mute
14
DVD Player Function
(Available in the model that has a built-in DVD Player)
15
External Source Input Selection
16
Internet/Media Player Function
17
Closed Captions
18
Previous Channel
19
Picture Size Selection
20
SRS WOW Selection
21
Exit from the OSD
6

7English
jGGGv
GjGGjGG

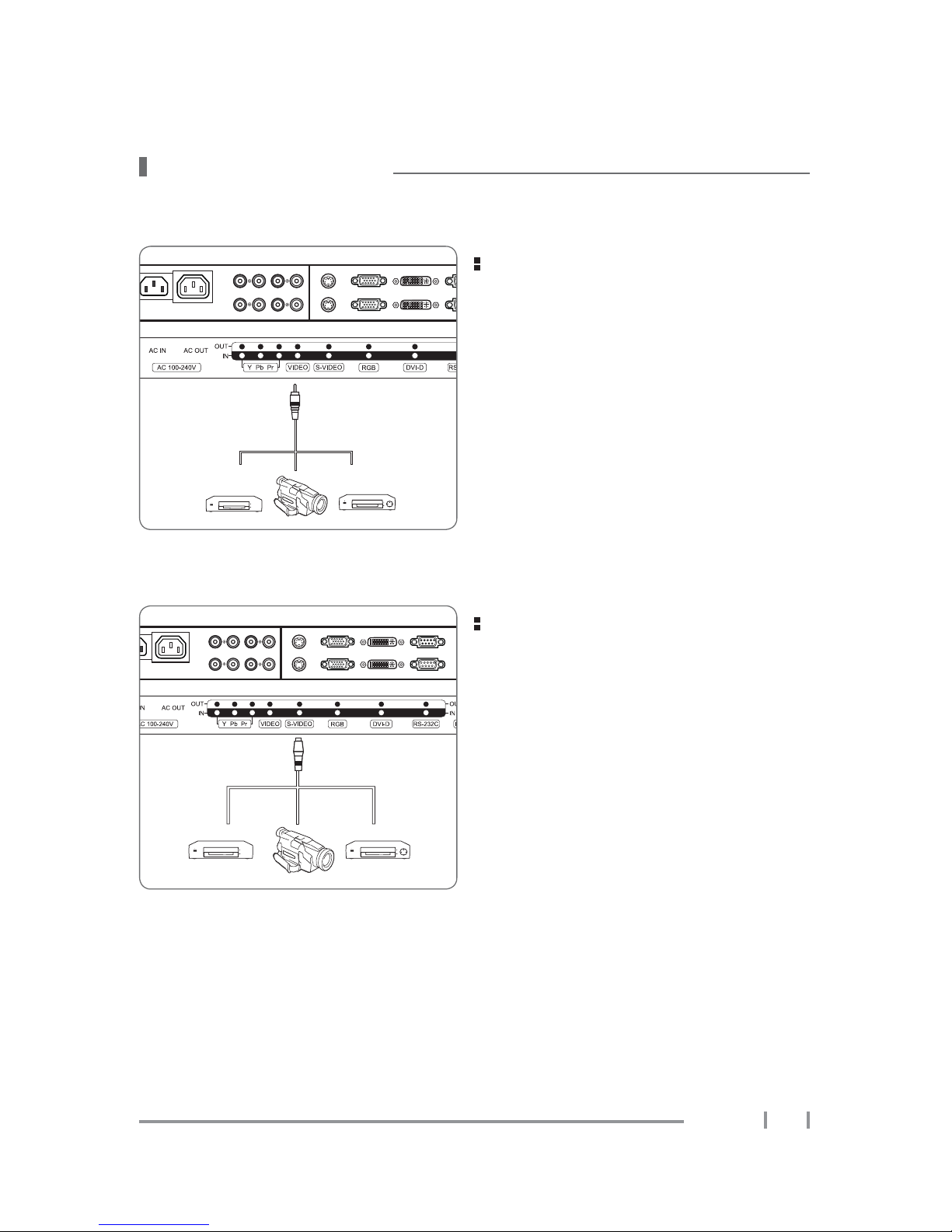

You can use the Monitor set to connect camcorder and video games. Use the cinch sockets on the rear
side of the unit.
Connecting the AV Cable
1 Connect the AV cable to the sockets [VIDEO]
and the output sockets of the external
devices.
Connecting the S-Video Cable
1 Connect the S-Video cable to the socket
[S-VIDEO] on the rear side of the unit and the
output sockets of the external devices.

8 English
GjGGGjG

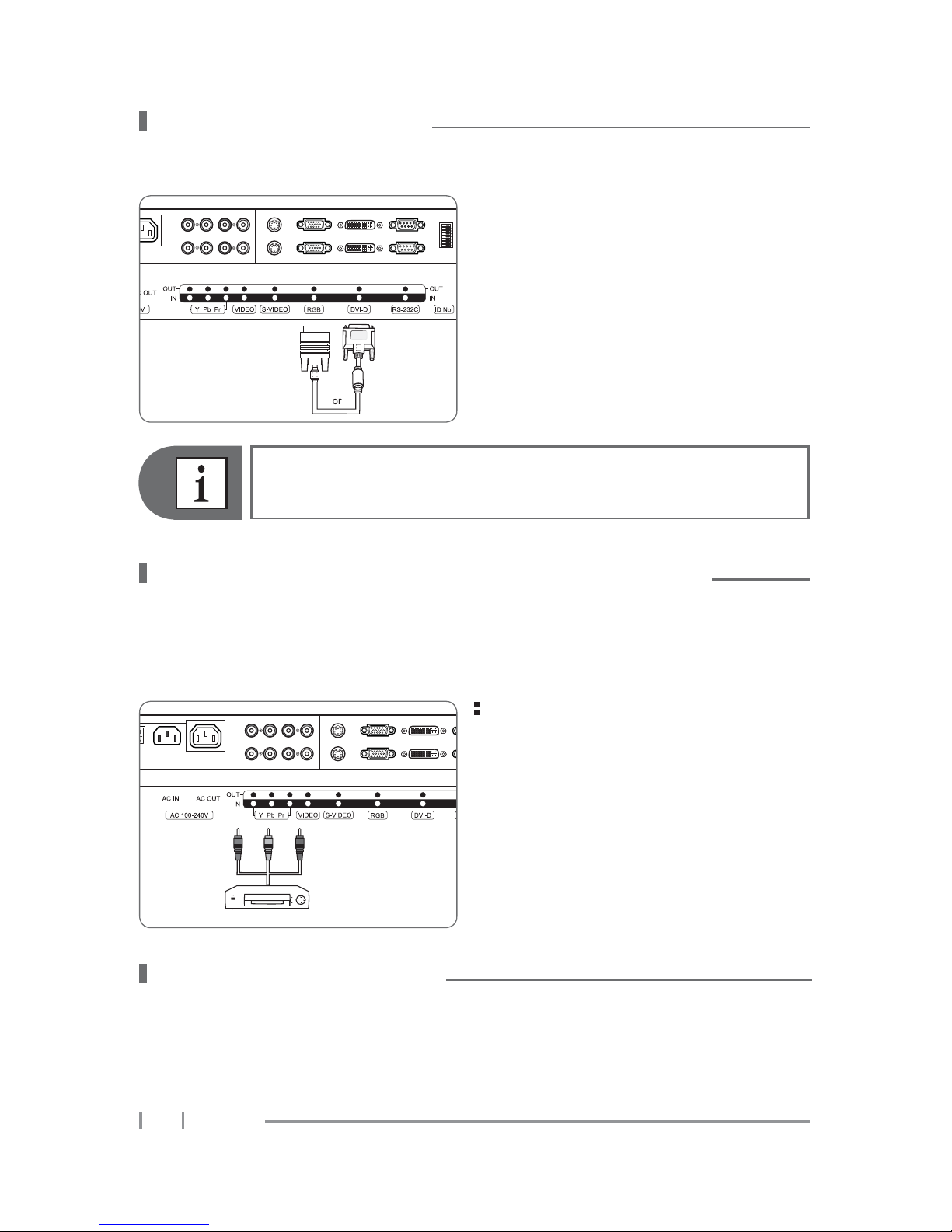

Use a 15-pin D-Sub cable or DVI-D cable to connect the LCD display panel set to the computer.
1 Plug the cable into the output socket of the
graphic board.
2 Plug the other end of the cable into the socket
[RGB] or [DVI-D].
3 Adjust the settings of the Monitor picture
corresponding to the settings for Monitor
operation. See “Settings” on page 10.
GjGGlGkGGjGpG
You can use the LCD display panel to connect DVD recorder/player and set-top-box. Connect the audio
and video cables from the external equipment’s output jacks to the LCD display panel input jacks, as
shown in the ¿gure. When connecting the LCD display panel to external equipment, match the jack
colours.
Connecting to External Devices
1 Plug the video cable according into the colours
to the output sockets of the external devices.
2 Plug the other end of the video cable according
to the colours into the [Y, Pb, Pr] sockets on the
LCD display panel.
GjGzGkG
You can use the connections described parallel . On how to select the desired source see “Select
Source” on page 20 and “Select Signal Source for PIP” on page 20.
If the LCD display panel does not receive any signal, adjust the output of the
computer. For information on how to setup the computer, refer to the
corresponding manual of the computer.
