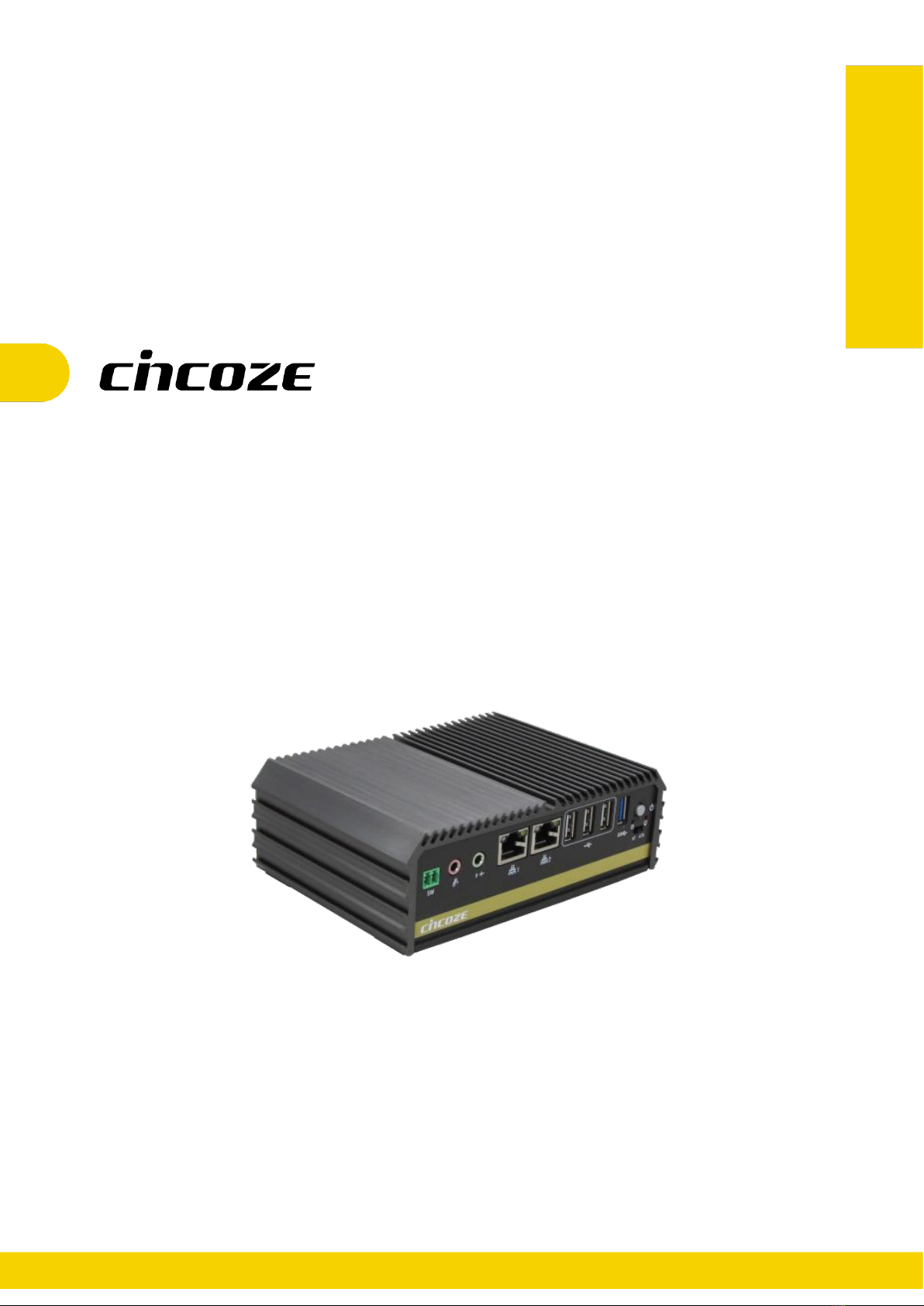

Cincoze DA-1000 Series User manual

Fanless Computing Solution
Intel® Atom™ or Celeron® Processor
Affordable Fanless Embedded Computer
Version: V1.52
DA-1000 Series
User Manual
Rugged Embedded Computer

DA-1000 Series | User Manual 2
Contents
Preface
Revision……………………………………………..……………….……………...……………...05
Copyright Notice.…………………………………………………………………………………...05
Acknowledgement.……………………………………………………………….........................05
Disclaimer.………………………………………………………………….………………...........05
Declaration of Conformity.………………………………………………….……………………05
Product Warranty Statement …………………………………………………………….............06
Technical Support and Assistance.…………………………………………….…………………07
Conventions Used in this Manual …………………………………………….…………............08
Safety Precaution …...……………………………………………….………….………..............08
Package Contents ………………………………………………………….…….………...……10
Ordering Information …………………………………...…………………….…….……...……...10
Optional Modules & Accessories……………………………………........................................11
Chapter 1 Product Introductions
1.1 Overview …………………………………………………….……......……………..............13
1.2 Key Features……………………………………………….…………....……………........13
1.3 Product Pictures……...……………………………………….……………………..............14
1.4Hardware Specification ……………..……………………….……...………………....……15
1.5System I/O ……………………………………......…………….……………………............16
1.5.1 Front ……………………………………......…………………………………………..16
1.5.2 Rear ………….………………………………….………………………….......………17
1.6Mechanical Dimension …………………………………….………...………......……........18
Chapter 2 Switches and Connectors
2.1 Location of Switches and Connectors ………….………………………………...………..20

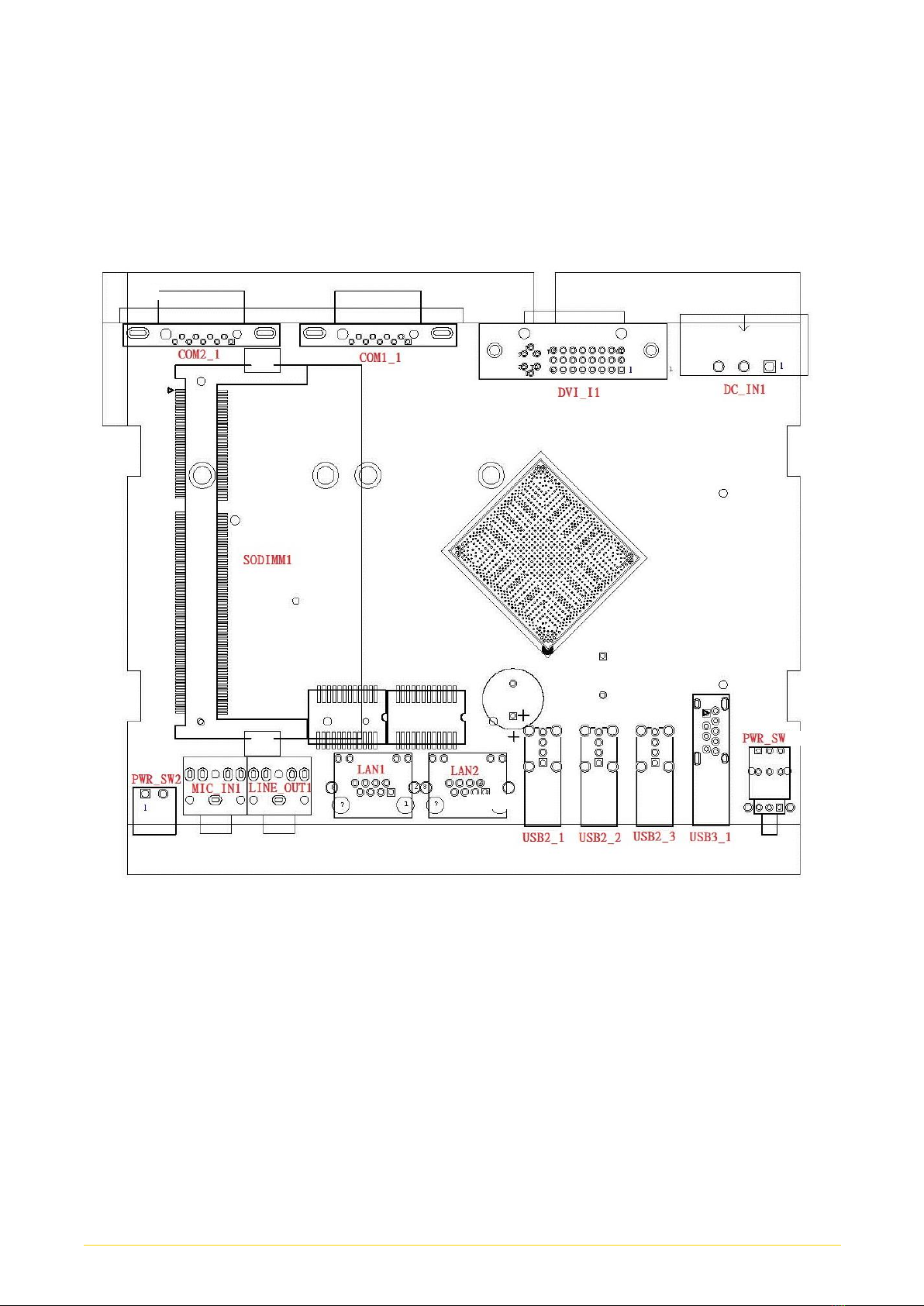

2.1.1 Top View ……………………………….……………………………………...………..20
2.1.2 Bottom View ……………………………………………………………...……............21
2.2 Switches and Connectors Definition…………………..….……………………………….22
2.3 Definition of Switches.……...……………..............................................……..................23
2.4 Definition of Connectors …...….……...……….............……………….............................24
Chapter 3 System Setup
3.1 Removing the Top Cover ……...……………………………….….…………………..........29
3.2Installing SO-DIMM Memory………………………..…………....…………….……………31

DA-1000 Series | User Manual 3
3.3Installing Mini-PCIe Cards on Bottom Side……..……………………………..........32
3.4 Installing a SATA Hard Drive…………………………………………………………………34
3.5 Installing Antennas…….…….…………..……….…………………………………………..35
3.6 Assembling the System….…..…...……….………...….……………………………............37
3.7 Installing a SIM Card……..….……...……….………...….……………………….…............39
3.8 Wall Mount Brackets……….……...……….………...….……………………….…..............40
3.9 Side Mount Bracket.……….……..…….………...….……………………….…................41
3.10 DIN-Rail Mount Bracket.……….……...…….……….……………………….…................43
3.11 VESA Mount Bracket.…………..……...…….……….……………………….…................44
Chapter 4 BIOS Setup
4.1 BIOS Introduction …….……….…………….…….…..….……………………...................47
4.2 Main Setup ……...……….…..……………….…..….………………........…………...........48
4.2.1 System Date …….……………………………………………...……………..............48
4.2.2 System Time ………..……………………………………………..……….................48
4.3 Advanced Setup ……………………………………………………………………………...49
4.3.1 ACPI Settings …………………………………………………………………………49
4.3.2 Super IO Configuration………………………………………….…………………....50
4.3.3 Hardware Monitor…………..…………………...……………………….…................53
4.3.4 Serial Port Console Redirection……………………………………….……..….....53
4.3.5 CPU Configuration……..…………….……………………………………………......54
4.3.6 Thermal Configuration……..…………….…………………………………………..55
4.3.7 SATA Configuration……..…………….………………………………………………..56
4.3.8 OS Selection……..…………….……………...………………………………………..57
4.3.9 CSM Configuration……..….……….…………………………..………………..........57
4.3.10 USB Configuration………….…………………………………………………..........59
4.4 Chipset Setup …...……….…………………..…..….…..…………………………………...60
4.4.1 North Bridge ……………………………………..……………………………………..60
4.4.2 South Bridge…………….……………….……………………………………………..62
4.5 Security Setup …...……….………………….…..………………..……………………...…64
4.5.1 Administrator Password …….…...……………………………………………………64
4.5.2 User Password …….…………………………………………………..………………64
4.6 Boot Setup …...……….….……………………………...…..….…..………..………….....65
4.7 Save & Exit …...……….….………………….…..….…..………………………..................66

DA-1000 Series | User Manual 4
Chapter 5 Product Application (For CMI-DIO100 Only)
5.1 Digital I/O (DIO) application ………..………………………………………………………68
5.1.1 Digital I/O Programming Guide ……………………………………………………68
5.2 Digital I/O (DIO) Hardware Specification ……………………………………………………73
5.2.1 DIO Connector Definition ………………..……...…………….................................74

DA-1000 Series | User Manual 5
Preface
Revision
Revision
Description
Date
1.0
Manual Released
2016/03/14
1.1
Content Revised
2017/01/05
1.2
BIOS OS Selection Revised
2017/01/12
1.3
Side Mount Bracket
2017/05/15
1.31
Modified 3.4 Mini PCI-e Card photos
2017/09/14
1.40
Add DIO Connector Definitions
2018/01/02
1.41
Modified MINIPCIE1 Pin Define Table
2018/09/07
1.50
Correction Made
2018/11/20
1.51
Correction Made
2020/04/09
1.52
New Format Updated
2020/09/10
Copyright Notice
© 2016 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied,
modified, or reproduced in any form or by any means for commercial use without the prior
written permission of Cincoze Co., Ltd. All information and specification provided in this
manual are for reference only and remain subject to change without prior notice.
Acknowledgement
Cincoze is a registered trademark of Cincoze Co., Ltd. All registered trademarks and product
names mentioned herein are used for identification purposes only and may be trademarks
and/or registered trademarks of their respective owners.
Disclaimer
This manual is intended to be used as a practical and informative guide only and is subject
to change without notice. It does not represent a commitment on the part of Cincoze. This
product might include unintentional technical or typographical errors. Changes are
periodically made to the information herein to correct such errors, and these changes are
incorporated into new editions of the publication.
Declaration of Conformity
FCC
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment

DA-1000 Series | User Manual 6
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
CE
The product(s) described in this manual complies with all application European
Union (CE) directives if it has a CE marking. For computer systems to remain
CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
Product Warranty Statement
Warranty
Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and
workmanship for 2 years from the date of purchase by the original purchaser. During the
warranty period, we shall, at our option, either repair or replace any product that proves to be
defective under normal operation. Defects, malfunctions, or failures of the warranted product
caused by damage resulting from natural disasters (such as by lightening, flood, earthquake,
etc.), environmental and atmospheric disturbances, other external forces such as power line
disturbances, plugging the board in under power, or incorrect cabling, and damage caused
by misuse, abuse, and unauthorized alteration or repair, and the product in question is either
software, or an expendable item (such as a fuse, battery, etc.), are not warranted.
RMA
Before sending your product in, you will need to fill in Cincoze RMA Request Form and
obtain a RMA number from us. Our staff is available at any time to provide you with the most
friendly and immediate service.
◼RMA Instruction
⚫Customers must fill in Cincoze Return Merchandise Authorization (RMA)
Request Form and obtain a RMA number prior to returning a defective product
to Cincoze for service.
⚫Customers must collect all the information about the problems encountered
and note anything abnormal and describe the problems on the “Cincoze
Service Form” for the RMA number apply process.
⚫Charges may be incurred for certain repairs. Cincoze will charge for repairs to
products whose warranty period has expired. Cincoze will also charge for
repairs to products if the damage resulted from acts of God, environmental or
atmospheric disturbances, or other external forces through misuse, abuse, or
unauthorized alteration or repair. If charges will be incurred for a repair,
Cincoze lists all charges, and will wait for customer’s approval before

DA-1000 Series | User Manual 7
performing the repair.
⚫Customers agree to ensure the product or assume the risk of loss or damage
during transit, to prepay shipping charges, and to use the original shipping
container or equivalent.
⚫Customers can be sent back the faulty products with or without accessories
(manuals, cable, etc.) and any components from the system. If the
components were suspected as part of the problems, please note clearly
which components are included. Otherwise, Cincoze is not responsible for the
devices/parts.
⚫Repaired items will be shipped along with a "Repair Report" detailing the
findings and actions taken.
Limitation of Liability
Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use,
whether based on warranty, contract, negligence, product liability, or otherwise, shall not
exceed the original selling price of the product. The remedies provided herein are the
customer’s sole and exclusive remedies. In no event shall Cincoze be liable for direct,
indirect, special or consequential damages whether based on contract of any other legal
theory.
Technical Support and Assistance
1. Visit the Cincoze website at www.cincoze.com where you can find the latest information
about the product.
2. Contact your distributor or our technical support team or sales representative for
technical support if you need additional assistance. Please have following information
ready before you call:
⚫Product name and serial number
⚫Description of your peripheral attachments
⚫Description of your software (operating system, version, application software, etc.)
⚫A complete description of the problem
⚫The exact wording of any error messages

DA-1000 Series | User Manual 8

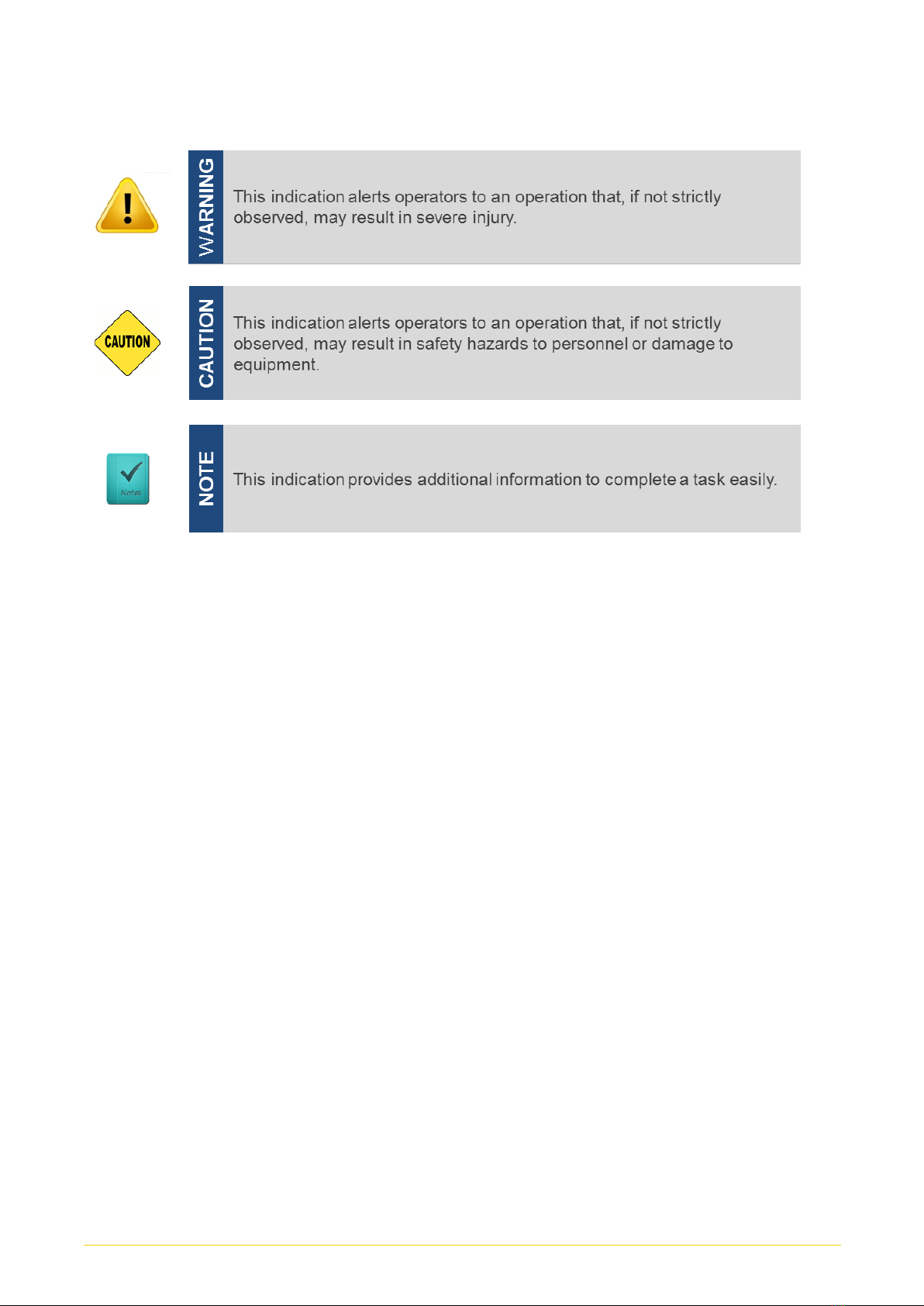

Conventions Used in this Manual
Safety Precautions
Before installing and using this device, please note the following precautions.
1. Read these safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Disconnected this equipment from any AC outlet before cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and
must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall
may cause damage.
7. Make sure the voltage of the power source is correct before connecting the equipment
to the power outlet.
8. Use a power cord that has been approved for using with the product and that it matches
the voltage and current marked on the product’s electrical range label. The voltage and
current rating of the cord must be greater than the voltage and current rating marked on
the product.
9. Position the power cord so that people cannot step on it. Do not place anything over the
power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.

DA-1000 Series | User Manual 9
13. Never open the equipment. For safety reasons, the equipment should be opened only
by qualified service personnel.
If one of the following situations arises, get the equipment checked by service
personnel:
⚫The power cord or plug is damaged.
⚫Liquid has penetrated into the equipment.
⚫The equipment has been exposed to moisture.
⚫The equipment does not work well, or you cannot get it work according to the user's
manual.
⚫The equipment has been dropped and damaged.
⚫The equipment has obvious signs of breakage.
14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer.
15. Equipment intended only for use in a RESTRICTED ACCESS AREA.

DA-1000 Series | User Manual 10
Package Contents
Before installation, please ensure all the items listed in the following table are included in the
package.
Item
Description
Q’ty
1
DA-1000 Embedded System
1
2
Utility DVD Driver
1
3
Power Terminal Block Connector
1
4
Screw Pack (For HDD / Mini-PCIe / Wall & VESA Mounting)
1
5
Wall Mount Kit
1
6
DVI-I to VGA Adapter
1
7
Power On/Off Terminal Block Connector
1
Note: Notify your sales representative if any of the above items are missing or damaged.
Ordering Information
Model No.
Product Description
DA-1000
Intel® Atom™ Processor E3826 Affordable Fanless Embedded
Computer
DA-1000-E45
Intel® Atom™ Processor E3845 Affordable Fanless Embedded
Computer
DA-1000-J19
Intel® Celeron® Processor J1900 Affordable Fanless Embedded
Computer

DA-1000 Series | User Manual 11
Optional Modules & Accessories
Model No.
Product Description
CMI-COM102/UB0403
CMI Module with 2x RS232/422/485, 1x Universal Bracket (96 x
15 mm)
CMI-DIO100/UB0415
CMI Module with 8x Optical Isolated DIO (4 in/4 out), 1x
Universal Bracket (96 x 15 mm)
CMI-DP101/UB0406
CMI Module with 1x Display Port, 1x Universal Bracket (96 x 15
mm)
CMI-DVI101/UB0407
CMI Module with 1x DVI-D Connector, 1x Universal Bracket (96
x 15 mm)
CMI-LPPS102/UB0409
CMI Module with 1x LPT Port, 1x PS/2, 1x Universal Bracket
(96 x 15 mm)
CMI-VGA101/UB0416
CMI Module with 1x VGA Port, 1x Universal Bracket (96 x 15
mm)
MEC-LAN-M002-R1/U
B0411
Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket (96
x 15 mm)
MEC-USB-M002/UB04
14
Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket
(96 x 15 mm)
SIDE-DA
DA Series Side Mount Kit
DINRAIL
Diamond Series Din-Rail Mount Kit

DA-1000 Series | User Manual 12
Chapter 1
Product
Introductions

DA-1000 Series | User Manual 13
1.1 Overview
DA-1000 Series is an ultra-compact size fanless embedded computer powered by Intel® Atom™ or
Celeron® Processors; it integrated HD graphics processor supporting dual display. This can bring
economic advantages on budget and also fulfill the needs for industrial computing tasks. DA-1000
Series manages to pack a diverse array of I/O into its small form factor, with one DVI-I port, two
RS-232/422/485 COM ports, dual Gbe LAN ports, four USB ports and one set of Mic-in and Line-out.
DA-1000 Series supports Combined Multiple I/O (CMI) interface and modules which are specially
designed for flexible I/O expandability; it allows users to extend various I/Os according to their needs.
CMI modules are including COMs, DIO, DisplayPort, DVI, LPT/PS2 or VGA. The rugged construction,
wide operating temperature and high tolerance for shock and vibration enable DA-1000 Series to
deploy in a harsh environment and for critical applications, and it is totally maintenance-free.
1.2 Key Features
⚫Onboard Intel® Atom™ or Celeron® Processors
⚫One DDR3L SO-DIMM Socket, Support Up to 8G
⚫Support Dual Display, Output from One DVI-I Port
⚫Dual Intel® I210-AT GbE LAN Ports, Support WoL, Teaming, PXE
⚫Ultra Compact Size (150x105x56.02mm)
⚫Support -25˚C~70˚C Extended Operating Temperature
⚫Support 9~48VDC Input, Support AT/ATX Power Mode
⚫CMI (Combined Multiple I/O) Interface for I/O Module Expandability
⚫Various Mounting Options (VESA, DIN-Rail, Side/Wall Mounting)

DA-1000 Series | User Manual 14

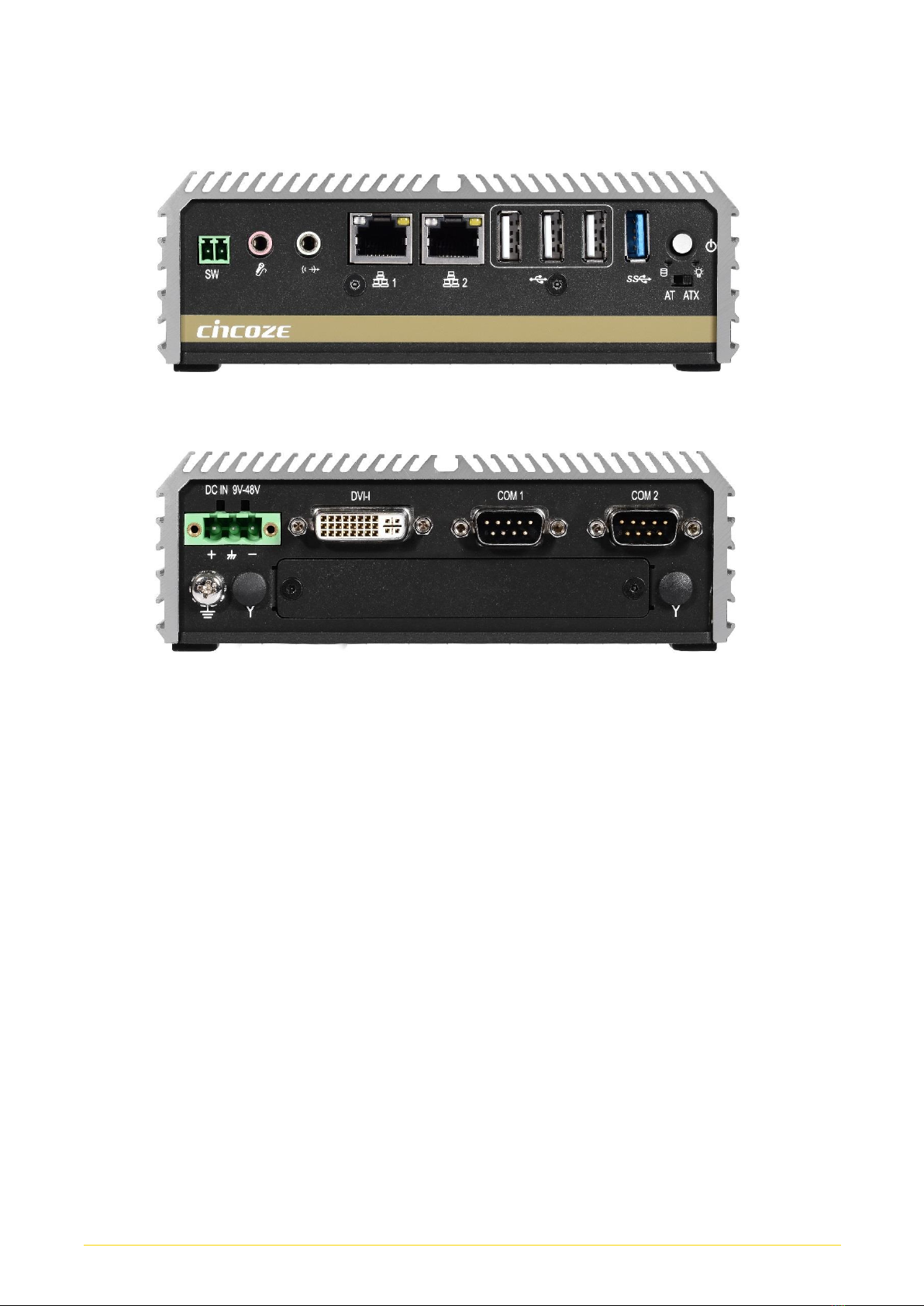

1.3 Product pictures
Front
Rear

DA-1000 Series | User Manual 15
1.4 Hardware Specification
Processor
• Intel® Atom™ Processor E3826 (1M Cache, Up
to 1.46 GHz SoC, 7W TDP)
• Intel® Atom™ Processor E3845 (2M Cache, Up
to 1.91 GHz SoC, 10W TDP)
• Intel® Celeron® Processor J1900 (2M Cache,
Up to 2.42 GHz SoC, 10W TDP)
BIOS
• AMI 64Mbit SPI BIOS
Memory
• 1x 204-Pin SO-DIMM DDR3L 1066/1333MHz
(Un-buffered and Non-ECC) Max. Up to 8GB
Graphics
• Intel® HD Graphics Max. 667 MHz
• Support Dual Display (with optional split cable)
External I/O Interface
• 1x DVI-I Port
• 2x GbE LAN Ports (Intel® I210, Support Wake
On Lan, Teaming, Jumbo Frame, PXE)
• 2x COM Ports (DB9, RS232/RS422/RS485
with Auto Flow Control)
• 1x USB 3.0 Ports
• 3x USB 2.0 Ports
• 1x Mic-in and 1x Line-out (Codec: Realtek
ALC888S)
• 1x Power On/Off Switch
• 1x AT/ATX Switch
• 1x Remote Power On/Off Connector (2-pin
Terminal Block)
• 1x Universal I/O Bracket
• 2x Antenna Holes
Storage
• 1x 2.5" SATA HDD Bay (Internal)
• 1x Internal mSATA Slot (Shared by 1x Mini-PCIe socket)
Expansion
• 2x Full-size Mini-PCIe
• 1x SIM Socket (Internal)
• 1x CMI (Combined Multiple I/O) Interface
Watchdog Timer
• Software Programmable Supports 256 Levels
System Reset
Power Requirement
• Support AT/ATX Power Mode
• Power Input Voltage 9~48VDC
• One 3-pin Terminal Block Connector
• Optional Power Adapter AC/DC 12V/5A 60W
• Power Consumption Typical 8.3W, Max.15W
Physical
• Dimension: 150 (W) x 105 (D) x 56.02 (H) mm
• Weight: 0.86kg
• Construction: Aluminum Chassis with Fan-less
Design
• Mounting: VESA/Wall Mounting (Optional DIN-
Rail/Side Mounting)
• Cable-less Design
Protection
• Reverse Power Input Protection Supported
• Over Voltage Protection
- Protection Range: 51~58V
- Protection Type: shut down operating voltage,
re-power on at the present level to recover
• Over Current Protection: 20A
• ESD Protection: +/-8 kV(air); +/-4 kV (contact)
Operating System
• Windows® 10
• Windows® 8.1
• Windows® 7
Environment
• Operating Temperature: -25°C to 70°C
(With extended temperature peripherals;
Ambient with Air Flow by IEC60068-2-1,
IEC60068-2-2, IEC60068-2-14)
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 95% RH @ 40˚C (Non-
Condensing)
• Shock: 50 Grms
(With SSD According to IEC 60068-2-27, Half
Sine, 11ms Duration)
• Vibration: Random: 5 Grms
(With SSD According to IEC 60068-2-64,
5~500Hz, 1 hr/axis)
Certification
• CE
• FCC Class A

DA-1000 Series | User Manual 16
1.5 System I/O

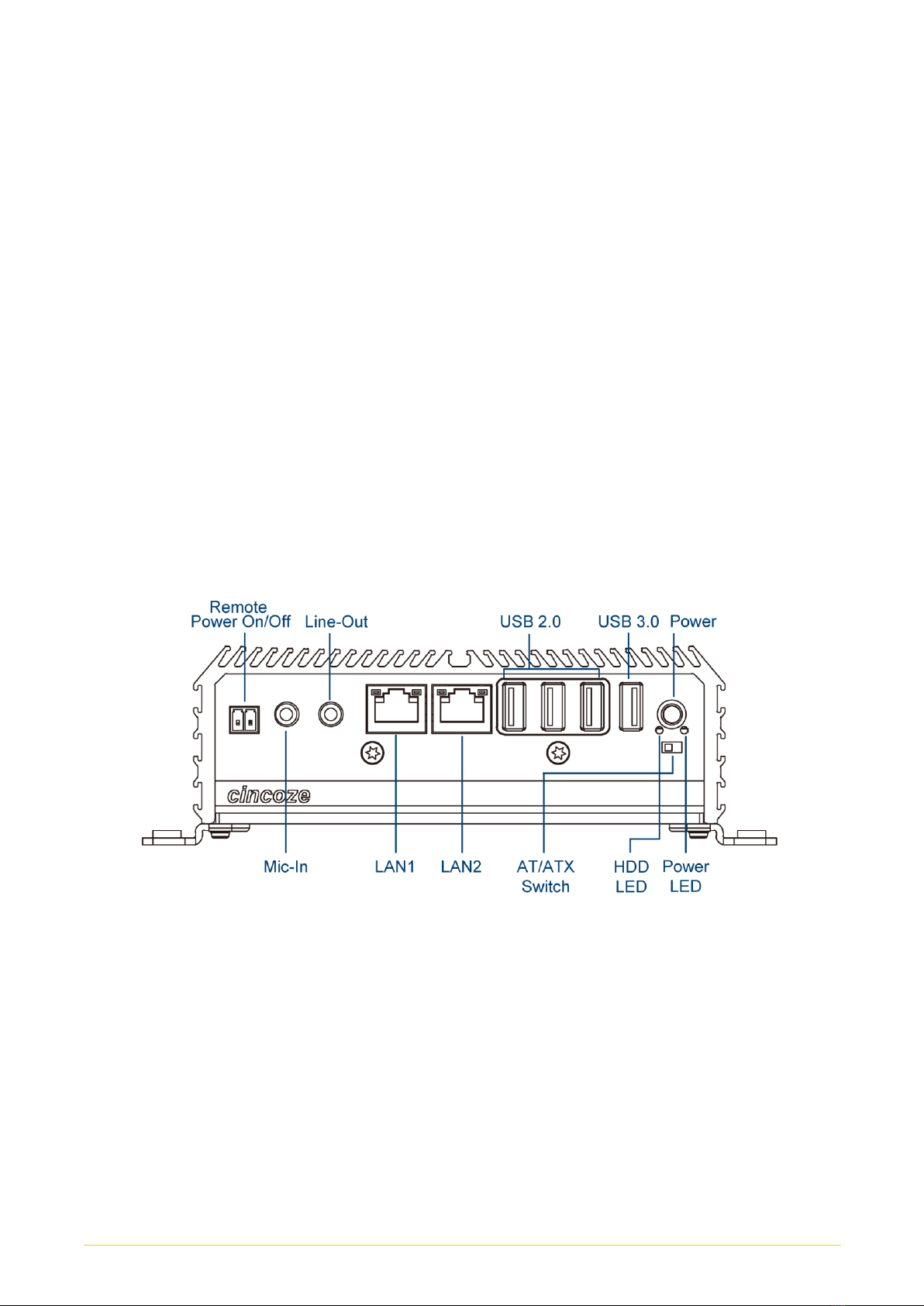

1.5.1 Front
Power On/Off Switch
Press to power-on or power-off the system
AT/ATX Mode Select Switch
Used to select AT or ATX power mode
Power LED
Indicates the power status of the system
HDD LED
Indicates the status of the hard drive
Remote Power Terminal Block
Used to plug a remote power on/off switch
with terminal block
USB 3.0 Port
Used to connect USB 3.0/2.0/1.1 device
USB 2.0 Port
Used to connect USB 2.0/1.1 device
LAN Port 1 & 2
Used to connect the system to a local area
network
Mic-in
Used to connect a microphone
Line-out
Used to connect a speaker

DA-1000 Series | User Manual 17

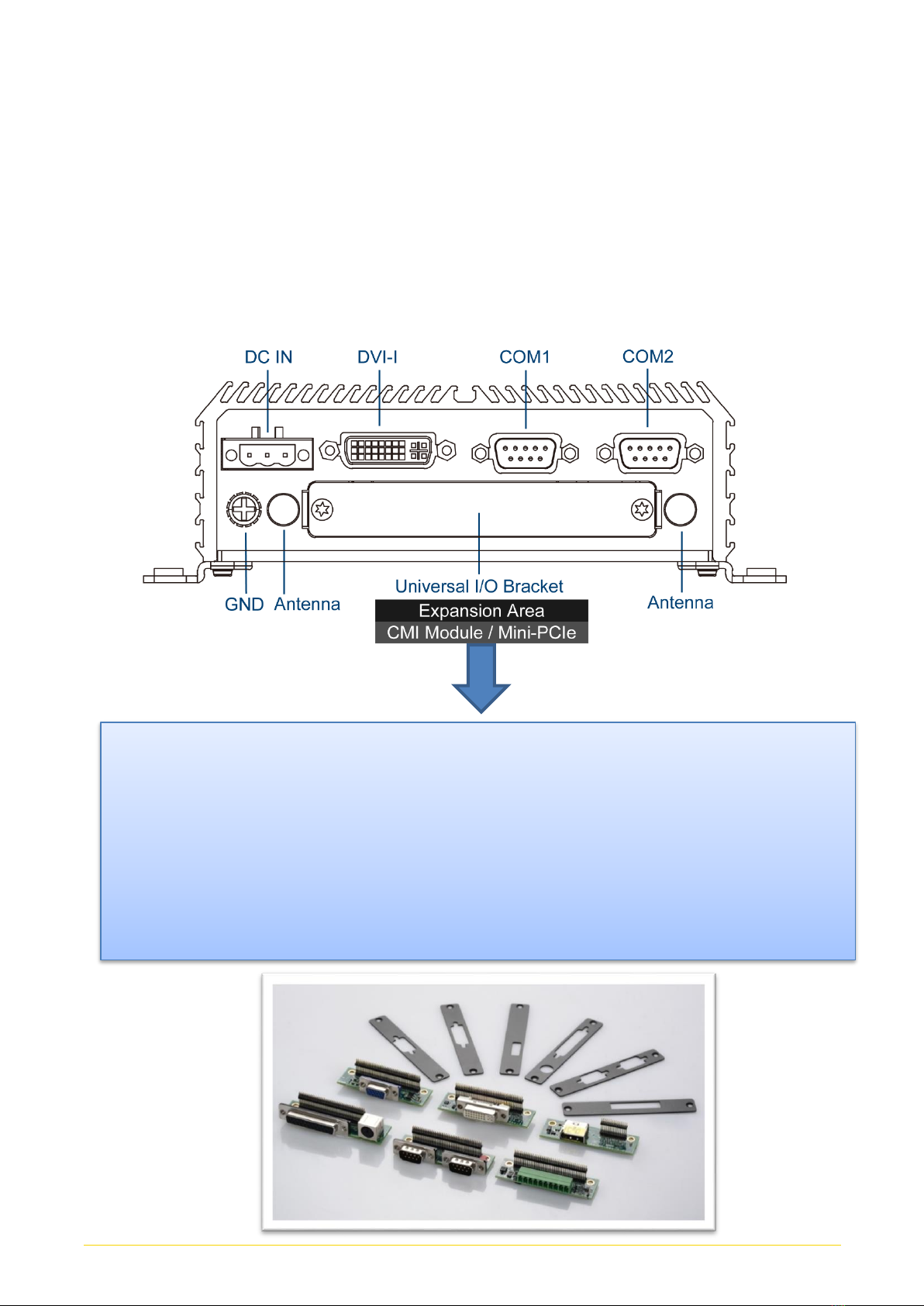

1.5.2 Rear
DC IN Terminal Block
Used to plug a DC power input with terminal
block
DVI-I Port
Used to connect a DVI monitor or connect
optional split cable for dual display mode
Antenna Hole
Used to connect an antenna for optional
Mini-PCIe WiFi module
COM Port
COM 1 ~ COM 2 support RS232/422/485 serial
device
Universal I/O Bracket
This expansion area is reserved for Mini-PCIe expansion or Cincoze
own pin-defined interface (CMI). CMI interface supports various type of
I/O modules such as COM / DIO / DisplayPort / DVI / LPT & PS2 / VGA.
Do not change the CMI module by yourself, it may cause damage to
your DA-1000. Please contact with your regional dealer for more
information about it.

DA-1000 Series | User Manual 18
1.6 Mechanical Dimension
Unit: mm

DA-1000 Series | User Manual 19
