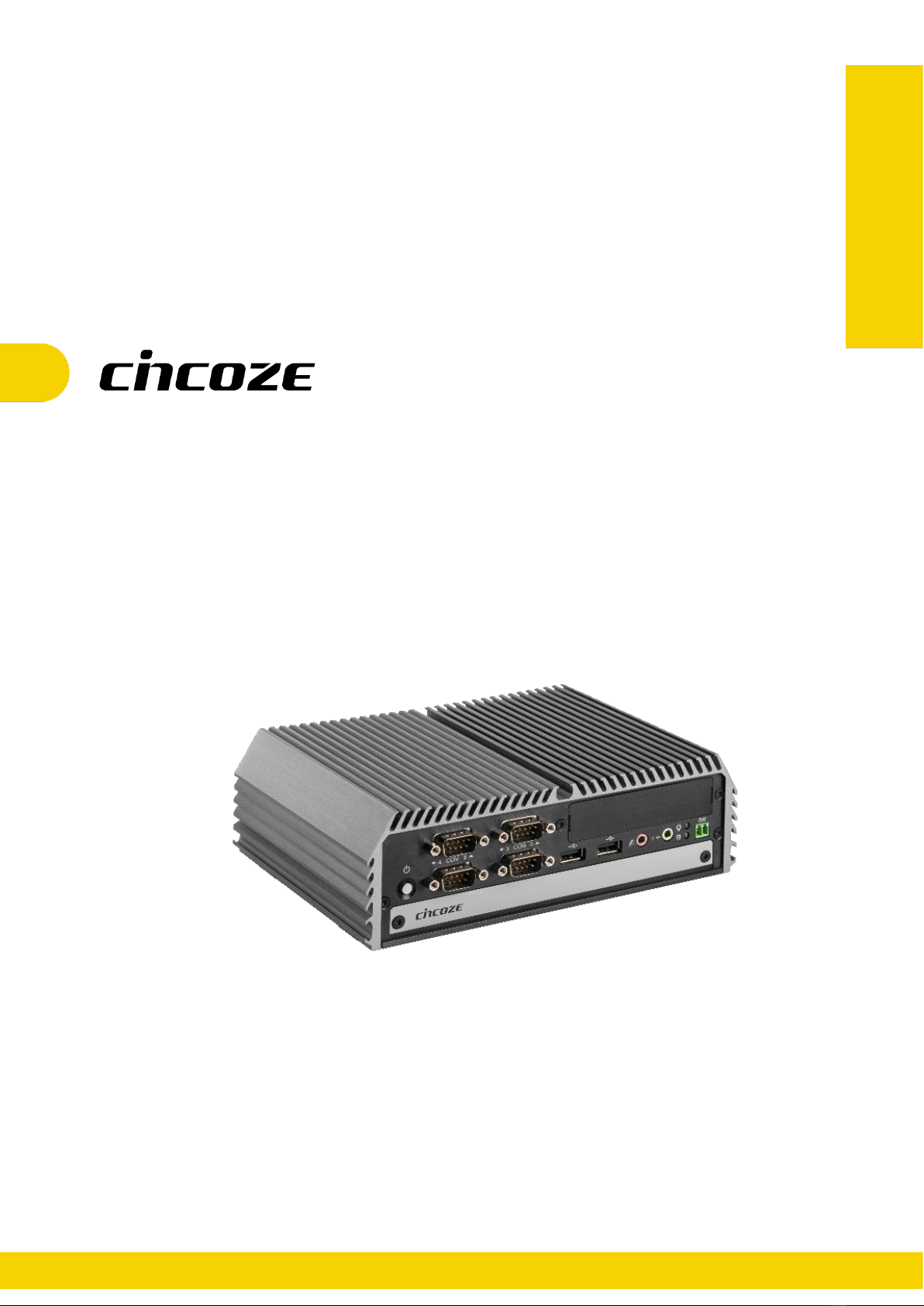

Cincoze DI-1000 Series User manual

Rugged Embedded Computer
6th Generation Intel® Core™ (Skylake-U)
High Performance, Compact and Modular Rugged
Embedded Computer
Version: V1.63
DI-1000 Series
User Manual
Rugged Embedded Computer

DI-1000 Series | User Manual 2
Contents
Preface
Revision……………………………………………..……………….……………...……………...05
Copyright Notice.…………………………………………………………………………………...05
Acknowledgement.……………………………………………………………….........................05
Disclaimer.………………………………………………………………….………………...........05
Declaration of Conformity.………………………………………………….……………………05
Product Warranty Statement …………………………………………………………….............06
Technical Support and Assistance.…………………………………………….…………………07
Conventions Used in this Manual …………………………………………….…………............08
Safety Precaution …...……………………………………………….………….………..............08
Package Contents ………………………………………………………….…….………...……10
Ordering Information …………………………………...…………………….…….……...……...10
Optional Modules & Accessories……………………………………........................................11
Chapter 1 Product Introductions
1.1 Overview …………………………………………………….……......……………..............13
1.2 Highlights …………………………………………………….…………....……………........13
1.3 Product Pictures……...……………………………………….……………………..............14
1.4 Key Features …………………..................………………….…………………….…..........14
1.5 Hardware Specification ……………..……………………….……...………………....……15
1.6 System I/O ……………………………………......…………….……………………............16
1.6.1 Front ……………………………………......…………………………………………..16
1.6.2 Rear ………….………………………………….………………………….......………17
1.7 Mechanical Dimension …………………………………….………...………......……........18
Chapter 2 Switches and Connectors
2.1 Location of Switches and Connectors ………….………………………………...………..20
2.1.1 Top View ……………………………….……………………………………...………..20
2.1.2 Bottom View ……………………………………………………………...……............21
2.2 Switches and Connectors Definition…………………..….……………………………….22
2.3 Definition of Switches.……...……………..............................................……..................23
2.4 Definition of Connectors …...….……...……….............……………….............................25
Chapter 3 System Setup
3.1 Disassembling the System for Installation…………………….….…………………..........30
3.2Installing SO-DIMM Memory…………………………………....…………….……………32
3.3Installing a Mini-PCIe/mSATA Card …………………………………………………..........34
3.4 Installing Antennas…….…….…………..……….…………………………………………..36

DI-1000 Series | User Manual 3
3.5 Installing a SATA Hard ……………………………..…………………………………………38
3.6 Installing the Thermal Pad….……...……….………...….……………………….…............40
3.7 Assembling the System….……...……….………......….……………………….…............41
3.8 Installing a SATA Hard Drive at Front Side………...….……..………………….…............43
3.9 Installing a SIM Card……….…….....……….………...….……………………….…............46
3.10 Fastening the Cover……….……...……….………...….……………………….…............47
3.11 Wall Mount Brackets……….……...……….………...….……………………….…............47
3.12 DIN-Rail Mount Brackets….……...……….………...….……………………….…............49
3.13 VESA Mount….………………..…...……….………...….……………………….…............50
3.14 Side Mount Brackets….……...……….……………...….……………………….…............52
Chapter 4 BIOS Setup
4.1 BIOS Introduction …….……….…………….…….…..….……………………...................55
4.2 Main Setup ……...……….…..……………….…..….………………........…………...........56
4.2.1 System Date …….……………………………………………...……………..............56
4.2.2 System Time ………..……………………………………………..……….................56
4.3 Advanced Setup ……………………………………………………………………………...56
4.3.1 ACPI Settings ………………………………………………………………………….56
4.3.2 AMT Configuration.……..…………………………………………………………......58
4.3.3 PCH-FW Configuration.………………………...……………………….…................59
4.3.4 F81866 Super IO Configuration……………………………….…………………....59
4.3.5 Hardware Monitor…………..…………………...……………………….…................61
4.3.6 S5 RTC Wake Settings……………………………………………………………....61
4.3.7 Serial Port Console Redirection……………………………………….……..….....62
4.3.8 CPU Configuration……..…………….……………………………………………......62
4.3.9 SATA Configuration………….…………………………………………………..........63
4.3.10 CSM Configuration……..….……….…………………………………………..........64
4.3.11 Asmedia SATA Controller Configuration…………………...………………….......65
4.3.12 USB Configuration……..….……….…………………………………………..........65
4.4 Chipset Setup …...……….…………………..…..….…..…………………………………...67
4.4.1 System Agent (SA) Configuration ……………..……………………………………..67
4.4.2 PCH-IO Configuration ………………….……………………………………………..68
4.5 Security Setup …...……….………………….…..………………..……………………...…70
4.5.1 Administrator Password …….…...……………………………………………………70
4.5.2 User Password …….…………………………………………………..………………70
4.6 Boot Setup …...……….….……………………………...…..….…..………..………….....71
4.7 Save & Exit …...……….….………………….…..….…..………………………..................72

DI-1000 Series | User Manual 4
Chapter 5 Product Application (For DIO Only)
5.1 Digital I/O (DIO) application ………..………………………………………………………74
5.1.1 Digital I/O Programming Guide ……………………………………………………74
5.2 Digital I/O (DIO) Hardware Specification …………………………………………………..80
5.2.1 DIO Connector Definition ………………..……...……………................................81
Chapter 6 Optional Modules Pin Definitions and Settings
6.1 CMI-M12 Connector Definition and Settings……………...…………………………….…..83
6.2 CFM-IGN Connector Definition and Settings……………...…………………………….…84
6.3 Installing a High Speed CMI Module…...…………..……………………………………….85
6.4 Installing a CFM-IGN Power Ignition Module..……….…….……………………………..89

DI-1000 Series | User Manual 5
Preface
Revision
Revision
Description
Date
1.00
New Release
2017/03/09
1.10
Correct 1.2 highlights section M12 module errors
2017/03/31
1.20
Modify 2.4 Definition of Switches & Add E-Mark
certification
2017/04/20
1.30
Add 3.1& 3.2 pin definitions of CMI-M12LAN104 and
CMI-M12POE114
2017/06/16
1.40
Add a new model DI-1000-i3
2017/07/25
1.41
Modify the table in the Definition of Switches
2017/11/08
1.42
Add a new model DI-1000-i7
2018/01/09
1.50
Correction Made
2018/11/20
1.60
Update the Supporting Capacity of Memory to the
latest
2019/11/08
1.61
Correction Made
2020/04/09
1.62
New Format Updated
2020/10/22
1.63
Correction Made
2020/11/13
Copyright Notice
© 2017 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied,
modified, or reproduced in any form or by any means for commercial use without the prior
written permission of Cincoze Co., Ltd. All information and specification provided in this
manual are for reference only and remain subject to change without prior notice.
Acknowledgement
Cincoze is a registered trademark of Cincoze Co., Ltd. All registered trademarks and product
names mentioned herein are used for identification purposes only and may be trademarks
and/or registered trademarks of their respective owners.
Disclaimer
This manual is intended to be used as a practical and informative guide only and is subject
to change without notice. It does not represent a commitment on the part of Cincoze. This
product might include unintentional technical or typographical errors. Changes are
periodically made to the information herein to correct such errors, and these changes are
incorporated into new editions of the publication.

DI-1000 Series | User Manual 6
Declaration of Conformity
FCC
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
CE
The product(s) described in this manual complies with all application European
Union (CE) directives if it has a CE marking. For computer systems to remain
CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
Product Warranty Statement
Warranty
Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and
workmanship for 2 years from the date of purchase by the original purchaser. During the
warranty period, we shall, at our option, either repair or replace any product that proves to be
defective under normal operation. Defects, malfunctions, or failures of the warranted product
caused by damage resulting from natural disasters (such as by lightening, flood, earthquake,
etc.), environmental and atmospheric disturbances, other external forces such as power line
disturbances, plugging the board in under power, or incorrect cabling, and damage caused
by misuse, abuse, and unauthorized alteration or repair, and the product in question is either
software, or an expendable item (such as a fuse, battery, etc.), are not warranted.
RMA
Before sending your product in, you will need to fill in Cincoze RMA Request Form and
obtain a RMA number from us. Our staff is available at any time to provide you with the most
friendly and immediate service.
◼RMA Instruction
⚫Customers must fill in Cincoze Return Merchandise Authorization (RMA)
Request Form and obtain a RMA number prior to returning a defective product
to Cincoze for service.
⚫Customers must collect all the information about the problems encountered
and note anything abnormal and describe the problems on the “Cincoze

DI-1000 Series | User Manual 7
Service Form” for the RMA number apply process.
⚫Charges may be incurred for certain repairs. Cincoze will charge for repairs to
products whose warranty period has expired. Cincoze will also charge for
repairs to products if the damage resulted from acts of God, environmental or
atmospheric disturbances, or other external forces through misuse, abuse, or
unauthorized alteration or repair. If charges will be incurred for a repair,
Cincoze lists all charges, and will wait for customer’s approval before
performing the repair.
⚫Customers agree to insure the product or assume the risk of loss or damage
during transit, to prepay shipping charges, and to use the original shipping
container or equivalent.
⚫Customers can be sent back the faulty products with or without accessories
(manuals, cable, etc.) and any components from the system. If the
components were suspected as part of the problems, please note clearly
which components are included. Otherwise, Cincoze is not responsible for the
devices/parts.
⚫Repaired items will be shipped along with a "Repair Report" detailing the
findings and actions taken.
Limitation of Liability
Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use,
whether based on warranty, contract, negligence, product liability, or otherwise, shall not
exceed the original selling price of the product. The remedies provided herein are the
customer’s sole and exclusive remedies. In no event shall Cincoze be liable for direct,
indirect, special or consequential damages whether based on contract of any other legal
theory.
Technical Support and Assistance
1. Visit the Cincoze website at www.cincoze.com where you can find the latest information
about the product.
2. Contact your distributor or our technical support team or sales representative for
technical support if you need additional assistance. Please have following information
ready before you call:
⚫Product name and serial number
⚫Description of your peripheral attachments
⚫Description of your software (operating system, version, application software, etc.)
⚫A complete description of the problem
⚫The exact wording of any error messages

DI-1000 Series | User Manual 8
Conventions Used in this Manual
Safety Precautions
Before installing and using this device, please note the following precautions.
1. Read these safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Disconnected this equipment from any AC outlet before cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and
must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall
may cause damage.
7. Make sure the voltage of the power source is correct before connecting the equipment
to the power outlet.
8. Use a power cord that has been approved for using with the product and that it matches
the voltage and current marked on the product’s electrical range label. The voltage and
current rating of the cord must be greater than the voltage and current rating marked on
the product.
9. Position the power cord so that people cannot step on it. Do not place anything over the
power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.

DI-1000 Series | User Manual 9
13. Never open the equipment. For safety reasons, the equipment should be opened only
by qualified service personnel.
If one of the following situations arises, get the equipment checked by service
personnel:
⚫The power cord or plug is damaged.
⚫Liquid has penetrated into the equipment.
⚫The equipment has been exposed to moisture.
⚫The equipment does not work well, or you cannot get it work according to the user's
manual.
⚫The equipment has been dropped and damaged.
⚫The equipment has obvious signs of breakage.
14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer.
15. Equipment intended only for use in a RESTRICTED ACCESS AREA.

DI-1000 Series | User Manual 10
Package Contents
Before installation, please ensure all the items listed in the following table are included in the
package.
Item
Description
Q’ty
1
Embedded System
1
2
CPU Heatsink Thermal Pad
1
3
Utility DVD Driver
1
4
Screw Pack
1
5
Wall Mounting Kit
1
6
Power Terminal Block Connector
1
7
Remote Power On/Off Terminal Block Connector
1
8
DIO Terminal Block Connector
2
9
DVI-I to VGA Adaptor
1
Note: Notify your sales representative if any of the above items are missing or damaged.
Ordering Information
Model No.
Product Description
DI-1000-i3
6th Generation Intel® Core™ i3-6100U High Performance, Compact
and Modular Rugged Embedded Computer
DI-1000-i5
6th Generation Intel® Core™ i5-6300U High Performance, Compact
and Modular Rugged Embedded Computer
DI-1000-i7
6th Gen. Intel® Core™ i7-6600U High Performance, Compact and
Modular Rugged Embedded Computer

DI-1000 Series | User Manual 11
Optional Modules & Accessories
Model No.
Product Description
CFM-IGN102
CFM Module with Power Ignition Sensing Control Function,
Selectable 12V/24V
CFM-PoE06
CFM Module with PoE Control Function for DI series, Individual
Port 25.5W
CMI-LAN01-R12/UB0
712
CMI Module with 4x Intel I210-IT GbE LAN, RJ45 Port / 1x
Universal Bracket
CMI-M12LAN01-R12/
UB0710
CMI Module with M12 Connector, 4x Intel I210-IT GbE LAN / 1x
Universal Bracket
MEC-COM-M212/UB
0703
Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets
MEC-LAN-M102-15/
UB0711
Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket
MEC-USB-M102-15
/UB0714
Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket,
1x Cable for MEC-USB
DIN01
DIN-RAIL Mount Kit, KMRH-K175
SIDE01
SIDE Mount Kit
GST60A12-CIN1
Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug
5.0mm Pitch, with Tubes, Level VI
GST120A24-CIN
Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug
5.0mm Pitch, with Tubes, Level VI

DI-1000 Series | User Manual 12
Chapter 1
Product
Introductions

DI-1000 Series | User Manual 13
1.1 Overview
Cincoze DI-1000 Series is a high-performance, compact and modular fanless embedded computer
powered by 6th generation Intel® Core™ mobile processor (Skylake-U), it integrates Intel® HD
graphic engine and accommodates one DDR4 socket up to 32 GB which allows DI-1000 Series to
fulfill all kinds of high-end computing demands. Extremely compact size with dimension 203 x 142 x
66.8 mm, comprising unbeatable I/O such as DVI-I, DP, 2x LAN, 6x COM, 6x USB, 8x Optical
Isolated DIO, PS/2, Mic-in, Line-out, and remote power on/off switch, supporting two full-size
Mini-PCIe slots for wireless communication and I/O expansion, accommodating two 2.5” SATA
HDD/SSD bay for RAID 0/1 function, making DI-1000 series unmatchable in the market for its size
and functions. DI-1000 Series weighs only 1.65 kg supporting 4 types of mounting mechanisms (Wall,
DIN, Side and VESA) allowing it to be installed everywhere. The unique Cincoze’s CMI (Combined
Multiple I/O), CFM (Control Function Module) and MEC (Mini-PCIe Card) technologies allow DI-1000
Series to be expanded according to the specific needs. The options of ready-to-use modules
including Multi-LAN, PoE, M12 connections, Power Ignition Sensing and various types of I/O
interface, making DI-1000 series application-ready platform for factory automation, machine vision,
in-vehicle, and mobile surveillance applications.
1.2 Highlights
High Performance
• Onboard 6th Generation Intel® Core™ Mobile Processor
• Performance Enhanced by Intel® 14 nm Technology
• Extremely Low Power Consumption 15W TDP
• Intel® HD Graphics Supports Triple Independent Display
Resolution Up to Ultra HD 4K
Compact Size
• Compact Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
• Rich I/O for Greater Device Connectivity (DVI, DisplayPort, 2x
GbE LAN, 6x COM, 6x USB, 8x Optical Isolated DIO, PS/2
Modular Design
• CMI (Combined Multiple I/O) Technology for LAN, PoE and
M12 Connector Expansion
• CFM (Control Function Module) Technology for Power
Ignition Sensing (IGN) Function Expansion
• Mini-PCIe Module Kits for Various I/O Expansion

DI-1000 Series | User Manual 14
1.3 Product pictures
Front
Rear
1.4 Key Features
⚫Onboard 6th Generation Intel® Core™ Mobile Processor (BGA Type)
⚫1x DDR4 SO-DIMM Socket, 2133MHz, Supports Up to 32 GB
⚫Triple Independent Display (DVI-I, DisplayPort)
⚫Compact Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
⚫1x Hot-swappable 2.5” SATA HDD/SSD Bay and 1x Internal 2.5” SATA HDD/SSD Bay,
Supports RAID 0/1
⚫Rich I/O Including DVI, DP, 2x GbE LAN, 6x COM, 6x USB, 8x Optical Isolated DIO
⚫Supports Cincoze CMI Technology for LAN, PoE & M12 Connector Expansion
⚫Supports Cincoze CFM Technology for Power Ignition Sensing (IGN) Function
Expansion
⚫Cincoze MEC Module Kits for Various I/O Expansion
⚫2x Full-size Mini-PCIe Slots for Wireless and I/O Expansion
⚫Wide Operating Temperature (-40°C to 70°C)
⚫EN50155 & E-Mark for Railway & In-vehicle Applications

DI-1000 Series | User Manual 15
1.5 Hardware Specification
Processor
• Onboard Intel® Core™ i3-6100U Processor
(3M Cache, 2.30 GHz, 15W TDP)
• Onboard Intel® Core™ i5-6300U Processor
(3M Cache, up to 3.00 GHz, 15W TDP)
• On board Intel® Core™ i7-6600U Processor
(4M Cache, up to 3.40 GHz, 15W TDP)
Chipset
• SoC
BIOS
• AMI 8Mbit SPI BIOS
Memory
• 1x DDR4 260-pin SO-DIMM Socket, Support up to 32 GB
(2133MHz, Un-buffered and Non-ECC type)
Graphics
• Integrated Intel® HD Graphics
• Three Independent Display
Audio
• Realtek® ALC888-GR
• High Definition Audio
I/O Interface
• 1x DVI-I Connector, Resolution 1920 x 1080
• 1x DisplayPort Connector, Resolution 3840 x 2160
• 2x GbE LAN (Support Wake-on-LAN, Teaming, Jumbo Frame,
IEEE 1588v2 and PXE), RJ45
- GbE1: Intel I210AT
- GbE2: Intel I219LM
• 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
• 4x USB 3.0 (Type-A) & 2x USB 2.0 (Type-A)
• 1x PS/2, 6-Pin Mini-DIN Female Connector
• 8x Optical Isolated DIO (4x DI, 4x DO), 10-Pin Terminal Block
Support 9~30V
• 1x Line-out, Phone Jack 3.5mm
• 1x Mic-in, Phone Jack 3.5mm
• 1x ATX Power On/Off Button
• 1x AT/ATX Mode Switch
• 1x Clear CMOS Switch
• 1x Remote Power On/Off Connector, 2-Pin Terminal Block
Storage
• 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
(One Internal, One Front Accessible & Hot-swappable)
• 2x mSATA (shared by Mini-PCIe socket) (Gen2)
Expansion
• 1x CFM Interface for Cincoze CFM Modules
• 1x CMI Interfaces for Cincoze CMI Modules
• 2x Full-size Mini-PCIe Sockets for Wireless & I/O Expansion
• 1x SIM Socket
Other Function
• Support CFM (Control Function Module) Technology
• Support CMI (Combined Multiple I/O) Technology
• Support Instant Reboot Technology (0.2 sec)
• SuperCap Integrated for CMOS Battery Maintenance-free
• Watchdog Timer: Software Programmable Supports 256
System Reset
Power Requirement
• Support AT/ATX Power Type
• Power Input Voltage 9~48VDC
• One 3-Pin Terminal Block Connector
• Optional Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W
Physical
• Dimension (WxDxH): 203 x 142 x 66.8 mm
• Weight: 1.65 kg
• Extruded Aluminum with Heavy Duty Metal
• Support Wall / Side / DIN-RAIL / VESA Mounting
• Fanless Design
• Cable-less Design
• Unibody Chassis
• Jumper-less Design
Protection
• Reverse Power Input Protection
• Over Voltage Protection
- Protection Range: 51~58V
- Protection Type: shut down operating voltage, re-power on at
the present level to recover
• Over Current Protection: 15A
• ESD Protection: +/-8kV (air), +/-4kV (contact)
• Surge Protection: 3.84kV (impedance 12 ohm 1.2/50μs
waveform)
MTBF
• Time: 360,145 Hours
• Calculation Model: Telcordia SR-332 Issue 3, Method 1, Case 3
• Environment: GB, GC
• Temperature: 40°C
Operating System
• Windows® 10/ 8.1/ 7
Environment
• Operating Temperature: -40°C to 70°C
(With extended temperature peripherals; Ambient with air flow;
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 95% RH @ 40°C (Non-condensing)
• Shock: Operating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
• Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
• EMC: CE, FCC Class A
• Railway: EN50155, EN50121-3-2
• In-vehicle: E-Mark (E13, No.10R-0514273) Certified

DI-1000 Series | User Manual 16
1.6 System I/O
1.6.1 Front
ATX Power On/Off Button
Press to power-on or power-off the system
AT/ATX Mode Select Switch
Used to select AT or ATX power mode
Power LED
Indicates the power status of the system
HDD LED
Indicates the status of the hard drive
USB 2.0 Port
Used to connect USB 2.0/1.1 device
SIM Card Slot
Used to inserts a SIM card
IGN Setting Switch
Used to set up IGN function
Clear CMOS Switch
Used to clear CMOS to reset BIOS
Removable 2.5” SATA HDD/SSD Bay
Used to inserts a 2.5” HDD/SSD
Mic-in
Used to connect a microphone
Line-out
Used to connect a speaker
COM Port
COM #3 ~ COM #6 support RS232/422/485
serial device
Remote Power On/Off Terminal Block
Used to plug a remote power on/off terminal
block
Universal I/O Bracket
Used to customized I/O output with optional
modules

DI-1000 Series | User Manual 17
1.6.2 Rear
DC IN Terminal Block
Used to plug a DC power input with terminal
block
DVI-I Port
Used to connect a DVI monitor or connect
optional split cable for dual display mode
DisplayPort Port
Used to connect the system with DisplayPort
monitor
PS/2 Port
Used to connect the PS/2 device
LAN Port
Used to connect the system to a local area
network
USB 3.0 Port
Used to connect USB 3.0/2.0/1.1 device
COM Port
COM #1 ~ COM #2 support RS232/422/485
serial device
Digital I/O Terminal Block
The Digital I/O terminal block supports 4 digital
input and 4 digital output
Antenna Hole
Used to install an antenna jack

DI-1000 Series | User Manual 18

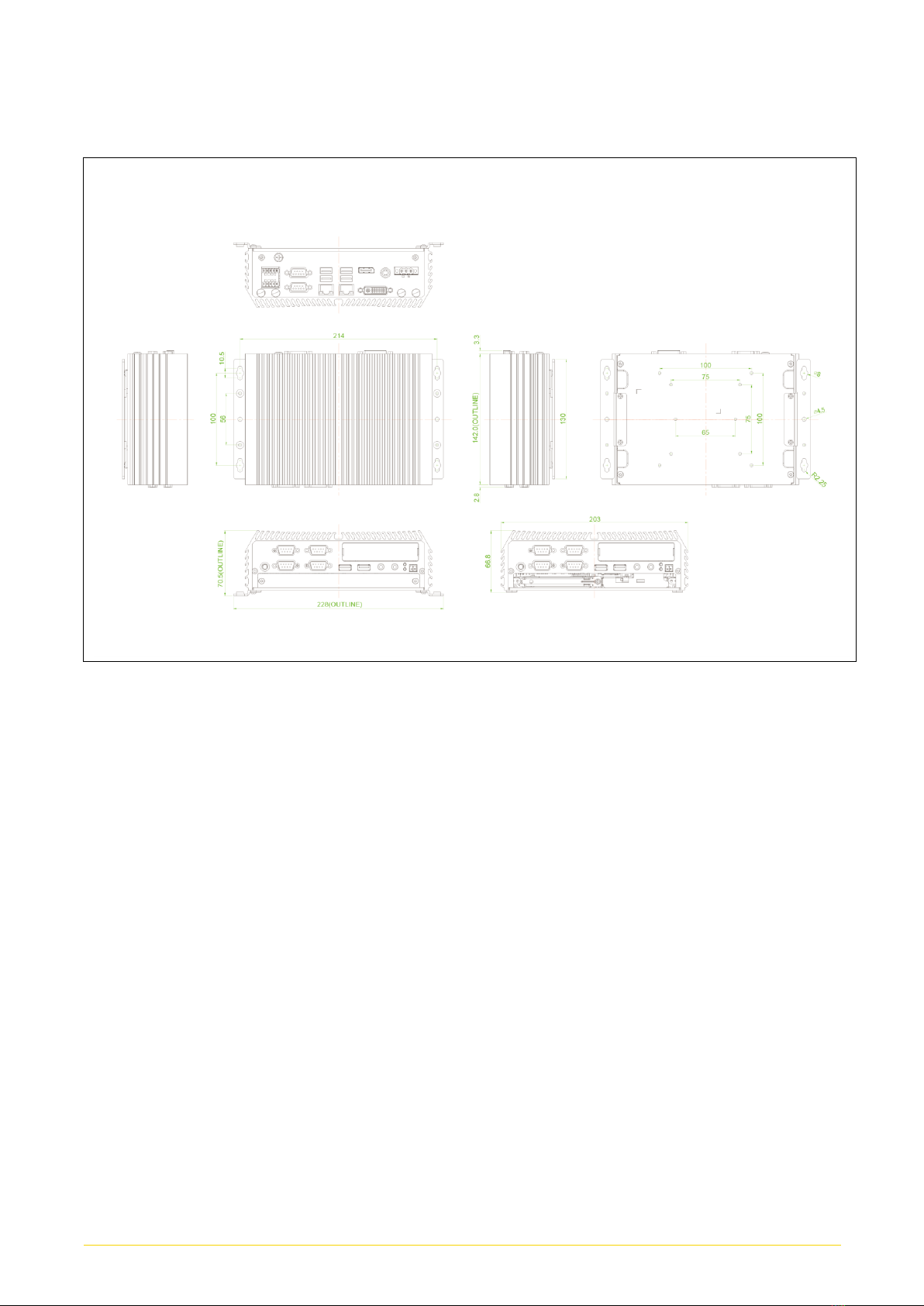

1.7 Mechanical Dimension
Unit: mm

DI-1000 Series | User Manual 19
Chapter 2
Switches &
Connectors

DI-1000 Series | User Manual 20
2.1 Location of Switches and Connectors
2.1.1 Top View
