Cine gears Ghost eye 150m Product guide

WIRELESS HDMI/SDI

VIDEO TRANSMISSION SUITE

MANUAL BOOK

Trademarks

Ghost-Eye Wireless Video Transmission SystemsTM are trademarks of Cine Gears

Inc. Web Interface.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, Cine

Gears Inc. reserves the right to make changes to the products described in this docu-

ment without notice.

Cine Gears Inc. does not assume any liability that may occur due to the use or applica-

tion of the product(s) or circuit layout(s) described herein.

FCC Compliance Notice: Radio Frequency Notice

The device has met the FCC 15.247 requirement. In order to comply with the FCC RF

exposure requirement, the user must keep 20cm away from the antenna.

This device has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

device generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this device does cause harmful interference to radio or televi-

sion reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following mea-

sures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Information to the user

The user’s manual or instruction manual for an intentional or unintentional radiator

shall caution the user that changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority to operate the equip-

ment. In cases where the manual is provided only in a form other than paper, such as

on a computer disk or over the Internet, the information required by this section may

be included in the manual in that alternative form, provided the user can reasonably be

expected to have the capability to access information in that form.

Contents

Cautions

Ghost Eye Wireless Video Transmission Systems

Ghost Eye 150M Kit

About the 150M

150M User Manual

Ghost Eye 300M Kit

About the 300M

300M User Manual

Ghost Eye 400M Kit

About the 400M

400M User Manual

Troubleshooting

Disclaimers

Customer Support

Cautions

Warning

Electrical Considerations

Please read this user introduction manual to become familiar with the features of the

Ghost-Eye series products before operation. Failure to operate the product correctly

can result in disturbing other film equipment on set. This product is not intended for

use by children without direct adult supervision. Do not use with incompatible compo-

nents, or alter this product in any way outside of the documents provided by Cinege-

ars. These safety guidelines contain instructions for installation, operation, and mainte-

nance. It is essential to read and follow all of the instructions in the manual, and all the

notices and warnings regarding Ghost Eye series products prior to assembly, set up,

or use to prevent any damage or interference.

1. Do not use this product in extreme heat, cold, humidity, or environments with dust.

2. Do not drop the unit or cause impact against hard surfaces.

3. These products are not waterproof: do not expose the units to moisture.

4. Do not dismantle, assemble, or otherwise alter the products.

1. When this device is sharing a power supply or battery with other equipment, please

ensure all signal and power cables are well connected before turning on the Ghost Eye

units' power.

2. When this device is sharing a power supply or battery with other equipment, please

ensure the power switch is turned off before connecting or disconnecting any signal or

power cables from the Ghost Eye units.

3. When this device is sharing a power supply or battery with other equipment, please

check the polarity of the power connectors of all equipment to ensure the inside con-

ductor is positive. If the polarity of wer connectors of all equipment to ensure the inside

conductor is positive. If the polarity of the power connector is unknown, please check

the user manual to make sure the outer conductor of the SDI or HDMI connector is

connected to the negative of the power supply. Otherwise, the quipment will not be

able to share the same power supply with the Ghost Eye unit.

Ghost Eye HD Wireless Video Transmission Systems

Here at Cinegears, we supply some of the best wireless HD video transmitters and

receivers available. During the development of the Ghost Eye line of products, we

subjected our prototypes to rigorous testing on set with professional film crews, and

took customer feedback and suggestions into serious consideration. After careful

review, the Ghost Eye products have integrated all of the in-demand wireless video

transmission features recommended by you, the user. The fruit of our efforts are

catalogued below in the form of our unique Ghost Eye Wireless Video Transmission

Kits, across the affordable price range spectrum.

Ghost Eye Wireless Video Transmission Kits each fit a different set of wireless HD

video transmission needs. The most powerful video transmitters and receivers will

satisfy even the most high-end professional film crew, and our lightweight models fit a

more versatile brand of film set. Ghost Eye transmission kits transmit and receive

10-bit 4:4:4 video, support both HD and SD, and can broadcast with under 1

millisecond of latency.

WIRELESS HDMI/SDI

VIDEO TRANSMISSION SUITE

GHOST EYE 150M V2.03 KIT

FULL HD

VIDEO

SDI &

HDMI

EU Environmental Protection

<1MS

LATENCY

PLUG &

PLAY

RUGGED

DESIGN

PAP

Waste electrical products shold not be

disposed of with household waste. Please

recycle where facilities exist. Check with your

local authority or retailer for recycling advice.

Product Description

What is Included

About the 150M

The Ghost-Eye 150M Wireless HDMI/SDI Transmission Suite utilizes today's most

advanced wireless video transmission technology, broadcasting uncompressed 3G

SDI/HDMI HD video signals with zero delay. The suite includes one transmitter and

one receiver; where the transmitter provides a 3G SDI/HDMI HD input, the receiver

provides 3G SDI/HDMI output. The Ghost-Eye 150M suite has 2 external stick

antennas on the transmitter and 5 internal antennas inside the receiver. The

transmission suite functions in the 5.1-5.9GHz frequency band and can be flexibly

configured to licensed or ISM band frequencies around the globe. The side panel of

the transmitter and receiver units have a frequency selection knob that provides a

maximum of 4 workable frequency channels, and supports a maximum of 4 simultane-

ous receiver units per transmitter unit. The wireless suite can accommodate a wide

range of DC power input, including many kinds of camera battery models. The suite

can also sustain ~8kV ESD (HBM, contact discharge), the industry class metal case

and professional heatsink design guarantees robust reliability.

• Transmitter Unit x 1

• Receiver Unit x 1

• 5GHz Omni-Directional High Efficiency Antennas (SMA Female) x 2

• 15-27mm Mounting Bracket x 1

• 2-Pin Lemo Power Cable x 2

• User Manual x 1

• Waterproof Custom Fit Hard Case (310x190x93mm) x 1

About the 150M

Features

• Uses License-Free 5GHz ISM frequency band, maximum 4 frequency channels

manual selection, coexist with WIFI.

• Highest resolution 10bits color depth 4:4:4, 1080p 60FPS HDMI and

SD/HD/3G SDI input and output, HDMI SDI cross conversion is supported.

• Supports wireless 10 bit HD video with no compression and no delay up to 300m

(984ft).

• Uncompromised picture quality with very low latency, <1ms

• Supports point to point, and point to multi points network topology, multiple receiver is

supported with up to 4 receivers.

• Cross compatibility with all Ghost Eye models.

• Support professional audio formats include Dolby True HD, DTS-master, etc.

• AES-128 encryption with air interface HD video data stream.

• Time Code, tally is supported for broadcast or live event streaming production.

• Wide range power voltage input, compatible with most kinds of camera batteries,

optional Standard V-mount, Anton Bauer, or ¼ bolt Mount battery plate can be

installed.

• Sony F970 battery buckle, convenient for field battery install and replacement.

• All input and output ports have ±8 kV ESD protection level (HBM, contact discharge).

• Plug & Play - no software is required.

• Professional standard 2-pin LEMO power plugs.

• Each RX (receiver) paired to the unique TX(transmitter) in factory Industrial metal

case, stable and reliable.

• RX built-in directional antenna.

• Signal indicators for wireless power status, Video status and receiver RSSI.

• Water and mist proof, shock proof production case with form insert ready for traveling

• CE, FCC, RoHS certified product, safe to use worldwide.

About the 150M

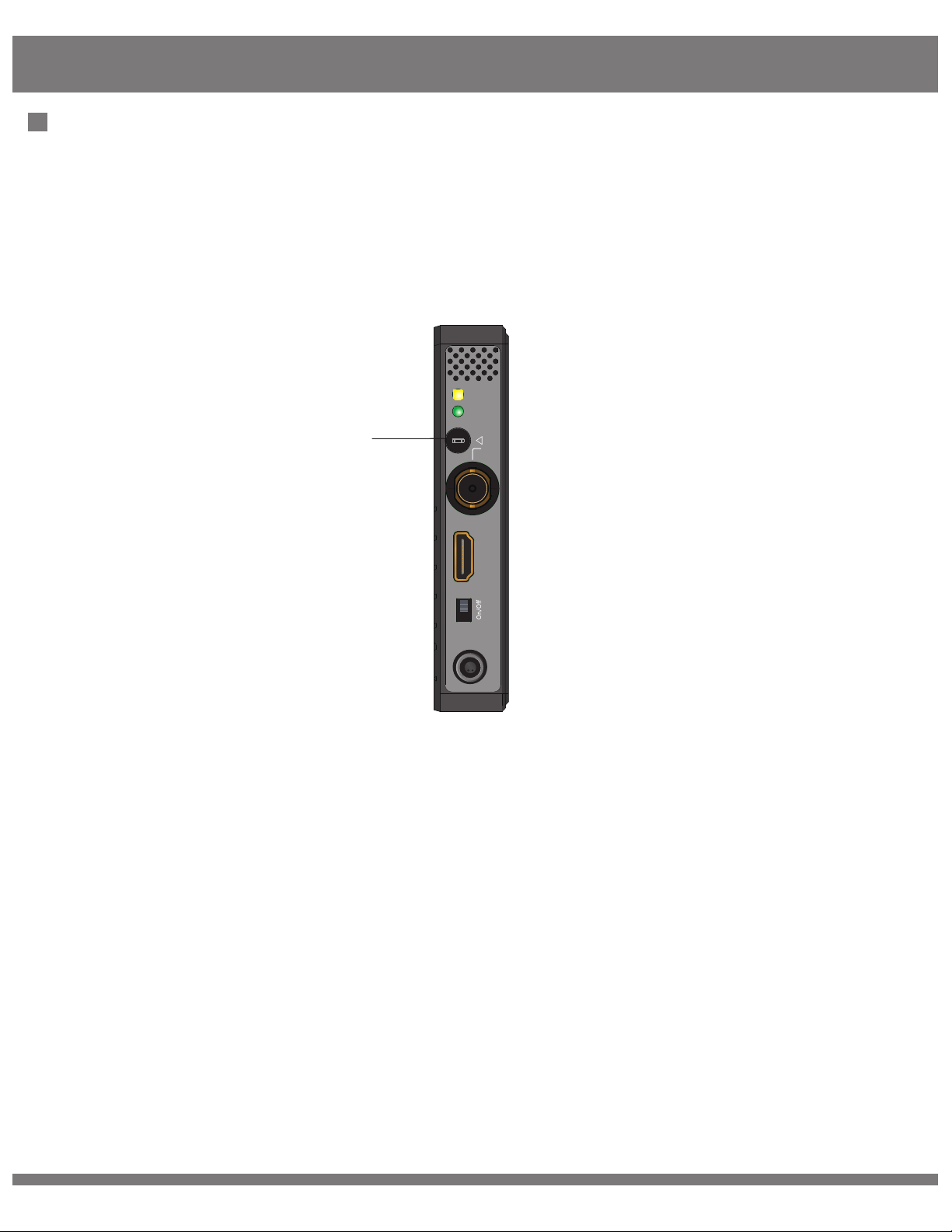

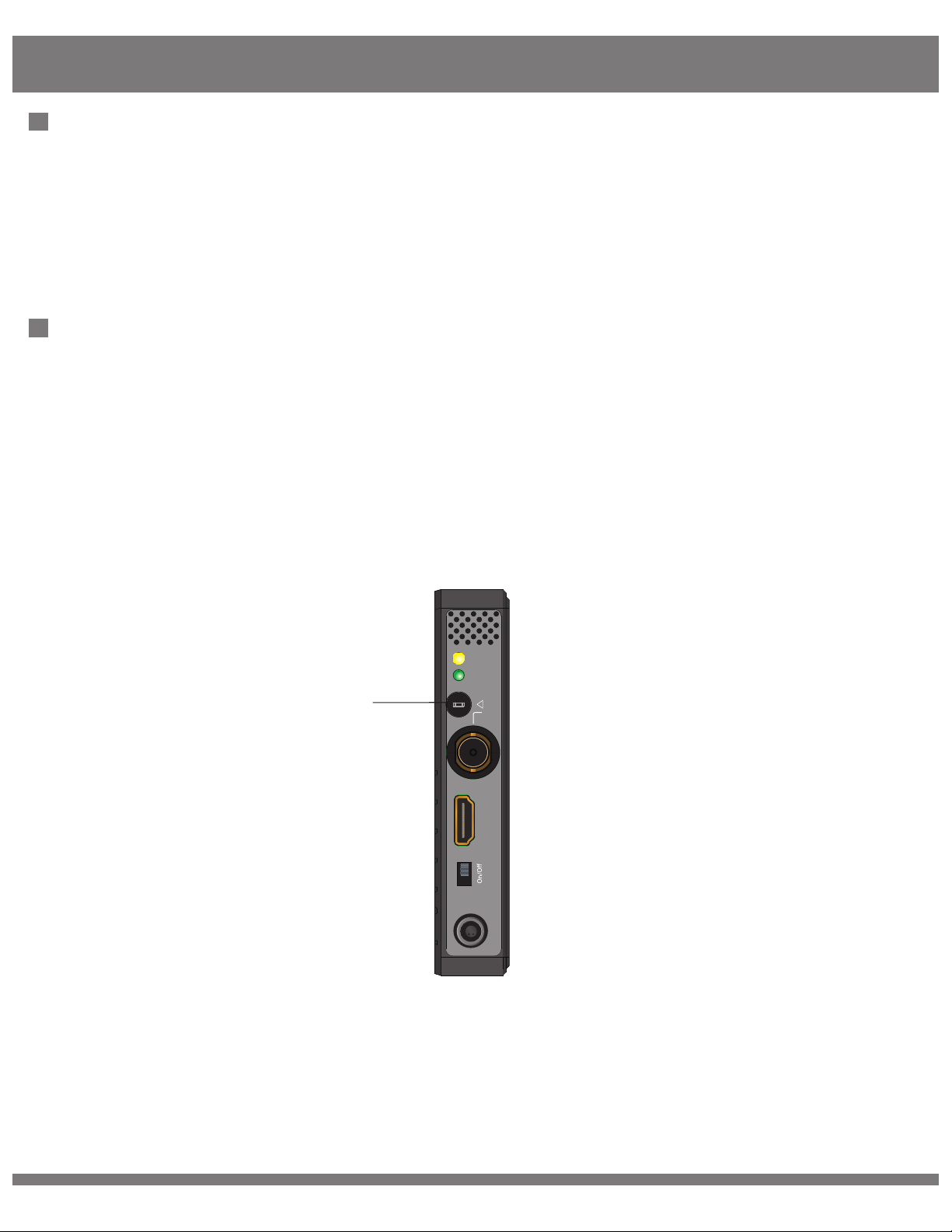

Diagram - Transmitter

About the 150M

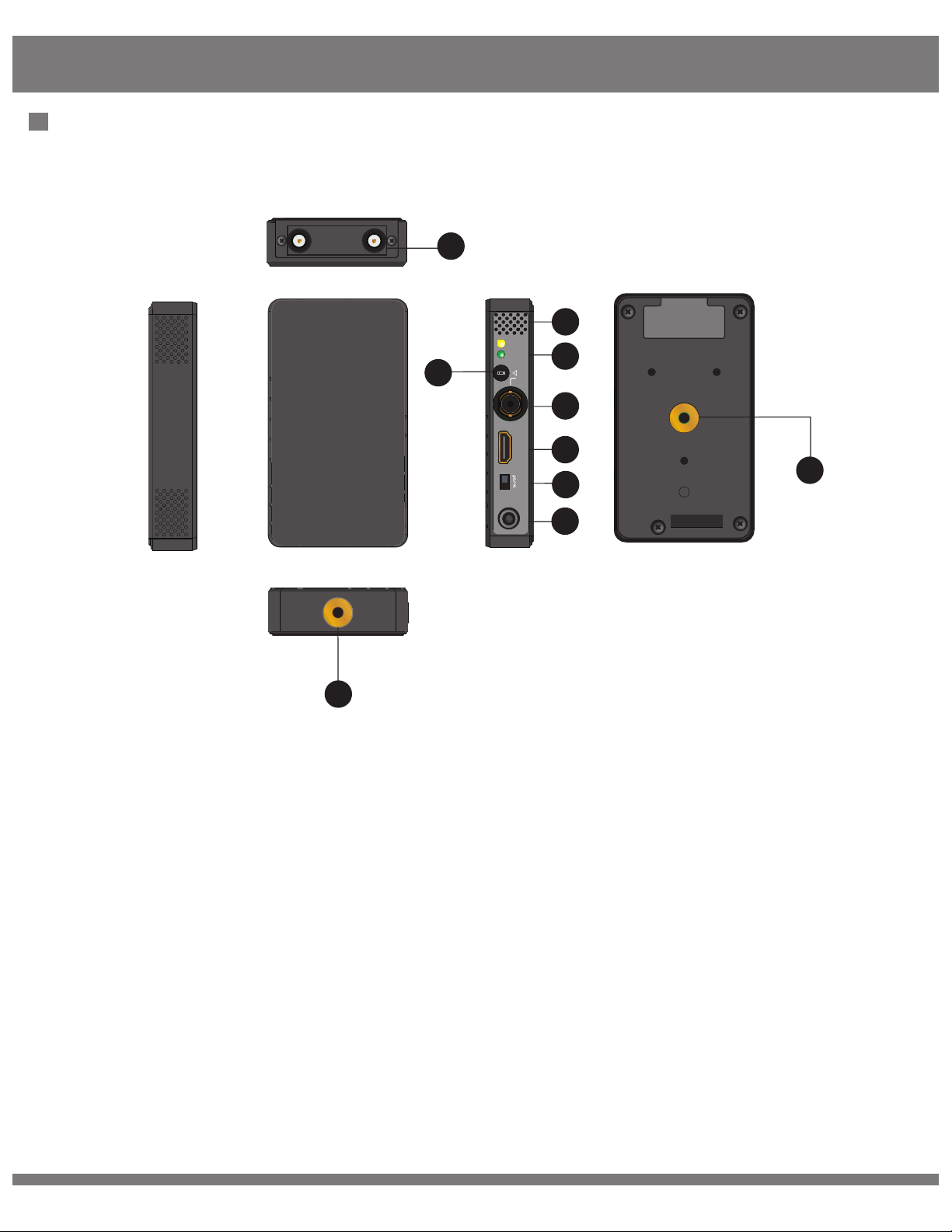

Diagram - Transmitter

Transmitter

1) 1/4-20 Screw Hole

2) RP-SMA male antenna connector

3) Video input indicator, 1 yellow LED

4) Power indicator, 1 green LED

5) Frequency selection knob,0-9

6) SD/HD/3G SDI input

7) HDMI Input

8) DC power switch

9) DC input, LEMO 4-pin B series connector

Video

Power

SDI in

HDMI in

DC in

Transmitter

1) 1/4-20 Screw Hole

2) RP-SMA male antenna connector

3) Video input indicator, 1 yellow LED

4) Power indicator, 1 green LED

5) Frequency selection knob,1-4

6) SD/HD/3G SDI input

7) HDMI Input

8) DC power switch

9) DC input, LEMO 4-pin B series connector

About the 150M

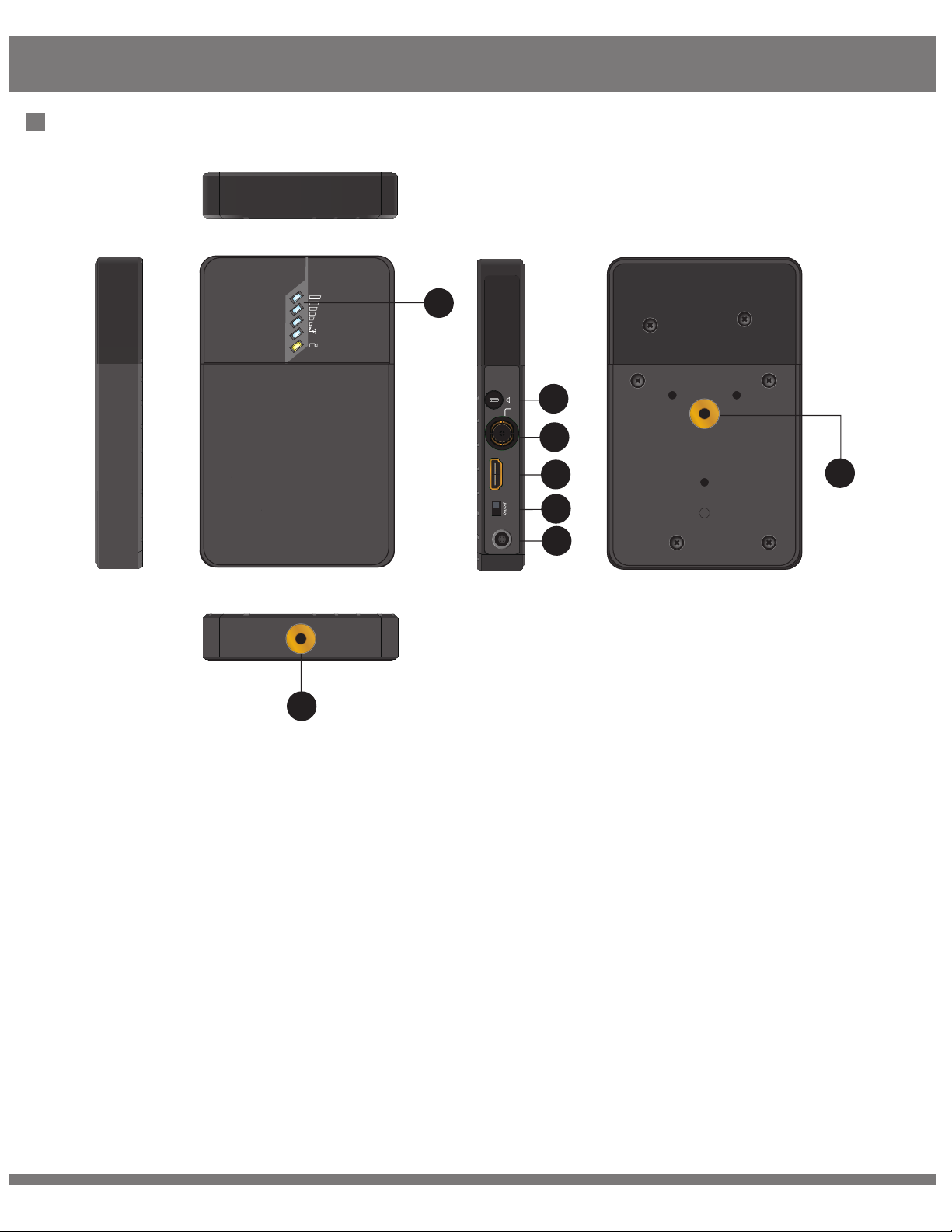

Diagram - Receiver

Receiver

1) 1/4-20 Screw Hole

2) LED status indication(4 blue LED for RSSI &1 LED

yellow for POWER/VIDEO)

3) Frequency selection knob,1-4

4) SD/HD/3G SDI output

5) HDMI output

6) DC power switch

7) DC input, LEMO 4-pin B series connector

About the 150M

Diagram - Receiver

Receiver

1) 1/4-20 Screw Hole

2) LED status indication(4 blue LED for RSSI &1 LED yellow

for POWER/VIDEO)

3) Frequency selection knob,0-9

4) SD/HD/3G SDI output

5) HDMI output

6) DC power switch

7) DC input, LEMO 4-pin B series connector

SDI Out

HDMI Out

DC In

About the 150M

Specifications

Transmitter Receiver

Interface

Supply voltage range

Power consumption < 6.5 W < 6 W

Size

Mass Weight

Input Video Format

Output Video Format /

Input Audio Format SDI embedded 2 channel 24 bit/48KHz /

Output Audio /SDI embedded 2 channel 24 bit/48KHz

Signal Indicator POWER-Green; VIDEO-Yellow POWER-Green; Wireless RSSI-Blue (4

LEDs); POWER/VIDEO-Yellow

Frequency Band 5.1-5.9GHz,conﬁgurable with China,

North American, Europe,etc

5.1-5.9GHz,conﬁgurable with China,

North American, Europe,etc

Modulation Mode OFDM 16QAM OFDM 16QAM

Transmission Power <18dBm /

Receiver Sensitivity /-75dBm

Occupied Bandwidth 40MHz 40MHz

Temperature Range 0~40°C(operating condition);

-20~60°C(Storage)

0 ~ 40°C (operating condition);

-20~60°C(Storage)

Compliance FCC; CE; RoHS FCC; CE; RoHS

270g 355g

6.5-16.8V DC 6.5-16.8V DC

(L x W x H):115 x 67 x 23mm

excluding antennas (L x W x H): 160 x 110 x 25mm

SDI:3G,HD SD-SDI(Auto/Manual-Selected):

525i, 625i, 720p 50/59.94/60, 1080i 50/59.

94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;

HDMI Type A: 525i, 625i, 720p 50/59.94/60,

1080i 50/59.94/60, 1080p23.98/24/25/29.9

/30/50/59.94/60;

SMPTE 259/274/292/296/372/424/425;

SDI:3G,HD SD-SDI(Auto/Manual-Selected):

525i, 625i, 720p 50/59.94/60, 1080i 50/59.94

/60, 1080p23.98/24/25/29.9/30/50/59.94/60;

HDMI Type A: 525i, 625i, 720p 50/59.94/60,

1080i 50/59.94/60, 1080p23.98/24/25/29.9

/30/50/59.94/60;

SMPTE 259/274/292/296/372/424/425;

SDI Input(BNC Female); HDMI Input

(Type A female); 2 Antenna port(PR-

SMA male); DC input

SDI Output(BNC Female); HDMI Output

(Type A female); DC input

>300 Meters (984 feet) >300 Meters (984 feet)

Video Processing Color

Depth 8bit;10 bit;(4:0:0);(4:2:2);(4:4:4) 8bit;10 bit;(4:0:0);(4:2:2);(4:4:4)

Transmission Cross

Compatibility Ghost-Eye 100M;150M;300M;400M Ghost-Eye 100M;150M;300M;400M

Transmission Range

1) Ensure the video source output of the camera is OK, and the HD monitor is

powered on and switched to connected video input port.

2) Ensure 2 TX antennas are installed, preferably with an orthogonal angle to each

other for best RF performance, as in figure below.

3) Ensure all input, output SDI or HDMI cables are connected.

4) Ensure both the transmitter and receiver are powered via battery or DC

input. Then turn power switch of the transmitter and receiver, respectively, to

‘ON’. The ‘Power’ indicator will then light.

5) Ensure the frequency knobs of transmitter and receiver are set with the

same number, this will make sure the transmitter and receiver work with

same RF frequency.

6) If the camera is on and video input is OK, TX side 'video' indicator will light

7) Before RX finished wireless link with TX, 4 “RSSI” indicators and “Video”

indicators are off; when wireless link is OK, “RSSI” indicators will light first,

and “RSSI” will indicate the received RF signal strength. If the receiver

detects wireless video normal internally from air interface, “Video” indicator

will light. Before that, if SDI or HDMI video out port of the receiver has HD

monitor connected, it will display an OSD of “Link Connecting……” as in the

figure below.

150M Installation

Getting Started

150M Installation

Getting started

Transmitter

1) Ensure the video source output of the camera is OK, and the HD

monitor is powered on and switched to connected video input port.

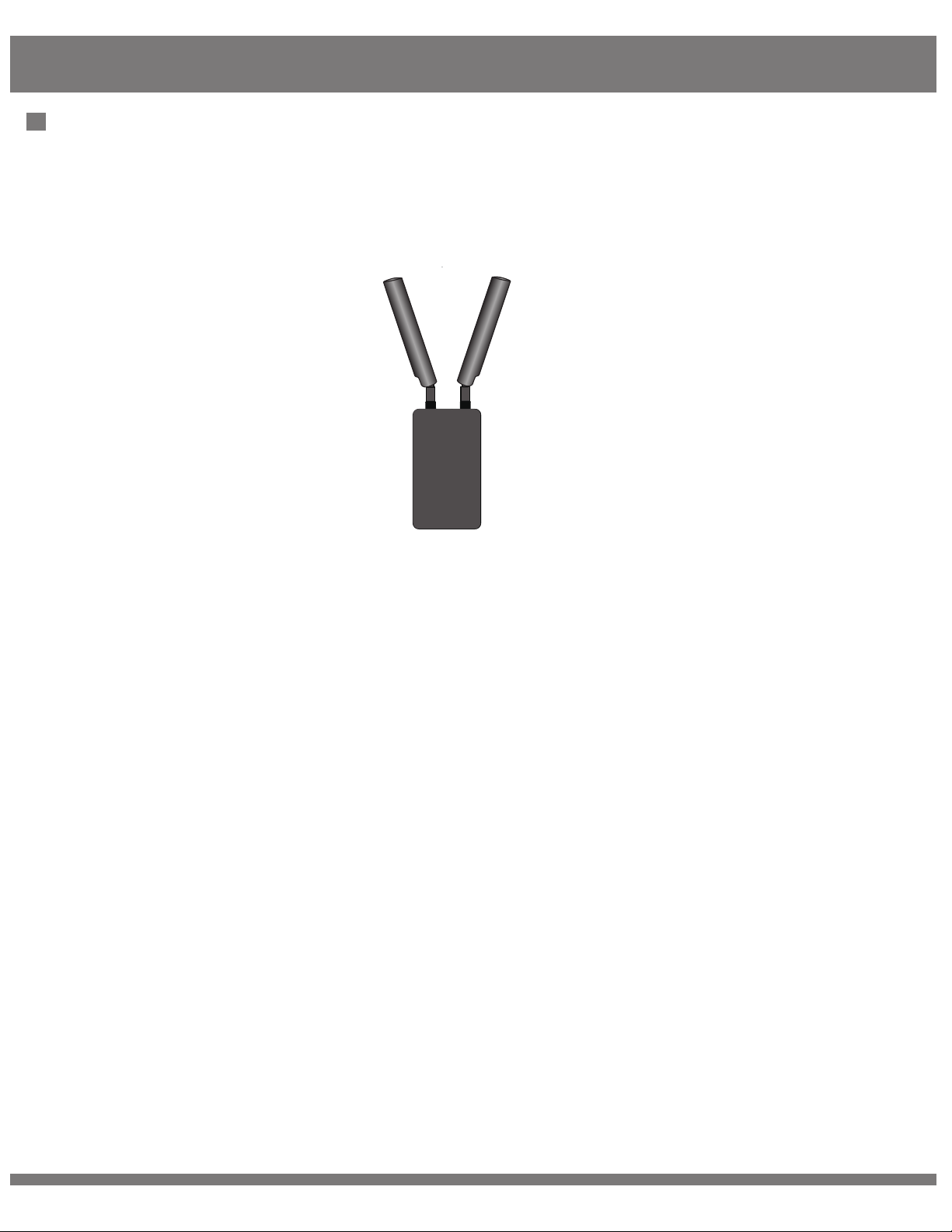

2) Ensure 2 TX antennas are installed, preferably with an orthogonal

angle to each other for best RF performance, as in figure below.

3) Ensure all input, output SDI or HDMI cables are connected.

4) Ensure both the transmitter and receiver are powered via battery or

DC input. Then turn power switch of the transmitter and receiver,

respectively, to ‘ON’. The ‘Power’ indicator will then light.

5) Ensure the frequency knobs of transmitter and receiver are set with the

same number, this will make sure the transmitter and receiver work with

same RF frequency.

6) If the camera is on and video input is OK, TX side 'video' indicator will

light

8) The system will spend 20-30 seconds constructing the link, depending on link

strength and the signal channel condition. When wireless link is established the

“RSSI” light will illuminate, indicating the current wireless signal strength, “Video”

indicators will light, and the connected HD monitor will be playing the real-time

video and audio.

The wireless suite works in the 5.1-5.9GHz frequency band and can be flexibly

configured to other licensed or ISM bands to accommodate different global regions.

The side panel of the transmitter features a frequency selection knob (see below

illustration), which provides a maximum of 4 workable frequency channels, and

supports a maximum of 4 simultaneous receiver units.

150M Installation

Getting Started

Frequency Selection

150M Installation

Frequency selection



The wireless suite works in the 5.1-5.9GHz frequency band and can be flexibly

configured to other licensed or ISM bands to accommodate different global

regions. The side panel of the transmitter features a frequency selection knob

(see below illustration), which provides a maximum of 10 workable frequency

channels, and supports a maximum of 4 simultaneous receiver units.

Video

Power

SDI in

HDMI in

DC in

Side panel

150M Installation

WIRELESS HDMI/SDI

VIDEO TRANSMISSION SUITE

GHOST EYE 300M KIT

FULL HD

VIDEO

SDI &

HDMI

EU Environmental Protection

<1MS

LATENCY

PLUG &

PLAY

RUGGED

DESIGN

PAP

Waste electrical products shold not be

disposed of with household waste. Please

recycle where facilities exist. Check with your

local authority or retailer for recycling advice.

Product Description

What is Included

About the 300M

The Ghost-Eye 300M Wireless HDMI/SDI Transmission Suite utilizes today's most

advanced wireless video transmission technology, broadcasting uncompressed 3G

SDI/HDMI HD video signals with zero delay up to 700 meters (line of sight). The suite

includes one transmitter and one receiver; where the transmitter provides a 3G

SDI/HDMI HD input, the receiver provides 3G SDI//HDMI output. The Ghost-Eye 300M

suite has 5 external stick antennas on the receiver and 2 external stick antennas on

the transmitter. The transmission suite functions in the 5.1-5.9GHz frequency band and

can be flexibly configured to licensed or ISM band frequencies around the globe. The

side panel of the transmitter and receiver units have a frequency selection knob that

provides a maximum of 4 workable frequency channels, and supports a maximum of 4

receiver units per transmitter unit. The wireless suite can accommodate a wide range

of DC power input, including many kinds of camera battery models. The suite can also

sustain ~8kV ESD (HBM, contact discharge), the industry class metal case and profes-

sional heatsink design guarantees robust reliability.

• Transmitter Unit x 1

• Receiver Unit x 1

• Omni-Directional High Efficiency Antennas (SMA Female) x 7

• 15-27mm Mounting Bracket x 1

• 2-Pin Lemo Power Cable x 2

• User Manual x 1

• Waterproof Custom Fit Hard Case (310x190x93mm) x 1

About the 300M

Features

• 5GHz ISM Band wireless HD video transmission up to 700m (2297ft) depending on line of

sight

• HDMI and SD/HD/3G SDI input and output

• Highest resolution 10bits color depth 4:4:4, 1080p 60FPS HDMI and SD/HD/3G SDI input

and output, HDMI SDI cross conversion is supported.

• Signal status indicators for power, video, and receiver RSSI

• AES-128/256 encryption with air interface HD video data stream

• Supports point to point, and point to multi points network topology, multiple receiver is

supported with up to 4 receivers .

• Cross compatibility with all Ghost Eye models.

• HDMI 1.4 with EDID support

• Uncompromised picture quality with very low latency <1ms

• Wide range power voltage input, suitable for most kinds of camera batteries

• Plug & Play - no software is required

• Standard V-mount, Anton Bauer, or 1/4″bolt

• All input and output ports with ±8 kV ESD protection level (HBM, contact discharge)

About the 300M

Specifications

Transmitter Receiver

Interface

Supply voltage range

Power consumption W5.6< < 6W

Size

Mass Weight

Input Video Format

Output Video Format /

Input Audio Format SDI embedded 4channel 24 bit/48KHz /

Output Audio /SDI embedded 4 channel 24 bit/48KHz

Signal Indicator POWER-Green; VIDEO-Yellow POWER-Green; Wireless RSSI-Blue (4

LEDs); POWER/VIDEO-Yellow

Frequency Band 5.1-5.9GHz,conﬁgurable with China,

North American, Europe,etc

5.1-5.9GHz,conﬁgurable with China,

North American, Europe,etc

Modulation Mode OFDM 16QAM OFDM 16QAM

Transmission Power <21dBm /

Receiver Sensitivity /-75dBm

Occupied Bandwidth 20/40MHz 20/40MHz

Temperature Range 0~40°C(operating condition);

-20~60°C(Storage)

0 ~ 40°C (operating condition);

-20~60°C(Storage)

Compliance FCC; CE; RoHS FCC; CE; RoHS

380g 540g

6.5-16.8V DC 6.5-16.8V DC

(L x W x H):120 x 70 x 25mm

excluding antennas (L x W x H): 160 x 110 x 25mm

SDI:3G,HD SD-SDI(Auto/Manual-Selected):

525i, 625i, 720p 50/59.94/60, 1080i 50/59.

94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;

HDMI Type A: 525i, 625i, 720p 50/59.94/60,

1080i 50/59.94/60, 1080p23.98/24/25/29.9

/30/50/59.94/60;

SMPTE 259/274/292/296/372/424/425;

SDI:3G,HD SD-SDI(Auto/Manual-Selected):

525i, 625i, 720p 50/59.94/60, 1080i 50/59.94

/60, 1080p23.98/24/25/29.9/30/50/59.94/60;

HDMI Type A: 525i, 625i, 720p 50/59.94/60,

1080i 50/59.94/60, 1080p23.98/24/25/29.9

/30/50/59.94/60;

SMPTE 259/274/292/296/372/424/425;

SDI Input(BNC Female); HDMI Input

(Type A female); 2 Antenna port(PR-

SMA male); DC input (4 Pin Lemo

Female)

SDI Output(BNC Female); HDMI Output

(Type A female); DC input (4 Pin Lemo

Female)

>700 Meters (2297 feet) >700 Meters (2297 feet)

Video Processing Color

Depth 8bit;10 bit;(4:0:0);(4:2:2);(4:4:4) 8bit;10 bit;(4:0:0);(4:2:2);(4:4:4)

Transmission Cross

Compatibility Ghost-Eye 100M;150M;300M;400M Ghost-Eye 100M;150M;300M;400M

Time Code Every 10 Seconds Every 10 Seconds

Transmission Range

1) Ensure the video source output of the camera is OK, and the HD monitor is

powered on and switched to connected video input port.

2) Ensure 2 TX antennas are installed, preferably with an orthogonal angle to each

other for best RF performance, as in figure below.

3) Ensure all input, output SDI or HDMI cables are connected.

4) Ensure both the transmitter and receiver are powered via battery or DC

input. Then turn power switch of the transmitter and receiver, respectively, to

‘ON’. The ‘Power’ indicator will then light.

5) Select the broadcasting channel via the "CH" button on both RX and TX,

ensuring that both are set to the same channel. Press "OK" to confirm

channel selection. When the network connection is established, the LCD

display will display "LINK". When the video begins transmission the LCD

screen will display "VIDEO". At this point the connected monitors will display

the live feed from your camera via the TX to RX connection.

300M Installation
