CIONIC Neural Sleeve NS-100 User manual

NS-100
Instructions
For Use
Neural Sleeve

2 |Cionic Neural Sleeve Instructions for Use
All Rights Reserved
No part of this Instructions for Use publication may
be reproduced, transmitted, transcribed, stored
in a retrieval system, translated into any language
or computer language, in any form or by any third
party, without prior permission from CIONIC Inc.
Copyrights
CIONIC™, the CIONIC Logo™ and the Neural
Sleeve™ are copyrights of CIONIC Inc.
Patents Pending
Aspects of the Neural Sleeve are covered by
patents and patent applications.
How it Works
The Cionic Neural Sleeve uses a combination
of continuous motion analysis and Functional
Electrical Stimulation (FES). Sophisticated sensors
continuously monitor movement in real-time to
evaluate muscle firing and limb position, and
personalized algorithms deliver FES to activate the
necessary muscles precisely coordinated to the
gait cycle.
Disclaimer
CIONIC Inc. and its affiliates shall not be liable
for any injury or damage suffered by any person,
either directly or indirectly, as a result of the
unauthorized use or attempted repair of the Neural
Sleeve and all of its components. CIONIC does not
accept any responsibility for any damage caused
by the Neural Sleeve, either directly or indirectly,
as a result of use and/or repair by unauthorized
personnel.
Environmental Policy
Users are advised that when changing
electrode pads on the Neural Sleeve, care
should be taken to dispose of the old electrodes
and plastic packaging from the new electrodes
in the correct manner, where applicable, parts
should be recycled. For more detailed information
regarding the recommended procedures, please
contact CIONIC Inc. CIONIC Inc. is committed to
continuously seeking and implementing the best
possible manufacturing procedures and servicing
practices.
Warranty
Cionic Neural Sleeve carries a one-year warranty,
starting at the date of purchase. CIONIC will not
provide free repair for the malfunctions caused by
the following behaviors:
• Disassembly or modification of the product
without authorization.
• Accidentally dropping the product during use or
transportation.
• Lack of reasonable maintenance.
• Operate not according to the instructions.
• Repaired by any unauthorized person or business.
Customer Support
Telephone: [phone]
CIONIC
1606 Stockton St.
San Francisco, CA 94133
cionic.com
RX ONLY | Cionic Neural Sleeve Instructions for Use

|3
Neural Sleeve
CONTENTS
Chapter 1
Introduction to Your Neural Sleeve........................4
System Features
Neural Sleeve Instructions for Use
Chapter 2
SafetyInformation........................................................5
Indications for Use
Contraindications
Warnings
Precautions
Adverse Reactions
Proper Use
Chapter 3
Environmental Conditions that
Affect Use........................................................................7
Radio Frequency (RF) Communication Info.
Conformity Certification
Travel and Airport Security
Chapter 4
Neural Sleeve Device Description..........................8
Control Unit
Control Unit Button
Neural Sleeve
Neural Sleeve Electrodes & Electrode Pads
Control Unit Charger
Chapter 5
Neural Sleeve.................................................................11
Downloading the CIONIC App
Applying Electrode Pads to the Neural Sleeve
Putting on the Neural Sleeve
Apply Sleeve to the Quadriceps
Apply Sleeve to the Hamstrings
Apply Sleeve to the Shin
Apply Sleeve to the Calf
Connecting the Neural Sleeve to the Control Unit
Chapter 6
CIONIC App.....................................20
CIONIC App Settings
Video Onboarding to Set Up Your Neural Sleeve
Navigation
Home Screen
Settings
History Screen
Help Screen
Connecting the CIONIC App to the Control Unit
Symbols
Chapter 7
Using Programs and Exercises.......................................26
Calibration
Operating Modes
Configuring Stimulation
Basic FES Configuration Mode
Advanced FES Configuration Mode
Adjusting Stimulation
Using Gait Assist for Mobility
Using Exercise Programs
Chapter 8
Maintenance and Cleaning..............................................32
Daily Maintenance and Storage
Charging
Replacing the Neural Sleeve Electrode pads
Cleaning the Neural Sleeve
Chapter 9
Firmware Upgrade...............................................................36
Control Unit Firmware Upgrade
Chapter 10
Troubleshooting...................................................................40
Control Unit Fails Calibration
Control Unit is Not Visible in Your CIONIC App
Control Unit is Unable to Pair with Your CIONIC App
If You Feel Sharp, Uncomfortable Pain
Control Unit is Malfunctioning
Stimulation Feels Uncomfortable
Factory Reset
Control Unit Battery Maintenance
Disposal
Chapter 11
Technical Specifications...................................................41
Chapter 12
List of Symbols.....................................................................42
Chapter 13
Wireless Information..........................................................43

4 |Cionic Neural Sleeve Instructions for Use
The Neural Sleeve is a platform for the measurement and augmentation of mobility composed of the leg-
worn Neural Sleeve, a battery-powered Control Unit and a mobile application (the CIONIC App). It addresses
mobility limitations to support both rehabilitation and functional improvement. The Neural Sleeve includes
24 electrodes that wrap around your upper and lower leg. The Neural Sleeve System consists of the fabric
sleeve (available in various sizes), a Neural Sleeve Control Unit, a charging cable and 12 packets of electrode
pads. To operate the Neural Sleeve, you will need to download the CIONIC App which can be accessed
through most Apple (iOS) and Android smartphones or tablets.
To get started, go to cionic.com/app where you’ll be able to download and access the app, and register
and authenticate the mobile device.
Figure 1 | Neural Sleeve System
12 packets Electrode
Pads,each containing
two sets of two pads
(48 electrodes total)
SL-100
Cable Connector
Storage
Covers
DC-100
Charger
USB-A to USB-C Cable
Neural Sleeve User Manual
This document includes:
• How to set-up and operate your Neural Sleeve
• Important safety information
• How to clean and maintain the Neural Sleeve
• Troubleshooting tips
Cionic Neural Sleeve System NS-100:
• Sleeve SL-100 consists of 24
electrodes (8 stimulation and 16 shared
for sensing and stimulation) that wrap
around the lower and upper leg. Sensors
within the sleeve provide precise real-
time 3-dimensional orientation, calibrated
acceleration, and angular velocity using
an inertial monitoring unit (IMU) and
electromyography (EMG) sensing.
• Control Unit DC-100: A portable
electronic device worn within the sleeve.
It contains an IMU to track motion of the
upper leg. It is removable and powered by
a rechargeable lithium polymer battery.
• Mobile Application: The Control Unit is
enabled through the CIONIC App that can
run on iOS and Android devices.
CHAPTER 1 | Introduction to Your Neural Sleeve
CAUTION: It is recommended that you
read the Instructions for Use carefully
before using your Neural Sleeve.

|5
Neural Sleeve
Indications for Use
The Cionic Neural Sleeve NS-100 is intended to
provide ankle dorsiflexion and/or plantarflexion
in adult individuals with foot drop and/or to assist
knee flexion or extension in adult individuals with
muscle weakness related to upper motor neuron
disease/injury (e.g. stroke, damage to pathways to
the spinal cord). The Cionic Neural Sleeve NS-100
electrically stimulates muscles in the affected leg
to provide ankle dorsiflexion and/or plantarflexion
of the foot and/or knee flexion or extension; thus, it
also may improve the individual’s gait.
The Cionic Neural Sleeve NS-100 may also:
• Facilitate muscle re-education
• Prevent/retard disuse atrophy
• Maintain or increase joint range of motion
• Increase local blood flow
Environment of Use
The Cionic Neural Sleeve NS-100 is intended to be
used in a clinical or home use setting.
Contraindications
• Individuals with implanted demand-type cardiac
pacemaker or defibrillators should not use the
Neural Sleeve.
• The Neural Sleeve should not be used over
malignant tumors.
• The Neural Sleeve should not be placed over
any areas where existing thrombosis is present.
• The Neural Sleeve should not be used on an
area of the leg where a regional disorder, such
as a fracture or dislocation, could be adversely
affected by motion from stimulation.
Warnings
• The long-term effects of chronic electrical stimulation
are unknown.
• The Neural Sleeve System components are non-
sterile.
• The Neural Sleeve should not be worn over swollen,
infected, or inflamed areas or skin eruptions, such as
phlebitis, thrombophlebitis and varicose veins.
• When in doubt about correct operation or if you
feel discomfort or pain, turn off the stimulation and
remove the Neural Sleeve. If the stimulation does not
turn off for any reason, remove the Neural Sleeve.
• Simultaneous connection of the Neural Sleeve to the
user and high-frequency surgical equipment may
result in skin burns where the stimulator electrodes
touch and damage to the Control Unit.
• Do not use the Neural Sleeve within three feet of
short wave or microwave therapy equipment. Such
equipment may produce instability in the Control
Unit’s output.
• The Neural Sleeve NS-100 may be interfered with
by other equipment, even if that other equipment
complies with International Special Committee on
Radio Interference, International Electrotechnical
Commission (CISPR) emission requirements.
Precautions
• Use the Neural Sleeve with caution if you have a
suspected or diagnosed heart condition, have a
tendency to hemorrhage following trauma or fracture,
have had a recent surgery or procedure in which
muscle contractions may disrupt the healing process,
have an epilepsy diagnosis or suspected diagnosis of
epilepsy/seizures, or have need for application of the
Neural Sleeve over areas of the skin that lack normal
sensation.
• The Neural Sleeve may cause some users to
experience skin irritation, an allergic reaction, or
hypersensitivity to the fabric, electrical stimulation
or a similar electrically conductive medium. Do not
wear the Neural Sleeve during any diagnostic or
therapeutic medical procedure such as an x-ray,
ultrasound, MRI, EMG, etc.
CHAPTER 2 | Safety Information
Please read the precautions with
symbols to ensure that your device
is in the proper condition and you
are safe to use it.

6 |Cionic Neural Sleeve Instructions for Use
• Replacement electrode pads for the Neural
Sleeve should only be provided by CIONIC.
• Do not use the Neural Sleeve System in an
oxygen rich environment.
• The Control Unit should be disconnected from
the Neural Sleeve before putting on or removing
the sleeve and before removing or replacing any
electrode pads.
• Safe use of the Neural Sleeve during pregnancy
has not yet been established.
• Existing skin conditions on the legs may be
aggravated or irritated if occuring in the area
where the Neural Sleeve is worn.
• Never use the Neural Sleeve with worn-out
electrode pads or exposed, frayed or broken
wires.
• Users with significantly limited mobility and
coordination should seek assistance while using
the Neural Sleeve.
• The Neural Sleeve, Control Unit and all associated
components should be protected from any
exposure to water.
• The Neural Sleeve and Control Unit should not
be stored where temperatures may exceed -4˚F
to +140˚F (-20˚C to +45˚C). Turn the Control Unit
off should it be exposed to these temperature
extremes.
• If the device has been stored in a cold or hot
environment, allow it at least 5 minutes to
acclimate to room temperature before operating.
• Do not modify or attempt to repair the Neural
Sleeve or Control Unit yourself. Contact CIONIC if
you experience any problems not covered in this
document.
• The Neural Sleeve is only intended to be used
on the leg of the user who has obtained a
prescription for use and has received a properly
fitting sleeve. It should never be worn by anyone
else or used on any other part of the body.
• The Neural Sleeve should not be worn while
driving, operating machinery or performing any
activity in which involuntary muscle contractions
could lead to injury.
• The Neural Sleeve should not be operated in the
presence of liquids or flammable substances.
Adverse Reactions
Skin irritations and burns beneath the electrode
pads can occur with the use of surface electrical
stimulation devices. While it is normal to see reddened
areas under the electrode pads, they should disappear
within a few hours. NEVER continue stimulation over
irritated skin or open wounds. If the conditions persist
after you discontinue use of the Neural Sleeve, consult
with an authorized CIONIC Mobility Specialist, or your
physician or therapist.
In the unlikely event that any of the following occurs
while using the Neural Sleeve, stop use immediately
and consult with your physician or therapist;
• Feeling of stress to the heart or unusual shortness
of breath
• Significant increase in muscle spasticity
• Sudden and noticeable swelling of the leg, knee,
ankle or foot
• Any pain or other unanticipated and concerning
reaction
Proper Use
Both the safety and efficacy of the Neural Sleeve
depend on the proper use and handling of the system.
Improper use of the device and its components can
result in failure of the device or injury. Steps can be
taken to ensure the Neural Sleeve is operating properly
and safely, which include:
• Make sure the Control Unit is fully charged before
initial use, before daily use, and after any extended
storage. Charging instructions can be found in
Chapter 8: Maintenance and Cleaning.
• Regularly check the Neural Sleeve and Control Unit
for wear and tear.
• Be sure to firmly secure the electrode pads to the
skin.
• Never use the Neural Sleeve if it appears in any
way to be malfunctioning, or if you notice any
change in its normal operation.
• The Neural Sleeve is only intended for use on the
CHAPTER 2 | Safety Information (cont.)

|7
Neural Sleeve
legs only. Do not apply the Neural Sleeve to any
other part of the body.
• Using a wet washcloth, clean the area of the skin
to be covered by the Neural Sleeve, removing any
oils or lotions. Allow skin to dry before putting on
the Neural Sleeve.
• Excessive hair on the legs can reduce sensor and
electrode pad contact with the skin. If necessary,
trim excessive hair. Don’t shave immediately
before use.
• Replace the electrode pads every four weeks, or
sooner if the condition of the electrode pads has
diminished.
• Always re-cover the electrode pads with the
storage covers after each use.
• Effective current densities above 2 mA/cm2
require increased attentiveness of the user for all
electrode surfaces.
CHAPTER 3 | Environmental Conditions that Affect Use
Radio Frequency (RF) Communication
Information
The Neural Sleeve Control Unit communicates
via radio communication and have been tested
and found to comply with the limits for a Class
B device, pursuant to Part 15 (RF Devices) of the
Federal Communications Commission (FCC) Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses, and can radiate RF energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
The antenna of the transmitter must not be co-
located or operating in conjunction with any other
antenna or transmitter. Portable and mobile RF
communications equipment may affect the Neural
Sleeve NS-100.
Conformity Certification
This device may not cause harmful interference, and
it will accept any interference received, including
interference that may cause undesired operation.
This equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled
environment.
Travel and Airport Security
The Neural Sleeve charger is compatible with U.S.
voltage: 110/220 V
Turn off your Control Unit before going through
airport security. It is advised to carry a copy of
your Neural Sleeve prescription and a description
of the product, which can be useful when passing
through customs as well. To request a copy of your
prescription or the product description, please email
the Cionic Care team at suppor[email protected]. Please
use the subject heading, “Travel Request.”
NOTE: The Neural Sleeve contains
radio transmitters. The Federal
Aviation Administration (FAA) rules
require that all radio-transmitting
devices be turned off during flight.

8 |Cionic Neural Sleeve Instructions for Use
CHAPTER 4 | Neural Sleeve Device Description
Control Unit
The Neural Sleeve Control Unit is the computer
that interfaces with the CIONIC App via Bluetooth
to control the Neural Sleeve. It is also used to turn
the system on and off. The Control Unit is powered
by a single rechargeable ion battery.
• To turn the Control Unit on, press the
button once.
• To turn the Control Unit off, press and hold the
button. The light indicator will turn orange and
fade out.

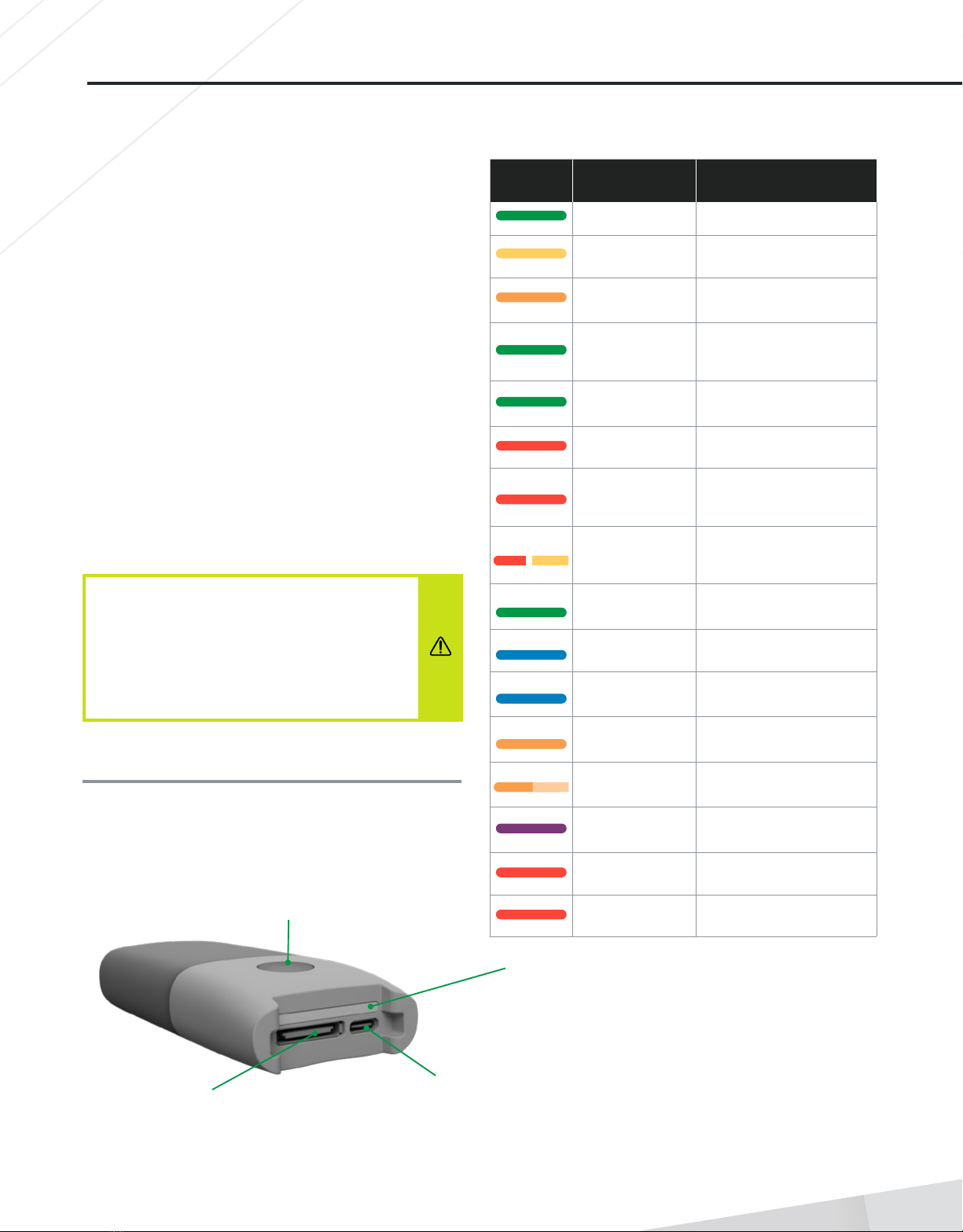

Figure 2 | Control Unit
Table 1 | Control Unit Visual Indicators
CAUTION: Inspect the Control Unit
for damage to the plastic enclosure
prior to use. Contact CIONIC should you
observe any damage.
Button
Light Indicator
USB-C Charging Port
Neural Sleeve
Connection Port
LIGHT
DISPLAY
DISPLAY
PATTERN DESCRIPTION
Blinks green Activity in progress
Solid yellow Stimulation active
>10mA
Pulses orange Battery charging
Solid green Battery fully charged. Disconnect from
charger
Pulses green Unit on
Blinks red Battery low <20%.
Charge Control Unit
Blinks red 2x Battery low <5%. Stop use and charge Con-
trol Unit.
Red to yellow
3x
Critical hardware
error. Refer to Chapter
9 Troubleshooting
Blinks green
3xs Sleeve was connected
Blinks blue Bluetooth®pairing
mode active
Solid blue for 3
seconds
Bluetooth®pairing
complete
Blinks orange
3x
Bluetooth®pairing
failed. Retry pairing
Orange to fade
out Powering off
Purple
pulsating
Button pressed and
stimulation paused
Solid red Factory reset mode
active (see Chapter 9)
Blinks red Factory reset
complete

|9
Neural Sleeve
Neural Sleeve
Right LegLeft Leg
Control Unit Button
The Control Unit contains a button used for multiple purposes.
Table 2 | Control Unit button operations
DESIRED ACTION BUTTON OPERATION
Turn Control Unit On Press the button
Turn Control Unit Off Press and hold the button for 5 seconds
Pause and Resume Stimulation Press button while stimulation is on
Factory Reset Troubleshooting; See Chapter 9
Neural Sleeve
The Neural Sleeve is a wearable fabric sleeve
that fits the leg. It is available in right or left leg
configurations (Figure 3), offered in multiple
sizes. The Neural Sleeve is designed to facilitate
movement of the foot, lower leg, and upper leg,
depending on the programming.
The Neural Sleeve has four Velcro®panels to hold
the sleeve firmly in place. The pocket at the top of
the Neural Sleeve holds the Control Unit.
Figure 3 | Cionic Neural Sleeve Left and Right

10 |Cionic Neural Sleeve Instructions for Use
Neural Sleeve Electrodes & Electrode Pads
The Neural Sleeve contains 24 electrodes. Eight are used specifically for stimulation and 16 are used for both
sensing and stimulation. Each metal disc requires an electrode pad containing a conductive film that provides
current control. They are reusable (up to four weeks), self-adhering, and serve as an interface between the
user’s skin and the Neural Sleeve metal discs. (Figure 4)
WARNING: Only the
electrode pads
provided by CIONIC
should be used with the
Neural Sleeve.
To reorder electrode
pads email the Cionic
Care team at
[email protected]
CHAPTER 4 | Neural Sleeve Device Description (cont.)
Control Unit Charger
The Control Unit includes a 3-foot long (1m) USB Type A to Type C charging
cable, as well as a removable power adapter.
Figure 5 | Control Unit and Charger
WARNING: Only use the Control Unit
charging cable and power adapter
that was included with your Neural
Sleeve. Using any other charger
could cause damage to the unit.
WARNING: The
electrode pads carry
an expiration date
which is printed on
the packaging. Verify
that the expiration
date is at least two
weeks in the future
prior to use.
Figure 4 | Applying Electrode Pads to Metal Discs

|11
Neural Sleeve
Figure 6 | Major Leg Muscle Groups
Downloading the Mobile App
The CIONIC App is a required application that must be downloaded onto a mobile device
(smartphone or tablet) in order to operate the Neural Sleeve. All the set-up instructions
detailed in the following pages are available in a step-by-step process within the CIONIC
App. It will also act as the only interface needed to operate the Neural Sleeve. Use your
smartphone or tablet to visit cionic.com/app to access the app, get registered, authenticated and
started. The CIONIC App communicates with the Control Unit through Bluetooth®Low Energy.
CHAPTER 5 | Neural Sleeve
4. Hamstrings
3. Calf 2. Shin
1. Quadriceps

12 |Cionic Neural Sleeve Instructions for Use
Applying Electrode Pads to the Neural Sleeve
In order to use your Neural Sleeve, you must attach 12 pairs of electrode pads onto the metal discs on the
inside of your Neural Sleeve (Figure 7). Open the sleeve and place it on a flat, solid surface. There are four
groups of metal discs which correspond to muscles on your leg.
Sleeve Without Electrode Pads Sleeve With Electrode Pads Sleeve With Electrode
Storage Covers
Step 1
Starting with one of the top panels of the
Neural Sleeve, select one pair of electrode pads.
Carefully remove the clear protective film from the
grid side of the electrode pads. Protective film can
be discarded.
Step 2
Carefully place the pair of electrode pads, grid side
down, in accordance with the panel of metal discs.
The electrode pads must be centered on the metal
discs, so you should not see any of the red square.
CHAPTER 5 | Neural Sleeve (cont.)

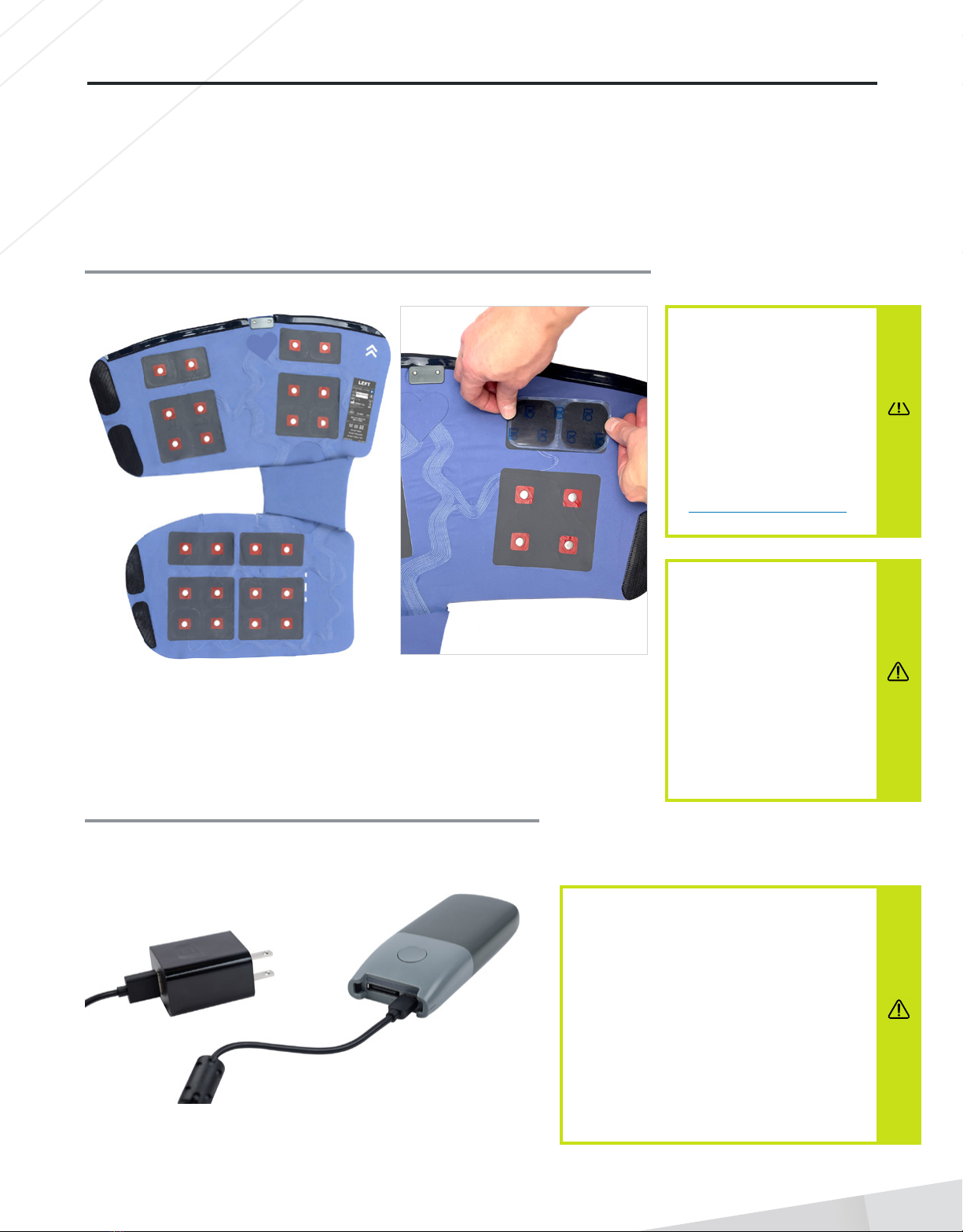

Figure 7 | Electrode Pad Application Stages

|13
Neural Sleeve
Step 3
Firmly press each electrode pad onto the metal
discs on the sleeve fabric. Leave the clear film on
the pads.
Step 4
Repeat this process for each pair of electrode
pads until all metal discs are covered.
Step 5
When complete, carefully remove the clear
plastic film cover from the top of each pair of
electrode pads. Then cover each section with
the corresponding storage cover. Note that the
lower section of the Neural Sleeve uses the larger
cover and the top two panels use the smaller
storage covers. The shiny side of the cover should
be in contact with the electrode pads.
CAUTION: Before each use, it’s important
to inspect the Neural Sleeve and Control
Unit for obvious damage, including tears in
the fabric, broken electrical connections or
damage to the housing of the Control Unit.
If damage is suspected, contact CIONIC
technical support.

14 |Cionic Neural Sleeve Instructions for Use
Image 1 Image 2
Image 3 Image 4
Image 5 Image 6
CHAPTER 5 | Neural Sleeve (cont.)
Prior to using your Neural Sleeve for the first
time, you will have a consultation with a CIONIC
technician using the CIONIC App. This will provide
an opportunity to review the Neural Sleeve System
and CIONIC App prior to use. You can view tutorial
videos by going to cionic.com/tutorials
Putting on the Neural Sleeve
• While seated, remove your shoe from the side
on which you will be using the sleeve.
• Pick up the Neural Sleeve.
• Unfold the sleeve and place it over your leg so
that the connector is facing up and the wings
of the sleeves are facing outward (Image 1).
• Turn over the sleeve, ensure all the electrodes
are covered, and observe the opening in which
you will be sliding your foot through (Image 2).
• Turn the sleeve back over, and slide your foot
through the opening (Image 3).
• Pull the sleeve up your leg until the middle of
the sleeve is aligned with your knee cap
(Image 4).
Apply Sleeve to the Quadriceps
• Pull the top of the sleeve down over your knee
and rest it on the shin with the storage cover
facing up (Images 5 & 6).

|15
Neural Sleeve
Image 7 Image 8
Image 9 Image 10
Image 11 Image 12
• Remove the storage cover exposing the six
electrode pads, making sure that all electrode
pads are still attached to the sleeve (Image 7).
Set the storage cover to the side.
• If needed, adjust your clothing to ensure
electrode pads will only come in contact with
the skin of your quadriceps.
• Pull the section of the sleeve back up over your
knee (Image 8), placing the electrode pads on
the skin of your quadriceps.
• Press down firmly on the sleeve to ensure
electrode pads adhere flat and securely to the
skin (Image 9).
Apply Sleeve to the Hamstrings
• Adjust yourself toward the front of your chair.
• Reach behind the back of your upper leg and
grab the top wing of the sleeve (Image 10).
Guide the sleeve up and over, resting the sleeve
on your quadriceps with the storage cover
facing up (Image 11).
• Remove the storage cover exposing the six
electrode pads, making sure that all electrode
pads are still attached to the sleeve (Image 12).
• Set the storage cover to the side.

16 |Cionic Neural Sleeve Instructions for Use
Apply Sleeve to the Hamstrings (cont.)
• If needed, adjust your clothing to ensure
electrode pads only come in contact with the
skin of your hamstrings
• Pull the exposed panel of the sleeve back
under the hamstrings, pulling across tightly
to secure the Velcro connection points while
ensuring the electrode pads are in contact with
the skin of your hamstrings (Images 13 & 14).
• Press down firmly on the sleeve to ensure
electrode pads adhere flat and securely to
your skin.
Apply Sleeve to the Shin
• Reach down and grip the bottom of the sleeve
by the ankle (Image 15).
• Pull the sleeve up and over your knee and rest
the sleeve on your quadriceps (Image 16).
• Carefully remove the storage cover exposing
the 12 electrode pads of the lower sleeve,
making sure that all pads are still attached to
the sleeve (Image 17).
• Set the storage cover to the side.
• Pull the panel of the sleeve back down over the
knee (Image 18).
CHAPTER 5 | Neural Sleeve (cont.)
Image 13 Image 14
Image 15 Image 16
Image 17 Image 18

|17
Neural Sleeve
• Use the markings on the interior of the sleeve
to align to the shin bone, making sure to place
the top, inside gel pad on the muscle just below
and lateral to the knee with the two electrode
pads below close to the shin bone, but not
touching it (Images 19 & 20).
• Press down firmly on the sleeve to ensure
electrode pads adhere flat and securely to
your skin (Image 21).
Apply the Neural Sleeve to the Calf
• Reach behind the back of the lower leg and
grab the bottom wing of the sleeve.
• Pull the exposed panel of the sleeve back
under your calf, pulling across tightly to secure
the Velcro connection points while ensuring the
electrode pads are in contact with the skin of
your calf (Image 22).
• Press down firmly on the sleeve to ensure
electrode pads adhere flat and securely to
your skin (Image 23).
To remove the Neural Sleeve, simply follow
these steps in reverse, starting by pulling
down on the sleeve.
You can access tutorial videos on how to
take off the sleeve by visiting the app or by
going to cionic.com/tutorials
Image 19 Image 20
Image 21 Image 22
Image 23

18 |Cionic Neural Sleeve Instructions for Use
CHAPTER 5 | Neural Sleeve (cont.)
Connecting the Neural Sleeve to the
Control Unit
• Pick up the Control Unit.
• Press the button, and ensure you see a pulsing
green light (Image 24).
• With the port connector facing up and the power
button facing out, slide the Control Unit into the
Neural Sleeve pocket (Image 25).
• Gently connect the Control Unit to the Neural
Sleeve connector cable, and ensure it is secure
(Image 26).
• You may now put your shoe back on, stand up,
and adjust your clothing over the Neural Sleeve.
Image 24 Image 25
Image 26

|19

20 |Cionic Neural Sleeve Instructions for Use
CIONIC App Settings
The CIONIC App resides on your smart device and requests permissions of functions
commonly used by apps. Table 3 outlines the settings required for operation of the CIONIC
App.
SETTING REQUIRED DESCRIPTION
Location No Record your GPS location with collected data
Bluetooth®Yes Required to communicate with the Control Unit
Local Network No Not applicable to CIONIC App
Microphone Yes Communicate with CIONIC technical support
Camera Yes Communicate with CIONIC technical support
Siri & Search No Not applicable to CIONIC App, only relevant for iOS
Notifications Optional
The CIONIC App will provide notifications while you are
using your Neural Sleeve. Additional notifications controlled
in this setting are not required
Cellular Data Optional
Allows the CIONIC App to utilize your cellular network data
to upload recordings. If this is not enabled, the app will hold
your recordings until you are connected to WiFi
Table 3 | Settings For The CIONIC App
The CIONIC App allows you to control the Neural Sleeve. The CIONIC App communicates with the
Control Unit over a Bluetooth®connection. The CIONIC App connects to the internet through either a
wireless or cellular signal. This allows you to log into the app, upload data, and receive programs.
CHAPTER 6 | CIONIC App
