Automatic
Computer
Drying
SUPPLEMENTAL
OWNER’S MANUAL
THIS MANUAL MUST BE GIVEN TO THE EQUIPMENT OWNER.
CISSELL MANUFACTURING COMPANY
HEADQUARTERS PHONE: [phone]
831 SOUTH FIRST ST. SALES FAX: [phone]
P.O. BOX 32270 SERVICE/PARTS FAX: [phone]
LOUISVILLE, KY 40232-2270

Page 2
DESCRIPTION
The Automatic Computer Drying Control is used to manage the drying and cooling
cycles of one clothes dryer. The operator has the flexibility to select either automatic or
timed drying and either automatic or timed cooling. When automatic is selected, the
drying cycle will be terminated when the clothes are dry. A dryness sensor "feels" the
clothes and signals the control when they are dry. In the timed mode, the operator sets
the time and temperature for the load.
FEATURES:
• Automatic/Timed drying selection.
• Automatic/Timed cooling selection.
• Fabric selection (in automatic mode only).
• LED display of cycle time.
• Drying temperature range of 100° F - 195° F (Timed mode only).
• Drying time range of 0-60 minutes (Timed mode only).
• Cooling time range of 0-60 minutes (Timed mode only).
• Repeat Last Cycle feature.
• Safety tumble cycle.
• Reversing/Non-reversing selection (option).
• Power off after 30 minutes of non-use.

Page 3
DESCRIPTION OF CONTROL PANEL
1. ON. Turn the control on.
2. OFF/STOP. Turns the control off.
3. START. Starts the cycle.
4. COOLING TIME. With this button held down, the cooling time in minutes will
be shown in the display. To change the time, use the “up” and “down” buttons.
(The cooling time cannot be changed when Automatic Cooling is selected, “-A-”
will show in the display when this button is held down.)
5. DRYING TIME. With this button held down, the drying time in minutes will be
shown in the display. To change the time, use the “up” and “down” buttons. (The
drying time cannot be changed when Automatic Drying is selected, “-A-” will show
in the display when this button is held down.)
6. DRYING TEMPERATURE. With this button held down, the drying
temperature in degrees F will be shown in the display. To change the
temperature, use the “up” and “down” buttons. (The drying temperature cannot
be changed when Automatic Drying is selected, the temperature associated with
the fabric selected will show in the display when this button is held down.)
7. FABRIC SELECTOR. Used to select the type of fabric to be dried when
Automatic Drying is selected. The fabric selection automatically sets the
temperature:
HEAVY .................. 195ºF
COTTON ................. 195ºF
PERMANENT PRESS ....... 175ºF
DELICATE................ 160ºF
8. DRYING. Pressing this button changes the selection of Automatic or Timed
Drying.
9. COOLING. Pressing this button changes the selection of Automatic or Timed
Cooling.
10. REPEAT LAST CYCLE. Pressing this button before the start of a cycle will reset
all of the selections, temperatures, and times to what they were at the beginning of
the last cycle.
11. NON-REVERSING/REVERSING. Pressing this button changes the selection of
Non-reversing and Reversing.

Page 4

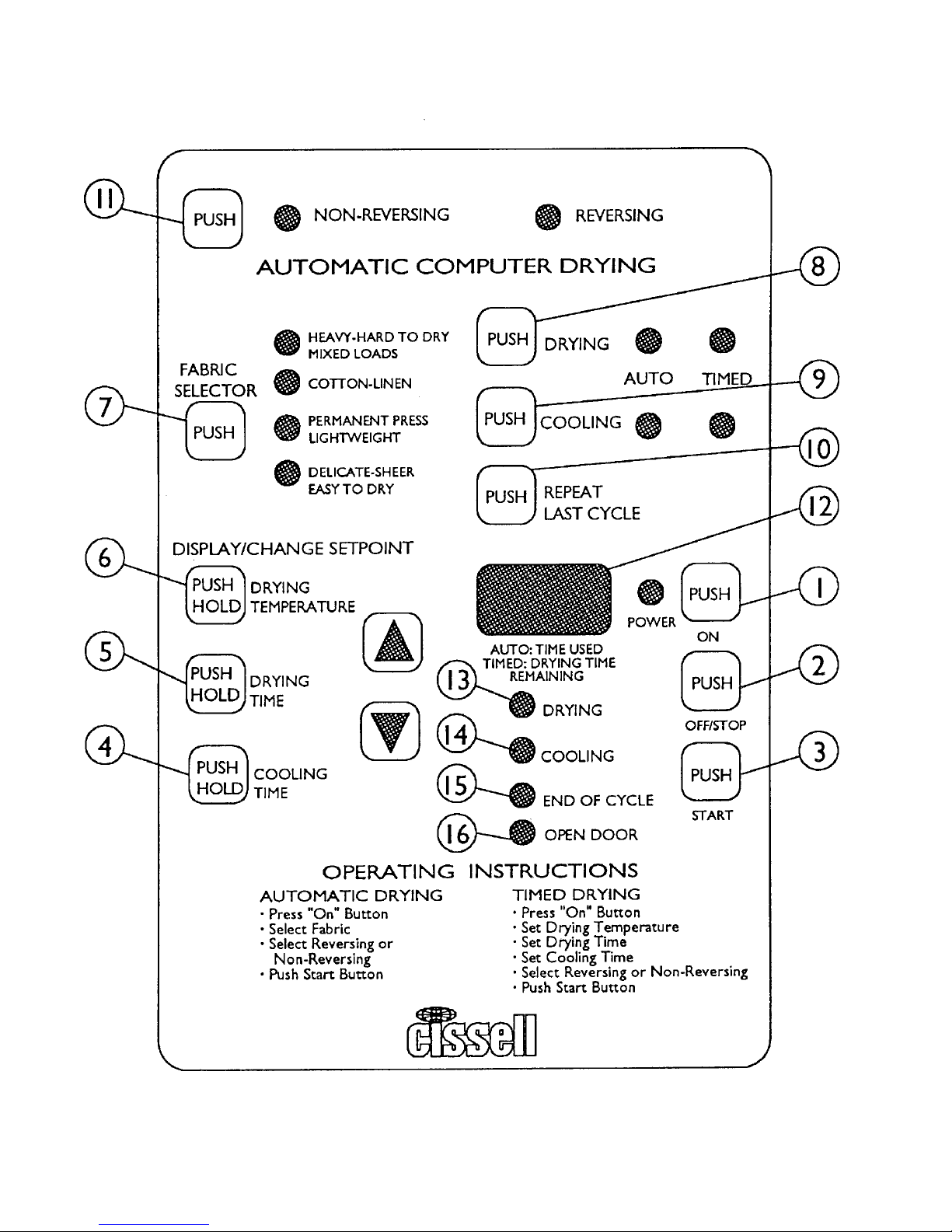

CONTROL PANEL ILLUSTRATION

Page 5
DESCRIPTION OF CONTROL PANEL (cont’d)
12. LED Display. Shows cycle time. In Automatic, it shows the time used. In
Timed, it shows the time remaining. When the DRYING TEMPERATURE button
is pressed and held, the drying temperature will be displayed. When the DRYING
TIME button is pressed and held, either the total drying time or “-A-” will be
displayed depending on whether AUTO or TIMED drying has been selected.
When the COOLING TIME button is pressed and held, either the total cooling
time or “-A-” will be displayed depending on whether AUTO or TIMED cooling has
been selected.
13. DRYING. Illuminated when in the drying cycle.
14. COOLING. Illuminated when in the cooling cycle.
15. END OF CYCLE. Illuminated at the end of the cycle.
16. OPEN DOOR. Illuminated when the door is open. (START must be pressed to
restart the cycle after closing the door.)
DISPLAY
Display Condition
“__0” Normal display between loads. Dryer is waiting for the next
load.
“012” Normal display during drying/cooling cycle. Display shows
“time used” when in automatic and “time remaining” when in
timed mode.
“012” (flashing) The door has been opened. Close the door and press START
to continue the cycle.
“-S-” (flashing) The dryer is in the Safety Tumble mode. The cycle has ended
and the dryer can be unloaded.
“_PF” (flashing) There has been a power failure. To restart the dryer, press
ON and START. To terminate the cycle press OFF/STOP.
“FFF” (flashing) The temperature sensor has failed. The dryer cannot be run
until it is repaired.
“-A-” Indicates the automatic mode has been selected. (DRYING
TIME and COOLING TIME only).

Page 6
DETAILS OF CONTROL BOARD AND OPTIONS
Switch set #1
Switch ON OFF
#8 F/C Deg F Deg C
#7 SFTY-EN enabled disabled
#6 6-ADD + 6 Min. 0
#5 REPEAT S/E Start E n d
#4 2 DEG + 2 Deg. 0
#3 5 DEG + 5 Deg. 0
#2 10 DEG + 10 Deg. 0
#1 20 DEG + 20 Deg. 0
#8 F/C. Selection of Deg F or Deg C for temperature display. Position the
switch for the desired unit.
#7 SFTY-EN. The switch enables the “safety tumble” feature. To disable,
position this switch in the OFF position.
#6 6-ADD. Used in conjunction with the HEAVY fabric selection. When
switched to the “+ 6” position, an additional 6 minutes of drying time will
be added to the cycle when HEAVY has been selected. This is to
compensate for “hard to dry” loads or mixed loads.
#5 REPEAT S/E. This switch works in conjunction with the REPEAT LAST
CYCLE button. The parameters (mode, time, temperature) of the cycle will
be stored either at the START or the END of the cycle based on this switch
setting. The parameters that are stored will be used by the control when
the REPEAT LAST CYCLE button is pressed prior to starting a drying
cycle.
#4 2 DEG. Adds 2 Degrees to the differential temperature.
#3 5 DEG. Adds 5 Degrees to the differential temperature.
#2 10 DEG. Adds 10 Degrees to the differential temperature.
#1 10 DEG. Adds 10 Degrees to the differential temperature.
NOTE: The differential temperature is part of the heating logic. The heat turns off
when the temperature in the dryer reaches the temperature set for the
drying cycle. The temperature has to drop a set number of degrees below
the drying temperature before the heat will turn on. The difference
between the cycle temperature and the temperature to turn the heat on is
called the differential temperature. This control allows the differential to
be set between 5 and 25 degrees. The control “sums” the values set on the
switches but will not go lower than 5 nor greater than 25. If the sum is less
than 5 the control will default to 5. If the sum is greater than 25, the
control will default to 25.

Page 7
CONTROL BOARD AND OPTIONS ILLUSTRATION

Page 8
DETAILS OF CONTROL BOARD AND OPTIONS (cont’d)
Switch set #2
Switch ON OFF
#8 No Function ------
#7 No Function ------
#6 No Function ------
#5 No Function ------
#4 No Function ------
#3 No Function ------
#2 No Function ------
#1 No Function ------
Thermistor Calibration
To verify the calibration of the thermistor circuit, proceed as follows:
1. Disconnect the thermistor leads going to the circuit board.
2. Short the terminals at JP5 (thermistor calibration pins).
3. Press the “up arrow” and the “down arrow” keys to display the temperature.
4. The temperature should read 158 ° F.
5. If not 158 ° F, adjust the thermistor calibration potentiometer until the display reads
158 ° F.
6. Remove the jumper from the thermistor calibration pins.
7. Connect the thermistor leads to the circuit board.
Reversing Dwell Time
This potentiometer is used to set the dwell time when the dryer has the reversing option. The
dwell is the time from when the motor turns off to when it turns on again in the opposite
direction. Turning the knob counter-clockwise increases the dwell time and turning it clockwise
decreases the dwell time.
Computer Reset
Push this button if the control “locks up”. Pushing this button will reset the control.
120/230 Switch
This switch must be switched to the correct input voltage for the control to work. Applying 230
V when switched to the 120 V position will blow fuses on the circuit board.
Alarm Relay
A socket has been included to add a relay for an alarm to signal the end of the cycle. The
ALARM 1 and ALARM 2 terminals connect to the contacts of the relay. The relay energizes at
the end of the cycle and stays energized until either the door is opened or the dryer is turned
off.

Page 9
DETAILS OF OPERATION
Status Indicators (LED’s) and Buttons
ON. Turns the control on. The control has an Auto Power Off function. If the
dryer has not been used for 30 minutes, the control will turn itself off. Push ON
to turn the control back on.
OFF/STOP. Turns the control off or stops the dryer during a cycle.
START. Starts the cycle.
POWER. The control has power.
DRYING. The dryer is in the drying part of the cycle.
COOLING. The dryer is in the cooling part of the cycle.
END OF CYCLE. The cycle is complete. The dryer is ready for the next load.
DOOR OPEN. Indicates that the door is open. If the door is opened during a
cycle, the heat will turn off and the motors will stop. To restart the cycle, close
the door and press START. When the door is closed the display will flash the
current cycle time until the START button is pressed.
AUTO/TIMED. Indicates the selection of either an automatic or timed cycle.
Pushing either the DRYING or the COOLING buttons will “toggle” the selection
from AUTO to TIMED or from TIMED to AUTO.
FABRIC SELECTION. This functions in conjunction with the selection of the
AUTO DRYING mode. When AUTO DRYING is selected, a fabric must also be
selected. The control will not allow the cycle to start unless a fabric has been
selected. Pressing (or holding down) the FABRIC SELECTOR button will
sequence through the fabric selections. Stop when the light next to the fabric
desired is lit. The fabric selection automatically sets the drying temperature.
Heavy ........... 195 ° F
Cotton .......... 195 ° F
Permanent Press . 175 ° F
Delicate ......... 160 ° F

Page 10
DETAILS OF OPERATION (cont’d)
DRYING TEMPERATURE. In AUTO drying mode, pressing and holding this
button will show in the display the temperature (in Deg F) associated with the
fabric selection. In TIMED mode, pressing and holding this button will show in
the display the current temperature for the drying cycle. In the TIMED mode
only, the temperature can be changed by pressing and holding the DRYING
TEMPERATURE button and using the “up arrow” or “down arrow” buttons.
DRYING TIME. In AUTO drying mode, pressing and holding this button will
show in the display “-A-”. This indicates that the automatic drying cycle has
been selected. In TIMED mode, pressing and holding this button will show in
the display the current time (in minutes) set for the drying cycle. In the TIMED
mode only, the drying time can be changed by pressing and holding the DRYING
TIME button and using the “up arrow” or “down arrow” buttons.
COOLING TIME. In AUTO cooling mode, pressing and holding this button
will show in the display “-A-”. This indicates that the automatic cooling cycle
has been selected. In TIMED mode, pressing and holding this button will show
in the display the current time (in minutes) set for the cooling cycle. In the
TIMED mode only, the cooling time can be changed by pressing and holding the
COOLING TIME button and using the “up arrow” or “down arrow” buttons.
“UP” AND “DOWN”. These two buttons are used in conjunction with the
DRYING TEMPERATURE, DRYING TIME, and COOLING TIME buttons to
change the value of those parameters. Pressing and releasing the button will
step the value one unit at a time (slowly for the first 5 seconds and then
rapidly). Pressing and holding both buttons will show the actual temperature in
the dryer.
REPEAT LAST CYCLE. Pressing this button before starting the drying cycle
will reset all of the parameters (mode, time and temperature) from the last cycle
run. To start a new cycle, press the REPEAT LAST CYCLE button and then
START.
NON-REVERSING/REVERSING (option). Pressing this button “toggles”
between NON-REVERSING and REVERSING.
Safety Tumble
At the end of the cycle the control goes into the “Safety Tumble” mode. “-S-” will
flash in the display. If the door of the dryer is not opened in 2 minutes or the
control is not turned off, the dryer will start running in cooling for 30 minutes to
prevent wrinkles from being set in the goods.

Page 11
DETAILS OF OPERATION (cont’d)
Power Failure
If there is a power failure that lasts longer than 5 seconds, the control will
temporarily halt the cycle and flash “_PF” in the display. To restart the cycle,
push ON and the START. To terminate the cycle, push OFF/STOP. For power
failures less than 24 hours, the cycle parameter will be remembered. When the
power failure is longer than 24 hours, all cycle parameters will be lost and must
be re-entered.
Thermistor Failure
If the thermistor (temperature sensor) should fail, the control will halt the cycle
and flash “FFF” in the display. The dryer should not be restarted until the
thermistor is replaced.
Automatic Power Down
If a cycle is not run for 30 minutes, the control will automatically turn itself off.
Push ON to power up the control.
Dryness Sensor
When in the AUTO drying mode, the length of the cycle is controlled by a
dryness sensor. The sensor works on a “capacitor charge time” principle. The
electronic circuit looks at the charge on the capacitor in the dryness circuit.
When the capacitor is connected to the dryness probe that is located in the
center of the basket. Wet goods hitting the probe will “discharge” the capacitor
or prevent it from reaching full charge. As the goods dry, they have less effect on
discharging the capacitor until finally it is fully charged ending the drying cycle.
The time to charge the capacitor with no load in the dryer is listed below:
Charge Time (in minutes)
HEAVY 11.5
COTTON 5.5
PERMANENT PRESS 5.5
DELICATE 5.5
Automatic Cooling
When in the AUTO cooling mode, the cycle will end when the temperature goes
below 135° F.

Page 12

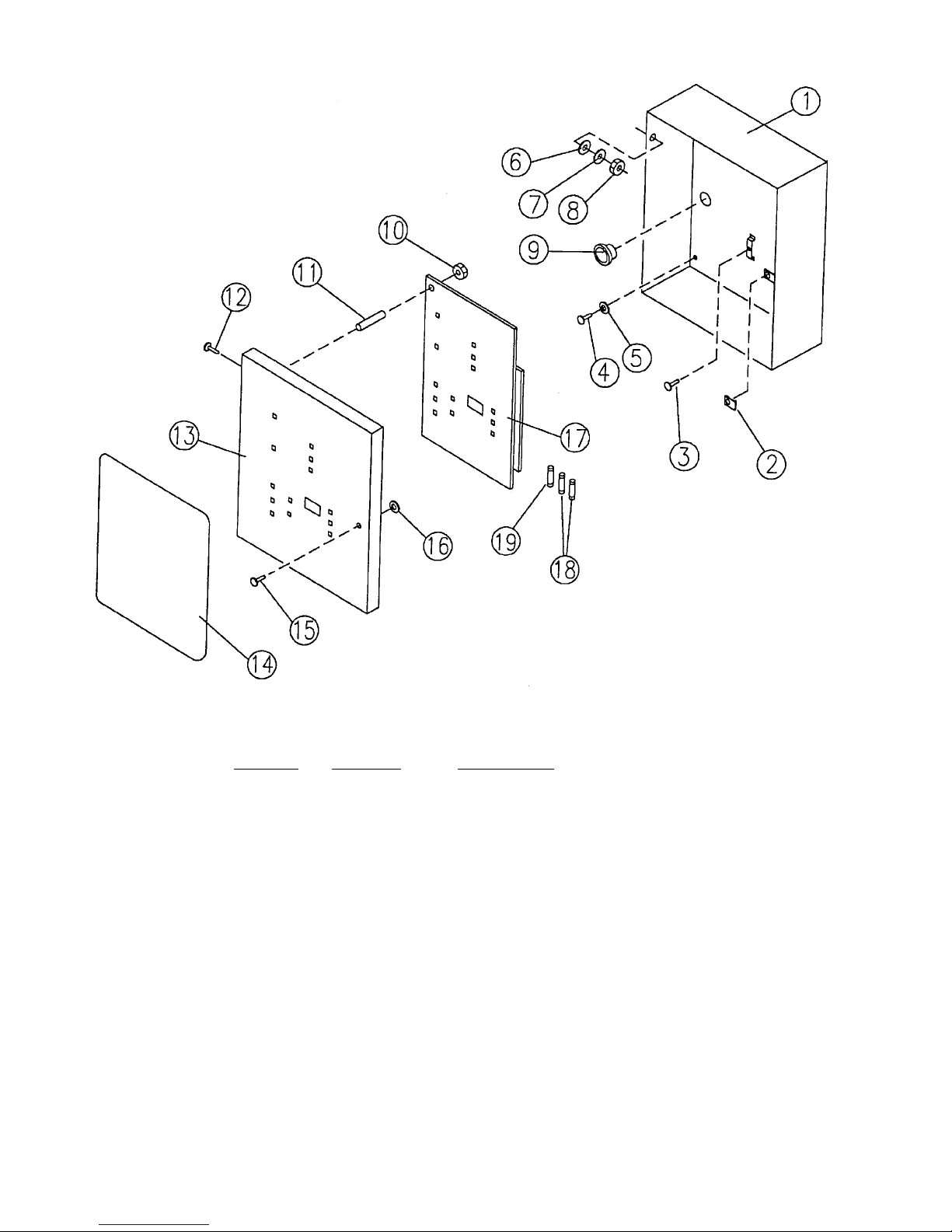

CONTROL BOX ASSEMBLY
150 Lb. Dryer with Reversing
Ref. No. Part No. Description
1 TU9584 Control Box
2 FG344 Speed Nut
3 TU7733 #8x 1/2” Screw
4 CB36 1/4 - 20 x 1/2” Hex Head Bolt
5 TU2846 Washer
6 P104 1/4” Cut Washer
7 FB187 #10 Lockwasher
8 TU2842 #10 - 32 Hex Nut
9 TU9693 Snap Bushing - 2-1/2”
10 TU3400 #6 - 32 Hex Nut
11 TU12254 Spacer
12 TU3479 #10 - 32 Truss Head Screw
13 TU12843 Control Panel
14 TU12195 Control Panel Label
15 FG343 Screw Fastener
16 FG345 Retaining Washer
17 TU12105 Reversing Control Board
18 TU12863 Fuse - 5 Amp.
19 ET235 Fuse - 3/8 Amp.

Page 13
CONTROL PANEL & ACCESS DOOR ASSEMBLY
110 Lb. Dryer Reversing/Non-Reversing
Ref. No. Part No. Description
1 TU3400 #6-32 Brass Nut
2 TU12254 Spacer
3 TU12105 Reversing Control Board
TU12106 Non-Rev. Control Board
4 TU12195 Reversing Panel Label
TU12196 Non-Rev. Panel Label
5 TU12842 Control Panel
6 TU12841 Access Door
7 TU11568 Trim
8 TU8013 CissellLabel
9 TU3479 #10-32 Truss Hd. Screw
10 P104 1/4” Cut Washer
11 FB187 #10 Lockwasher
12 TU2842 #10-32 Hex Nut
13 FG343 Screw Fastener
14 TU1771 Twin Clip Nut
15 TU9524 #6x 5/16” Screw
16 TU6808 Reset Button
17 TU5739 Support Rod
18 TU12863 Fuse - 5 Amp.
19 ET235 Fuse - 3/8 Amp.

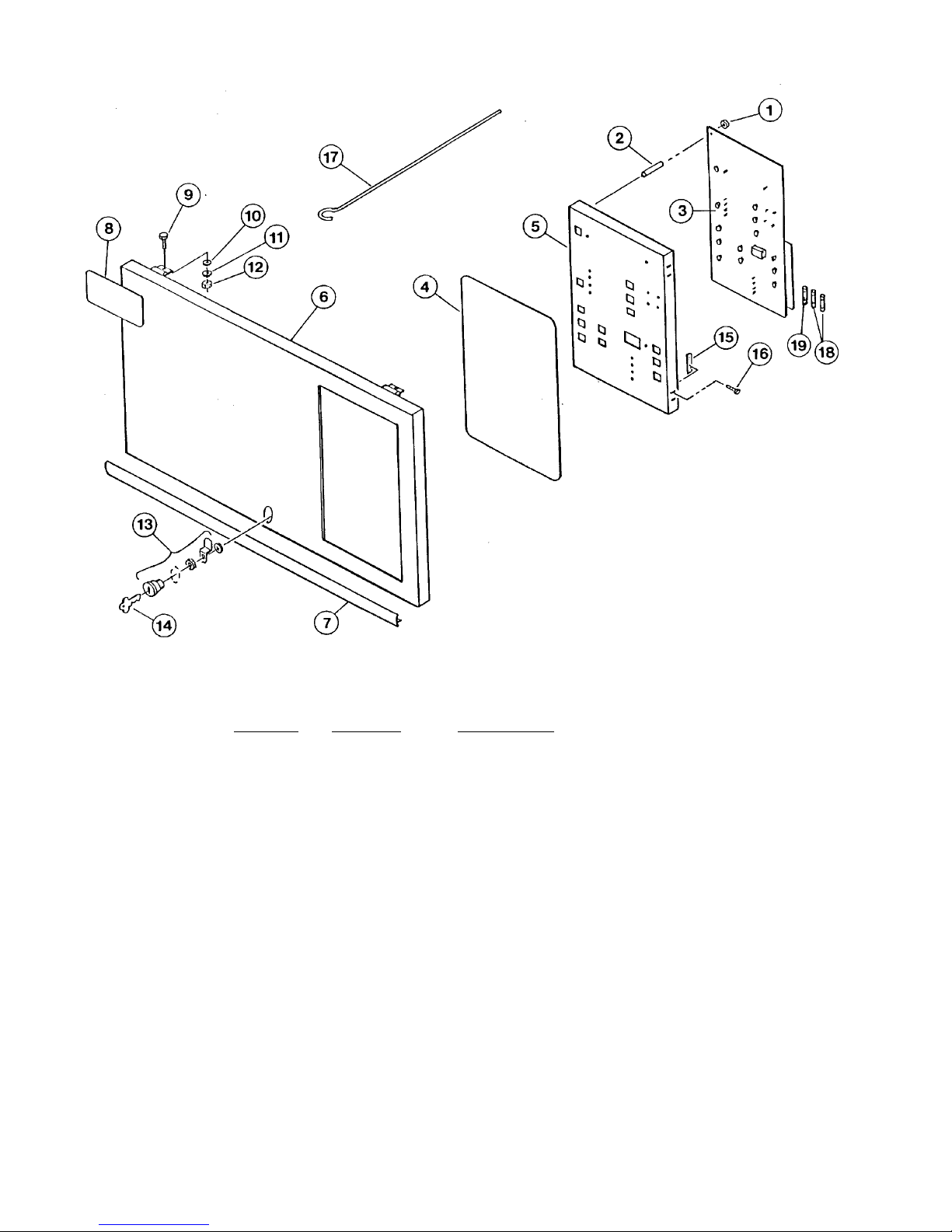

Page 14
CONTROL PANEL & ACCESS DOOR ASSEMBLY
50/75 Lb. Dryers Reversing/Non-Reversing
Ref. No. Part No. Description
1 TU3400 #6-32 Brass Nut
2 TU12254 Spacer
3 TU12105 Reversing Control Board
TU12106 Non-Rev. Control Board
4 TU12195 Reversing Panel Label
TU12196 Non-Rev. Panel Label
5 TU12835 Control Panel
6 TU12834 Access Door
7 TU7983 Trim
8 TU8013 CissellLabel
9 TU3479 #10-32 Truss Hd. Screw
10 P104 1/4” Cut Washer
11 FB187 #10 Lockwasher
12 TU2842 #10-32 Hex Nut
13 TU4822 Lock
14 TU2844 Key JWC2
15 TU1771 Twin Clip Nut
16 TU9524 #6x 5/16” Screw
17 TU5739 Support Rod
18 TU12863 Fuse - 5 Amp.
19 ET235 Fuse - 3/8 Amp.
