Cissell 40-175 lb User manual

Specific tions
CP040 (H*) CP060 (H*) CP080 (H*) CP0100 (H*) CP0125 (H*) CP0140 (H*) CP0175 (H*)
CP040 (M*) CP060 (M*) CP080 (M*) CP0100 (M*) N/A (M*) CP0140 (M*) N/A (M*)
Capacity - lb (kg) 40 (18.1) 60 (27.2) 81.6 (37.0) 101.0 (45.9) 125 (57) 141.7 (64.3) 175 (79.5)
Low Wash Speed - RP /G-Force 6/0.014 6/0.016 6/0.019 6/0.019 6/0.022 6/0.022 6/0.022
Normal Wash Speed - RP /G-Force 46/0.8 43/0.8 39/0.8 39/0.8 36/0.8 36/0.8 36/0.8
Distribution Speed - RP /G-Force 72/2.0 67/2.0 62/2.0 62/2.0 57/2.0 57/2.0 57/2.0
Low Extract Speeds - RP /G-Force 511/100 477/100 437/100 437/100 405/100 405/100 405/100
edium Extract Speeds - RP /G-Force** 605/140 564/140 516/140 516/140 479/140 479/140 479/140
High Extract Speeds - RP /G-Force** 775/230 723/230 662/230 662/230 573/200 573/200 573/200
aximum SmartSpin™ Speed** 885/300 826/300 756/300 756/300 701/300 630/242 630/242
Diameter - in (mm) 27" (886) 31" (787) 37" (940) 37" (940) 43" (1092) 43" (1092) 43" (1092)
Depth - in (mm) 19" (483) 22" (559) 21" (533) 26" (660) 24" (609.6) 27" (686) 32" (812.8)
Volume - ft3(liters3) 6.3 (178.3) 9.6 (271.7) 13.1 (370.7) 16.2 (458.5) 20.2 (570.5) 22.7 (642.4) 26.9 (760.7)
Overflow Size - in (mm) 1 1/2" (3.81) 1 1/2" (3.81) 1 1/2" (3.81) 1 1/2" (3.81) 3" (76.2) 3" (76.2) 3" (76.2)
Drain Outlet Size - in (mm) 3" (76.2) 3" (76.2) 3" (76.2) 3" (76.2) 3" (76.2) 3" (76.2) 3" (76.2)
Number of Drain Outlets (standard/optional) 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2"
Water Inlet Connection size - in (mm) 3/4" NPT 3/4" NPT 3/4" NPT 3/4" NPT 3/4" NPT 1 1/4" NPT 1 1/4" NPT
Number of Inlets (standard/optional) 2/3 2/3 2/3 2/3 2/3 2/3 2/3
Circuit Breaker -
200-240v/3ph 15 20 30 30 40 40 60
380-480v/3ph 15 15 20 20 20 20 30
Depth - in (mm) 45 5/6" (1158) 47 7/8" (1213) 51 7/16" (1306) 56 7/16" (1433) 56 1/8" (1425) 59 1/8" (1502) 64 1/8" (1628)
Width - in (mm) 32" (813) 34 1/2" (876) 48 1/2" (1232)†48 1/2" (1232)†56 3/8" (1430)†56 3/8" (1430)†56 3/8" (1430)†
Height - in (mm) 57" (1448) 62 5/6" (1590) 70" (1778) 70" (1778) 77 1/8" (1958) 77 1/8" (1958) 77 1/8" (1958)
Door Opening Diameter - in (mm) 15" (381) 17" (432) 20" (508) 20" (508) 24 1/2" (622) 24 1/2" (622) 24 1/2" (622)
Net Weight - lb (kg) 1690 (768) 1795 (816) 1926 (876) 2167 (985) 2749 (1247) 3027 (1376) 3277 (1490)
Shipping Weight - lb (kg) 1770 (805) 1895 (861) 2026 (921) 2267 (1031) 2849 (1292) 3127 (1421) 3377 (1535)
Shipping Volume - ft3(m3) 63 (1.78) 76.9 (2.18) 110 (3.11) 122 (3.45) 160 (4.53) 167 (4.73) 179 (5.16)
Agency Approvals cETLus, CE cETLus, CE cETLus, CE cETLus, CE cETLus, CE cETLus cETLus
*(H) = High-Sp d (M) = M dium-Sp d
**Appli s to high-sp d wash r- xtractors only.
†Includ s 6" for fiv -compartm nt supply disp ns (optional).
Du to continuous improv m nts, d sign and sp cifications subj ct to chang without notic .
Th quality manag m nt syst ms at all Allianc Laundry Syst ms manufacturing faciliti s ar
r gist r d as ISO 9001:2000 compliant.
Print d in th U.S.A.
Print d on pap r manufactur d with virgin pulp from c rtifi d sourc s and
a minimum of 10% post-consum r r cov r d fib r.
Medium nd High-Speed
OPL W sher-Extr ctors
40 - 175 lb
Exceptional Choices
AL07-212 ©Copyright 2007 Alliance Laundry Systems LLC

Specific tions
CP040 (H*) CP060 (H*) CP080 (H*) CP0100 (H*) CP0125 (H*) CP0140 (H*) CP0175 (H*)
CP040 (M*) CP060 (M*) CP080 (M*) CP0100 (M*) N/A (M*) CP0140 (M*) N/A (M*)
Capacity - lb (kg) 40 (18.1) 60 (27.2) 81.6 (37.0) 101.0 (45.9) 125 (57) 141.7 (64.3) 175 (79.5)
Low Wash Speed - RP /G-Force 6/0.014 6/0.016 6/0.019 6/0.019 6/0.022 6/0.022 6/0.022
Normal Wash Speed - RP /G-Force 46/0.8 43/0.8 39/0.8 39/0.8 36/0.8 36/0.8 36/0.8
Distribution Speed - RP /G-Force 72/2.0 67/2.0 62/2.0 62/2.0 57/2.0 57/2.0 57/2.0
Low Extract Speeds - RP /G-Force 511/100 477/100 437/100 437/100 405/100 405/100 405/100
edium Extract Speeds - RP /G-Force** 605/140 564/140 516/140 516/140 479/140 479/140 479/140
High Extract Speeds - RP /G-Force** 775/230 723/230 662/230 662/230 573/200 573/200 573/200
aximum SmartSpin™ Speed** 885/300 826/300 756/300 756/300 701/300 630/242 630/242
Diameter - in (mm) 27" (886) 31" (787) 37" (940) 37" (940) 43" (1092) 43" (1092) 43" (1092)
Depth - in (mm) 19" (483) 22" (559) 21" (533) 26" (660) 24" (609.6) 27" (686) 32" (812.8)
Volume - ft3(liters3) 6.3 (178.3) 9.6 (271.7) 13.1 (370.7) 16.2 (458.5) 20.2 (570.5) 22.7 (642.4) 26.9 (760.7)
Overflow Size - in (mm) 1 1/2" (3.81) 1 1/2" (3.81) 1 1/2" (3.81) 1 1/2" (3.81) 3" (76.2) 3" (76.2) 3" (76.2)
Drain Outlet Size - in (mm) 3" (76.2) 3" (76.2) 3" (76.2) 3" (76.2) 3" (76.2) 3" (76.2) 3" (76.2)
Number of Drain Outlets (standard/optional) 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2"
Water Inlet Connection size - in (mm) 3/4" NPT 3/4" NPT 3/4" NPT 3/4" NPT 3/4" NPT 1 1/4" NPT 1 1/4" NPT
Number of Inlets (standard/optional) 2/3 2/3 2/3 2/3 2/3 2/3 2/3
Circuit Breaker -
200-240v/3ph 15 20 30 30 40 40 60
380-480v/3ph 15 15 20 20 20 20 30
Depth - in (mm) 45 5/6" (1158) 47 7/8" (1213) 51 7/16" (1306) 56 7/16" (1433) 56 1/8" (1425) 59 1/8" (1502) 64 1/8" (1628)
Width - in (mm) 32" (813) 34 1/2" (876) 48 1/2" (1232)†48 1/2" (1232)†56 3/8" (1430)†56 3/8" (1430)†56 3/8" (1430)†
Height - in (mm) 57" (1448) 62 5/6" (1590) 70" (1778) 70" (1778) 77 1/8" (1958) 77 1/8" (1958) 77 1/8" (1958)
Door Opening Diameter - in (mm) 15" (381) 17" (432) 20" (508) 20" (508) 24 1/2" (622) 24 1/2" (622) 24 1/2" (622)
Net Weight - lb (kg) 1690 (768) 1795 (816) 1926 (876) 2167 (985) 2749 (1247) 3027 (1376) 3277 (1490)
Shipping Weight - lb (kg) 1770 (805) 1895 (861) 2026 (921) 2267 (1031) 2849 (1292) 3127 (1421) 3377 (1535)
Shipping Volume - ft3(m3) 63 (1.78) 76.9 (2.18) 110 (3.11) 122 (3.45) 160 (4.53) 167 (4.73) 179 (5.16)
Agency Approvals cETLus, CE cETLus, CE cETLus, CE cETLus, CE cETLus, CE cETLus cETLus
*(H) = High-Sp d (M) = M dium-Sp d
**Appli s to high-sp d wash r- xtractors only.
†Includ s 6" for fiv -compartm nt supply disp ns (optional).
Du to continuous improv m nts, d sign and sp cifications subj ct to chang without notic .
Th quality manag m nt syst ms at all Allianc Laundry Syst ms manufacturing faciliti s ar
r gist r d as ISO 9001:2000 compliant.
Print d in th U.S.A.
Print d on pap r manufactur d with virgin pulp from c rtifi d sourc s and
a minimum of 10% post-consum r r cov r d fib r.
Medium nd High-Speed
OPL W sher-Extr ctors
40 - 175 lb
Exceptional Choices
AL07-212 ©Copyright 2007 Alliance Laundry Systems LLC

EXCEPTIONAL CONTROL
Cissell’s medium and high-speed washer-extractors are
equipped with the technologically advanced PS40 micro-
processor control. The control can help you realize greater
energy savings through its efficient design.
The Control Features:
• Ten factory programmed cycles.
• 40 additional programmable cycles, which give
managers greater control of the wash process
through setting wash cycles, spin speeds and
water levels.
• A reliable lockout feature that protects against
unauthorized programming.
• An infrared connection that enables managers to
program the machine using a PC.
EXCEPTIONAL CHOICES
For more than half a century, Cissell has been an industry
leader in the design and innovation of laundry equipment.
Our unwavering commitment to building durable, reliable
and affordable equipment has resulted in Exceptional
Choices for our customers. No other brand can provide
you with as broad a product range combined with out-
standing quality, reliability, technical support and
dependable distributors.
Cissell’s washer-extractors are recognized worldwide for
producing superior results and maximum productivity.
When you put Cissell in your laundry, you are choosing
products that will stand up to the toughest demands.
Whether you choose our medium or high-speed models,
you’ll receive top quality results every cycle. Our high-
performance laundry equipment is built to give you
complete control to tailor each wash to the specific
requirements of the individual load. In addition, the large
capacity range of our washers ensures there’s a size to
meet your unique needs. Exceptional Choices — it’s
what makes Cissell the best overall value for your laundry.

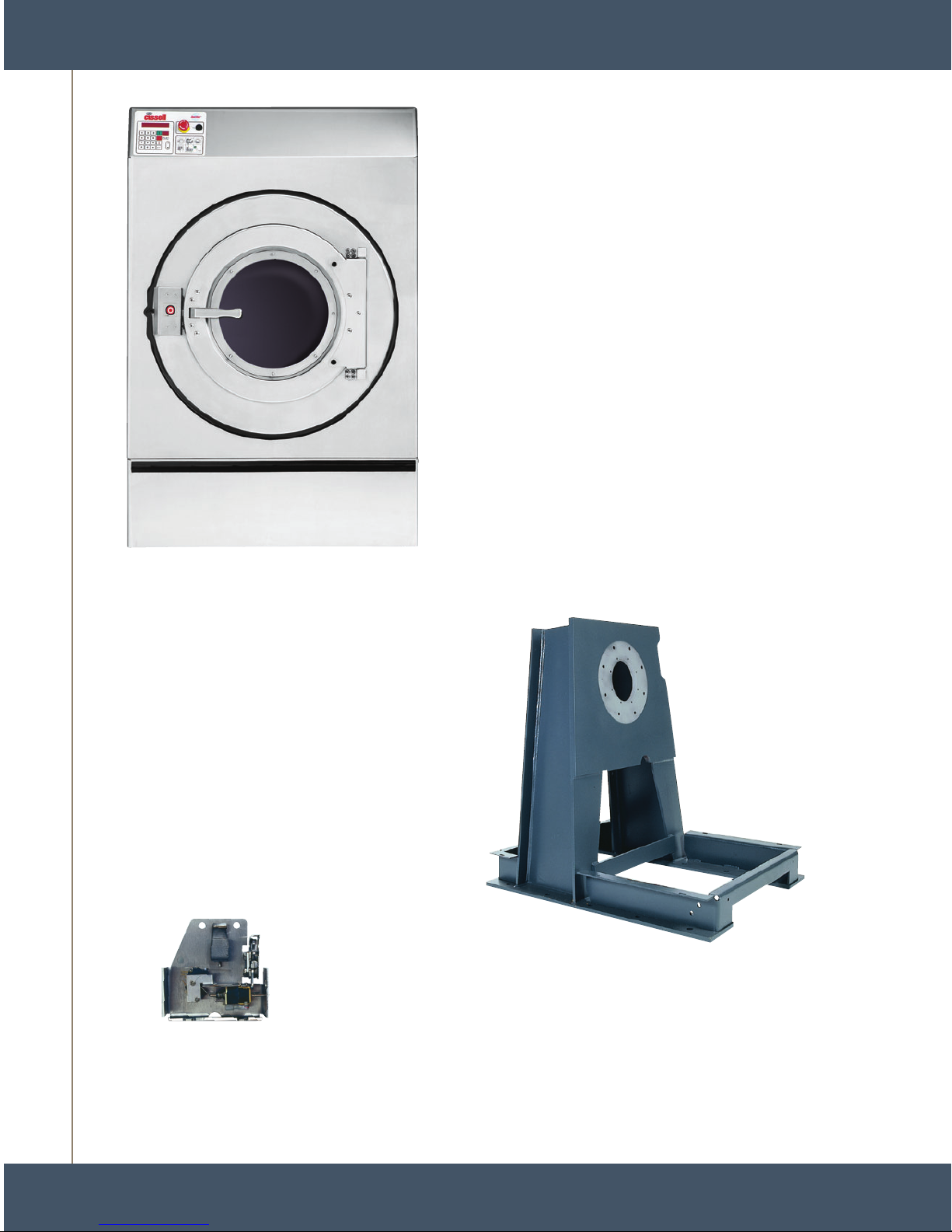

The Washer-Extractor Features:
• The secret to our strength stems from Cissell’s
steel frame construction, which limits the number
of welded parts and provides superior stability.
• Triple v-ring water seals and a large leak-off
protect the bearings of the washer.
• An extra-large stainless steel door with a rugged
hinge and handle stand up to the repeated use
of a heavy-volume laundry.
• Cissell’s 6° leanback sends the laundry load
toward the back of the machine, taking pressure
off the bearings. Coupled with our large 180° door
opening, the leanback makes loading and
unloading much easier.
• A dependable door interlock ensures the machine
only operates after the door is closed and locked.
The secure design represents
outstanding strength,
reliability and safety.
EXCEPTIONAL INNOVATION
Cissell’s SmartSpin™ technology can make an immediate
positive impact on the efficiency of your laundry operation.
The SmartSpin™ Features:
• A maximum 300 G-Force (on high-speed models; 175
on medium-speed machines) extract speed to remove
more water from loads and reduce drying times.
• Automatic spin adjustment, which detects an out-of-
balance load and adjusts the RP to maximize the
G-Force.
• Our continual spin feature, which ensures that even
excessively out-of-balance loads still go through an
extract cycle, though at a reduced G-Force.
EXCEPTIONAL VALUE
For more peace of mind, all Cissell washer-extractors come with
an exceptional three-year warranty. We will cover any non-perish-
able part that fails due to defect in material or workmanship for
three years from the date of installation. No one else gives you
so many advantages with so much affordability. With Ci ell’ SmartSpin™ innovation, the formula for improving your bottom line i imple: le time plu le energy equal greater
aving and increa ed productivity.

EXCEPTIONAL CONTROL
Cissell’s medium and high-speed washer-extractors are
equipped with the technologically advanced PS40 micro-
processor control. The control can help you realize greater
energy savings through its efficient design.
The Control Features:
• Ten factory programmed cycles.
• 40 additional programmable cycles, which give
managers greater control of the wash process
through setting wash cycles, spin speeds and
water levels.
• A reliable lockout feature that protects against
unauthorized programming.
• An infrared connection that enables managers to
program the machine using a PC.
EXCEPTIONAL CHOICES
For more than half a century, Cissell has been an industry
leader in the design and innovation of laundry equipment.
Our unwavering commitment to building durable, reliable
and affordable equipment has resulted in Exceptional
Choices for our customers. No other brand can provide
you with as broad a product range combined with out-
standing quality, reliability, technical support and
dependable distributors.
Cissell’s washer-extractors are recognized worldwide for
producing superior results and maximum productivity.
When you put Cissell in your laundry, you are choosing
products that will stand up to the toughest demands.
Whether you choose our medium or high-speed models,
you’ll receive top quality results every cycle. Our high-
performance laundry equipment is built to give you
complete control to tailor each wash to the specific
requirements of the individual load. In addition, the large
capacity range of our washers ensures there’s a size to
meet your unique needs. Exceptional Choices — it’s
what makes Cissell the best overall value for your laundry.
The Washer-Extractor Features:
• The secret to our strength stems from Cissell’s
steel frame construction, which limits the number
of welded parts and provides superior stability.
• Triple v-ring water seals and a large leak-off
protect the bearings of the washer.
• An extra-large stainless steel door with a rugged
hinge and handle stand up to the repeated use
of a heavy-volume laundry.
• Cissell’s 6° leanback sends the laundry load
toward the back of the machine, taking pressure
off the bearings. Coupled with our large 180° door
opening, the leanback makes loading and
unloading much easier.
• A dependable door interlock ensures the machine
only operates after the door is closed and locked.
The secure design represents
outstanding strength,
reliability and safety.
EXCEPTIONAL INNOVATION
Cissell’s SmartSpin™ technology can make an immediate
positive impact on the efficiency of your laundry operation.
The SmartSpin™ Features:
• A maximum 300 G-Force (on high-speed models; 175
on medium-speed machines) extract speed to remove
more water from loads and reduce drying times.
• Automatic spin adjustment, which detects an out-of-
balance load and adjusts the RP to maximize the
G-Force.
• Our continual spin feature, which ensures that even
excessively out-of-balance loads still go through an
extract cycle, though at a reduced G-Force.
EXCEPTIONAL VALUE
For more peace of mind, all Cissell washer-extractors come with
an exceptional three-year warranty. We will cover any non-perish-
able part that fails due to defect in material or workmanship for
three years from the date of installation. No one else gives you
so many advantages with so much affordability. With Ci ell’ SmartSpin™ innovation, the formula for improving your bottom line i imple: le time plu le energy equal greater
aving and increa ed productivity.
