Cistermiser Novatap User manual

Infrared Tap s
Installation
Guide
a
Cistermiser
OUR WORLD
IS
WATER

2 | www.cistermiser.co.uk
Optional extras (Suitable for all Cistermiser IR Range products):
Infrared configuration unit (ICU)
Multi product power supply unit (PSUC)
1. Introduction
Cistermiser’s infrared taps are available with either an internal or external valve.
The taps all use infrared technology which ensures maximum hygiene and water efficiency.
All taps are supplied configured with the 5 litres per minute aerators installed but also include a 3.5 litres
per minute laminar nozzle. The taps have a programmable hygiene cycle to reduce the risk of legionella.
1
2
34
59
10
11 x 4
7
8
x 4
x 2
x 2
612
A
13
14
1
2
3
4
5
89
10 x 4
7x 2
11
12
13
14
*LT versions include one power option + one flow regulator
Supplied parts
Internal valve
1. Spout body
2. Flexible hose
3. Spout gasket
4. Bracket gasket
5. Fixing bracket
6. Screw Ax 4
7. Washer x 2
8. Fixing nut x 2
9. Mains adapter*
10. Battery case*
11. Sticky pad x 4
12. Filter
13. 3.5 litre nozzle (blue)*
14. Nozzle tool
External valve
1. Tap body
2. Flexible hose
3. Spout gasket
4. Bracket gasket
5. Fixing bracket
6. Screw Ax 4
7. Fixing nut x 2
8. Mains adapter*
9. Battery case*
10. Sticky pad
11. Solenoid valve
12. 3.5 litre nozzle (blue)*
13. Nozzle tool
14. Extension cable – solenoid
cable 0.5m 6Ax 4
^
0
!
S
®
Q
IC
&
•
'
»

www.cistermiser.co.uk | 3

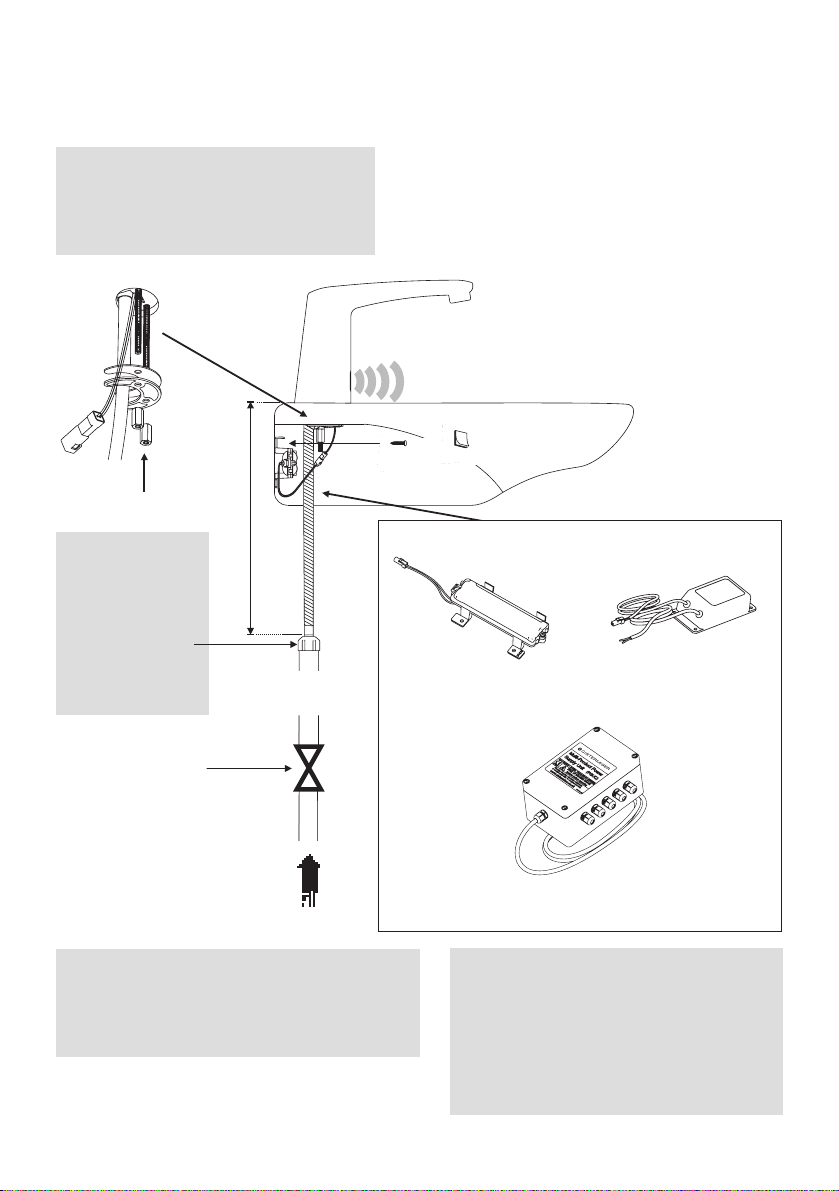

2. Installation of internal valve tap
450mm
Water supply
Isolating valve
(not supplied)
8mm AF
Spanner
G3/8 (3/8”
BSP) Female
The tap can be mounted on any horizontal
surface up to 40mm thick. It requires a hole of
32.5-36mm diameter.
Power options
Requires 4 x AA (LR6)
alkaline batteries
Requires 1A fused spur
OR
Multi product power supply unit (not supplied).
Suitable for powering up to 20 units.
OR
NOTE:
Flush pipework prior to installation.
Do not install opposite a mirror.
Minimum 0.5 Bar dynamic pressure.
NOTE:
When installing the inlet pipework, it is good
plumbing practice to ensure that there is an
accessible isolating valve upstream of the tap.
NOTE:
Ensure pre-fitted
filter is retained
within flexible
hose. The tap’s
performance will
be reduce without
the filter.
x 4 x 4
OR
How to change the nozzle
Use the nozzle tool to unscrew the 5 litre (blue)
nozzle. Insert the 3.5 litre (blue) nozzle and
tighten until flush with tap body; no part should
be protruding from the end of the tap. Ensure
the nozzle is not over-tightened as this may
pinch the “O” ring and cause the tap to leak.

4 | www.cistermiser.co.uk
400mm
Water supply
8mm AF
Spanner

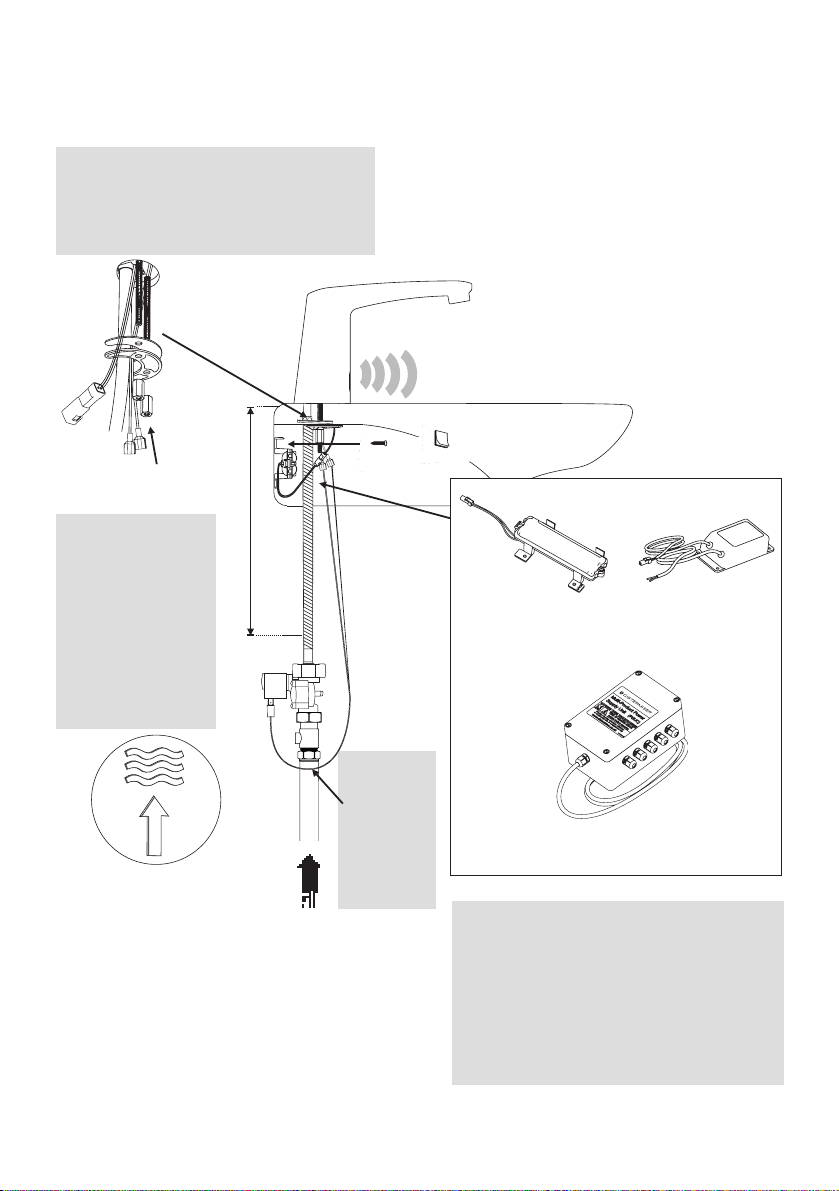

Installation of external valve tap
The tap can be mounted on any horizontal
surface up to 40mm thick. It requires a hole
of 32.5-36mm diameter.
How to change the nozzle
Use the nozzle tool to unscrew the 5 litre
(blue) nozzle. Insert the 3.5 litre (blue)
nozzle and tighten until flush with tap body;
no part should be protruding from the
end of the tap. Ensure the nozzle is not
over-tightened as this may pinch the “O”
ring and cause the tap to leak.
NOTE:
Use extension
cable where
necessary. Ensure
correct polarity is
maintained; connect
orange lead to
orange leads and
blue leads to blue
leads.
Requires 4 x AA (LR6)
alkaline batteries
Requires 1A
fused spur
Multi product power supply unit (not supplied).
Suitable for powering up to 20 units.
Power options
OR
OR
NOTE:
Flush pipework prior to installation.
Do not install opposite a mirror.
Minimum 0.5 Bar dynamic pressure.
NOTE:
Ensure
filter is
fitted to the
inlet of the
solenoid
valve.
x 4 x 4
OR

www.cistermiser.co.uk | 5
3. Power connections
If using the battery case, open it and fit 4 Alkaline AA (LR-6) batteries as indicated. Reseal and fasten into
place on panel using screws Aor with the sticky pads.
If using the mains adapter, fasten into place on panel in a dry location using screws Aor with the sticky
pads and connect the un-terminated mains cable to a 50Hz 230V AC single phase supply via a 1A fused
spur (not supplied).
Electrical connection
Connect the power connector from the tap to the mains adapter, or in the case of a battery powered
installation, the battery case.
NOTE:
Only one power source should be connected at any time, either mains or batteries. It is not possible
to connect both simultaneously.
4. Usage advice and specification
Minimum operating pressure: 0.5 bar (dynamic)
Maximum operating pressure: 6 bar (dynamic or static – whichever is highest)
Factory settings
Range: ~18cm
Run-on time: 2 sec
Power requirements: Either 6VDC from 4 x alkaline AA (LR6) batteries or 6VDC
regulated from mains adapter. (1A fused spur required)
Battery life: 2 years in normal conditions with recommended batteries.
A single red flashing of the LED indicates that the batteries
are low and need to be replaced.
Cleaning: Clean with non-abrasive cleaner and water only.
Lens care: Infrared lens can be polished with a soft cloth.
Electronic specification
Control classification: Independent
Maximum load: Internal valve models: 1.2W 0.2A (6VDC)
External valve models: 2W 0.33A (6VDC)
EMC emissions: Tested at above load
Rated temperature range: 0-40° C
Action classification: Type 1.Y
Pollution classification: Degree 1

6 | www.cistermiser.co.uk

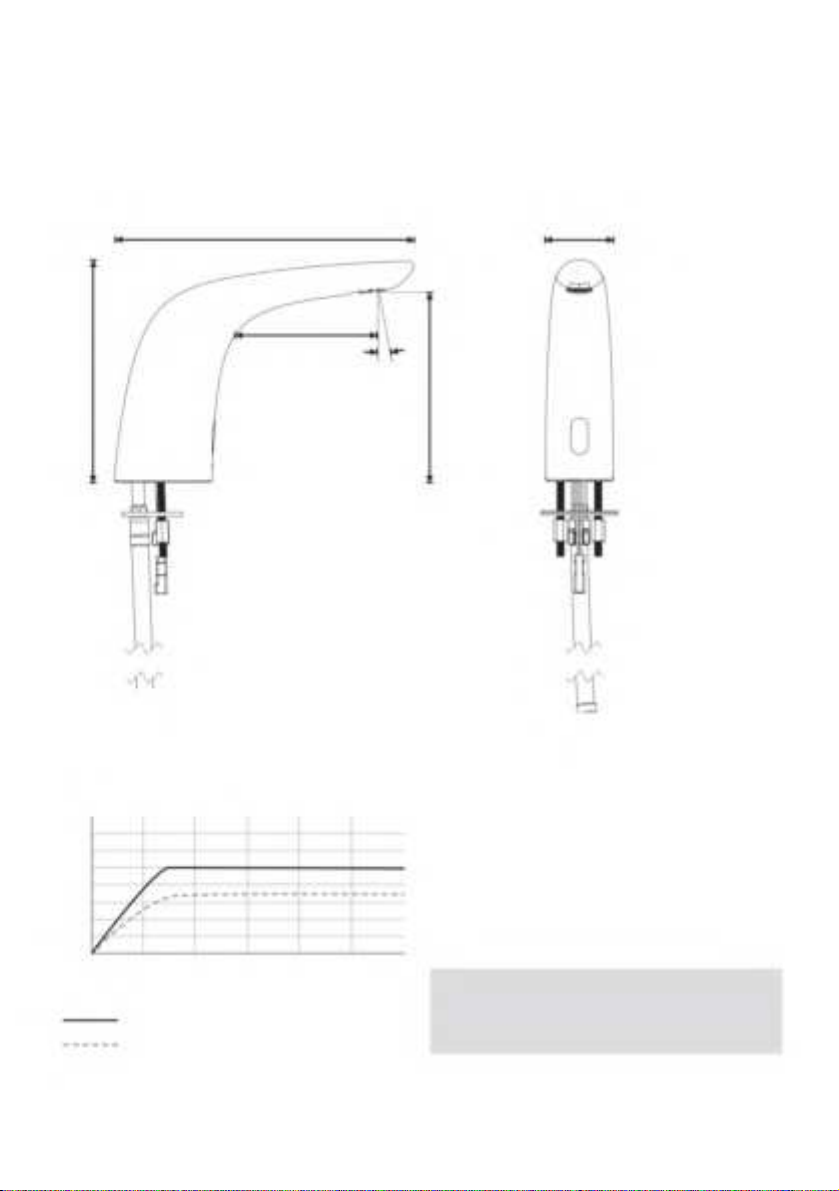

5. Component dimensions
Novatap
147mm
45mm200mm
120mm
12°

www.cistermiser.co.uk | 7
NOTE:
Valve may fail to operate at under 0.5 bar
dynamic pressure.
Flow Rate (litre/min)
Supply pressure (bar)
8
7
2 3 4
6
5
4
3
2
5
1
0
1
Flow rate chart
0
5 litres per minute aerated (blue)
3.5 litres per minute non-aerated (blue)

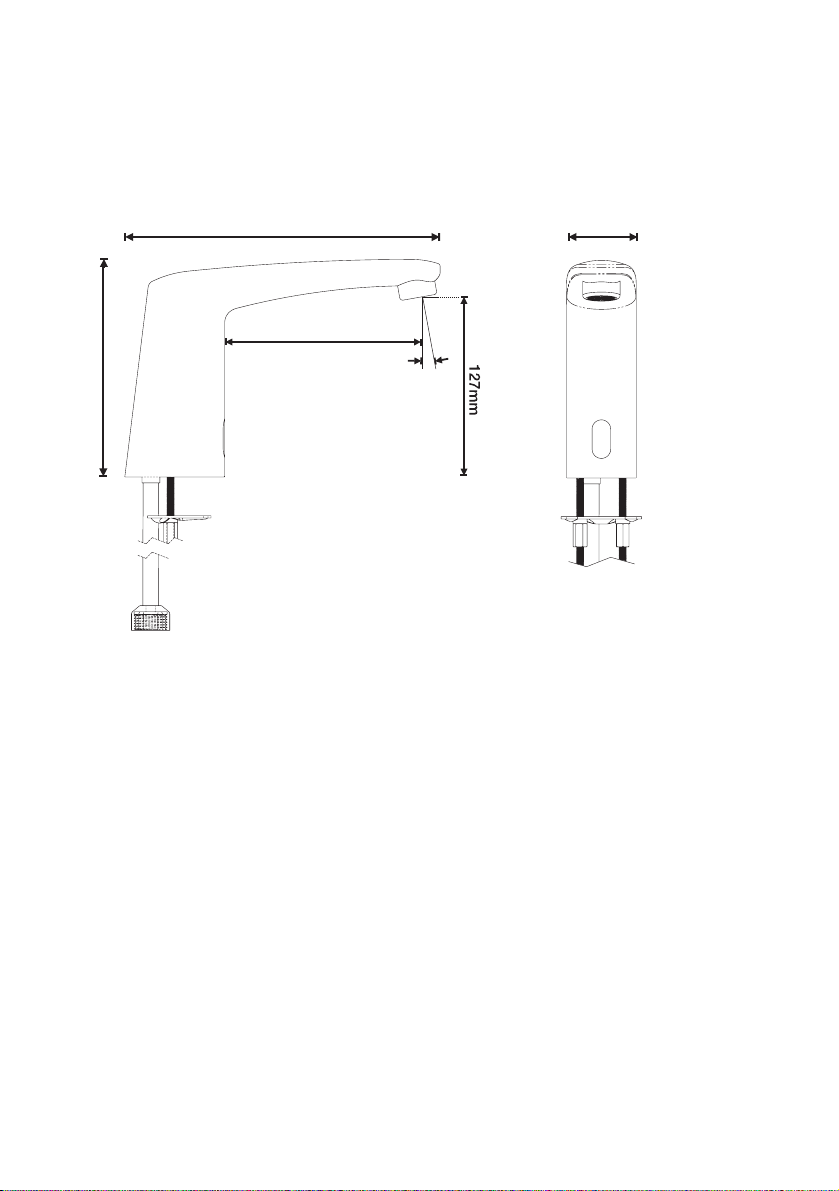

Vectatap
150mm
205mm 46mm
110mm
7°
130mm
M
-
I
I
A
A
V
v
'
fM
X
o
'

8 | www.cistermiser.co.uk
6. Advanced settings guide
Carry out only if settings need to be changed
1Disconnect power, wait for 5 seconds and reconnect.
You are now in configuration mode
When flashing amber Place hand 4-6cm from
sensor until constant green.
Then remove hand.
Sensing range adjustment
Wait for single
red flashing LED
to enter sensing
range mode
ABriefly place your hand in front
of the sensor until the green
LED flashes slowly. Range
configuration mode will then be
ready
B
Move your hand to the distance from the sensor you would like to
set as maximum range. Wait 8 seconds until constant green shows
C
Run-on time adjustment
Wait for double
red flashing
LED to enter
run-on time
A
Sensor distance
is now set
When the water has run for the desired run-on time, move your hand out of the line
of sight of the sensor. The water will cease and the run-on time will be set.
C
4After configuration the unit will flash amber giving opportunity to
re-enter configuration mode
BDuring double red flashing
briefly place your hand in
front of the sensor, water
will start running while a
green flashing will be seen.
HOLD HAND STEADY
3
x 2
If a hand is not placed over the sensor, it will go into normal operation mode.
AMBER
2
GREEN
GREEN
AMBER
RED
RED GREEN
GREEN
A
When the water has run for the desired run-on time, move your hand out of the line
of sight of the sensor. The water will cease and the run-on time will be set.
C
B
RED GREEN
12hr hygiene rinse cycle activation
Wait for triple
red flashing
LED to enter
hygiene rinse
activation
x 3
During triple red flashing
place your hand in front of the
sensor.
Single green flash =on.
Double green flash = off.
To change state briefly move your hand away
and replace in front of the sensor again.
X
I
,
'
I
'

www.cistermiser.co.uk | 9

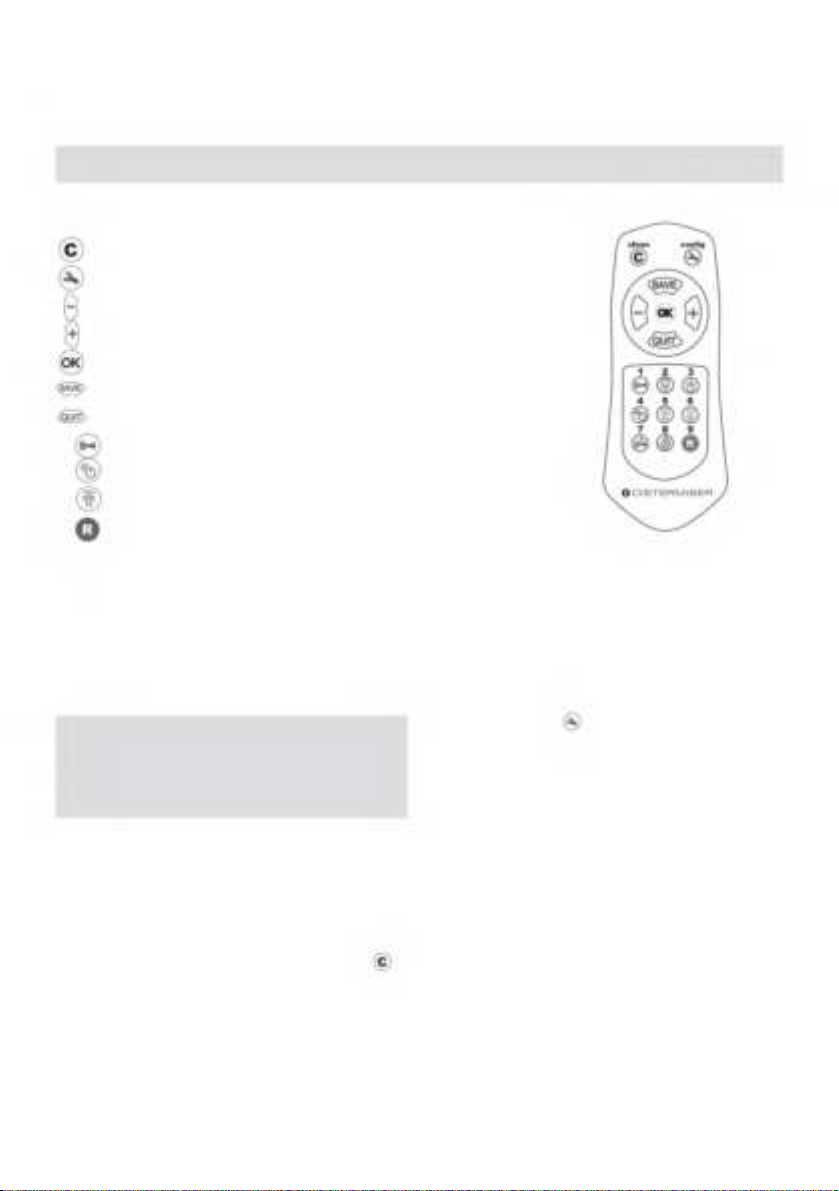

7. Infrared Configuration Unit (ICU) guide
Inserting and replacing batteries
The ICU uses 2 AAA or LR03 alkaline batteries,
these must be installed before use. Always use
new batteries of the same type. Install as indicated
in the battery compartment on the rear of the ICU.
Activating cleaning mode
Cleaning mode, disables normal operation for
cleaning for a timed 30 seconds. In order to
activate cleaning mode with the ICU, it must be
pointed at the sensor of the selected washroom
product. Activation is most effective when the
clean button is held down as the ICU is brought
close to the sensor. It can take up to 3 seconds
for the product to sense the ICU.
When the washroom product is in Clean Mode,
the sensor flashes green once a second.
Activating ICU configuration
mode
In order to activate ICU configuration mode with
the ICU, it must be pointed at the sensor of the
selected washroom product. Activation is most
effective when the configuration button is held
down as the ICU is brought close to the sensor. It
can take up to 3 seconds for the product to sense
the ICU.
The washroom product will return to normal
operation if there are no button presses for
30 seconds.
Infrared taps
The ICU can adjust/activate the sensor
range, the run-on time and the 12hr
hygiene cycle settings.
The product must always be put into ICU
configuration mode before any setting can
be configured.
Activates cleaning mode
Activates ICU configuration mode
Decreases setting
Increases setting
Checks the setting being altered
Saves changes and exits ICU configuration mode
Quits ICU configuration mode without saving changes
Configures sensor range
Configures run-on time
12 hour hygiene cycle activation
Resets to default factory settings
1
4
5
NOTE: Not supplied but available from Cistermiser or any major plumbing merchant.
9
Button descriptions
NOTE: Batteries should be replaced when
the signal of the ICU becomes weak and it
becomes difficult to activate either cleaning or
configuration mode.
©
clean
config
o
©
©
i
@
tj
y
+
i
©©®
®
®
®
©
d
®
<
&
>
<
^
urb
>
%
(
D
O
CISTERMISER
o

10 | www.cistermiser.co.uk
Configuring sensor range
Point the ICU at the sensor and press the 1
sensor range button (the sensor blinks green).
Decrease or increase the sensor range by pressing
the and buttons respectively. The sensor blinks
red when the min or max value is reached.
Press the button to check the sensor range
setting – the sensor displays the current setting by
flashing green, see table.
Save setting and exit ICU configuration mode by
pressing the button.
Exit without saving by pressing the button.
Configuring run-on time
Point the ICU at the sensor and press the 4
run-on time button (the sensor blinks green).
Decrease or increase the run-on time by pressing
the and buttons respectively. The sensor blinks
red when the min or max value is reached.
Press the button to check the run-on time
setting – the sensor displays the current setting by
flashing green, see table.
Save setting and exit ICU configuration code by
pressing the button.
Exit without saving by pressing the button.
Configuring the 12hr hygiene
rinse cycle
Point the ICU at the sensor and press the 5
12hr hygiene rinse button (the sensor blinks green).
Decrease or increase the hygiene rinse time by
pressing the and buttons respectively. The
sensor blinks red when the min or max value is
reached.
Press the button to check the hygiene rinse
time setting – the sensor displays the current
setting by flashing green, see table.
Save setting and exit ICU configuration mode by
pressing the button.
Exit without saving by pressing the button.
Reset to factory settings
Point the ICU at the sensor and press the 9
reset button (the sensor blinks green). This sets all
settings to the default factory settings.
Save setting and exit ICU configuration mode by
pressing the button.
Exit without saving by pressing the button.
Number of flashes 1 2 3 4 5
Range (cm approx) 8 11 14 16 18
Number of flashes 1 2 3 4 5 6 78
Run-on time (sec) 1 2 3 4 5
10 20 30
Number of flashes 1 2 3 4 5 6
Hygiene rinse time
(sec) 0 5 10 15 30 60
©
@
e
0
0
e
(
OK
)
6 urb
<
6 urb
O
0
©
<
^
urb
<
&
$
>
<
^
urb

www.cistermiser.co.uk | 11
8. Frequently asked questions
No water from tap
Water flow diminishes
Continuous flow of water or dripping from the tap
The sensor is flashing red
once a second
Low battery. Change batteries.
The sensor is not flashing
at all when hands are in
sensing range
No power. Change batteries if battery powered. Ensure power is
switched on and is reaching the tap. Check all electrical connections.
The sensor is flashing
green once a second when
hands are in sensing range
but there is no water
Water supply. Ensure water supply has been turned on and there is
good working pressure. Minimum dynamic pressure 0.5 bar.
Filter blockage
Internal valve Check filter in flexible hose
External valve Check filter in inlet to solenoid valve
The sensor is covered
Anti-vandal mode has been triggered. The object/debris needs to be
removed and the tap will resume normal functionality.
The sensor is not flashing
at all when hands are in
sensing range
No power. The power has failed whilst the solenoid valve is open.
Change batteries if battery powered. Ensure power is switched on and
is reaching the tap check all electrical connections.
Water is flowing when
no user is present
Water supply. Ensure water pressure is not above maximum dynamic
pressure of 6 bar or below minimum dynamic pressure of 0.5 bar.
Internal valve
Debris or scale in diaphragm/solenoid. Contact Cistermiser Technical
Department.
External valve
Ensure the arrow on the valve is pointing in the direction of water flow.
Debris or scale in the diaphragm: isolate water supply to the valve and
remove wires attached to the solenoid.
Undo the 4x screws and remove. This will give you access to the
diaphragm (note orientation of diaphragm when reinstalling), flush under
cold water and visually inspect. Re-install.
Diaphragm has been damaged by debris. Carry out procedure for
‘Debris or scale in diaphragm’, visually inspect then call Cistermiser for
further instructions.
The sensor is flashing
green once a second when
hands are in sensing range
Filter or aerator is blocked with scale or debris. Remove aerator
tap using key supplied, clean and reinstall. Check filters prior to the
aerator at the TMV. For internal valve taps, check filter within the flexible
connector. For external valve taps, check filter in inlet to solenoid.

12 | www.cistermiser.co.uk
8. Frequently asked questions
Water flow as expected and then diminishes immediately
Water is always cold
Other alarms
The sensor is flashing
green once a second when
hands are in sensing range
TMV/water pressure issue. Ensure TMV is operating correctly and
water pressures are suitable for TMVs installed.
The sensor is flashing
green once a second when
hands are in sensing range
TMV/hot water plumbing issue. Ensure TMV is set up correctly; hot
water runs in buildings can sometimes be lengthy. There may be a
short delay until hot water is dispensed from the tap.
Double red flash
Faulty wiring. Check wiring.
Faulty solenoid. Call Cistermiser for advice.
Red flash once every
second
Low battery power. Change batteries.
Red flash twice every three
seconds
Sensor covered or heavily scratched. Uncover sensor or polish out
scratches.
Cistermiser product warranty and extended warranty
Cistermiser products are guaranteed for
12 months from the date of manufacture.
The guarantee is for faulty products and parts
only: there is no labour warranty. If you believe
your product is faulty, please either contact
Cistermiser directly on 0118 969 1611 or at
[email protected], with a
photograph and the serial number, to help
diagnose the cause of the problem.
The warranty on Cistermiser products
can be extended within one year of date of
manufacture, at no cost, to three years from
the date of installation. Please make a note
of the serial number and take a photograph
of the installation before you leave site.

No. Activity Checked Date
1. Flush pipework prior to installation.
2. Ensure filters are fitted to the supplied pipe work
(see page 4 & 5 for details).
3. Ensure water supply working/dynamic pressure is between
0.5 – 6 bar.
4. Check product flow-rate suitability to application.
5. Check all connections for leaks; ensure isolation valve is installed
before the tap internal valve models.
6. Check flexible hose is not kinked/twisted.
7. External taps: check flow direction of solenoid valve.
8. Check electrical connections: tap to solenoid (external valves),
orange to orange, blue to blue. Ensure either mains or battery
power or multi product power supply unit is connected.
9. Check operation, adjust sensor range and run-on time adjustment
(see advanced settings guide).
Product serial number
Installation address
Installer’s name
Telephone number
Email address
Commissioning check-list
The warranty on Cistermiser products can be extended within one year of
date of manufacture, at no cost, to three years from the date of installation.
Once the valve has been installed, complete the product commissioning
checklist below to demonstrate compliance with the installation instructions.
Email a photograph of this completed form to [e-mail]
or post to Cistermiser, Unit 1, Woodley Park Estate, 59-69 Reading
Road, Woodley, Berks, RG5 3AN.
3YEAR
warranty
extended
www.cistermiser.co.uk | 13

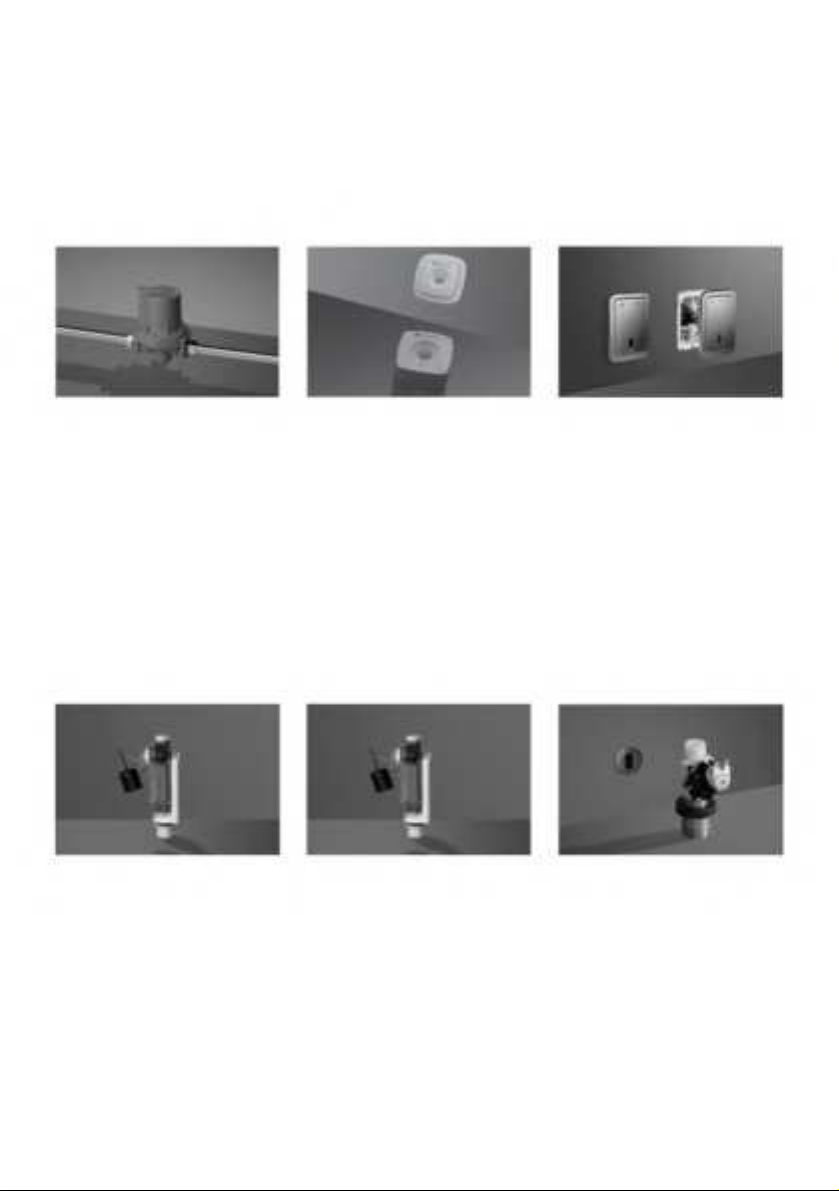

Urinal flushing
Hydraulic Valve
An automatic urinal flush
control valve which reduces
water consumption. The valve
uses a simple patented
mechanism which prevents
water waste by ensuring that
the auto-flush cistern is only
filled, and can only flush, when
the washroom is used.
Infrared Control
(IRC) Valve
This valve automatically
manages the water supply to
the urinal cistern and reduces
water consumption by up to
80%. The PIR sensor detects
movement and activates the
solenoid valve, allowing water
into a urinal cistern.
Direct Flush Valve
An infrared sensor controlled
urinal valve. It automatically
flushes individual urinals after
use, ensuring the highest level
of hygiene from the minimum
volume of water.
WC flushing
Easyflush Wave
An infrared, hands-free and
water-conserving WC cistern
flush valve suitable for
concealed or exposed cisterns.
Easy to install in retrofits or new
installations, its no-touch dual
flush WC cistern valve
promotes water economy and
hygiene in domestic and
commercial washrooms.
Easyflush Walkaway
An infrared controlled
automatic WC cistern
flush valve that is suitable
for concealed cisterns.
The valve flushes once
the user exits the cubicle.
Ideal for use in environments
where hygiene and water
economy are concerns.
Easyflush Direct
An infrared electronic flushing
system that removes the need
for a WC cistern by taking its
water feed straight from the
mains supply. Ideal for high
traffic areas as the system
allows for a second flush
without a delay.
Cistermiser range
14 | www.cistermiser.co.uk

Washroom control systems
Sensazone
An innovative system to conserve water
and
energy. Occupancy is monitored by
sensors; when someone enters the washroom
all services controlled by Sensazone are
activated – the hot and cold water, lighting
and
extractor fans.
Infrared Taps
Novatap
A contemporary deck-mounted chrome tap.
The infrared control reduces water and energy
usage and eliminates the risk that the tap may
be left running.
Vectatap
An elegantly designed infrared tap with
the benefit of hygienic hands-free operation.
Vectatap improves water and energy efficiency
and includes auto-shut off and hygiene flush
features.
www.cistermiser.co.uk | 15
Remote Monitoring
LinkThru
LinkThru TMU delivers remote real-time
monitoring of water temperatures on a 24/7
basis. LinkThru TMU harnesses the power of
the Internet of Things to monitor water
temperatures and helps to ensure Building
Owner compliance with HSG274, reducing
the risk of Legionella.

IRT/15 C-03
Davidson Holdings’ brands
Salamander is one of the UK’s leading
manufacturers of pumps for boosting water
pressure for showers, bathrooms and whole
house supply in domestic and small
commercial tank-fed systems.
www.salamanderpumps.co.uk
Talon is the UK market leader in the
manufacture and supply of plastic pipe clips,
pipe collars and fixing plugs, plus a range of
cover profiles for concealing pipework.
www.talon.co.uk
Keraflo manufacture delayed action float
valves, which provide an accurate and
effective method of controlling the level of
stored cold water in tanks both with and
without raised float valve chambers. The range
is used in domestic, commercial and
industrial applications worldwide.
www.keraflo.co.uk
Homeboost is an intelligent pump from
Salamander Pumps that recognises when
water flow is less than 12 ltrs/min and
automatically boosts the performance of the
incoming mains water up to 12 ltrs/min.
www.home-boost.co.uk
Combimate is a domestic limescale
prevention device that prevents limescale
build-up and soft water corrosion in
combination boilers and other domestic hot
water appliances.
www.combimate.co.uk
Cistermiser Limited
Unit 1, Woodley Park Estate, 59-69 Reading Road,
Woodley, Reading, Berkshire RG5 3AN
t: [phone]
e: [e-mail] www.cistermiser.co.uk
A Davidson Holdings company
Salamander
Pumps
4
Keraflo
COMBIMATE
OUR WORLD IS
WATER
G U A R A N T E E D U M E S C A L E P R E V E N T I O N
IBOQST
G i v i n g
y o u r
m a i n s
w a t e T t h e
boost
i t
needs
®
M A D E
I N
B R I T A I N
CIPHE
ciphe
.
org
.
uk
IJ
1
vy
UK
C
WRAS
U K A S
f
1 1
c n
^
P R O V E D P R O D U C T
MAN
. 4
MMINT
miiM
»
001
ISO
9001
