Citizen CS854 User manual

USER MANUAL
CS854
CD Micro System with iPod Dock
Touch Sensing Panel Control
*iPod sold separately
SD/MMC/USB 2.0 Card Reader
www.citizen-electronics.com

CS854
GB2
3
4
4
5
6
7
8
9
10
14
17
24
31
32
33
36
41
2
CAUTION
TABLE OF CONTENTS
TABLE OF CONTENTS
LOCATION OF CONTROLS AND INDICATORS
This product was manufactured using the highest quality components and standards of workmanship.
It was tested by inspectors and found to be in perfect working order before it left our factory.
However, there is always the chance that some problem may occur because of rough handling
during shipment to the retail store or to the final consumer.
If, after reading this manual, you experience any problems with the operation of this product.
Please refer to the instructions for obtaining services at the end of this manual.
Thank you for purchasing this Citizen CD Micro System. This is your assurance of quality, performance
and value. Our engineers have included many useful and convenient features in this product.
Please be sure to read this Owner’s Manual completely to make sure you are getting the maximum
benefit from each feature.

GB3
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11/Only use attachments / accessories specified by the manufacturer.
12/Unplug this apparatus during lightning storms or when unused for long periods of time.
13/Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
14/This appliance shall not be exposed to dripping or splashing water and no object filled with
liquids such as vases shall be placed on the apparatus.
15/Do not overload wall outlets. Use only the type of power source indicated.
16/Use replacement parts as specified by the manufacturer.
17/The product may be mounted to a wall only if recommended by the manufacturer.
18/Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks.
!
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrow-
head symbol, within an equi-
lateral triangle is intended to
alert the user to the presence
of uninsulated‘dangerousvoltage’
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk
of electric shock to persons.
The exclamation point within
an equilateral triangle is in-
tended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in
the literature accompany-
ing the appliance.
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
(OR BACK). NO USER
SERVICEABLE PARTS INSIDE
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
CAUTION

GB4
PRECAUTIONS FOR UNIT
PRECAUTIONS FOR DISCS
The power plug is used as the disconnect device. It shall remain readily operable and should not be obstructed
during intended use. To be completely disconnected the
unit from the power supply, the power plug of the unit must
be disconnected from the power outlet completely.
20.
21.
22.

GB5
•Operatecontrolsandswitchesas
described in the manual.
•
Before turning the power ON, make sure
that the cord is properly installed.
•Storeyour
CD's/Memory Cards in a cool
area to avoid damage from heat.
• When moving the unit,be sure to first
disconnect the power cord.
• Avoid installing this unit in places
exposed to direct sunlight or close to
heat radiating appliances such as
electric heaters, on top of other stereo
equipment that radiates too much heat,
places lacking ventilation or dusty areas,
places subject to constant vibration and/
or humid or moist areas.
• Do not attempt to clean this unit with
chemical solvents as this might damage
the finish. Use a clean dry cloth.
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
IMPORTANT NOTES
Changes or modification not expressly approved by the party responsible for
compliance could avoid the user’s authority to operate the equipment.

GB6
AM ANT
120V 60Hz
120V 60Hz
AC Plug
A
C Outlet
PREPARATION FOR USE

16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17 18 19
20
23
24
26
25
22
21
27

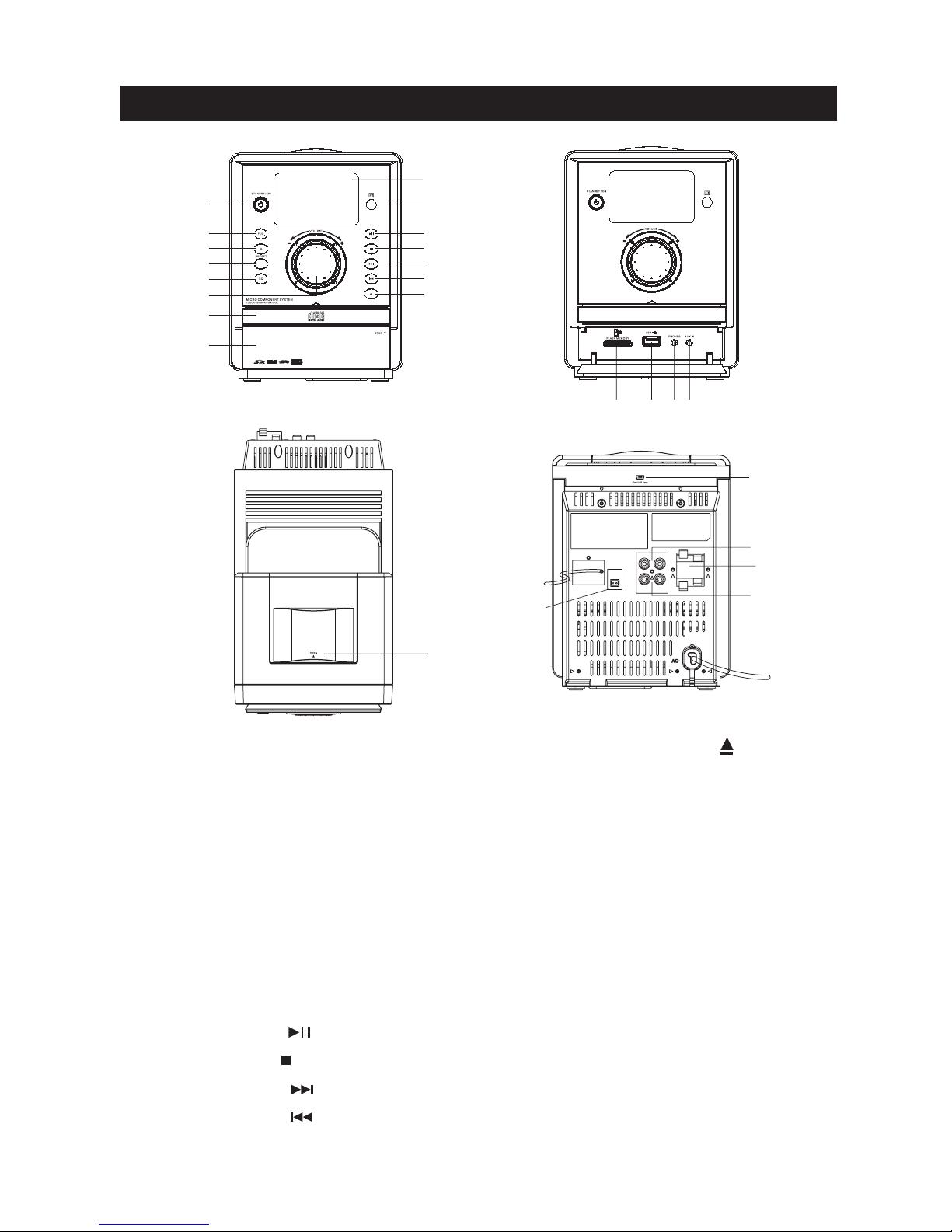

1. STANDBY/ON Button
2. FUNCTION Button
3. PRESET/ALBUM/MENU + Button
4. PRESET/ALBUM/MENU - Button
5. EQ Button
6. VOLUME Control
7. CD Door
8. USB Door
9. VFD Display
10. REMOTE Sensor
16. FLASH MEMORY CARD Slot
17. FLASH USB Slot
18. HEADPHONE Jack
19. FRONT AUX IN Jack
20. iPod Port (under cover)
21. iPod USB Sync Connector
22. LINE OUT RCA Jack
23. FM Ant Wire
24. EXT.AM Ant Jack
25. AUX IN RCA Jack
26. Speaker Terminals
27. AC Power Cord
13. SKIP/TUNING Button
14. SKIP/TUNING Button
11. PLAY/PAUSE Button
12. STOP/BAND Button
15. CD Tray OPEN/CLOSE Button
GB7
LOCATION OF CONTROLS AND INDICATORS
AM ANT

GB8
REMOTE CONTROL
1. STANDBY/ON Button
2. EQ Button
3. REPEAT Button
4. PRESET/ALBUM/MENU- Button
5. SKIP Button
6. STOP Button
7. MUTE Button
8. OPEN/CLOSE Button
9. TIMER Button
10. ST/ESP/ID3/FIND Button
11. SLEEP Button
12. DBBS Button
13. PROG/CLK Button
14. RANDOM Button
15. PRESET/ALBUM/MENU + Button
16. MENU/INTRO Button
17. SKIP Button
18. BAND Button
20. VOLUME + Button
21. VOLUME - Button
22. FUNCTION Button
19. PLAY/PAUSE Button
remote.
recommended
For the best performance it is recommended that the batteries for the
remote control handset be replaced on a yearly basis, or when the
remote control operation becomes erratic.
are

GB9
MW ANT
MW ANT
MW ANT
Connection with a cassette deck, turntable, etc. for audio playback. (AUX IN)
Connection to a cassette deck for recording.
This unit can also be connected to an external cassette deck for recording.
CONNECTION

GB10
OPERATING INSTRUCTIONS

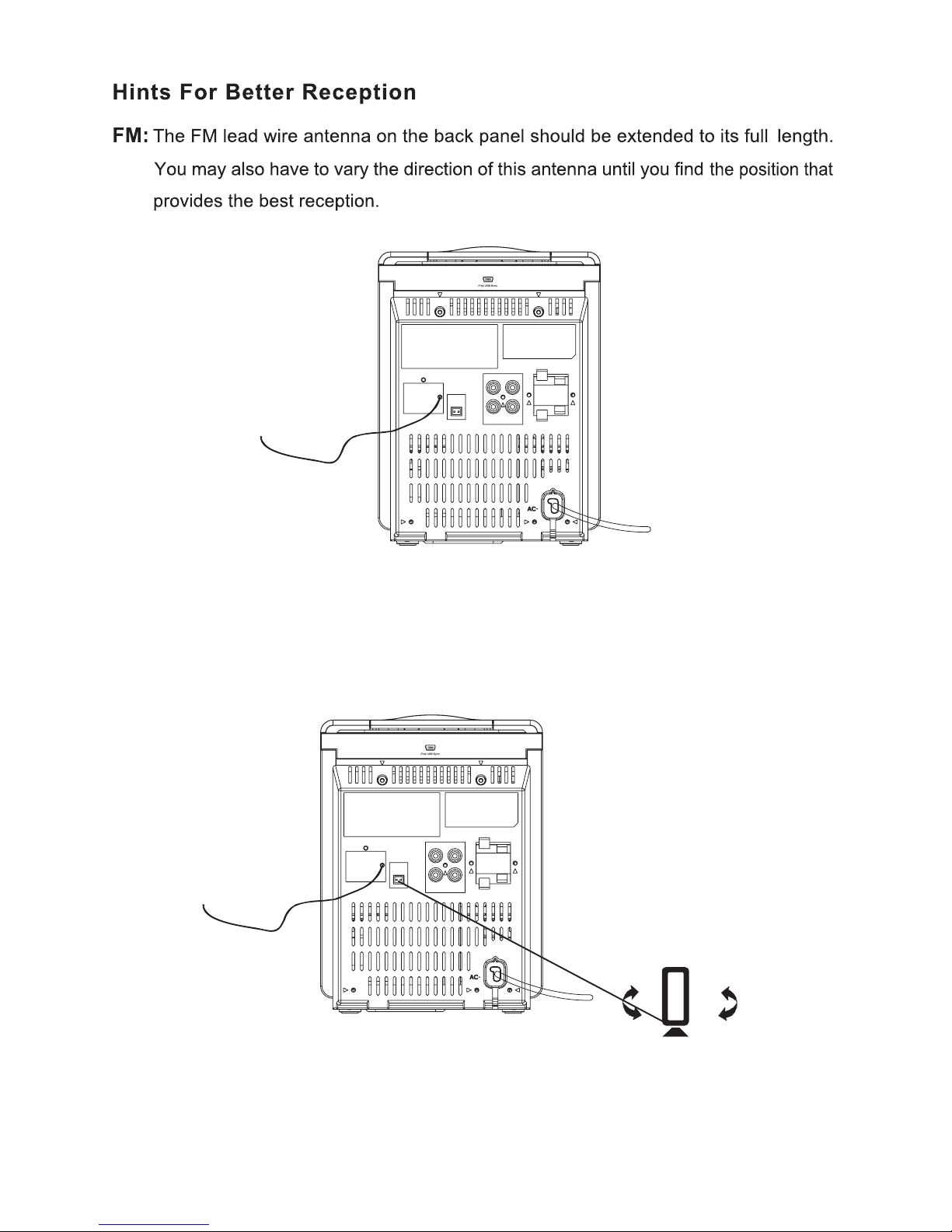

Make sure that you have fully extended the FM antenna wire.
Make sure that the system is connected to an AC outlet that is always “live”.
Do not connect the system to an AC outlet controlled by a wall switch.
Most of the main functions of this system can be operated by the controls on the front
panel of the main unit, or by the buttons on the remote control.
If a specific function can only be operated by the remote control, or by the front panel
controls, this will be
indicated in the instructions.
When operating this system with the remote control make sure that the IR (Infrared)
transmitter on the front of the remote control is pointed at the remote sensor on the front
panel of the main unit.
The effective operating range of the remote control is approximately 15 feet. Please
note that bright sunlight or room lighting may interfere with the remote control operation.
If the remote is not operating properly try reducing the brightness of the room or moving
closer to the main unit. If this does not solve the problem, it may be time to change
the remote control battery.
Make sure that you have installed batteries in the remote control handset.

GB11

GB12

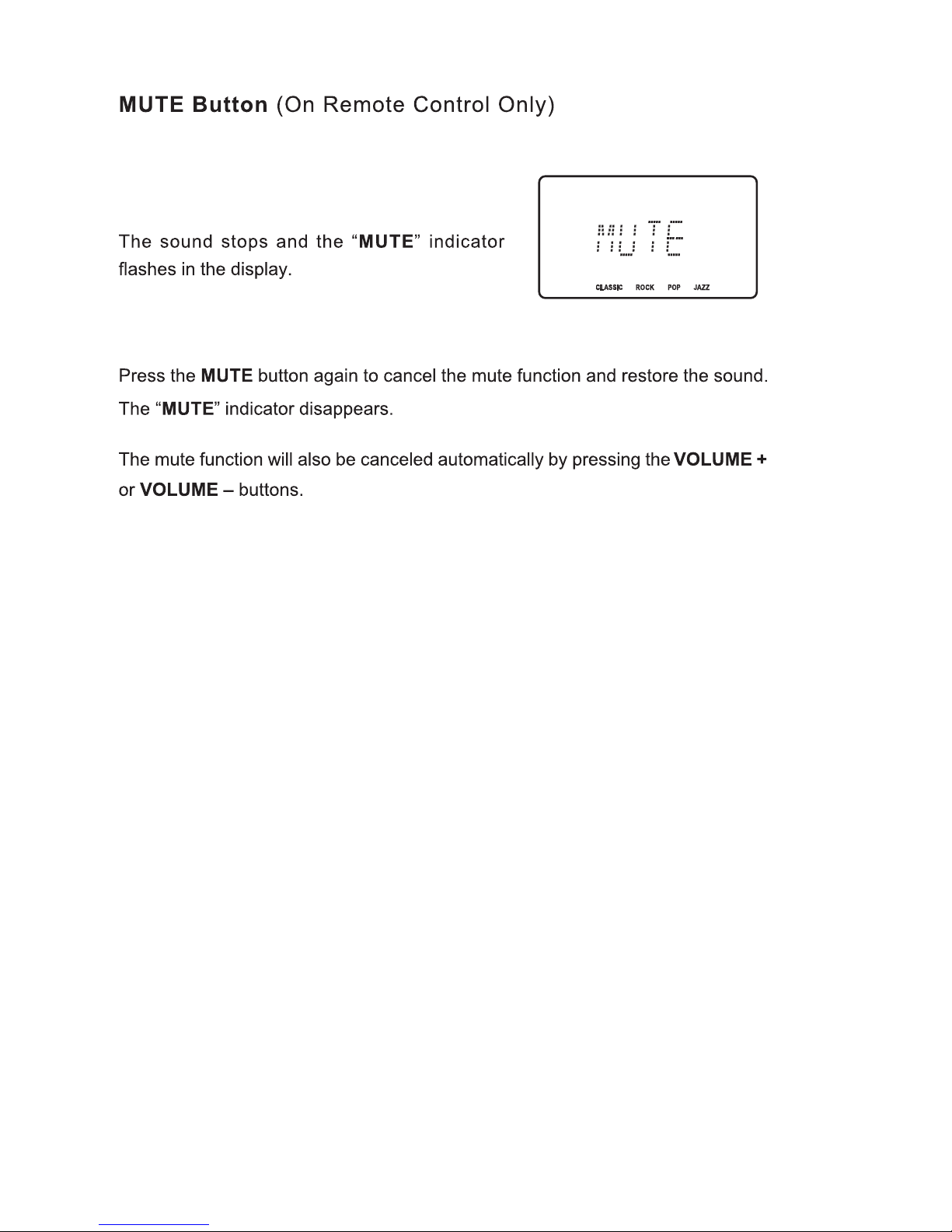

Press the MUTE button on the remote control to shut off the speakers temporarily,for
example, to answer the telephone.

buttons to set the display to the correct hour.
GB13
the first time “--:--” flashes on the display.
using
on the display.

GB14

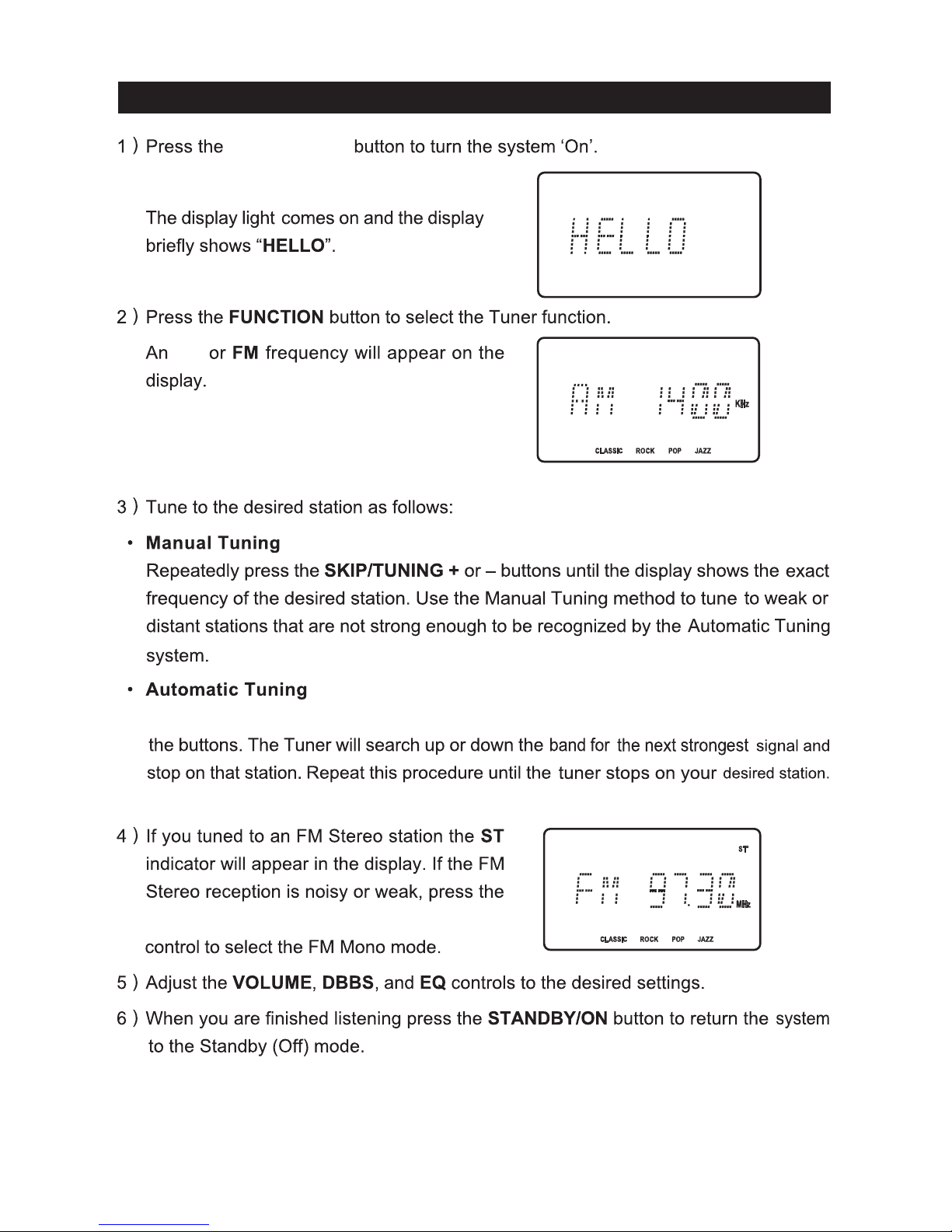

RADIO OPERATION
AM
STANDBY/ON
The display lighting goes off and the display changes from radio frequency to the
correct time.
Press and hold the SKIP/TUNING + or -buttons until the display begins to move, then release
Press the STOP/BAND button on the unit or
the BAND button on the remote to switch
between the AM and FM bands if necessary.
ST/ESP/ID3/FIND button on the remote

GB15
AM
AM ANT
AM ANT
FM ANT
AM: Insert the wire of the loop aerial into the AM AERIAL connector on the unit.
Adjust the position of the loop aerial until you find the position that provides the best
reception for your favorite AM stations.

GB16
AM
AM
AM
14
Press the PRESET/ALBUM/MENU + or - buttons
Press the PRESET/ALBUM/MENU + or - buttons

GB17

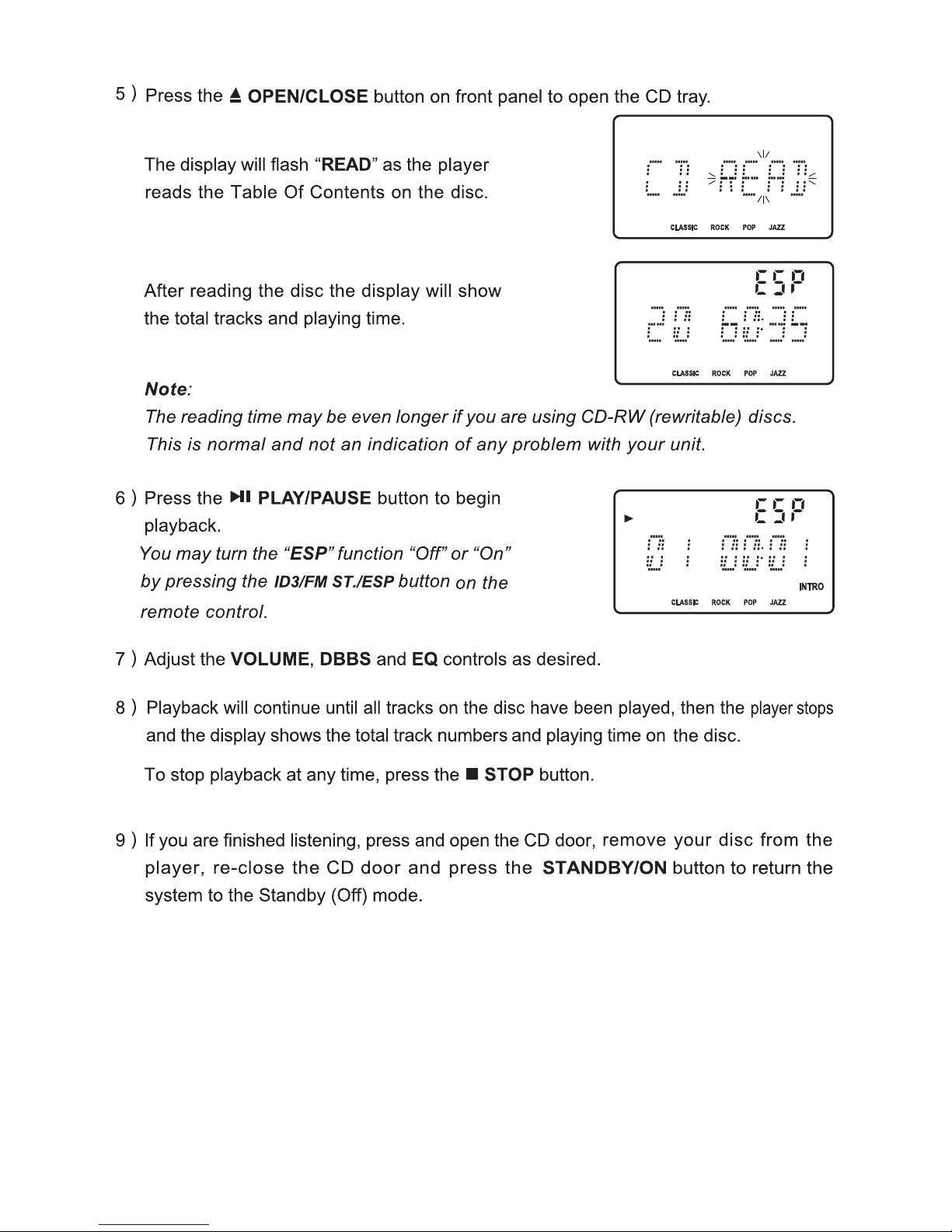

CD OPERATION

GB18

GB19

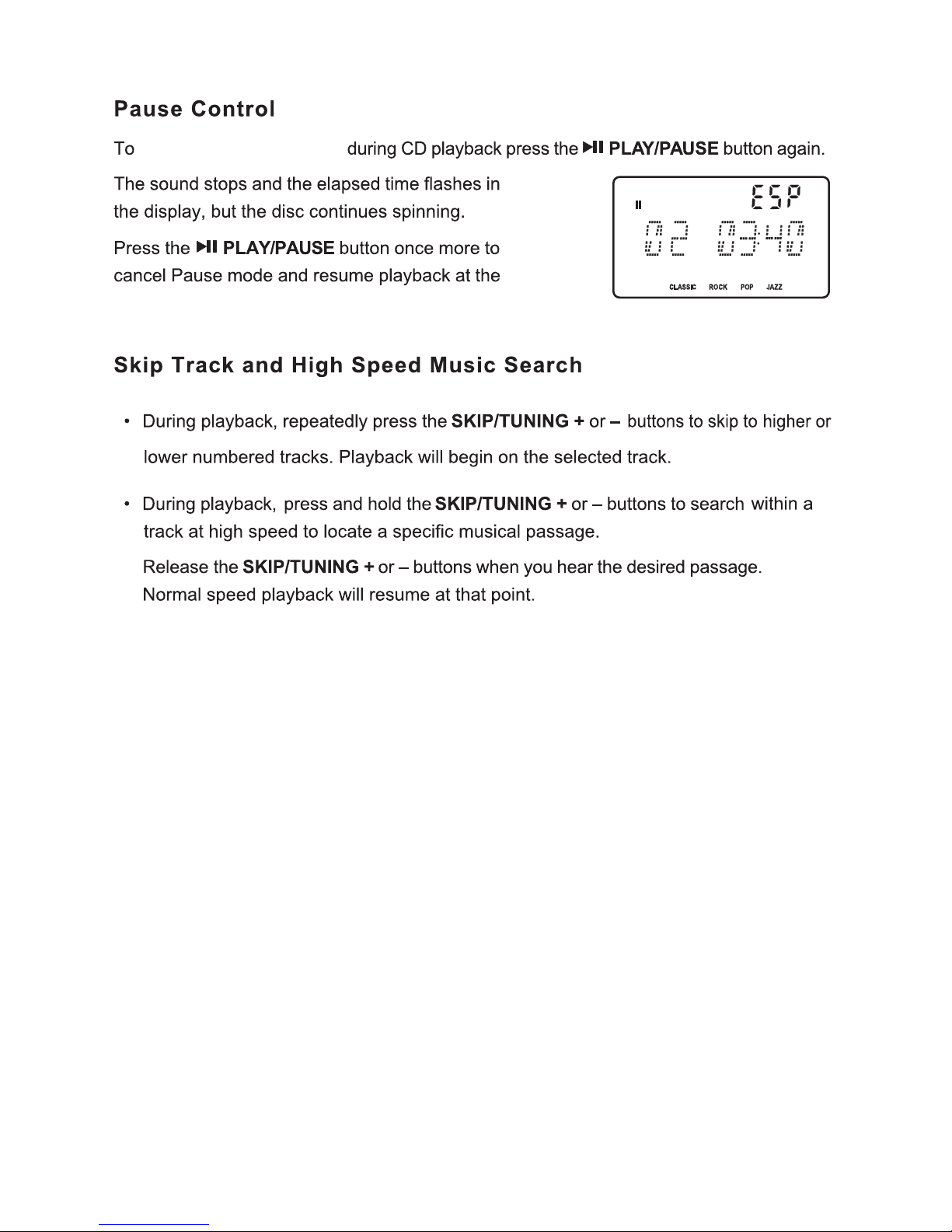

pause audio temporarily
same point; the elapsed time stops flashing.

GB20
disappears
mode, or pressing the STANDBY/ON button to return the system to the standby (off) mode.
