SERVICE MANUAL
DATA
COMPACT DISC STEREO SYSTEM BASIC TAPE MECHANISM : ZZM-2 PR1NM
BASIC CD MECHANISM : BZG-5 ZD3N1M
Z-L120 EZ,K
S/M Code No. 09-012-439-5S1
SUPPLEMENT
•This Service Manual is the “Supplement” and replaces “Simple Manual”
of Z-L120 <EZ,K>, (S/M Code No. 09-011-439-5T2).
•This Service Manual contains information about the difference between Z-L120 <EZ,K>
and Z-L220 <LH>. If requiring other information, see Service Manual of Z-L220 <LH>,
(S/M Code No. 09-011-439-5R1).
• If requiring information about the CD mechanism, see Service Manual of BZG-5,
(S/M Code No. 09-00C-353-3N2).
Z-L120 RC-ZAS02
SYSTEM CD
CASSEIVER REMOTE CONTROLLER
CX-ZL120
SPEAKER
SX-ZL120
All manuals and user guides at all-guides.com
all-guides.com

– 2 –
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
<General>
Power requirements 230V AC, 50 Hz
Power consumption 80 W
Dimensions of main unit 360 x 395.3 x 348.8 mm
(W xH xD) (141/4x 155/8x 133/4in.)
Weight of main unit 7.2 kg (15 lbs 14oz)
Standby power consumption
If the power-economizing is OFF: 22W
If the power-economizing is AUTO or ON: 0.9W
Speaker system SX-ZL120
Cabinet type 2 way, bass reflex
Speakers Woofer:
130 mm (51/8in.) cone type
Tweeter:
20 mm (13/16 in.) ceramic type
Impedance 6 ohms
Output sound 89 dB/W/m
pressure level
Dimensions (W xH xD) 260 x 495 x 260 mm
(101/4x 191/2x 101/4in.)
Weight 4.5 kg (9 lbs 15 oz.)

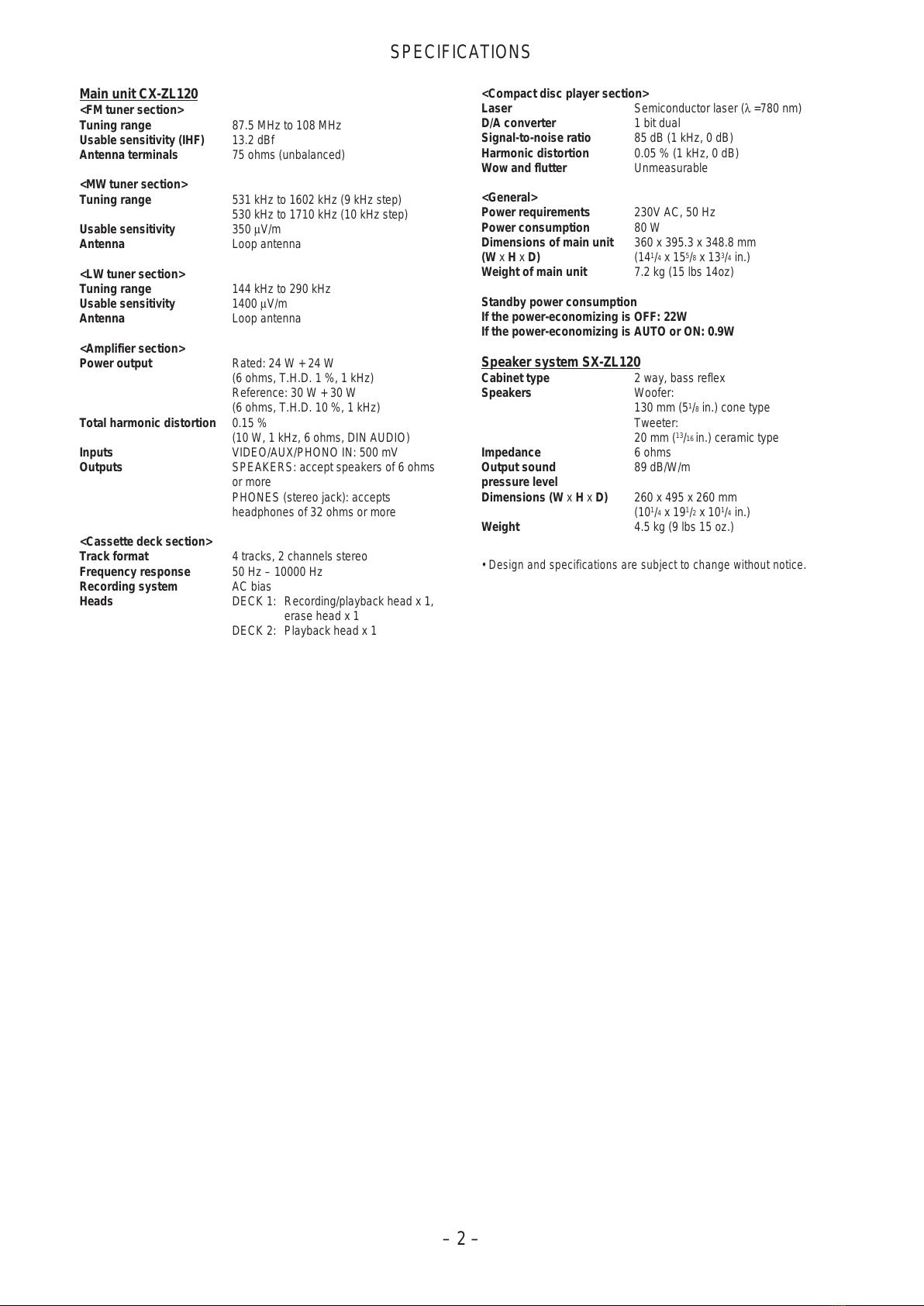

SPECIFICATIONS
Main unit CX-ZL120
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<MW tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<LW tuner section>
Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 µV/m
Antenna Loop antenna
<Amplifier section>
Power output Rated: 24 W + 24 W
(6 ohms, T.H.D. 1 %, 1 kHz)
Reference: 30 W + 30 W
(6 ohms, T.H.D. 10 %, 1 kHz)
Total harmonic distortion 0.15 %
(10 W, 1 kHz, 6 ohms, DIN AUDIO)
Inputs VIDEO/AUX/PHONO IN: 500 mV
Outputs SPEAKERS: accept speakers of 6 ohms
or more
PHONES (stereo jack): accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 10000 Hz
Recording system AC bias
Heads DECK 1: Recording/playback head x 1,
erase head x 1
DECK 2: Playback head x 1
• Design and specifications are subject to change without notice.
All manuals and user guides at all-guides.com

– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8B-MA6-615-010 C-IC,LC866560-5T63
87-A21-831-010 IC,SPS-422-1-F1
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-893-040 C-IC,NJM14558V-TE2
87-A21-443-040 C-IC,M62495AFP
87-A21-695-010 IC,LA1845L
87-070-127-110 IC,LC72131D

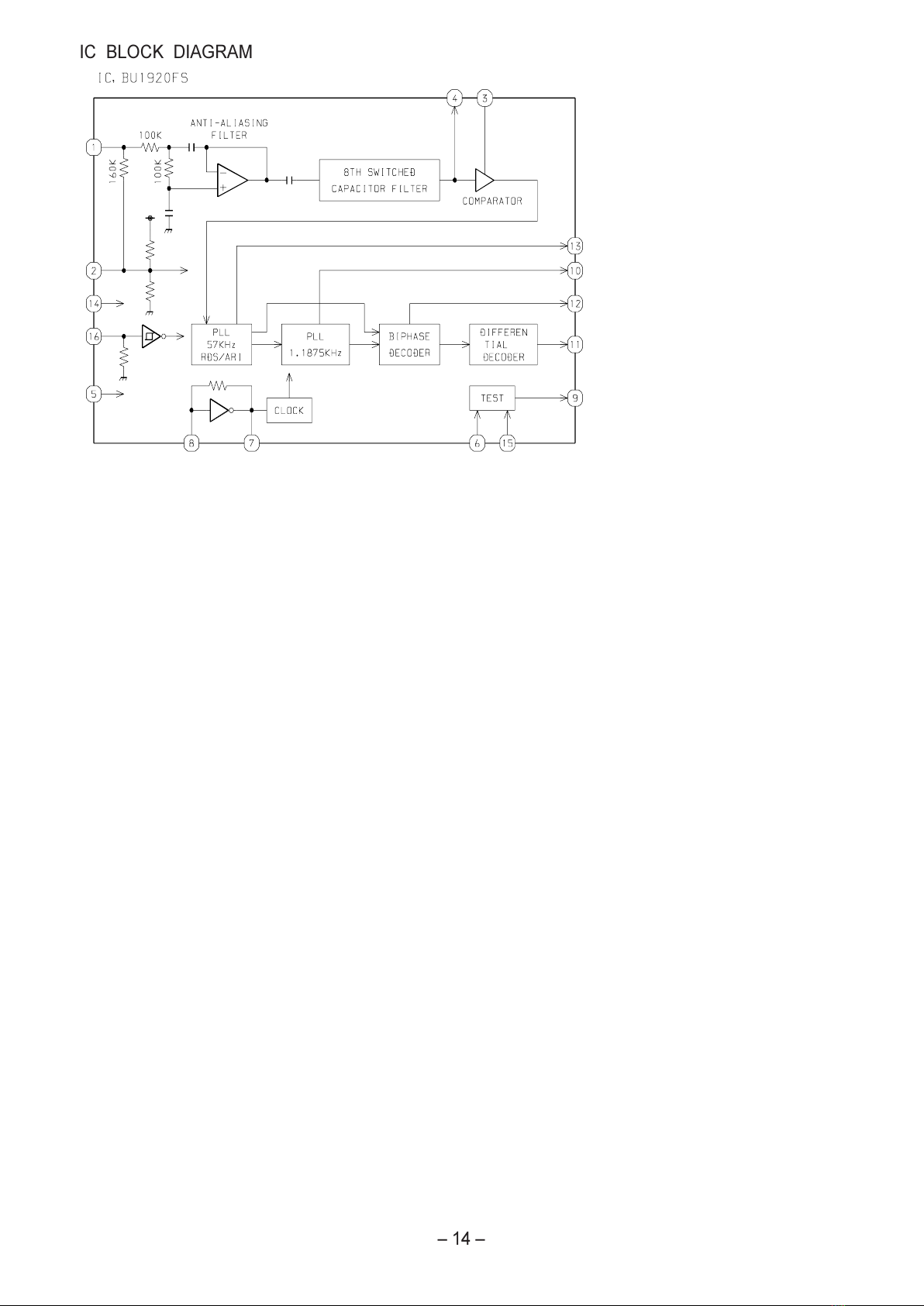

87-A20-440-040 C-IC,BU1920FS
TRANSISTOR
87-A30-515-080 TR,2SA1979O/Y
87-A30-559-010 TR,CSB1370EF
87-A30-492-080 TR,2SC5343G
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-107-070 C-TR,CMBT5401
87-A30-484-080 C-TR,KRA102S
87-026-610-080 TR,KTC3198GR
87-026-245-080 TR,DTC114ES
87-026-269-080 TR,DTA114ES
87-026-609-080 TR,KTA1266GR
87-A30-190-080 TR,CC5551
87-A30-106-040 C-TR,CMBT5551
87-A30-091-080 FET,2SJ460
87-A30-090-080 FET,2SK2541
87-A30-062-080 C-TR,KRC104S
87-A30-495-080 TR,2SA1981Y
87-A30-234-080 TR,CSC4115BC
89-327-143-080 TR,2SC2714O
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
87-A30-086-040 C-TR,CSD1306E
87-A30-494-080 TR,2SA1980G
87-A30-255-010 TR,2SB1342
87-A30-256-010 TR,2SD1933
DIODE
87-A40-393-090 DIODE,1N5402GW(F20)
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-553-080 DIODE,1N4003 LES
87-A40-776-080 ZENER,UZ27BSD
87-A40-764-080 ZENER,UZ10BSC
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-291-080 DIODE,1N4148M(CPT)
87-A40-234-080 ZENER,MTZJ5.6A
87-A40-539-080 ZENER,MTZJ2.4A
87-017-149-080 ZENER,HZS6A2L

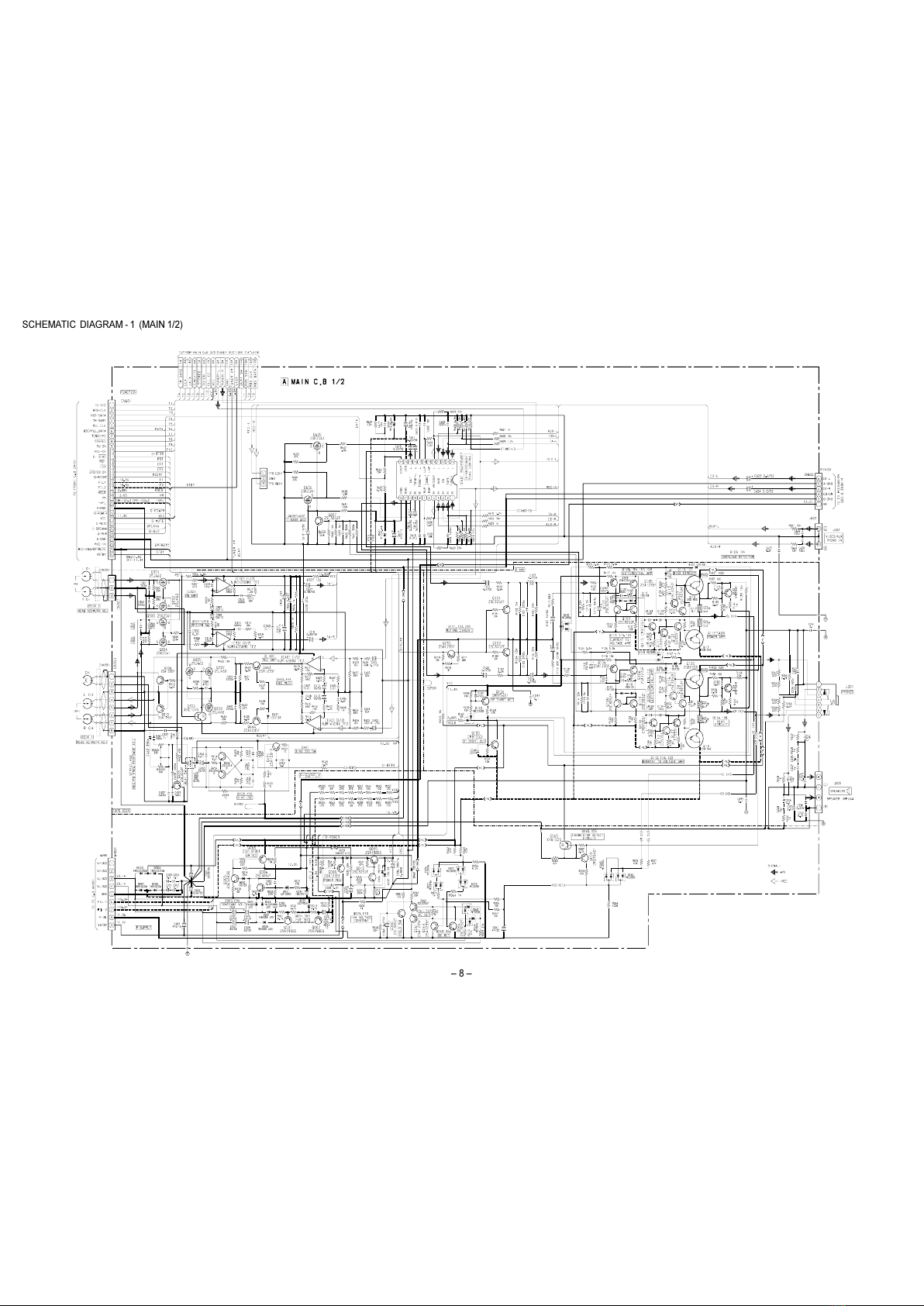

MAIN C.B
C9 87-A12-317-080 C-CAP,U 0.1-50 Z F
C10 87-A12-317-080 C-CAP,U 0.1-50 Z F
C11 87-A12-317-080 C-CAP,U 0.1-50 Z F
C12 87-A12-317-080 C-CAP,U 0.1-50 Z F
C21 87-A10-520-000 CAP, E 3300-35 M SMG
C22 87-A10-520-000 CAP, E 3300-35 M SMG
C25 87-010-407-080 CAP, E 33-50 M 11L SME
C26 87-010-407-080 CAP, E 33-50 M 11L SME
C27 87-010-407-080 CAP, E 33-50 M 11L SME
C28 87-010-407-080 CAP, E 33-50 M 11L SME
C30 87-010-247-080 CAP, E 100-50 M SME
C31 87-A12-062-080 CAP,E 100-10 SMG
C32 87-012-286-080 C-CAP, U 0.01-25
C33 87-A12-062-080 CAP,E 100-10 SMG
C34 87-010-384-080 CAP, E 100-25 M 11L SME
C35 87-A12-066-080 CAP,E 47-16 SMG
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-012-286-080 C-CAP, U 0.01-25
C60 87-A12-089-080 CAP,E 3.3-50 SMG
C61 87-A12-071-080 CAP,E 47-25 SMG
C83 87-A12-068-080 CAP, E 470-16 SMG
C97 87-010-759-080 C-CAP,U 0.1-25F
C99 87-010-759-080 C-CAP,U 0.1-25 Z F
C101 87-012-279-080 C-CAP,U 2700P-50 B
C102 87-012-279-080 C-CAP,U 2700P-50 B
C103 87-A12-090-080 CAP,E 4.7-50 SMG
C104 87-A12-090-080 CAP,E 4.7-50 SMG
C107 87-A12-091-080 CAP,E 10-50 SMG
C108 87-A12-091-080 CAP,E 10-50 SMG
C109 87-012-199-080 C-CAP,U 220P-50 CH
C110 87-012-199-080 C-CAP,U 220P-50 CH
C111 87-010-392-080 CAP ELECT 33SME-35V
C112 87-010-392-080 CAP ELECT 33SME-35V
C113 87-012-195-080 C-CAP,U 100P-50 CH
C114 87-012-195-080 C-CAP,U 100P-50 CH
C115 87-012-167-080 C-CAP,S 5P-50 CH
C116 87-012-167-080 C-CAP,S 5P-50 CH
C117 87-A12-317-080 C-CAP,U 0.1-50 Z F
C118 87-A12-317-080 C-CAP,U 0.1-50 Z F
C119 87-012-286-080 C-CAP,U 0.01-25
C120 87-012-286-080 C-CAP,U 0.01-25
C121 87-A12-090-080 CAP,E 4.7-50 SMG
C122 87-A12-090-080 CAP,E 4.7-50 SMG
C123 87-010-177-080 C-CAP,S 820P-25 J SL C2012
C124 87-010-177-080 C-CAP,S 820P-25 J SL C2012
C133 87-012-282-080 C-CAP,U 4700P-50
C140 87-012-278-080 C-CAP,U 2200P-50
C223 87-012-272-080 C-CAP,U 680P-50 B
C224 87-012-272-080 C-CAP,U 680P-50 B
C225 87-A12-317-080 C-CAP,U 0.1-50 Z F
C226 87-A12-317-080 C-CAP,U 0.1-50 Z F
C227 87-A12-317-080 C-CAP,U 0.1-50 Z F
C228 87-A12-317-080 C-CAP,U 0.1-50 Z F
C229 87-012-287-080 C-CAP,U 0.015-25 F
C230 87-012-287-080 C-CAP,U 0.015-25 F
C231 87-012-286-080 CAP, U 0.01-25
C232 87-012-286-080 CAP, U 0.01-25
C241 87-010-759-080 C-CAP,U 0.1-25 Z F
C301 87-012-274-080 CHIP CAP,U 1000P-50B
C302 87-012-274-080 CHIP CAP,U 1000P-50B
C303 87-012-274-080 CHIP CAP,U 1000P-50B
C304 87-012-274-080 CHIP CAP,U 1000P-50B
C307 87-A12-062-080 CAP,E 100-10 SMG
C308 87-A12-062-080 CAP,E 100-10 SMG
C309 87-012-195-080 C-CAP,U 100P-50 J CH
C310 87-012-195-080 C-CAP,U 100P-50 J CH
C313 87-012-284-080 CAP, U 6800P-50
C314 87-012-284-080 CAP, U 6800P-50
C315 87-A12-062-080 CAP,E 100-10 SMG
C317 87-A12-085-080 CAP,E 0.33-50 SMG
C318 87-A12-085-080 CAP,E 0.33-50 SMG
C326 87-016-118-080 C-CAP,U 0.022-25BJ
C327 87-A12-317-080 C-CAP,U 0.1-50 Z F
C350 87-012-286-080 C-CAP,U 0.01-25 K B
C360 87-A12-087-080 CAP,E 1-50 SMG
C365 87-010-759-080 C-CAP,U 0.1-25 Z F
C399 87-012-270-080 CAP, U 470P-50
C401 87-A12-083-080 CAP,E 0.1-50 SMG
C402 87-A12-083-080 CAP,E 0.1-50 SMG
C403 87-012-193-080 C-CAP,U 82P-50 CH
C404 87-012-193-080 C-CAP,U 82P-50 CH
C405 87-012-286-080 CAP, U 0.01-25
C406 87-012-286-080 CAP, U 0.01-25
C407 87-012-286-080 CAP, U 0.01-25
C408 87-012-286-080 CAP, U 0.01-25
All manuals and user guides at all-guides.com

– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C409 87-012-278-080 C-CAP,U 2200P-50 B
C410 87-012-278-080 C-CAP,U 2200P-50 B
C411 87-A12-091-080 CAP,E 10-50 SMG
C412 87-A12-091-080 CAP,E 10-50 SMG
C452 87-A12-092-080 CAP,E 22-50 SMG
C453 87-012-279-080 C-CAP,U 2700P-50 B
C454 87-012-279-080 C-CAP,U 2700P-50 B
C455 87-012-279-080 C-CAP,U 2700P-50 B
C456 87-012-286-080 CAP, U 0.01-25
C457 87-A12-361-080 CAP,M 5600P-100 J CP
C458 87-012-274-080 CHIP CAP,U 1000P-50B
C459 87-012-271-080 CAP, U 560P-50
C460 87-010-759-080 C-CAP,U, 0.1-25F
C461 87-012-269-080 C-CAP,U 390P-50 B
C462 87-012-269-080 C-CAP,U 390P-50 B
C470 87-018-127-080 CAP, CER 470P-50V
C605 87-012-275-080 C-CAP,U 1200P-50 B
C606 87-012-275-080 C-CAP,U 1200P-50 B
C609 87-012-287-080 C-CAP,U 0.015-25 F
C610 87-012-287-080 C-CAP,U 0.015-25 F
C611 87-A12-084-080 CAP,E 0.22-50 SMG
C612 87-A12-084-080 CAP,E 0.22-50 SMG
C613 87-A12-084-080 CAP,E 0.22-50 SMG
C614 87-A12-084-080 CAP,E 0.22-50 SMG
C615 87-012-172-080 CAPACITOR CHIP U 10P CH
C616 87-010-221-080 CAP, ELECT 470-10V
C617 87-010-221-080 CAP, ELECT 470-10V
C618 87-A12-091-080 CAP,E 10-50 SMG
C623 87-010-402-080 CAP, ELECT 2.2-50V
C624 87-010-402-080 CAP, ELECT 2.2-50V
C630 87-010-759-080 C-CAP,U, 0.1-25F
C669 87-012-195-080 C-CAP,U 100P-50CH
C670 87-012-195-080 C-CAP,U 100P-50CH
C677 87-012-286-080 CAP, U 0.01-25
C771 87-A12-062-080 CAP,E 100-10 SMG
C772 87-012-286-080 CAP, U 0.01-25
C779 87-010-949-080 C-CAP,S 0.01-50 J B
C780 87-010-949-080 C-CAP,S 0.01-50 J B
C782 87-012-286-080 CAP, U 0.01-25
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-012-286-080 CAP, U 0.01-25
C786 87-012-286-080 CAP, U 0.01-25
C788 87-012-167-080 C-CAP,U 5P-50 CH
C789 87-016-118-080 C-CAP,U 0.022-25 J B GRM
C790 87-016-118-080 C-CAP,U 0.022-25 J B GRM
C791 87-010-831-080 C-CAP,U,0.1-16F
C792 87-012-286-080 CAP, U 0.01-25
C793 87-A12-090-080 CAP,E 4.7-50 SMG
C795 87-012-286-080 CAP, U 0.01-25
C796 87-012-286-080 CAP, U 0.01-25
C797 87-A12-091-080 CAP,E 10-50 SMG
C798 87-012-286-080 CAP, U 0.01-25
C799 87-010-265-080 CAP,E 33-16 M 11L SME
C800 87-010-829-080 CAP, U 0.047-16
C801 87-A12-089-080 CAP,E 3.3-50 SMG
C802 87-010-829-080 CAP, U 0.047-16
C803 87-010-787-080 CAP, U 0.022-25 K B
C804 87-A12-062-080 CAP,E 100-10 SMG
C807 87-A12-086-080 CAP,E 0.47-50 SMG
C808 87-A12-087-080 CAP,E 1-50 SMG
C809 87-A12-087-080 CAP,E 1-50 SMG
C810 87-010-831-080 C-CAP,U,0.1-16F
C814 87-012-286-080 CAP, U 0.01-25
C815 87-A12-086-080 CAP,E 0.47-50 SMG
C816 87-A12-086-080 CAP,E 0.47-50 SMG
C818 87-012-276-080 C-CAP,U 1500P-50 K B
C821 87-A12-091-080 CAP,E 10-50 SMG
C823 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C824 87-A12-090-080 CAP,E 4.7-50 SMG
C825 87-010-829-080 CAP, U 0.047-16
C831 87-A12-092-080 CAP,E 22-50 SMG
C842 87-012-286-080 CAP, U 0.01-25
C844 87-012-286-080 CAP, U 0.01-25
C850 87-A12-071-080 CAP,E 47-25 SMG
C851 87-012-286-080 CAP, U 0.01-25
C852 87-012-286-080 CAP, U 0.01-25
C853 87-012-286-080 CAP, U 0.01-25
C858 87-010-831-080 C-CAP,U 0.1-16 Z F
C859 87-010-831-080 C-CAP,U 0.1-16 Z F
C860 87-012-286-080 C-CAP,U 0.01-25 K B
C869 87-012-286-080 C-CAP,U 0.01-25 K B
C870 87-012-274-080 C-CAP,U 1000P-50 K B
C871 87-012-199-080 C-CAP,U 220P-50 J CH
C872 87-012-199-080 C-CAP,U 220P-50 J CH
C873 87-A10-039-080 C-CAP,U 470P-50 J CH
C874 87-A12-091-080 CAP,E 10-50 SMG
C875 87-010-759-080 C-CAP,U 0.1-25 Z F
C876 87-A12-091-080 CAP,E 10-50 SMG
C877 87-012-286-080 C-CAP,U 0.01-25 K B
C878 87-012-184-080 C-CAP,U 33P-50 J CH
C879 87-012-180-080 C-CAP,U 22P-50 J CH
C940 87-012-286-080 C-CAP,U 0.01-25 K B
C942 87-012-165-080 C-CAP,U 3P-50 C CH
C947 87-012-286-080 C-CAP,U 0.01-25 K B
C948 87-A10-039-080 C-CAP,U 470P-50 J CH
C952 87-012-286-080 C-CAP,U 0.01-25 K B
C957 87-012-174-080 C-CAP,U 12P-50 J CH
C958 87-012-286-080 C-CAP,U 0.01-25 K B
C959 87-010-831-080 C-CAP,U,0.1-16F
C960 87-010-831-080 C-CAP,U,0.1-16F
C962 87-A12-087-080 CAP,E 1-50 SMG
C963 87-015-785-080 CHIP CAPACITOR, 0.1-25 Z F
C971 87-A12-067-080 CAP,E 330-16 SMG
C972 87-A12-090-080 CAP,E 4.7-50 SMG
C973 87-012-286-080 CAP, U 0.01-25
C974 87-012-286-080 CAP, U 0.01-25
C979 87-012-195-080 C-CAP,U 100P-50CH
C981 87-A12-071-080 CAP,E 47-25 SMG
C982 87-010-831-080 C-CAP,U,0.1-16F
C983 87-012-286-080 CAP, U 0.01-25 K B
C984 87-012-286-080 CAP, U 0.01-25 K B
C985 87-012-195-080 C-CAP,U 100P-50 J CH
C987 87-012-286-080 CAP, U 0.01-25 K B
C989 87-012-286-080 C-CAP, U 0.01-25 K B
C991 87-012-176-080 C-CAP,U 15P-50 J CH
C992 87-012-176-080 C-CAP,U 15P-50 J CH
C993 87-012-274-080 CHIP CAP,U 1000P-50B
C995 87-012-274-080 CHIP CAP,U 1000P-50B
C997 87-010-831-080 C-CAP,U,0.1-16F
C998 87-A12-071-080 CAP,E 47-25 SMG
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-423-010 FILTER, CF SFE10.7MS3G-A
CF832 82-785-747-010 CF,MS2 GHY,R
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CNA301 8A-MA6-642-110 CONN ASSY,3P (PH)
CNA351 8A-MA6-641-010 CONN ASSY,8P RPB
FC602 88-906-321-110 FF-CABLE,6P 1.25 320mm
FFE831 A8-6ZA-19H-030 6ZA-1 FEMENM
J201 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J832 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05
L201 87-A50-610-010 COIL,1UH K(MDEC)
L202 87-A50-610-010 COIL,1UH K(MDEC)
L451 87-007-342-010 COIL,OSC 85KHZ BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
All manuals and user guides at all-guides.com

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH CECS
L832 87-005-847-080 COIL,2.2UH CECS
L861 87-005-847-080 COIL,2.2UH K CECS
L941 87-A50-020-010 COIL,ANT LW (COI) 252KHZ
L942 87-A50-019-010 COIL,OSC LW (COI) 856KHZ
L951 8A-NF8-668-010 COIL,AM PACK 2(TOK)
R129 87-A00-258-080 RES,M/F 0.22-1W J
R130 87-A00-258-080 RES,M/F 0.22-1W J
R131 87-A00-258-080 RES,M/F 0.22-1W J
R132 87-A00-258-080 RES,M/F 0.22-1W J
R243 87-A00-440-050 RES,220-1/2W J RP
R244 87-A00-440-050 RES,220-1/2W J RP
R245 87-A00-440-050 RES,220-1/2W J RP
R246 87-A00-440-050 RES,220-1/2W J RP
R790 87-012-286-080 CAP, U 0.01-25
R991 87-012-195-080 C-CAP,U 100P-50CH
R993 87-012-195-080 C-CAP,U 100P-50CH
R995 87-012-195-080 C-CAP,U 100P-50CH
SFR451 87-024-435-080 SFR,33K H RH063MC
SFR452 87-024-435-080 SFR,33K H RH063MC
TC942 87-A91-774-080 TRIMMER, PLY 30P 6.8X5.4 CDYL
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
W99 8B-MA6-609-010 F-CABLE,7P 2.5 480MM
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X862 87-A70-307-010 VIB,XTAL 4.332MHZ CSA-309ST
X992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST

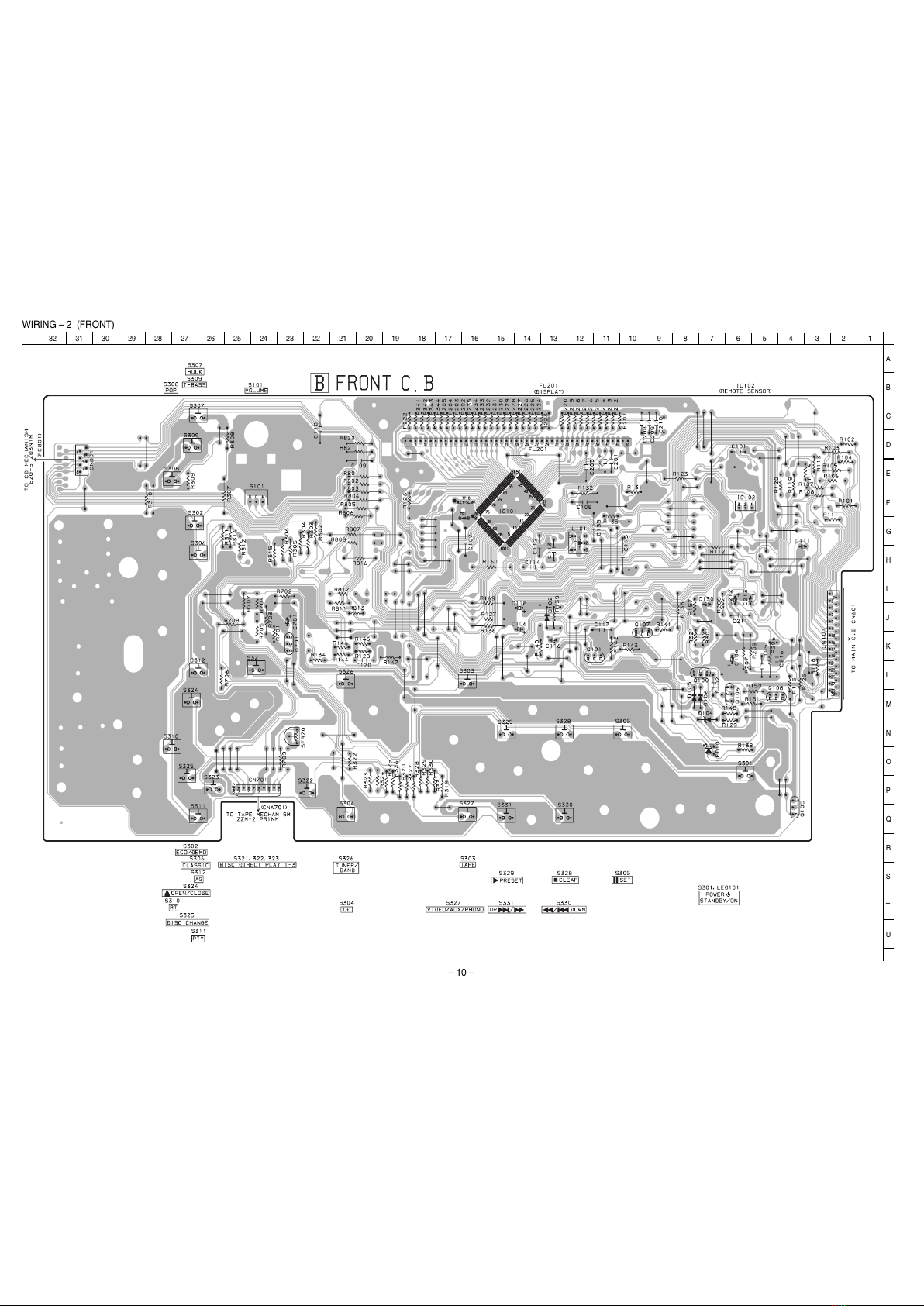

FRONT C.B
C101 87-A11-147-080 CAP,TC U 0.047-50 Z F
C102 87-A11-124-080 CAP,TC U 2200P-50 K B
C104 87-010-246-040 CAP,E 47-35 SME
C105 87-A11-146-080 CAP,TC U 0.022-50 Z F
C106 87-010-374-040 CAP,E 47-10 M 11L SME
C107 87-018-205-080 CAP, CERA-SOL 0.022
C108 87-018-131-080 CAP, CER 1000P-50V
C109 87-018-131-080 CAP, CER 1000P-50V
C110 87-018-131-080 CAP, CER 1000P-50V
C111 87-010-404-040 CAP,E 4.7-50 SME
C112 87-A11-148-080 CAP,TC U 0.1-50 Z F
C113 87-018-131-080 CAP, CER 1000P-50V
C114 87-018-147-080 CAP,TC-U 10P-50 CH
C115 87-018-128-080 CAP, CERA-SOL SS 560P
C116 87-010-400-040 CAP,E 0.47-50
C117 87-A11-148-080 CAP,TC U 0.1-50 Z F
C118 87-010-248-040 CAP,E 220-10 SME
C120 87-018-123-080 CAP, CER 220P-50V
C130 87-010-405-040 CAP,E 10-50
C135 87-A11-148-080 CAP,TC U 0.1-50 Z F
C201 87-018-118-080 CAP,TC-U 82P-50 B
C202 87-018-117-080 CAP,TC-U 68P-50 SL
C205 87-018-117-080 CAP,TC-U 68P-50 SL
C208 87-018-117-080 CAP,TC-U 68P-50 SL
C209 87-018-117-080 CAP,TC-U 68P-50 SL
C210 87-018-117-080 CAP,TC-U 68P-50 SL
C211 87-A11-147-080 CAP,TC U 0.047-50 Z F
C212 87-010-404-040 CAP,E 4.7-50 SME
C213 87-010-404-040 CAP,E 4.7-50 SME
C216 87-A11-147-080 CAP,TC U 0.047-50 Z F
C701 87-010-384-040 CAP,E 100-25 SME
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN701 87-A60-673-010 CONN,9P H 2MM JMT
CN801 87-A60-133-010 CONN,8P V FE
FC801 88-908-271-110 FF-CABLE,8P 1.25 27
FL201 8A-NFA-604-010 FL,10-BT-224GNK
L101 87-A50-408-010 COIL,OSC 5.76MHZ
LED101 87-A40-317-080 LED,SLR-342VCT31 RED
S101 87-A92-071-010 SW,RTRY EC12E24508-30MM
S301 87-A90-095-080 SW,TACT EVQ11G04M
S302 87-A90-095-080 SW,TACT EVQ11G04M
S303 87-A90-095-080 SW,TACT EVQ11G04M
S304 87-A90-095-080 SW,TACT EVQ11G04M
S305 87-A90-095-080 SW,TACT EVQ11G04M
S306 87-A90-095-080 SW,TACT EVQ11G04M
S307 87-A90-095-080 SW,TACT EVQ11G04M
S308 87-A90-095-080 SW,TACT EVQ11G04M
S309 87-A90-095-080 SW,TACT EVQ11G04M
S310 87-A90-095-080 SW,TACT EVQ11G04M
S311 87-A90-095-080 SW,TACT EVQ11G04M
S312 87-A90-095-080 SW,TACT EVQ11G04M
S321 87-A90-095-080 SW,TACT EVQ11G04M
S322 87-A90-095-080 SW,TACT EVQ11G04M
S323 87-A90-095-080 SW,TACT EVQ11G04M
S324 87-A90-095-080 SW,TACT EVQ11G04M
S325 87-A90-095-080 SW,TACT EVQ11G04M
S326 87-A90-095-080 SW,TACT EVQ11G04M
S327 87-A90-095-080 SW,TACT EVQ11G04M
S328 87-A90-095-080 SW,TACT EVQ11G04M
S329 87-A90-095-080 SW,TACT EVQ11G04M
S330 87-A90-095-080 SW,TACT EVQ11G04M
S331 87-A90-095-080 SW,TACT EVQ11G04M
SFR701 87-024-352-080 SFR,4.7K H EVN DJAA03

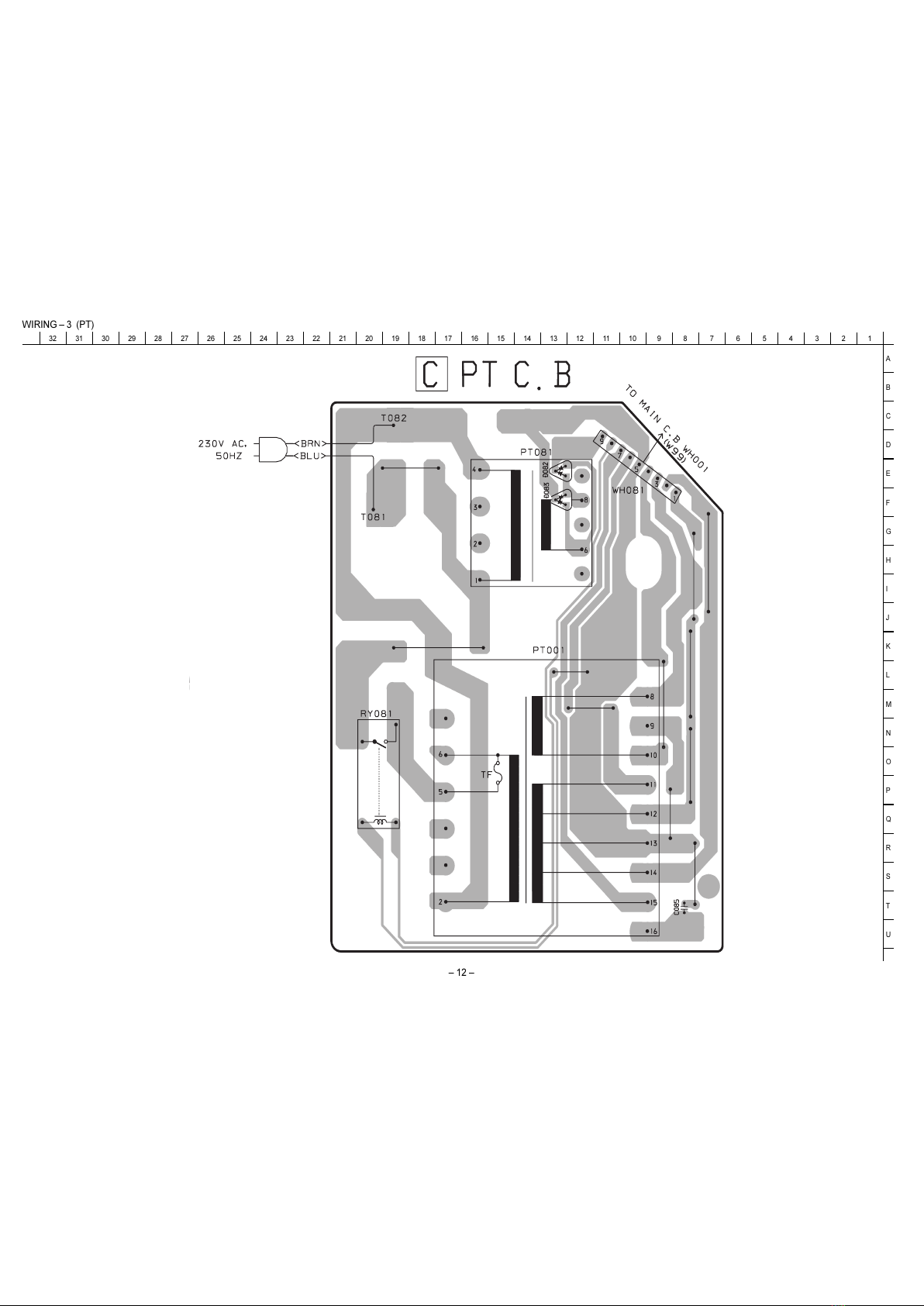

PT C.B
C85 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
PT1 8B-MA6-662-010 PT,BMA-6 EZ
PT81 8B-MA6-675-010 PT,SUB BMA E (VRK)
RY81 87-A91-418-010 RELAY,AC 12V G5PA-1-M
T81 87-A60-317-010 TERMINAL, 1P MSC
T82 87-A60-317-010 TERMINAL, 1P MSC
WH81 87-A90-510-010 HLDR,WIRE 2.5-9P
!
!
!
!
!
All manuals and user guides at all-guides.com
